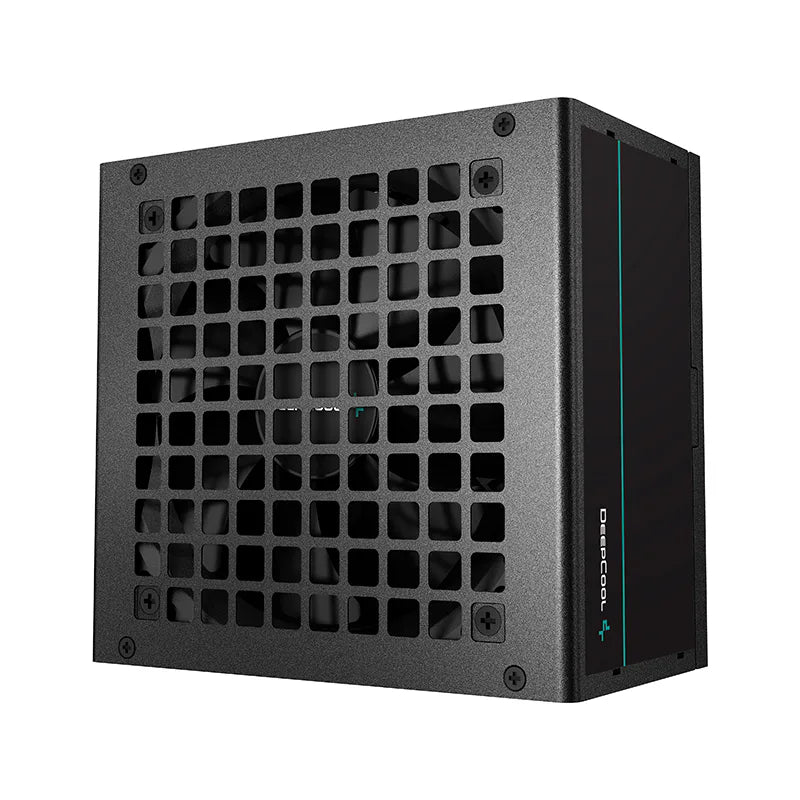

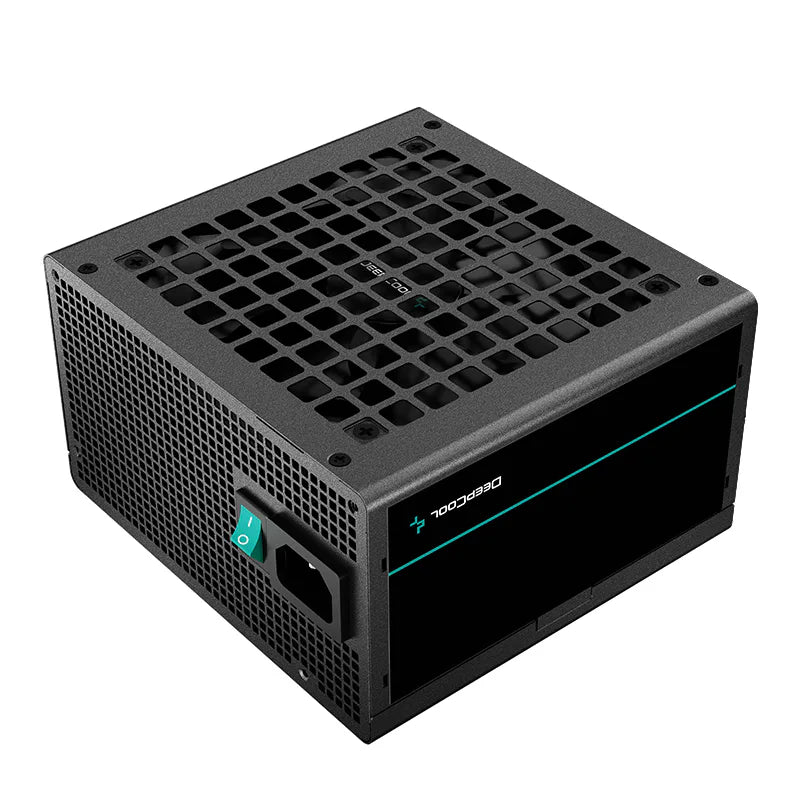

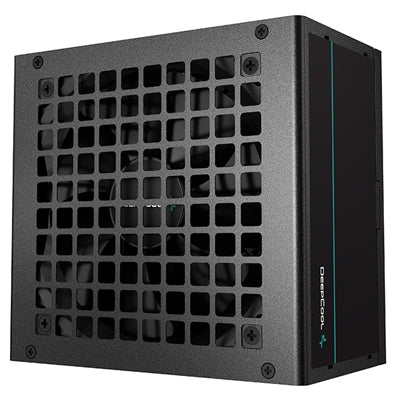

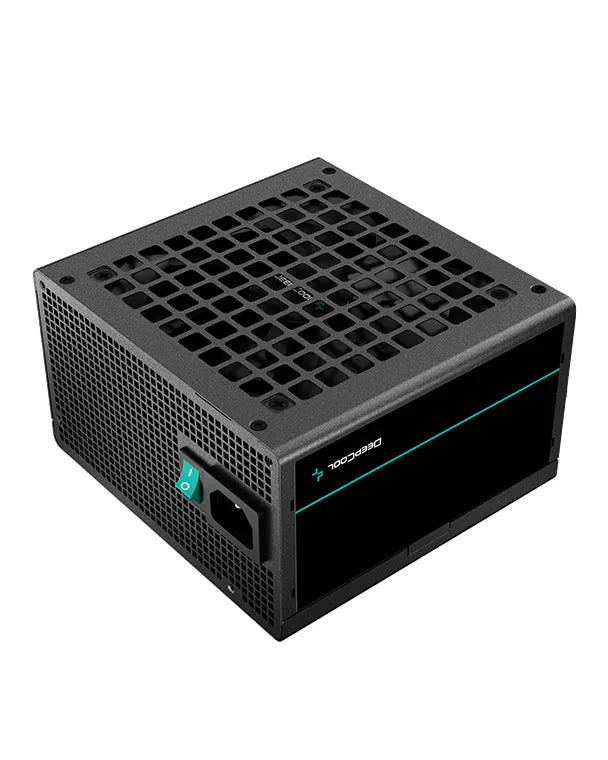

DeepCool PF700 700W 80 PLUS Standard PSU - Silent, ATX
DeepCool
DeepCool PF700 700W 80 PLUS Standard PSU - Silent, ATX
The DeepCool PF700 700W 80 PLUS Standard PSU is a non-modular ATX power supply aimed at budget-conscious PC builders who need dependable, certified power delivery without overpaying. It delivers stable 700W output with 80 PLUS 230V EU Standard efficiency, keeping energy waste and operating temperatures low. A hydraulic bearing fan and flat black cable design make it a practical choice for builders who want a tidy, quiet system on a sensible budget.
Why this product
80 PLUS Standard Efficiency Certified
Certified for 80 PLUS 230V EU Standard efficiency, it achieves 85% efficiency at 50% load — reducing heat output and lowering long-term electricity costs.

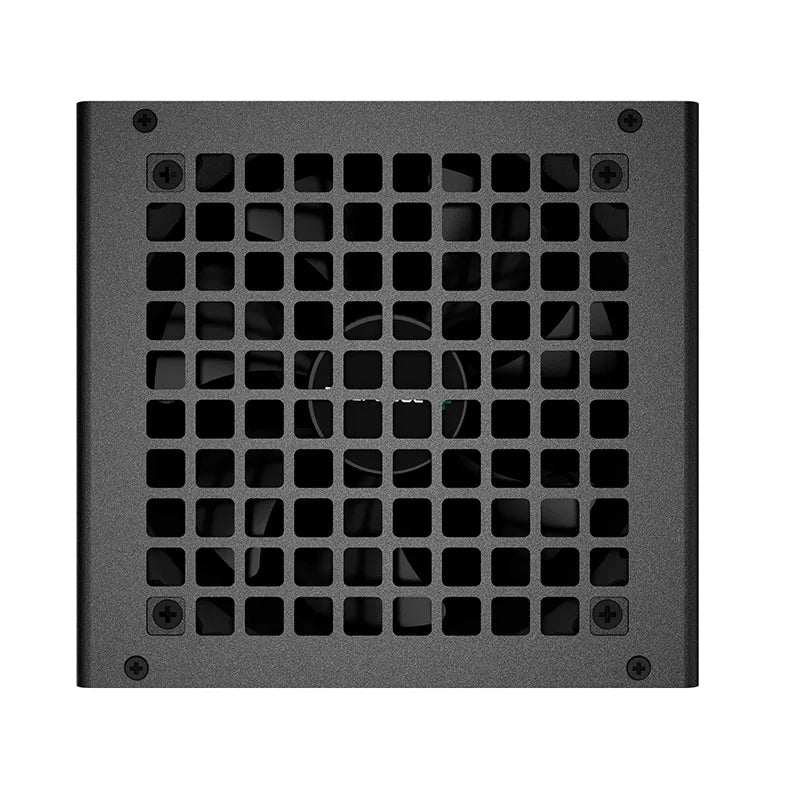

120mm Hydraulic Bearing Fan
The fluid bearing fan is optimally balanced for low-noise operation and has a longer service life than sleeve bearing alternatives, with reduced friction and vibration.
Flat Black Cables for Easy Management
Fixed flat black cables are more flexible and slimmer than round cables, making routing and tidying inside a case noticeably simpler.
Four-Layer Power Protection
Over Power, Over Voltage, Under Voltage and Short Circuit Protection guard connected components against common electrical faults.
Well-Stocked Connector Set
Ships with dual 4/+8-Pin ATX12V, four 6/+8-Pin PCIe, six SATA and two IDE connectors — covering most mainstream and mid-range build configurations.
- Power Output700W
- Efficiency80 PLUS Standard (85% at 50% load)
- Form FactorATX
- ModularityNon-Modular
- Fan120mm Hydraulic Bearing
- PCIe Connectors4x 6/+8-Pin
- SATA Connectors6x SATA
- Dimensions150 x 140 x 86mm (W x L x H)
- SKUDEE-757
- EAN6933412711544
- ATX form factor — fits standard mid-tower and full-tower ATX cases.
- Supports CPUs requiring up to two 4/+8-Pin ATX12V connectors.
- Supports up to four GPUs or expansion cards via four 6/+8-Pin PCIe connectors.
- Six SATA connectors make it suitable for builds with multiple storage drives.
- Non-modular design means all cables are permanently attached — cable management space inside the case should be considered before purchasing.
- Not suited to small form factor (SFX or TFX) cases — ATX dimensions only.
Best for
- Budget-minded PC builders who need a certified, stable 700W supply without spending on modular or higher-efficiency tiers.
- Mid-range gaming builds with a single GPU drawing power through a 6/+8-Pin PCIe connector — four PCIe connectors give adequate headroom.
- Storage-heavy systems that need six SATA connections for HDDs, SSDs and optical drives alongside the main platform.
- Builders prioritising quiet operation — the hydraulic bearing fan reduces noise and vibration compared to sleeve bearing designs.
Trade-offs
- High-end GPU builds that require more than four PCIe power connectors, such as systems using two high-draw graphics cards.
- Builders wanting a clean cable run in a windowed case — the non-modular design means unused cables must be bundled and hidden rather than removed.
- Small form factor builds — the ATX dimensions (150 x 140 x 86mm) will not fit SFX or TFX enclosures.
- Efficiency-focused builds where 80 PLUS Gold or Platinum certification is specified — this unit is certified only to 80 PLUS Standard.
The DeepCool PF Series Power Supply Unit offers safe and stable power performance with reliable 80 PLUS Standard efficiency and affordable pricing.
TO HIGHER STANDARDS
Certified for 80 PLUS 230V EU Standard efficiency that ensures 85% efficiency under typical loading of 50%. Better efficiency translates into lower energy waste and lower temperatures for more cost savings.
SILENT HYDRAULIC BEARING FAN
Optimally balanced for low-noise performance, the 120mm fluid bearing fan improves overall life expectancy and reduces friction and vibration.
FLAT BLACK CABLES
Stealthy and flexible, the fixed flat black cables are easy to maneuver for cable management while also taking up less space in your system.
RELIABLE PROTECTION
Shield against potential risk and damage with overpower, over voltage, and short circuit power protection.
General
| Brand | DeepCool |
|---|---|
| Model | R-PF700D-HA0B-UK |
| Form Factor | ATX |
| Colour | Black |
| Weight | 2.5kg |
| Dimensions | 150 x 140 x 86mm (W x L x H) |
Power & Efficiency
| Power Output | 700W |
|---|---|
| Efficiency Certification | 80 PLUS 230V EU Standard |
| Efficiency at 50% Load | 85% |
| Modularity | Non-Modular |
| Cable Type | Flat Black Cables |
Cooling
| Fan Size | 120mm |
|---|---|
| Fan Bearing Type | Hydraulic Bearing |
Connectors & Protection
| Main Connector | 1x 20/+24-Pin |
|---|---|
| CPU / ATX12V | 2x 4/+8-Pin |
| PCIe | 4x 6/+8-Pin |
| SATA | 6x SATA |
| IDE / Molex | 2x IDE |
| Protection | Over Power, Over Voltage, Under Voltage, Short Circuit Protection |
