DeepCool PL650D 650W 80 Plus Bronze ATX3.1 PSU
DeepCool
DeepCool PL650D 650W 80 Plus Bronze ATX3.1 PSU
The DeepCool PL650D is a 650W 80 Plus Bronze power supply built to the latest ATX3.1 standard, delivering stable power for mid-range to high-performance desktop systems. It includes a native PCIe 5.0 connector rated for 300 watts, handling next-generation graphics cards and components without power spike issues. Backed by a 5-year warranty and premium electrolytic capacitors, it suits builders who need reliable power with forward compatibility.
Why this product
Native ATX3.1 and PCIe 5.0 support
Complies with Intel's ATX3.1 standard and includes a 12VHPWR (16-pin) connector rated to 300 watts, ready for current and future high-power components.
80 Plus Bronze efficiency
Achieves at least 85% efficiency at 50% load, reducing energy waste and heat output compared to unrated units.
Premium capacitors and 16ms hold-up time
High-grade electrolytic capacitors maintain power for at least 16 ms under full load, protecting hardware during brief power interruptions.

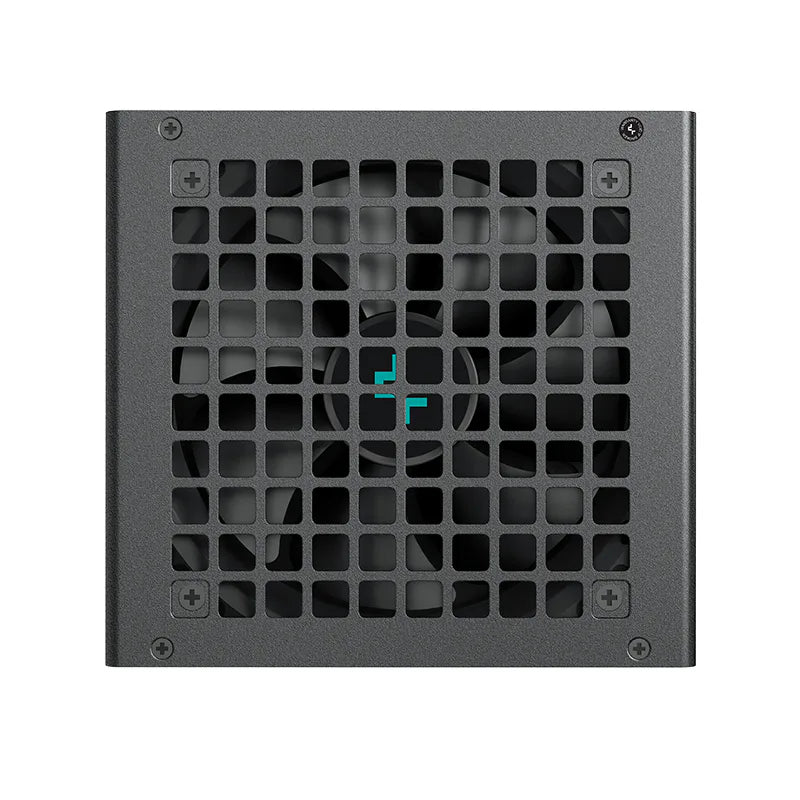

Quiet 120mm hydro-bearing fan
Uses a hydro-bearing fan design for cooling and reduced noise during operation.
Eight-layer protection suite
Includes OPP, OVP, SCP, OTP, OCP, UVP, SIP and NLO safeguards against overcurrent, overvoltage, short circuit and thermal faults.
5-year limited warranty
DeepCool backs the unit with a five-year warranty covering manufacturing defects.
- Power capacity650W
- Efficiency rating80 Plus Bronze
- StandardATX3.1
- Form factorNon-modular
- Fan120mm hydro-bearing
- Warranty5 years limited
- Dimensions150×140×86 mm
- SKUDEE-747
- EAN6933412721178
- Fits ATX and smaller form factor cases with a footprint of 150×140×86 mm and weight of 1.75 kg.
- Supplies three PCIe (6+2)-pin connectors and one 12VHPWR (16-pin) connector for multi-GPU and high-end graphics card configurations.
- Includes two (4+4)-pin EPS connectors for high-end CPU power delivery.
- Non-modular design: all cables are permanently attached, so ensure your case routing supports a full cable set.
- Operates from 100–240V AC at 50/60 Hz and functions at altitudes up to 5,000 metres above sea level.
Best for
- Builders upgrading to RTX 40-series or next-gen GPUs needing native PCIe 5.0 power connectors.
- Mid-range to high-performance desktop systems where stable 650W power output meets or slightly exceeds peak draw.
- Users in regions with unreliable mains power who benefit from extended hold-up time and protection against voltage spikes.
- Buyers prioritizing long-term support and reliability with a five-year warranty.
Trade-offs
- Systems requiring modular or semi-modular cabling; this unit ships with all cables fixed.
- Workstations or servers needing 80 Plus Gold or higher efficiency ratings; this achieves Bronze (≥85% at 50% load).
- Ultra-high-end enthusiast builds demanding more than 650W sustained output.
The DeepCool PL650D 80 Plus Bronze Power Supply is engineered to perfection, delivering stable and reliable power for mid-range to high-performance desktop systems. This power supply unit (PSU) is designed in compliance with INTEL's ATX3.1 standard and features a native PCIe 5.0 power connector. With its streamline hydro-bearing fan and 80 Plus Bronze certification, the PL650D ensures optimal cooling, quiet operation, and high energy efficiency.

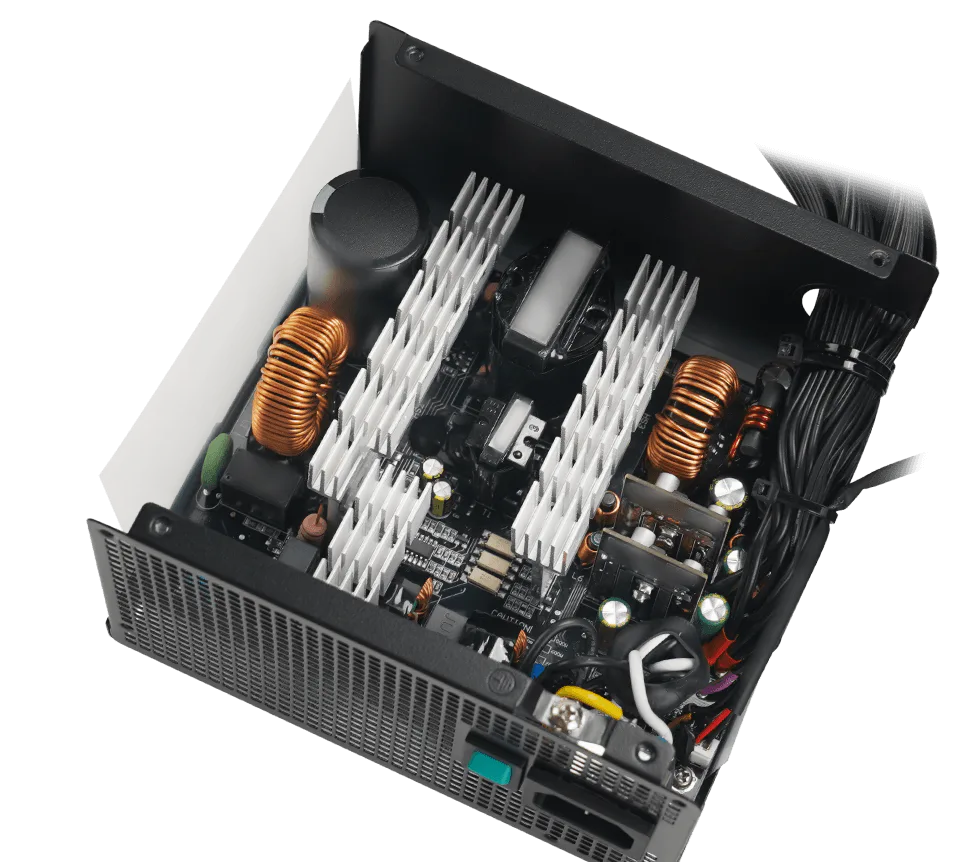

Built with high-grade electrolytic capacitors and a well-thought-out dual-transistor forward topology, it guarantees top-notch durability and performance for years to come.
NATIVE ATX3.1
Based on INTEL's latest ATX3.1 standard, the PL650D has the ability to provide twice the total system power for 0.1 ms, so power spikes will never be an issue. A native PCIe 5.0 power connector is included and has been rated up to 300 watts.
PREMIUM ELECTROLYTIC CAPACITORS

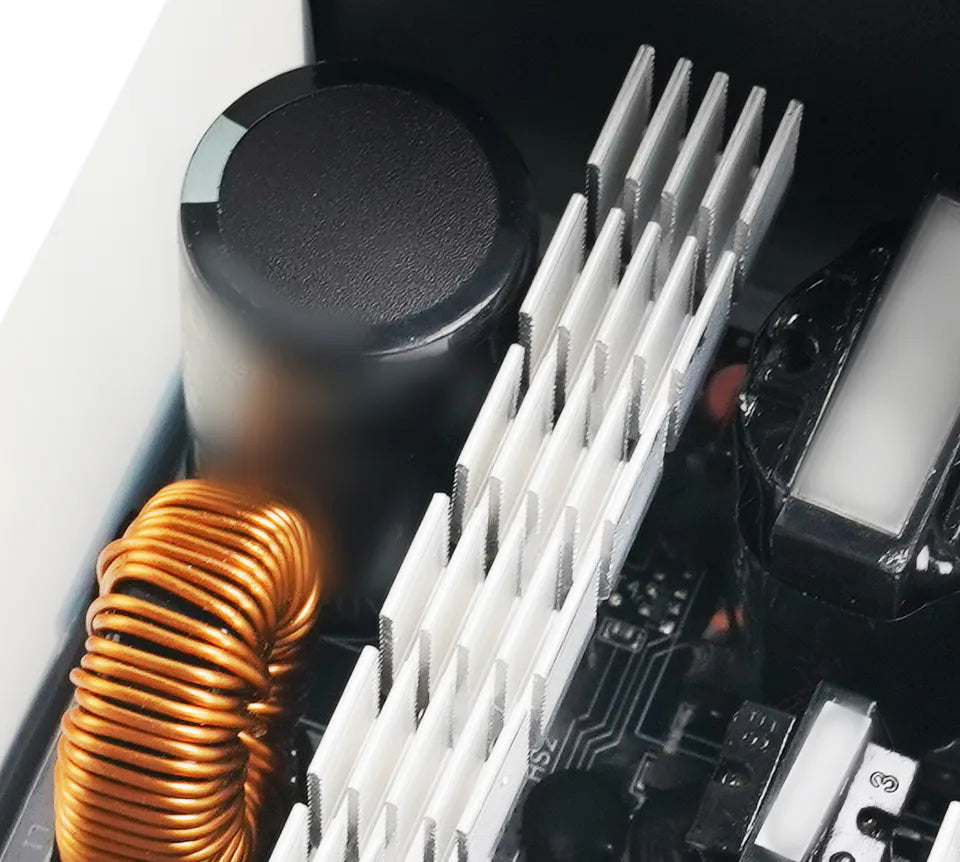

High-grade electrolytic capacitors allow the PL-D series of PSUs to keep the hold-up time to ≥ 16 ms under full load (100%), and they can easily handle power outages.
ROCK SOLID RELIABILITY
Provides reliable and stable power thanks to a well-designed dual-transistor forward topology. The PL-D utilizes active PFC and DC to DC conversion. The entire unit is made of high-quality parts and can operate at altitudes of up to 5,000 meters above sea level.
PAST, PRESENT, AND FUTURE

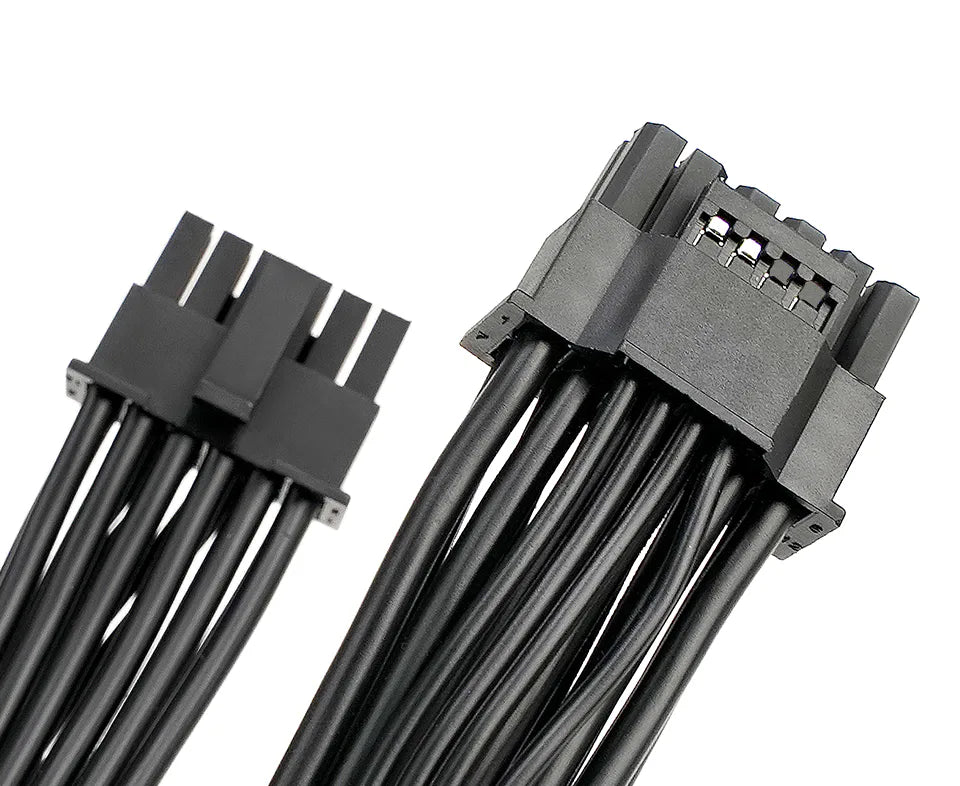

Equipped with three PCIe, two EPS, and a 16AWG 12V-2x6 cable, the PL-D PSUs provide stable and consistent power for legacy and next-generation PCs for the foreseeable future.
BOLD BRONZE
Certified 80 PLUS Bronze, ensuring at least 85% efficiency under typical loads (50%).
PEACE OF MIND
Includes a slew of well-rounded safeguards, including: OPP, OVP, SCP, OTP, OCP, UVP, SIP, NLO.
EXCEPTIONAL WARRANTY
Standing behind the high standards DeepCool has set for our products, a 5-year limited warranty is included to ensure worry-free service.
General
| Brand | DeepCool |
|---|---|
| Model | PL650D |
| Colour | Black |
Power Output
| Capacity | 650W |
|---|---|
| Standard compliance | ATX3.1 (Intel) |
| Hold-up time at full load | ≥16 ms |
| Main connector | (20+4)-pin × 1 |
| CPU connectors | (4+4)-pin × 2 |
| PCIe connectors | (6+2)-pin × 3 |
| 12VHPWR connector | 16-pin × 1 |

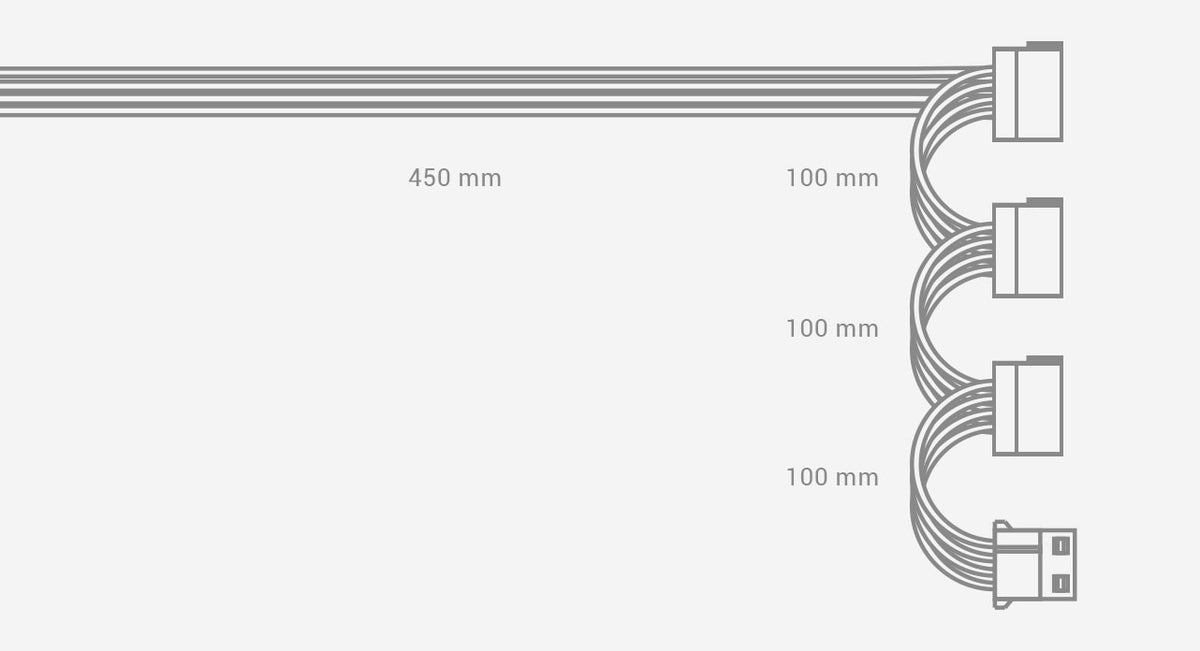

| SATA connectors | × 3 |
| Peripheral connectors | 4-pin × 1 |
Cooling and Efficiency
| Fan type | 120mm hydro-bearing |
|---|---|
| Efficiency rating | 80 Plus Bronze (≥85% at 50% load) |
| Topology | Active PFC + DC to DC |
| Operating temperature | 0–40°C |
Protection and Durability
| Protection features | OPP, OVP, SCP, OTP, OCP, UVP, SIP, NLO |
|---|---|
| MTBF | 100,000 hours |
| Input voltage | 100–240V AC |
| Input frequency | 50/60 Hz |
| Operating altitude | Up to 5,000 metres |
| Warranty | 5-year limited warranty |
Physical
| Dimensions | 150×140×86 mm (W×L×H) |
|---|---|
| Weight | 1.75 kg |
| Design | Non-modular |
