DrayTek Vigor 2763 V2763-K VDSL/ADSL SoHo Firewall Router
DrayTek
DrayTek Vigor 2763 V2763-K VDSL/ADSL SoHo Firewall Router
The DrayTek Vigor 2763 V2763-K is a wired VDSL/Ethernet VPN router built for small office and home office networks that need reliable failover, firewall protection, and remote access. It combines a VDSL2 modem with Gigabit Ethernet WAN, 4 LAN ports, and 2 VPN tunnels in a single appliance, handling speeds up to 950 Mbps through Ethernet and supporting both IPsec and SSL VPN.
Why this product
Dual WAN with VDSL or Ethernet
Connect via integrated VDSL2 modem for Superfast Fibre, or use Gigabit Ethernet WAN for Virgin Media Cable or FTTP. Built-in failover backup WAN.
Up to 950 Mbps firewall throughput
Handles Ethernet WAN at full line speed without bottleneck. NAT throughput reaches 940 Mbps with hardware acceleration.
2 VPN tunnels with multiple protocols
Support for IPsec, SSL VPN, OpenVPN, L2TP over IPsec, and PPTP. Up to 200 Mbps IPsec throughput and 100 Mbps SSL VPN throughput.
4 Gigabit LAN ports with VLAN support
Allows 4 LAN subnets using port-based or 802.1q VLANs for network segmentation and security in complex SoHo setups.
Central management via VigorACS
Provision, monitor, and manage the router remotely across multiple locations without on-site IT support.
- WAN InterfaceVDSL2 / ADSL2+ and Gigabit Ethernet
- LAN Ports4 x Gigabit Ethernet
- Firewall ThroughputUp to 950 Mbps
- VPN Tunnels2 concurrent
- Power Consumption14.6 W
- Warranty2 years manufacturer's
- SKUDRA-1341
- EAN4710484745330
- Works with VDSL2 Superfast Fibre connections and Gigabit Ethernet WAN (Virgin Media Cable, FTTP).
- Supports 4G/LTE modems via USB port for mobile failover connectivity.
- Wall or shelf mountable; optional rack mount available with Vigor RM1 bracket.
- Requires external 12V DC power supply (UK plug supplied). No PoE capability.
- No built-in wireless—this is a wired model. Separate wireless access point required for WiFi.
Best for
- Small offices and home offices needing dual WAN failover and remote site connectivity.
- Teams running VPN for remote workers or branch-to-branch LAN-to-LAN connections.
- Deployments requiring central management of multiple routers via VigorACS.
- Networks that need firewall, content filtering, and QoS with App prioritisation.
Trade-offs
- Organisations needing wireless built-in—no WiFi in this wired model.
- Sites requiring more than 2 concurrent VPN tunnels—limited to 2 LAN-to-LAN or Remote Dial-In tunnels.
- Enterprise deployments requiring high-density VPN scaling or multiple failover routes.
- Locations where wall or shelf mounting is not practical and standard rack mount is unavailable.
The DrayTek Vigor 2763 series VDSL and Ethernet VPN routers are ideal for Small Office and Home Office networks. Featuring powerful Firewall and Content Filtering, configurable Quality of Service and an array of VPN capabilities, with the performance to make full use of FTTP Fibre Broadband. Incorporating Wireless in the Vigor 2763ac model, the Vigor 2763 series provide a reliable, highly integrated and reliable connectivity solution for SoHo networks.
VDSL and Ethernet Router
Connect the Vigor 2763 to Superfast Fibre with its integrated VDSL modem. Or connect to VirginMedia Cable and Ultrafast FTTP with Ethernet WAN.
Powerful SoHo VPN Router
Connect remote locations with 2 VPN tunnels for Remote Dial-In User Teleworker and Dial-Out LAN to LAN VPN. Up to 200Mbps IPsec performance, with SSL and OpenVPN support.
Quality of Service with App QoS
Prioritise essential services easily with DrayTek's App QoS system and Auto-VoIP prioritisation.

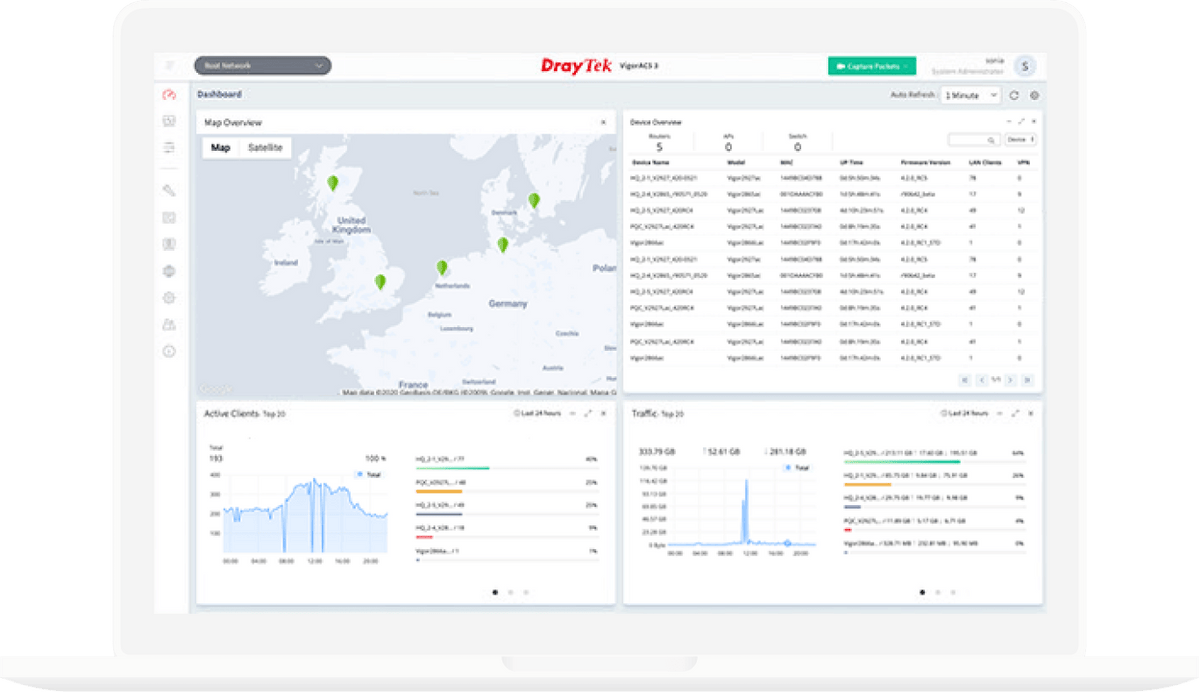

VigorACS Central Management
DrayTek's powerful VigorACS central management platform allows you to manage, monitor and configure the Vigor 2763, along with all other DrayTek products remotely across multiple locations.
VDSL and Ethernet Router
Reliable and fast Internet connectivity with Failover backup WAN and powerful Route Policy.
Powerful SoHo VPN Router
Connect up to 2 Remote Dial-In User tunnels, Site-to-Site or connect to VPN services.
4 Gigabit LAN Ports with VLANs
4 LAN ports and 4 LAN subnets allow for implementation of complex & secure networks.
VPN Matcher
Break through NAT and CG-NAT with DrayTek's VPN Matcher service for LAN to LAN and Teleworker VPNs.
Firewall & Content Filtering
Manage Internet access with Firewall, App Enforcement & Category-based Web Filtering.
VigorACS Central Management
Easily provision, monitor and manage remote sites without on-site IT or dedicated staff.
Networking
| Brand | DrayTek |
|---|---|
| WAN Interface | VDSL2 / ADSL2+ (RJ11) and Gigabit Ethernet WAN |
| LAN Ports | 4 x Gigabit Ethernet (RJ45) |
| USB Ports | 2 x USB (for 4G/LTE modem, storage, or printer) |
| VPN Tunnels | 2 concurrent (LAN-to-LAN or Remote Dial-In Teleworker) |
| VPN Protocols | IPsec IKEv1 & IKEv2, SSL VPN, L2TP over IPsec, OpenVPN, PPTP |
| Wireless | None (wired model) |
Performance
| Firewall Throughput | Up to 950 Mbps (Ethernet WAN) |
|---|---|
| NAT Throughput | Up to 940 Mbps (with hardware acceleration) |
| IPsec VPN Throughput | Up to 200 Mbps |
| SSL VPN Throughput | 100 Mbps |
Ports & power
| Power | DC 12V (via external PSU, supplied); 100–240VAC input |
|---|---|
| Power Consumption | 14.6 W |
Physical
| Part Number | V2763-K |
|---|---|
| Dimensions | 207 mm (W) x 131 mm (D) x 39–42 mm (H) |
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | -25°C to 70°C |
| Operating Humidity | 10% to 90% (non-condensing) |
| Mounting | Wall or Shelf Mountable (rack mount optional with Vigor RM1) |
| Warranty | 2 years manufacturer's warranty |
