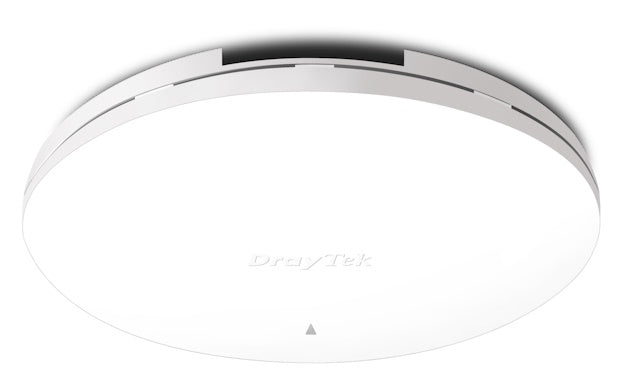

DrayTek VigorAP 962C AX3000 Wi-Fi 6 Ceiling Mesh Access Point
DrayTek
DrayTek VigorAP 962C AX3000 Wi-Fi 6 Ceiling Mesh Access Point
The DrayTek VigorAP 962C is a Wi-Fi 6 ceiling-mounted mesh access point for business and office networks that need fast, reliable wireless coverage for many devices at once. It combines dual-band AX3000 performance with a 2.5Gbps Ethernet uplink and PoE+ power, and can manage up to 20 compatible access points from a single controller.
Why this product
Wi-Fi 6 with high device density
Handles up to 256 concurrent clients across dual-band 802.11ax, using 2x2 and 3x3 MIMO to serve crowded environments without slowdown.
2.5Gbps wired uplink
High-speed Ethernet port matches the wireless throughput and supports gigabit backhaul for mesh networks.
PoE+ powered installation
Draws power through the Ethernet cable using standard 802.3at PoE+, eliminating a separate power outlet and simplifying ceiling mounting.
Centralised AP management
Deploy and monitor up to 20 VigorAP units from one master controller with auto-provisioning and zero-touch setup.
WPA3 and Enterprise security
Supports the latest WPA3-Personal and 802.1x Enterprise, with mixed WPA3/WPA2 fallback for networks in transition.
- Wireless StandardWi-Fi 6 (802.11ax) AX3000
- 5GHz ThroughputUp to 2402 Mbps
- 2.4GHz ThroughputUp to 574 Mbps
- Max Concurrent Clients256
- Ethernet Uplink2.5 Gbps PoE+
- MountingCeiling or wall
- Power802.3at PoE+ or DC 12V adapter
- Managed APsUp to 20 VigorAPs
- SKUDRA-1059
- EAN471048474699

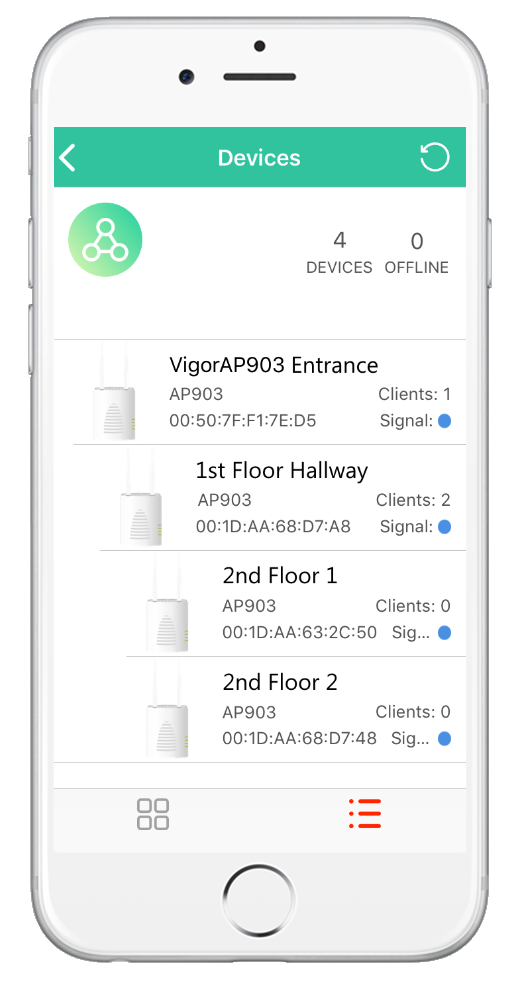

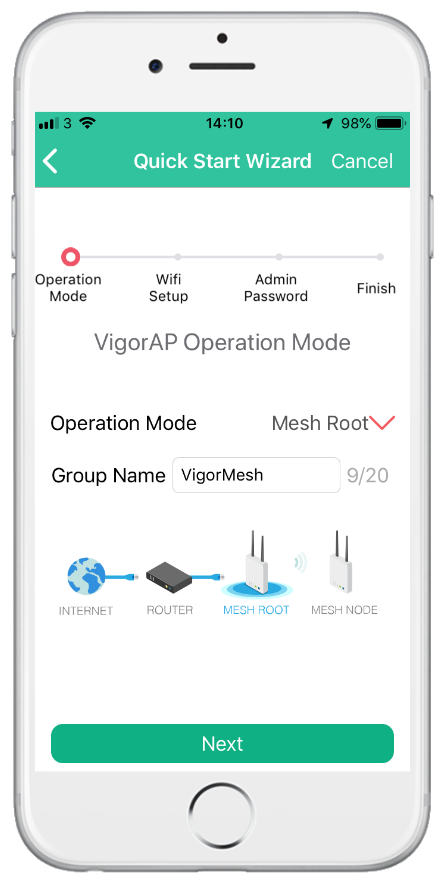

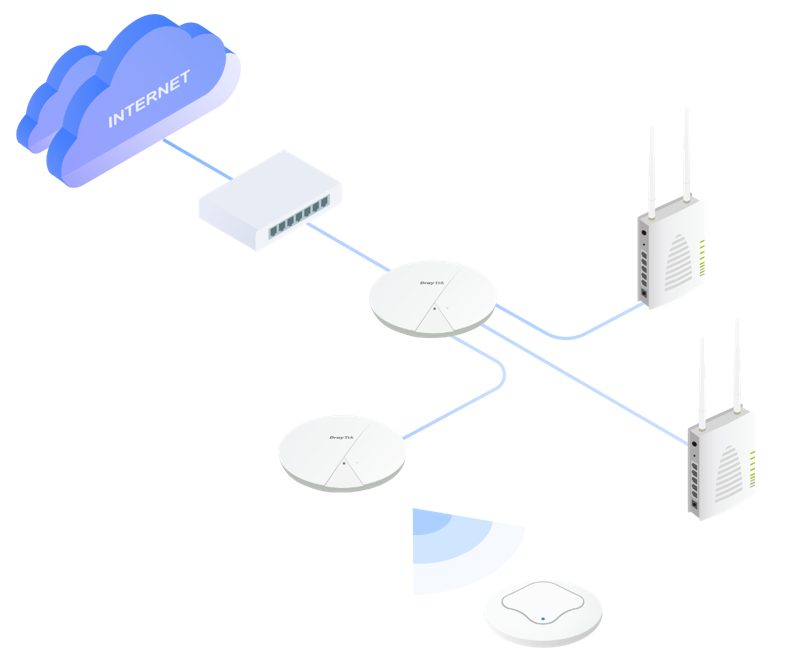

- Works as a standalone access point or integrates into a mesh network with other compatible DrayTek VigorAP models.
- Powered by 802.3at PoE+ via the 2.5Gb Ethernet port, or by the included DC 12V adapter.
- Manages up to 20 total VigorAP access points and up to 8 mesh-compatible VigorAPs through the Wireless Virtual Controller module.
- Supports 16 SSIDs total (8 per band) for separate guest, internal and departmental networks.
- Ceiling or wall mounting is standard; comes with brackets for recessed and suspended ceilings, but requires appropriate mounting hardware for other surfaces.
Best for
- Dense office, retail or hospitality spaces
- Organisations needing centralised AP management across multiple sites
- Networks with high PoE+ infrastructure already in place
- Deployments requiring WPA3 Enterprise security
- Ceiling-mounted installations where cable routing is difficult
Trade-offs
- Small homes or single-room coverage. Its high-density design and mesh/management overhead suit multi-AP deployments, not standalone use in compact spaces.
- Networks without PoE+ infrastructure. Requires either a compatible PoE+ injector on the uplink or the DC adapter; cannot run from standard 802.3af PoE.
- Wall-mount-only installations. While it can mount on walls, the design is optimised for ceiling placement; wall mounting may require additional brackets.
The VigorAP 962C is a high-performance wireless access point designed for business and SOHO environments. This ceiling or wall-mounted mesh access point delivers dual-band wireless performance of up to 3Gbps (AX 3000), providing fast and reliable Wi-Fi connectivity for demanding network.
Equipped with 2.5Gb Ethernet wired connectivity, the VigorAP 962C ensures seamless integration with your existing network infrastructure. This allows for high-speed data transfer and optimal performance for all your connected devices.
The latest wireless standard dramatically improves performance, handling efficiently multiple users and devices. The technology is partially based on LTE features used on mobile networks where many connections are managed by a single access point.

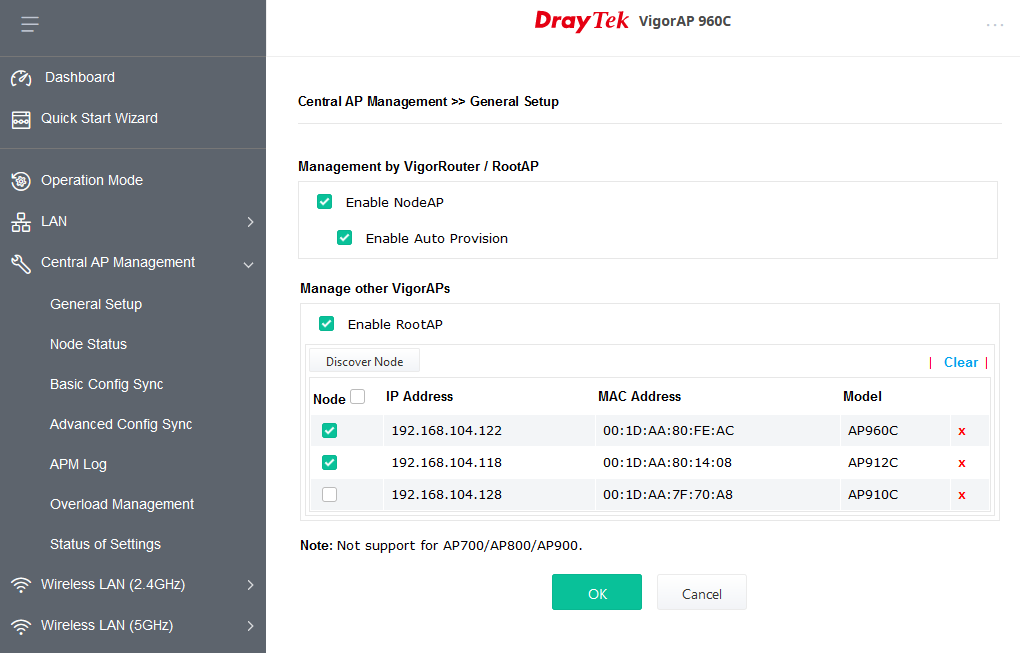

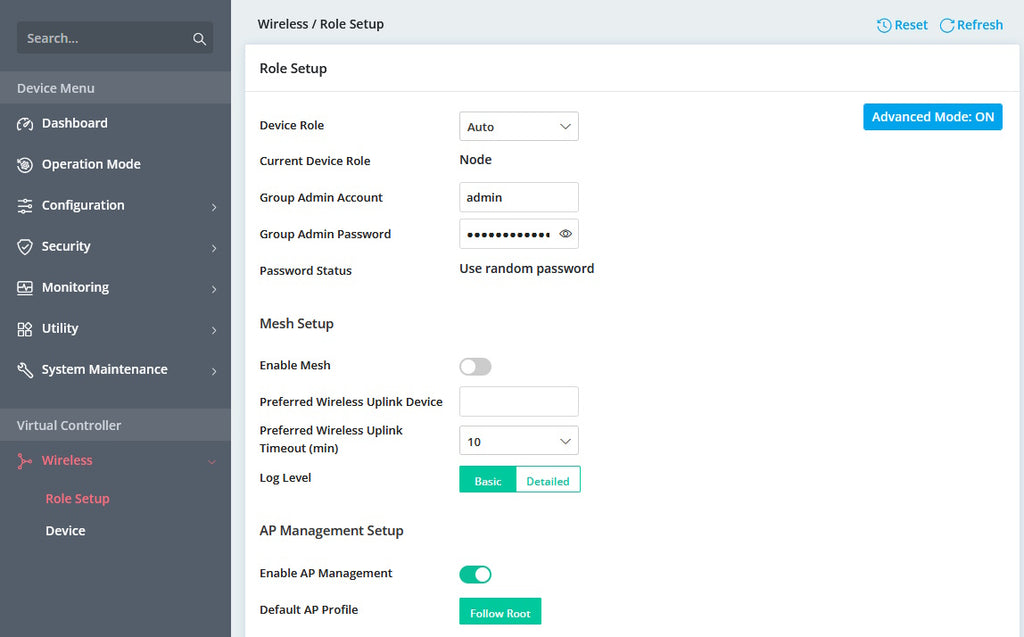

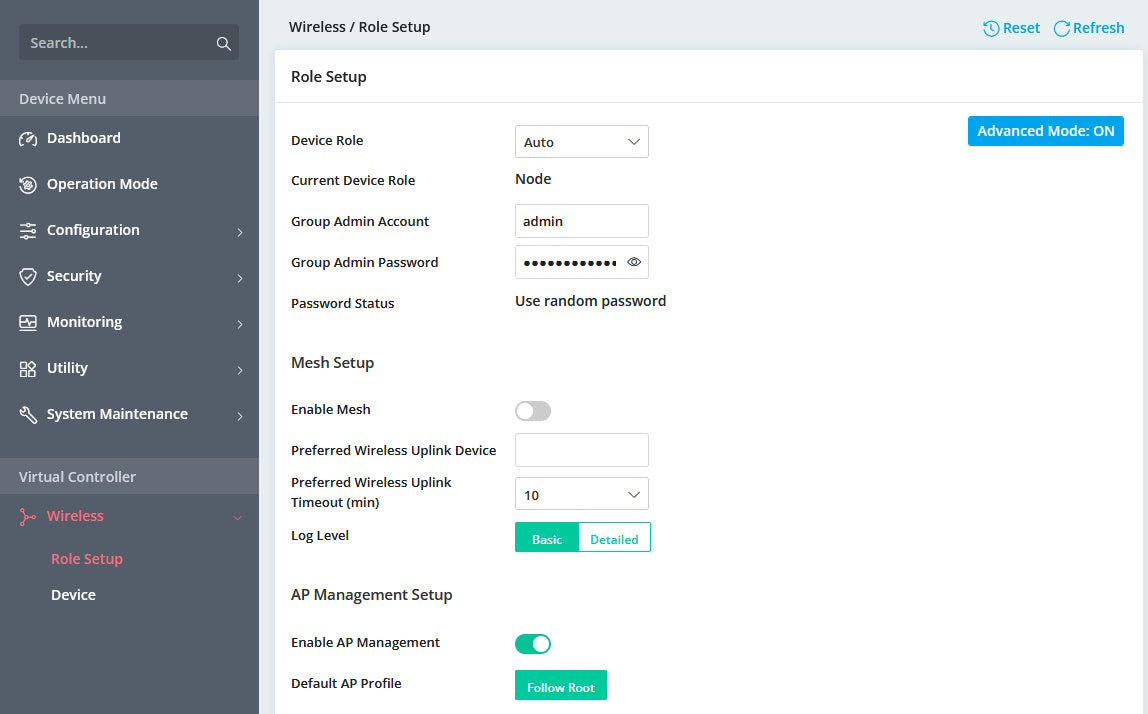

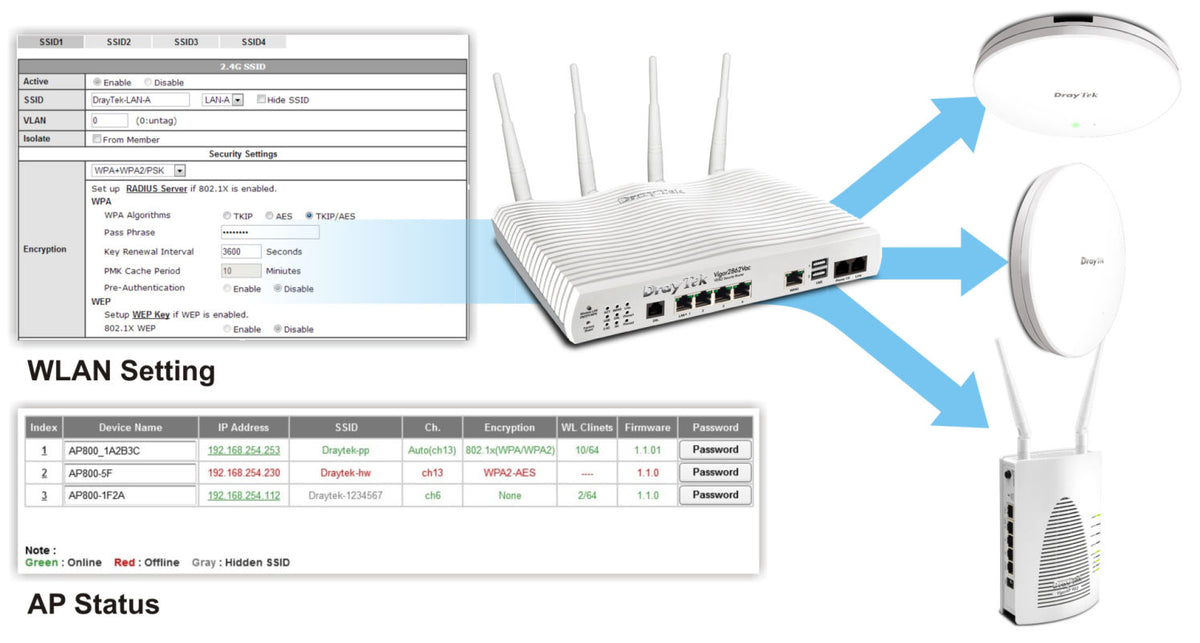

Master AP Management
With VigorAP 962C, you can effortlessly manage up to eight compatible mesh VigorAPs and as many as 20 access points through the easy-to-use Wireless Virtual Controller module. Enjoy the convenience of auto-provisioning and AP monitoring, both readily available upon initial use.
Benefits: Zero Touch Deployment.
High-Density Performance
Easily accommodate high-density environments by linking up to 256 clients with our 802.11ax dual-band antennas and Wi-Fi 6 2x2 MIMO technology.
Benefits: Improved network efficiency in dense environments.
WPA3 Security
Protect your network with robust wireless security using the latest WPA3-Personal or 802.1x Enterprise. Networks can transition to the new standard with mixed WPA3/WPA2 support and different SSIDs can be set with varying security levels.
Benefits: Private and secure Wi-Fi network.

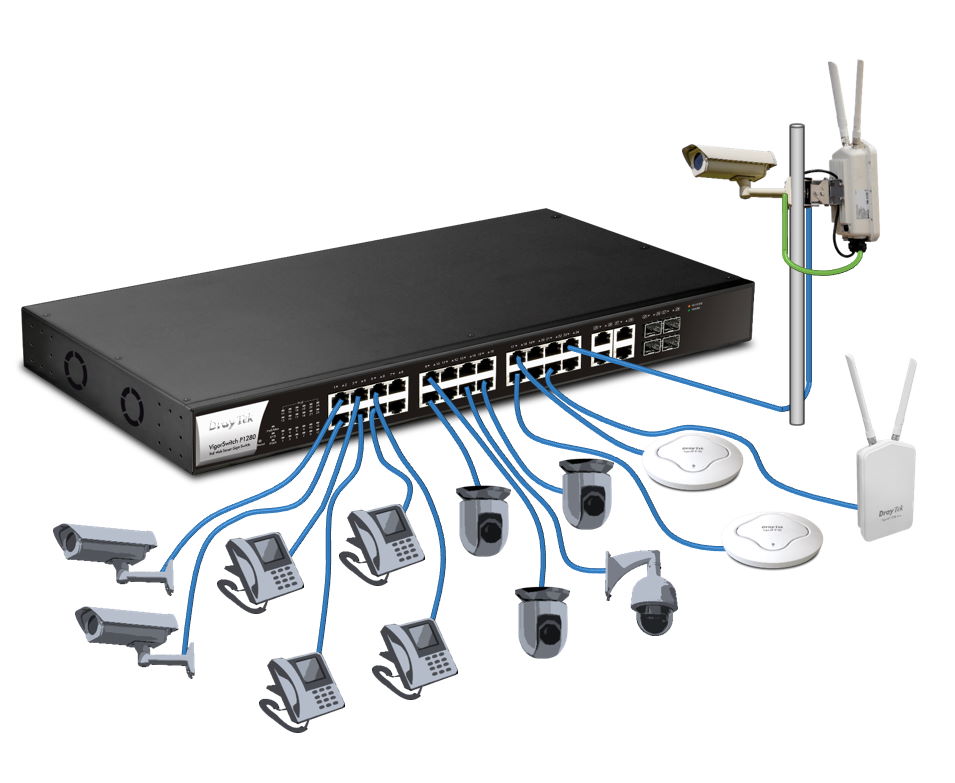

PoE+ Powered
The VigorAP 962C can be powered through its 2.5Gb Ethernet interface using standard IEEE 802.3at PoE+ for a convenient and neat installation.
Benefits: Simplified installation, reduced cable clutter, consistent power to device.
Flexible Installation
The AP-962C is a versatile shape that complements both business and home interiors. It can be installed on ceilings or walls and comes with a secure ceiling mounting plate and easy-to-install clips for suspended ceilings.
Benefits: Flexible and discrete installation.
Networking
| Brand | DrayTek |
|---|---|
| Standard | Wi-Fi 6 (802.11ax), AX3000 Class |
| 5GHz Performance | Up to 2402 Mbps PHY Rate; 802.11ax/a/n/ac, 3x3 MIMO |
| 2.4GHz Performance | Up to 574 Mbps PHY Rate; 802.11ax/b/g/n, 2x2 MIMO |
| Max Concurrent Clients | 256 |
| Wireless Networks (SSIDs) | 16 total (8 per band) |

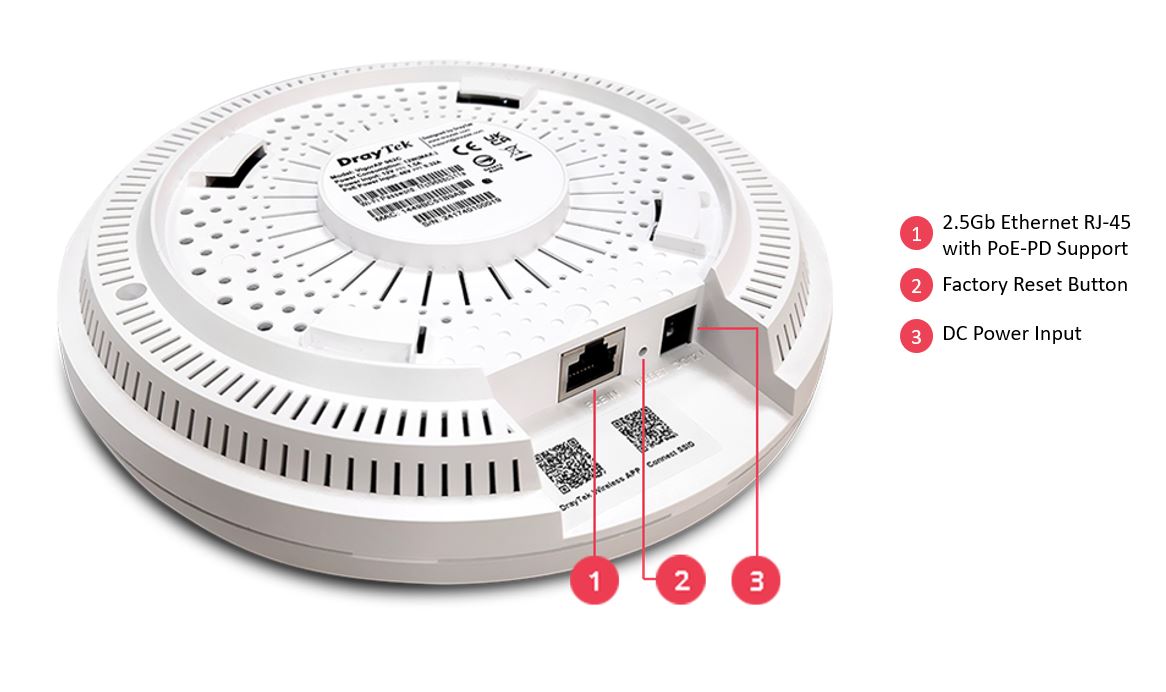

Ports & Power
| Ethernet Ports | 1 × 2.5 Gbps (2.5G/1G/100M/10M), RJ45 |
|---|---|
| PoE Support | 802.3at PoE+ via LAN port |
| Power Input | DC 12V 1.5A (external AC/DC PSU) or PoE+ |
| Max Power Consumption | 12 Watts |
Performance & Security
| Antennas | 3 × internal PiFA 5G (4.9 dBi), 2 × internal PiFA 2.4G (4.2 dBi) |
|---|---|
| Security | WPA3-Personal, WPA3-Enterprise (802.1x), WPA2, mixed WPA3/WPA2 |

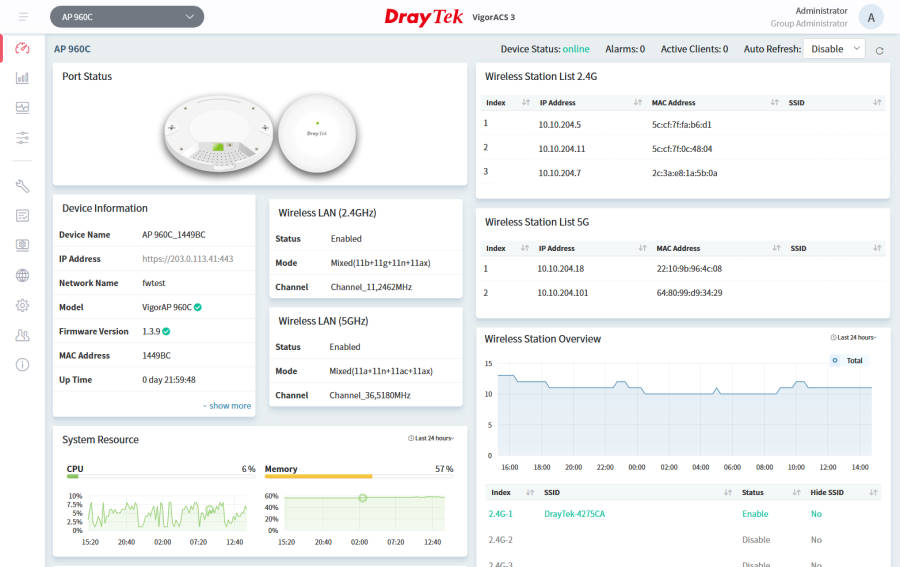

| Management | Web Interface (HTTP/HTTPS), TR-069, CLI (Telnet/SSH), SNMP v2/v2c/v3, Central AP Management (up to 20 VigorAPs), VigorACS Cloud Management |
Physical
| Dimensions | 208 × 208 × 32.1 mm |
|---|---|
| Weight | 812.6 g (unit) |
| Mounting | Ceiling or wall; includes mounting plate and clips for suspended ceilings |
| Part Number | VAP962C-K |
