TP-Link 5-Port Gigabit Easy Smart Switch - TL-SG105E
TP-Link

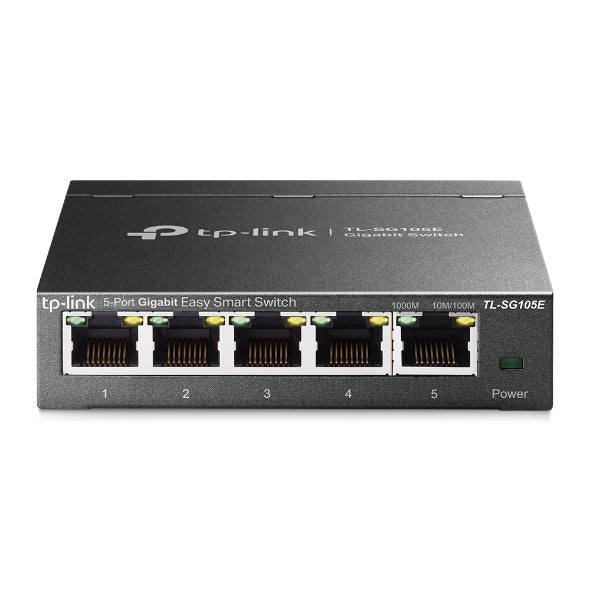

TP-Link 5-Port Gigabit Easy Smart Switch - TL-SG105E

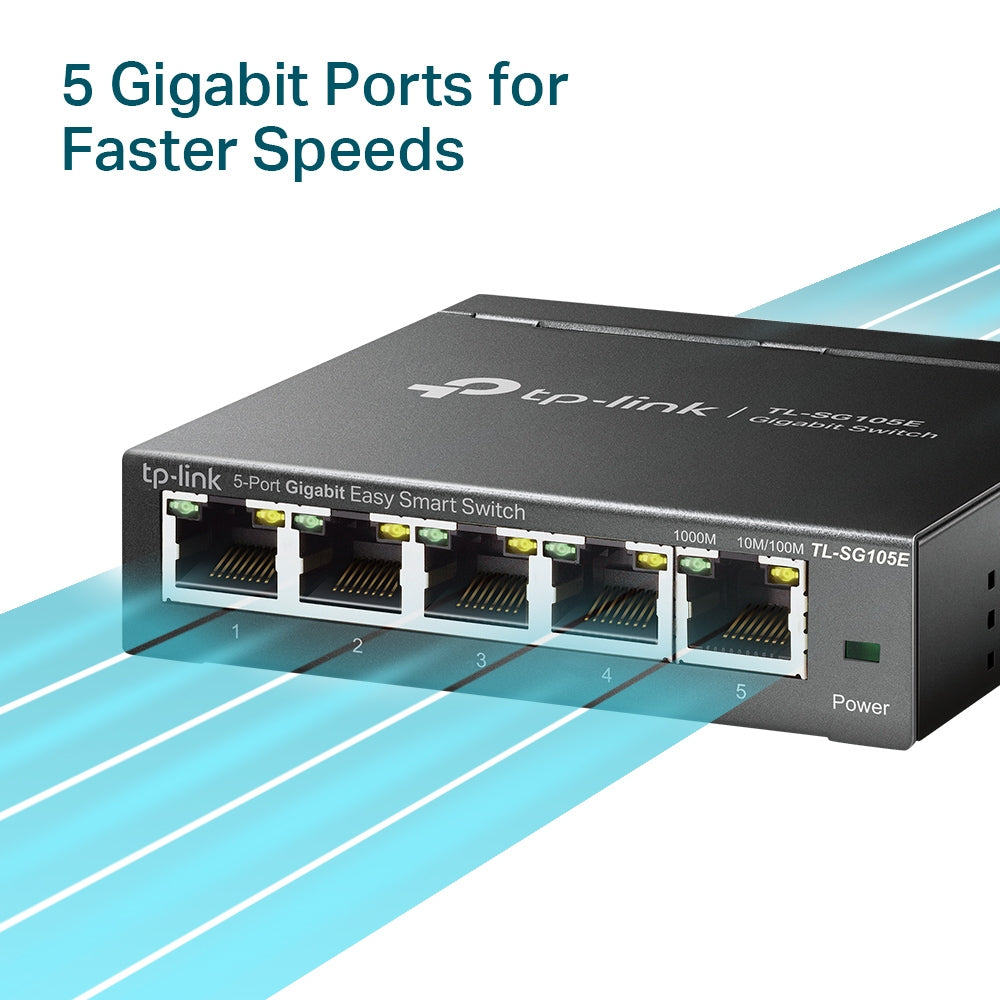

- 5 10/100/1000Mbps ports provide instant large file transfers
- Innovative energy-efficient technology reduces power consumption by up to 75%
- IEEE 802.3x flow control provides reliable data transfers
- 16K Jumbo frame improves performance of large data transfers
- Effective network monitoring via Port Mirroring, Loop Prevention and Cable Diagnostics
- Port and tag-based QoS enable smooth latency-sensitive traffic
- Abundant VLAN features improve network security via traffic segmentation
- Sturdy, compact metal casing and shielded RJ45 ports, with desktop/wall-mounting design, to meet your needs in any environment
- Fanless design ensures quiet operation
Product Description
The TL-SG105E 5-Port Gigabit Easy Smart switch is an ideal upgrade from an unmanaged switch, designed for Small and Medium Business networks that require simple network management. Network administrators can effectively monitor traffic via Port Mirroring, Loop Prevention and Cable Diagnostics features. To optimize traffic on your business network, TL-SG105E offers both port and tag based QoS to keep latency-sensitive traffic moving smoothly and jitter-free. Additionally, port-based, tag-based and MTU VLAN can improve security and meet more network segmentation requirements. Moreover, with its innovative energy-efficient technology, the TL-SG105E can save up to 75% of power consumption, making it an eco-friendly solution for your business network.
TL-SG105E offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG105E offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.

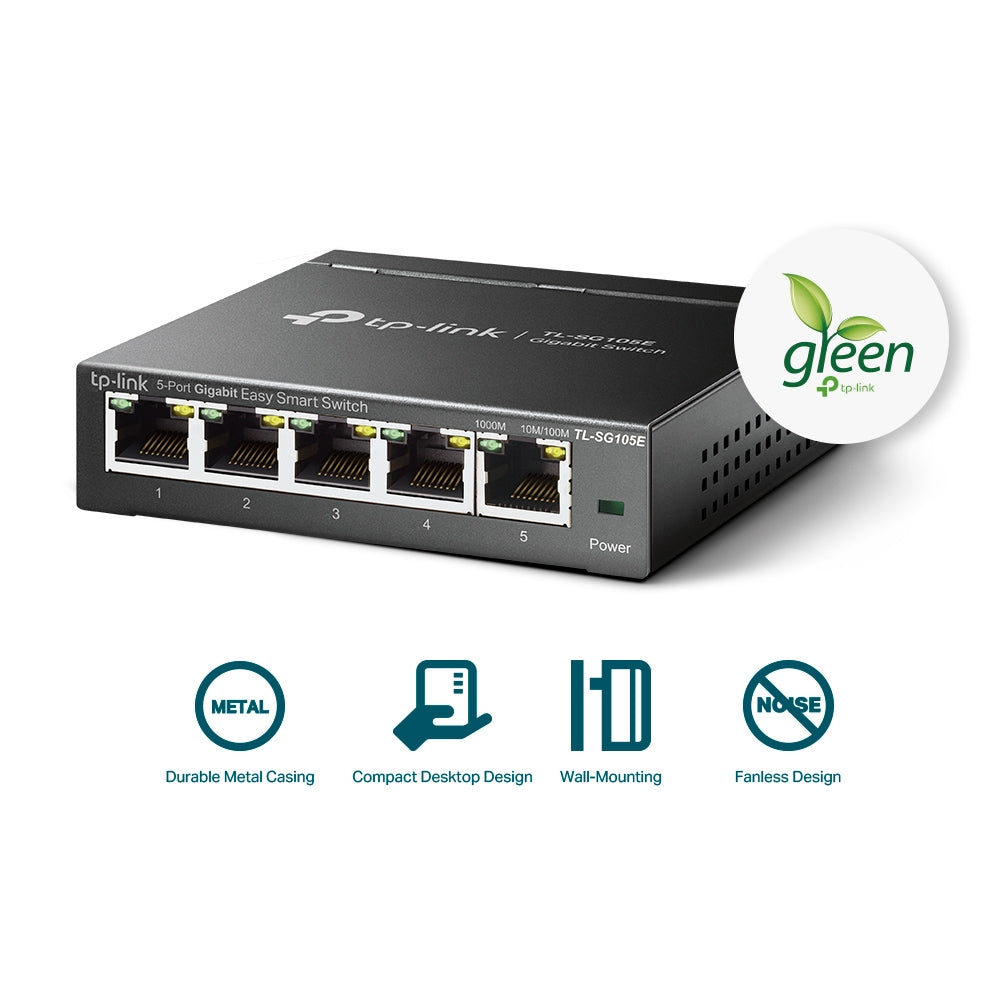

The interior components of TL-SG105E are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG105E delivers switching performance you can depend on. Compact Desktop Design, Wall-Mounting, Fanless Design.
TP-Link's latest generation of Easy Smart Switches make use of innovative energy-saving technologies. Power consumption automatically adjusts according to link status and cable length, allowing you to expand your network while minimizing your carbon footprint. Save the planet and lower your energy bills — it's a win-win!

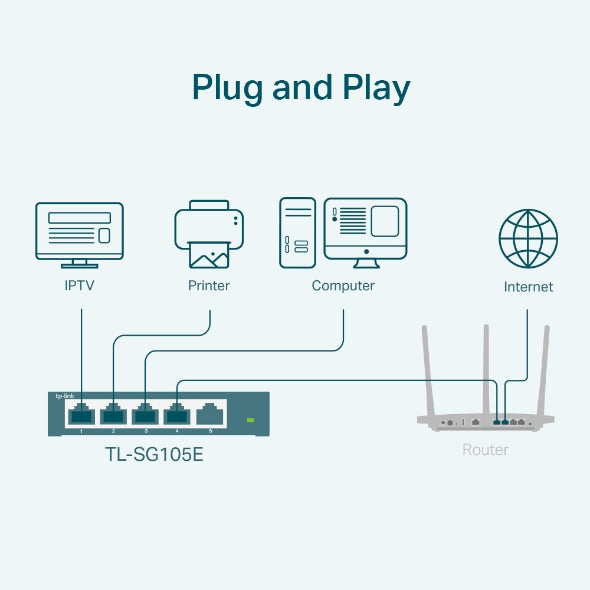

TL-SG105E is easy to use and manage. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Its compact size makes it ideal for desktops with limited space. Dynamic LED lights provide real-time work status display and basic fault diagnosis.
Product Specifications
| Model | TL-SG105E |
| Standards | IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Ports | 5× 10/100/1000Mbps RJ45 Ports |
| Switching Capacity | 10 Gbps |
| Forwarding Rate | 7.4 Mpps |
| MAC Address Table | 2K entries |
| Packet Buffer Memory | 1.5 Mb |
| Jumbo Frame | 15KB (v1) / 16KB (v3+) |
| Dimensions (W × D × H) | 100 × 98 × 25 mm (3.9 × 3.9 × 1.0 in.) |
| Fan | Fanless |
| Operating Temperature | 0°C – 40°C (32°F – 104°F) |
| Storage Temperature | -40°C – 70°C (-40°F – 158°F) |
| Operating Humidity | 10% – 90% non-condensing |
| Storage Humidity | 5% – 95% non-condensing |
| Certifications | FCC, CE, RoHS |
| Mounting | Desktop / Wall-Mounting |
| Warranty | Limited Lifetime Replacement |
