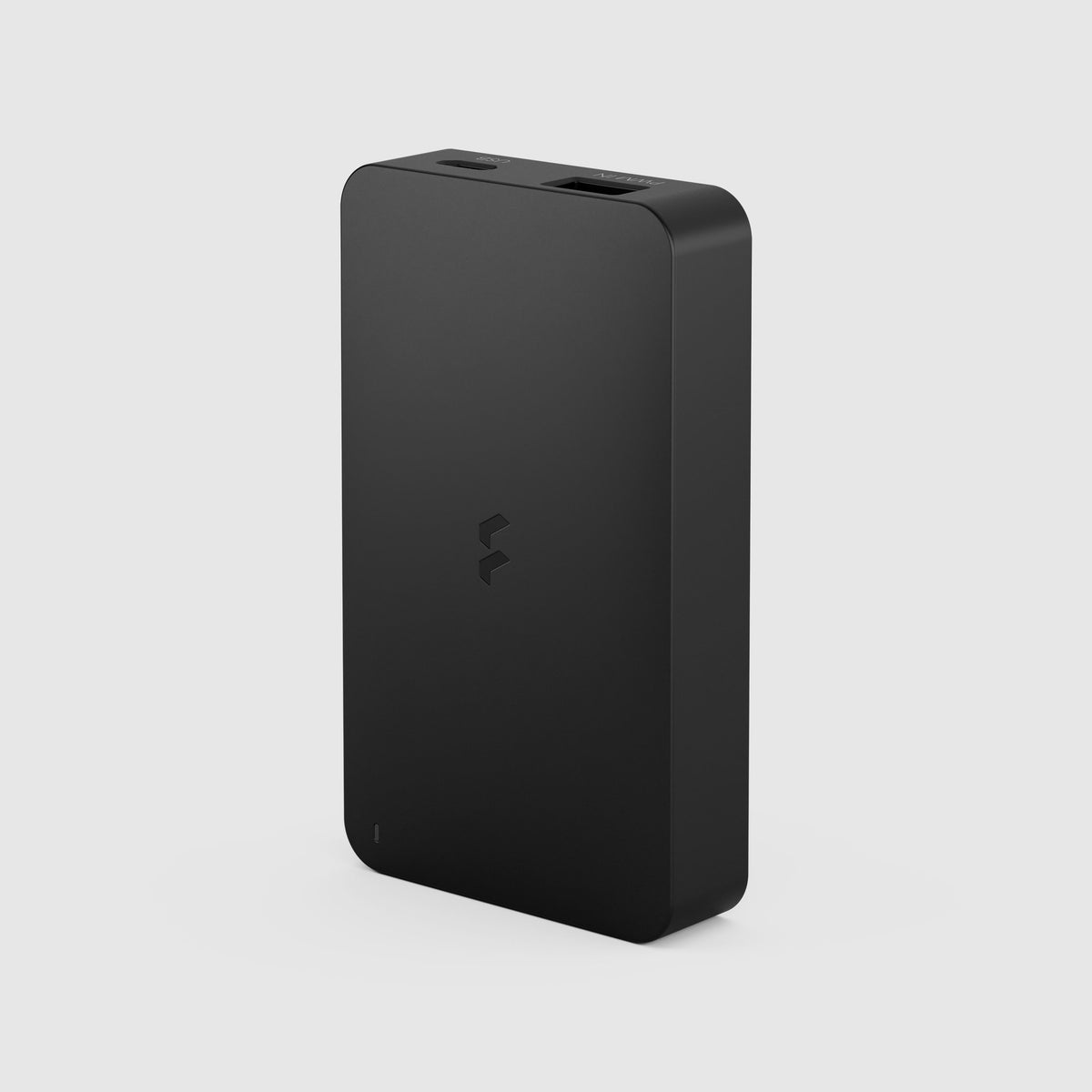

Fractal Design Adjust Pro Hub - PWM & ARGB Fan Controller
Fractal Design
Fractal Design Adjust Pro Hub - PWM & ARGB Fan Controller
The Fractal Design Adjust Pro Hub is a PWM and ARGB fan controller that lets you manage fan speeds and RGB lighting through a web browser without installing background software. It connects to your motherboard via USB and powers from your PSU's SATA connector, acting as a bridge between your compatible fans and the Adjust Pro web-based configuration tool. Settings are stored locally on the device, so your custom curves and lighting effects persist across restarts.
Why this product
Web-based control, no software needed
Configure fan speeds and lighting through any Chromium-based browser. All settings save locally on the device, eliminating the need for background applications or constant cloud connectivity.

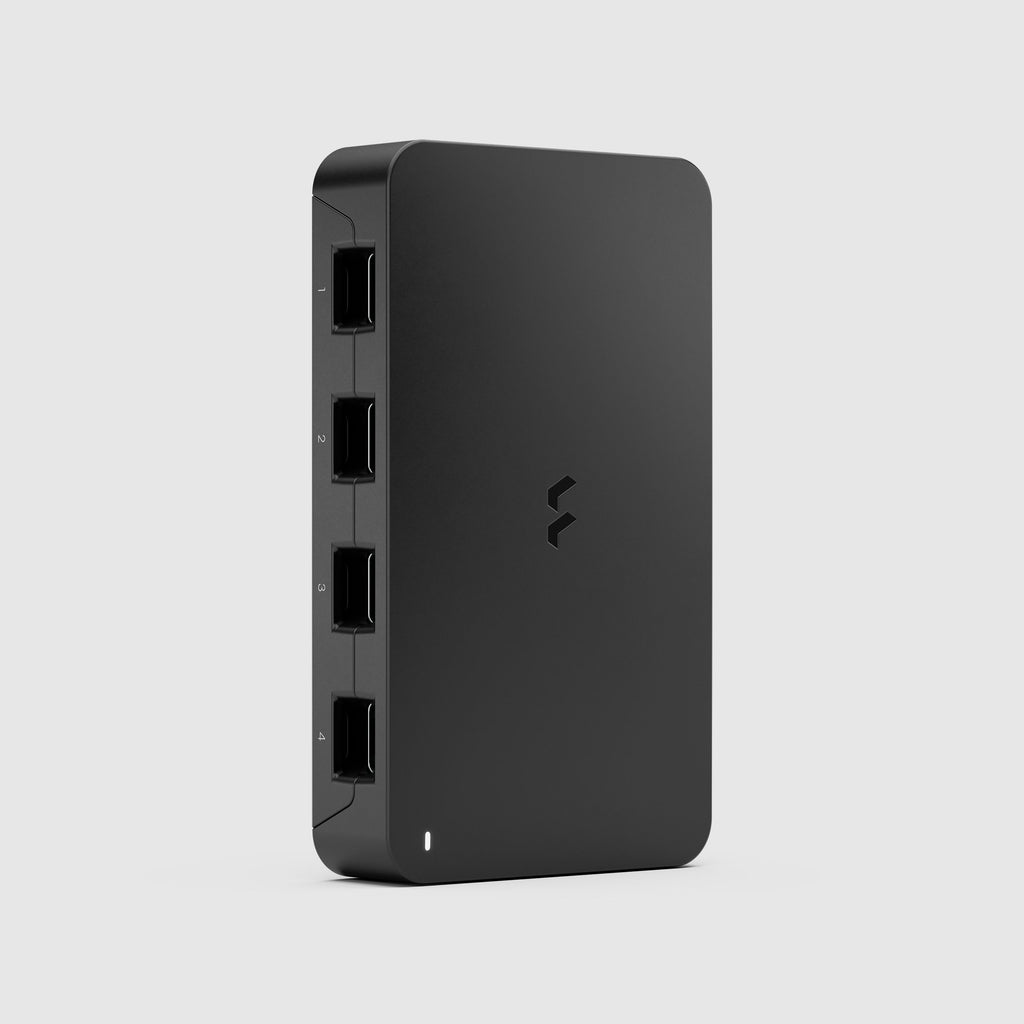

Four output ports with daisy-chain support
Connect up to 16 ARGB Gen 2 devices or 400 LEDs total across the four integrated ports. Daisy chaining allows larger setups to be managed from a single hub.
Dual power delivery
Handles both 12 V and 5 V outputs independently—up to 2 A at 12 V and 4.5 A at 5 V—supporting PWM fans, ARGB strips, and legacy components via the included splitter cable.
Magnetic mounting with rubber feet
Fastens securely inside your case with magnetic attachment and stays put thanks to grippy rubber feet, allowing flexible placement without screws or adhesive.

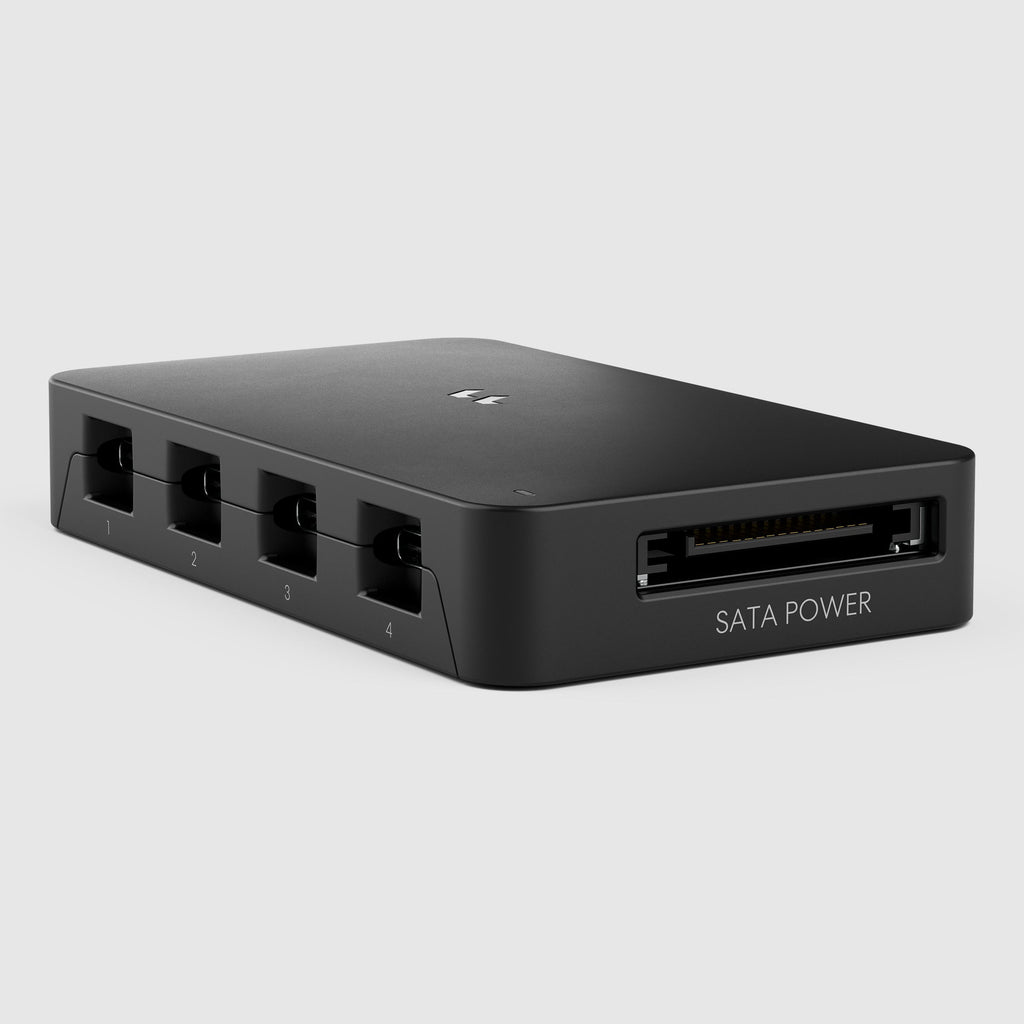

- Input PowerSATA (12 V + 5 V)
- Output Ports4 × Micro-USB (ARGB Gen 2)
- Max Current at 12 V2 A
- Max Current at 5 V4.5 A
- ARGB CapacityUp to 16 devices, 400 LEDs total
- Warranty2 years
- SKUFRA-6735
- EAN7340172709084
- Works with Fractal Design Momentum series fans and any ARGB Gen 2 devices that use Micro-USB connectors.
- Connects to PC motherboards with an available internal USB 2.0 header.
- Supports legacy PWM and 3-pin ARGB headers via the included 150 mm splitter cable for non-proprietary components.
- Requires a SATA power connector from your PSU for 12 V and 5 V rails.
- Needs a Chromium-based web browser (Chrome, Edge, etc.) to access the Adjust Pro configuration tool.
Best for
- Builders who want RGB and fan control without running persistent background software.
- Fractal Design system builds using Momentum fans and compatible ARGB components.
- Setups with mixed fan and lighting brands, thanks to the legacy splitter cable for standard connectors.
- Users who prefer browser-based tools over dedicated applications and want settings to survive system restarts.
Trade-offs
- Systems without an available USB 2.0 header on the motherboard.
- Builds that cannot spare a SATA power connector from the PSU.
- Users who need control over more than 16 ARGB Gen 2 devices or 400 LEDs total.
- Motherboards without Chromium-based browser access or systems in isolated networks.
Effortlessly control your Fractal fans and RGB components without running background software.
With the ability to connect RGB components and fans, such as Momentum series, Adjust Pro Hub acts as a plug-and-play bridge between components and our intuitive web-based configuration tool Adjust Pro.
Once connected, simply visiting the Adjust Pro site enables the easy configuration of fan speeds and lighting settings with dynamic themes, animation modes, and startup effects – with all preferences saved locally on the device, removing the need to run software.
Effortlessly adjust your fan speed curve preferences through your web browser for optimized cooling and noise management.
Save all your settings locally on the Adjust Pro Hub device without the need to download or run background software.
Connectors
| Brand | Fractal Design |
|---|---|

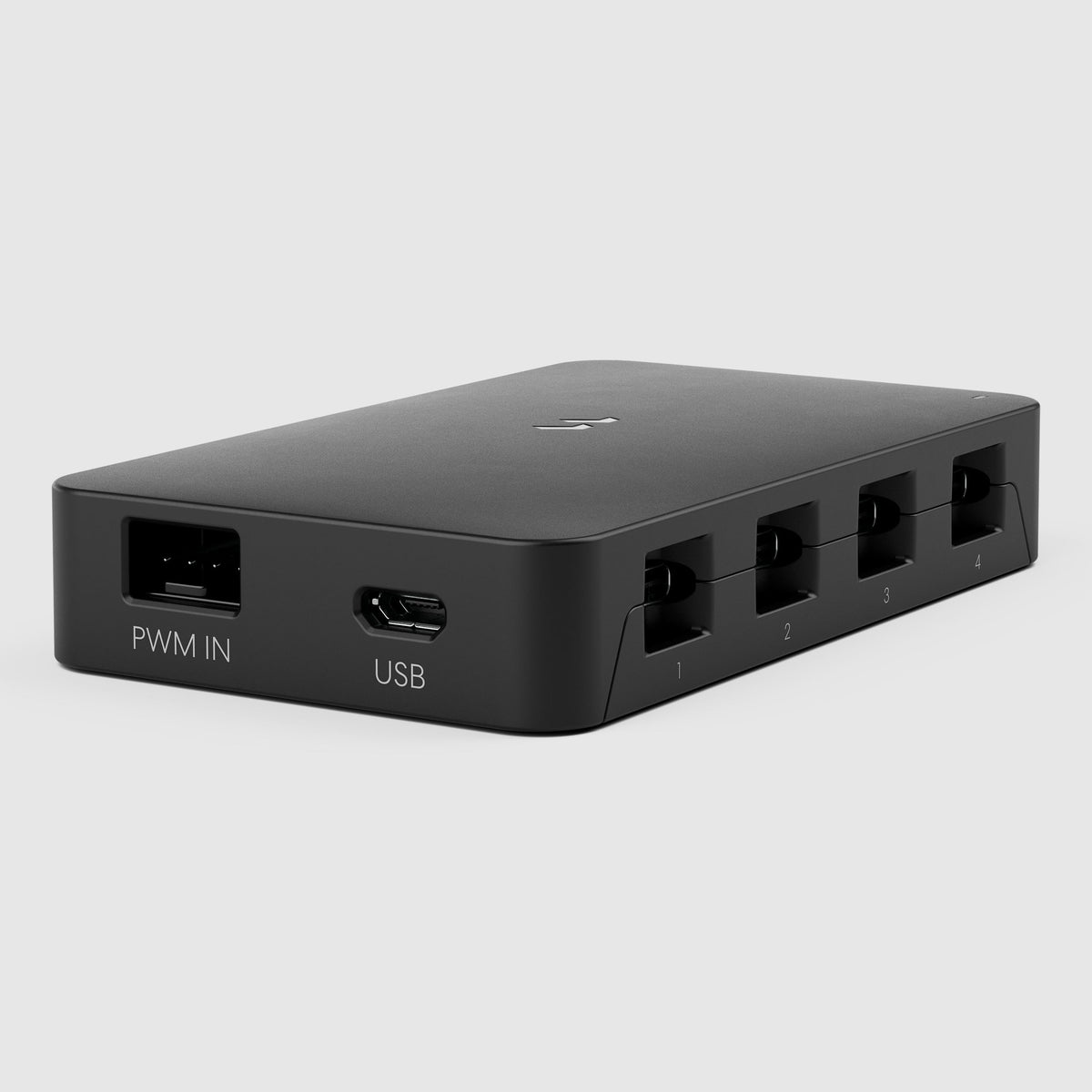

| Input Connector | SATA power, USB 2.0 header (motherboard) |
| Output Connectors | 4-pin PWM connector / Micro-USB |
| Proprietary Connector | Fractal Connect |

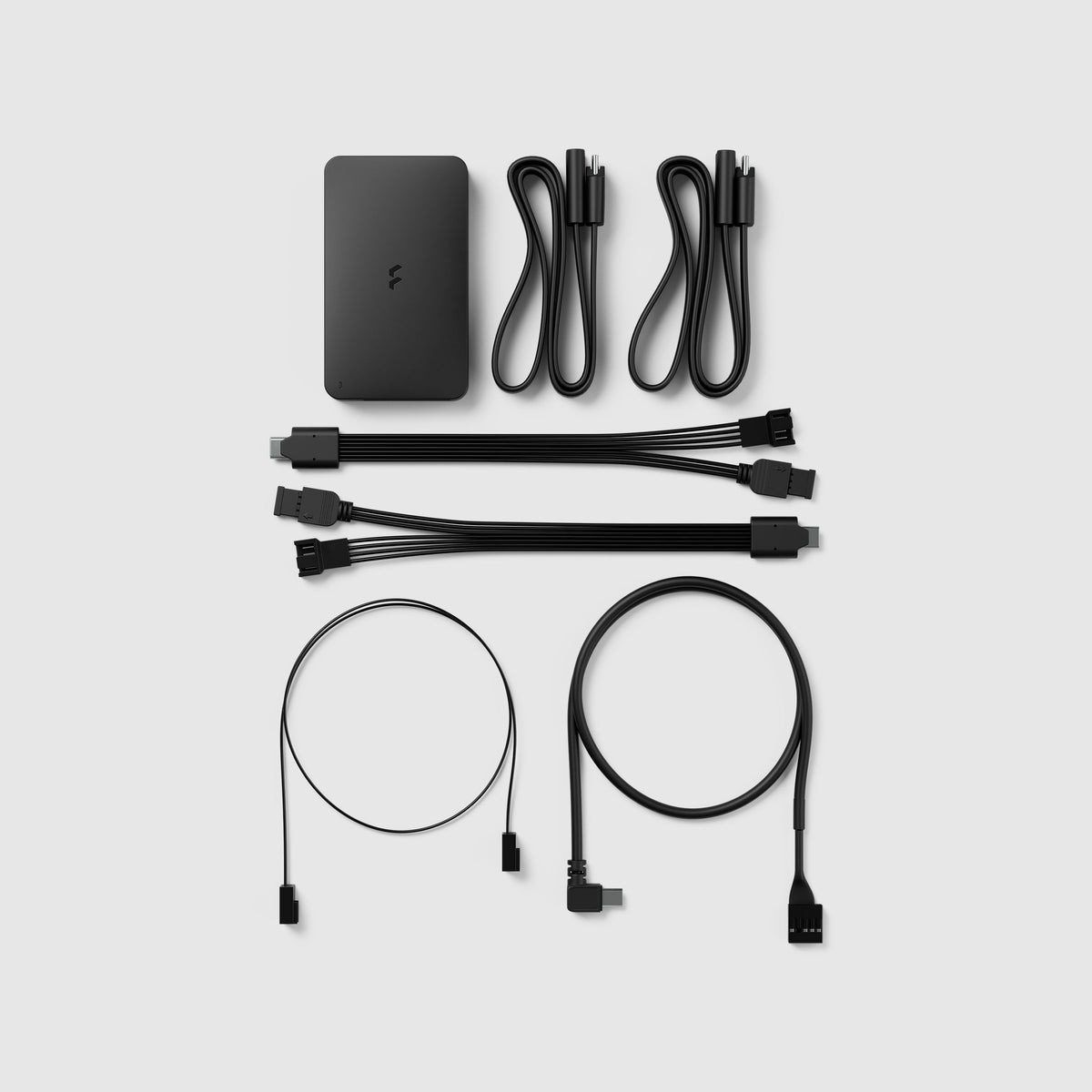

| Included Cables | 2× Extension cable 500 mm (Fractal Connect), 2× Legacy splitter cable 150 mm (Fractal Connect to PWM/ARGB), 1× USB cable 500 mm, 1× PWM cable 500 mm |
Performance
| Output Ports | 4 |
|---|---|
| Max Output at 12 V DC | 2 A |
| Max Output at 5 V DC | 4.5 A |
| ARGB Gen 2 Support | Up to 16 devices (4 per channel) with 400 LEDs maximum combined |
| Daisy Chaining | Supported |
Physical
| Dimensions | 90 × 53 × 17 mm |
|---|---|
| Weight | 61 g |
| Color | Black |
| Mounting | Magnetic with rubber feet |
Reliability
| System Requirements | PC with USB 2.0 header, Chromium-based browser, SATA power from PSU |
|---|---|
| Warranty | 2 years |
