Fractal Design Meshify 2 Compact Black Dark TG ATX Case
Fractal Design
Fractal Design Meshify 2 Compact Black Dark TG ATX Case
The Fractal Design Meshify 2 Compact Black Dark TG ATX Case is a mid-tower enclosure designed for builders who need robust cooling and flexible storage without sacrificing desk space. Its filtered intake design and support for multiple radiators make it suited to high-performance gaming and workstation builds, while the bolt-free tempered glass panel and tool-free access keep maintenance straightforward.
Why this product
Seven-fan cooling capacity
Install up to seven fans across front, top, bottom and rear mounts, or fit a 360 mm radiator at the front and 240 mm at the top. Open internal layout channels airflow from intake to exhaust without restriction.

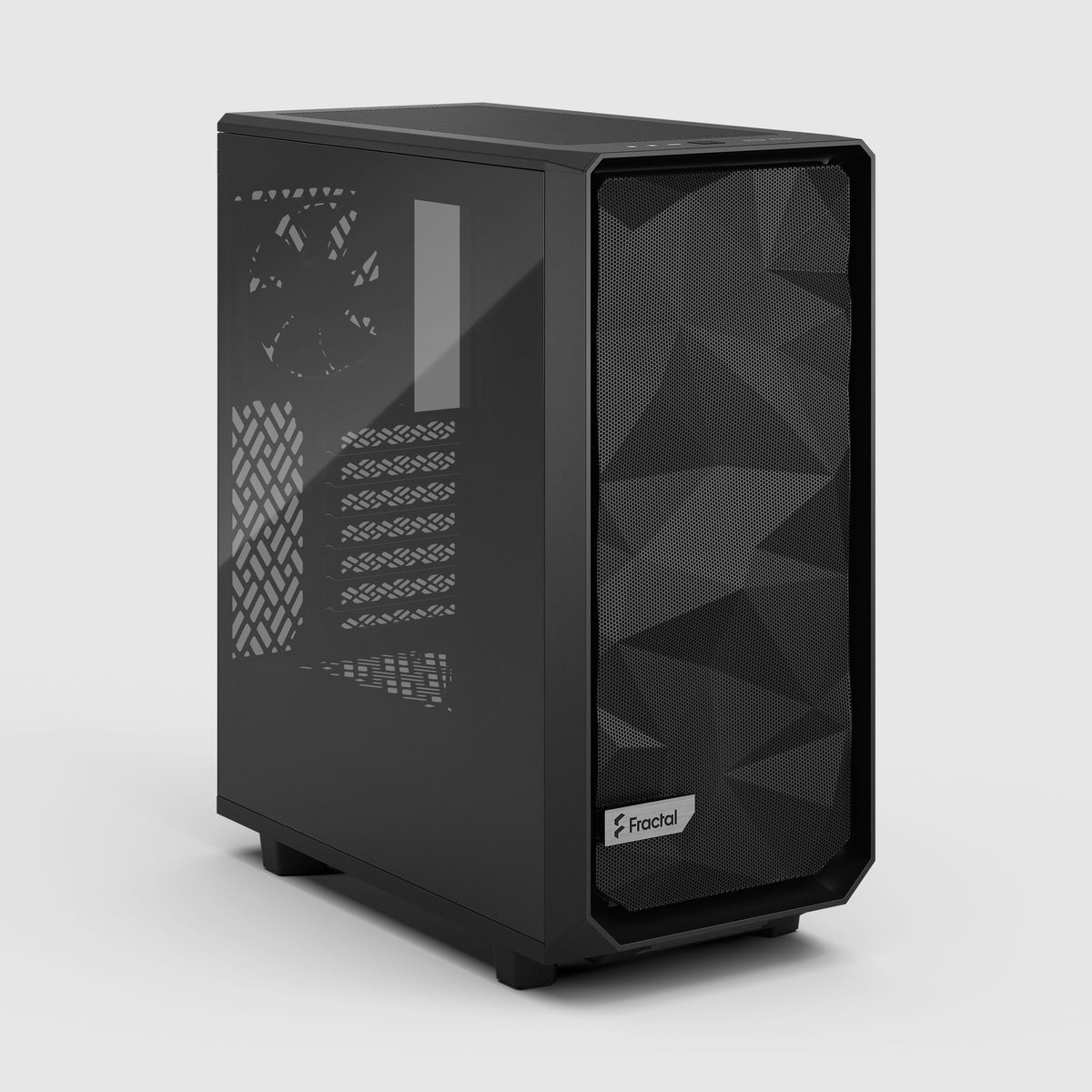

Bolt-free tempered glass

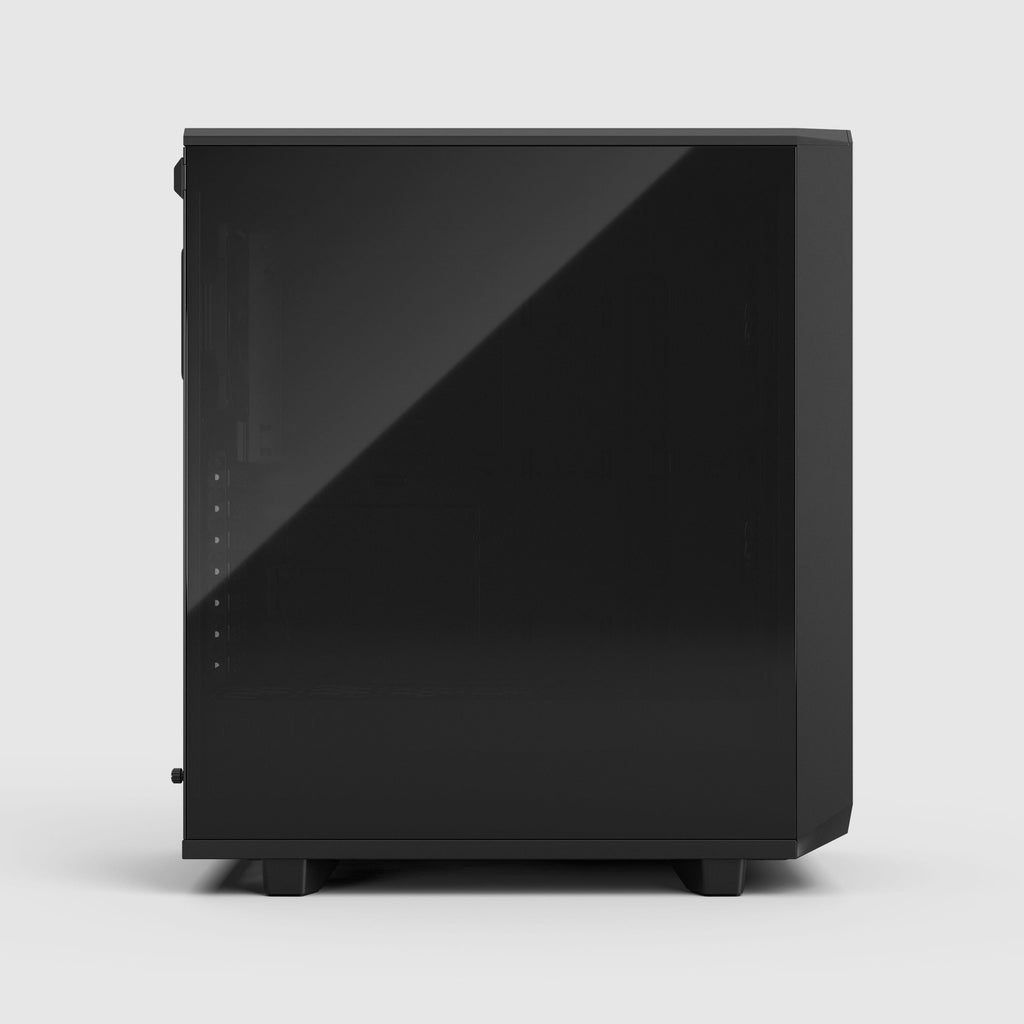

Seamlessly integrated left-side panel with steel frame support uses a top-latching mechanism — no tools or screws required to access the interior.
Fast front I/O
USB 3.2 Gen 2x2 Type-C (20 Gbps) port on the front panel offers quick access for charging and file transfers without routing cables to the rear.
Easy-clean dust filters

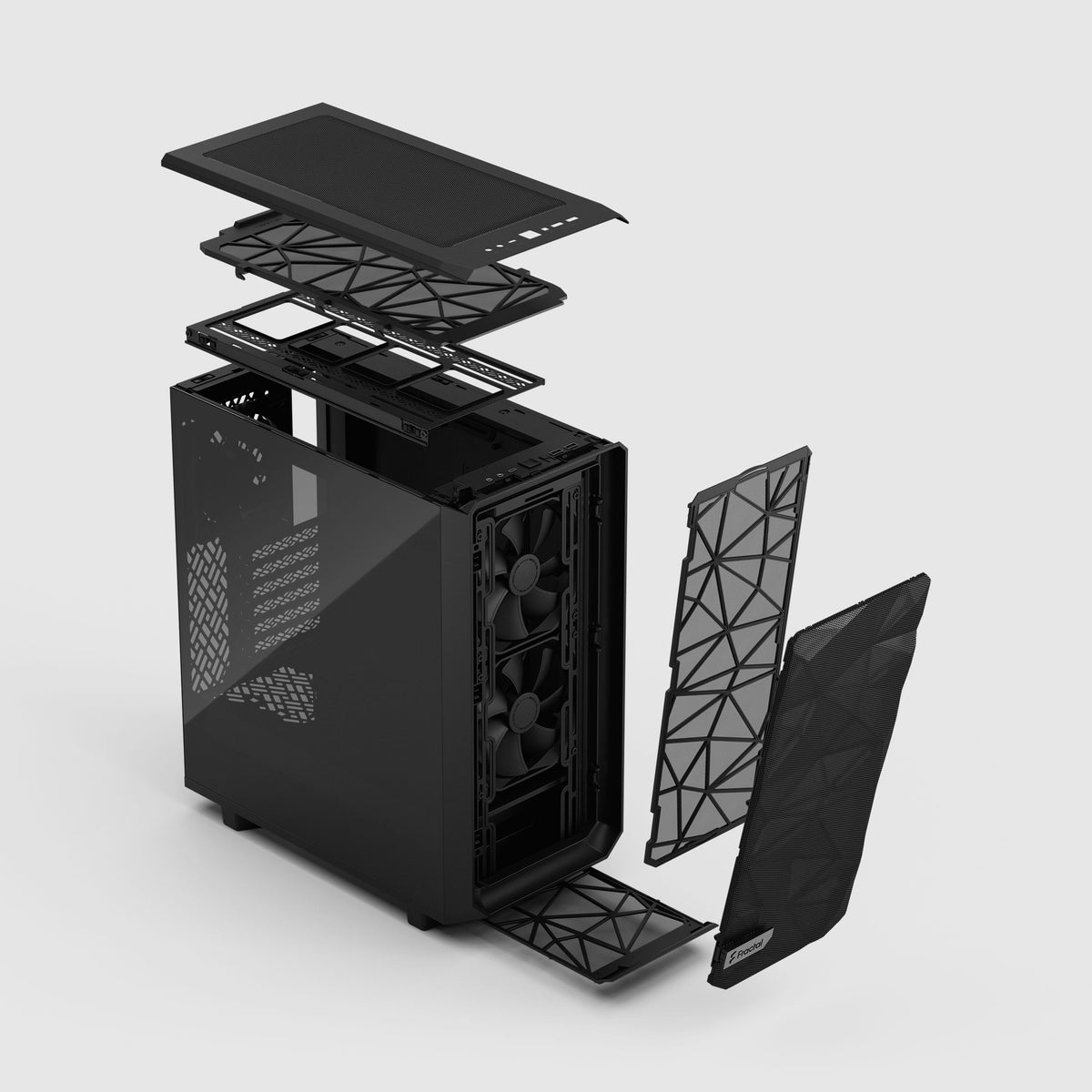

Removable nylon filters cover the front, top and base with full PSU enclosure coverage. Front access and removable front filter allow airflow tuning without case disassembly.
Flexible drive storage
Supports four 2.5-inch SSDs and two combined 3.5-inch or 2.5-inch drive mounts, with two SSD brackets included. Tool-free captive thumbscrews speed installation.
Two-year warranty
Full manufacturer coverage with dedicated customer support.
- ColorBlack
- Side panelsLeft tempered glass, right steel
- Case volume39.4 L
- Motherboard supportATX, Micro ATX, Mini ITX
- Maximum GPU length341 mm
- Maximum CPU cooler height169 mm
- Fans included3x Dynamic X2 GP-12 (2 front, 1 rear)
- Warranty2 years
- SKUFRA-5734
- EAN7340172702337
- Fits ATX, Micro ATX and Mini ITX motherboards.
- Accepts standard ATX power supplies up to 200 mm in length.
- Supports graphics cards up to 341 mm in length.
- CPU coolers up to 169 mm tall fit without obstruction.
- Front radiator mounting is limited to 360 mm maximum; larger radiators cannot fit at the front.
Best for
- Builders prioritizing cooling performance and radiator support.
- Mid-range gaming and workstation systems that benefit from compact footprint and large case capacity.
- Users who want tool-free access and easy filter cleaning without frequent case maintenance.
- Systems requiring multiple storage drives and fast front-panel USB connectivity.
Trade-offs
- Small-form-factor builds seeking the smallest possible enclosure — this is a compact mid-tower, not mini-ITX sized.
- Builds requiring rear or bottom-mounted radiators larger than 120 mm.
- Setups with graphics cards exceeding 341 mm in length.

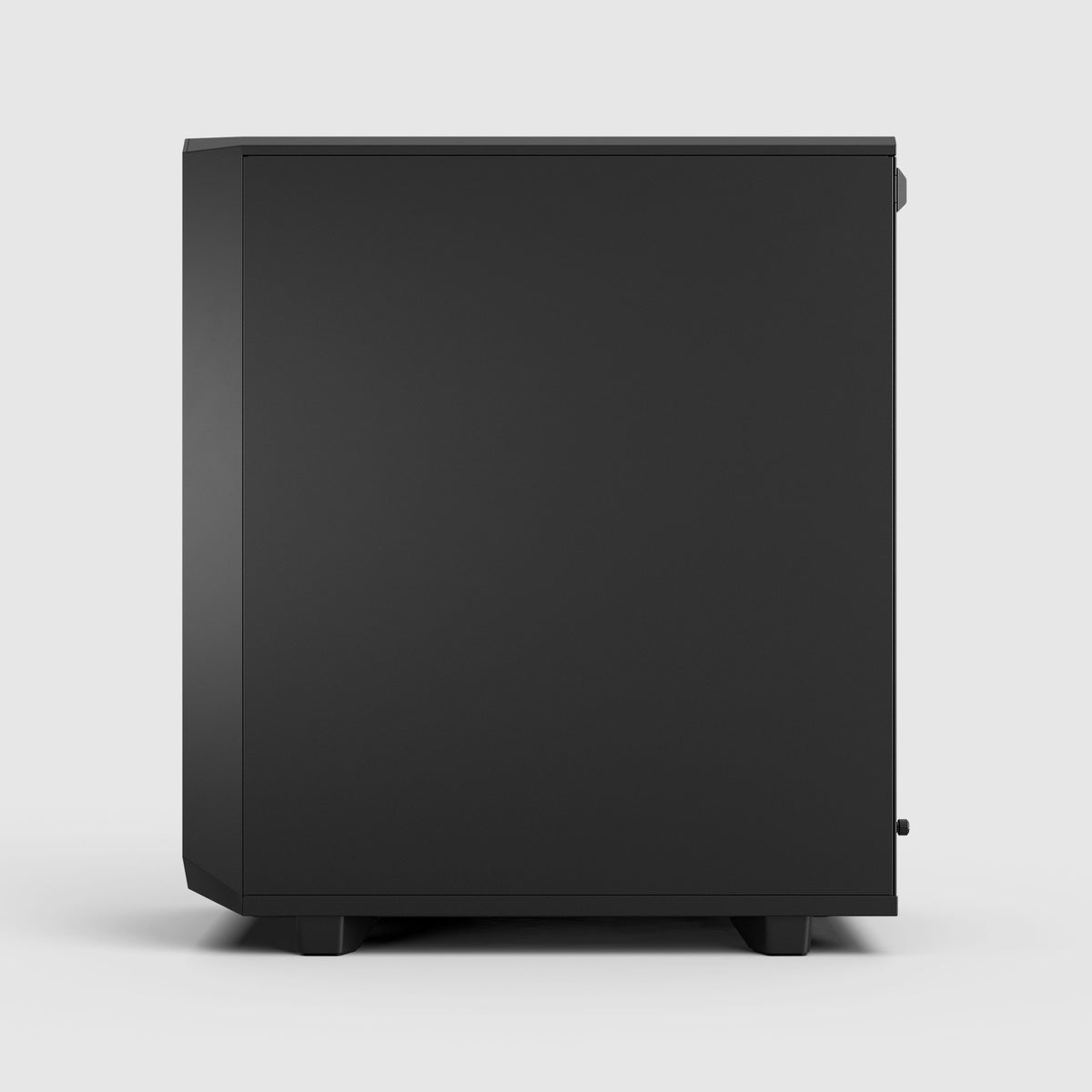

- Users needing right-side glass panels or full tempered glass enclosures — the right panel is solid steel.
The Meshify 2 Compact boasts the performance and capacity of larger cases despite its remarkably compact mid-tower size, and the filtered high airflow design makes cooling a breeze.
Robust cooling
Install up to seven fans, front radiators up to 360 mm, or top radiators up to 240 mm.
Bolt-free glass
Comes with a seamlessly integrated flush tempered and top-latching glass panel.
Type-C interface
USB 3.2 Gen 2x2 Type-C (20 Gbps) front I/O offers quick access to fast charging.
Two-year warranty
Rest assured with a two-year warranty covering all of our cases, backed by our dedicated customer support team whenever you need assistance.
General
| Brand | Fractal Design |
|---|---|
| Form factor | Mid-tower ATX |
| Dimensions (L × W × H) | 424 × 210 × 475 mm |
| Net weight | 8.1 kg |
Cooling & Airflow
| Maximum fan count | 7 |
|---|---|
| Front fan mounts | 3x 120 mm or 2x 140 mm |
| Top fan mounts | 2x 120/140 mm |
| Bottom fan mounts | 1x 120 mm |
| Rear fan mounts | 1x 120 mm |
| Front radiator support | 120, 140, 240, 280, 360 mm |
| Top radiator support | 120, 240 mm |
| Bottom radiator support | 120 mm |
| Rear radiator support | 120 mm |
| Dust filters | Front, top, and bottom with full PSU coverage |
| Cable routing space | 28 mm |
Storage & Expansion
| 2.5-inch SSD mounts | 4 dedicated |
|---|---|
| 3.5-inch/2.5-inch combined mounts | 2 |
| Expansion slots | 7 |
| SSD brackets included | 2 |
Connectivity & Compatibility
| Front I/O | 2x USB 3.0 Type-A, 1x USB 3.2 Gen 2x2 Type-C (20 Gbps), audio jack, microphone jack, power and reset buttons |
|---|---|
| Motherboard compatibility | ATX, Micro ATX, Mini ITX |
| PSU compatibility | ATX up to 200 mm length |
| Maximum GPU length | 341 mm |
| Maximum CPU cooler height | 169 mm |
Design & Accessibility
| Left side panel | Tempered glass with bolt-free top-latching mechanism |
|---|---|

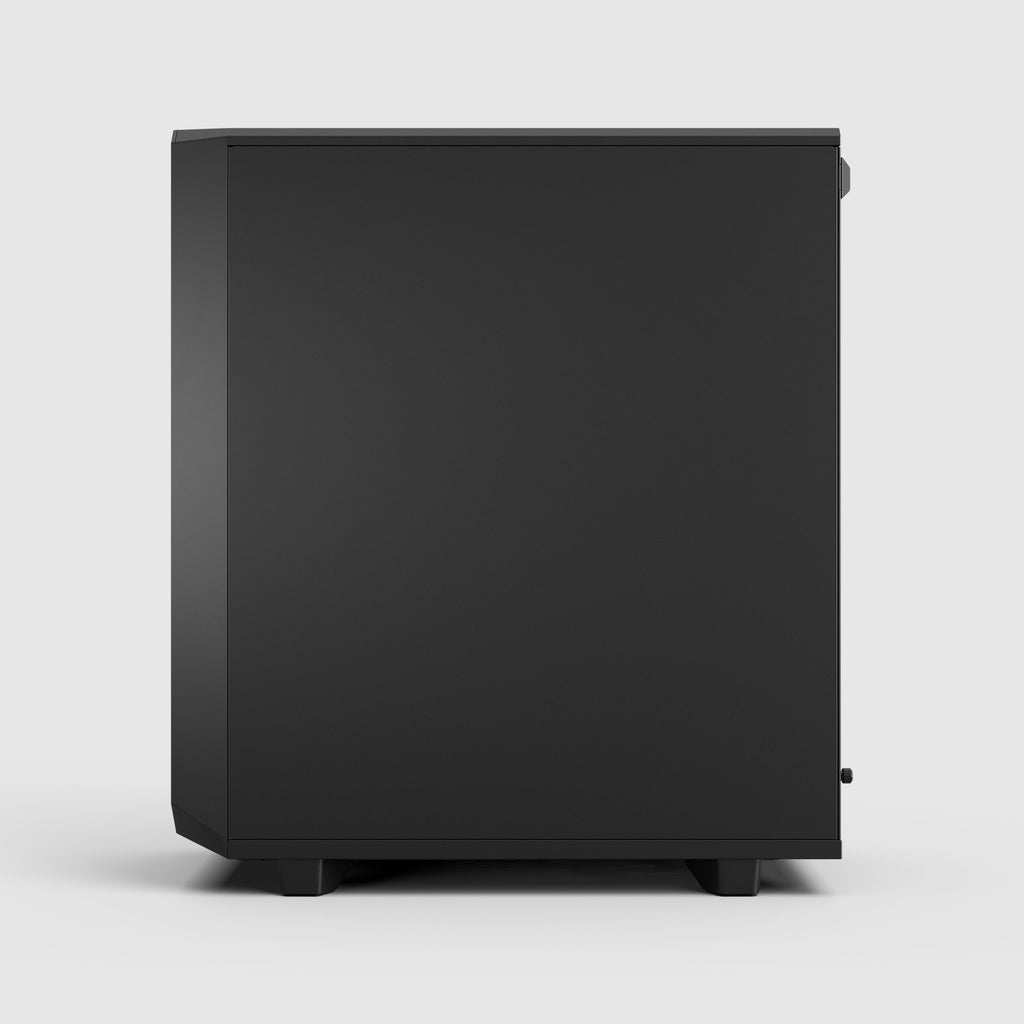

| Right side panel | Steel |

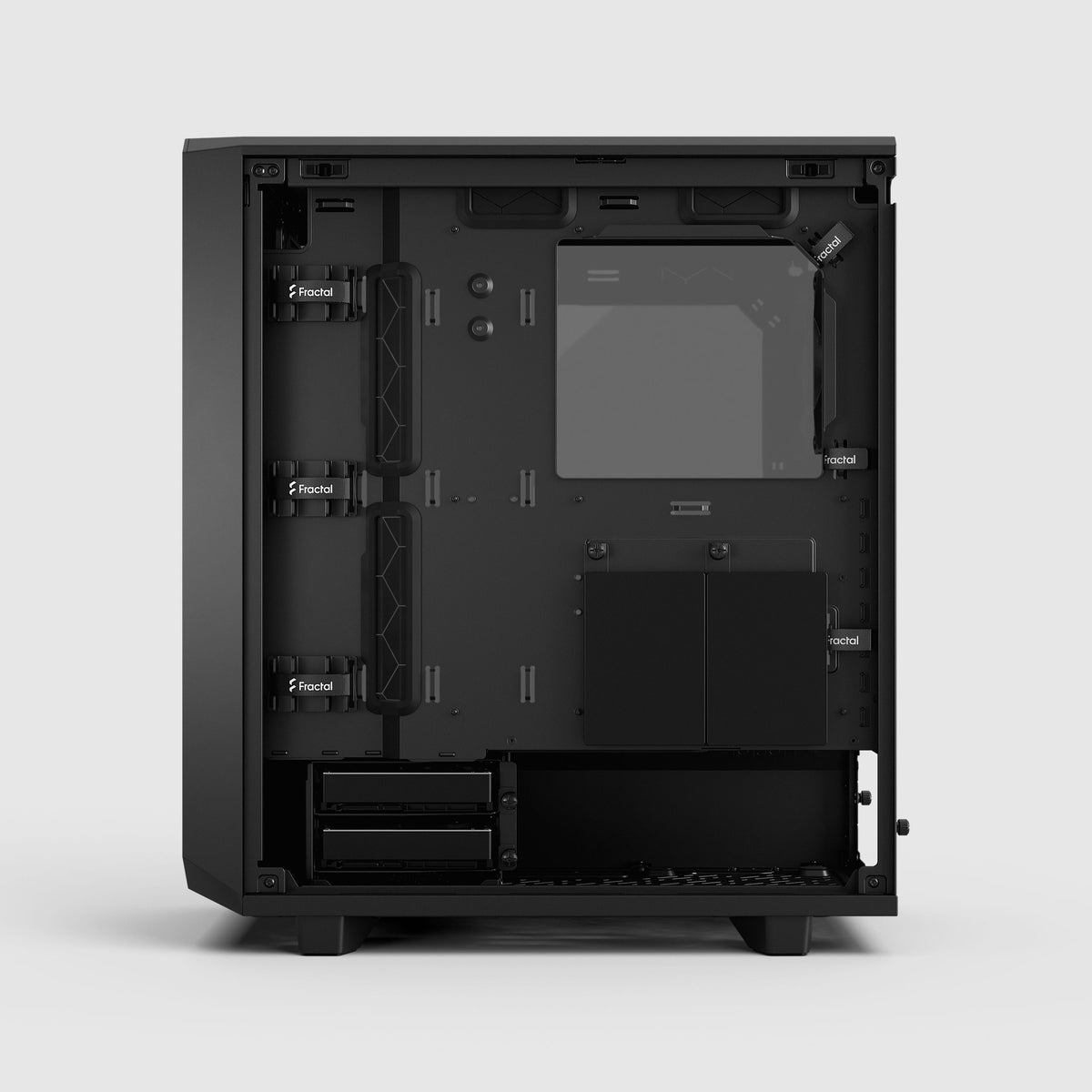

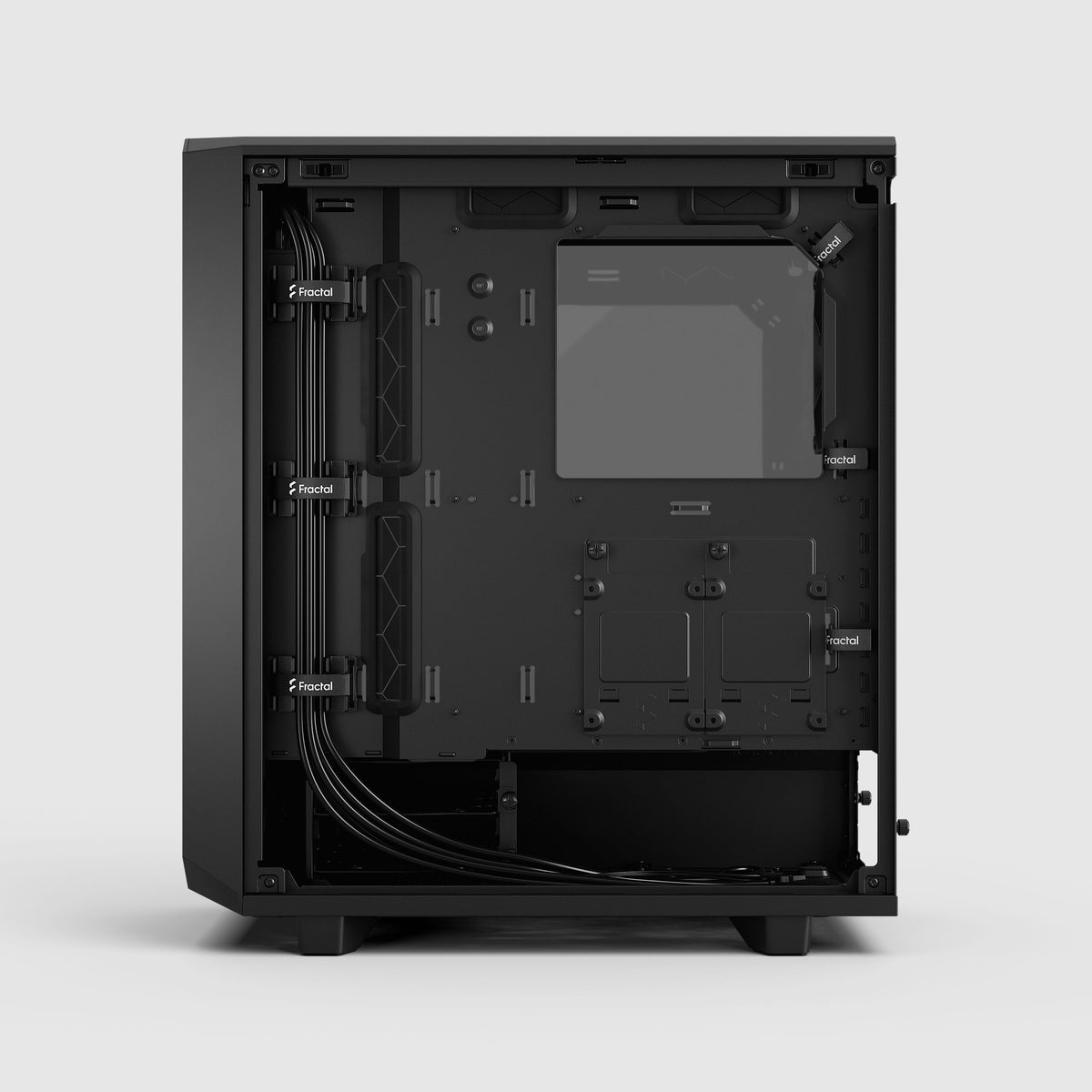

| Cable routing features | 3 integrated alignment clips, 6 velcro straps, cable grommets |
| Tool-free features | Captive thumbscrews on HDD, SSD and PSU brackets |
Warranty & Support
| Warranty period | 2 years |
|---|
