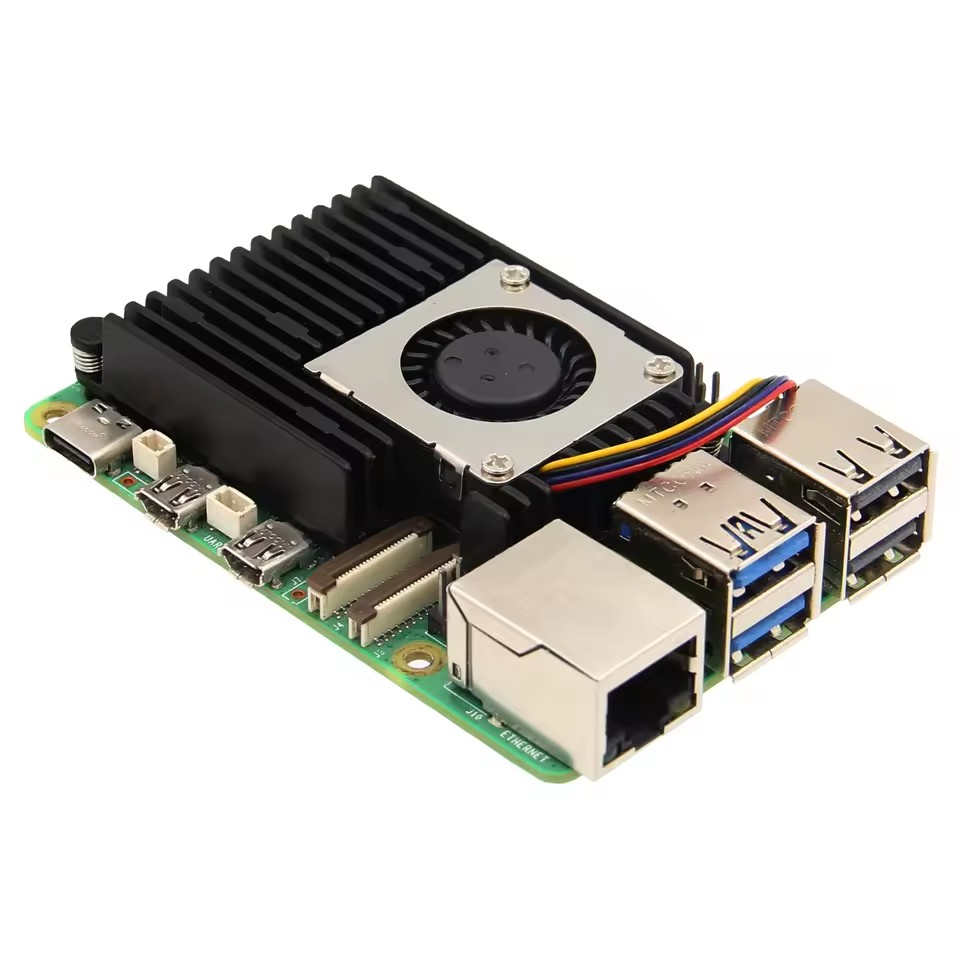

Geekworm Raspberry Pi 5 Active Cooler

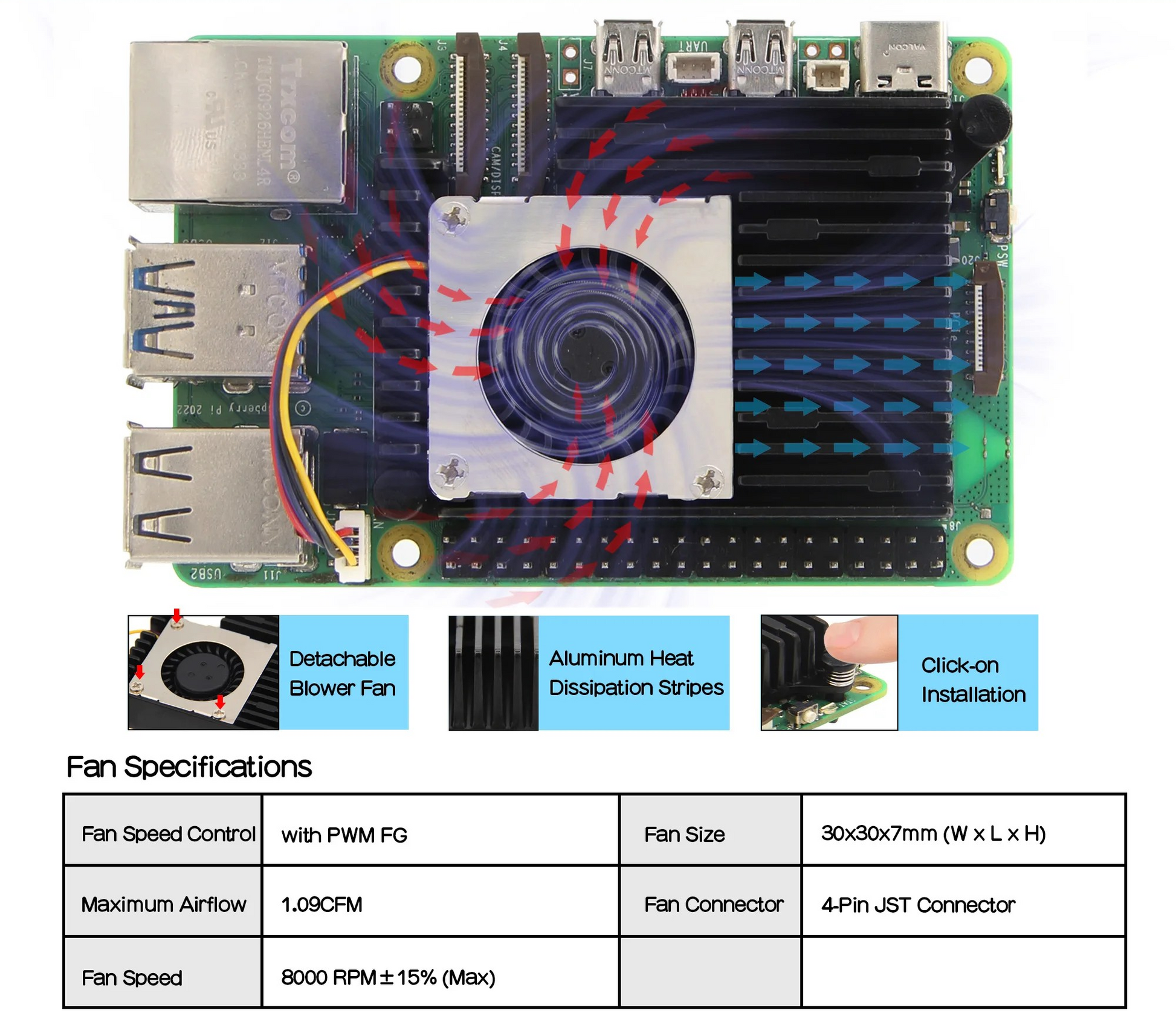

- Durable single-piece anodized aluminium heatsink.
- Temperature-controlled fan which is securely mounted on the heatsink.
- Spring-loaded push pins for an easy attachment to Raspberry Pi 5.
- Pre-applied thermal pads for efficient heat transfer (remove protective paper before use).
Product Description
Geekworm offers a range of heatsink products designed for the Raspberry Pi 5, providing cooling performance comparable to the official Raspberry Pi active cooler.
Extensive testing has shown that the Geekworm active radiator series performs on par with or better than the official cooler. Some models, such as the H505, even surpass the official cooler due to their use of thermal pads with higher thermal conductivity, increased thermal contact area with the Raspberry Pi 5 motherboard, and a thicker aluminum alloy heatsink with additional heat dissipation fins. These features enhance overall cooling efficiency.
Other models, like the H503 and H501 radiators, also deliver excellent heat dissipation and are well-suited for a variety of applications.

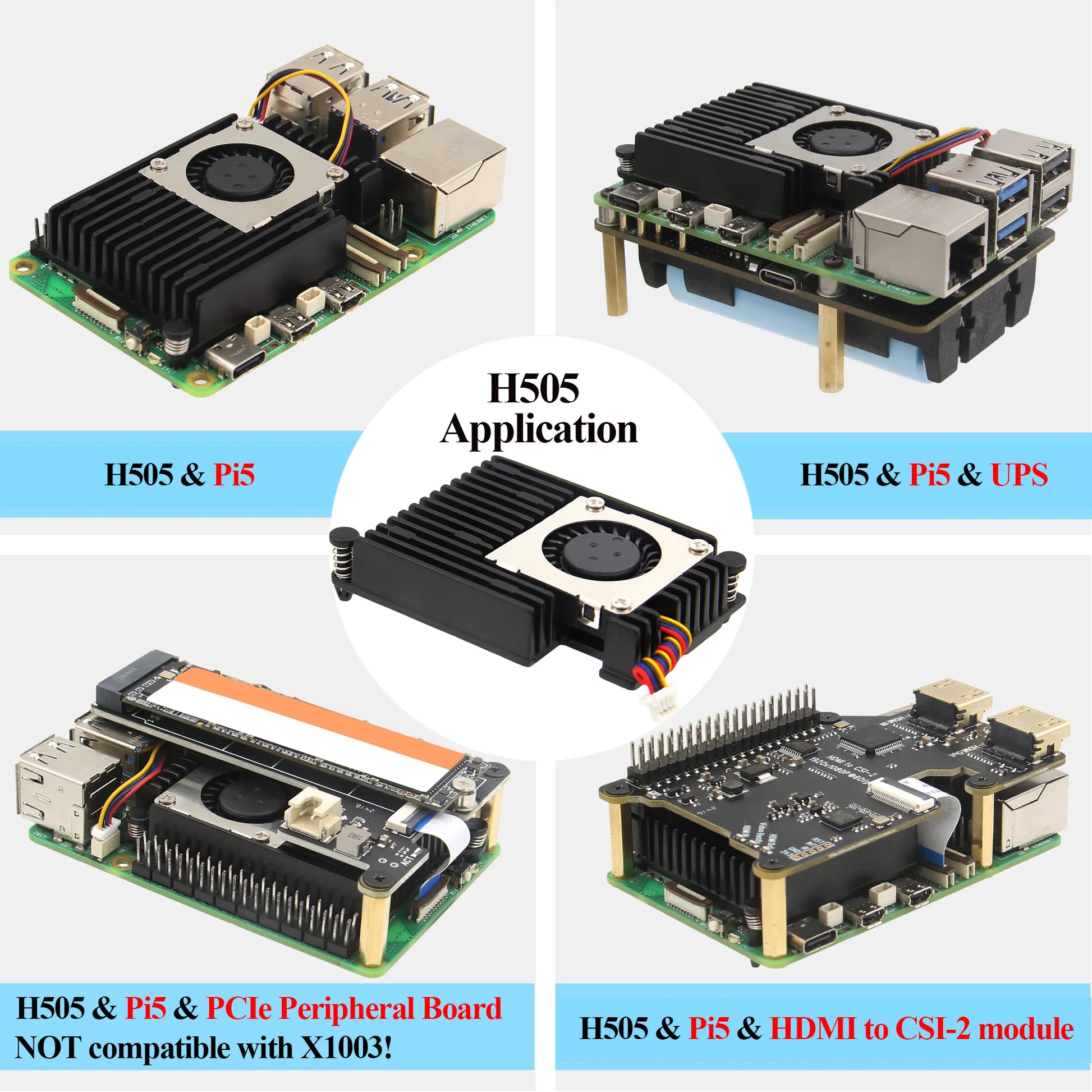

Note: The H505 is not compatible with the X1003 / M903 board.
Product Specifications
|
Fan Speed Control: |
with PWM FG |
|
Maximum Airflow: |
1.09 CFM |
|
Fan Speed: |
8000 RPM ± 15% (Max) |
|

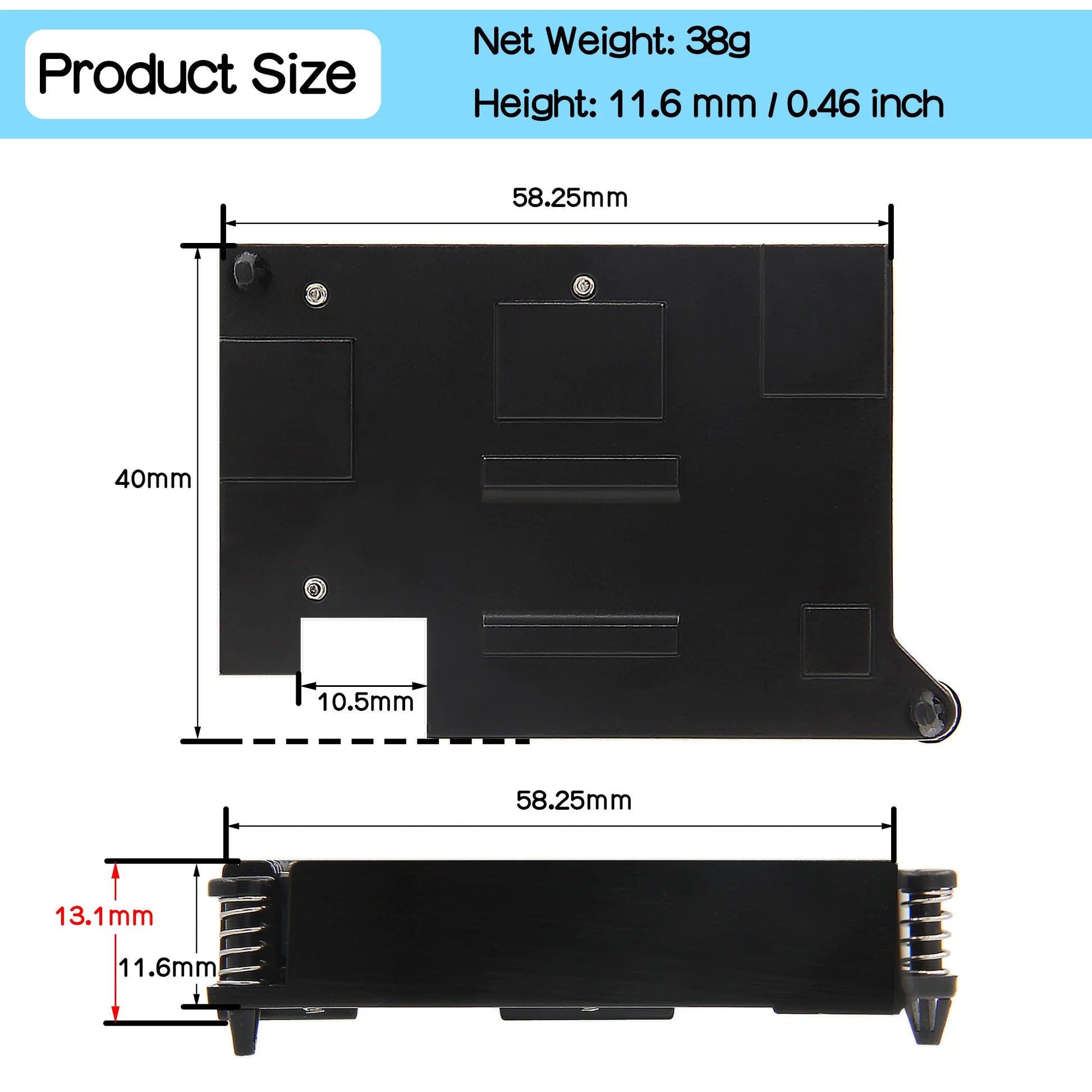

Fan Size: |
30 × 30 × 7 mm (W × L × H) |
|
Fan Connector: |
4-Pin JST Connector |
