Gigabyte A620M S2H AMD AM5 Micro-ATX Motherboard DDR5

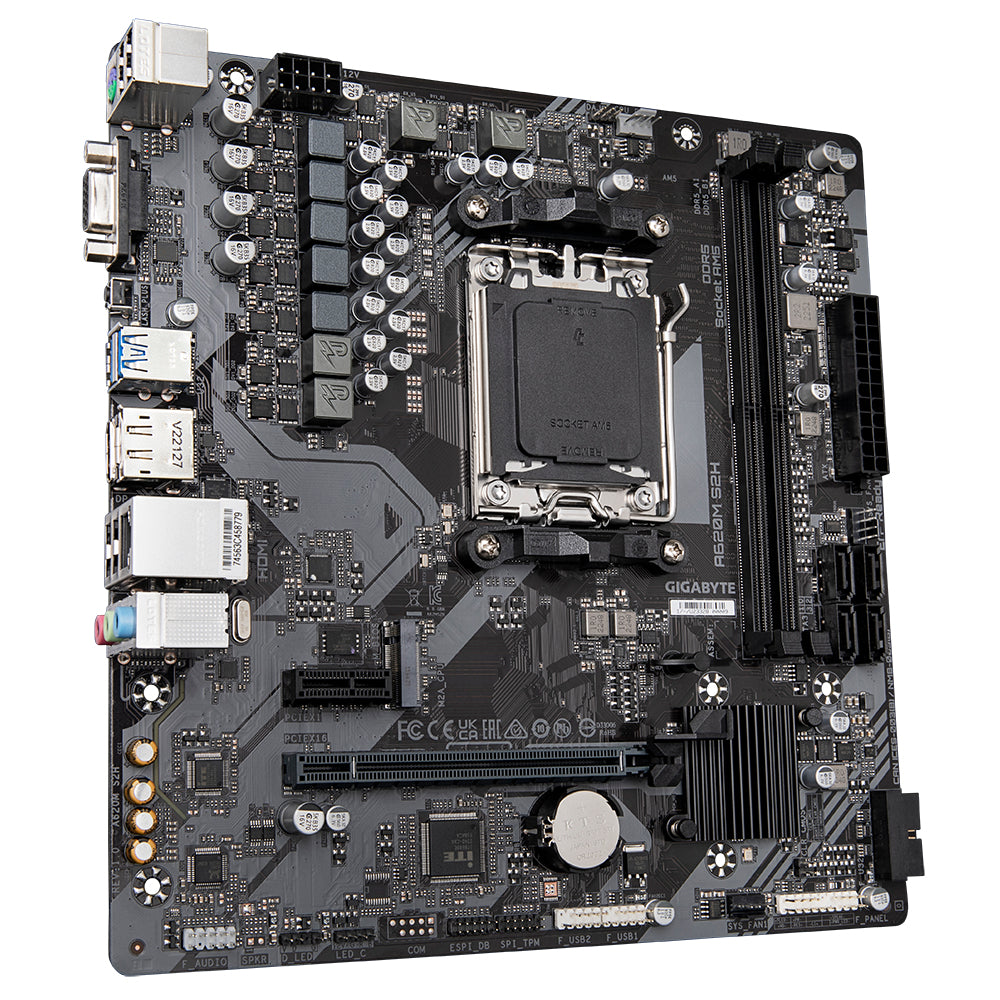

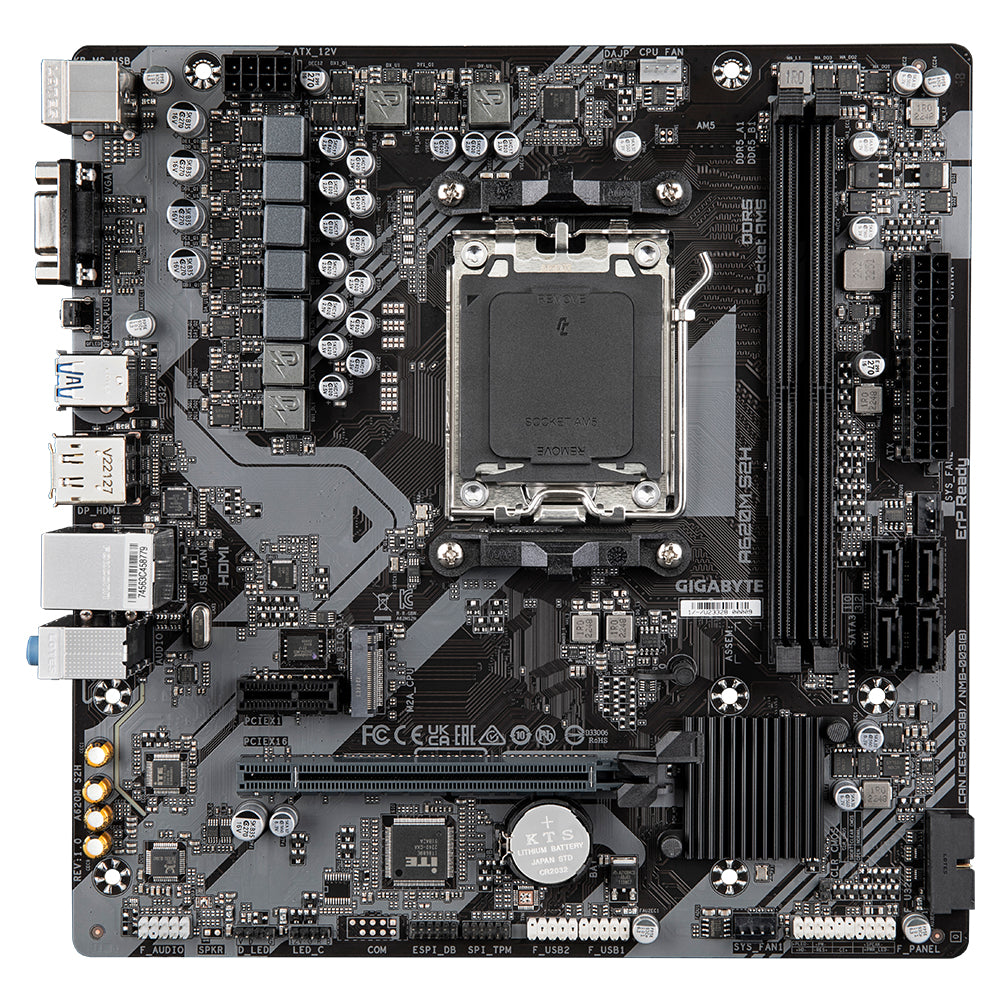

The Gigabyte A620M S2H is a Micro-ATX motherboard built for system builders and home users who want a stable, AMD AM5 foundation without unnecessary complexity. It supports AMD Ryzen 7000, 8000, and 9000 Series processors on the A620 chipset, and pairs them with DDR5 memory and a PCIe 4.0 M.2 slot for modern storage. Practical extras like Q-Flash Plus BIOS updating and the EZ-Latch quick-release PCIe slot reduce the friction of building and upgrading.
Why this product
Broad Ryzen AM5 CPU support
It accepts AMD Ryzen 7000, 8000, and 9000 Series processors via Socket AM5, covering current and recent-generation chips across a wide range of budgets.
DDR5 with EXPO and XMP support
Two DDR5 DIMM slots support up to 128 GB total and are rated for speeds up to 6400 MT/s in overclocked configurations using AMD EXPO or Intel XMP profiles.
PCIe 4.0 M.2 for fast NVMe storage
The onboard M.2 connector runs at PCIe 4.0 x4 and accepts drives up to 22110 in length, keeping storage performance well ahead of SATA limits.
Three video outputs built in
DisplayPort, HDMI 2.1, and D-Sub outputs are all present on the rear panel, allowing up to three simultaneous displays when using a CPU with integrated graphics.
Q-Flash Plus: update BIOS without a CPU
A dedicated Q-Flash Plus button on the rear panel lets users flash the BIOS before installing a processor or memory, which matters when preparing for a new CPU generation.
Smart Fan 6 thermal management
Multiple temperature sensors and hybrid fan headers with FAN STOP allow precise, quiet fan control without third-party software.
- SocketAMD AM5
- ChipsetAMD A620
- Form FactorMicro-ATX (244 mm × 244 mm)
- Memory2 × DDR5 DIMM, up to 128 GB, up to 6400 MT/s (OC)
- M.2 Storage1 × PCIe 4.0 x4 M.2 (up to 22110)
- SATA Ports4 × SATA 6 Gb/s
- Video OutputsDisplayPort, HDMI 2.1, D-Sub
- LAN1 × GbE
- SKUGIG-2027
- EAN4719331855208
- Fits AMD Socket AM5 processors: Ryzen 7000, Ryzen 8000, and Ryzen 9000 Series (consult the CPU Support List for specific model compatibility).
- Fits standard Micro-ATX cases; the board measures 244 mm × 244 mm.
- Accepts DDR5 DIMM modules; not compatible with DDR4 memory.
- The PCIe x16 slot can only support a graphics card or an NVMe SSD — not both simultaneously.
- Ryzen 8000 Series Phoenix 2 processors limit the PCIe x16 slot and the M.2 connector to PCIe 4.0 x4 mode; other supported CPUs may operate differently — confirm against the CPU Support List.
- Not compatible with AM4 or any non-AM5 processors.
Best for
- First-time AM5 builders who want a straightforward board with Q-Flash Plus for worry-free BIOS updates before the CPU is installed.
- Compact desktop builds that need Micro-ATX dimensions and still want three display outputs and Gigabit Ethernet on the rear panel.
- Home and office users running a Ryzen processor with integrated graphics who want DisplayPort, HDMI, and D-Sub all available without a discrete GPU.
- Storage-conscious builders who want both a PCIe 4.0 M.2 NVMe slot and four SATA 6 Gb/s ports with RAID 0, 1, and 10 support.
Trade-offs
- High-end overclocking is not a primary use case; the A620 chipset does not support CPU overclocking, and memory OC is limited to what AMD EXPO or XMP profiles allow.
- Multi-GPU or high-lane-count builds are not supported; the board offers one PCIe x16 slot and one PCIe 3.0 x1 slot only.
- ECC or registered memory is not supported; only non-ECC unbuffered DDR5 DIMMs are compatible.
- Network-intensive workloads requiring multi-gigabit throughput are not served; the onboard LAN is Gigabit Ethernet only.
AMD Socket AM5：Supports AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors
Unparalleled Performance：5+2+2 Phases Digital VRM Solution
Dual Channel DDR5：2*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
SuperSpeed Storage：PCIe 4.0 x4 M.2 Connector
EZ-Latch：PCIe x16 Slot with Quick Release Design
Fast Networks：GbE LAN
Extended Connectivity：DP, HDMI, D-Sub
Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
GIGABYTE is offering a tested and proven platform that the memory overclocking capability is able up to 6400 and beyond. All users need to do for achieving this extreme memory performance boost is to ensure that their DDR5 memory modules are AMD EXPO™/ Intel® XMP capable, the EXPO/XMP function is activated and enabled on their GIGABYTE motherboard.
GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.
GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.
GIGABYTE motherboards feature an audio noise guard that essentially separates the board's sensitive analog audio components from potential noise pollution at the PCB level.
Friendly User Interface: The EASY MODE shows important hardware information in one page including CPU clock, Memory, Storage, Fan. My Favorites — Add constantly used items into the favorite menu for quick access. Storage Information — Show all kinds of storage information including SATA, PCIE and M.2 interface. Changelog — List all changes before saving and exiting bios. Quickly review overall settings modification.
General
| Brand | GIGABYTE |
|---|---|
| Chipset | AMD A620 |
| Socket | AMD AM5 |
| CPU Support | AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series |
| Form Factor | Micro-ATX |
| Dimensions | 244 mm × 244 mm |
Memory & Storage
| Memory Type | DDR5 |
|---|---|
| DIMM Slots | 2 |
| Max Memory | 128 GB (64 GB per DIMM) |
| Memory Speeds | 4400 / 4800 / 5200 / 5600(OC) / 6000(OC) / 6200(OC) / 6400(OC) MT/s |
| Memory Profiles | AMD EXPO, Intel XMP |
| M.2 Slot | 1 × M.2 Socket 3 (M key), PCIe 4.0 x4, types 2242/2260/2280/22110 |
| SATA Ports | 4 × SATA 6 Gb/s |
| RAID | RAID 0, 1, 10 (NVMe and SATA) |
Connectivity
| Video Outputs | 1 × DisplayPort, 1 × HDMI 2.1, 1 × D-Sub |
|---|---|
| Max Displays | 3 simultaneous |
| HDCP | 2.3 |
| LAN | 1 × GbE LAN |
| Rear USB | 2 × USB 3.2 Gen 1, 4 × USB 2.0/1.1 |
| Internal USB | 2 × USB 3.2 Gen 1 (header), 4 × USB 2.0/1.1 (headers) |
| PS/2 Port | 1 × PS/2 keyboard/mouse |
| Audio Jacks | 3 × 3.5 mm (rear panel) |
| Audio | Realtek codec, High Definition Audio, up to 7.1-channel, S/PDIF Out |
Expansion & Features
| PCIe x16 Slot | 1 × PCIe x16 (CPU), supports graphics card or NVMe SSD |
|---|---|
| PCIe x1 Slot | 1 × PCIe 3.0 x1 (chipset) |
| BIOS Features | Q-Flash, Q-Flash Plus (update without CPU/memory/GPU installed) |
| Fan Control | Smart Fan 6 — multiple temperature sensors, hybrid headers with FAN STOP |
| EZ-Latch | PCIe x16 slot with quick-release design |
