GIGABYTE AORUS Elite P1000W 80+ Platinum PCIe 5.0 ICE PSU
GIGABYTE
GIGABYTE AORUS Elite P1000W 80+ Platinum PCIe 5.0 ICE PSU
The GIGABYTE AORUS Elite P1000W 80+ Platinum PCIe 5.0 ICE PSU is a 1000W fully modular ATX 3.0 power supply aimed at builders pairing high-end PCIe Gen 5.0 graphics cards with a demanding system. It addresses the need for stable, high-efficiency power delivery under GPU power spikes by supporting excursions of up to 3× the GPU load and 2× total system power, while a semi-passive 120mm Fluid Dynamic Bearing fan keeps noise low during light workloads.
Why this product
ATX 3.0 and PCIe Gen 5.0 ready
Fully compliant with the Intel ATX 3.0 standard and compatible with ATX 3.1. The included native 16-pin cable delivers up to 600W to PCIe Gen 5.0 graphics cards.
80 PLUS Platinum efficiency
Certified at 92% efficiency at typical load and 70% efficiency at low loads, reducing wasted energy, heat output and fan noise.
Handles aggressive GPU power spikes
Sustains power excursions of up to 3× the GPU power rating and 2× total system power, keeping modern high-performance GPUs stable during burst workloads.
Semi-passive 120mm FDB fan
The Fluid Dynamic Bearing fan uses oil film shock absorption for low noise and stops completely when the system is idle or under 50% load.
Fully modular, all-white flat cables
Every cable is detachable, flat and white, making cable routing and case management cleaner while only connecting what the build actually needs.
10-year warranty
Backed by a 10-year warranty (adjusted according to region) alongside a comprehensive protection suite: OVP, OPP, SCP, UVP, OCP and OTP.
- Output Capacity1000W
- Efficiency Rating80 PLUS Platinum (92% at typical load)
- ATX StandardATX 3.0 (compatible with ATX 3.1)
- PCIe Gen 5.0 SupportYes — native 16-pin cable included (up to 600W)
- Fan120mm Fluid Dynamic Bearing, semi-passive
- Cable TypeFully modular, flat, all-white
- Warranty10 years (region dependent)
- Dimensions150 × 140 × 86 mm
- SKUGIG-774
- EAN4719331554651
- Compatible with ATX 3.0 motherboards and cases (standard ATX PSU form factor, 150 × 140 × 86 mm).
- Compatible with ATX 3.1 systems via stated backward compatibility.
- Works with PCIe Gen 5.0 graphics cards via the included native 16-pin (12VHPWR) cable, delivering up to 600W.
- Accepts full-range input voltage of 100–240 Vac, making it usable in most countries worldwide.
- Warranty duration may vary by region — confirm local warranty terms with your retailer before purchase.
- Not designed for SFX or SFX-L cases; the ATX form factor (140 mm depth) will not fit compact SFX chassis.
Best for
- High-end GPU builds: The native 16-pin cable and support for up to 600W PCIe delivery suit builders using top-tier PCIe Gen 5.0 graphics cards that demand headroom for power spikes.
- Noise-sensitive workstations: The semi-passive FDB fan stops below 50% load, making it suitable for quiet editing or productivity environments where fan noise matters.
- Long-term builds: The 10-year warranty and >100,000-hour MTBF rating make it a reasonable choice for systems expected to run for many years without replacing the PSU.
- Builders prioritising cable management: The fully modular, flat, all-white cable set reduces clutter and simplifies routing in windowed cases.
- Efficiency-conscious users: 80 PLUS Platinum certification at 92% efficiency at typical load means less electricity wasted as heat over long operating hours.
Trade-offs
- Compact or SFX builds: At 150 × 140 × 86 mm in ATX form factor, it will not physically fit SFX or SFX-L cases.
- Budget-focused builders: A 1000W Platinum-rated fully modular PSU is a higher-specification product than an entry-level or mid-range build typically requires.
- Legacy system upgrades: Systems not designed for ATX 3.0 power excursion support may not benefit from the advanced transient load handling this unit provides.
- Users needing more than 8 SATA connections: The connector set includes 8 SATA ports; builds with a large number of storage drives may need additional adapters.
The AE1000PM PG5 ICE can sustain power excursions of up to 3 times the GPU power and 2 times the total power. It's fully compliant with the Intel ATX 3.0 standard, supporting up to 200% power excursions and achieving 70% efficiency at low loads.
Additionally, the included high-quality, native 16-pin cable ensures compatibility with PCIe Gen 5.0 graphics cards, delivering up to 600 watts of power.
80 Plus Platinum certified ensures to deliver 92% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise.
All capacitors are high quality Japanese capacitors, to produce the efficient performance and to ensure the longer reliability.

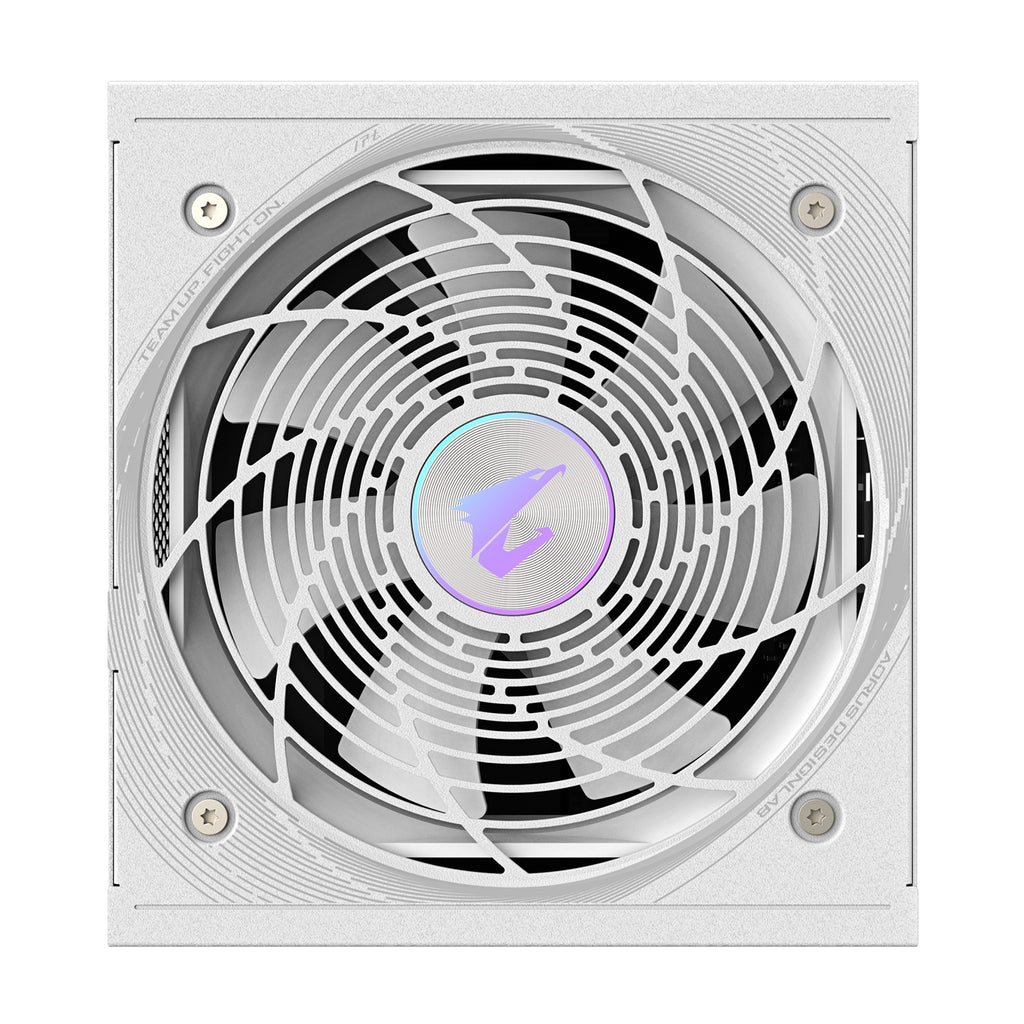

High-performance Fluid Dynamic Bearing fan uses oil film shock absorption technology to effectively reduce noise, making it quieter than conventional sleeve fan and providing more than twice the lifespan. In addition, the fan speed is adjusted according to the automatic power detection and stops when the system is idle or under low load (less than 50% load).
General
| Brand | GIGABYTE |
|---|---|
| Model | GP-AE1000PM PG5 ICE |
| Form Factor | Intel ATX 12V v3.0 (compatible with ATX 3.1) |
| Output Capacity | 1000W |
| Dimensions | 150 × 140 × 86 mm |
| Warranty | 10 years (adjusted according to region) |
Efficiency & Certification
| 80 PLUS Rating | Platinum |
|---|---|
| Efficiency at Typical Load | 92% |
| Efficiency at Low Load | 70% |
| PFC | Active PFC (>0.9 typical) |
| MTBF | >100,000 hours |
Input & Output
| Input Voltage | 100–240 Vac (full range) |
|---|---|
| Input Current | 15–6.5A |
| Input Frequency | 50–60 Hz |
| Power Good Signal | 100–150 ms |
| Hold Up Time | >16 ms |
| Rail Configuration | Single +12V rail |
Cooling, Cables & Connectors
| Fan Type | 120mm Fluid Dynamic Bearing (FDB), semi-passive |
|---|---|
| Capacitors | 100% Japanese capacitors |
| Cable Type | Fully modular, flat, all-white |

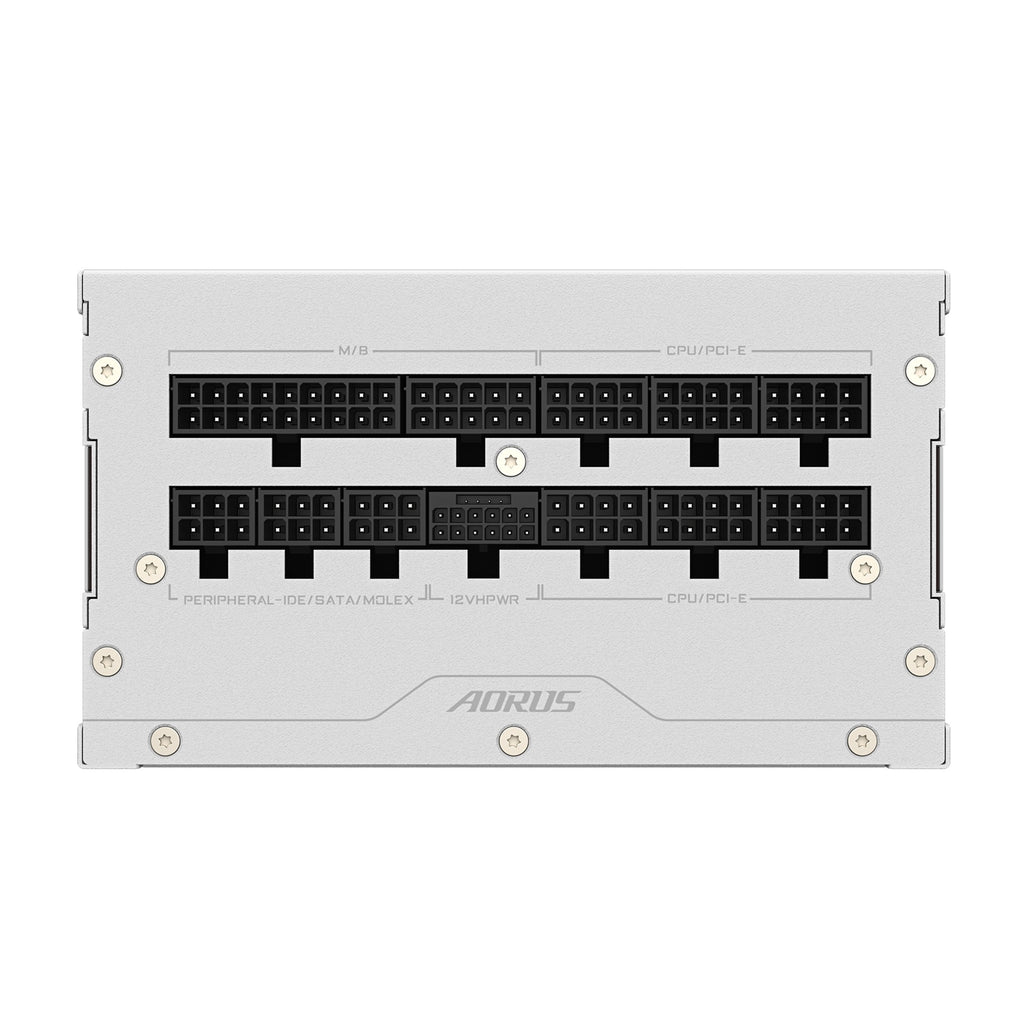

| ATX/MB Connector | 20+4 Pin × 1 (650 mm) |
| CPU/EPS Connectors | 4+4 Pin × 2 (700 mm each) |
| PCIe 16-Pin Connector | × 1 (700 mm) |
| PCIe 6+2 Pin Connectors | × 6 |
| SATA Connectors | × 8 |
| 4-Pin Peripheral Connectors | × 4 |
| Protections | OVP, OPP, SCP, UVP, OCP, OTP |
