Gigabyte B650E Eagle WiFi6E AM5 ATX Motherboard - DDR5
The Gigabyte B650E Eagle WiFi6E is an AMD Socket AM5 motherboard for Ryzen 7000, 8000 and 9000 series processors. It combines DDR5 memory support, PCIe 5.0 storage connectivity and integrated Wi-Fi 6E networking in an ATX form factor suited to mid-range and enthusiast builds.
Why this product
PCIe 5.0 and DDR5 ready
One M.2 slot runs PCIe 5.0 for next-generation storage; four DDR5 DIMM sockets support up to 256 GB and memory speeds up to DDR5 8200 with AMD EXPO and Intel XMP profiles.
Wi-Fi 6E and 2.5 GbE onboard
MediaTek Wi-Fi 6E (802.11ax) covers 2.4/5/6 GHz bands with Bluetooth 5.3; Realtek 2.5 GbE LAN handles wired traffic.
8+2+2 phase VRM and thermal guards
Digital voltage regulation with M.2 thermal guard keeps power delivery and SSD performance stable under sustained loads.
BIOS updates without CPU or RAM
Q-Flash Plus allows firmware updates straight from USB before any components are installed, simplifying first-time builds.
Quick-release PCIe slots and tool-free design
EZ-Latch Plus screwless design on PCIe x16 slots cuts installation time; WIFI EZ-Plug antenna connector needs no tools.
- SocketAMD AM5
- ChipsetAMD B650
- Memory4 x DDR5 DIMM (up to 256 GB, DDR5 4800–8200 MT/s)
- Storage1 x M.2 PCIe 5.0 + 2 x M.2 PCIe 4.0 + 4 x SATA
- WirelessWi-Fi 6E (802.11ax) + Bluetooth 5.3
- LAN2.5 GbE
- Form FactorATX
- SKUGIG-2029
- EAN4719331877798
- Supports AMD Ryzen 7000, 8000 and 9000 series processors on Socket AM5.
- Accepts up to four DDR5 DIMMs with native and overclocked profiles from DDR5 4800 to DDR5 8200 MT/s.
- Three M.2 slots: one PCIe 5.0 (CPU-connected), two PCIe 4.0, plus four SATA 6 Gb/s ports.
- Integrated DisplayPort and HDMI 2.1 outputs; USB 3.2 Gen 2 (Type-A and Type-C) and 10 Gb/s rear connectivity.
- PCIe x16 slot runs at PCIe 5.0 x16 on Ryzen 9000/7000, PCIe 4.0 x8 on Ryzen 8000 Phoenix-1, and PCIe 4.0 x4 on Ryzen 8000 Phoenix-2.
Best for
- Ryzen 7000 and 9000 enthusiasts building high-end systems with fast DDR5 and PCIe 5.0 SSDs.
- Builders who need Wi-Fi 6E and Bluetooth 5.3 without adding a separate card.
- First-time builders or those upgrading incrementally, thanks to Q-Flash Plus BIOS updates and tool-free slot design.
- Systems running multiple storage drives—three M.2 slots plus four SATA ports cover NVMe and SATA at once.
- Creators and gamers whose workloads benefit from 2.5 GbE LAN and 7.1-channel audio.
Trade-offs
- Ryzen 8000 (Phoenix) processor owners seeking full PCIe 5.0 x16 support—this board caps them at PCIe 4.0 x8 or x4.
- Budget builds: B650E is a mid-range to enthusiast chipset; entry-level B650 or A620 boards cost less.
- Users who do not need Wi-Fi or Bluetooth—paying for onboard 6E and Bluetooth 5.3 when a wired-only board would suffice.
- Compact or SFF builds—ATX form factor requires a full-size or larger case.
AMD Socket AM5：Supports AMD Ryzen™ 7000/ Ryzen™ 8000/ Ryzen™ 9000 Series Processors
Unparalleled Performance：8+2+2 Phases Digital VRM Solution
Dual Channel DDR5：4*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
SuperSpeed Storage：1*PCIe 5.0 + 2*PCIe 4.0 M.2 Connectors
Advanced Thermal Design & M.2 Thermal Guard：To Ensure VRM Power Stability & 25110 M.2 SSD Performance
EZ-Latch Plus : PCIe x16 slots with Quick Release & Screwless Design
Fast Networks：Wi-Fi 6E 802.11ax & GbE LAN
WIFI EZ-Plug：Quick and easy design for Wi-Fi antenna installation

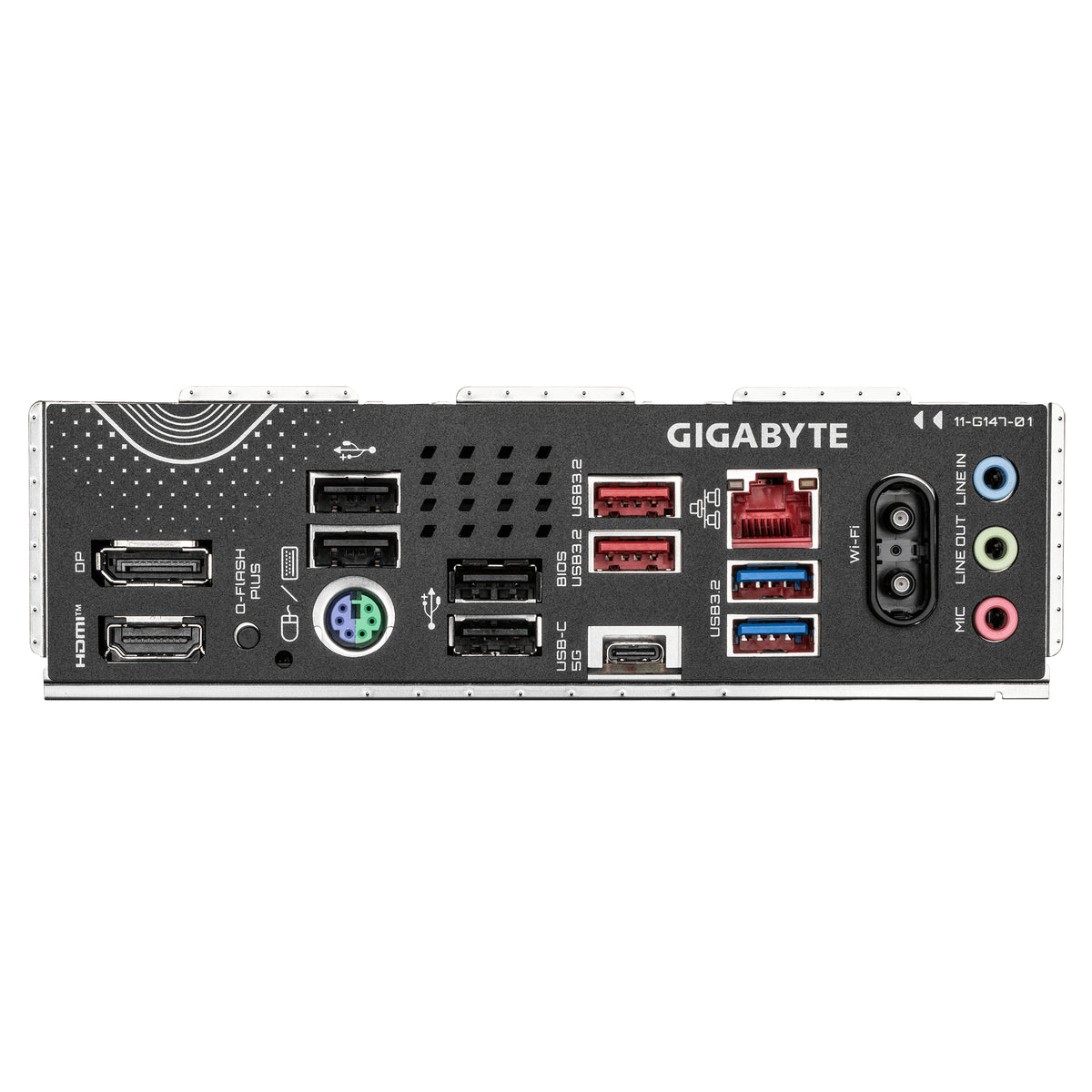

Extended Connectivity：DP, HDMI, Rear USB® 10Gb/s
Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
Fan Stop: Fan can stop completely below users' specified temperature point.
General
| Brand | GIGABYTE |
|---|---|
| Supported CPUs | AMD Ryzen 7000, 8000 and 9000 series |
Networking
| Wireless Standard | Wi-Fi 6E (802.11ax) |
|---|---|
| Wireless Bands | 2.4/5/6 GHz |
| Bluetooth | 5.3 |
| Ethernet | Realtek 2.5 GbE LAN |
Performance
| VRM Phases | 8+2+2 Digital |
|---|---|
| Memory Slots | 4 x DDR5 DIMM |
| Max Memory | 256 GB |
| Memory Speeds | DDR5 4800–8200 MT/s (with overclocking) |
| Memory Profiles | AMD EXPO and Intel XMP |
Ports & Storage
| M.2 Slot 1 (CPU) | PCIe 5.0 x4/x2, type 22110/2280 |
|---|---|
| M.2 Slot 2 (CPU) | PCIe 4.0 x4/x2, type 22110/2280 |
| M.2 Slot 3 (Chipset) | PCIe 4.0 x2, type 22110/2280 |
| SATA Ports | 4 x SATA 6 Gb/s |
| RAID Support | RAID 0, 1, 5, 10 (NVMe); RAID 0, 1, 10 (SATA) |
| PCIe x16 Slot | PCIe 5.0 x16 (Ryzen 9000/7000); PCIe 4.0 x8 (Ryzen 8000 Phoenix-1); PCIe 4.0 x4 (Ryzen 8000 Phoenix-2) |
| Display Output | 1 x DisplayPort, 1 x HDMI 2.1 |
| Rear USB 3.2 | Gen 2 Type-A, Gen 2 Type-C, Gen 1 Type-A (10 Gb/s support) |
Physical
| Form Factor | ATX |
|---|---|
| I/O Shield | Integrated |
| Audio | Realtek HD Audio, 7.1-channel |
| Thermal Management | Smart Fan 6, M.2 Thermal Guard, Fan Stop |
| BIOS Features | Q-Flash, Q-Flash Plus, Smart Backup |
