Gigabyte B650I AX Mini-ITX AM5 Motherboard - DDR5, Wi-Fi 6E

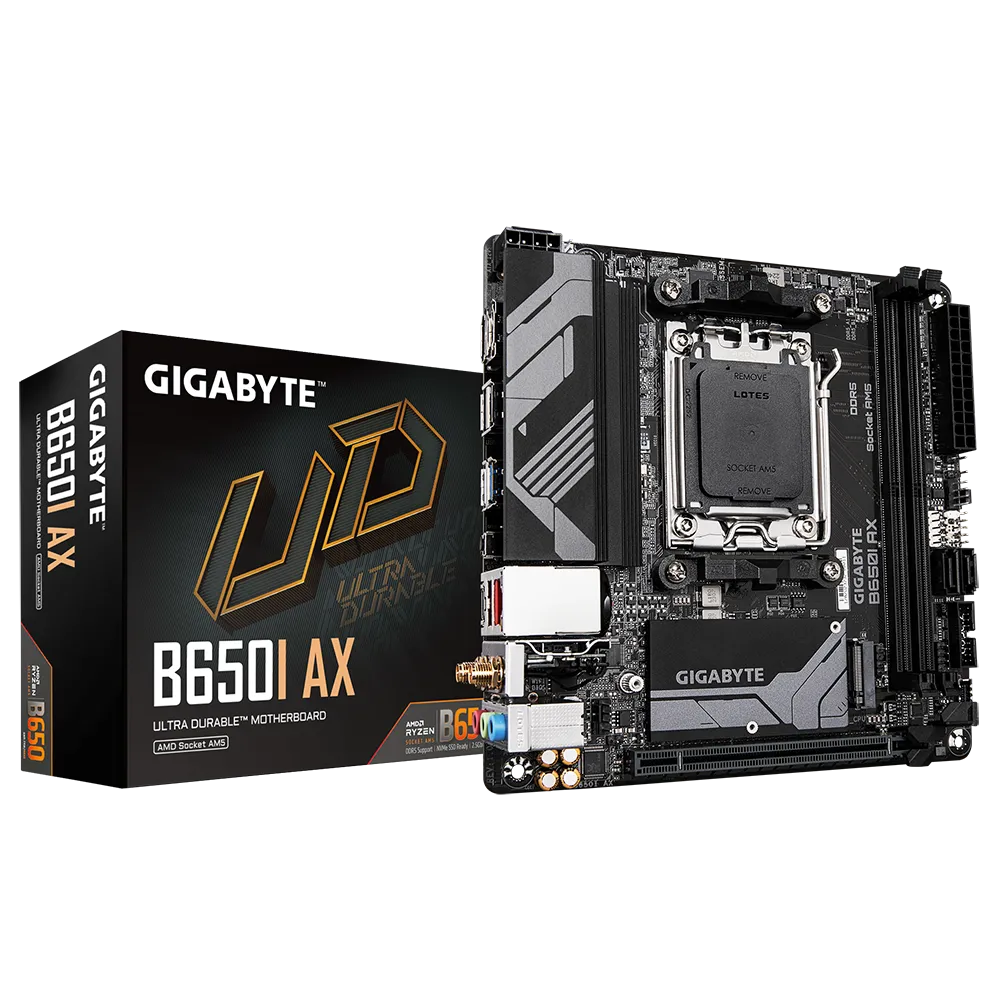

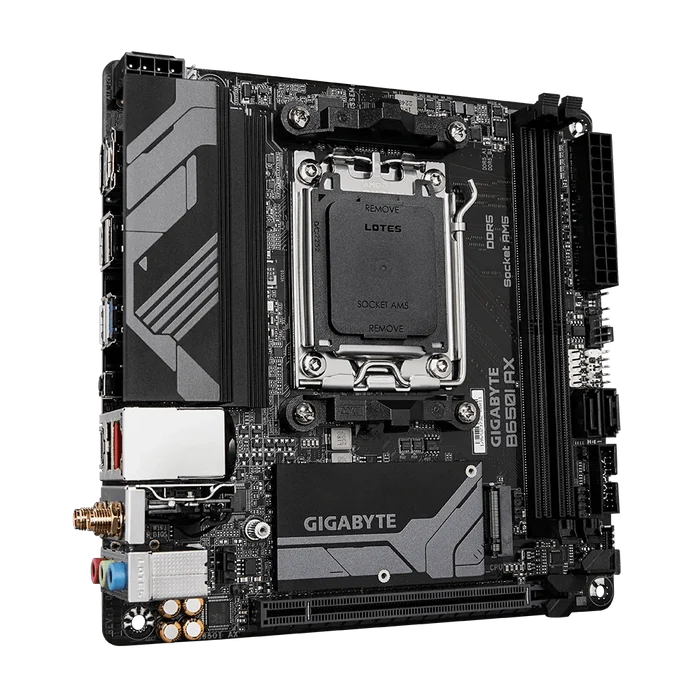

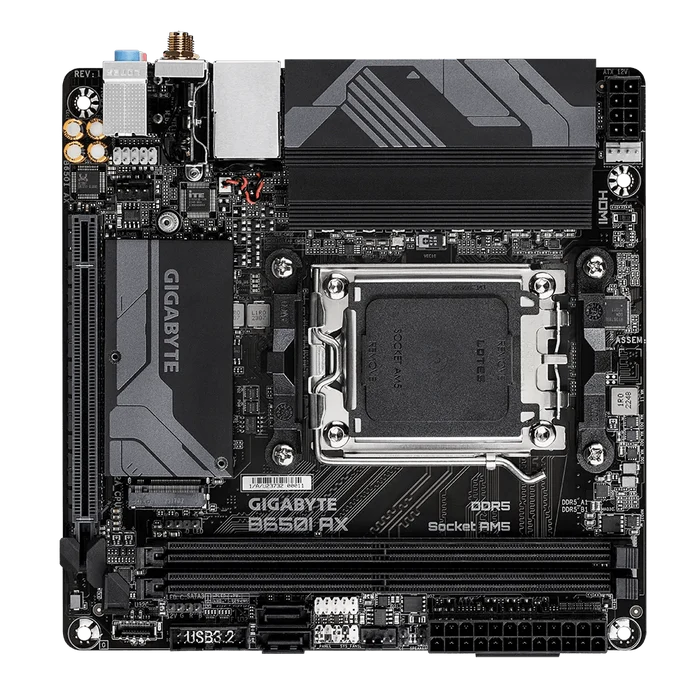

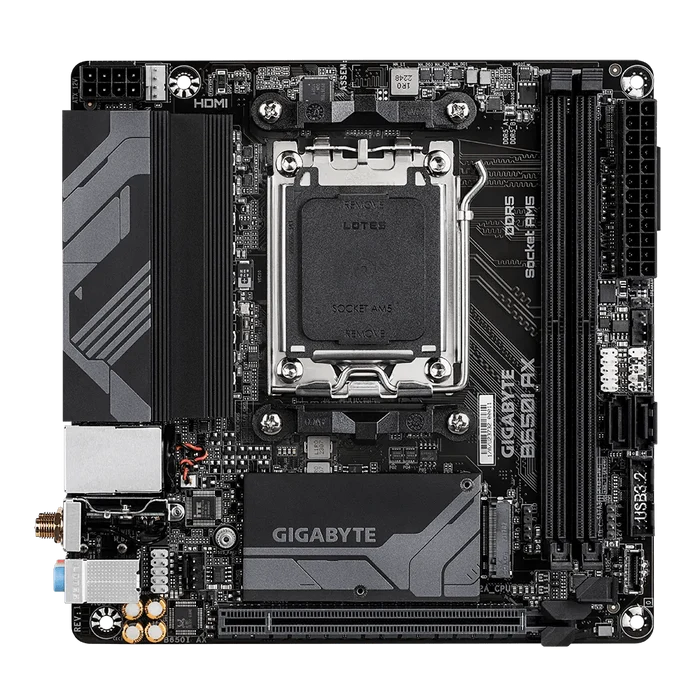

The Gigabyte B650I AX is a Mini-ITX motherboard for AMD Ryzen 7000, 8000 and 9000 series processors, built for compact high-performance builds that need Wi-Fi 6E and DDR5 support without sacrificing connectivity or expandability.
Why this product
DDR5 with AMD EXPO and XMP support
Dual-channel DDR5 with native boost to 5000 MHz and overclocking capability to 6400 MT/s. Automatically detects both AMD EXPO and Intel XMP memory profiles for broad compatibility.
Wi-Fi 6E and 2.5 GbE LAN
Latest 802.11ax Wi-Fi 6E with dedicated 6 GHz band for gigabit wireless performance, paired with 2.5 GbE Ethernet for wired connectivity.
BIOS updates without CPU or RAM
Q-Flash Plus button lets you update the BIOS with just a USB drive—no need to install the processor, memory, or graphics card.
PCIe 4.0 NVMe and quick-release GPU slot
One PCIe 4.0 x4 M.2 socket for fast NVMe storage, plus an EZ-Latch x16 slot with quick-release design for easy graphics card removal.
Compact Mini-ITX form factor
Fits small cases while delivering features typically found on larger boards—Wi-Fi 6E, three fan headers, dual SATA, and DisplayPort and HDMI video outputs.
- Form FactorMini-ITX
- ChipsetAMD B650
- Memory SupportDDR5 up to 128 GB (2 DIMM slots)
- Max Memory SpeedDDR5-6400 (OC)
- Storage1 x PCIe 4.0 NVMe, 2 x SATA
- WirelessWi-Fi 6E 802.11ax + Bluetooth 5
- Video OutputsDisplayPort 1.4, HDMI 2.1
- Fan Headers3 x PWM/DC with Smart Fan 6
- SKUGIG-1882
- EAN4719331859190
- AMD Ryzen 7000, 8000, and 9000 series processors on Socket AM5.
- DDR5 DIMM modules up to 128 GB (2 DIMM slots, 64 GB single DIMM capacity max).
- One PCIe 4.0 x4 M.2 NVMe SSD and two SATA 6 Gb/s storage devices.
- GPU must fit within the Mini-ITX form factor and be compatible with the single PCIe x16 slot; some oversized coolers may conflict with the RAM slots.
- Intel processors or DDR4 memory—this board is AM5 DDR5 only.
Best for
- Compact gaming or streaming builds that need fast storage and modern wireless.
- Overclockers using DDR5 with AMD EXPO or XMP profiles.
- Small-form-factor enthusiasts who want Wi-Fi 6E without switching to ITX-only features.
- Users building in cases with space constraints but requiring dual SATA and NVMe storage.
Trade-offs
- Multi-GPU setups: Single PCIe x16 slot limits graphics cards to one.
- Large air cooler compatibility: Mini-ITX boards leave less clearance above memory slots for tall coolers.
- Legacy storage: Only two SATA ports if you need more than three storage drives total (one M.2 NVMe + two SATA).
- Wired-only networks: No ethernet alternative if Wi-Fi 6E is not needed or unavailable.
AMD Socket AM5：Supports AMD Ryzen™ 7000/ Ryzen™ 8000 Series Processors
Unparalleled Performance：5+2+1 Phases Digital VRM Solution
Dual Channel DDR5：2*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
SuperSpeed Storage：PCIe 4.0 x4 M.2 Connector
EZ-Latch：PCIe x16 Slot with Quick Release Design
Fast Networks：Wi-Fi 6E 802.11ax & 2.5GbE LAN
Extended Connectivity：DP, HDMI
Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
GIGABYTE is offering a tested and proven platform that the memory overclocking capability is able up to 6400 and beyond.
GIGABYTE AM5 MB supports both AMD EXPO™ and Intel® XMP overclocking memory modules for maximal compatibility. MB will automatically detect both profiles format in SPD, users can choose to enable one of profiles from BIOS menu and easily reach overclocked memory performance.
Automatically Boost the Native DDR5 frequency to 5000MHz while the system is under heavy loading by a single click. Define and create your own SPD profile into Native, AMD EXPO™ and Intel® XMP 3.0 memory modules. One user-defined profile can be saved, loaded either locally or from/to an external storage device.
GIGABYTE Motherboards are ready to work with the PCIe 4.0 devices which are expected to experience twice bandwidth than the current PCIe 3.0 devices. To reach the high speed and maintain good signal integrity, GIGABYTE R&D uses the low impedance PCB to provide the maximum performance.
GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.
GIGABYTE motherboards feature an audio noise guard that essentially separates the board's sensitive analog audio components from potential noise pollution at the PCB level.
The latest Wireless solution 802.11ax Wi-Fi 6E with new dedicated 6GHz band, enables gigabit wireless performance, provides smooth video streaming.
With GIGABYTE Q-Flash Plus, you don't need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you're good to go!
- PCIe 4.0 Ready Mid Loss PCB
- 3*PWM/DC Fan Headers
- Dual Fan Curve Mode
General
| Brand | Gigabyte |
|---|---|
| Model | B650I AX |
| Form Factor | Mini-ITX |
| Chipset | AMD B650 |
Processor & Memory
| CPU Socket | AMD Socket AM5 |
|---|---|
| Supported CPUs | AMD Ryzen 7000, 8000, 9000 series |
| Memory Type | DDR5 |
| Memory Slots | 2 x DDR5 DIMM |
| Max Memory Capacity | 128 GB |
| Supported Memory Speeds | DDR5-4400, 4800, 5200, 5600(OC), 6000(OC), 6200(OC), 6400(OC) MT/s |
| Memory Profiles | AMD EXPO and Intel XMP |
Storage & Expansion
| NVMe Slots | 1 x PCIe 4.0 x4 M.2 |
|---|---|
| SATA Connectors | 2 x SATA 6 Gb/s |
| RAID Support | RAID 0 and RAID 1 for NVMe and SATA |
| PCIe Slots | 1 x PCIe x16 (EZ-Latch quick-release) |

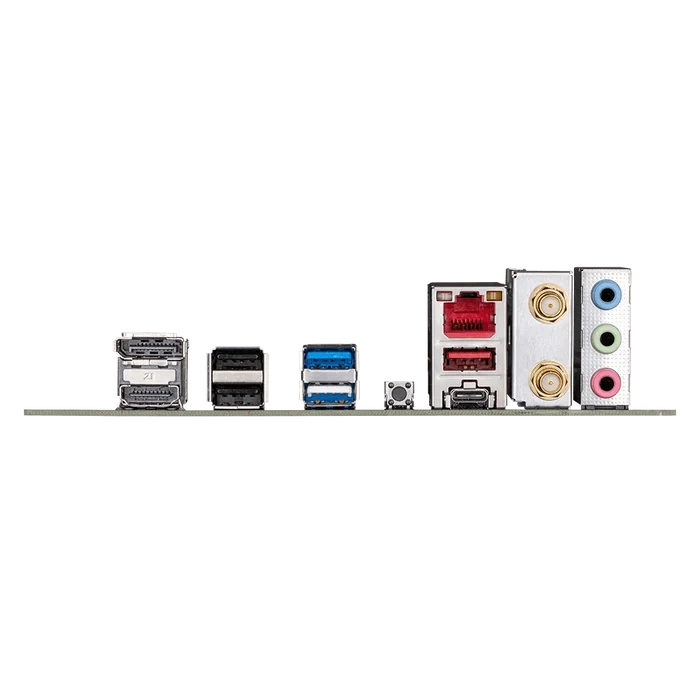

Connectivity & I/O
| Wireless | Wi-Fi 6E 802.11ax (160 MHz) + Bluetooth 5 |
|---|---|
| LAN | 2.5 GbE (Multi-Gig 10/100/1000/2500 Mbps) |
| USB (Rear) | 1 x USB 3.2 Gen 1, 2 x USB 2.0/1.1 |
| USB (Internal Headers) | 2 x USB 3.2 Gen 1, 2 x USB 2.0/1.1 |
| Video Outputs | 1 x DisplayPort 1.4 (up to 3840x2160@144 Hz), 1 x HDMI 2.1 (up to 4096x2160@60 Hz) |
Cooling & Power
| Fan Headers | 3 x PWM/DC |
|---|---|
| Fan Control | Smart Fan 6 with multiple temperature sensors, hybrid headers with FAN STOP, dual fan curve mode |
| VRM Phases | 5+2+1 Digital |
Features
| BIOS Update | Q-Flash Plus (no CPU, memory or graphics card installation required) |
|---|---|
| Software | GIGABYTE Control Center (GCC) |
