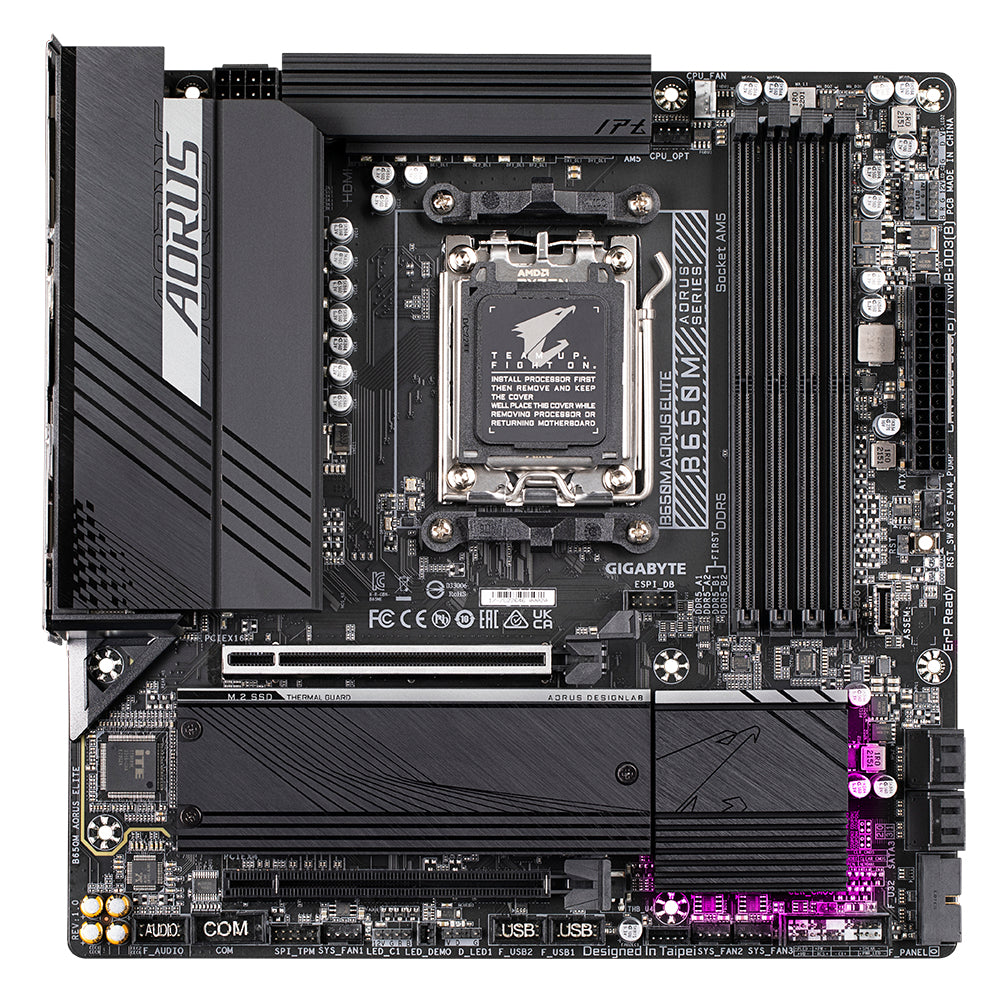

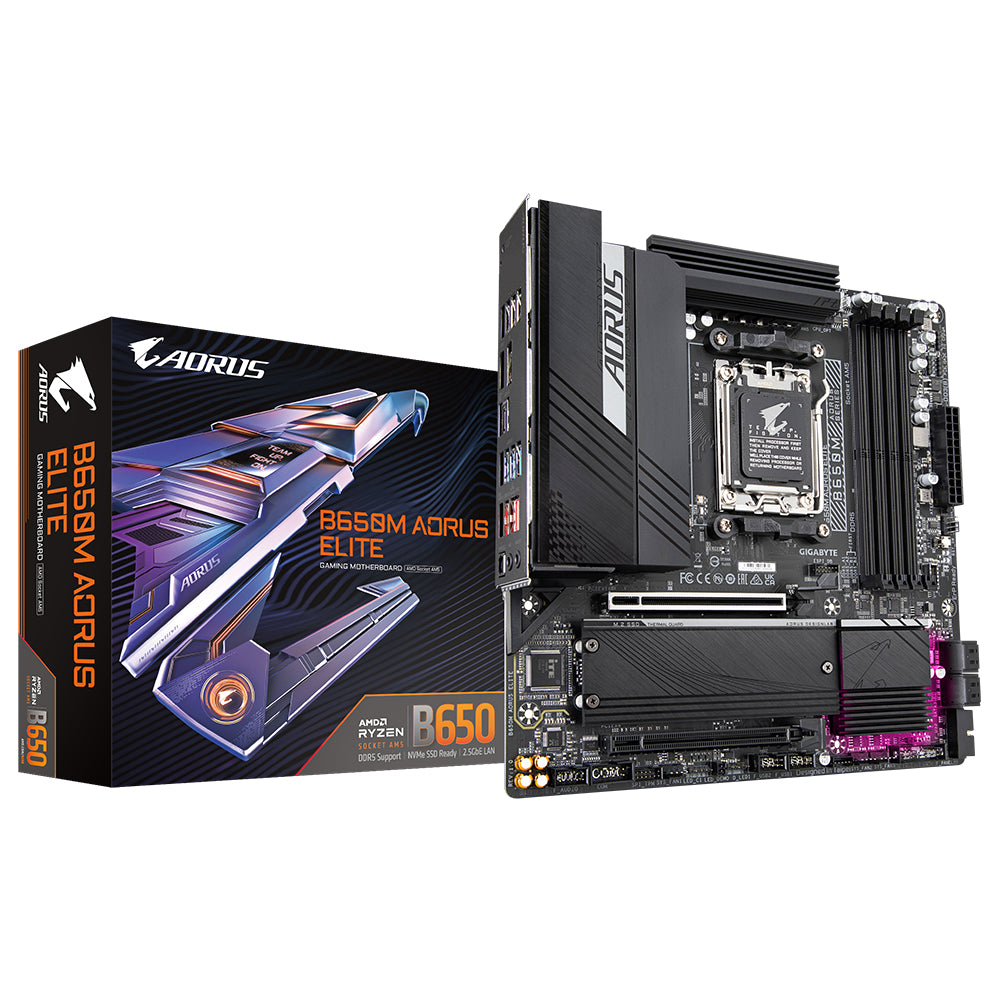

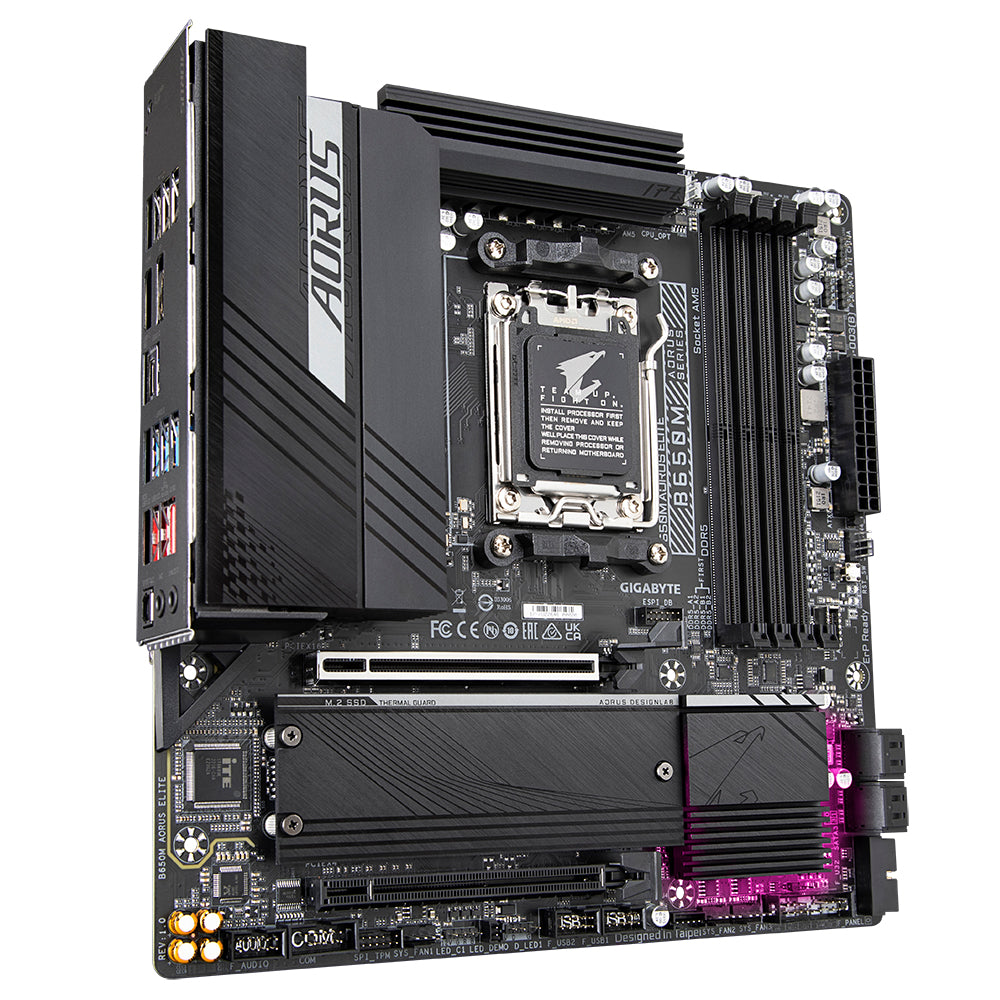

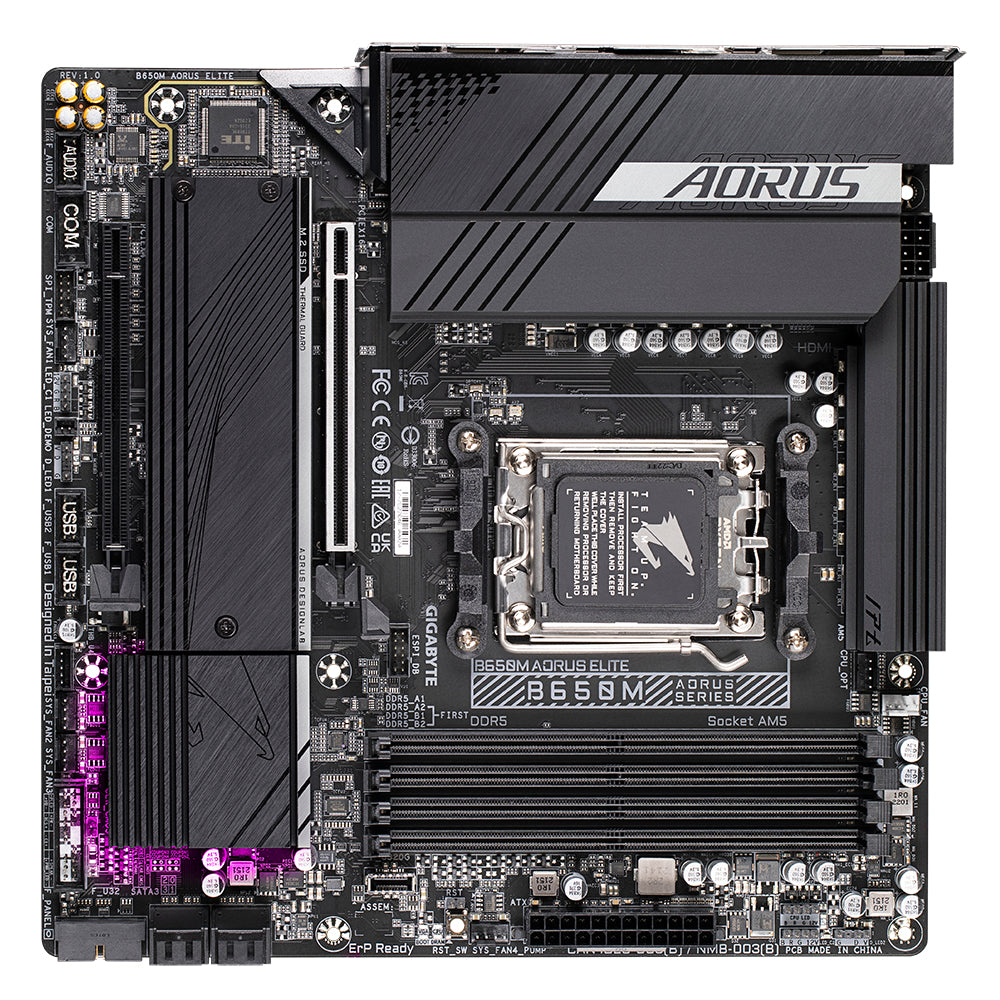

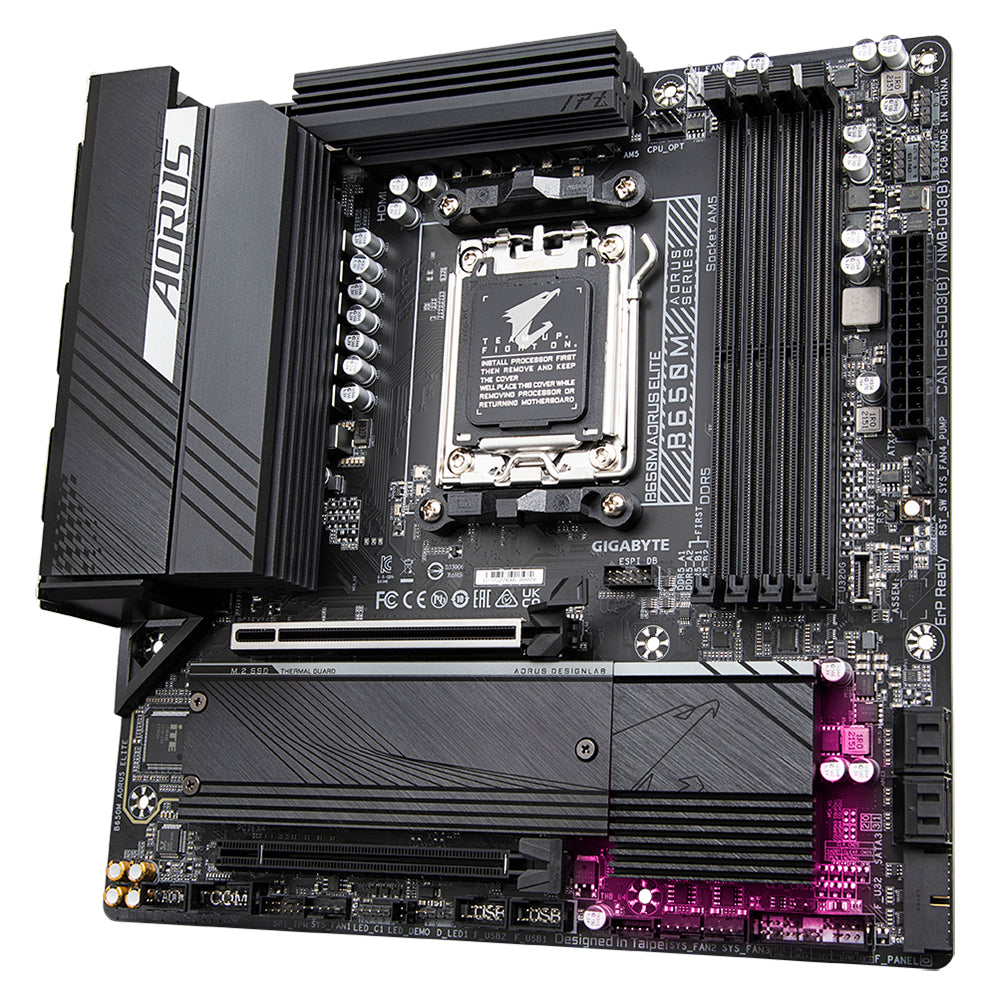

Gigabyte B650M AORUS ELITE AMD AM5 Micro-ATX Motherboard
GIGABYTE
Gigabyte B650M AORUS ELITE AMD AM5 Micro-ATX Motherboard
The Gigabyte B650M AORUS ELITE is a micro-ATX motherboard built for AMD Ryzen 7000, 8000, and 9000 series processors, designed to support high-performance gaming and overclocking. It combines advanced power delivery and thermal management with PCIe 5.0 support and DDR5 memory compatibility, making it suitable for builders seeking a balance of performance and compact form factor.
Why this product
Twin 12+2+1 VRM with 60A power stages
Upgraded power delivery ensures stable overclocking and sustained performance for high-end CPUs. The 2X copper PCB further improves power distribution and thermal efficiency.
PCIe 5.0 M.2 slot with thermal guard
One PCIe 5.0 x4 slot enables next-generation NVMe drives at full speed, while a secondary PCIe 4.0 x4 slot provides flexibility. Integrated thermal guard prevents throttling under load.
Advanced cooling with 6mm heatpipe
Fully covered MOSFET heatsinks and 6mm heatpipe dissipate heat efficiently across the power delivery system. 5 W/mk thermal conductivity pad accelerates heat transfer away from critical components.
DDR5 support up to 8000 MT/s with EXPO
Four DDR5 DIMM sockets support up to 256 GB of memory. AMD EXPO and Intel XMP profiles enable high-speed memory overclocking without manual tuning.

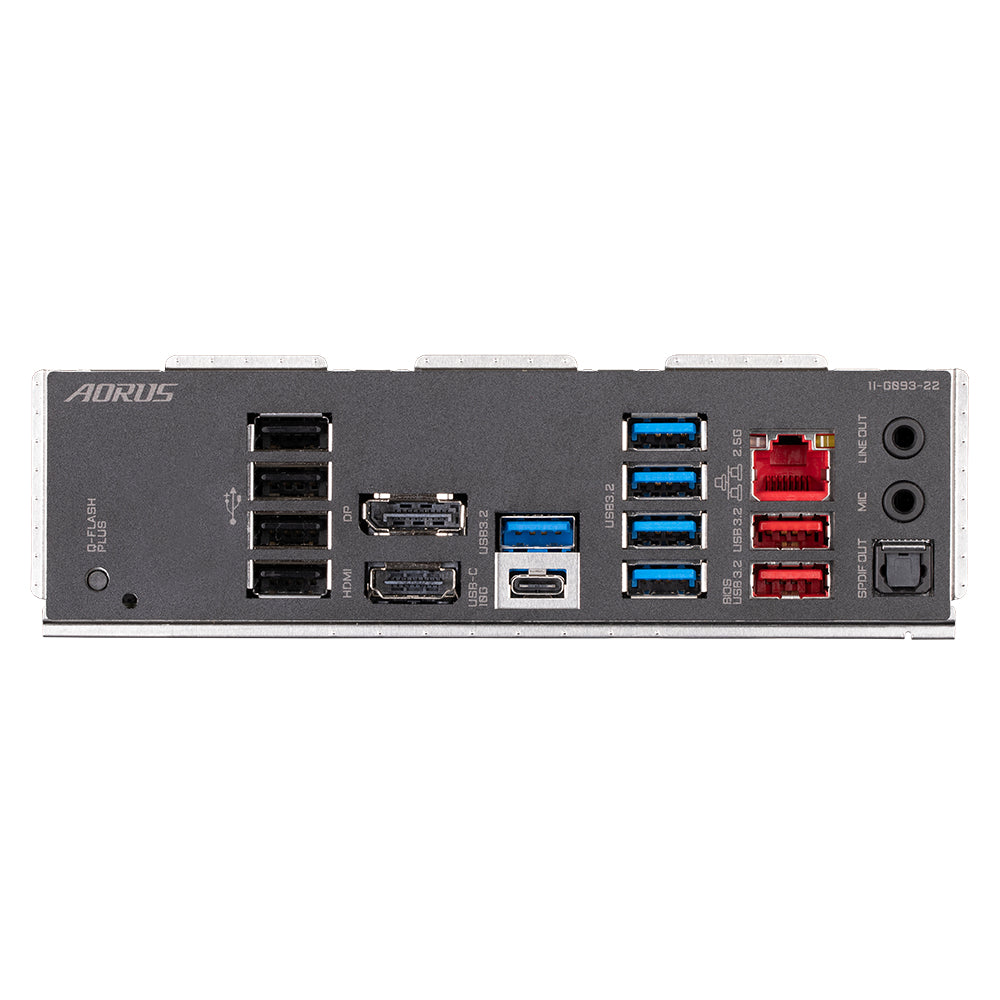

Micro-ATX form factor with integrated I/O shield
Compact design fits space-constrained builds while maintaining full connectivity. Integrated shield reduces assembly time and improves audio clarity via noise isolation.
- SocketAMD AM5
- ChipsetAMD B650
- Form FactorMicro-ATX
- Memory SupportDDR5 up to 8000 MT/s (OC)
- Memory CapacityUp to 256 GB (4 DIMM slots)
- PCIe 5.0 M.2 Slots1 x PCIe 5.0 x4
- PCIe 4.0 M.2 Slots1 x PCIe 4.0 x4
- Video OutputDisplayPort 1.4 + HDMI
- SKUGIG-1920
- EAN4719331849818
- AMD Socket AM5: supports Ryzen 7000, 8000, and 9000 series processors.
- DDR5 memory only; does not support DDR4 or earlier memory standards.
- DisplayPort 1.4 and HDMI output for multi-monitor setups up to 3840×2160@144 Hz.
- 2.5GbE LAN port for wired network connectivity.
- PCIe 5.0 support is design-ready; functionality depends on compatible M.2 NVMe drives and BIOS firmware.
Best for
- Ryzen 7000/8000/9000 builders on a budget
- Overclockers targeting high DDR5 and CPU frequencies
- Small-form-factor builds that need mid-range performance
- Gamers seeking PCIe 5.0 NVMe storage at a mid-tier price
Trade-offs
- DDR4 system builders; this board requires DDR5 memory modules only.
- Builders needing full-size ATX I/O and expansion; micro-ATX limits slot count and rear I/O.
- Workloads requiring more than two M.2 slots; only two NVMe sockets are available.
- Users prioritizing analog audio quality; while audio noise guard is present, this is a gaming board, not an audiophile platform.
With the fast-moving technology changes, GIGABYTE always follows the latest trends and provides customers with advanced features and latest technologies. GIGABYTE motherboards are equipped with upgraded power solution, latest storage standards and outstanding connectivity to enable optimized performance for gaming.
To ensure maximum Turbo Boost and overclocking performance of AMD's new generation CPU, GIGABYTE AORUS series motherboard equip the best VRM design ever built with the highest quality components.
Performance
Twin 12+2+1 Digital VRM Design · 60A Smart Power Stage · 2X Copper PCB · PCIe 5.0 Ready PCB
Advanced Thermal Design
Fully Covered MOSFET Heatsinks · 6mm Heatpipe · 5 W/mk Thermal Conductivity Pad · Integrated I/O Shield
Design Ready for PCI Express 5.0
1* PCIe 5.0 x4 M.2 + 1* PCIe 4.0 x4 M.2 with M.2 Thermal Guard
AORUS motherboards feature an audio noise guard that essentially separates the board's sensitive analog audio components from potential noise pollution at the PCB level.
GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides newly designed intuitive user interface to control all essential function. Unified software platform for all Gigabyte supported products.
A multi-function reset button that can be reconfigured to other function in BIOS for different user scenarios. RGB Switch: Turn off all lighting effect on motherboard. Direct-To-BIOS: Boot into BIOS menu directly without pressing any keyboard button.
Safe Mode: Boot into BIOS safe mode to change specific option without losing other BIOS settings.
AORUS is offering a tested and proven platform that the memory overclocking capability is able up to 8000 and beyond. All users need to do for achieving this extreme memory performance boost is to ensure that their DDR5 memory modules are AMD EXPO™/ Intel® XMP capable, the EXPO/XMP function is activated and enabled on their AORUS motherboard.
* Memory overlocking capability and EXPO/XMP profiles support may vary depending on hardware configuration and memory modules. Please see the complete validated memory support list. Product features may vary by model.
General
| Brand | GIGABYTE |
|---|---|
| Model | B650M AORUS ELITE |
| Socket | AMD AM5 |
| Chipset | AMD B650 |
| Form Factor | Micro-ATX |
CPU & Memory
| CPU Support | AMD Ryzen 7000 / 8000 / 9000 Series |
|---|---|
| Memory Standard | DDR5 |
| Memory Speed | Support for 4400–8000 MT/s; overclocking capable to 8000 MT/s and beyond |
| Memory Slots | 4 x DIMM |
| Maximum Memory | 256 GB (64 GB per DIMM) |
| EXPO / XMP | AMD EXPO and Intel XMP supported |
Storage & Connectivity
| M.2 Slot 1 | PCIe 5.0 x4 with Thermal Guard |
|---|---|
| M.2 Slot 2 | PCIe 4.0 x4 with Thermal Guard |
| LAN | 2.5GbE |
| Display Output | 1 x DisplayPort 1.4 (up to 3840×2160@144 Hz), 1 x HDMI |
Power & Thermal
| VRM Design | Twin 12+2+1 Digital VRM, 60A Smart Power Stage |
|---|---|
| PCB | 2X Copper PCB, PCIe 5.0 Ready |
| MOSFET Heatsinks | Fully covered |
| Heatpipe | 6mm |
| Thermal Conductivity Pad | 5 W/mk |
| Audio Isolation | Audio Noise Guard with integrated I/O shield |
