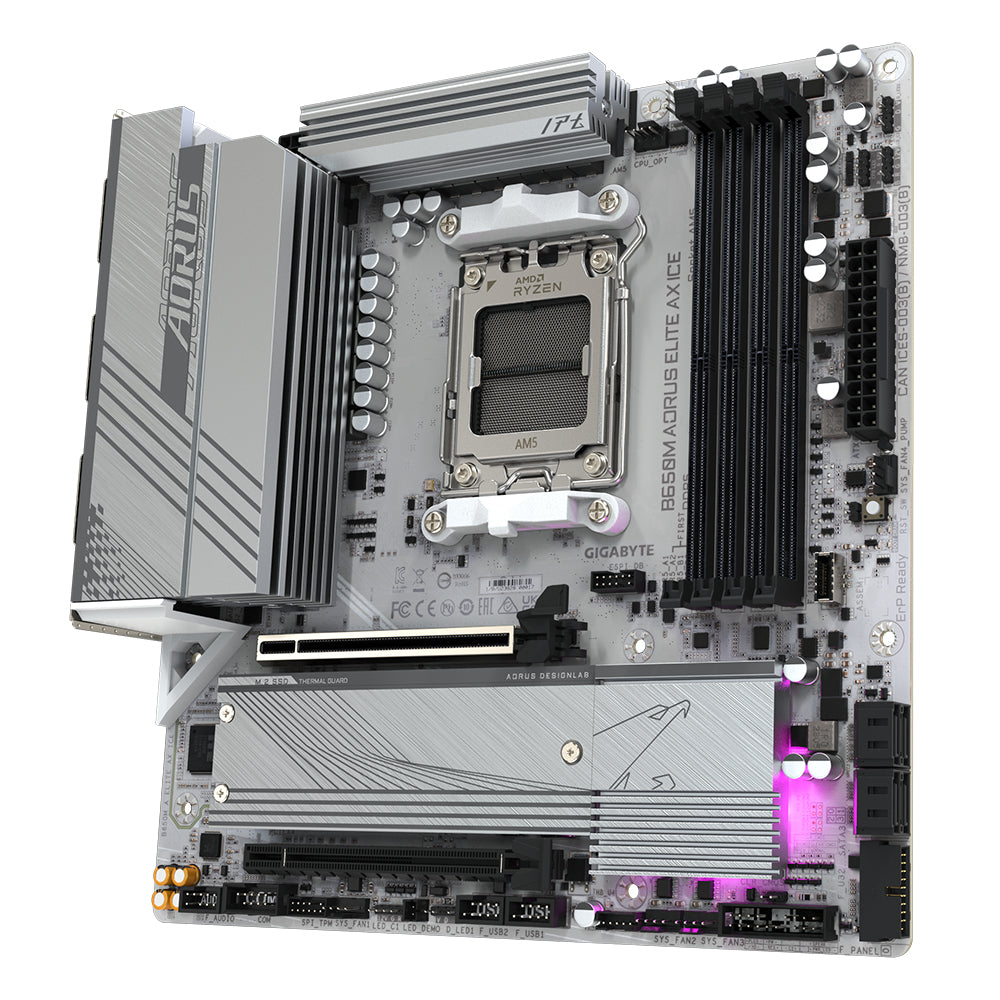

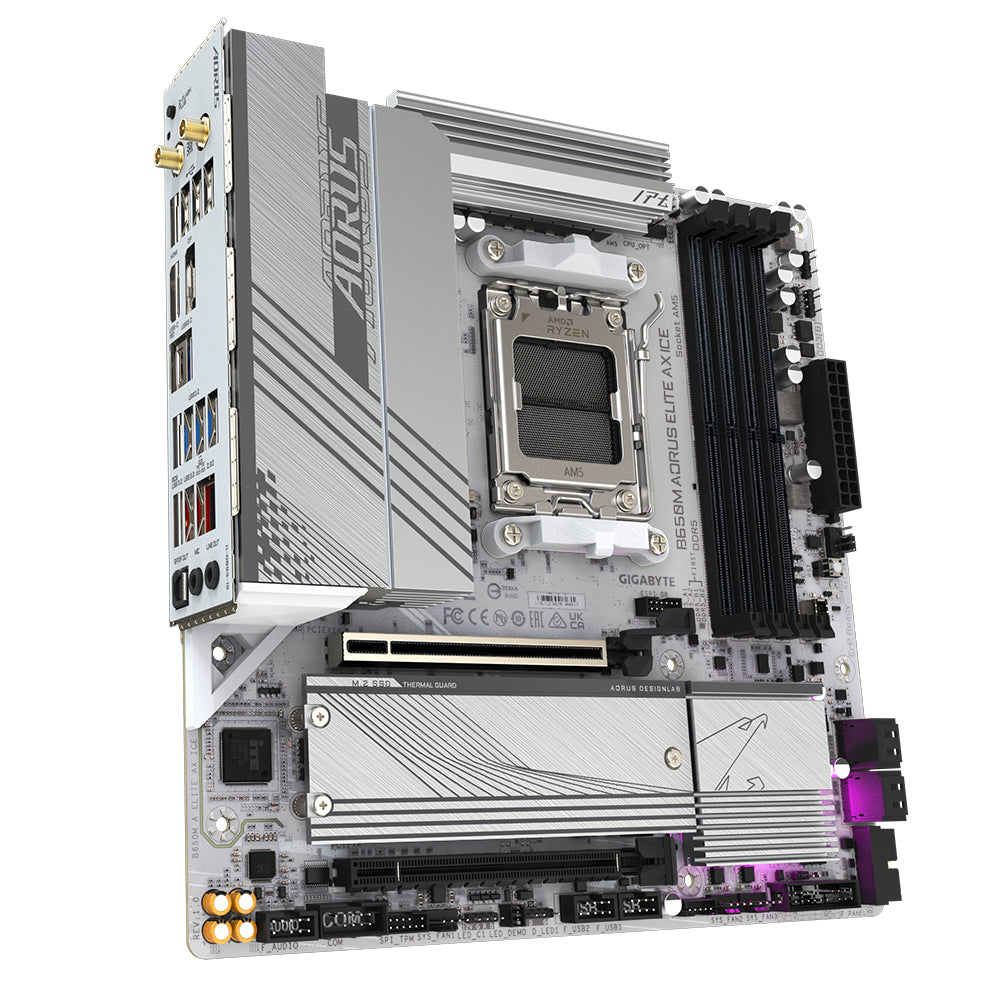

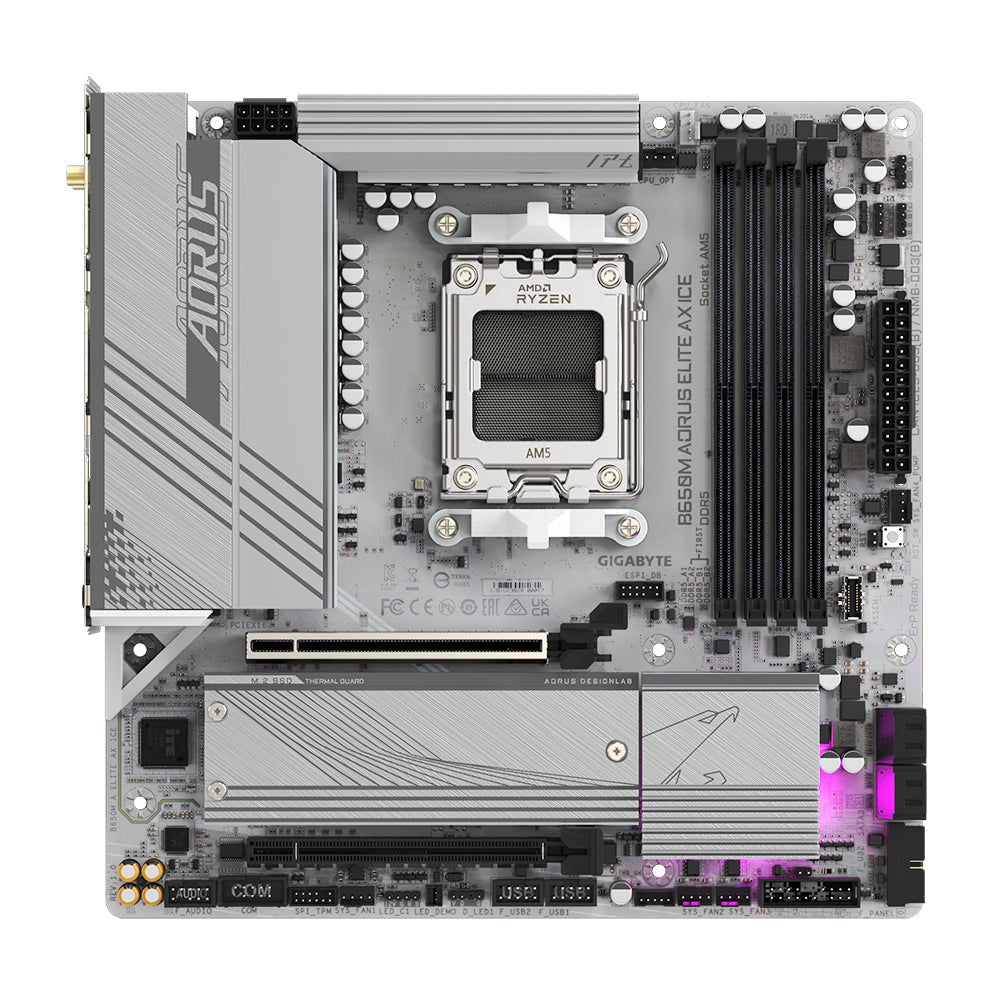

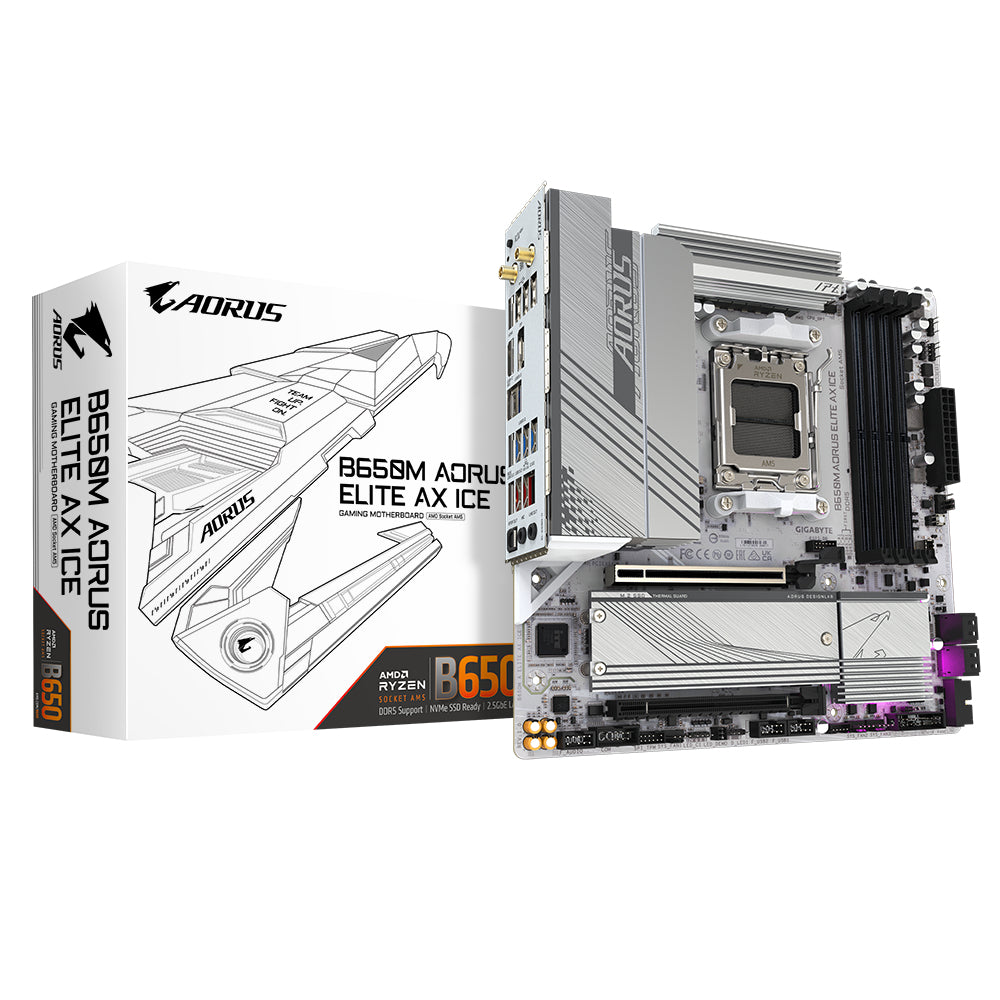

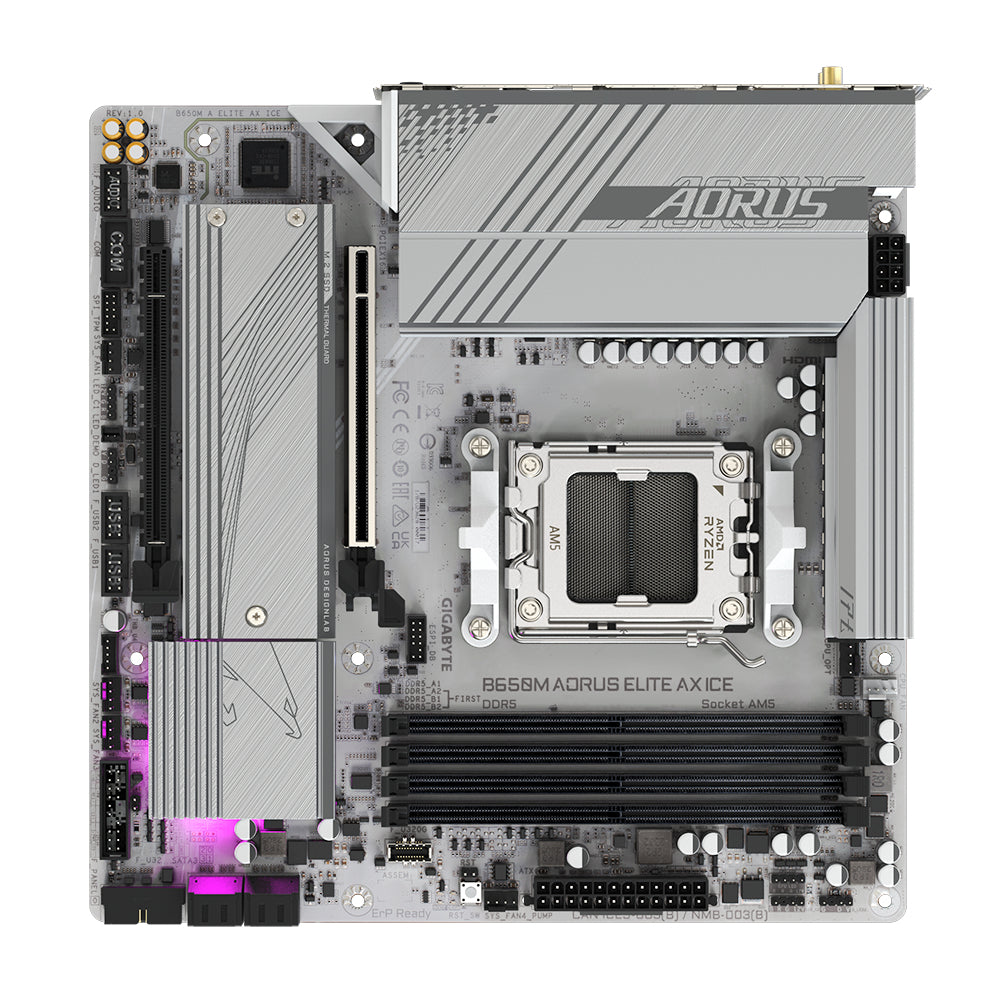

Gigabyte B650M AORUS ELITE AX ICE AM5 Micro-ATX Motherboard
GIGABYTE
Gigabyte B650M AORUS ELITE AX ICE AM5 Micro-ATX Motherboard
The Gigabyte B650M AORUS ELITE AX ICE is a Micro-ATX motherboard designed for builders who want a capable, feature-rich AMD AM5 platform without committing to a full-size board. It suits gamers and enthusiasts looking to pair a Ryzen 7000, 8000, or 9000 series processor with fast DDR5 memory, PCIe 5.0 storage, and integrated Wi-Fi 6E networking in a compact footprint.
Why this product
Twin 12+2+2 Phase Digital VRM
The all-digital power design delivers stable high-power delivery under heavy workloads, supporting advanced overclocking on AMD Ryzen processors.
PCIe 5.0 and PCIe 4.0 M.2 Storage
Two M.2 slots — one PCIe 5.0 x4 and one PCIe 4.0 x4 — with M.2 Thermal Guard and support for 25110-length drives give storage-hungry builds room to grow.
Wi-Fi 6E and 2.5GbE Wired Networking
Integrated Wi-Fi 6E covers 2.4 GHz, 5 GHz, and 6 GHz bands with Bluetooth 5.3, while a 2.5GbE LAN port handles wired connections.
DDR5 Support up to 8000 MT/s (OC)
Four DIMM slots support up to 256 GB of DDR5 memory with AMD EXPO and Intel XMP profiles, and memory routing is shielded within the PCB's inner layers to reduce interference.
EZ-Latch Screwless Release Design
The PCIe x16 slot and M.2 connectors use a quick-release, screwless mechanism to make installing and swapping graphics cards and SSDs straightforward.
Q-Flash Plus BIOS Update Without CPU
BIOS updates can be applied via USB without a CPU, memory, or graphics card installed, simplifying platform preparation before a new processor arrives.
- SocketAMD AM5
- Form FactorMicro-ATX
- ChipsetAMD B650
- Memory4 x DDR5 DIMM, up to 256 GB, up to 8000 MT/s (OC)
- M.2 Slots1 x PCIe 5.0 x4, 1 x PCIe 4.0 x4
- Networking2.5GbE LAN + Wi-Fi 6E + Bluetooth 5.3
- VRMTwin 12+2+2 Phase Digital
- Rear USBUSB-C 10Gb/s
- SKUGIG-1957
- EAN4719331859336
- Compatible with AMD Ryzen 7000, Ryzen 8000, and Ryzen 9000 Series processors via the AM5 socket.
- Fits standard Micro-ATX cases and any chassis that accommodates Micro-ATX form factor boards.
- Supports DDR5 non-ECC Unbuffered DIMMs (1Rx8, 2Rx8, 1Rx16) — DDR4 is not compatible with this board.
- The PCIe x16 slot runs at x16 mode with Ryzen 7000/9000 Series, at x8 mode with Ryzen 8000 Series Phoenix 1, and at x4 mode with Ryzen 8000 Series Phoenix 2 — check your specific CPU before assuming full x16 bandwidth.
- The Wi-Fi module varies by PCB revision: revision 1.0 uses a Realtek RTL8852CE chip, while revision 1.1 uses an Intel AX210 chip. Both support Wi-Fi 6E and Bluetooth 5.3.
- Does not support ECC registered (RDIMM) or buffered memory modules.
Best for
- Compact AMD gaming builds — the Micro-ATX footprint fits smaller cases while still offering two M.2 slots, PCIe 5.0 storage, and a robust VRM for Ryzen processors.
- Builders who want integrated wireless — Wi-Fi 6E across 2.4/5/6 GHz bands and Bluetooth 5.3 are built in, so no add-in card is needed.
- DDR5 enthusiasts — four DIMM slots with AMD EXPO and XMP support, plus shielded memory routing, make it well-suited for high-frequency DDR5 configurations.
- Gamers who want capable audio — the onboard solution supports 7.1 channel playback with Premium Grade Audio capacitors, removing the need for a separate sound card in most gaming setups.
- DIY builders who value easy assembly — EZ-Latch on both the PCIe slot and M.2 connectors, plus Q-Flash Plus for BIOS updates without a CPU installed, simplify the build process.
Trade-offs
- Intel platform users — this board uses an AM5 socket and is not compatible with any Intel processor.
- DDR4 upgraders — only DDR5 is supported; existing DDR4 kits cannot be reused.
- Builders needing multiple PCIe x16 slots — there is only one PCIe x16 slot, so multi-GPU or high-slot-count expansion configurations are not supported.
- Full-ATX case builds — the Micro-ATX form factor is physically smaller than ATX; while it fits in most ATX cases, builders who want a full-ATX board for additional expansion should look elsewhere.
- Workloads requiring ECC memory — the board explicitly supports non-ECC Unbuffered DIMMs only, making it unsuitable for applications that depend on ECC memory for error correction.
All AORUS series gaming motherboards are equipped with an all-digital power design, which delivers the best stability under heavy workloads. Ensures stable high-power delivery for advanced overclocking.
All AORUS series gaming motherboards feature multiple techniques to enhance the performance of DDR5 memory with the best compatibility. Feature-rich BIOS functions that enable easy access to the best-in-class DDR5 performance. Maximize DDR5 performance with our advanced technology for an unparalleled gaming experience. Memory routing is shielded within the PCB's inner layer to protect against interference. Optimized routing eliminates the stub effect, enabling higher memory frequencies and providing professional gamers with a faster and denser system memory experience.
Every AORUS motherboard is armored with the most advanced, full metal thermal design. These solid heatsinks are forged to keep your system cool while running fast.
Building your own PC is meant to be joyful and effortless. AORUS serious motherboard the most DIY-friendly ever. Effortless mechanisms that enable easy installations of components.
GIGABYTE Ultra Durable™ Technology represents our highest standards to provide a platform for gamers that is not only powerful but also durable and reliable. AORUS series motherboard is built to last longer and stand stronger. GIGABYTE's one-piece stainless-steel shielding design reinforces the PCIe Slots, providing the extra strength required to support heavy graphics cards. The unique design provides better conductivity for power and better dissipation for the heat generated from it.
Enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage, and Wi-Fi connectivity.
Enjoy a high-quality sound experience, which supports 7.1 channel playback, features an advanced microphone array, and offers versatile connectivity options for gaming and entertainment. Premium Grade Audio capacitors provide stable current, delivering a studio-quality experience.
General
| Brand | GIGABYTE |
|---|---|
| Form Factor | Micro-ATX |
| Socket | AMD AM5 |
| Chipset | AMD B650 |
| Supported CPUs | AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series |
Memory & Storage
| Memory Type | DDR5 |
|---|---|
| DIMM Slots | 4 |
| Max Memory | 256 GB (64 GB per DIMM) |
| Memory Speed | 4400 / 4800 / 5200 / 5600(OC) / 6000(OC) / 6200(OC) / 6400(OC) / 6600(OC) / 6666(OC) / 6800(OC) / 7000(OC) / 7200(OC) / 7600(OC) / 7800(OC) / 8000(OC) MT/s |
| Memory Profile Support | AMD EXPO, Intel XMP |
| M.2 Slot 1 | PCIe 5.0 x4, supports 25110 |
| M.2 Slot 2 | PCIe 4.0 x4 |
| M.2 Thermal Guard | Yes |
Connectivity
| LAN | 2.5GbE |
|---|---|
| Wi-Fi | Wi-Fi 6E (802.11a/b/g/n/ac/ax), 2.4/5/6 GHz |
| Bluetooth | 5.3 |
| Display Output | 1 x HDMI, 1 x DisplayPort |
| Front Panel USB | USB-C 20Gb/s |

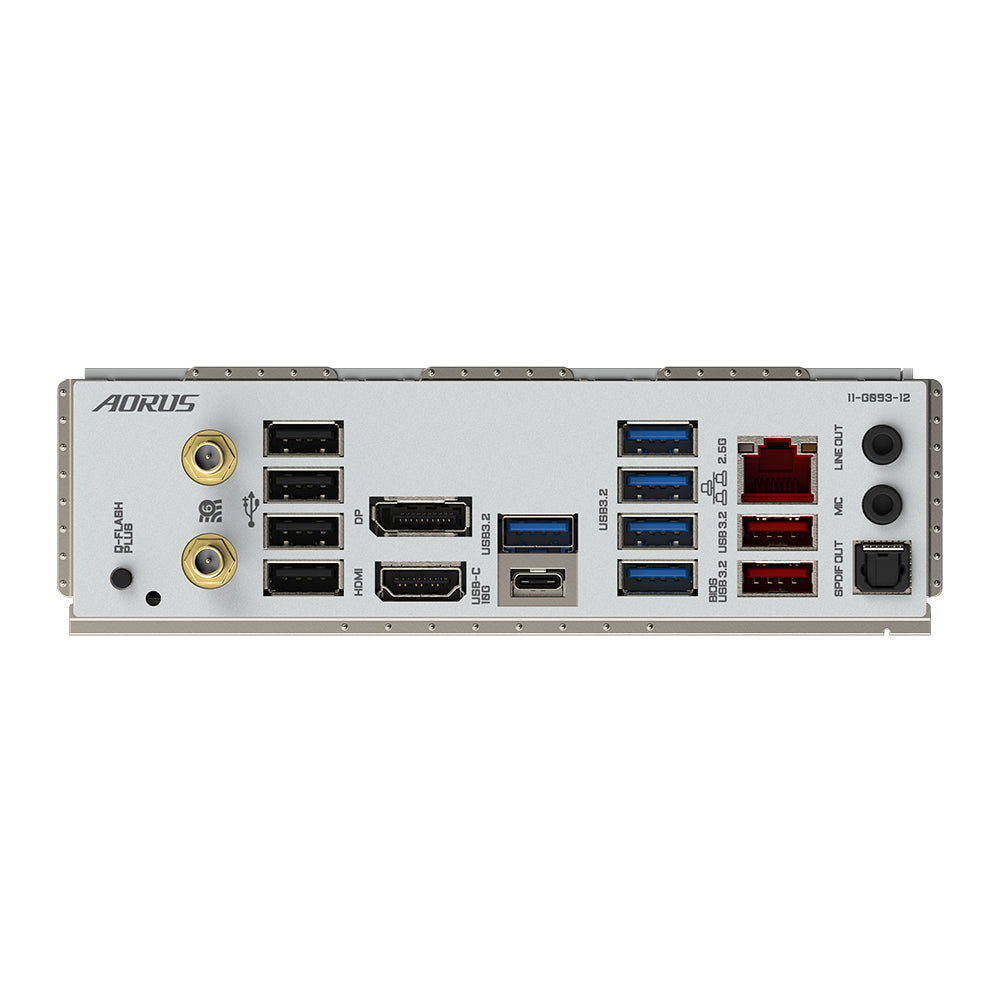

| Rear Panel USB | USB-C 10Gb/s |
Power, Audio & Features
| VRM Phases | Twin 12+2+2 Phase Digital |
|---|---|
| PCIe x16 Slot | 1 x PCIe x16 (CPU-integrated; up to x16 mode with Ryzen 7000/9000) |
| Audio | 7.1 channel playback, Premium Grade Audio capacitors |
| Fan Headers | Smart Fan 6 with multiple temperature sensors, Hybrid Fan Headers with FAN STOP |
| BIOS Feature | Q-Flash Plus (update without CPU, memory or GPU installed) |
| PCIe Slot Reinforcement | One-piece stainless-steel shielding |
