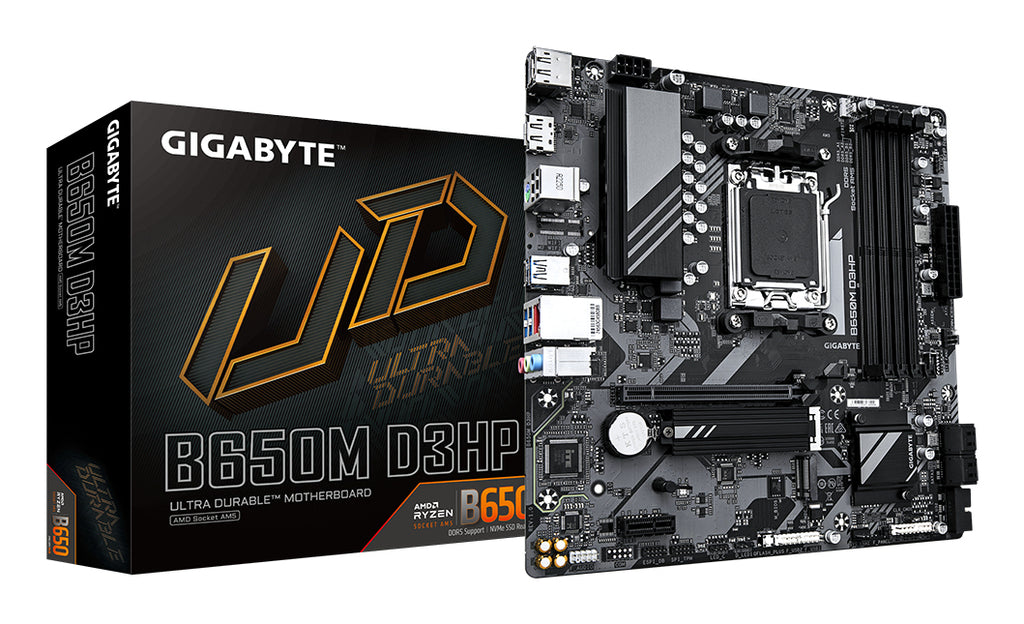

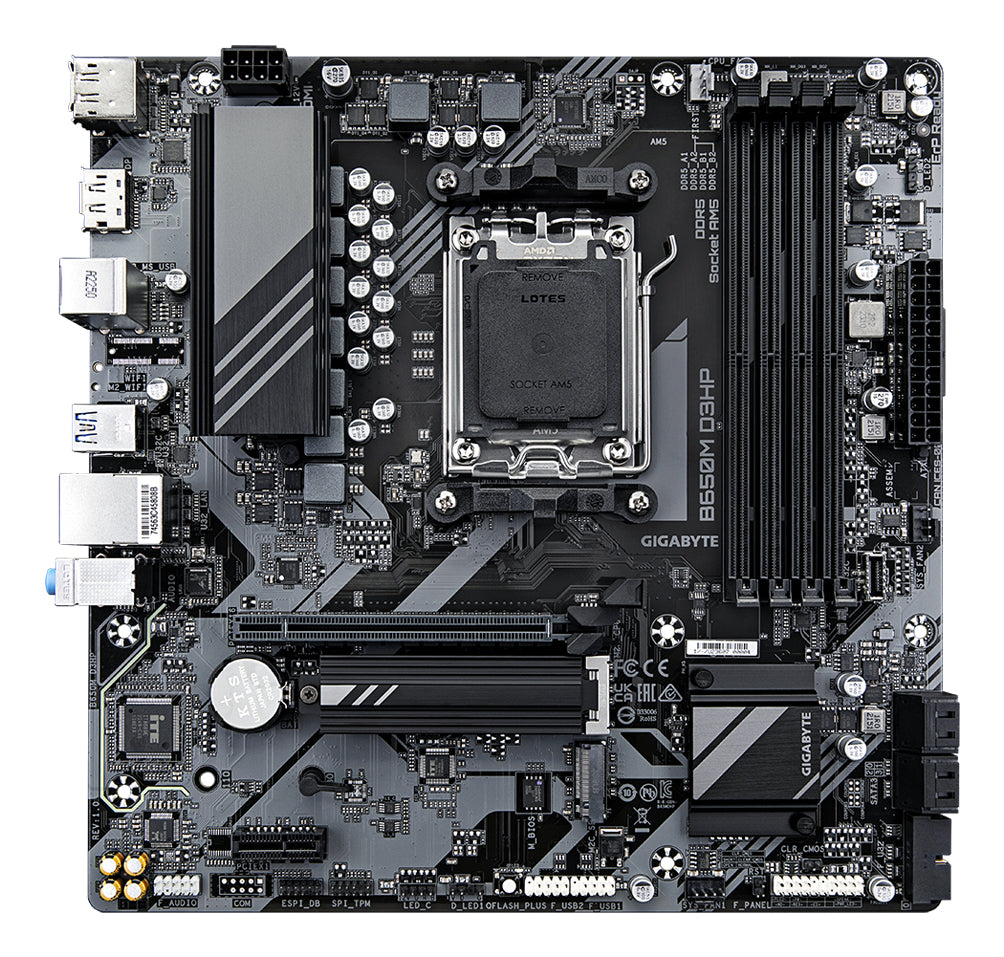

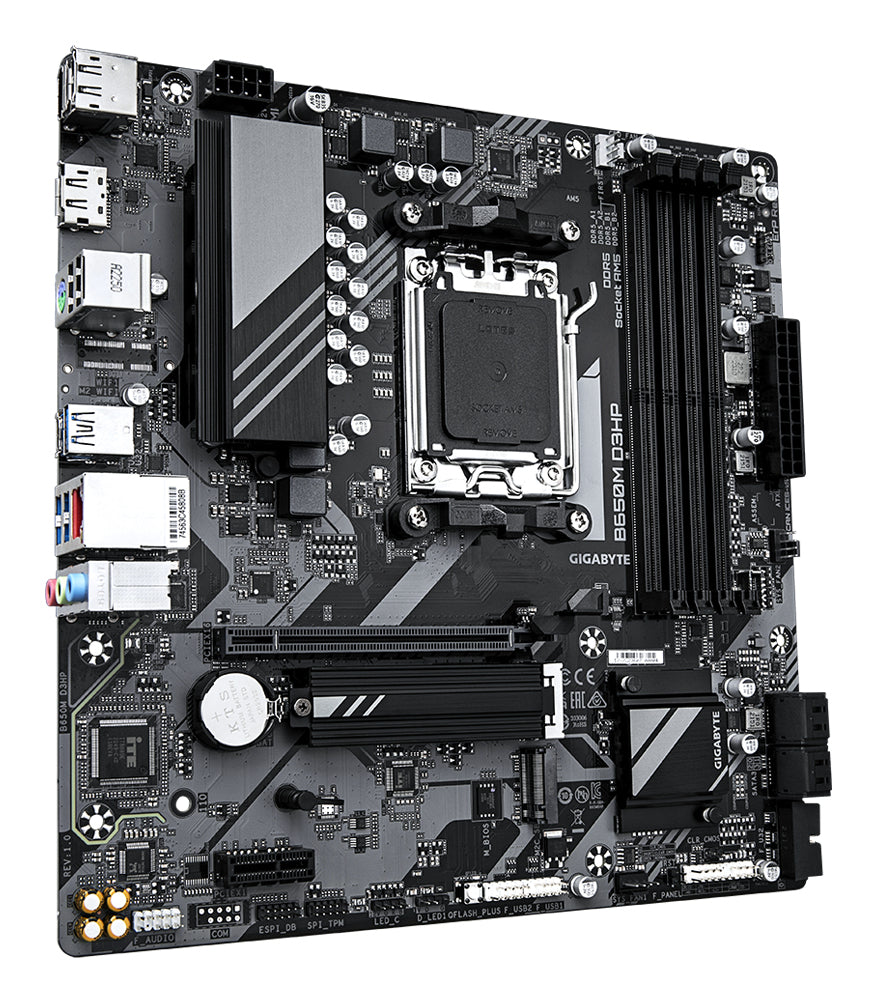

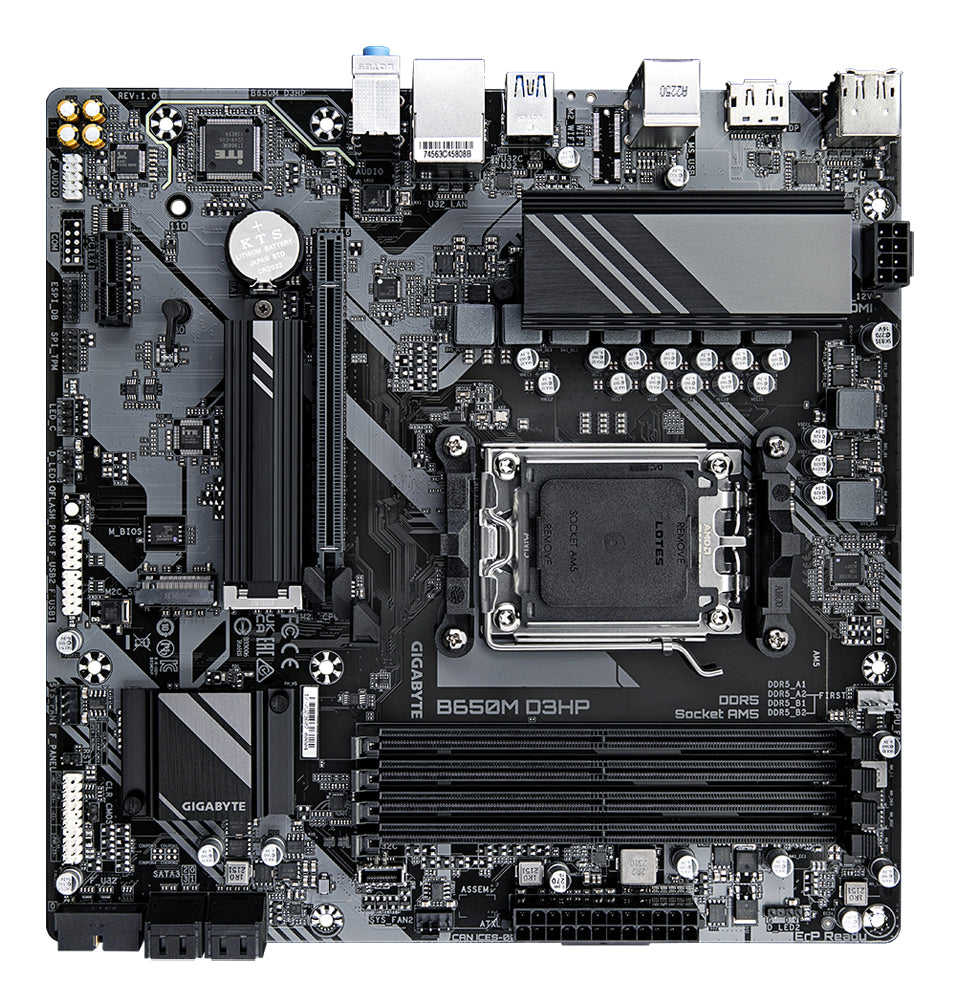

Gigabyte B650M D3HP AM5 Micro-ATX DDR5 Motherboard
GIGABYTE
Gigabyte B650M D3HP AM5 Micro-ATX DDR5 Motherboard
The Gigabyte B650M D3HP is a micro-ATX motherboard built for AMD Ryzen 7000, 8000, and 9000 Series processors seeking robust power delivery and DDR5 overclocking support. It combines a 5+2+2 phase digital VRM with dual-channel DDR5 memory up to 8000 MT/s, PCIe 4.0 storage, and 2.5GbE networking in a compact footprint.
Why this product
5+2+2 Phase Digital VRM
Precision power delivery to CPU and memory components supports the latest Ryzen processors and system scaling without compromise.
DDR5 up to 8000 MT/s Overclocking
Supports AMD EXPO and Intel XMP profiles with native voltage control, unlocking memory performance beyond standard speeds.
PCIe 4.0 Storage & x16 GPU Slot
Two M.2 connectors and one x16 expansion slot deliver high-bandwidth connectivity for NVMe drives and graphics cards.
Q-Flash Plus BIOS Update
Update motherboard firmware without installing a CPU, memory or graphics card, lowering the barrier to compatibility changes.
2.5GbE LAN & Dual Display Output
Gigabit networking and two DisplayPorts plus HDMI support multi-monitor setups and fast wired connectivity.
- SocketAMD AM5
- ChipsetB650
- Form FactorMicro-ATX
- Memory TypeDDR5
- Memory SpeedUp to 8000 MT/s (OC)
- PCIe Slots1x x16, 1x x1
- M.2 Connectors2 (PCIe 4.0)
- LAN2.5GbE
- SKUGIG-1809
- EAN4719331857851
- Fits AMD Socket AM5 Ryzen 7000, 8000, and 9000 Series processors only.
- Accepts up to four DDR5 DIMM modules (non-ECC, un-buffered) with maximum 256 GB capacity.
- Supports both AMD EXPO and Intel XMP 3.0 overclocking profiles automatically detected from SPD.
- Micro-ATX form factor fits standard ATX and larger cases but not mini-ITX enclosures.
- PCIe x16 slot runs at x4 mode on Ryzen 8000 Series Phoenix 2 processors and x8 on Phoenix 1 processors, but x16 on Ryzen 7000 and 9000 Series.
Best for
- Ryzen 5000 and 7000 builders wanting DDR5 overclocking and solid power delivery in a space-saving footprint.
- Users planning memory overclocking beyond 6000 MT/s using compatible EXPO or XMP modules.
- System builders who need PCIe 4.0 storage and NVMe support without paying for full-size ATX features.
- Those updating BIOS frequently or testing new CPU support without removing components.
Trade-offs
- Intel processor owners: This board is AM5-only and does not support any Intel CPUs.
- Builds needing more than four RAM slots: Limited to four DIMM sockets, capping expandability.
- Multi-GPU configurations: Single x16 slot supports only one graphics card or expansion device.
- DDR4 users: No DDR4 support; requires DDR5 memory modules only.
A new era is here. The B650M D3HP supports AM5 Processors and features unparalleled performance. GIGABYTE B650 motherboards come with upgraded power design, high grade storage standards, and outstanding connectivity that enables you to optimize your performance.
GIGABYTE UD series motherboards use a 5+2+2 phases digital PWM + Low RDS(on) MOSFETs design to support AMD's new generation CPUs by offering incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability.
GIGABYTE is offering a tested and proven platform that the memory overclocking capability is able up to 8000 and beyond. All users need to do for achieving this extreme memory performance boost is to ensure that their DDR5 memory modules are AMD EXPO™/ Intel® XMP capable, the EXPO/XMP function is activated and enabled on their GIGABYTE motherboard.
- GIGABYTE exclusive circuit design unlocks Native DDR5 voltage control
- Transforms Native DDR5 memory module to Overclocked DDR5 memory
- Increases DDR5 memory overclocking performance and capability
- Supports all PMIC vendors for maximum compatibility
All memory routing is under the PCB inner layer shielded by a large ground layer to protect from external interference. GIGABYTE AM5 MB supports both AMD EXPO™ and Intel® XMP overclocking memory modules for maximal compatibility. MB will automatically detect both profiles format in SPD, users can choose to enable one of profiles from BIOS menu and easily reach overclocked memory performance.
Automatically Boost the Native DDR5 frequency to 5000MHz while the system is under heavy loading by a single click. Define and create your own SPD profile into Native, AMD EXPO™ and Intel® XMP 3.0 memory modules.
Programmable Mode: GIGABYTE's exclusive design unlocks Native DDR5 PMIC secure mode into programmable mode and control Native DDR5 voltage with wide range.
GIGABYTE B650 Motherboards are ready to work with the PCIe 4.0 devices which are expected to experience twice bandwidth than the current PCIe 3.0 devices.
General
| Brand | Gigabyte |
|---|
CPU & Memory
| Supported Processors | AMD Ryzen 7000, 8000, 9000 Series |
|---|---|
| Memory Slots | 4x DDR5 DIMM |
| Maximum Memory | 256 GB |
| Memory Support | DDR5 5200 to 8000 MT/s; AMD EXPO and Intel XMP profiles |
| VRM Phases | 5+2+2 Digital |
Storage & Expansion
| M.2 (CPU) | 1x PCIe 4.0 x4/x2, supports 2580 drives |
|---|---|
| M.2 (Chipset) | 1x PCIe 4.0 x4/x2, supports 22110/2280 drives |
| SATA | 4x SATA 6Gb/s |
| PCIe x16 | 1 slot (x16 on 7000/9000, x8 on 8000-Phoenix1, x4 on 8000-Phoenix2) |
| PCIe x1 | 1 slot (PCIe 3.0) |
Connectivity & I/O
| Ethernet | 1x 2.5GbE (Realtek RTL8125) |
|---|---|
| Display Outputs | 2x DisplayPort (3840x2160@144 Hz), 1x HDMI |

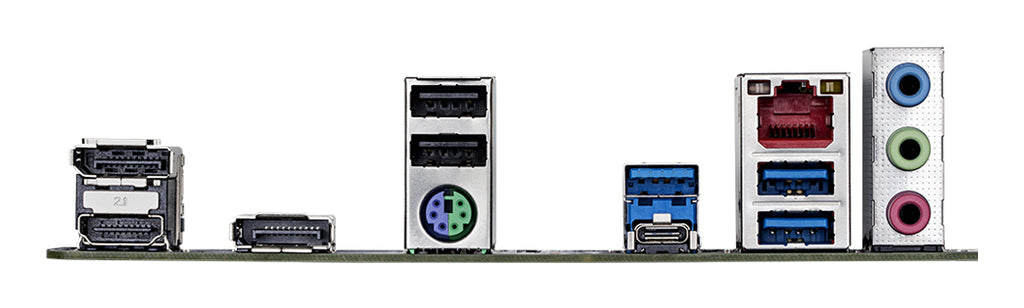

| USB Back Panel (CPU) | 1x USB 3.2 Gen 1 Type-C, 1x USB 3.2 Gen 1, 1x USB 2.0 |
| USB Back Panel (Chipset) | 2x USB 3.2 Gen 1 |
| USB Internal Headers | 1x USB 3.2 Gen 1 Type-C, 2x USB 3.2 Gen 1, 5x USB 2.0 |
| Fan Headers | 3x PWM/DC with Smart Fan 6 and Dual Fan Curve Mode |
| RGB Headers | 2x Addressable LED |
| Audio | Realtek HD Audio; 2/4/5.1/7.1-channel |
BIOS & Features
| BIOS Update | Q-Flash Plus (update without CPU, memory, or GPU installed) |
|---|
