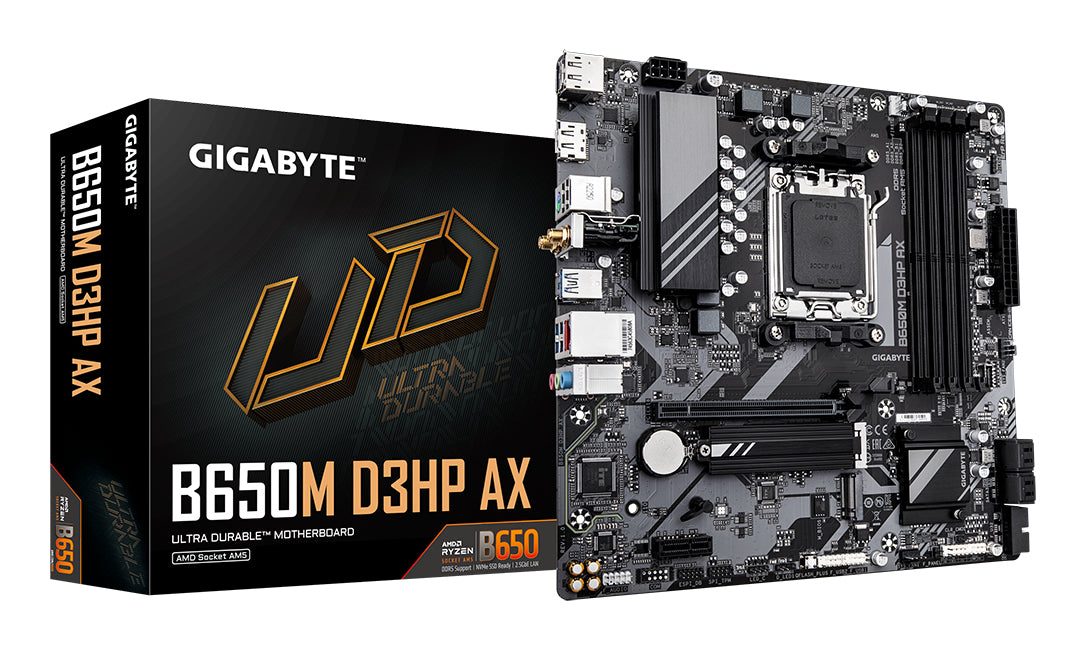

Gigabyte B650M D3HP AX AM5 mATX Motherboard Wi-Fi 6E DDR5
GIGABYTE
Gigabyte B650M D3HP AX AM5 mATX Motherboard Wi-Fi 6E DDR5

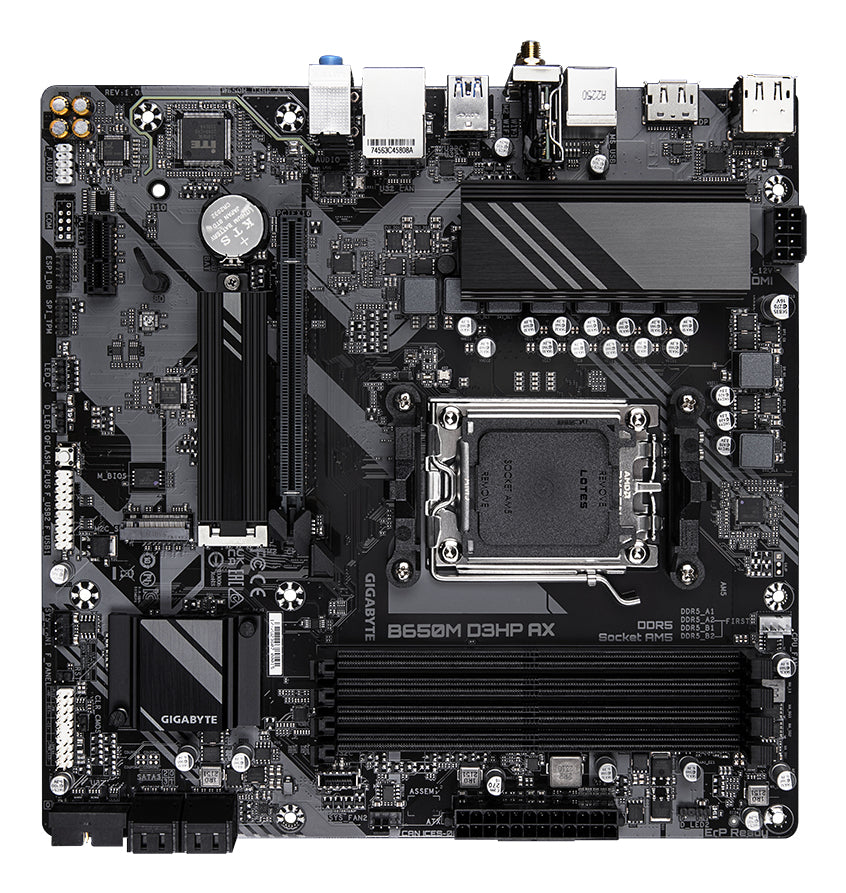

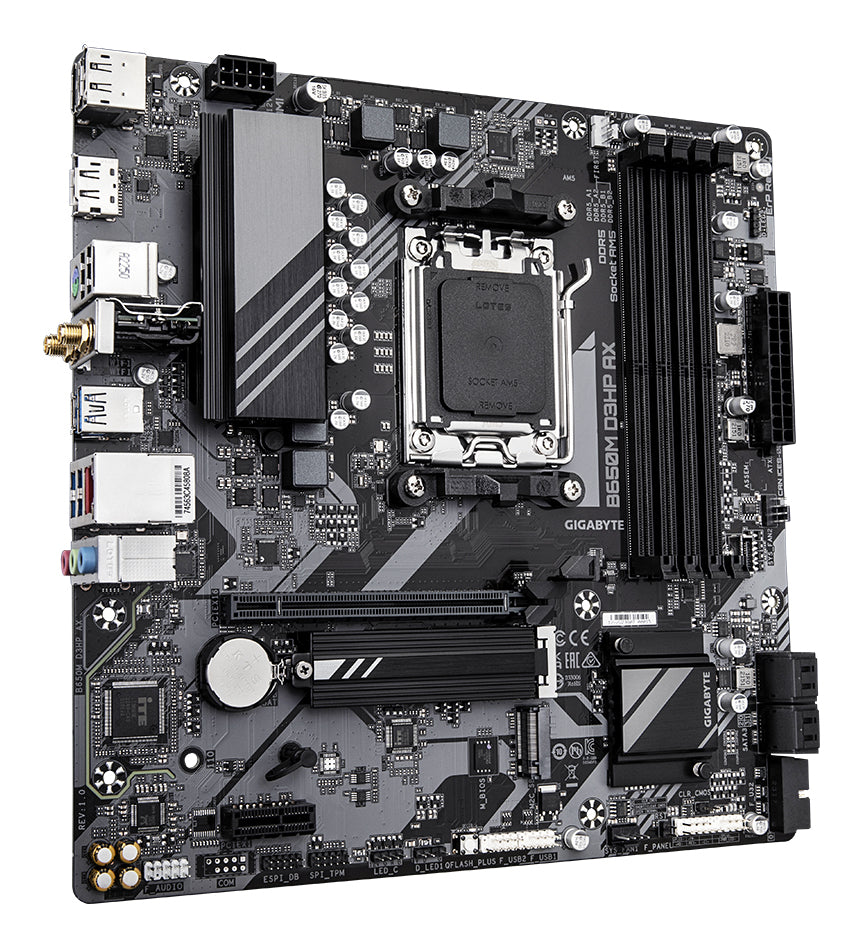

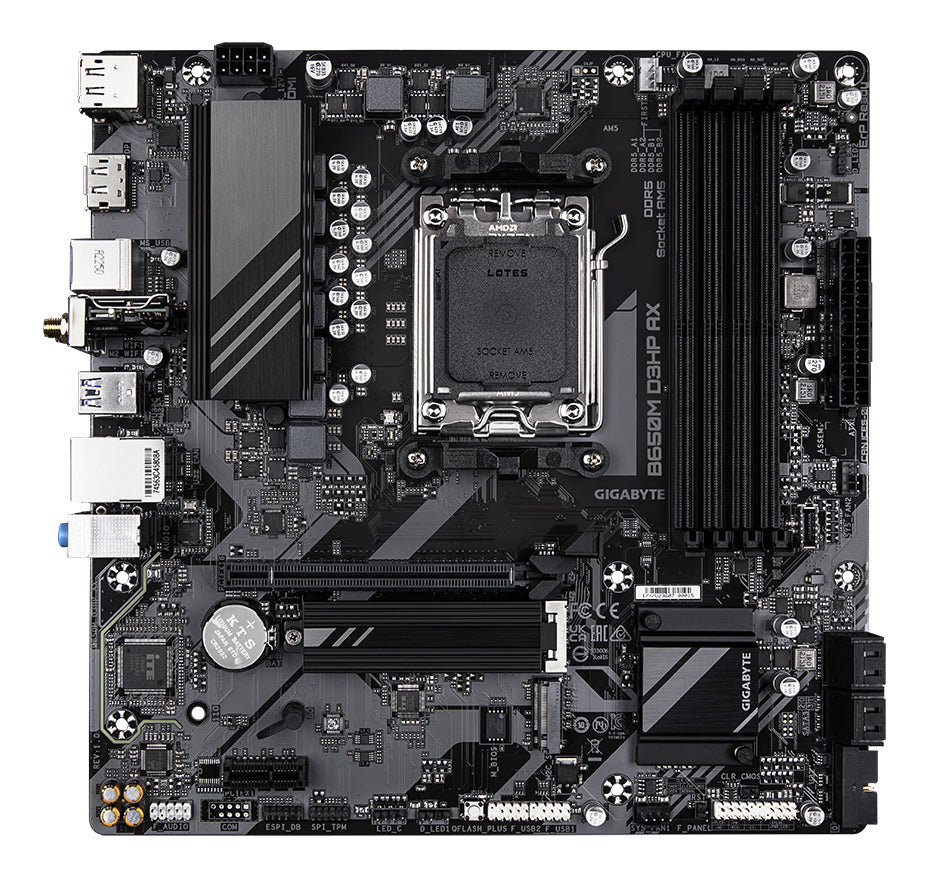

The Gigabyte B650M D3HP AX is a micro-ATX motherboard for AMD Ryzen 7000, 8000 and 9000 series processors, built for builders who want DDR5 support, Wi-Fi 6E connectivity and PCIe 4.0 expansion in a compact form factor.
Why this product
DDR5 memory with AMD EXPO and XMP
Supports up to 256 GB across four DIMM sockets with automatic detection of AMD EXPO and Intel XMP profiles for easy overclocking.
Wi-Fi 6E and 2.5 GbE networking
Built-in Wi-Fi 6E with 2.4, 5 and 6 GHz bands plus 2.5 GbE wired LAN for both wireless and wired connectivity.
PCIe 4.0 storage and graphics
Two M.2 sockets and four SATA ports provide fast NVMe and traditional storage options, with one PCIe x16 slot for graphics or SSDs.
Compact micro-ATX design
Fits smaller cases and builds while maintaining full feature set, ideal for space-constrained systems.
BIOS flash without components
Q-Flash Plus lets you update BIOS without installing CPU, memory or graphics card, simplifying initial setup and updates.
- SocketAMD AM5 (LGA 1718)
- ChipsetAMD B650
- Form FactorMicro-ATX
- Memory Slots4 x DDR5 DIMM (up to 256 GB)
- Storage2 x M.2 PCIe 4.0 x4, 4 x SATA
- WirelessWi-Fi 6E + Bluetooth 5.3
- LAN2.5 GbE
- Display Outputs2 x DP, 1 x HDMI
- SKUGIG-1921
- EAN4719331859510
- Supports AMD Ryzen 7000, 8000 and 9000 series processors in AM5 socket.
- Works with DDR5 memory modules at speeds from 4800 MT/s up to 8000 MT/s (overclocked).
- Fits micro-ATX cases; verify your case supports this smaller form factor.
- Accepts both AMD EXPO and Intel XMP memory profiles.
- PCIe x16 slot supports PCIe 4.0 x16 on Ryzen 7000/9000, but only PCIe 4.0 x8 on Ryzen 8000-Phoenix 1 and x4 on Phoenix 2 processors.
Best for
- Compact builds where space matters more than expansion slots
- Builders who want DDR5 and modern AM5 features without a full-size ATX board
- Systems requiring Wi-Fi 6E and wired 2.5 GbE networking in one package
- Users planning to overclock memory with AMD EXPO or XMP profiles
Trade-offs
- Dual-GPU builds. The single PCIe x16 slot cannot accommodate two graphics cards.
- High-end multi-storage RAID. Only four SATA ports and two M.2 sockets limit storage expansion compared to full-size boards.
- Systems with many expansion cards. Micro-ATX provides fewer PCIe slots than ATX boards for add-on cards and devices.
- Intel systems. AM5 socket supports only AMD processors.
GIGABYTE UD series motherboards use a 5+2+2 phases digital PWM + Low RDS(on) MOSFETs design to support AMD's new generation CPUs by offering incredible precision in delivering power to the motherboard's most power-hungry components.
GIGABYTE B650 Motherboards are ready to work with the PCIe 4.0 devices which are expected to experience twice bandwidth than the current PCIe 3.0 devices. To reach the high speed and maintain good signal integrity, GIGABYTE R&D uses the low impedance PCB to provide the maximum performance.
All memory routing is under the PCB inner layer shielded by a large ground layer to protect from external interference. GIGABYTE AM5 MB supports both AMD EXPO™ and Intel® XMP overclocking memory modules for maximal compatibility. MB will automatically detect both profiles format in SPD, users can choose to enable one of profiles from BIOS menu and easily reach overclocked memory performance. Automatically Boost the Native DDR5 frequency to 5000MHz while the system is under heavy loading by a single click. Define and create your own SPD profile into Native, AMD EXPO™ and Intel® XMP 3.0 memory modules. One user-defined profile can be saved, loaded either locally or from/to an external storage device. One empty SPD profile can be defined by users and carry to next computer. Quick memory performance simulation based on user input clock and timing parameters.
GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers. GIGABYTE motherboards feature an audio noise guard that essentially separates the board's sensitive analog audio components from potential noise pollution at the PCB level.
Unlock the latch of the PCIe slot easily when remove the graphics card in the PCIe slot.
Update the BIOS easily without installing the CPU, memory and graphics card. With GIGABYTE Q-Flash Plus, you don't need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS.
Processor & Memory
| Brand | Gigabyte |
|---|---|
| CPU Socket | AMD AM5, supports Ryzen 7000/8000/9000 series |
| Memory Type | DDR5 |
| Memory Slots | 4 x DDR5 DIMM |
| Maximum Memory | 256 GB (64 GB per DIMM) |
| Memory Speeds Supported | 4800 to 8000 MT/s (includes overclocked profiles) |
| Memory Profiles | AMD EXPO and Intel XMP |
Storage & Expansion
| M.2 Sockets | 2 x PCIe 4.0 x4 |
|---|---|
| SATA Ports | 4 x SATA 6 Gb/s |
| PCIe Slots | 1 x PCIe x16 (PCIe 4.0 x16 on Ryzen 7000/9000; x8 on Ryzen 8000-Phoenix 1; x4 on Phoenix 2) |
Connectivity & Audio
| Wireless | Realtek Wi-Fi 6E RTL8852CE (2.4/5/6 GHz), Bluetooth 5.3 |
|---|---|
| LAN | 2.5 GbE |

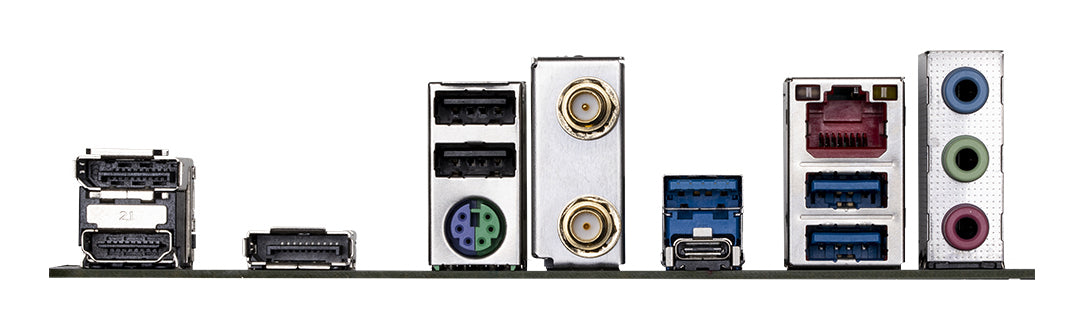

| Video Outputs | 2 x DisplayPort, 1 x HDMI (up to triple-display) |
| Audio | High Definition Audio with high-end capacitors and noise guard |
Power & Cooling
| VRM | 5+2+2 phases digital PWM with low RDS(on) MOSFETs |
|---|---|
| Fan Headers | 3 x PWM/DC with Smart Fan 6, Dual Fan Curve Mode, and FAN STOP |
| RGB / LED Headers | 2 x Addressable LED Header |
| BIOS | Q-Flash and Q-Flash Plus (BIOS flash without CPU/memory/GPU) |
