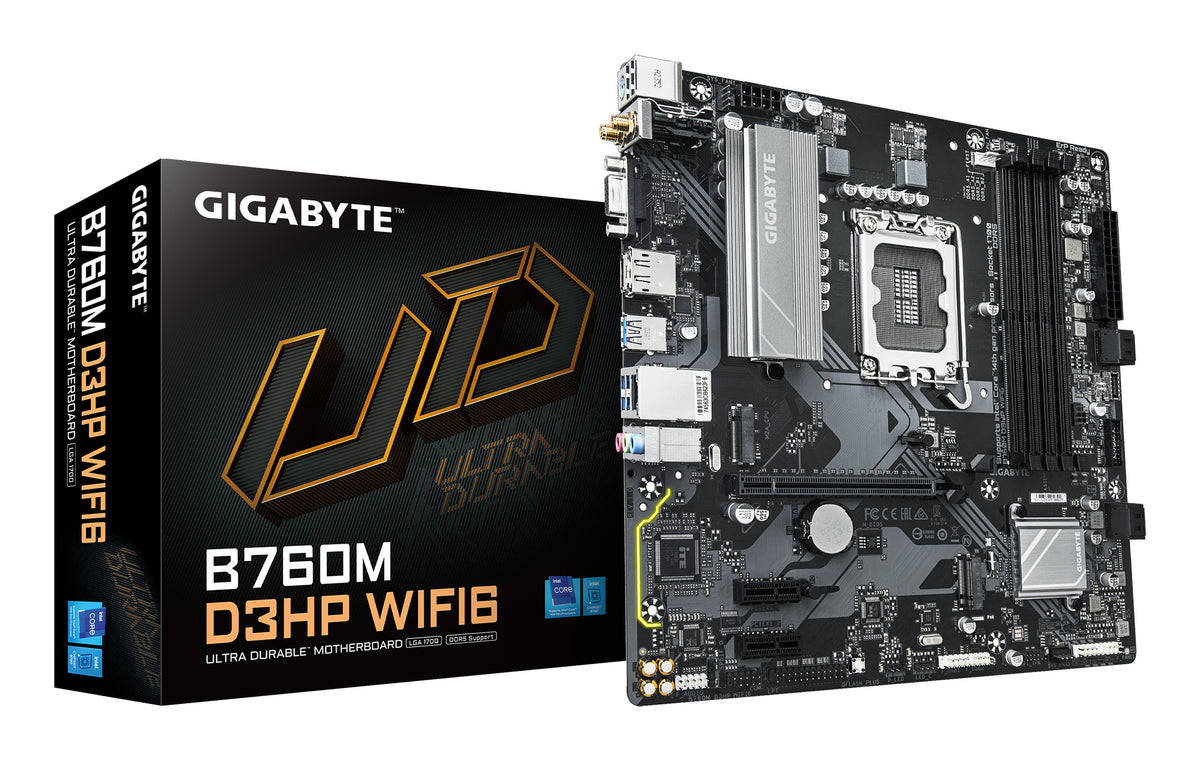

Gigabyte B760M D3HP WIFI6 Micro-ATX DDR5 Intel LGA1700
GIGABYTE
Gigabyte B760M D3HP WIFI6 Micro-ATX DDR5 Intel LGA1700

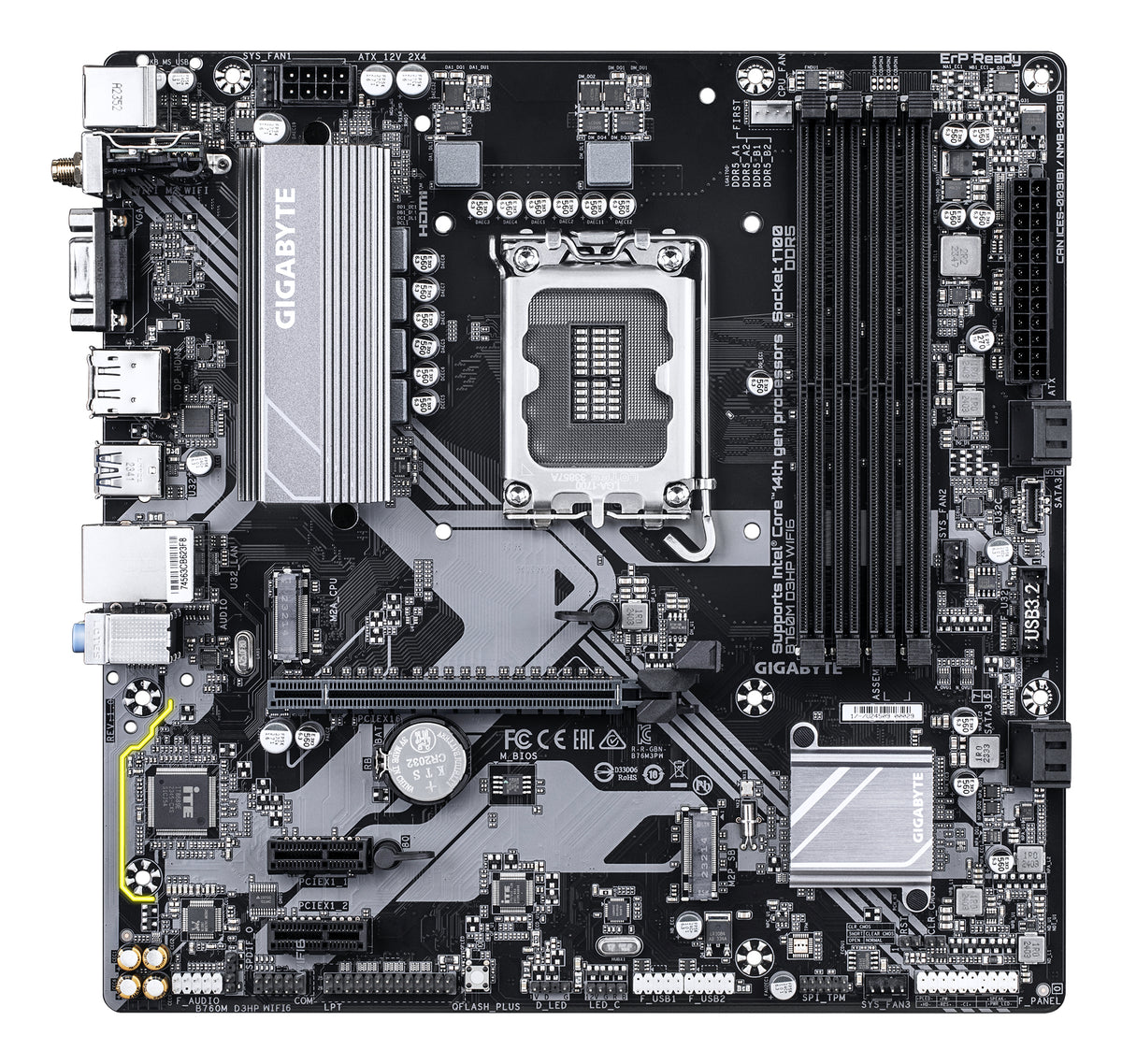

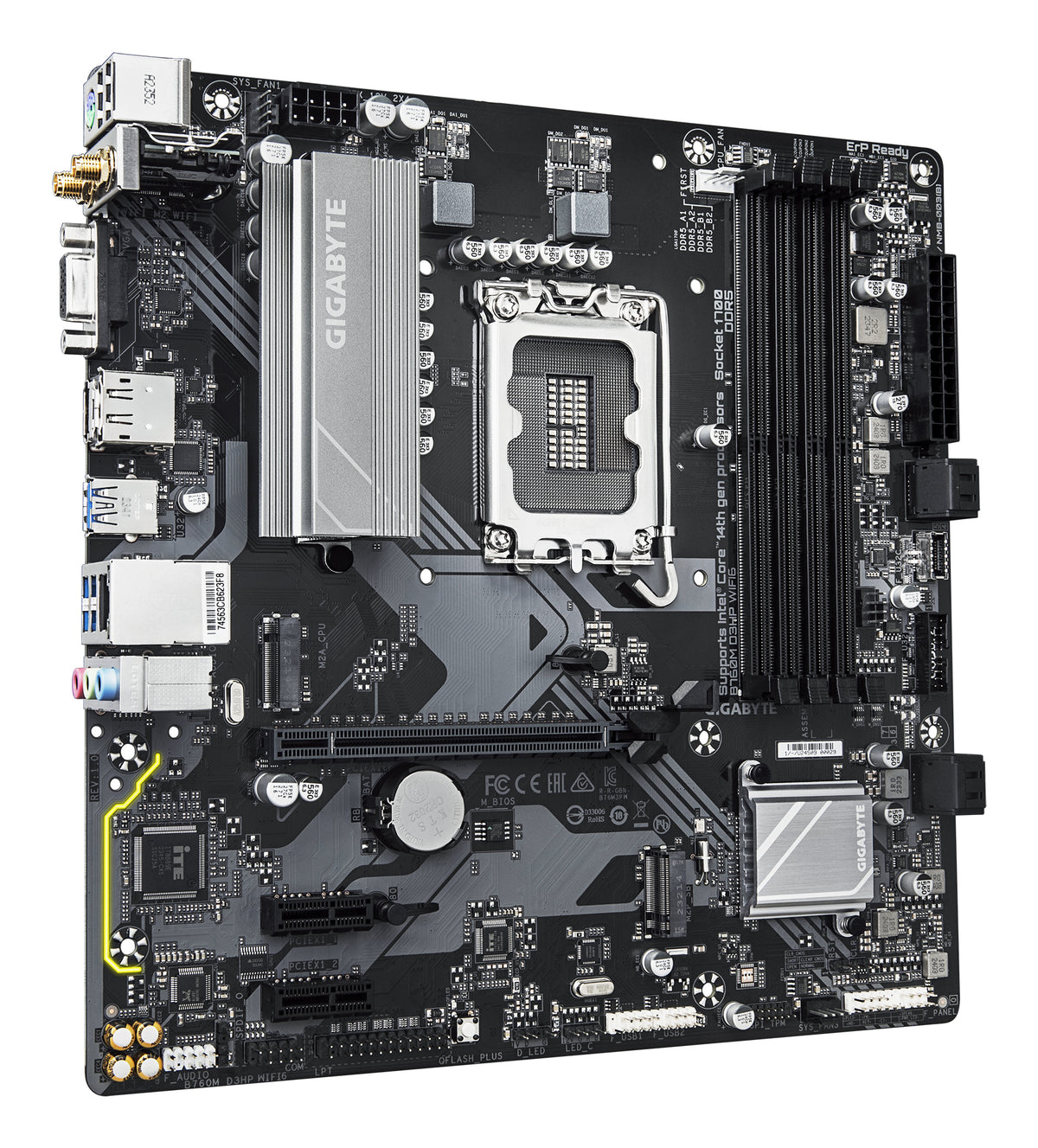

The Gigabyte B760M D3HP WIFI6 is a micro-ATX motherboard for builders using 12th, 13th or 14th generation Intel Core processors. It combines DDR5 memory support with Wi-Fi 6 connectivity and PCIe 4.0 storage in a compact form factor suited to smaller builds or HTPCs.
Why this product
Wi-Fi 6 and Gigabit Ethernet
Built-in Realtek Wi-Fi 6 (802.11ax) for 2.4/5 GHz and Bluetooth 5.3, plus a Gigabit Ethernet port. Both wired and wireless options are on the board itself.
DDR5 with quad-channel support
Four DDR5 DIMM slots allow dual-channel operation at speeds up to DDR5-5600 with compatible processors. XMP profiles are supported.
Dual PCIe 4.0 M.2 slots
One M.2 socket on the CPU side and one on the chipset side, both running PCIe 4.0 x4, letting you use fast NVMe drives for OS and storage.
BIOS updates without CPU or memory
Q-Flash Plus lets you reflash the firmware without installing a processor, memory or graphics card—useful for initial setup or recovery.
- SocketLGA1700 (Intel 12th/13th/14th Gen)
- Form factorMicro-ATX
- Memory slots4 x DDR5 DIMM
- M.2 slots2 x PCIe 4.0 x4
- WirelessWi-Fi 6 (802.11ax), Bluetooth 5.3
- NetworkingGigabit Ethernet
- SKUGIG-1842
- EAN4719331867638
- Intel Core 12th, 13th and 14th generation processors in LGA1700 socket; also supports Pentium Gold and Celeron CPUs in that socket.
- DDR5 memory in all four DIMM slots; supports XMP profiles and speeds up to DDR5-5600 depending on CPU generation.
- PCIe 4.0 NVMe SSDs in both M.2 slots and SATA drives on all four SATA ports, with RAID 0/1/5/10 support.
- Micro-ATX form factor fits standard ATX cases and smaller builds, but is not compatible with mini-ITX or full-ATX slots.
Best for
- Compact builds in smaller cases or HTPCs where full-size ATX is too large.
- Builders combining DDR5 and PCIe 4.0 storage on a budget-conscious Intel platform.
- Systems requiring both Wi-Fi 6 and Gigabit Ethernet without expansion cards.
Trade-offs
- Builders needing more than four DIMM slots for DDR5 memory.
- Systems requiring more than two PCIe x16 expansion slots; this board has one x16 slot and two x1 slots.
- Users limited to single-channel or DDR4 memory, as this board requires DDR5.
Supports Intel® Core™ 14th/ 13th /12th processors
Unparalleled Performance：Hybrid 4+1+1 Phases Digital VRM Solution
Dual Channel DDR5：4*DIMMs XMP Memory Module Support
Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors
Fast Networks：GbE LAN & Wi-Fi 6 802.11ax
Extended Connectivity：Front USB-C® 5Gb/s, DP, HDMI, D-Sub
Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
2*PCIe 4.0 x4 M.2 · 8-ch HD Audio · Audio Noise Guard · High-End Audio Capacitors · 1*Addressable LED Header · 1*RGB LED Header · PCIe 4.0 Ready PCB · Premium Choke and Capacitor
Shielded Memory Routing All memory routing is under the PCB inner layer shielded by a large ground layer to protect from external interference.
Impedance Optimized Topology By optimizing memory trace width, length and style from HPC simulation to actual implementation, overall impedance is lowered between CPU memory controller and memory modules to achieve higher DDR5 speed.
Low Signal Loss PCB Server grade mid-loss or low-loss PCB material is chosen to lower signal loss inside PCB and maintain DDR5 high speed signal transmission.
Secure Mode Motherboard provides fixed 5V to Native DDR5 memory and built-in PMIC outputs locked 1.1v to memory IC.
• Unlocks Native DDR5 PMIC secure mode into programmable mode and controls Native DDR5 voltage with wide range.
• Supports all PMIC vendors for maximum compatibility
General
| Brand | Gigabyte |
|---|---|
| Chipset | Intel B760 |
| Form factor | Micro-ATX |
Performance
| CPU socket | LGA1700; supports Intel Core 14th, 13th, and 12th generation, Pentium Gold and Celeron |
|---|---|
| Memory type | DDR5 dual-channel |
| Memory capacity | 4 x DDR5 DIMM sockets |
| Memory speeds supported | DDR5-5600/5200/4800/4400 MT/s (14th & 13th Gen Core i9/i7); DDR5-4800/4400 MT/s (13th Gen Core i5/i3, 12th Gen) |
| XMP support | Yes |
| VRM | Hybrid 4+1+1 phases digital |
Networking
| Ethernet | Realtek GbE LAN (1 Gbps/100 Mbps/10 Mbps) |
|---|---|
| Wi-Fi | Realtek Wi-Fi 6 (802.11a/b/g/n/ac/ax), 2.4/5 GHz, 80 MHz bandwidth support |
| Bluetooth | 5.3 |
Ports & storage
| M.2 slots | 2 x M.2 Socket 3 (type 2280, PCIe 4.0 x4/x2) |
|---|---|
| SATA ports | 4 x SATA 6 Gb/s |
| RAID support | RAID 0, 1, 5, 10 |
| PCIe slots | 1 x PCIe 4.0 x16 (CPU); 2 x PCIe 3.0 x1 (Chipset) |
| USB 3.2 Gen 1 Type-A | 5 ports (3 rear panel, 2 internal header) |
| USB Type-C (5 Gb/s) | 1 x internal header |
| USB 2.0/1.1 | 6 ports (2 rear panel, 4 internal headers) |

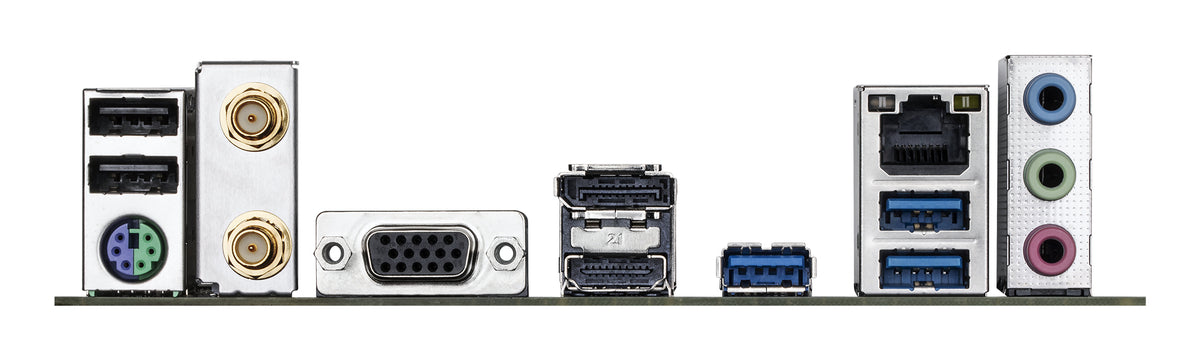

| Display outputs | D-Sub, DisplayPort, HDMI |
Audio & cooling
| Audio codec | Realtek HD Audio |
|---|---|
| Audio channels | 8-channel (2/4/5.1/7.1 configurable) |
| S/PDIF out | Yes |
| Fan headers | Hybrid headers with FAN STOP |
| Temperature sensors | Multiple on-board sensors |
