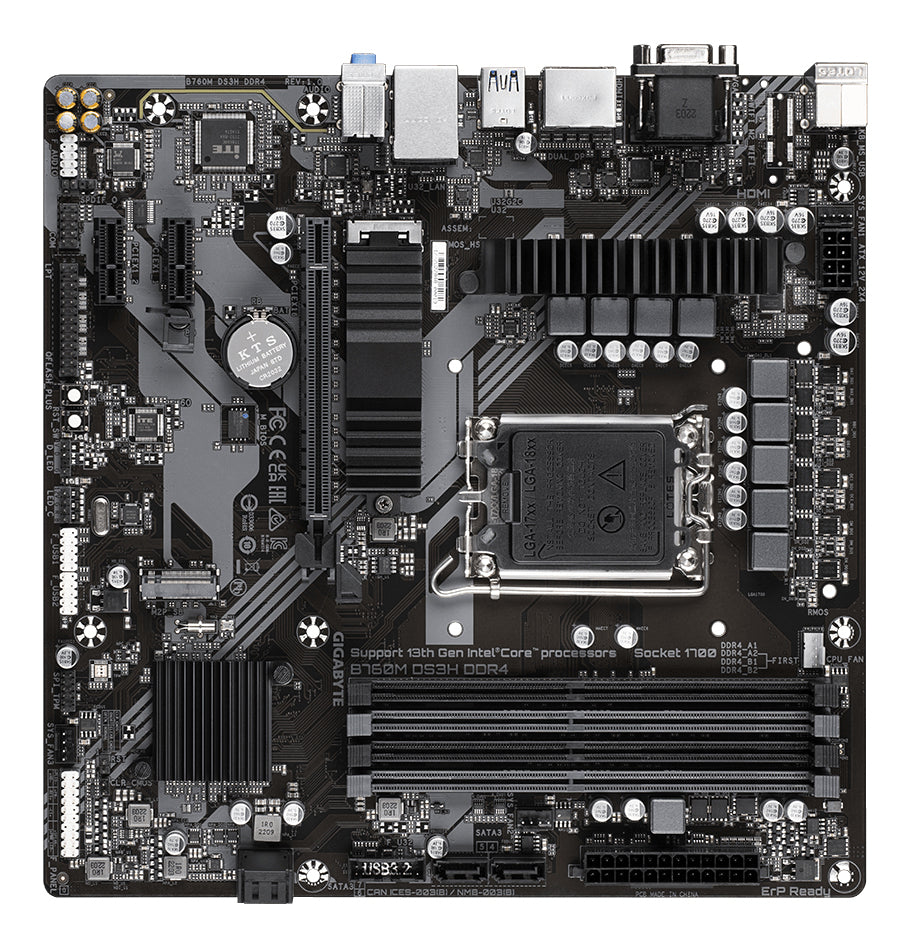

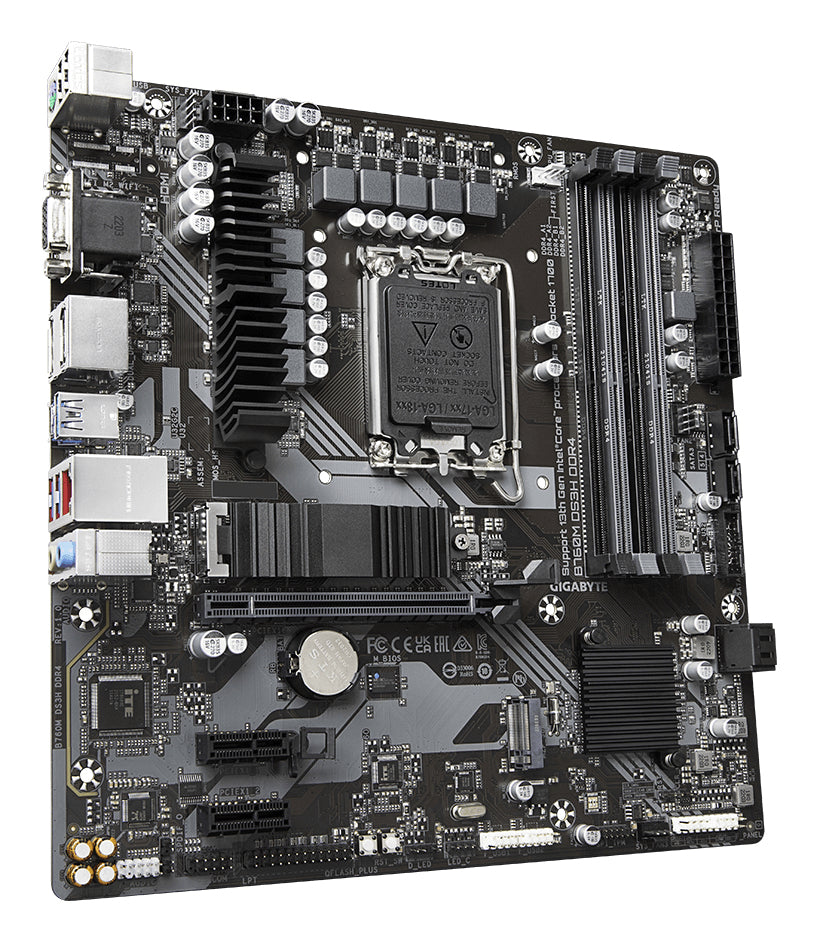

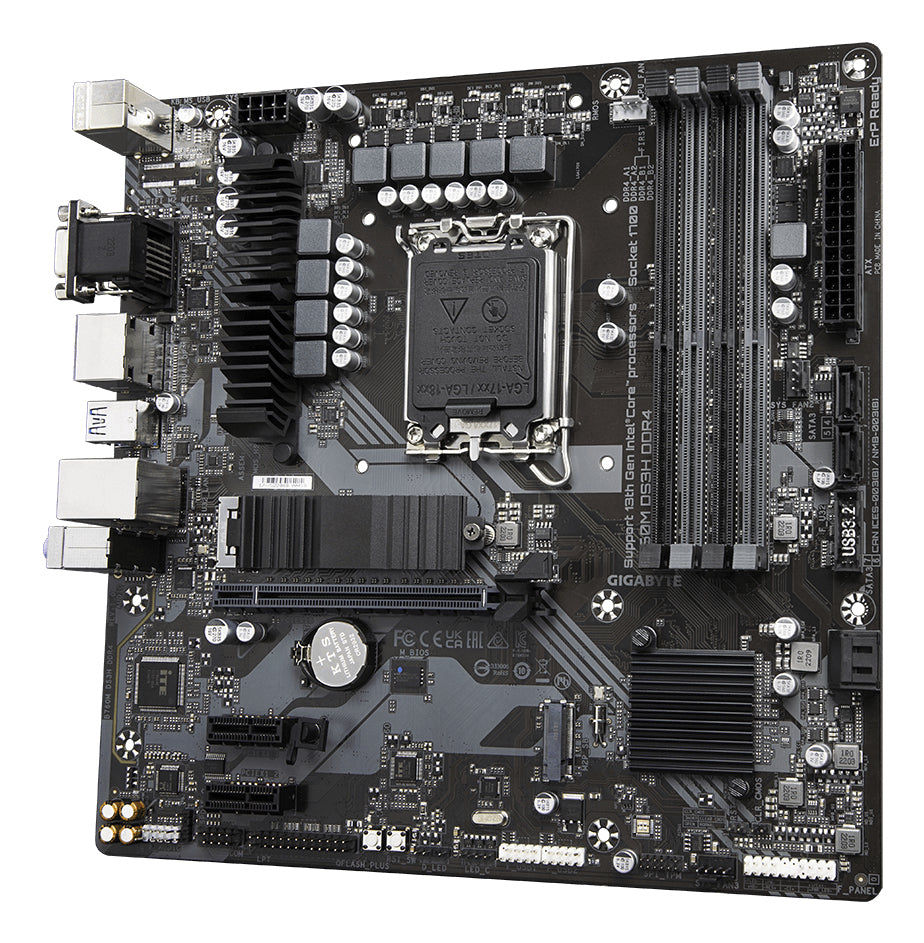

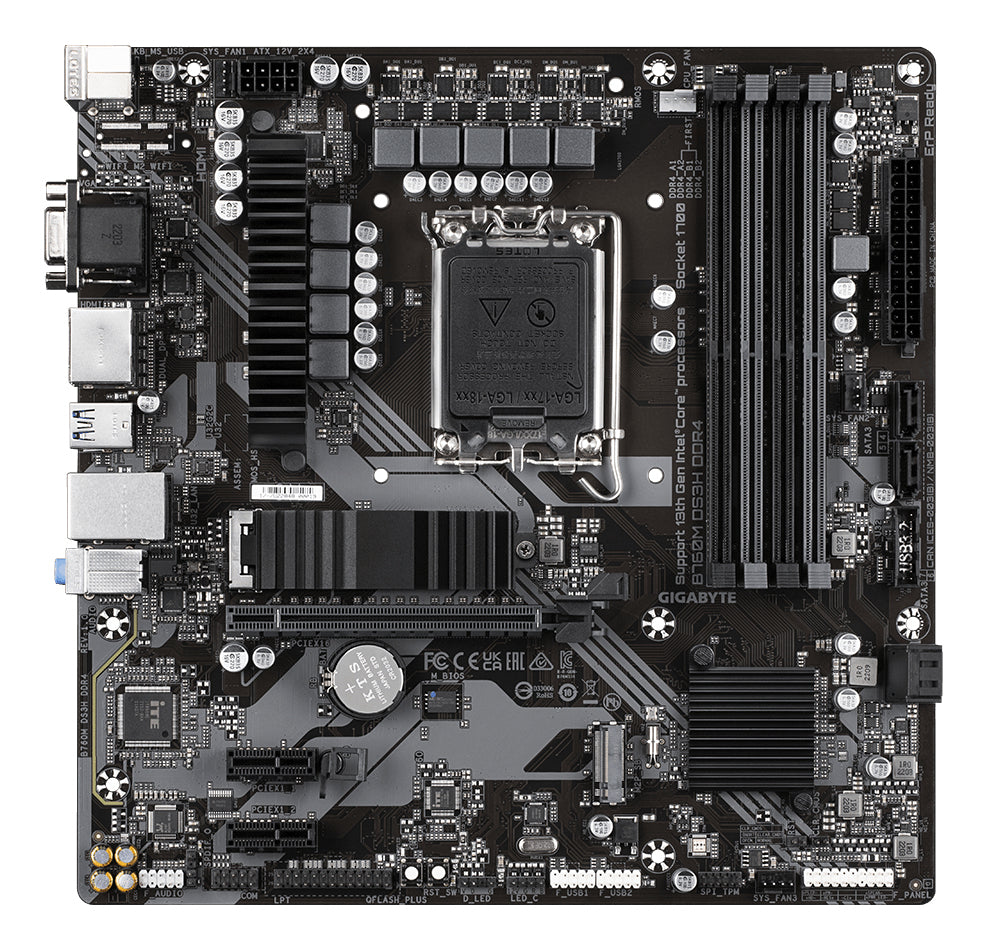

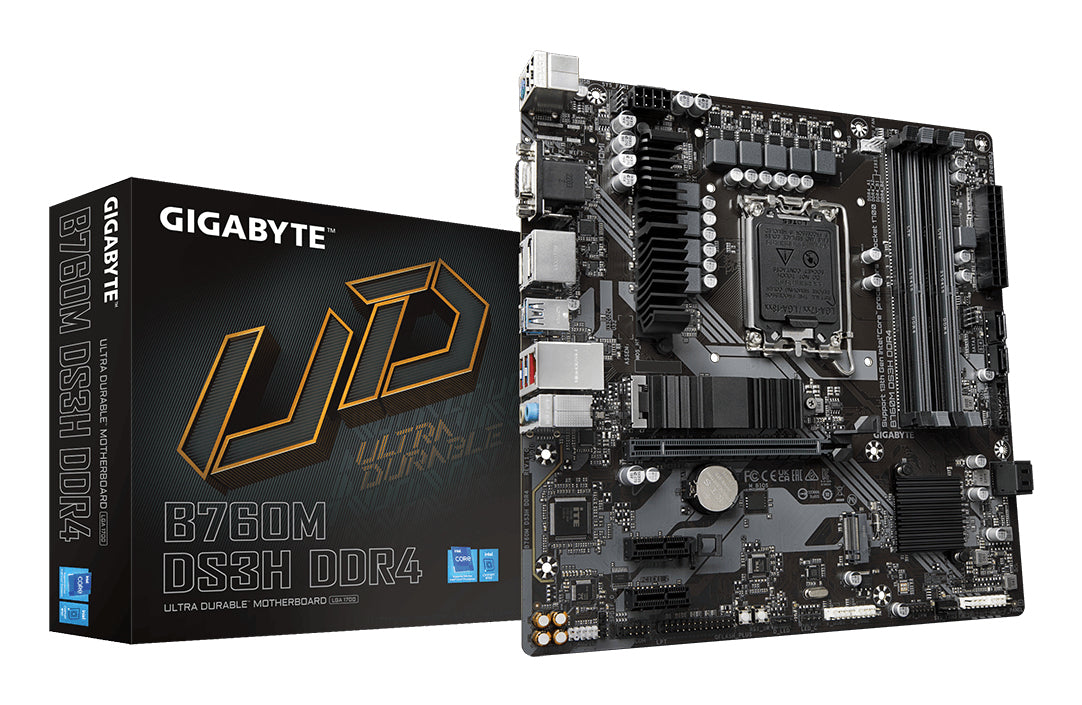

Gigabyte B760M DS3H DDR4 Micro-ATX Intel LGA1700 Motherboard
GIGABYTE
Gigabyte B760M DS3H DDR4 Micro-ATX Intel LGA1700 Motherboard
The Gigabyte B760M DS3H DDR4 is a Micro-ATX motherboard built for Intel's 12th, 13th, and 14th generation processors. It combines solid power delivery with practical storage and connectivity features, suited to builders looking for a capable mid-range platform without premium pricing.
Why this product
Supports 14th, 13th, and 12th Gen Intel
LGA1700 socket accepts current and recent Intel Core, Pentium Gold, and Celeron processors, giving you flexibility across multiple CPU generations.
Dual M.2 NVMe with thermal protection
Two PCIe 4.0 x4 M.2 slots let you install fast storage with M.2 thermal guards to prevent throttling under sustained load.
Four DDR4 DIMM slots with XMP
Holds up to 128 GB of DDR4 memory and supports XMP profiles for easy overclocking without manual tuning.
2.5 GbE networking and USB 3.2 Gen 2
Fast wired LAN plus a USB-C 10Gb/s port on the rear panel for modern data transfer speeds.
Hybrid 6+2+1 Digital VRM
Power delivery architecture designed to handle stable overclocking and sustained workloads.
- ChipsetIntel B760 Express
- SocketLGA1700
- Form FactorMicro-ATX
- Memory SupportDDR4 up to 128 GB (4 DIMM)
- M.2 Slots2 x PCIe 4.0 x4
- Network2.5 GbE LAN
- SKUGIG-2032
- EAN4719331850876
- Fits Intel Core i9, i7, i5, and i3 processors of the 12th, 13th, and 14th generations.
- Accepts DDR4 memory modules in all speed grades from 2133 MT/s to 5333 MT/s (overclocked).
- Supports NVMe M.2 SSDs in both PCIe 4.0 and PCIe 3.0 form factors on its two M.2 slots.
- Does not accept DDR5 memory; this board is DDR4-only.
- Cannot use Intel 11th generation or older processors; LGA1700 is required.
Best for
- Budget-conscious builders
- Micro-ATX builds with space constraints
- Builders who want DDR4 compatibility
- Systems requiring multiple storage drives
Trade-offs
- DDR5 users: This board supports DDR4 only; upgrading to DDR5 requires a new motherboard.
- Large form factor builds: Micro-ATX is smaller than ATX and offers fewer expansion slots.
- Extreme overclocking: While it has solid VRM, the B760M DS3H is not positioned for top-tier performance tuning.
Supports Intel® Core™ 14th/ 13th /12th processors
Unparalleled Performance：Hybrid 6+2+1 Phases Digital VRM Solution
Dual Channel DDR4：4*DIMMs XMP Memory Module Support
Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors
M.2 Thermal Guard：To Ensure M.2 SSD Performance
EZ-Latch：PCIe 4.0x16 Slot with Quick Release Design
Fast Networks：2.5GbE LAN

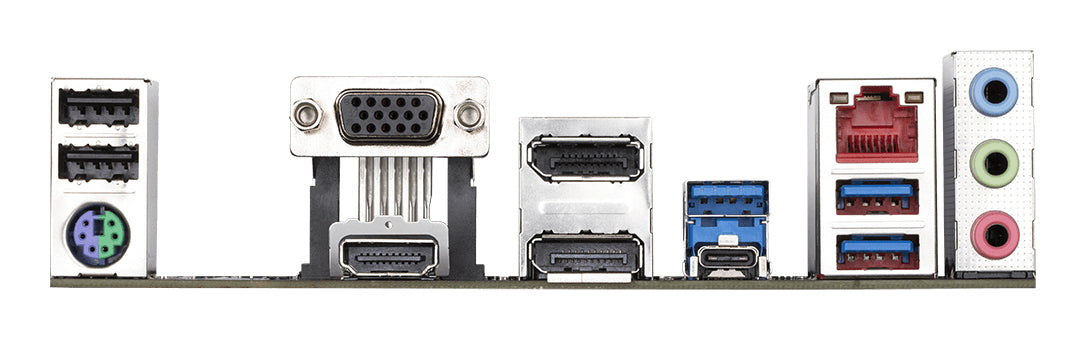

Extended Connectivity：Rear USB-C® 10Gb/s, DP, HDMI
Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
GIGABYTE motherboards feature an audio noise guard that essentially separates the board's sensitive analog audio components from potential noise pollution at the PCB level.
GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.
The USB Type-C® is a new reversible connector that is loaded with useful features such as USB 3.2 Gen 2 support for 10Gb/s transfer speed. Powered by the Intel® USB 3.2 Gen 2 controller, this little port provides the best USB Type-C® experience possible.
GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.
Friendly User Interface The EASY MODE shows important hardware information in one page including CPU clock, Memory, Storage, Fan.
My Favorites Add constantly used items into the favorite menu for quick access.
Storage Information Show all kinds of storage information including SATA, PCIE and M.2 interface.
Changelog List all changes before saving and exiting bios. Quickly review overall settings modification.
Intuitive Load Line Curve Clearly show each loadline calibration setting in an intuitive curve graph.
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides newly designed intuitive user interface to control all essential function.
General
| Brand | GIGABYTE |
|---|---|
| Model | B760M DS3H DDR4 |
| Chipset | Intel B760 Express |
| Form Factor | Micro-ATX |
CPU & Memory
| CPU Socket | LGA1700 |
|---|---|
| Supported Processors | Intel Core 14th, 13th, 12th Gen; Pentium Gold; Celeron |
| Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum Memory | 128 GB (32 GB per DIMM) |
| Memory Speeds | 2133 to 5333 MT/s (with overclocking support) |
| XMP Support | Yes |
| VRM Configuration | Hybrid 6+2+1 Phases Digital |
Storage & Expansion
| M.2 Slots | 2 x PCIe 4.0 x4 |
|---|---|
| M.2 Thermal Guard | Yes |
| SATA Ports | 4 x SATA 3 |
| PCIe x16 Slots | 1 (PCIe 4.0, EZ-Latch quick release) |
| PCIe x1 Slots | 2 (PCIe 3.0) |
Connectivity & Audio
| LAN | 2.5 GbE |
|---|---|
| USB 3.2 Gen 2 | 1 x Type-C (10Gb/s rear panel) |
| USB 3.2 Gen 1 | 5 ports (3 rear, 2 via header) |
| USB 2.0/1.1 | 6 ports (2 rear, 4 via header) |
| Display Outputs | D-Sub, HDMI (4096x2160@60Hz), 2x DisplayPort (4096x2304@60Hz) |
| Audio Channels | 8-CH HD Audio |
| Audio Features | Noise Guard, high-end capacitors, 2/4/5.1/7.1-channel support |
Cooling & BIOS
| Fan Headers | Smart Fan 6 with multiple temperature sensors and FAN STOP |
|---|---|
| BIOS Updates | Q-Flash Plus (CPU/Memory/GPU not required) |
| Software | GIGABYTE Control Center (GCC) |
