Gigabyte B760M Gaming X DDR4 GEN5 mATX Intel LGA1700
GIGABYTE
Gigabyte B760M Gaming X DDR4 GEN5 mATX Intel LGA1700

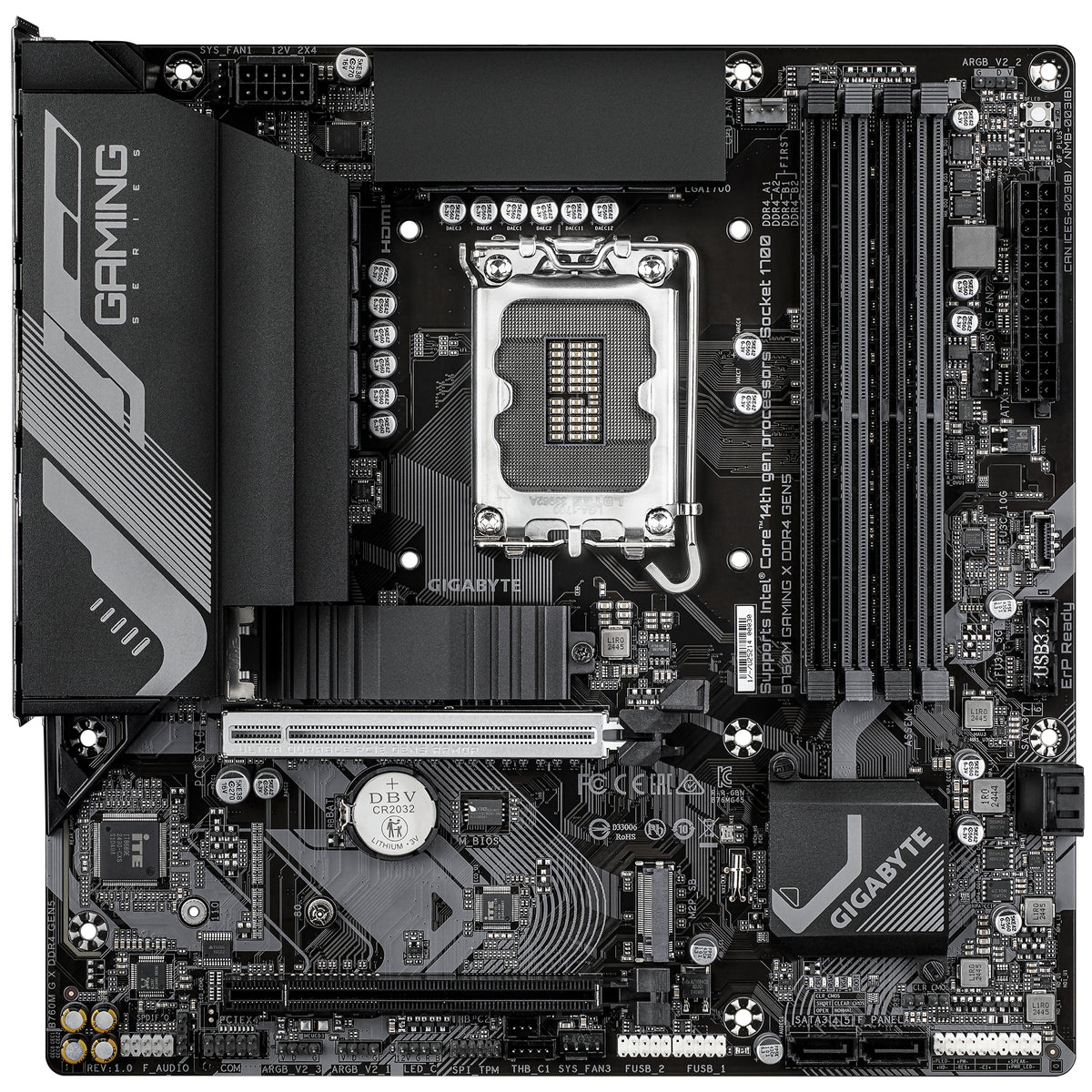

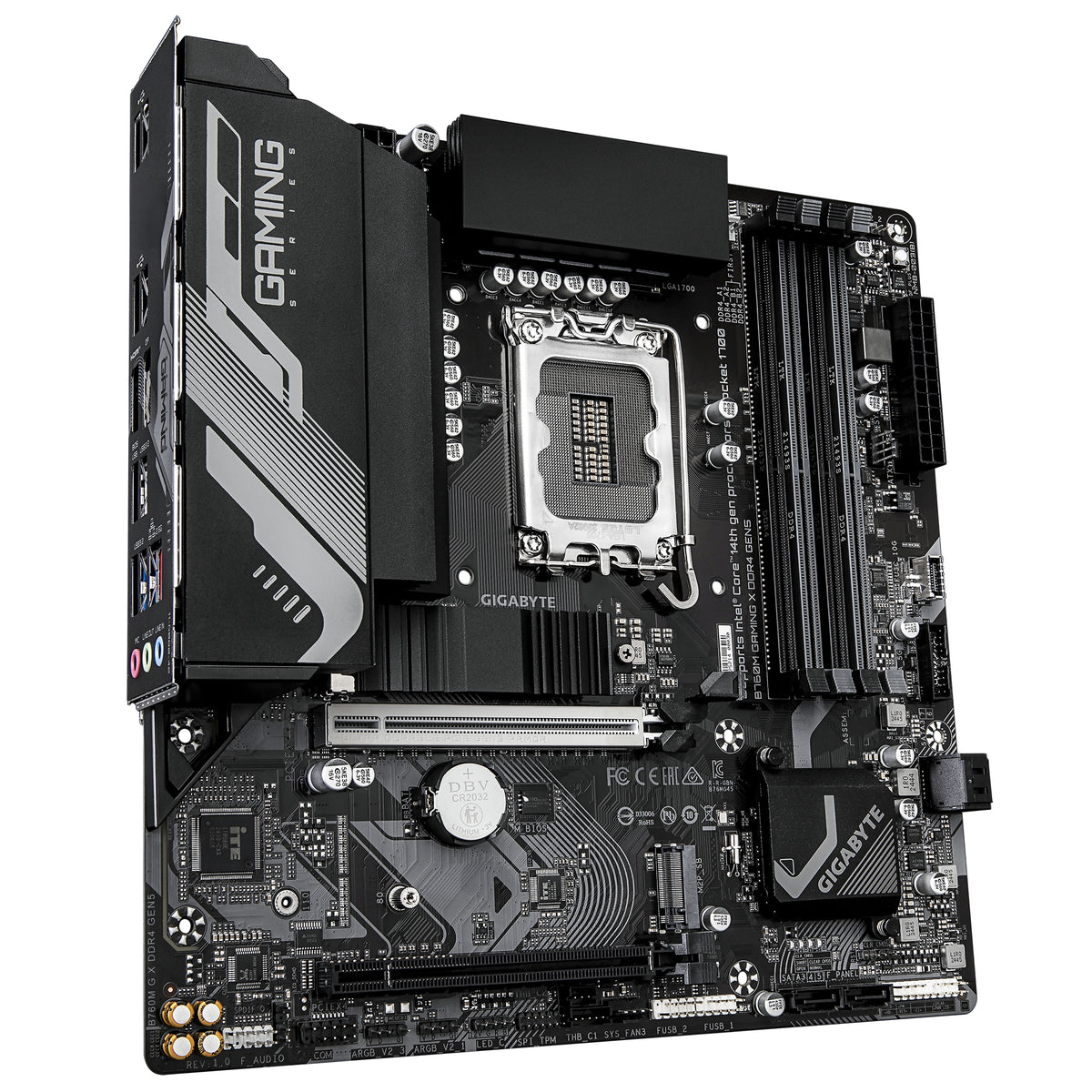

The Gigabyte B760M Gaming X DDR4 GEN5 is a micro-ATX motherboard for Intel LGA1700 processors that brings PCIe 5.0 support to the 12th-14th generation Core platform. It suits builders who want next-generation expansion bandwidth without a full platform upgrade, solving the constraint of older boards when pairing with PCIe 5.0 graphics cards or NVMe drives.
Why this product
PCIe 5.0 ready for graphics and storage
One x16 slot runs PCIe 5.0 at full 32 GT/s bandwidth, doubling the data rate of PCIe 4.0. Directly benefits high-end graphics cards and Gen5 NVMe drives on the same platform.
Micro-ATX form factor
Compact 24 cm × 23 cm footprint fits smaller cases and tighter builds without sacrificing core features like dual M.2 or four SATA ports.
DDR4 memory support up to 5333 MHz
Four DIMM sockets accommodate up to 128 GB and support overclocked DDR4 profiles beyond JEDEC spec, via the existing DDR4 supply chain.
Thermals via one-piece heatsink design
TMOS single-piece integrated heatsink with 4× larger surface area than traditional designs, with multi-cut channels for improved airflow over power delivery components.
Q-Flash Plus for BIOS without CPU
Update BIOS from USB without installing a CPU, RAM, or GPU, reducing assembly friction for first-time builders or troubleshooting.
- ChipsetIntel B760 Express
- SocketLGA1700
- Form FactorMicro-ATX
- Memory TypeDDR4
- PCIe Gen 5 Slots1 × x16
- M.2 Slots2
- Network2.5 GbE LAN
- SKUGIG-1896
- EAN4719331874087
- Intel 12th, 13th, and 14th generation Core, Pentium Gold, and Celeron processors in LGA1700 socket
- DDR4 memory modules; supports both JEDEC (2133 MT/s to 3200 MT/s) and overclocked profiles up to 5333 MT/s
- PCIe 5.0 NVMe drives and graphics cards in the x16 slot; PCIe 4.0 M.2 drives in both socket 3 connectors
- 2.5 GbE Ethernet; USB 3.2 Gen 2 and USB 2.0 headers for front-panel connectivity
- Second PCIe slot runs at x4 (not x16) when both slots are populated, limiting GPU options if dual-card expansion is needed
Best for
- DDR4-based builds wanting PCIe 5.0 without replacing memory
- Compact cases and small-form-factor PCs that need full expansion slot coverage
- Builders adding Gen5 NVMe or a high-end graphics card to a 12th–14th gen platform
- DIY first-timers preferring easy BIOS updates and tool-free assembly features
Trade-offs
- DDR5 requirement: This board supports only DDR4; DDR5 users must step to a B760 DDR5 variant
- Dual-GPU setups: The second PCIe x16 slot runs at x4 electrical, halving bandwidth and limiting multi-card scaling
- Massive storage arrays: Four SATA ports and two M.2 slots may constrain users needing eight or more drives
The new GIGABYTE B760 motherboards provides the most efficient solution to enjoy boosted performance of PCIe Gen5 on the existing platform. PCIe 5.0 doubles the data transfer rate of PCIe 4.0 from 16 GT/s to 32 GT/s per lane. This substantial increase in bandwidth particularly benefits high-performance graphics cards, storage devices, and AI accelerators that demand faster data movement.
High coverage MOSFET and integrated molding Heatsinks to improve thermal efficiency with better airflow and heat exchange. 4X Large Surface — Increased surface area up to 4X larger compared to traditional heatsinks. It improves heat dissipation from the MOSFETs. Real One-piece Build — TMOS is a TRUE single piece heatsink. Its one-piece design and larger surface drastically improve the cooling performance against competitors' multi-piece design. Multi-Cut Design — TMOS features several channels and inlets on the heatsink.
Our cutting-edge motherboard is designed for the ultimate DIY experience. User-friendly designs simplifying the assembly process. Unlock the latch of the PCIe slot easily when remove the graphics card in the PCIe slot. Effortlessly upgrade your BIOS without the need to install CPU, RAM, or GPU. Connect the 24-pin and 8-pin power cables directly to the motherboard. Download the motherboard's BIOS file, rename it to 'gigabyte.bin', and store it on a FAT32-formatted USB drive. Insert the drive into the Q-FLASH PLUS USB port. Press the Q-FLASH PLUS button to trigger automatic BIOS updating.
Technology embodies our commitment to excellence, providing gamers with a platform that's not only powerful but also built for longevity and reliability. GIGABYTE motherboards are engineered to endure and excel. GIGABYTE's one-piece stainless-steel shielding design reinforces the PCIe Slots, providing the extra strength required to support heavy graphics cards. Our innovative UD Power Connector design enhances power conductivity and thermal dissipation. Solid Pins Delivers superior conductivity and signal transmission and reduces metal wear from repeated connections.
GIGABYTE is offering a tested and proven platform that ensures proper compatibility with profiles up to 5333MHz and beyond.
Experience ultimate connectivity with next-generation network, and storage solutions, delivering lightning-fast data transfer speeds. USB 3.2 Gen 2 provides USB 3.2 Gen 2 ports with speeds up to 10Gbps. With twice the bandwidth compared to its previous generation as well as backwards compatibility with USB 2.0 and USB 3.2 Gen1, the much improved USB 3.2 Gen 2 protocol is available over the new reversible USB Type-C™ and the traditional USB Type-A connector for better compatibility over a wider range of devices.
These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects.
General
| Brand | GIGABYTE |
|---|
CPU & Memory
| CPU Socket | LGA1700 (Intel 12th, 13th, 14th gen Core, Pentium Gold, Celeron) |
|---|---|
| Memory Slots | 4 × DDR4 DIMM |
| Maximum Memory | 128 GB (32 GB per DIMM) |
| Memory Speeds | 2133 to 3200 MT/s (JEDEC); 3300 to 5333 MT/s (overclocked) |
Expansion & Storage
| PCIe Slots | 1 × PCIe 5.0 x16; 1 × PCIe 3.0 x16 (runs at x4) |
|---|---|
| M.2 Sockets | 2 × Socket 3 (PCIe 4.0 x4/x2) |
| SATA Connectors | 4 × 6 Gb/s; RAID 0/1/5/10 support |
Connectivity & Audio
| Ethernet | 2.5 GbE LAN |
|---|---|

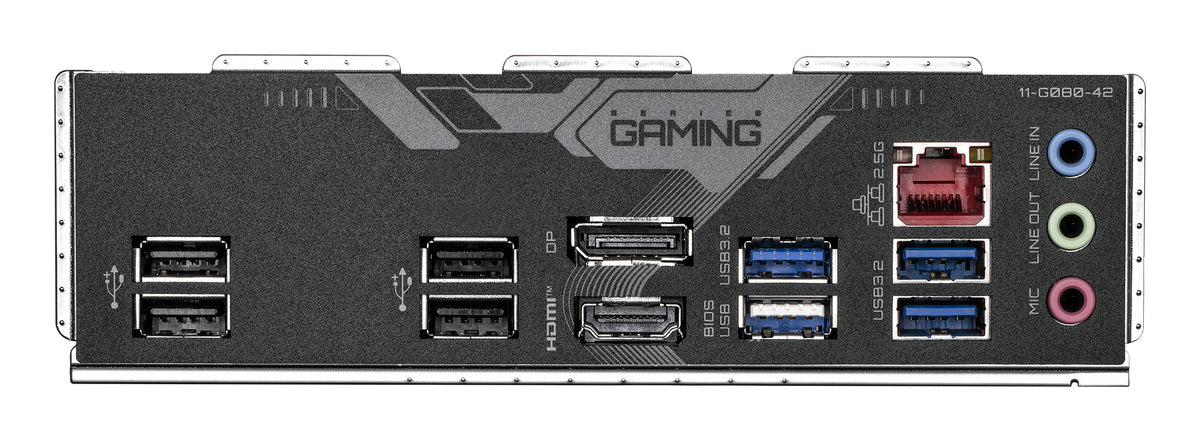

| USB (Back Panel) | 3 × USB 3.2 Gen 1; 5 × USB 2.0/1.1 |
| USB (Internal Headers) | 1 × USB Type-C (USB 3.2 Gen 2); 1 × USB 3.2 Gen 1; 2 × USB 2.0/1.1 |
| Display Outputs | 1 × HDMI 2.1 (up to 4096×2160@60 Hz); 1 × DisplayPort 1.2 (up to 4096×2304@60 Hz) |
| Audio | Realtek 8-channel HD audio; high-end capacitors; S/PDIF out support |
Power & Features
| Power Connectors | 1 × 24-pin ATX; 1 × 8-pin CPU (UD Solid Pin) |
|---|---|
| Power Delivery | 60A DrMOS |
| Fan Headers | 1 × CPU; 3 × system; hardware monitoring and PWM control |
| LED Headers | 3 × addressable; 1 × RGB |
| BIOS Features | Q-Flash, Q-Flash Plus (update without CPU), Smart Backup |
| PCB Layers | 6-layer |
