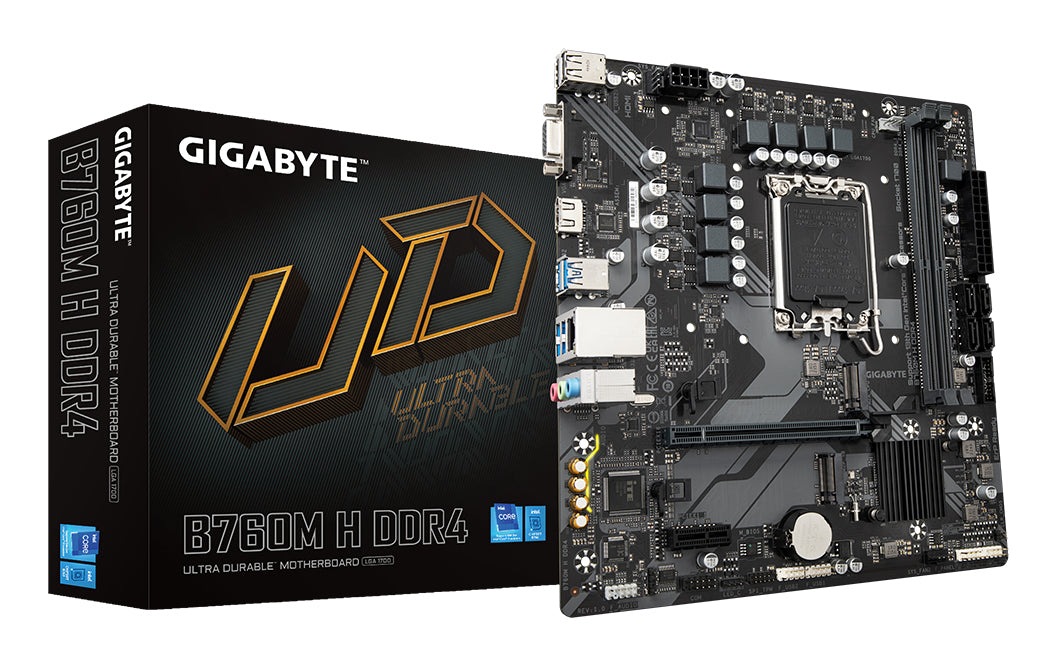

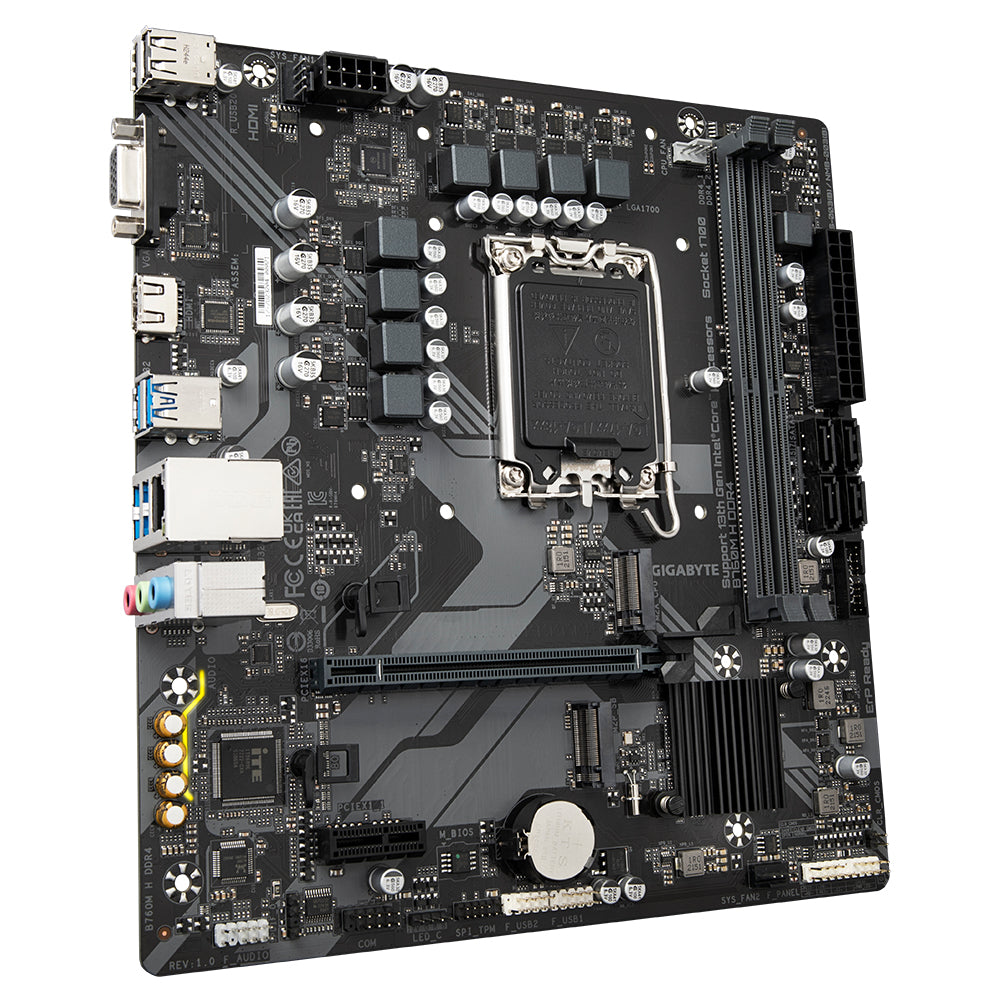

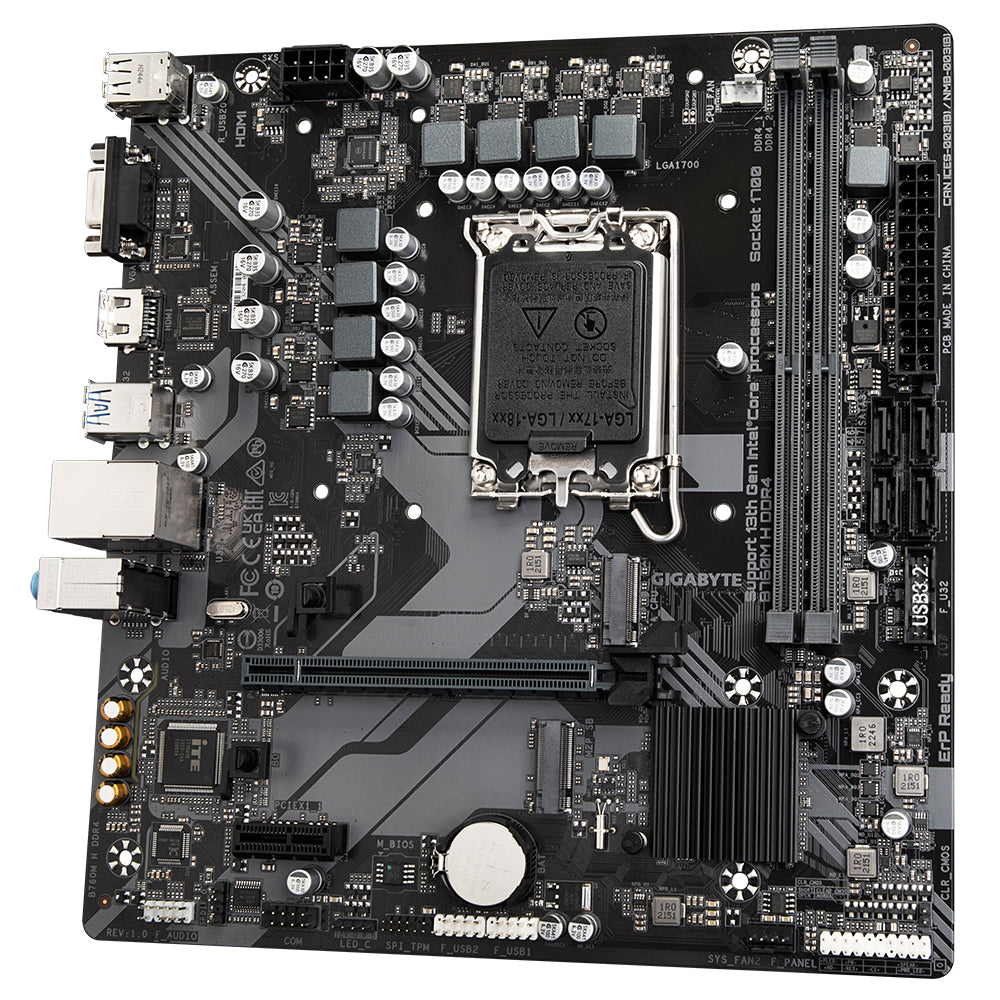

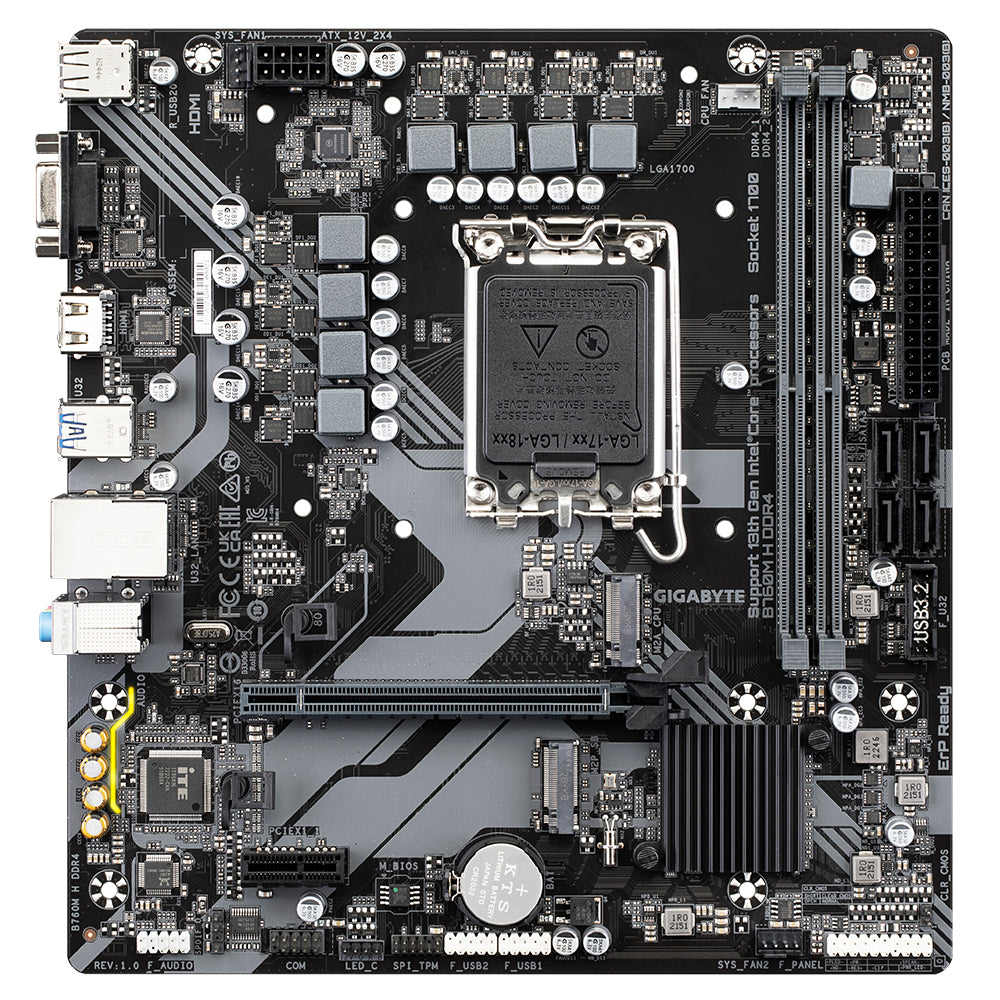

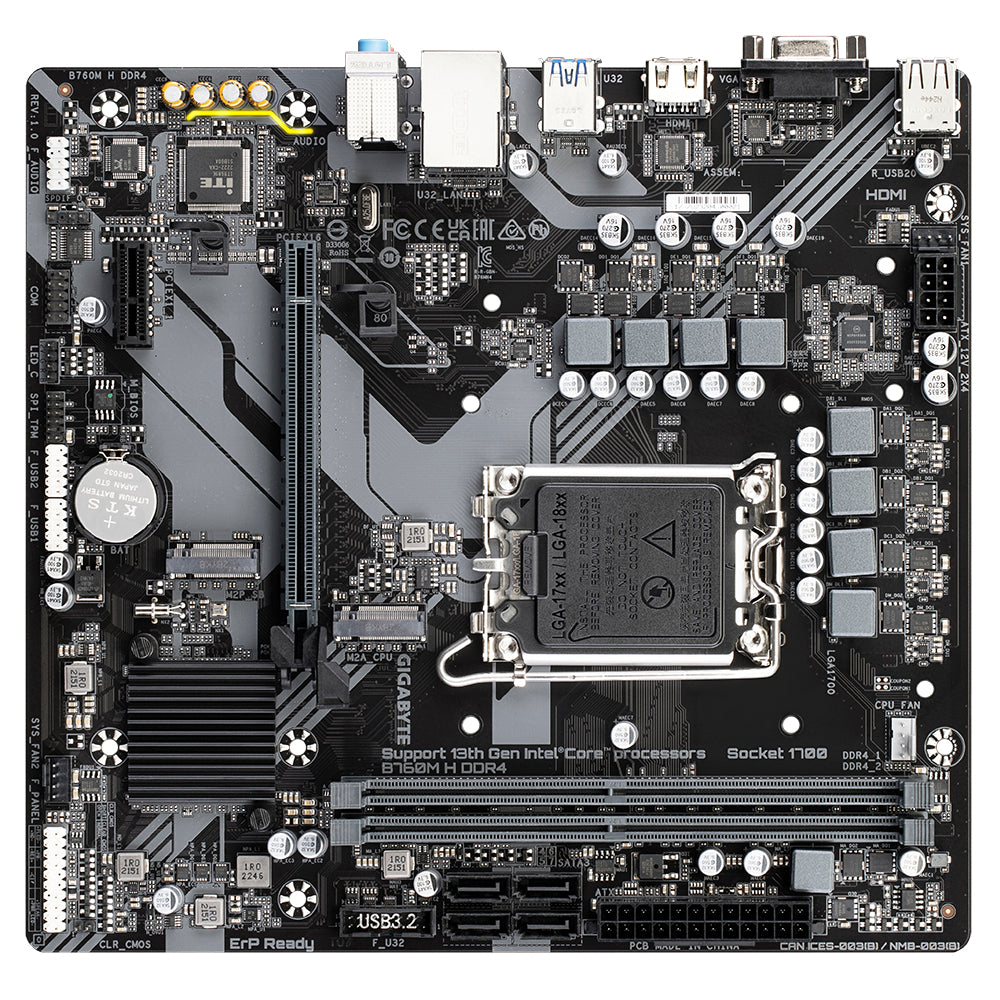

Gigabyte B760M H DDR4 Micro-ATX Intel LGA1700 Motherboard
GIGABYTE
Gigabyte B760M H DDR4 Micro-ATX Intel LGA1700 Motherboard
The Gigabyte B760M H DDR4 is a Micro-ATX motherboard built for Intel's 12th, 13th, and 14th generation processors, paired with DDR4 memory. It combines PCIe 4.0 storage connectivity with a compact form factor suited to smaller PC builds that don't require the extra expansion of full-size boards.
Why this product
PCIe 4.0 storage with dual M.2 slots
Two M.2 connectors deliver PCIe 4.0 speeds for modern SSDs, one from the CPU and one from the chipset, letting you add fast storage without using SATA.
Dual-channel DDR4 with XMP support
Two DIMM slots support up to 64GB total, and it can run XMP memory profiles for faster performance without manual tuning.
Smart Fan 6 cooling control
Temperature sensors and hybrid fan headers let you set custom fan curves that persist through BIOS updates, with fan-stop mode to keep noise down at low loads.
Compact Micro-ATX layout
Fits into smaller cases than standard boards while keeping essential features: one PCIe x16 slot with quick-release design, HDMI and D-Sub video outputs, and four SATA ports.
- BrandGigabyte
- SocketLGA1700
- ChipsetIntel B760
- Memory TypeDDR4
- Form FactorMicro-ATX
- M.2 Slots2 (PCIe 4.0)
- PCIe x16 Slots1
- SKUGIG-1902
- EAN4719331854645
- Supports Intel 14th, 13th, and 12th generation Core processors in the LGA1700 socket.
- Works with DDR4 memory only; DDR5 is not supported.
- Fits Micro-ATX cases; full-size ATX cases will accept it, but smaller ITX cases will not.
- XMP memory profile support depends on your specific memory module; compatibility should be checked against Gigabyte's validated memory support list.
Best for
- DDR4 builds on a budget
- Small-form-factor PCs
- Storage expansion
- Custom cooling setups
Trade-offs
- DDR5 memory users
- Extreme multi-GPU setups
- Compact ITX builds
- Maximum memory capacity needs
GIGABYTE B760 Motherboards are ready to work with the PCIe 4.0 devices which are expected to experience triple bandwidth than the current PCIe 3.0 devices. To reach the high speed and maintain good signal integrity, GIGABYTE R&D uses the low impedance PCB to provide the maximum performance.
GIGABYTE is offering a tested and proven platform that ensures proper compatibility with profiles up to 5333MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their GIGABYTE motherboard.
* XMP Profile support may vary depending on memory module. Please see the complete validated memory support list. Product features may vary by model.
Use can place 4 EZ Tuning points at rough temperature/fan speed, and Smart Fan 6 can quickly generate a fan curve. Fan curve profile can be saved in BIOS ROM, profile will be kept after updating BIOS. Note: The picture is for reference and may vary by model.
GIGABYTE Motherboards enable the ultimate connection experience with blazing data-transfer speeds through the next generation network and storage. GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.
GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.
* The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. * Product specifications and product appearance may differ from country to country. We recommend that you check with your local dealers for the specifications and appearance of the products available in your country. Colors of products may not be perfectly accurate due to variations caused by photographic variables and monitor settings so it may vary from images shown on this site.
General
| Brand | GIGABYTE |
|---|
Processor & Chipset
| CPU Socket | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors |
|---|---|
| Chipset | Intel B760 Express Chipset |
Memory
| Memory Type | DDR4 |
|---|---|
| Memory Slots | 2 x DDR4 DIMM |
| Max Capacity | 64GB (32 GB single DIMM) |
| Supported Speeds | 3200/3000/2933/2666/2400/2133 MT/s |
| Memory Architecture | Dual channel |
| XMP Support | Yes |
Storage & Expansion
| M.2 Connectors | 2 x M.2 Socket 3 (type 2280, PCIe 4.0 x4/x2): 1 from CPU, 1 from Chipset |
|---|---|
| SATA Connectors | 4 x SATA 6Gb/s |
| RAID Support | RAID 0, 1, 5, 10 |
| PCIe x16 Slots | 1 x PCIe 4.0 x16 with EZ-Latch Quick Release |
| PCIe x1 Slots | 1 x PCIe 3.0 x1 |
Connectivity & I/O

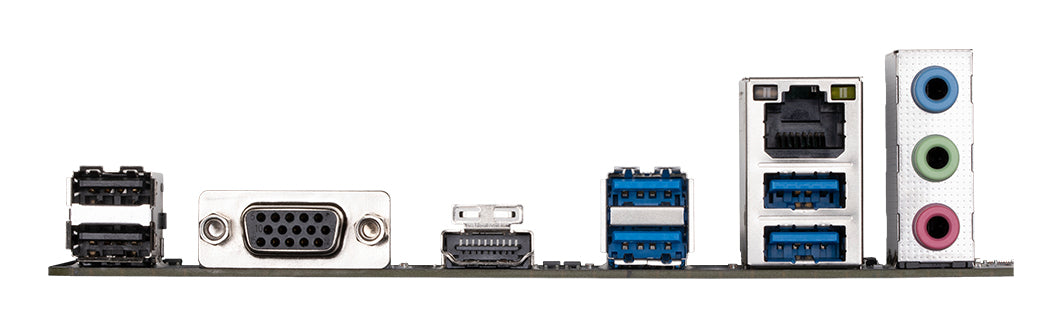

| Display Outputs | 1 x D-Sub, 1 x HDMI |
|---|---|
| USB Back Panel | 2 x USB 2.0/1.1, 4 x USB 3.2 Gen 1 |
| USB Internal Headers | 6 x USB 3.2 Gen 1 (4 on back panel, 2 via internal header) |
| LAN | 1 x RJ-45 Gigabit Ethernet |
| Audio | 3 x audio jacks, 8-channel HD audio |
Cooling & Power
| Fan Control | Smart Fan 6: Voltage, temperature, and fan speed detection with water cooling flow rate detection |
|---|---|
| Temperature Sensors | Multiple sensors |
| Fan Fail Warning | Yes |
General
| Form Factor | Micro-ATX |
|---|---|
| BIOS | Q-Flash support |
