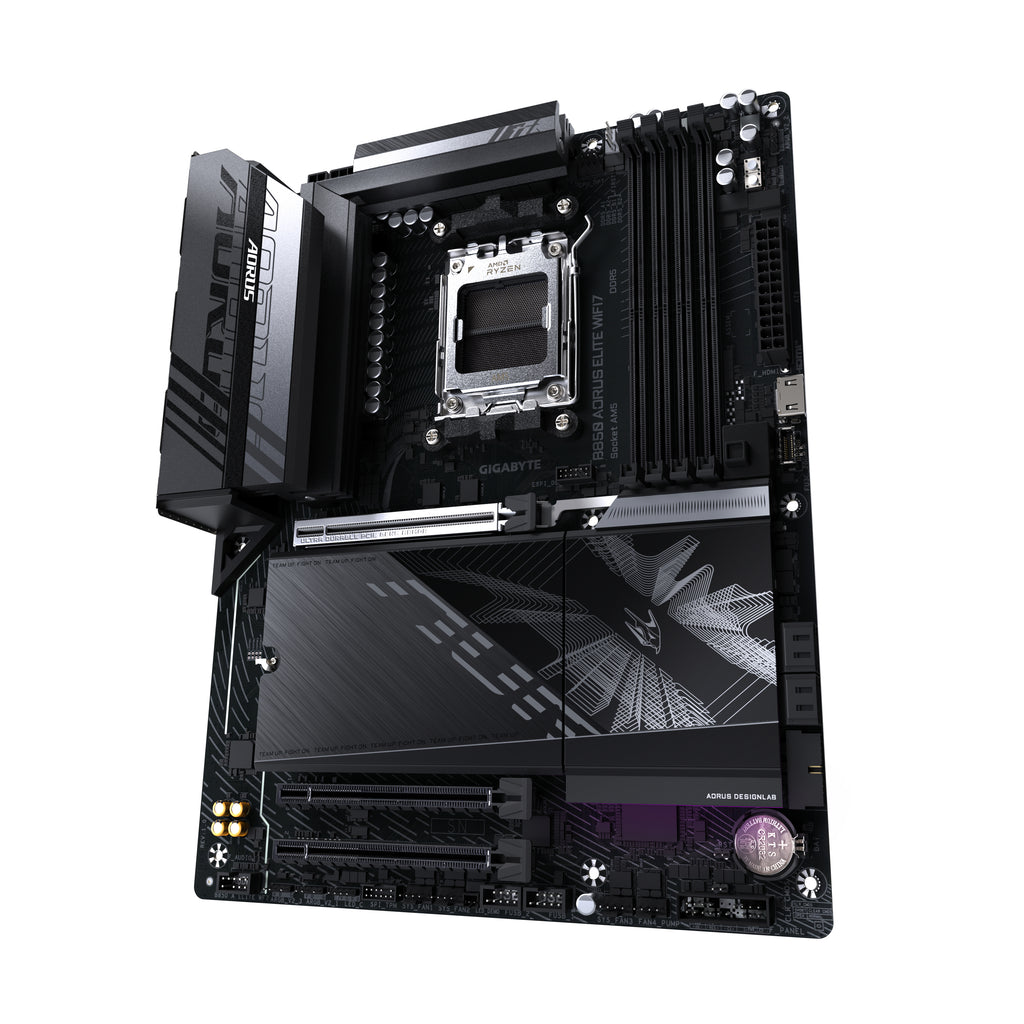

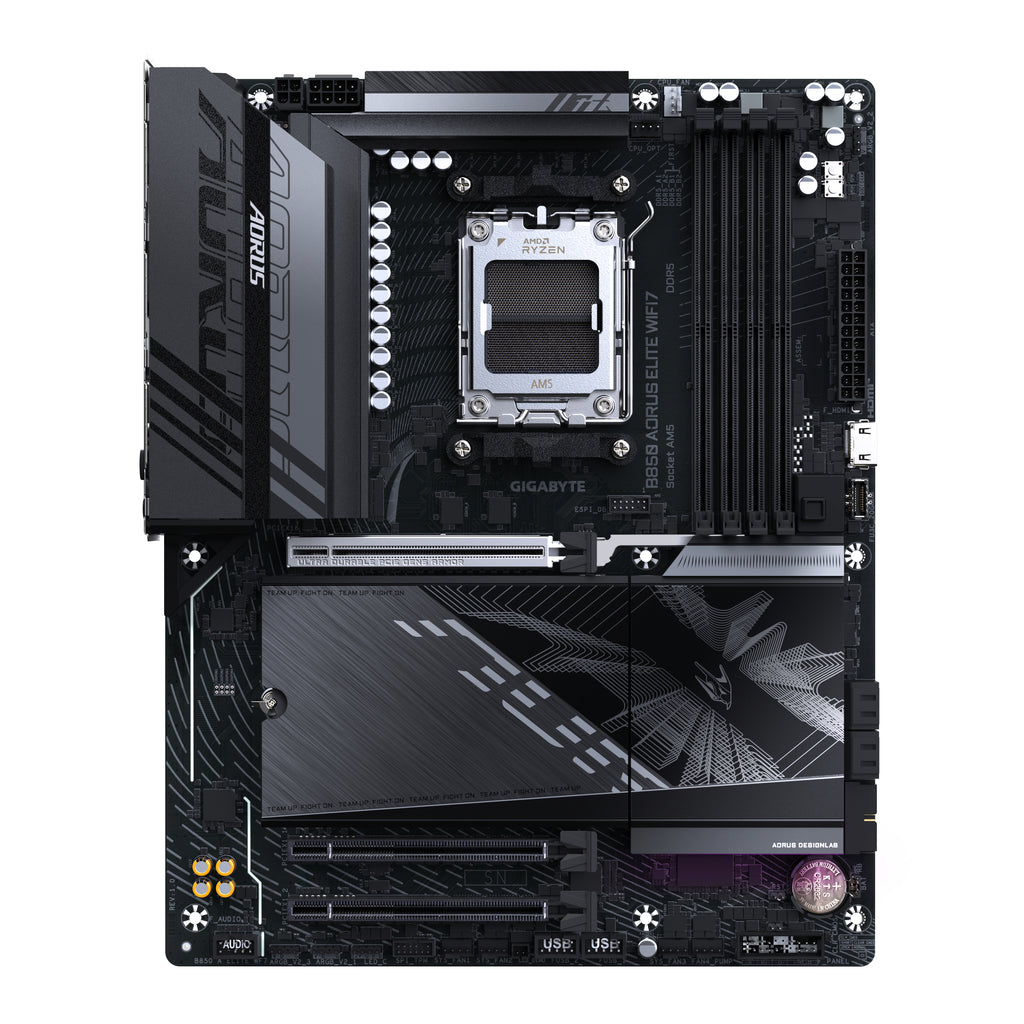

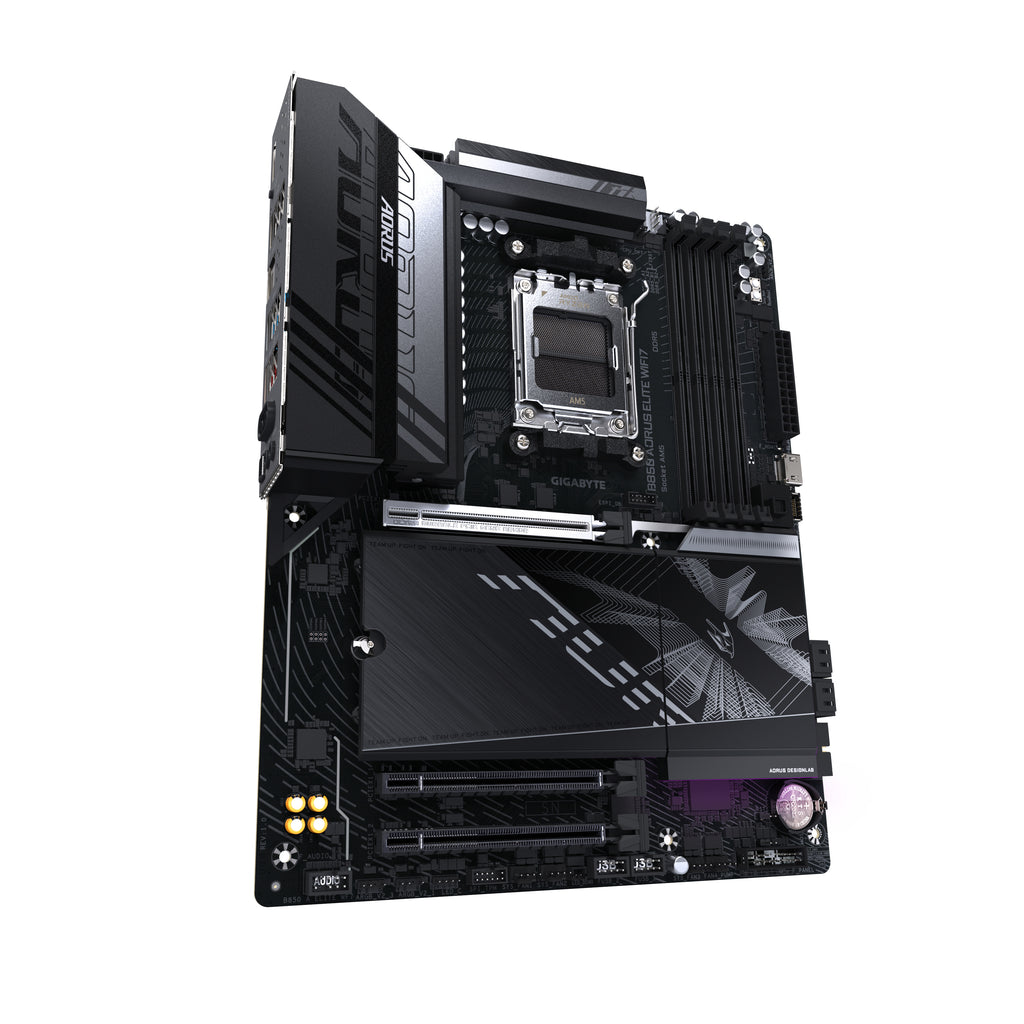

Gigabyte B850 AORUS Elite WiFi7 AM5 ATX DDR5 Motherboard
GIGABYTE
Gigabyte B850 AORUS Elite WiFi7 AM5 ATX DDR5 Motherboard
The Gigabyte B850 AORUS Elite WiFi7 AM5 ATX DDR5 Motherboard is designed for builders who want a capable, well-connected platform for AMD Ryzen 7000, 8000, and 9000 series processors. It pairs a robust VRM with fast storage, wired and wireless networking, and a full suite of internal headers, making it a solid foundation for a high-performance desktop build.
Why this product
Wi-Fi 7 and 2.5GbE networking built in
It includes a Realtek Wi-Fi 7 (802.11be) module with Bluetooth 5.4 alongside a Realtek 2.5 Gigabit Ethernet port, covering both wired and wireless connectivity without add-in cards.
PCIe 5.0 M.2 slot for the fastest SSDs
One PCIe 5.0 x4 M.2 slot sits alongside two PCIe 4.0 M.2 slots, letting builders install a current-generation NVMe drive without sacrificing the secondary storage options.
14+2+2 phase VRM with advanced thermal armour
The digital twin VRM solution uses a 7+7 phase parallel power design, and the VRM Thermal Armor Advanced heatsink with a 5 W/mK thermal pad keeps MOSFET temperatures controlled under load.
DDR5 overclocking up to 8200 MT/s
Four DDR5 DIMM slots support AMD EXPO profiles and manual overclocking to 8200 MT/s, with a maximum installed capacity of 256 GB across both channels.
Screwless M.2 and PCIe release mechanisms
EZ-Latch Plus enables tool-free removal of M.2 drives and PCIe cards, while EZ-Latch Click provides screwless M.2 heatsink attachment, reducing the fuss of routine upgrades.
Dual BIOS with Q-Flash Plus
A backup BIOS protects against failed updates, and Q-Flash Plus allows firmware flashing from a USB drive without a CPU or memory installed.
- SocketAMD AM5
- Form FactorATX
- Memory SupportDDR5, up to 256 GB, 4 × DIMM, max 8200 MT/s (O.C.)
- Primary M.2 SlotPCIe 5.0 x4
- NetworkingWi-Fi 7 (802.11be) + 2.5GbE LAN
- Bluetooth5.4
- VRMDigital twin 14+2+2 phases
- ChipsetAMD B850
- SKUGIG-1890
- EAN4719331866105
- Compatible with AMD Ryzen 9000, 8000, and 7000 series processors via the AM5 socket.
- Accepts DDR5 DIMMs only; four slots with dual-channel support and AMD EXPO memory module compatibility.
- ATX form factor (305 mm × 244 mm) fits standard ATX and larger cases.
- Rear video outputs (DisplayPort 1.4 and HDMI) support systems with an AMD APU or integrated graphics; a discrete GPU uses the PCIe 5.0 x16 slot.
- Not compatible with Intel processors or any AMD AM4/AM3 socket CPUs.
- Does not accept DDR4 memory — DDR5 modules are required.
Best for
- AMD Ryzen 9000/8000/7000 system builders who want a feature-rich B850 platform with strong power delivery and storage options.
- Gamers and content creators who need fast storage throughput via the PCIe 5.0 M.2 slot and reliable networking through Wi-Fi 7 or 2.5GbE.
- Builders who plan to use AMD EXPO memory and want room to overclock DDR5 up to 8200 MT/s.
- Enthusiasts who value tidy cable management, given the integrated I/O shield, screwless M.2 latches, and EZ-Latch Plus PCIe release.
- Those building in a standard ATX case who want onboard audio (8-channel HD), RGB headers, and six fan headers without additional expansion cards.
Trade-offs
- Intel platform users — this board uses the AMD AM5 socket exclusively and will not accept any Intel CPU.
- Small form-factor or Mini-ITX builds — the ATX footprint (305 mm × 244 mm) will not fit mITX or Micro-ATX cases designed for smaller boards.
- Builders on a DDR4 budget — only DDR5 memory is supported, making it unsuitable for reusing an existing DDR4 kit.
- Users needing more than one full-bandwidth x16 PCIe slot — only one PCIe 5.0 x16 slot is provided; the remaining slots are PCIe 3.0 x1.
The B850 AORUS ELITE WIFI7 supports AM5 Processors and features unparalleled performance. GIGABYTE B850 motherboards come with upgraded power design, high grade storage standards, and outstanding connectivity that enables you to optimize your performance.
- X3D Turbo Mode : Unleash new era gaming performance
- DDR5 OC up to 8200MT/s
- AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
- Digital twin 14+2+2 phases VRM solution
- Dual Channel DDR5 : 4*DIMMs with AMD EXPO™ Memory Module Support
- Ultra-Fast Storage : 3*M.2 slots, including PCIe 5.0 x4
- Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard Ext.
- Fast Networking : 2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
- Extended Connectivity : HDMI, Displayport
- PCIe UD Slot : PCIe 5.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect
GIGABYTE's one-piece stainless-steel shielding design reinforces the PCIe Slots, providing the extra strength required to support heavy graphics cards.
Our innovative UD Power Connector design enhances power conductivity and thermal dissipation. Solid Pins Delivers superior conductivity and signal transmission and reduces metal wear from repeated connections.
With up to 4 times the surface area of traditional coolers, this advanced design significantly boosts MOSFET cooling performance. 5 W/mK thermal pad for efficient thermal conductivity.
Our cutting-edge motherboard is designed for the ultimate DIY experience.
GIGABYTE motherboards showcases our devotion to BIOS improvement. Through synergy with our user community, we democratize next-level computing power. Restructured with user-centered and intuitive performance adjustment mechanisms. Multi-Theme Multiple BIOS skin with newly exclusive grayscale mode.
General
| Brand | GIGABYTE |
|---|---|
| Part Number | B850AELWF7 |
| Form Factor | ATX |
| Dimensions | 305 mm × 244 mm |
| Chipset | AMD B850 |
| CPU Socket | AMD AM5 |
| CPU Support | AMD Ryzen 9000 / 8000 / 7000 Series |
| PCB | 6-Layer, Mid-Loss, 2× Copper |
Networking
| Standard | Wi-Fi 7 (802.11be), Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11a/b/g |
|---|---|
| Wireless Controller | Realtek RTL8922AE |
| Bluetooth | 5.4 |
| Throughput (Wired) | 2.5 Gigabit Ethernet |
| LAN Controller | Realtek RTL8125D |
| Antenna | Directional ultra-high gain antenna (1 included) |
Performance & Storage
| Memory Type | DDR5 |
|---|---|
| Memory Slots | 4 × DDR5 DIMM (Dual Channel) |
| Max Memory | 256 GB |
| Memory Speed (O.C.) | Up to 8200 MT/s |
| EXPO Support | Yes |
| VRM | Digital twin 14+2+2 phases (7+7 phases parallel) |
| M.2 Slots | 1 × PCIe 5.0 x4; 2 × PCIe 4.0 |
| SATA Ports | 4 × SATA III |
| RAID | 0, 1, 5, 10 |
| PCIe x16 Slot | 1 × PCIe 5.0 x16 (PCIe UD Slot) |
| PCIe x1 Slots | 2 × PCIe 3.0 x1 |
Ports & Power

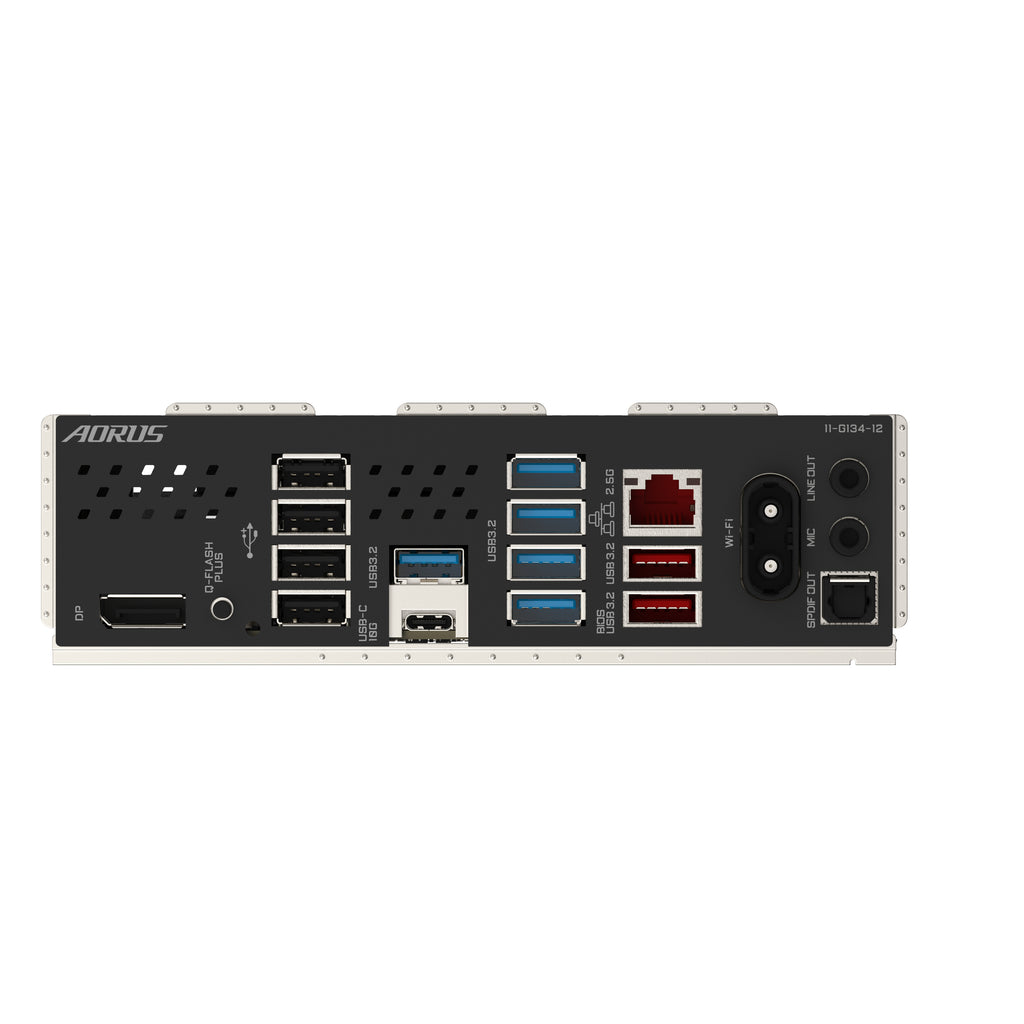

| Rear USB Ports | 12 total (USB 3.2 Gen 2, Gen 1, and USB 2.0; includes USB-C) |
|---|---|
| Internal USB Headers | 2 × USB 2.0 (4 ports); 1 × USB 3.2 Gen 1 Type-A (2 ports); 1 × USB 3.2 Gen 2×2 Type-C (1 port) |
| Video Output | 1 × DisplayPort 1.4; 1 × HDMI |
| Audio | 8-Channel HD Audio; S/PDIF output; High-End Audio Capacitor |
| Fan Headers | 6 × PWM/DC (Dual Fan Curve Mode) |
| RGB Headers | 1 × RGB; 3 × ARGB |
| Power Connectors | 24-pin ATX (UD Solid Pin); 4+8-pin CPU (UD Solid Pin) |
| BIOS | 256 Mb Flash ROM, UEFI AMI; Dual BIOS; Q-Flash; Q-Flash Plus |

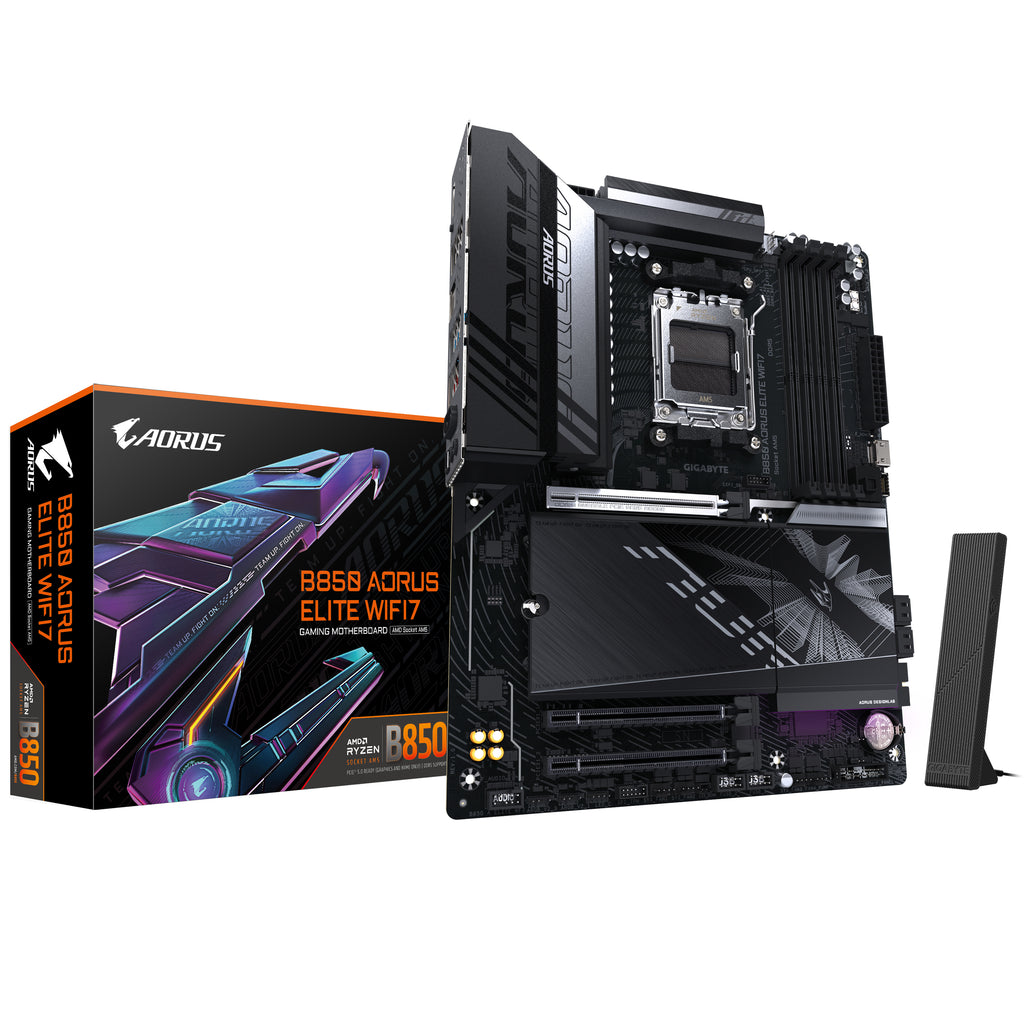

| Box Contents | Motherboard, User's Manual, Quick Installation Guide, one antenna, two SATA cables, one G Connector, one M.2 thermal pad, two packs of M.2 thick/thin rubber pads |
