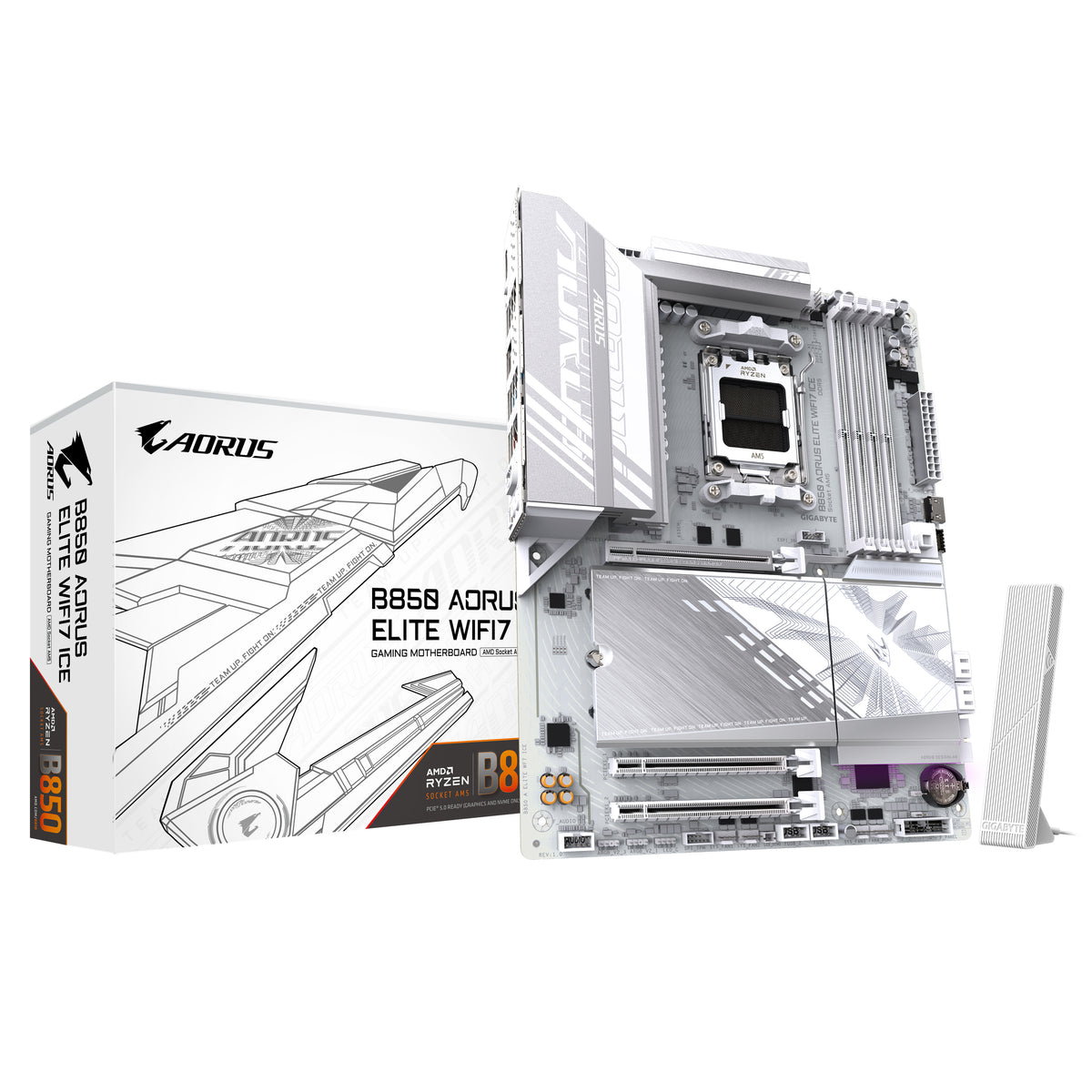

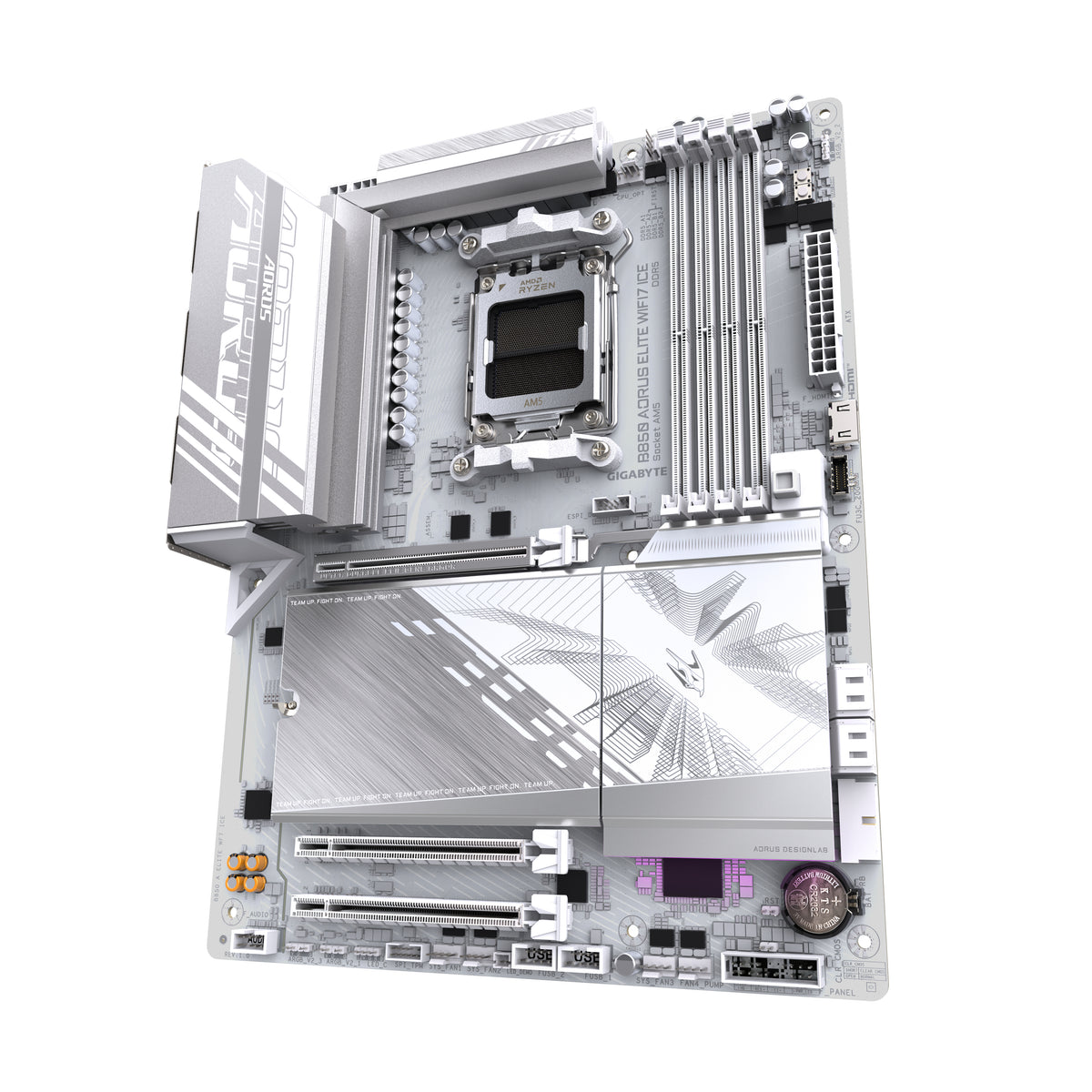

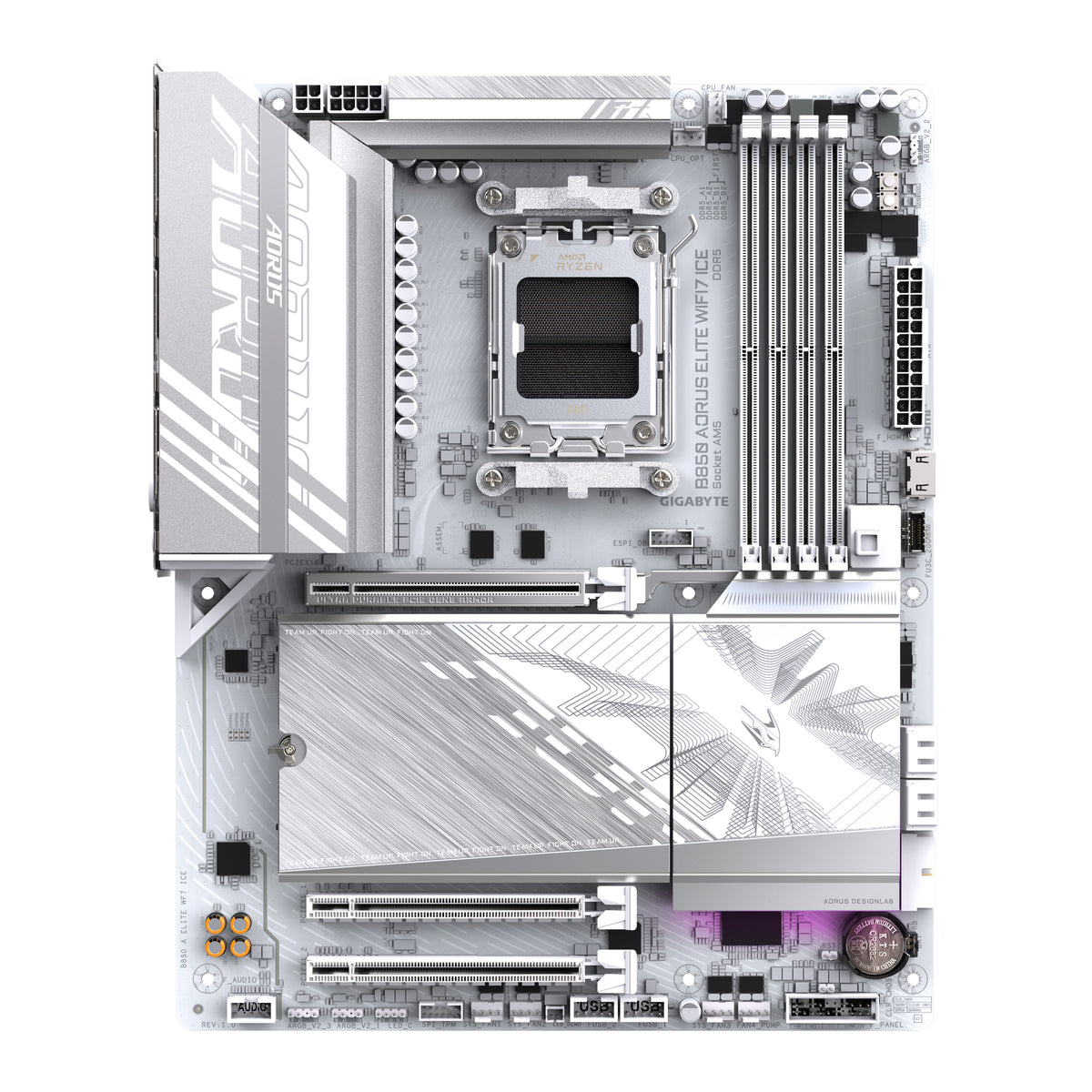

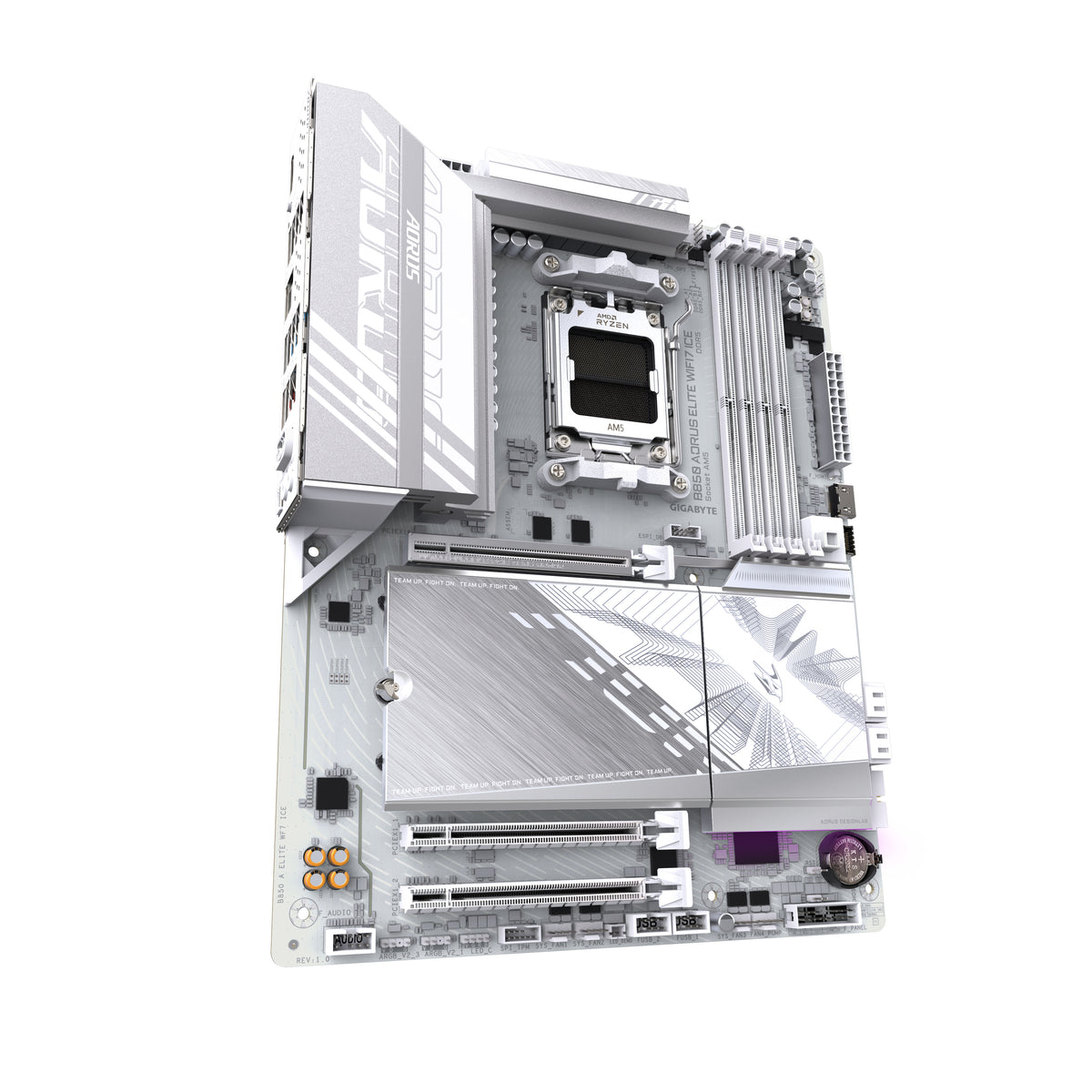

Gigabyte B850 AORUS Elite WiFi7 ICE AM5 ATX Motherboard
GIGABYTE
Gigabyte B850 AORUS Elite WiFi7 ICE AM5 ATX Motherboard
The Gigabyte B850 AORUS Elite WiFi7 ICE is an AM5 ATX motherboard built for enthusiasts pairing high-end DDR5 memory and PCIe Gen5 storage with strong power delivery and Wi-Fi 7 connectivity. It suits Ryzen 7000, 8000, and 9000 series builders who want solid overclocking headroom without paying for extreme-tier features.
Why this product
Wi-Fi 7 and 2.5GbE LAN
Dual connectivity with 802.11be Wi-Fi 7 and Realtek RTL8125D 2.5 Gigabit Ethernet covers both wireless and wired networking at current standards. Wi-Fi 7 scales to the latest routers; Gigabit LAN handles file servers and gaming without bottleneck.
PCIe Gen5 M.2 and x16 slot
One PCIe 5.0 x4 M.2 slot pairs with a full PCIe 5.0 x16 GPU slot, both using EZ-Latch Plus connectors for easier installation. Two more PCIe 4.0 M.2 slots let you run three NVMe drives.
14+2+2 phase power delivery
Twin 14-phase CPU and 2-phase SoC VRM with DrMOS stages handle power-hungry Ryzen chips and leave room for safe overclocking. Solid copper PCB and high-end capacitors keep voltages stable.
DDR5 up to 8200 MT/s with XMP
Four DIMM slots support up to 256 GB of DDR5, with full AMD EXPO and Intel XMP compatibility. It handles the fastest consumer memory bins when overclocked, or runs JEDEC stock speeds without adjustment.
Integrated I/O and RGB control
Built-in DisplayPort 1.4 and HDMI video output, plus headers for 1 RGB and 3 ARGB LED strips. Gigabyte Colour Creator software ties RGB to system temps or input.
- ChipsetAMD B850
- Form factorATX
- SocketAM5
- Memory slots4 x DDR5 DIMM
- Max memory256 GB
- Warranty5 years
- Wi-Fi standardWi-Fi 7 (802.11be)
- SKUGIG-1832
- EAN4719331866099
- Fits AMD Ryzen 9000, 8000, and 7000 series processors in Socket AM5.
- Accepts DDR5 DIMM modules; XMP and EXPO profiles are supported for certified modules.
- Supports PCIe 5.0 graphics cards and NVMe SSDs in the full-length x16 slot and dedicated M.2 slot.
- Includes four SATA III connectors and two cables for SATA storage devices.
- Two secondary PCIe x16 slots run in x1 mode only, limiting them to add-on cards that do not need full bandwidth.
Best for
- Ryzen builders on a mid-range budget who want Wi-Fi 7 and PCIe Gen5 without paying for enterprise-class VRM.
- Users running two or three fast NVMe drives, with room to add a fourth via SATA.
- First-time overclockers; the 14+2+2 VRM and UC BIOS Quick Access make tuning straightforward.
- RGB enthusiasts with native support for up to four LED headers and full software control via Gigabyte Colour Creator.
- Anyone who needs integrated video output via DisplayPort 1.4 or HDMI without a dedicated GPU.
Trade-offs
- High-end workstations requiring eight or more SATA drives: four SATA connectors is enough for a gaming rig but not for NAS or video editing farms.
- Dual-GPU builds: the two secondary PCIe x16 slots operate in x1 mode only, throttling bandwidth for a second graphics card.
- Users who need thunderbolt connectivity: the board has no Thunderbolt 3 or 4 headers or ports.
- Budget builders seeking the absolute cheapest AM5 option: this board's Wi-Fi 7 and Gen5 M.2 cost more than a B850 without those features.
B850 AORUS ELITE WIFI7 ICE
Key Features: X3D Turbo Mode · D5 Bionic Corsa · Zenith-Memory · VRM · Thermal · DIY-Friendly · Connectivity · Ultra-Durable · SOFTWARE
OVERVIEW · Performance · Thermal · Connectivity · DIY Friendly · 6-Layer PCB · Mid-Loss PCB · 2X Copper PCB · Premium Choke and Capacitor · *7+7 phases parallel power design · 1 x PCIe 5.0 x16 with PCIe UD Slot · 2 x PCIe 3.0x1 · 24 pin ATX with UD Solid Pin · 4+8 pin CPU with UD Solid Pin · 1 x PCIe 5.0 M.2 Slot · 2 x PCIe 4.0 M.2 Slots · Superior Heatpipe · 5 W/mk Thermal Pad · Integrated IO Shield · Total 6*PWM/DC Headers · Dual Fan Curve Mode · 1 x RGB LED Header · 3 x ARGB LED Headers · 8-CH HD Audio · High-End Audio Capacitor · Multi-key · Debug LEDs
AORUS gaming motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.
* Memory overclocking and XMP/EXPO support may vary. Please refer to the qualified vendor list (QVL) for details and note that product features may vary by model.
Elite Series with steady power keeps your AI operation smooth. Delivers consistent, high-powered performance to elevate your overclocking to the next level.
Unlock the full power of your multi-core CPU for unmatched performance.
Optimized for integrated GPU performance and memory management within the CPU.
Deliver reliable power to your CPU-connected PCIe lanes for uninterrupted performance.
With up to 4 times the surface area of traditional coolers, this advanced design significantly boosts MOSFET cooling performance. More grooves, more airflow.
GIGABYTE User-Centred (UC) BIOS elevates the interface, delivering an optimized experience through an easy-to-navigate layout and attractive design for optimal usability. GIGABYTE UC BIOS' Quick Access function selects brings 9 key options from Advanced Mode directly into Easy Mode, enabling swift adjustments without extensive navigation.
A unified software platform encompassing multiple GIGABYTE product. RGB Fusion – Personalize the RGB illumination on your motherboard and connected peripherals.
Liberate your imagination using GCC's versatile illumination options for your motherboard. Tailor your setup with eye-catching displays that mirror your unique personality and preferences.
Programmable RGB LED connectors enable precise control over individual LEDs (for ARGB GEN2 devices), seamlessly managed through the GCC.
AI-Driven PCB Technology employs AI algorithms to optimize vias, routing and stackups. It ensures peak performance and signal integrity across single and cross-layer throughout the design process.
Key Features: AI-Generated Design Recipes · AI-Driven Simulation · AI-Powered Signal Verification · Single and cross-layer signal optimization
AI-ViaFusion™ Technology - AI-Powered Excellence in Signal Integrity · Reduction in Signal Reflection Up to 28.2% – AI-ViaFusion, an AI-assisted via optimization technology, determines optimal via and pad sizes across PCB areas. This technology enhances cross-layer signal integrity and transmission efficiency, outperforming traditional design methods.
Networking
| Brand | Gigabyte |
|---|---|
| Ethernet standard | 2.5 Gigabit (Realtek RTL8125D) |
| Wi-Fi standard | Wi-Fi 7 (802.11be), Wi-Fi 6E, Wi-Fi 6, Wi-Fi 5, Wi-Fi 4 |
| Bluetooth | 5.4 |
| Wi-Fi chip | Realtek RTL8922AE |
Performance
| CPU support | AMD Ryzen 9000, 8000, 7000 series (Socket AM5) |
|---|---|
| Memory type | DDR5 |
| Memory speed (overclocked) | Up to 8200 MT/s |
| Memory speed (JEDEC) | 4400, 4800, 5200 MT/s |
| Memory profiles | AMD EXPO, Intel XMP |
| VRM phases | 14+2+2 (CPU, SoC, Auxiliary) |
| Primary PCIe slot | PCIe 5.0 x16 with UD Slot |
| M.2 storage slots | 1 x PCIe 5.0 x4, 2 x PCIe 4.0 x4 |
Ports & power
| SATA connectors | 4 x SATA III |
|---|---|
| ATX power connectors | 24-pin ATX, 4+8-pin CPU |

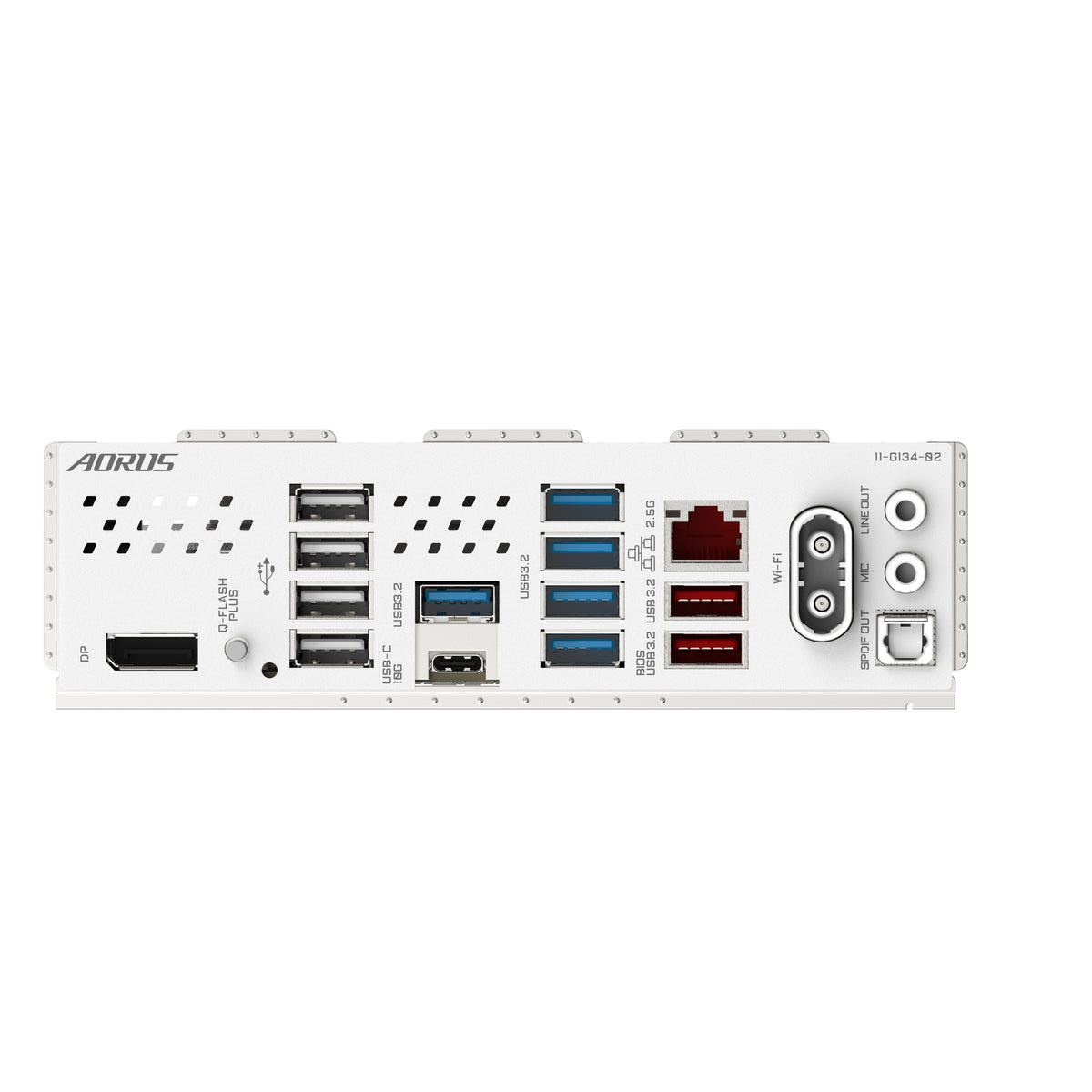

| Rear USB (external) | USB 3.2 Gen 2 Type-C, USB 3.2 Gen 2 Type-A, USB 3.2 Gen 1 Type-A, USB 2.0 |
| Internal USB headers | 2 x USB 2.0 (4 ports), 1 x USB 3.2 Gen 1 Type-A (2 ports), 1 x USB 3.2 Gen 2x2 Type-C (1 port) |
| Video outputs | 1 x DisplayPort 1.4, 1 x HDMI |
| Audio codec | Realtek ALC897 or ALC1220 (depends on board revision) |
| LED headers | 1 x RGB, 3 x ARGB |
| Fan headers | 6 x PWM/DC |
Physical
| Form factor | ATX |
|---|---|
| PCB layers | 6-layer |
| PCB type | Mid-loss with 2x copper, premium chokes and capacitors |
| Thermal design | Superior heatpipes, 5 W/mK thermal pads, integrated IO shield |
| Warranty | 5 years |
| In the box | Motherboard, manual, guide, antenna, 2x SATA cables, G connector, M.2 thermal pad, 2x M.2 rubber pads |
