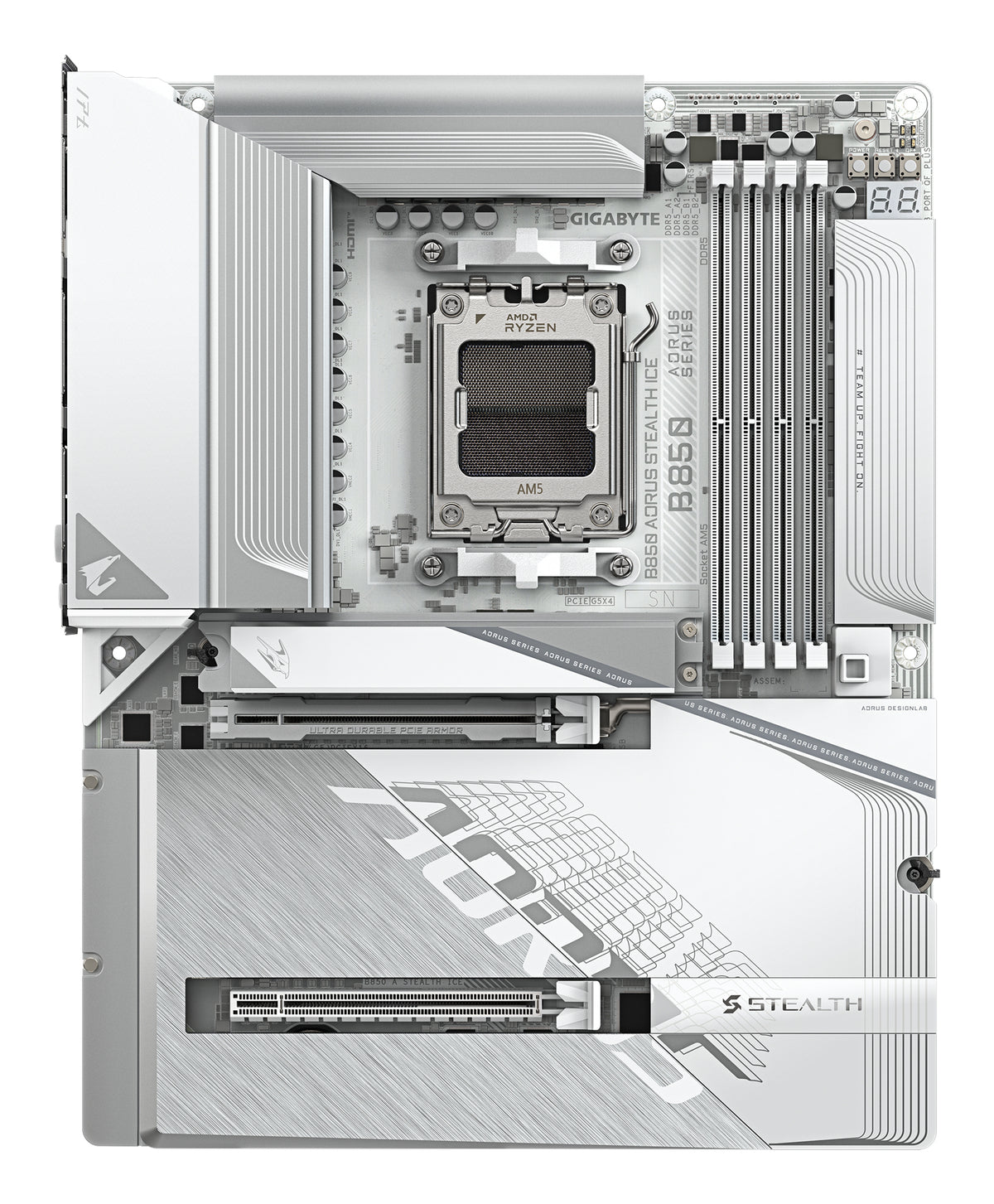

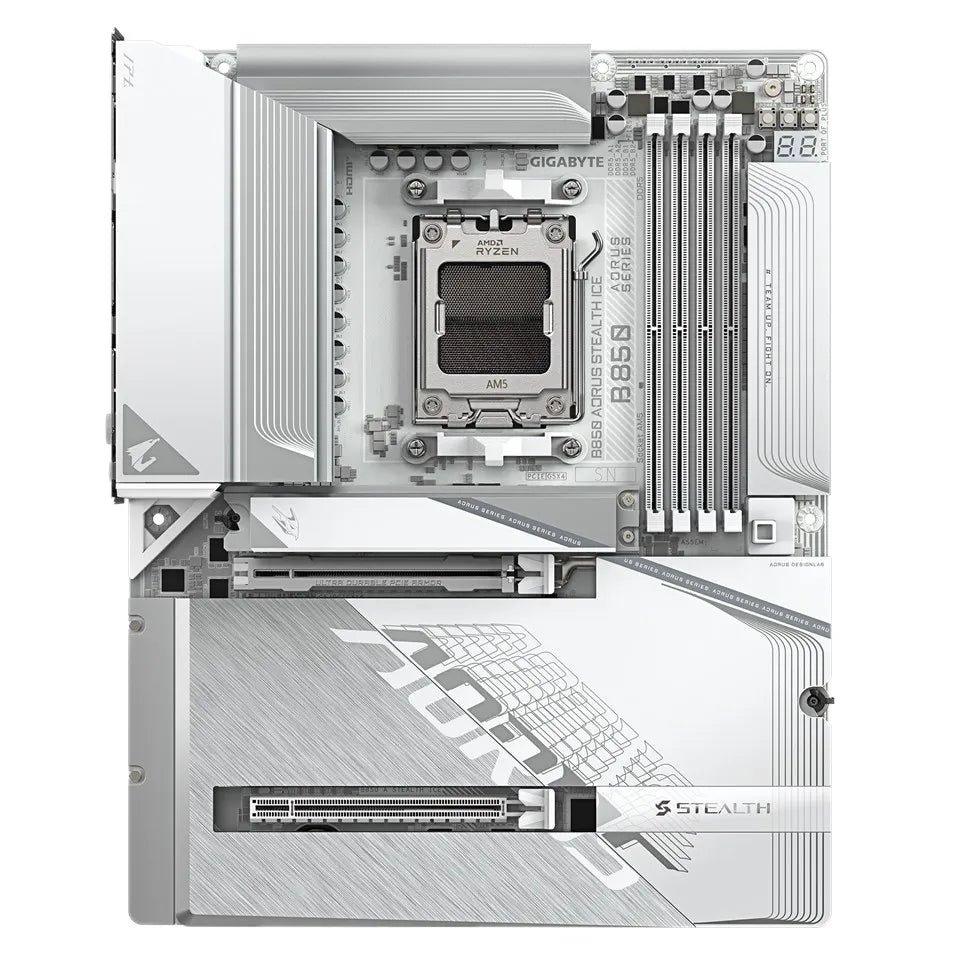

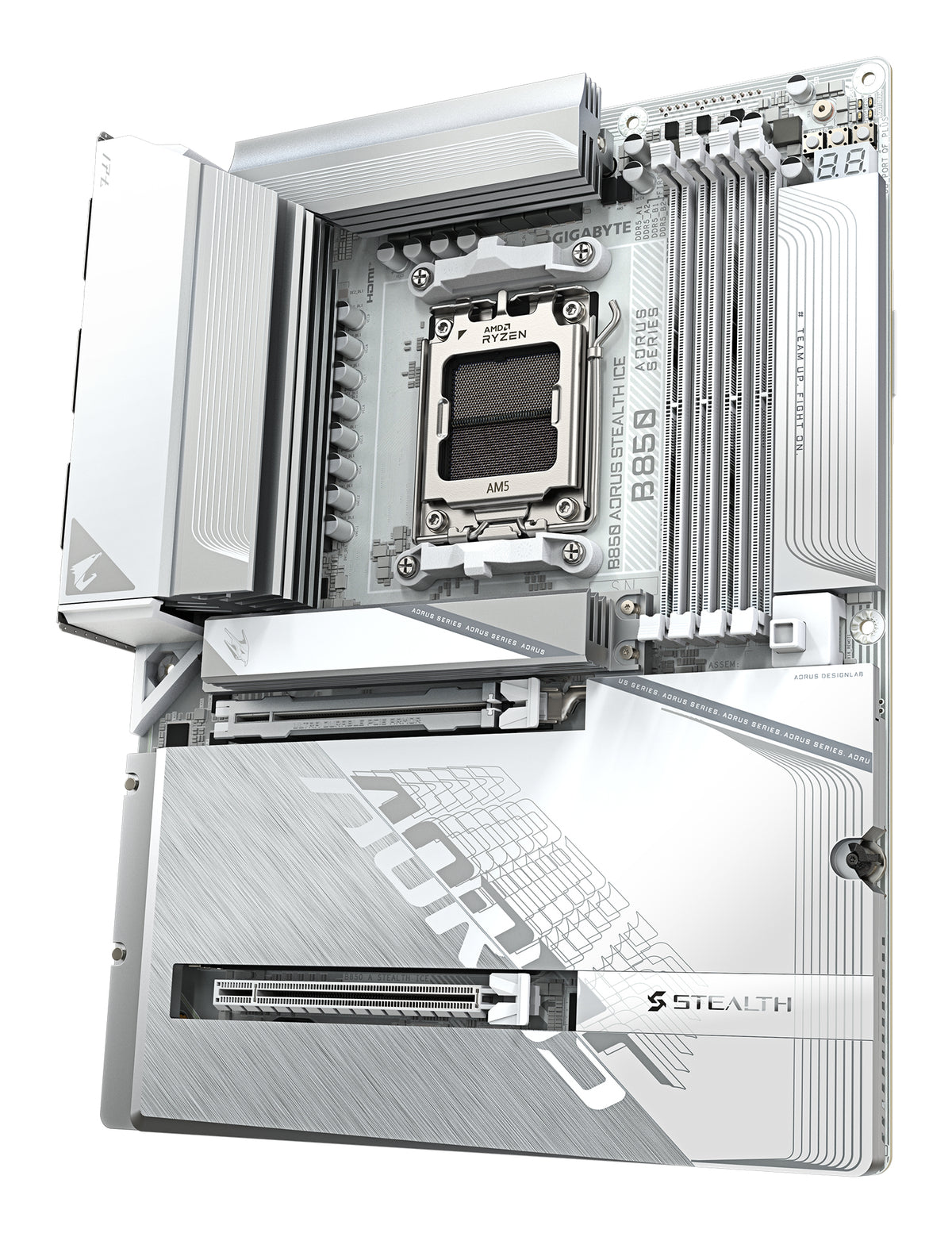

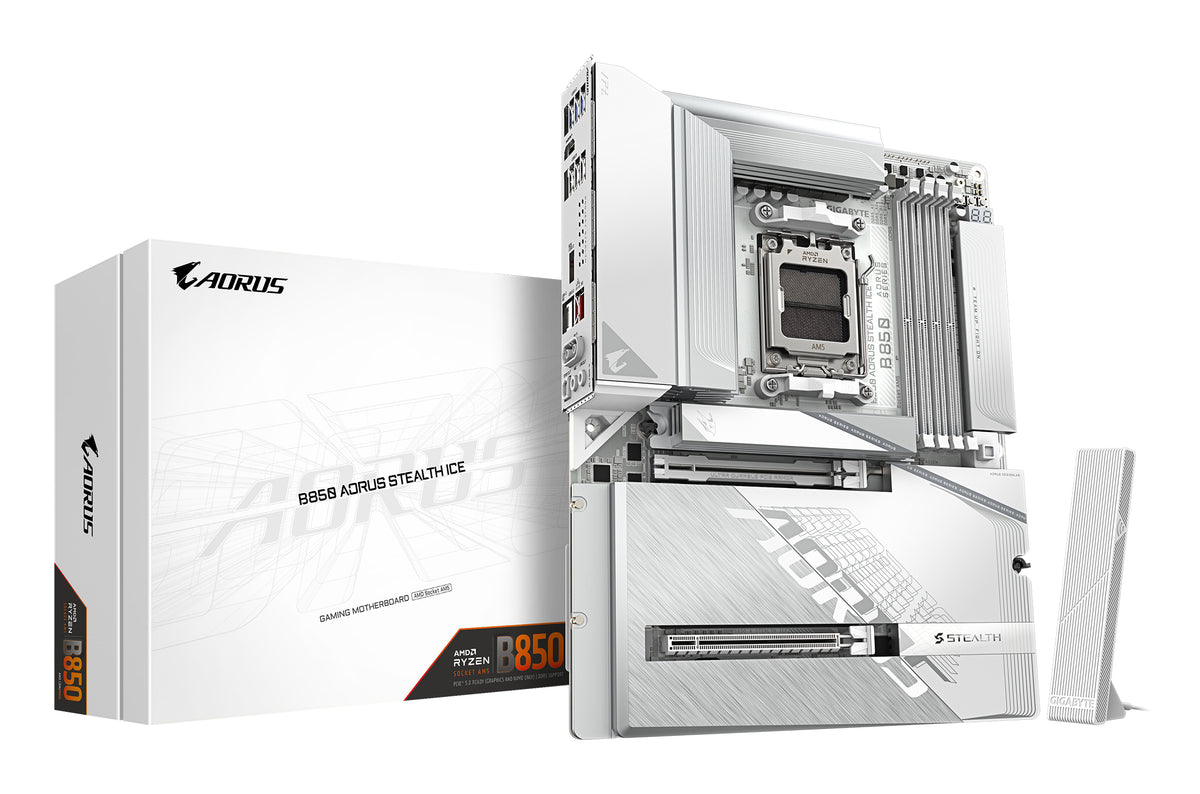

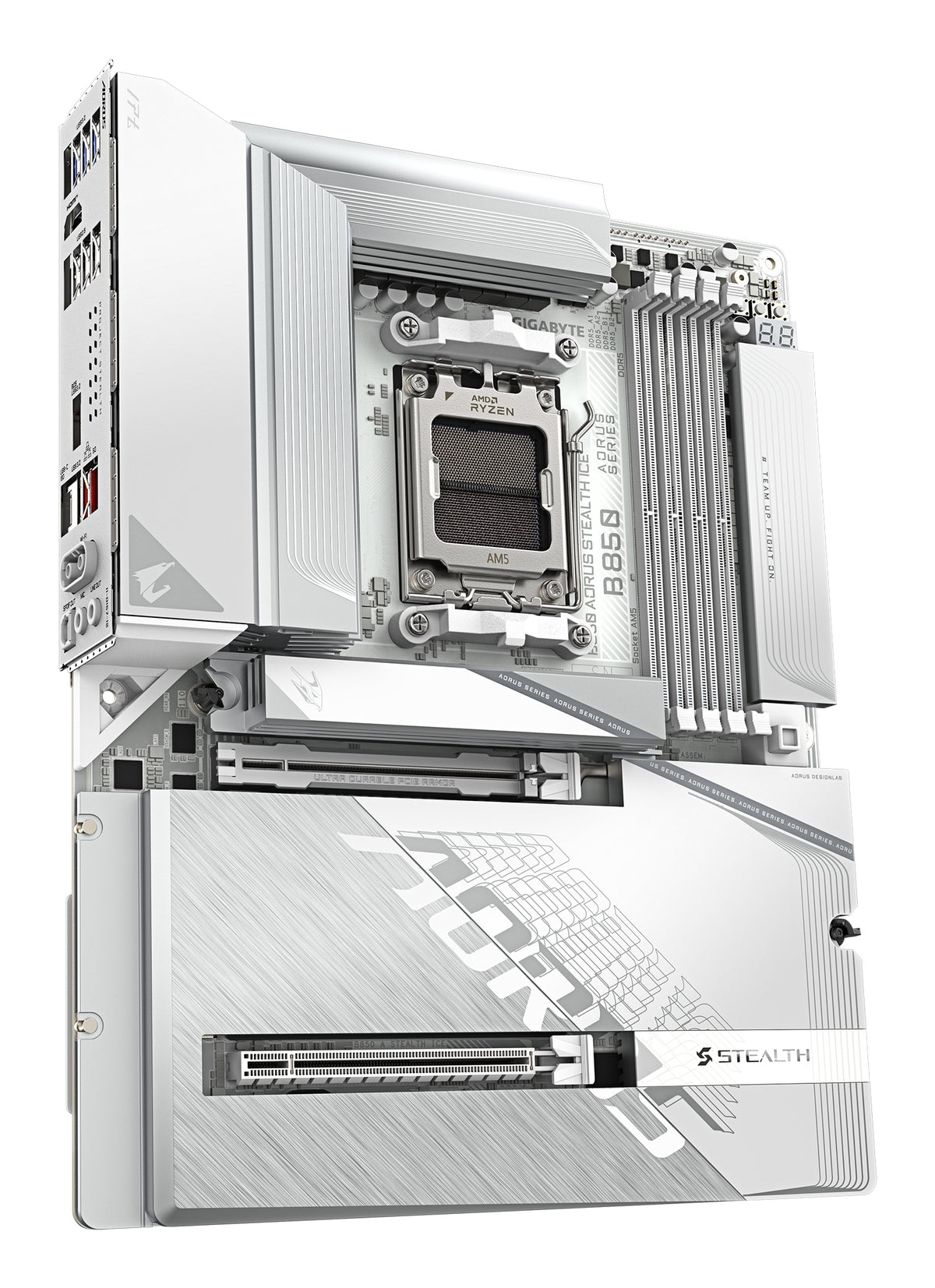

Gigabyte B850 AORUS STEALTH ICE AM5 ATX Motherboard Wi-Fi 7
GIGABYTE
Gigabyte B850 AORUS STEALTH ICE AM5 ATX Motherboard Wi-Fi 7
The Gigabyte B850 AORUS STEALTH ICE AM5 ATX Motherboard Wi-Fi 7 is built for users who demand fast storage, reliable power delivery, and modern connectivity on the AM5 platform. It pairs PCIe 5.0 M.2 slots with Wi-Fi 7 and 5GbE networking, designed for content creators, gamers, and enthusiasts who need both speed and stability.
Why this product
Four M.2 slots including PCIe 5.0
Two slots run at full PCIe 5.0 x4 speed for the fastest NVMe drives, with two additional PCIe 4.0 x4/x2 slots for flexibility. All four slots ship with thermal guards to manage heat during sustained transfers.
Wi-Fi 7 and 5GbE networking

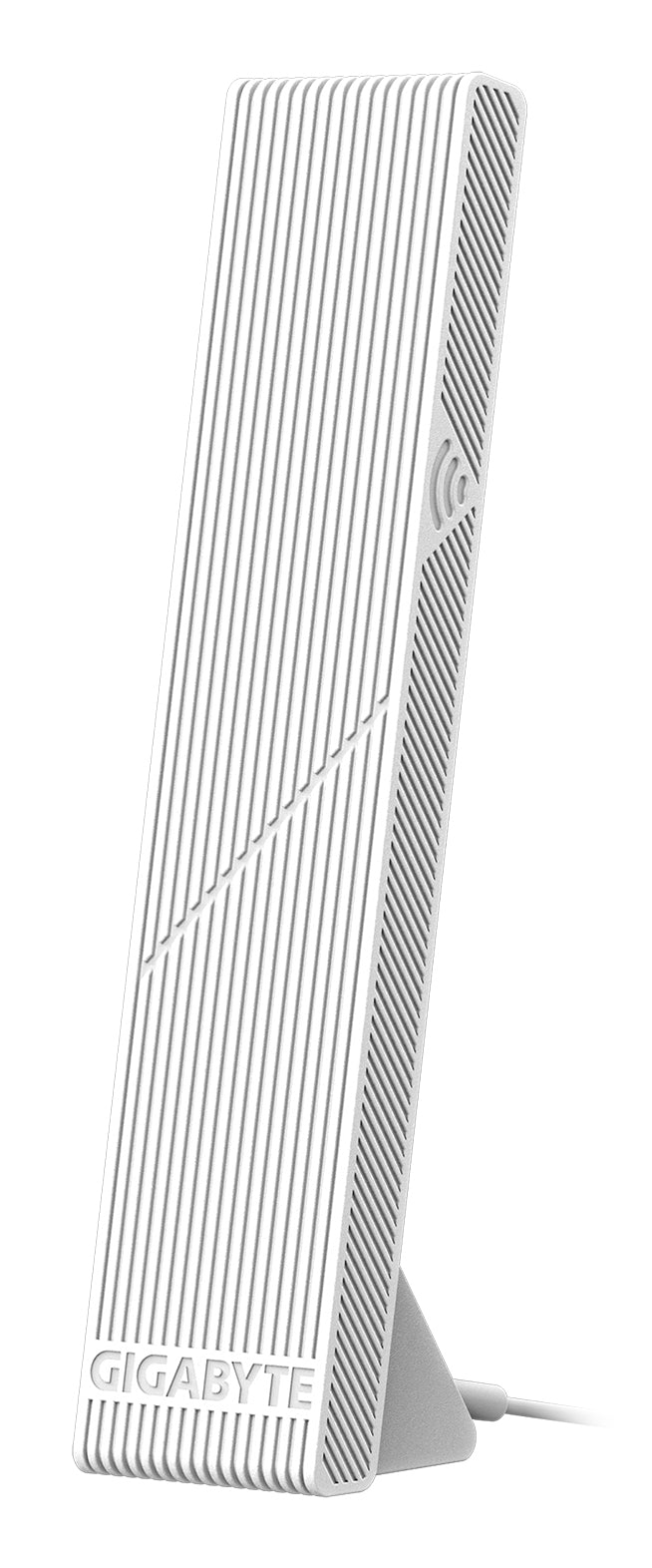

Dual connectivity options with Realtek Wi-Fi 7 (supporting 2.4/5/6 GHz) and a dedicated 5GbE LAN port. The Wi-Fi antenna is tuned for directional gain.
7+7 phase power design
Parallel power stages deliver stable voltage to the CPU under load, essential for multi-core workloads and overclocking. Combined with thermal armor around the VRM, this keeps power delivery cool even during sustained use.
PCIe 5.0 x16 slot with UD protection
The primary graphics slot is rated for 10× mechanical strength and features enhanced heat dissipation. Supports the latest high-end graphics cards without compromise.
GIGABYTE User-Centred BIOS
Quick Access function pulls nine essential settings into Easy Mode, cutting navigation time for common tweaks. Q-Flash Plus allows BIOS updates without a CPU installed.
- SocketAMD AM5
- ChipsetAMD B850
- Form FactorATX
- Memory Slots4 x DDR5
- M.2 Slots4 (2x PCIe 5.0 x4, 2x PCIe 4.0 x4/x2)
- Wi-FiWi-Fi 7 with Bluetooth 5.4
- LAN5GbE
- SKUGIG-2034
- EAN4719331873103
- AMD Ryzen 9000, 8000, and 7000 series processors on Socket AM5. Check Gigabyte's website for the full CPU support list before purchase.
- DDR5 memory from 4800 MT/s up to 8200 MT/s (overclocked), with support for up to 256 GB across four DIMM slots.
- NVMe SSDs in M.2 2280 and 22110 form factors, SATA 6 Gb/s drives, and external USB storage via 11 total USB ports (3 USB-C, 8 USB-A).
- ATX-sized cases with standard power connections (24-pin ATX and 4+8 pin CPU headers with UD Solid Pin connectors).
- RAID is supported for NVMe SSDs (RAID 0, 1, 5, 10) and SATA drives (RAID 0, 1 only); RAID does not apply to single drives.
Best for
- Multi-core workloads and content creation. The 7+7 phase VRM and thermal armor handle sustained CPU power draw without throttling.
- Fast storage builds. PCIe 5.0 x4 M.2 slots and RAID support for NVMe SSDs enable both speed and redundancy.
- Enthusiasts and overclockers. Robust power delivery, debug LEDs, and BIOS Quick Access reduce trial-and-error tuning time.
- Wireless-first networking. Wi-Fi 7 with directional antenna and 5GbE wired option provide modern connectivity without compromise.
- RGB-heavy builds. Four LED headers (one RGB, three ARGB GEN2) let you sync lighting across the motherboard and peripherals via GCC.
Trade-offs
- Budget builds. This is a high-end AM5 board designed for performance; entry-level B850 options exist at lower cost.
- Very large memory setups beyond 256 GB. Only four DDR5 DIMM slots are available.
- Compact or ITX cases. The ATX form factor requires a full-size chassis.
- Users who do not need Wi-Fi. The Wi-Fi 7 module is built-in and cannot be removed, and no Wi-Fi-free SKU is offered.
X3D Turbo Mode · D5 Bionic Corsa · Zenith-Memory · VRM · Thermal · DIY-Friendly · Connectivity · Ultra-Durable · SOFTWARE
6-Layer PCB · Mid-Loss PCB · 2X Copper PCB · Premium Choke and Capacitor · *7+7 phases parallel power design · 1 x PCIe 5.0 x16 with PCIe UD Slot · 1 x PCIe 4.0x4 · 2 x PCIe 5.0 M.2 Slot · 2 x PCIe 4.0 M.2 Slots · Total 8*PWM/DC Headers · Dual Fan Curve Mode · 1 x RGB LED Header · 3 x ARGB LED Headers · 4+8 pin CPU with UD Solid Pin · 24 pin ATX with UD Solid Pin · Superior Heatpipe · 5 W/mk Thermal Pad · Integrated IO Shield · Multi-key · Debug LEDs · Power Button
Ultra-Fast Storage : 4*M.2 slots, including PCIe 5.0 x4
Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard L & M.2 Thermal Guard Ext.
Fast Networking : 5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
PCIe UD Slot : PCIe 5.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect

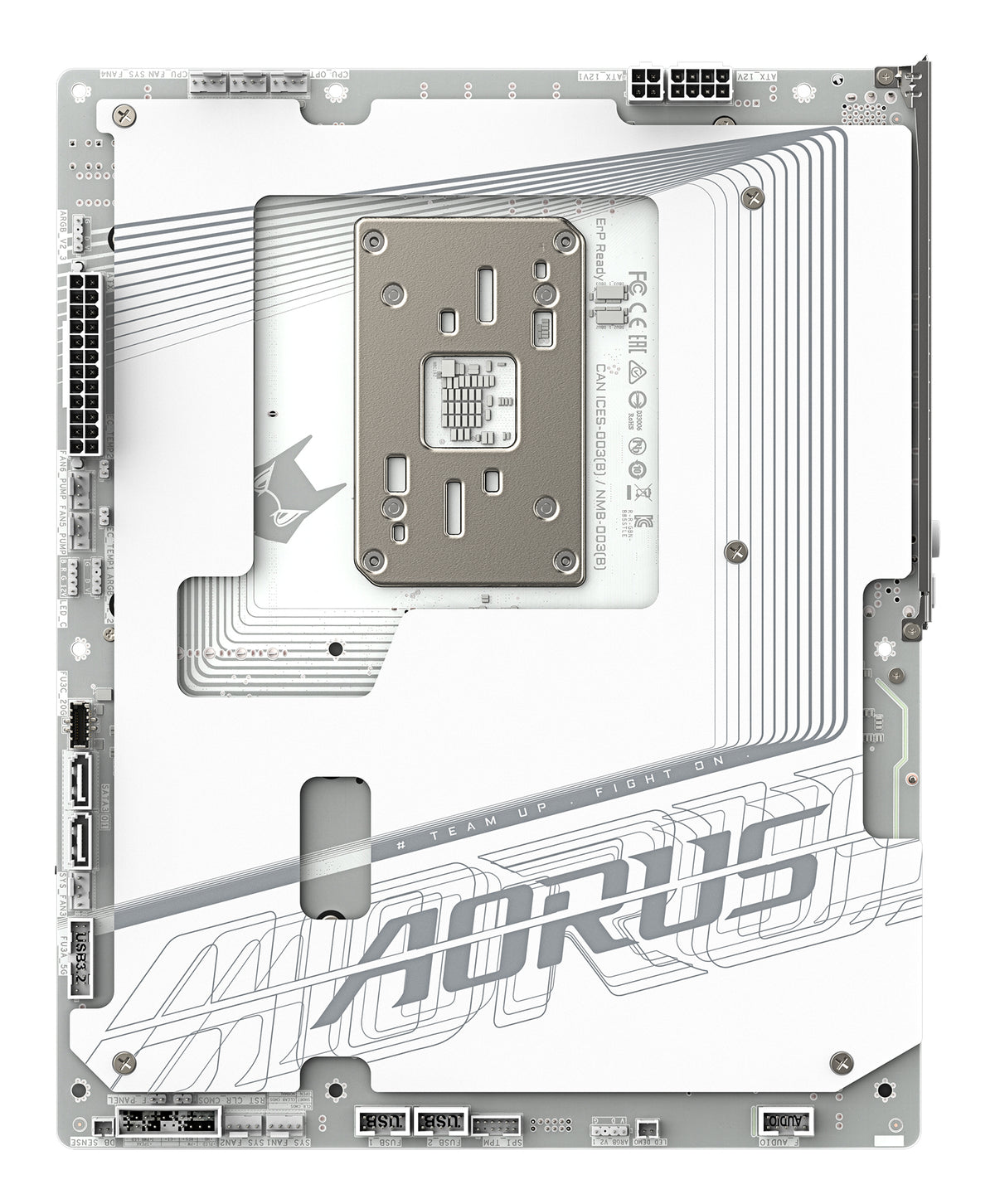

UD Base Plate : Experience the protection and heat dissipation with the UD Base Plate.
STEALTH Series with steady power keeps your AI operation smooth.
Delivers consistent, high-powered performance to elevate your overclocking to the next level.
Unlock the full power of your multi-core CPU for unmatched performance.
Optimized for integrated GPU performance and memory management within the CPU.
Deliver reliable power to your CPU-connected PCIe lanes for uninterrupted performance.
Engineered for maximum cooling performance — high-efficiency heat dissipation & a flexible baseplate for M.2 SSD.
To prevent overheating, high thermal conductivity pads are typically added.
Programmable RGB LED connectors enable precise control over individual LEDs (for ARGB GEN2 devices), seamlessly managed through the GCC.
GIGABYTE User-Centred (UC) BIOS elevates the interface, delivering an optimized experience through an easy-to-navigate layout and attractive design for optimal usability. GIGABYTE UC BIOS' Quick Access function selects brings 9 key options from Advanced Mode directly into Easy Mode, enabling swift adjustments without extensive navigation.
RGB Fusion Personalize the RGB illumination on your motherboard and connected peripherals.
Protect your motherboard through multiple over-temperature and over-current safeguards.
General
| Brand | Gigabyte |
|---|---|
| Model | B850 AORUS STEALTH ICE |
| Socket | AMD AM5 |
| Chipset | AMD B850 |
| Form Factor | ATX |
CPU & Power
| CPU Support | AMD Ryzen 9000, 8000, and 7000 series |
|---|---|
| Power Phases | 7+7 parallel phases |
| CPU Power Connectors | 4+8 pin with UD Solid Pin |
| ATX Power Connector | 24-pin with UD Solid Pin |
Memory & Storage
| Memory Type | DDR5 |
|---|---|
| Memory Slots | 4 x DIMM (dual-channel) |
| Max Memory | 256 GB |
| Memory Speed Support | 4800 to 8200 MT/s (with overclocking) |
| M.2 Slots | 4 total |
| PCIe 5.0 M.2 Slots | 2 x M.2 x4 |
| PCIe 4.0 M.2 Slots | 2 x M.2 x4/x2 |
| SATA Ports | 2 x SATA 6 Gb/s |
| NVMe RAID Support | RAID 0, 1, 5, 10 |
| SATA RAID Support | RAID 0, 1 |
Connectivity
| Wireless | Realtek Wi-Fi 7 RTL8922AE (2.4/5/6 GHz, 11be 160 MHz) |
|---|---|
| Bluetooth | 5.4 |
| LAN | 5GbE |

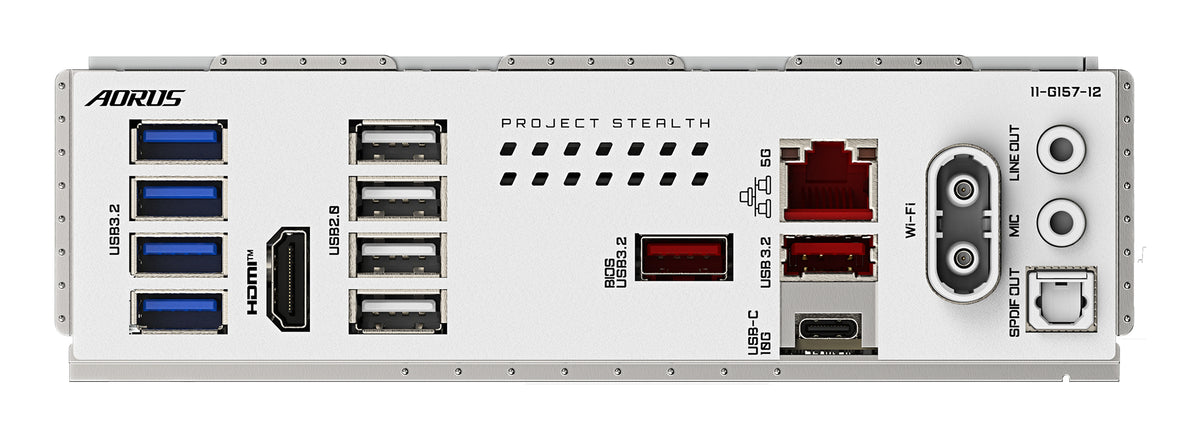

| USB 3.2 Gen 2 Type-C (Back) | 1 x port |
| USB 3.2 Gen 2 Type-A (Back) | 2 x ports |
| USB 3.2 Gen 1 (Back) | 4 x ports |
| USB 2.0/1.1 (Back) | 4 x ports |
| USB 3.2 Gen 2x2 Header | 1 x internal |
| USB 3.2 Gen 1 Header | 2 x internal |
| USB 2.0/1.1 Header | 4 x internal |
| HDMI | 1 x HDMI 2.1 with HDCP 2.3 |
| S/PDIF | 1 x optical out |
| Audio Jacks | 2 x 3.5 mm on back panel |
Expansion & Headers
| PCIe Slot 1 | PCIe 5.0 x16 with UD Slot (10× strength) |
|---|---|
| PCIe Slot 2 | PCIe 4.0 x4 |
| Fan Headers | 8 x PWM/DC with Dual Fan Curve Mode |
| RGB Headers | 1 x RGB, 3 x ARGB GEN2 |
Thermal & Audio
| VRM Cooling | Thermal Armor Advanced with Superior Heatpipe |
|---|---|
| M.2 Cooling | Thermal Guard L and Thermal Guard Ext with 5 W/mK thermal pad |
| Audio Codec | Realtek HD Audio |
| Audio Channels | 7.1-channel up to 192 kHz/24-bit LPCM |
BIOS & Features
| BIOS Type | GIGABYTE User-Centred (UC) BIOS |
|---|---|
| Q-Flash Plus | BIOS update without CPU installed |
| Smart Backup | Supported |
| RGB Fusion | Supported via GCC software |
| Debug LEDs | Multi-key with Power Button |
