Gigabyte B850 Eagle WiFi 6E AM5 ATX Motherboard - DDR5
GIGABYTE
Gigabyte B850 Eagle WiFi 6E AM5 ATX Motherboard - DDR5

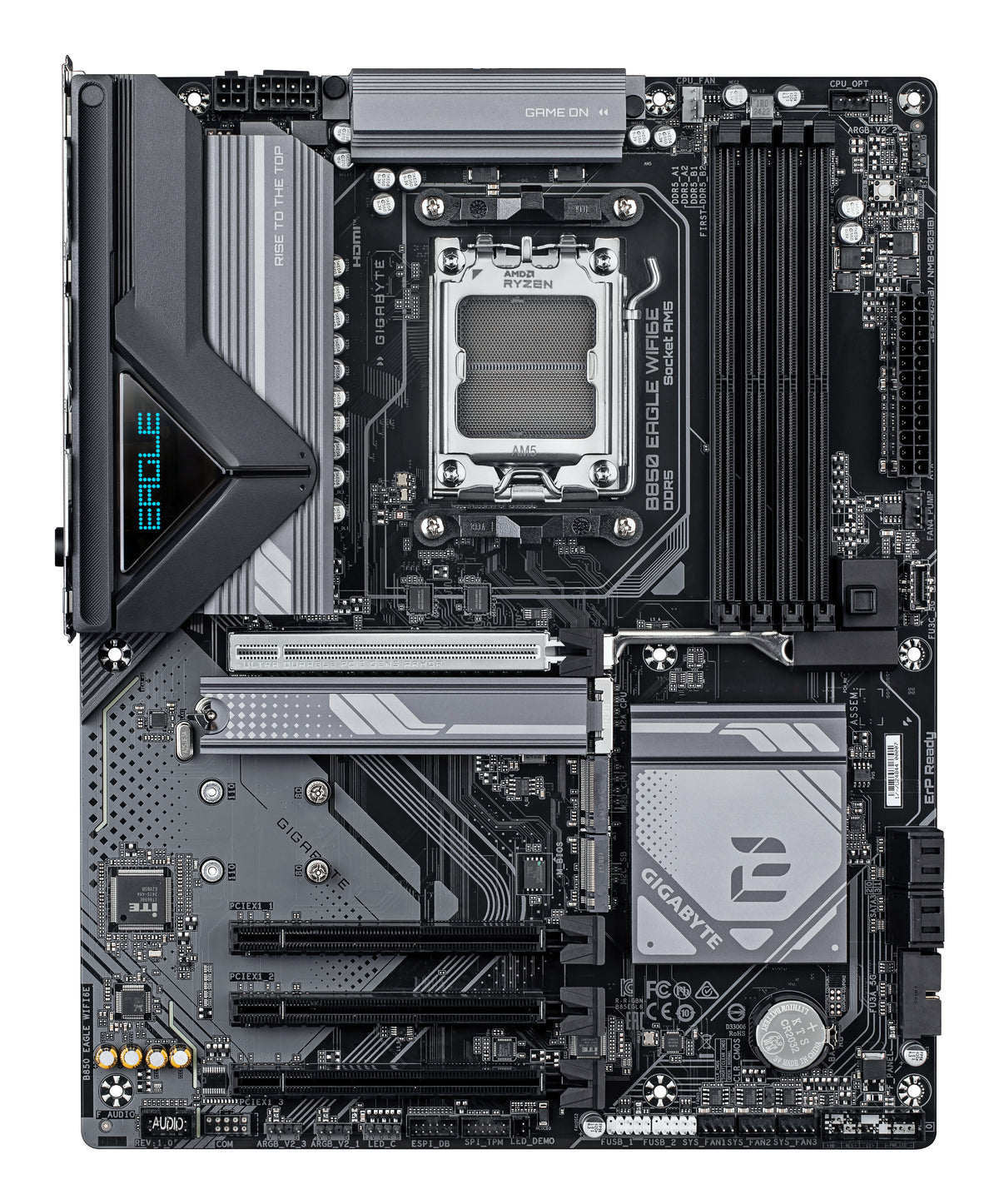

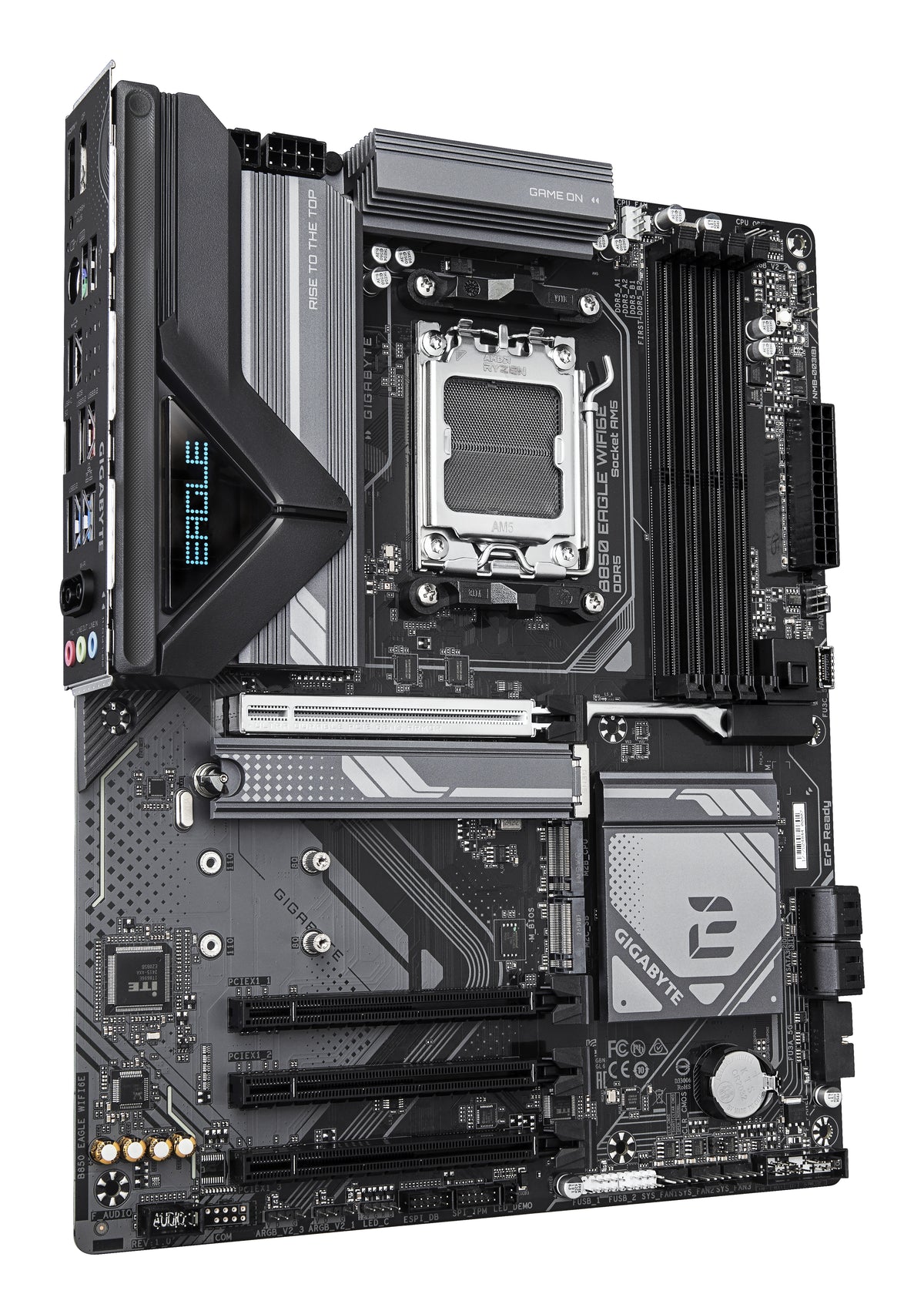

The Gigabyte B850 Eagle WiFi 6E is an AMD Socket AM5 motherboard built for users running Ryzen 7000, 8000, or 9000 series processors. It combines DDR5 memory support up to 256 GB, WiFi 6E connectivity, and PCIe 5.0 capability with a robust power design for stable overclocking and multi-core workloads.
Why this product
DDR5 up to 8200 MT/s overclocked
Four DIMM slots support a wide range of DDR5 speeds from 4400 to 8200 MT/s, with maximum capacity of 256 GB for memory-intensive workloads.
PCIe 5.0 NVMe storage
M.2A socket connected to the CPU delivers PCIe 5.0 x4 speeds on Ryzen 9000/7000 series, plus two additional M.2 slots for flexible storage expansion.
WiFi 6E with Bluetooth 5.3
Dual-band 6 GHz wireless with 160 MHz support and Bluetooth 5.3 for modern connectivity across 2.4, 5, and 6 GHz frequencies.
Enhanced power delivery
Upgraded power design with optimized connectors and increased heatsink surface area for consistent CPU power and improved MOSFET cooling during overclocking.
RAID support for NVMe drives
RAID 0, 1, 5, and 10 configuration options for NVMe SSDs provide data redundancy and performance flexibility on Ryzen 9000 series.
- SocketAMD AM5
- ChipsetAMD B850
- MemoryDDR5, 4 DIMM slots, up to 256 GB
- Storage3 x M.2 (PCIe 5.0 and 4.0), 4 x SATA
- WirelessWiFi 6E + Bluetooth 5.3
- Form FactorATX (30.5 cm × 24.4 cm)
- SKUGIG-2033
- EAN4719331866587
- Works with AMD Ryzen 9000, 8000, and 7000 series processors in Socket AM5.
- Supports DDR5 memory modules across a wide speed range, from standard 4400 MT/s to overclocked 8200 MT/s.
- Accepts standard ATX power supplies with 24-pin, 8-pin, and 4-pin connectors.
- RAID 5 for NVMe is available only with Ryzen 9000 series processors; earlier generations support RAID 0, 1, and 10.
- Does not support Intel processors or older AMD socket types.
Best for
- Ryzen 7000/8000/9000 builds needing PCIe 5.0 NVMe and high-speed DDR5 memory
- Overclockers and enthusiasts with stable 8+ core CPU workloads
- Users requiring WiFi 6E connectivity without a separate card
- Systems with multiple storage drives using NVMe RAID arrays
Trade-offs
- Budget builds on tight power or component constraints; the ATX form factor and feature set target mid-range and higher systems.
- Users requiring more than one GPU; only one PCIe x16 slot is available.
- Applications needing more than 1 Gbps wired connectivity; Gigabit Ethernet is the only LAN option.
- Systems with integrated graphics on older Ryzen generations; this board is optimized for newer CPUs with improved iGPU support.
The B850 EAGLE WIFI6E supports AM5 Processors and features unparalleled performance.
GIGABYTE B850 motherboards come with upgraded power design, high grade storage standards, and outstanding connectivity that enables you to optimize your performance.
EAGLE motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.
Eagle Series with steady power keeps your AI operation smooth. Delivers consistent, high-powered performance to elevate your overclocking to the next level. Unlock the full power of your multi-core CPU for unmatched performance. Optimized for integrated GPU performance and memory management within the CPU. Deliver reliable power to your CPU-connected PCIe lanes for uninterrupted performance.
Advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient. With up to 4 times the surface area of traditional coolers, this advanced design significantly boosts MOSFET cooling performance.
Our innovative UD Power Connector design enhances power conductivity and thermal dissipation. Solid Pins Delivers superior conductivity and signal transmission and reduces metal wear from repeated connections.
Processor & Chipset
| Brand | Gigabyte |
|---|---|
| Socket | AMD Socket AM5 |
| Supported CPUs | AMD Ryzen 9000, 8000, and 7000 series processors |
| Chipset | AMD B850 |
Memory
| Type | DDR5 |
|---|---|
| DIMM Slots | 4 |
| Maximum Capacity | 256 GB |
| Supported Speeds | 4400 to 8200 MT/s (DDR5-4400 through DDR5-8200) |
Storage
| M.2 Socket 3 Connectors | 3 (M2A_CPU, M2B_CPU, M2C_SB) |
|---|---|
| M2A_CPU Speed | PCIe 5.0 x4/x2 (Ryzen 9000/7000) |
| M2B_CPU Speed | PCIe 4.0 x4/x2 (Ryzen 9000/7000) |
| M2C_SB Speed | PCIe 4.0 x2 |
| SATA Connectors | 4 |
| RAID Support | NVMe: RAID 0, 1, 5 (9000 series only), 10; SATA: RAID 0, 1, 10 |
Networking
| Ethernet | 1 x Realtek GbE LAN (1 Gbps) |
|---|---|
| WiFi Standard | WiFi 6E (802.11ax) |
| WiFi Module Options | Intel Wi-Fi 6E AX210 or Realtek Wi-Fi 6E RTL8852CE |
| Wireless Bands | 2.4, 5, and 6 GHz |
| Bluetooth | 5.3 |
Ports & Power

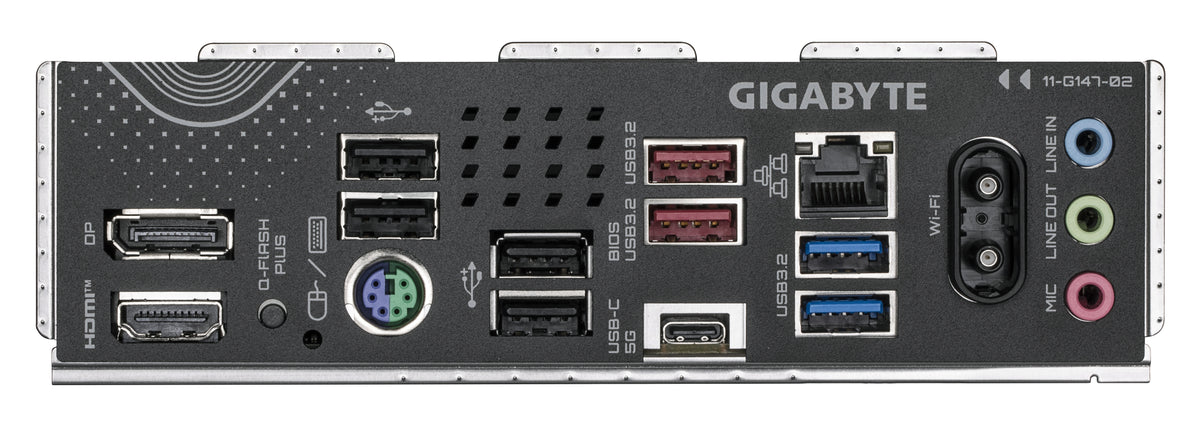

| Display Outputs | 1 x DisplayPort, 1 x HDMI 2.1 |
|---|---|
| Back Panel USB | 1 x USB Type-C Gen 2, 1 x USB 3.2 Gen 2 Type-A, 4 x USB 2.0, 1 x PS/2 |
| Internal USB Headers | 1 x USB 3.2 Gen 1 Type-C header, 1 x USB 3.2 Gen 1 header (2 ports), 2 x USB 2.0 headers (4 ports) |
| Power Connectors | 1 x 24-pin ATX, 1 x 8-pin ATX 12V, 1 x 4-pin ATX 12V |
| Fan Headers | 1 x CPU fan, 1 x CPU fan/pump, 3 x system fan, 1 x system fan/pump |
Physical
| Form Factor | ATX |
|---|---|
| Dimensions | 30.5 cm × 24.4 cm |
| PCB Layers | 6-layer mid-loss |
| Audio | Realtek 8-channel HD audio |
| BIOS | 256 Mb Flash ROM, UEFI AMI |
