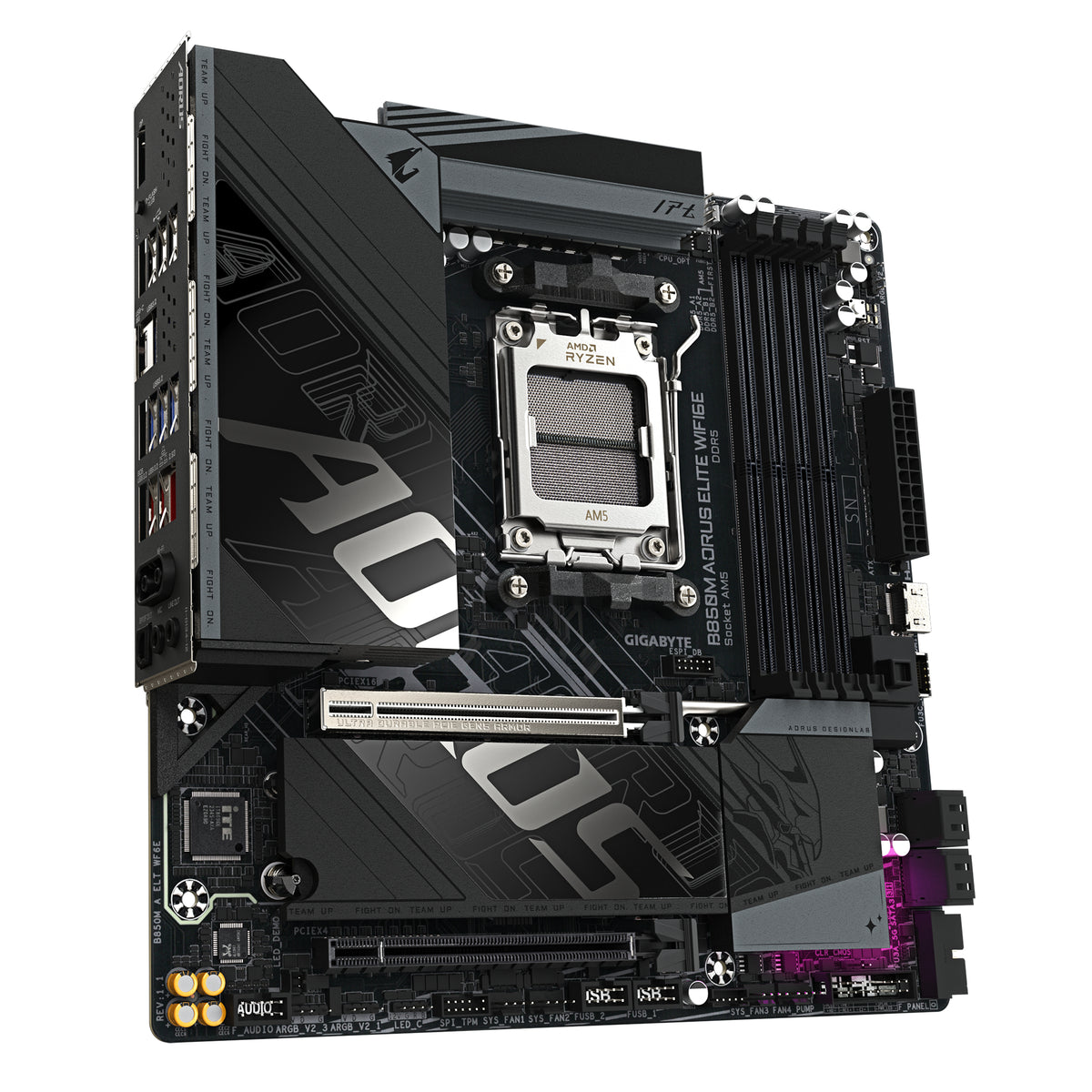

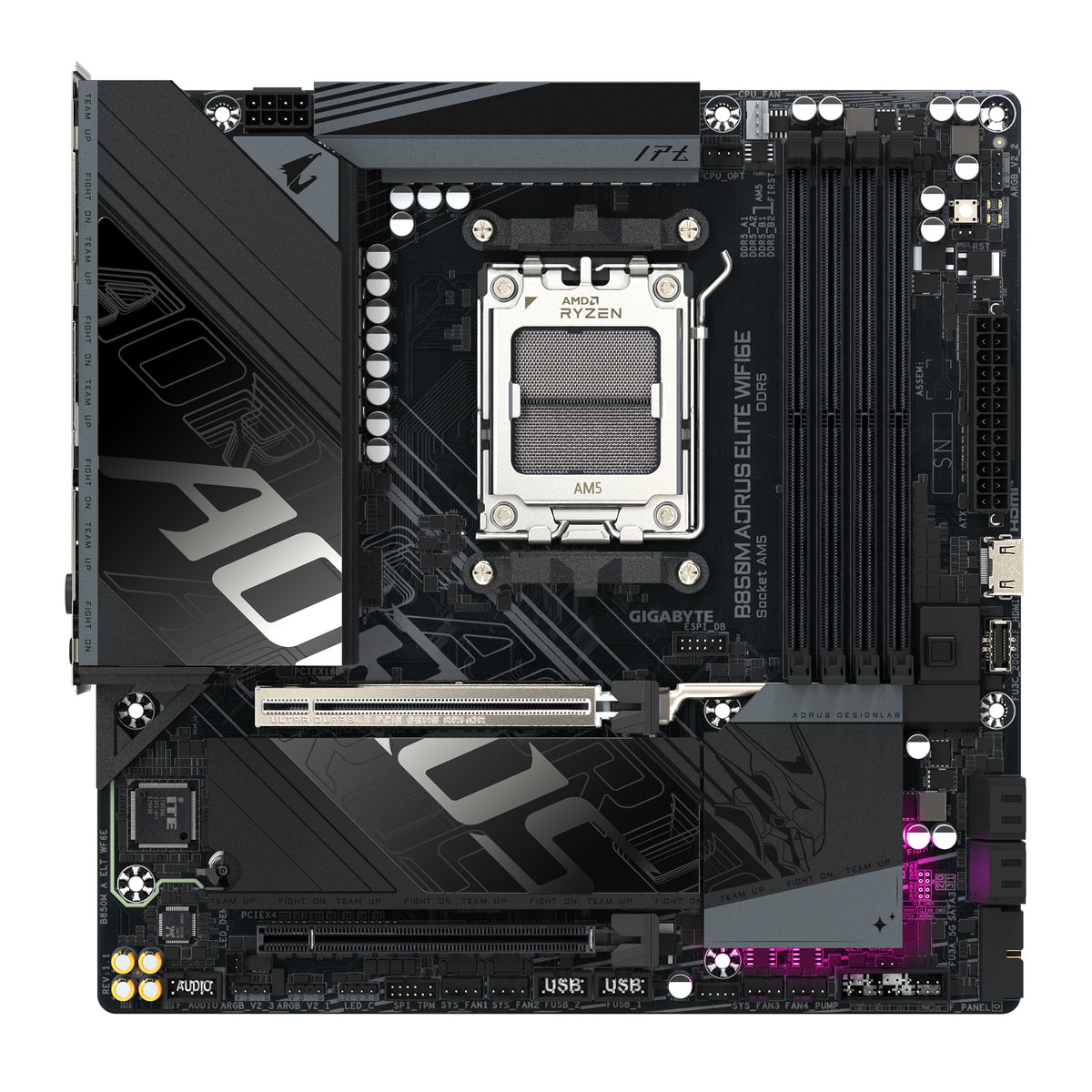

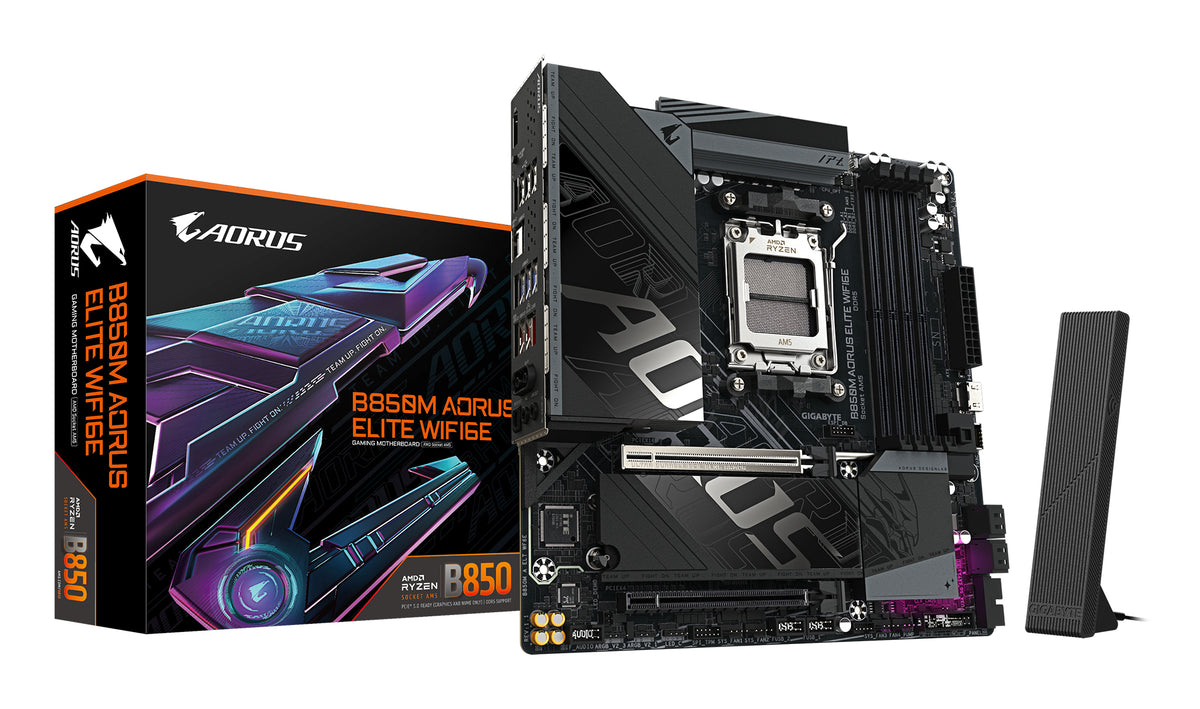

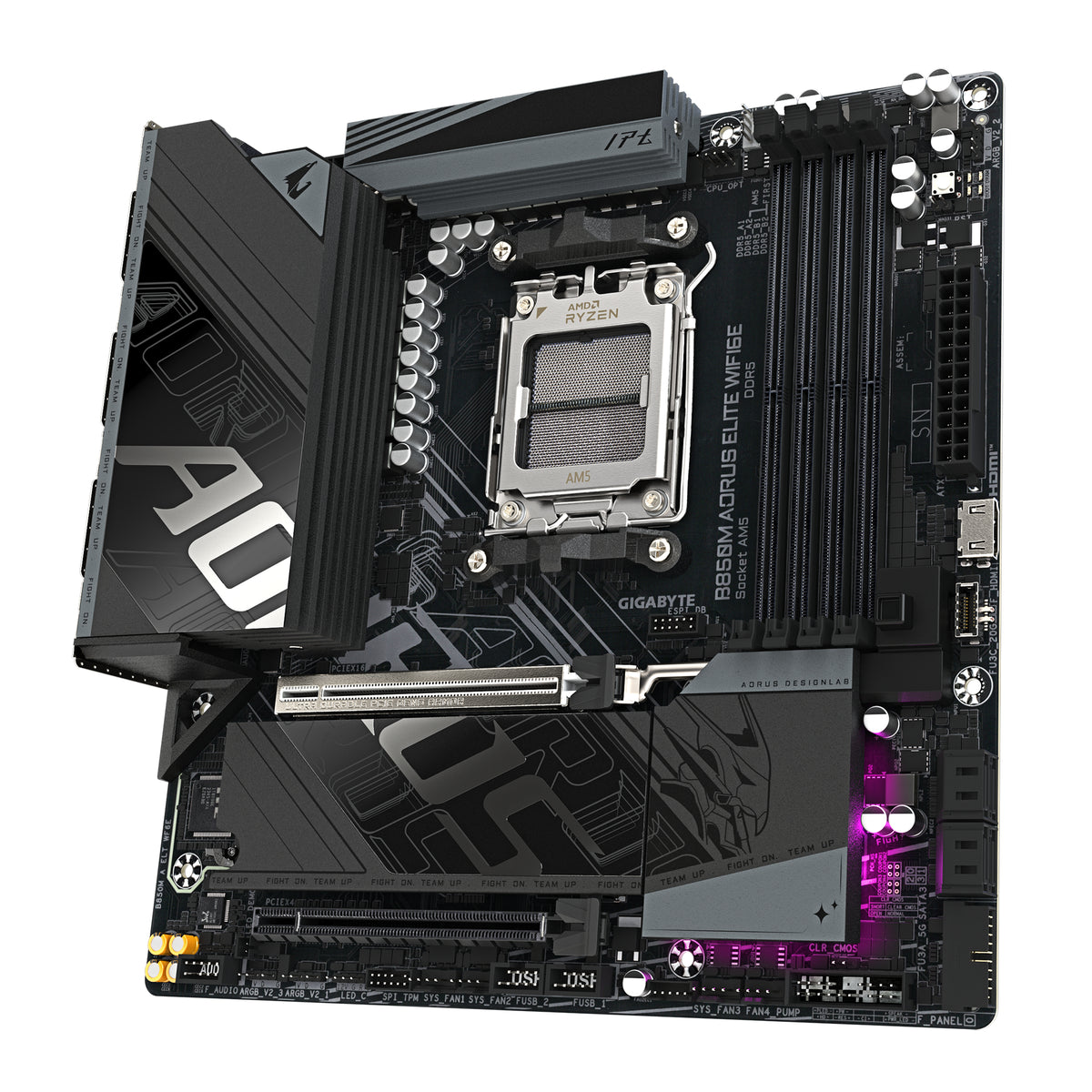

Gigabyte B850M AORUS Elite WiFi 6E AM5 Micro-ATX Motherboard
GIGABYTE
Gigabyte B850M AORUS Elite WiFi 6E AM5 Micro-ATX Motherboard
The Gigabyte B850M AORUS Elite WiFi 6E AM5 is a micro-ATX motherboard for AMD Ryzen 9000, 8000 and 7000 series builders who want PCIe 5.0 storage speed, WiFi 6E connectivity and strong VRM power delivery in a compact footprint. It handles DDR5 memory overclocking to 8200 MT/s and includes thermal management for sustained performance.
Why this product
PCIe 5.0 storage and GPU slot
One M.2 slot runs at PCIe 5.0 x4 speed for next-generation NVMe drives, and the primary GPU slot is PCIe 5.0 x16 with reinforced connectors.
WiFi 6E and 2.5GbE wired
Realtek WiFi 6E with directional antenna supports 2.4, 5 and 6 GHz bands, backed by a 2.5 Gigabit Ethernet port for wired connection.
DDR5 up to 8200 MT/s
Four DIMM slots support AMD EXPO memory modules and can be overclocked to 8200 MT/s with appropriate memory.
12+2+2 phase VRM
Digital twin power delivery with thermal armor and 5 W/mk thermal pads keeps voltage stable under load.
Screwless M.2 and PCIe design
EZ-Latch Plus and EZ-Latch Click connectors let you install drives and cards without tools; heatsinks click into place.
- ChipsetAMD B850
- Memory supportDDR5 up to 8200 MT/s (O.C.), 256 GB max
- Storage1 x PCIe 5.0 M.2, 1 x PCIe 4.0 M.2, 4 x SATA
- PCIe slots1 x PCIe 5.0 x16, 1 x PCIe 3.0 x4
- Form factorMicro-ATX
- WirelessWiFi 6E, Bluetooth 5.3
- Video output1 x DisplayPort, 1 x HDMI
- SKUGIG-2035
- EAN4719331871123
- AMD Ryzen 9000, 8000 and 7000 series processors in AM5 socket.
- DDR5 DIMM modules up to 256 GB total across four slots.
- PCIe 5.0 x16 graphics cards and PCIe 5.0 x4 NVMe drives.
- Standard ATX power supplies via 24-pin main and 8-pin CPU connectors.
- RAID 5 is available only with AMD Ryzen 9000 series processors; earlier series support RAID 0, 1 and 10.
Best for
- Ryzen 7000/8000/9000 builds in compact cases
- Builders prioritising PCIe 5.0 storage bandwidth
- Users who value WiFi 6E and wired 2.5GbE networking
- Memory overclockers targeting 8000 MT/s and higher
- Small-form-factor gaming and content creation rigs
Trade-offs
- Intel platform users: AM5 socket is AMD-only and does not support Intel processors.
- Dual-GPU setups: Only one x16 and one x4 PCIe slot limit parallel graphics card use.
- High-capacity storage: Four SATA ports and two M.2 slots mean fewer drive bays than full-size ATX boards.
- Users needing onboard video: No integrated graphics output; you must use a dedicated graphics card or APU.
X3D Turbo Mode : Unleash new era gaming performance
DDR5 OC up to 8200MT/s
AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
Digital twin 12+2+2 phases VRM solution
Dual Channel DDR5 : 4*DIMMs with AMD EXPO™ Memory Module Support
WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
EZ-Latch Click : M.2 heatsinks with screwless design
Sensor Panel Link : Onboard video port for hassle-free in-chassis panel setup
Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
Ultra-Fast Storage : 2*M.2 slots, including PCIe 5.0 x4
Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard Ext.
Fast Networking : 2.5GbE LAN & Wi-Fi 6E with directional Ultra-high gain antenna
Extended Connectivity : HDMI, DisplayPort
PCIe UD Slot : PCIe 5.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect
Protect your motherboard through multiple over-temperature and over-current safeguards.
Enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage, and Wi-Fi connectivity.
GIGABYTE User-Centred (UC) BIOS elevates the interface, delivering an optimized experience through an easy-to-navigate layout and attractive design for optimal usability.
GIGABYTE UC BIOS' Quick Access function selects brings 9 key options from Advanced Mode directly into Easy Mode, enabling swift adjustments without extensive navigation.
RGB Fusion Personalize the RGB illumination on your motherboard and connected peripherals. Liberate your imagination using GCC's versatile illumination options for your motherboard. Tailor your setup with eye-catching displays that mirror your unique personality and preferences.
Programmable RGB LED connectors enable precise control over individual LEDs (for ARGB GEN2 devices), seamlessly managed through the GCC.
AORUS and HWiNFO co-branded OSD(On-Screen Display) can display values as text or graphs in an overlay or independent window, also in full-screen applications and games, with no need for additional software installation.
When using HWiNFO on a GIGABYTE motherboard, a custom AORUS-themed interface automatically activates, offering light and dark options. This AORUS Skin can be manually applied to non-GIGABYTE boards as well. *AORUS skin auto-applies when detecting a GIGABYTE motherboard.
Thanks to the collaborative efforts of GIGABYTE and HWiNFO experts, this sophisticated monitoring tool now provides unprecedented detail in memory timing readouts. This empowers users to closely track memory performance and gather crucial insights.
GIGABYTE motherboard users can now access comprehensive BIOS details in real-time through HWiNFO. This includes toggle and tweaker statuses, as well as BIOS versions. No need for system reboots to check BIOS info.
AI-Driven PCB Technology employs AI algorithms to optimize vias, routing and stackups. It ensures peak performance and signal integrity across single and cross-layer throughout the design process.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
General
| Brand | Gigabyte |
|---|---|
| CPU support | AMD Socket AM5 (Ryzen 9000, 8000, 7000 series) |
| Chipset | AMD B850 |
Networking
| Ethernet | Realtek 2.5GbE |
|---|---|
| WiFi standard | WiFi 6E (802.11ax), 2.4/5/6 GHz, 160 MHz |
| Bluetooth | Bluetooth 5.3 |
Performance
| Memory type | DDR5 DIMM |
|---|---|
| Memory slots | 4 x DIMM (dual channel) |
| Memory speed (O.C.) | Up to 8200 MT/s |
| Maximum memory | 256 GB |
| VRM phases | 12+2+2 (digital twin) |
| M.2 slot 1 | PCIe 5.0 x4 |
| M.2 slot 2 | PCIe 4.0 x4 |
| Primary PCIe slot | PCIe 5.0 x16 (UD Slot) |

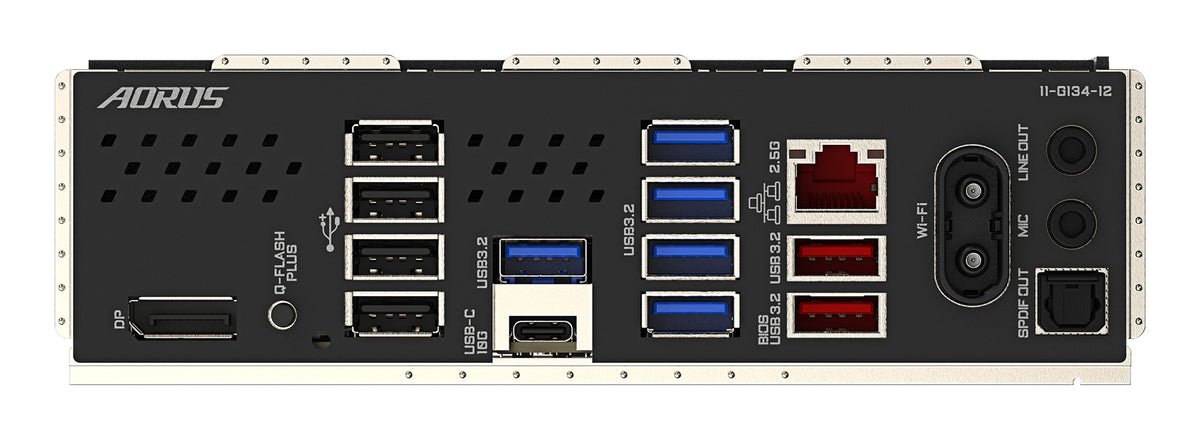

Ports & power
| Rear USB 3.2 Gen 2 | 1 x Type-C, 2 x Type-A |
|---|---|
| Rear USB 3.2 Gen 1 | 4 x Type-A |
| Rear USB 2.0 | 4 x ports |
| SATA ports | 4 x SATA 6Gb/s |
| Audio | 8-channel HD audio, S/PDIF out |
| Main power | 24-pin ATX |
| CPU power | 8-pin ATX 12V |
| Fan headers | 1 x CPU, 1 x CPU/pump, 3 x system, 1 x system/pump |
| RGB headers | 1 x RGB, 3 x ARGB Gen2 |
Physical
| Form factor | Micro-ATX |
|---|---|
| PCB layers | 6-layer |
| Thermal design | VRM Thermal Armor Advanced, M.2 Thermal Guard Ext., heatpipes |
| BIOS | 256 Mb Flash ROM, UEFI AMI, Q-Flash Plus support |
