Gigabyte B850M AORUS Elite WiFi 6E ICE AM5 mATX Motherboard
GIGABYTE
Gigabyte B850M AORUS Elite WiFi 6E ICE AM5 mATX Motherboard

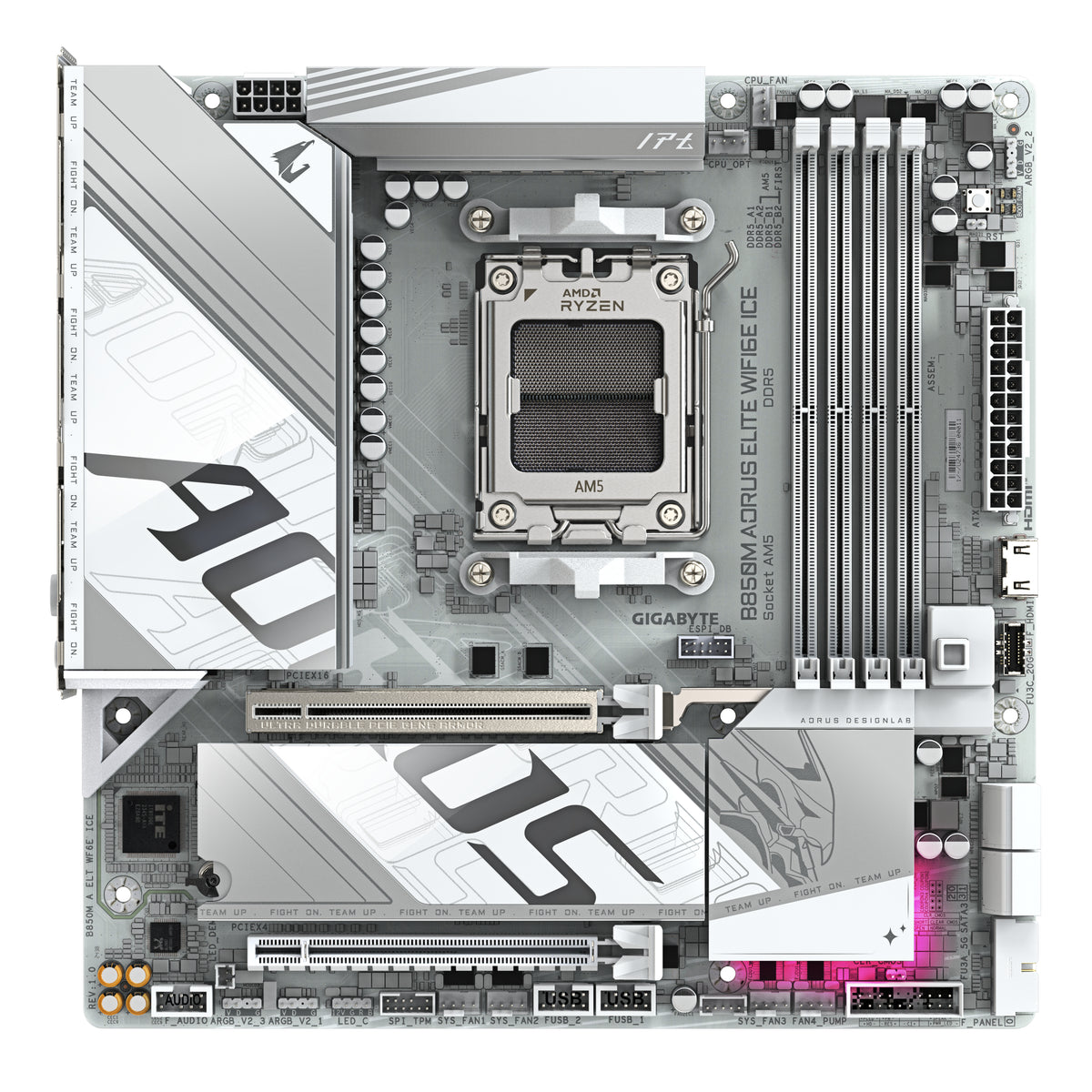

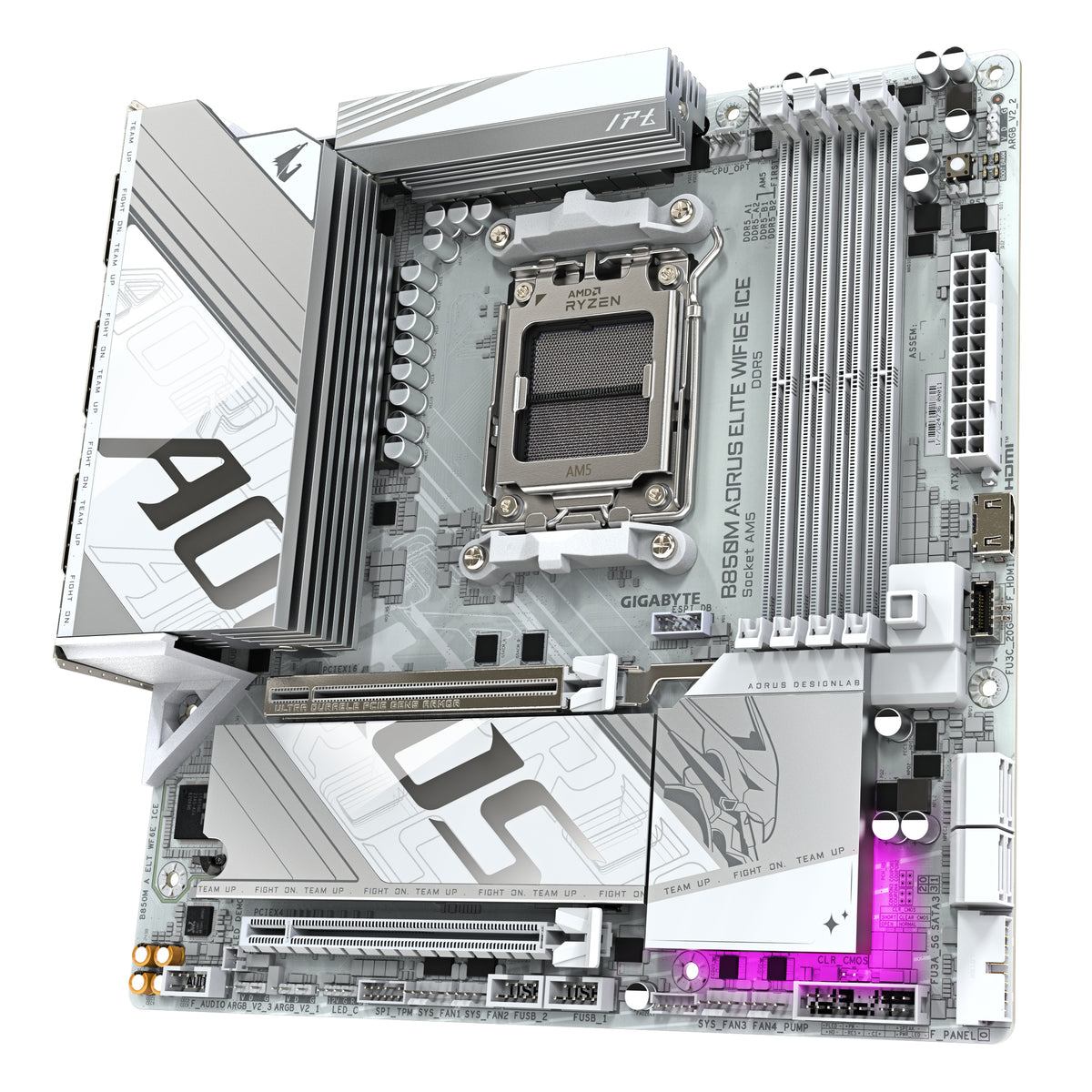

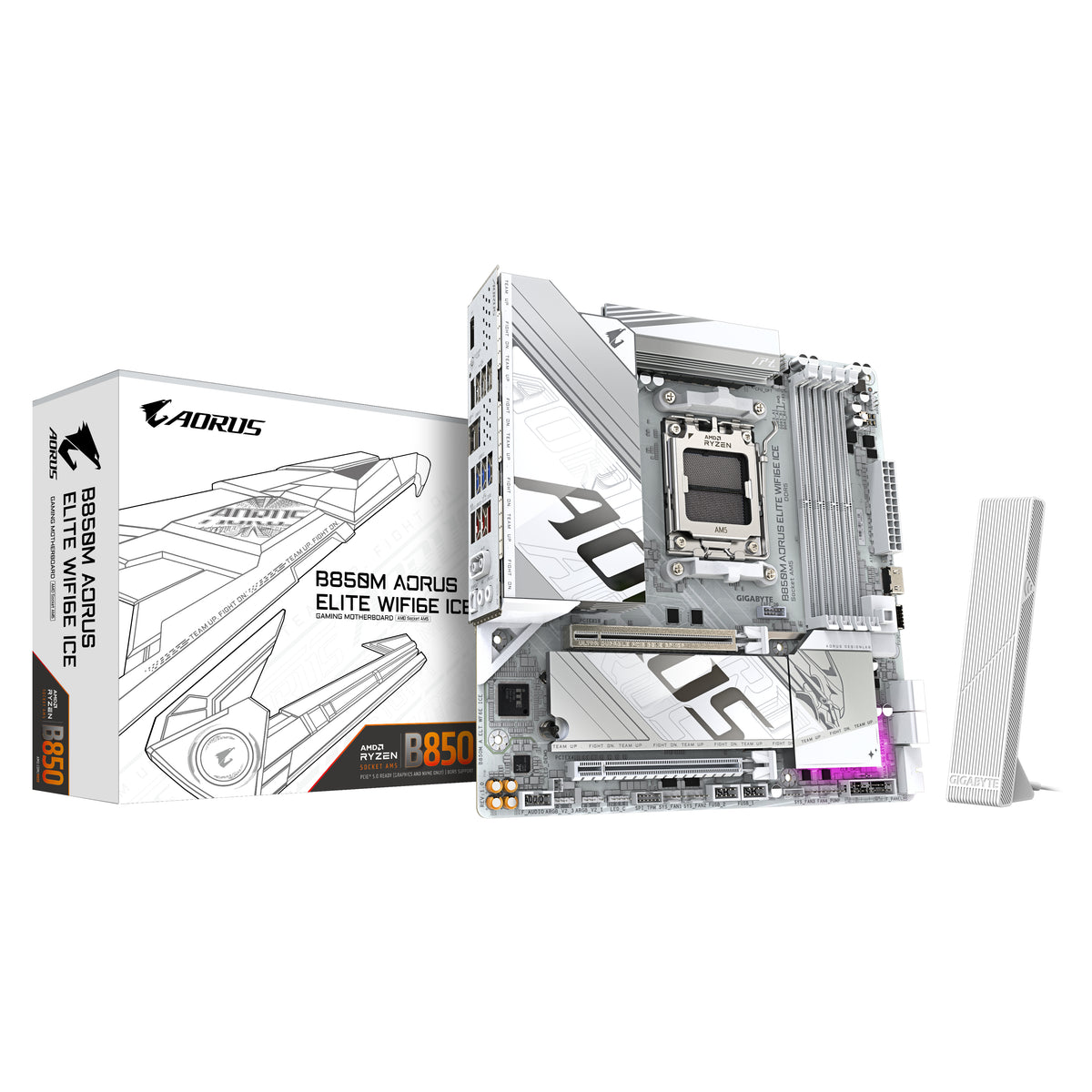

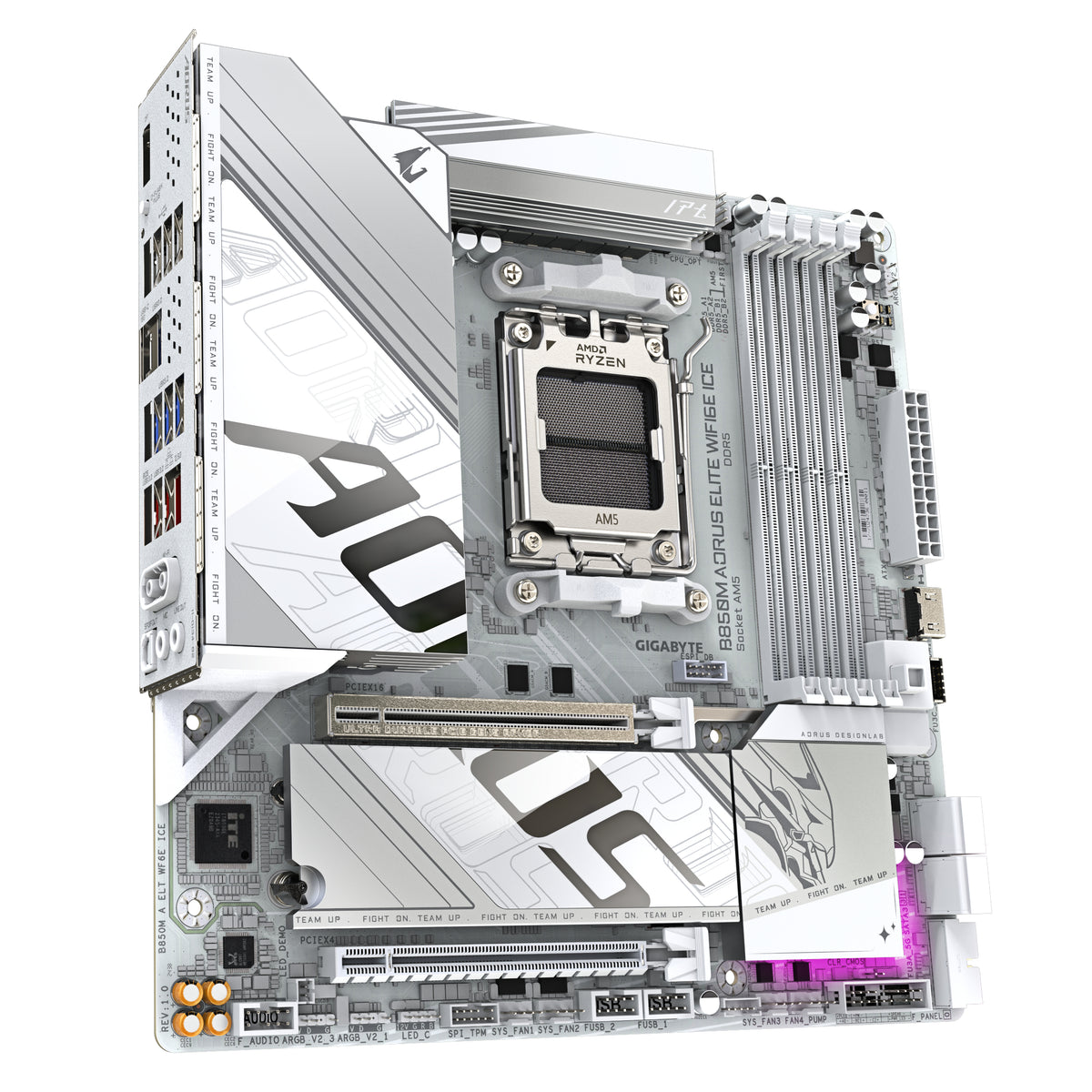

The Gigabyte B850M AORUS Elite WiFi 6E ICE is a micro-ATX motherboard for AM5 socket Ryzen processors, combining modern storage and networking with space-efficient form factor. It suits builders who need WiFi 6E connectivity and PCIe 5.0 expansion in a compact footprint, without sacrificing power delivery or thermal management.
Why this product
WiFi 6E and 2.5GbE networking
Dual networking options including WiFi 6E with dedicated 6 GHz band and 2.5 Gigabit Ethernet ensure fast, stable connectivity with reduced interference.
PCIe 5.0 ready
One PCIe 5.0 x16 slot and one PCIe 5.0 M.2 slot support next-generation graphics cards and NVMe SSDs at full speed.
Compact micro-ATX design
Smaller than full-size ATX but retains four DDR5 DIMM slots, dual M.2 storage, and extensive fan headers for full system control.
Thermal management for overclocking
VRM Thermal Armor, M.2 Thermal Guard heatsinks, and a 6+6 phase power design keep power delivery stable under load.
- SocketAM5
- ChipsetAMD B850
- Form FactorMicro-ATX
- Memory SupportDDR5 up to 8200 MT/s (O.C.), 256 GB max
- Storage Slots2× M.2 (PCIe 5.0 + PCIe 4.0), 4× SATA
- WirelessWiFi 6E + Bluetooth 5.3
- Warranty5 years
- SKUGIG-2005
- EAN4719331866082
- Supports AMD Ryzen 9000, 8000, and 7000 series processors in AM5 socket.
- Accepts up to 256 GB of DDR5 memory across four DIMM slots, with support for AMD EXPO and XMP profiles.
- Fits standard micro-ATX cases and mounts using integrated IO shield.
- PCIe 5.0 M.2 slot operates at full speed only with Ryzen 9000 and 7000 series; Ryzen 8000 series use PCIe 4.0 M.2 slot instead.
Best for
- Compact builds and SFF systems
- WiFi 6E and wired networking priority
- Overclocking with stable power delivery
- DDR5 memory and PCIe 5.0 storage expansion
Trade-offs
- Dual-GPU or multi-card setups — only one PCIe 5.0 x16 slot available.
- Builds requiring more than four storage devices — two M.2 slots and four SATA ports total.
- Builders who need DisplayPort output at 4K above 144 Hz — limited to 3840×2160@144 Hz.
The B850M AORUS ELITE WIFI6E ICE supports AM5 Processors and features unparalleled performance.
GIGABYTE B850 motherboards come with upgraded power design, high grade storage standards, and outstanding connectivity that enables you to optimize your performance.
B850M AORUS ELITE WIFI6E ICE Motherboards are built to unleash every ounce of performance within the latest AMD Ryzen 9000, 8000, and 7000 Series processors. Build your next rig with an AMD Ryzen processor and experience advanced overclocking performance with B850 motherboards.
Sturdy VRM design delivers consistent, high-powered performance to elevate your overclocking to the next level.
GIGABYTE Motherboards feature advanced full-metal thermal designs such as VRM Thermal Armor and M.2 Thermal Guard heatsinks to keep your system cool and efficient.
AORUS Gaming motherboards boost DDR5 memory performance up to 8200MT/s and offer top-notch compatibility with AMD EXPO and D5 Bionic Corsa.
Featuring 1x PCIe 5.0 x16 slots and 1x PCIe 5.0 M.2 slots, GIGABYTE Motherboards are ready to work with the PCIe 5.0 devices to provide superior performance.
- Wi-Fi 6E: Dedicated 6 GHz band for 4x network capacity, reducing congestion and interference from other devices.
- 2.5 GbE LAN: Delivers blisteringly fast transfer speeds, ensuring the most stable transmission environment.
- 8 Total USB Ports: Flexible compatibility with 8 total USB ports.
Networking
| Brand | GIGABYTE |
|---|---|
| Wireless Standard | WiFi 6E (802.11a/b/g/n/ac/ax, 2.4 GHz / 5 GHz / 6 GHz) |
| Bluetooth | 5.3 |
| Wired LAN | Realtek 2.5 Gigabit Ethernet |
Performance
| CPU Socket | AM5 (Ryzen 9000/8000/7000 series) |
|---|---|
| Chipset | AMD B850 |
| Memory Type | DDR5 |
| Memory Slots | 4× DIMM |
| Max Memory | 256 GB |
| Memory Speed Support | DDR5-4400 to DDR5-8200 MT/s (overclocked profiles) |
| AMD EXPO Support | Yes |
| XMP Support | Yes |
Ports & Power
| PCIe x16 Slots | 1× PCIe 5.0 x16 with PCIe UD Slot |
|---|---|
| PCIe x4 Slots | 1× PCIe 3.0 x4 |
| M.2 Slots | 2× (1× PCIe 5.0 x4, 1× PCIe 4.0 x4) |
| SATA Ports | 4× SATA 6 Gb/s |

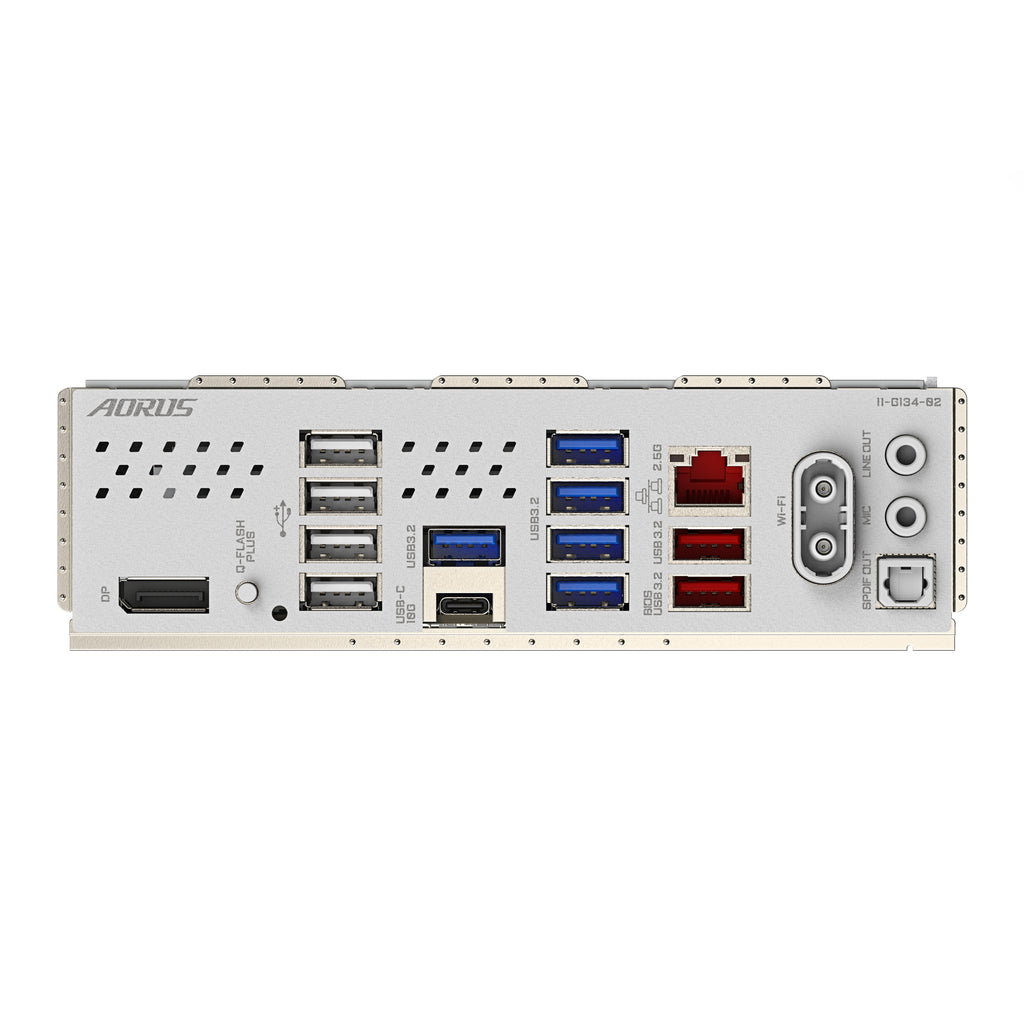

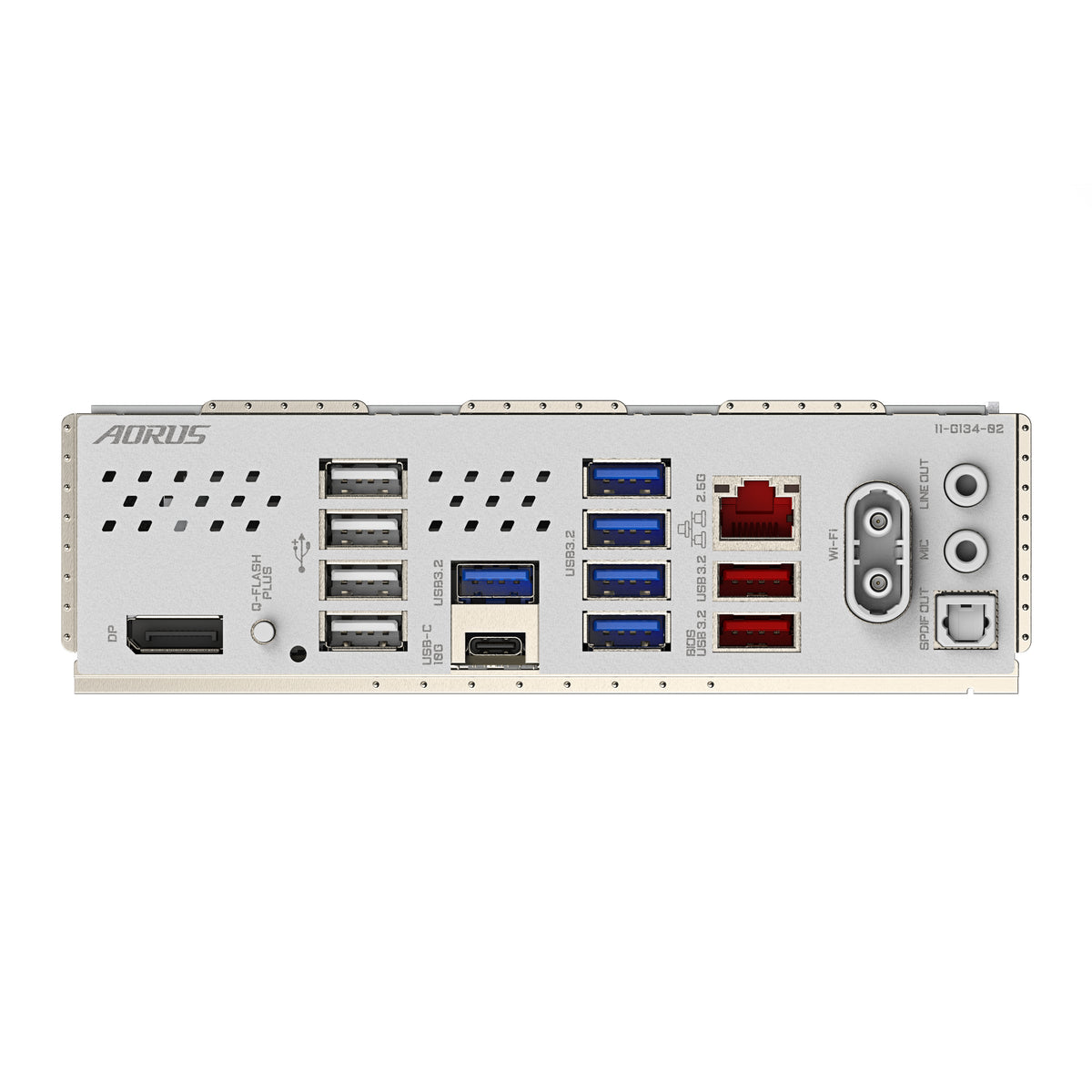

| USB 3.2 Gen 2 (Rear) | 2× Type-A + 1× Type-C |
| USB 2.0 Headers | 2 headers (4 ports) |
| USB 3.2 Gen 1 Headers | 1 header (2 ports) |
| USB 3.2 Gen 2x2 Type-C Header | 1 header (1 port) |
| PWM Fan Headers | 6 total (Dual Fan Curve mode) |
| RGB Headers | 1× RGB LED, 3× ARGB LED |
| Audio | Realtek 8-channel HD Audio |
| DisplayPort Output | 1× DisplayPort 1.4 (up to 3840×2160@144 Hz) |
| HDMI Output | 1× HDMI 1.4 (up to 1920×1080@30 Hz) |
| Power Phases | 6+6 parallel phases |
Physical
| Form Factor | Micro-ATX |
|---|---|
| IO Shield | Integrated |
| Thermal Design | VRM Thermal Armor, M.2 Thermal Guard heatsinks, superior heatpipe |
| PCB Layers | 6-layer with mid-loss and 2× copper layers |
| BIOS | 256 Mb Flash ROM, UEFI AMI |
| Warranty | 5 years |
