Gigabyte B850M D3HP AMD AM5 Micro-ATX DDR5 Motherboard
GIGABYTE
Gigabyte B850M D3HP AMD AM5 Micro-ATX DDR5 Motherboard

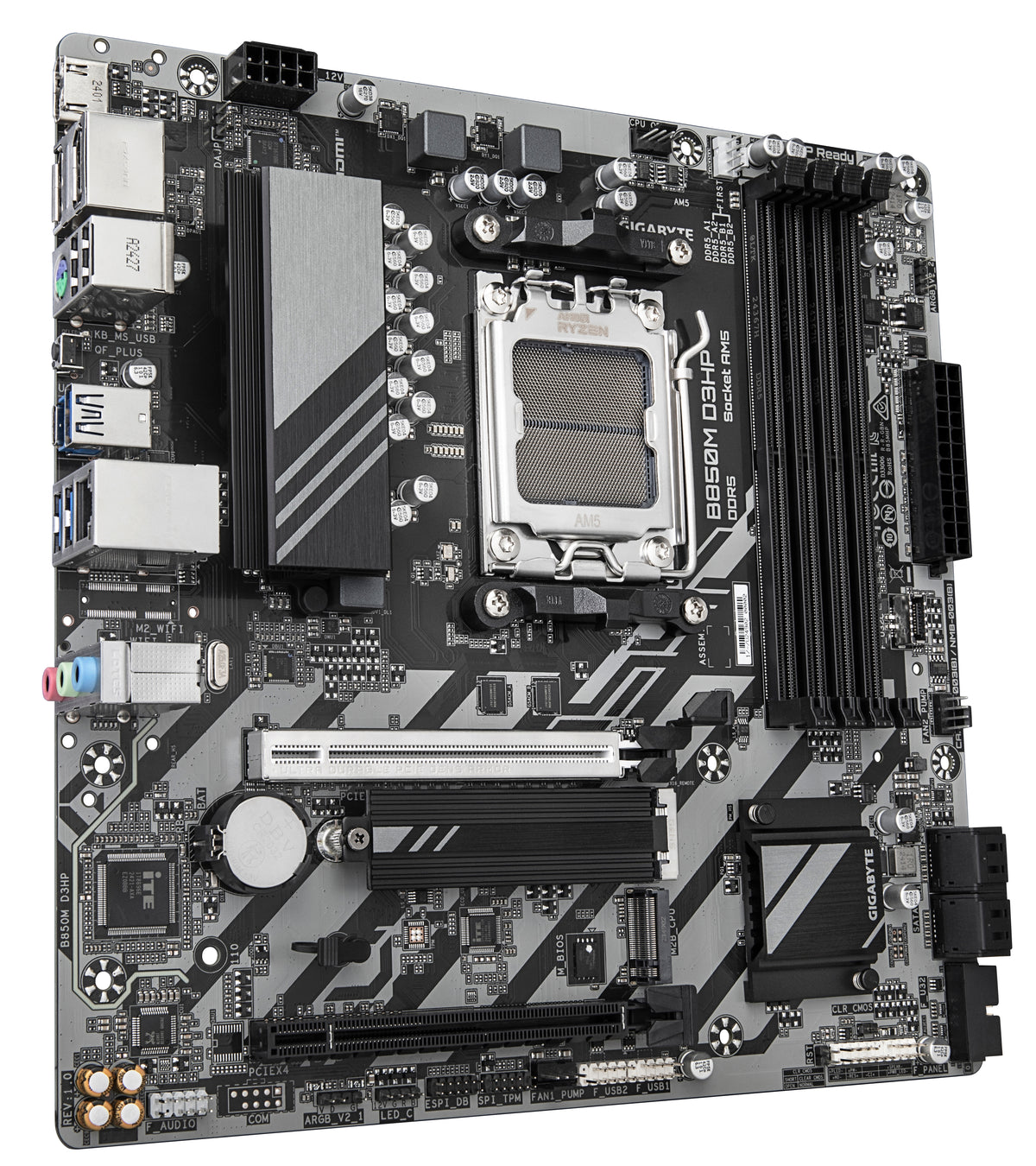

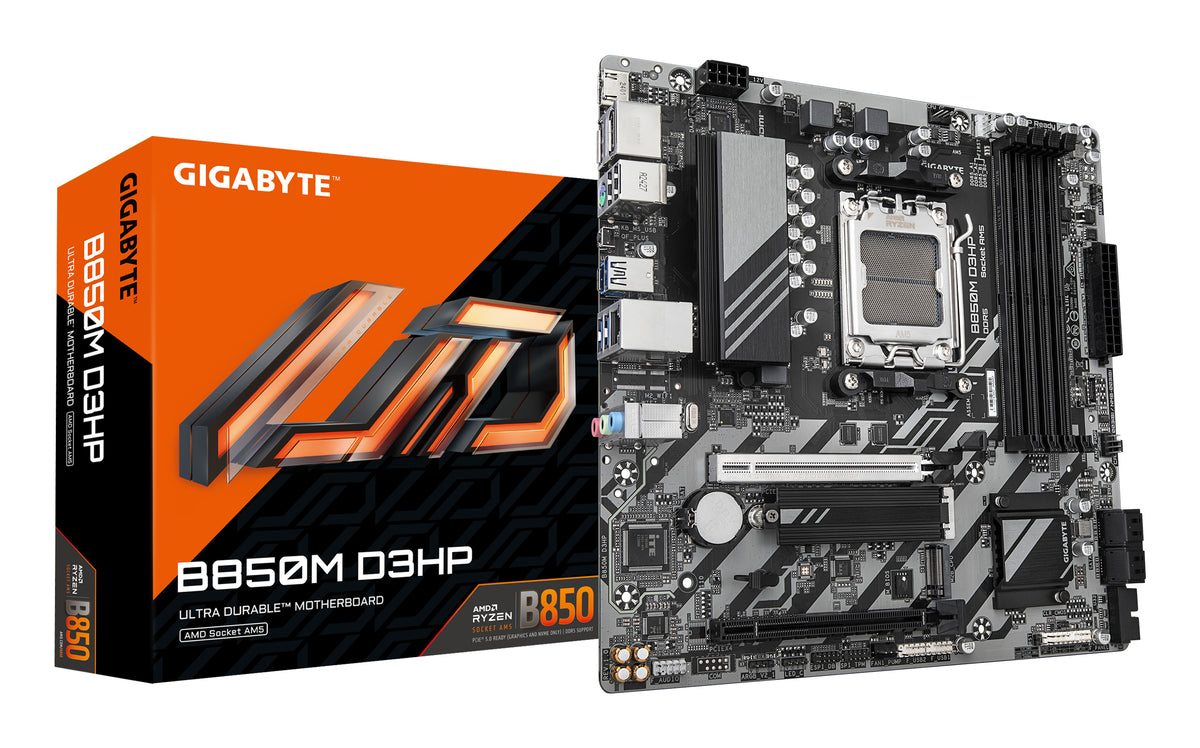

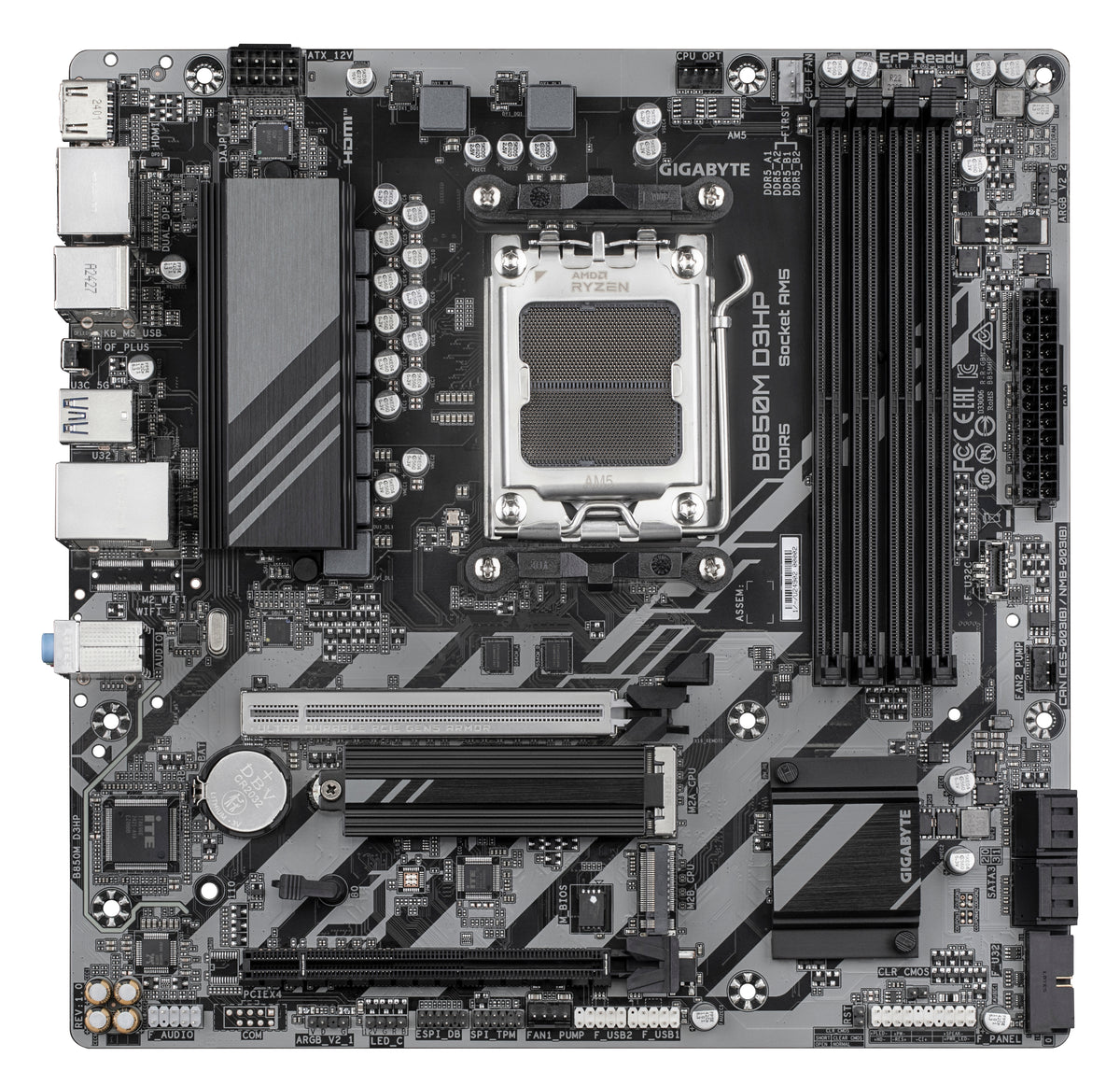

The Gigabyte B850M D3HP is a Micro-ATX motherboard for AMD Socket AM5 systems built around the B850 chipset. It suits builders who want PCIe 5.0 storage support and DDR5 memory in a compact form factor without paying for unnecessary extras. It handles Ryzen 9000, 8000, and 7000 series processors out of the box.
Why this product
PCIe 5.0 NVMe slot
One M.2 slot runs PCIe 5.0 x4 for the fastest SSDs; the second runs PCIe 4.0 x4. RAID 0, 1, 5, and 10 are supported across both.
DDR5 up to 8200 MT/s
Four DIMM slots with AMD EXPO support allow fast memory tuning. Capacity scales to 256 GB with 64 GB single modules.
Compact Micro-ATX layout
Smaller than standard ATX but retains dual M.2, quad-channel memory, and full PCIe 5.0 support, fitting tight builds without compromise.
8-channel audio with noise isolation
High-end audio capacitors and an Audio Noise Guard separate sensitive components from PCB interference, improving sound clarity for gaming and media.
GbE LAN with bandwidth management
Built-in network optimization tools reduce latency in crowded LAN environments, useful for online gaming and competitive play.
- SocketAMD Socket AM5
- ChipsetAMD B850
- Form FactorMicro-ATX
- Memory SupportDDR5, up to 8200 MT/s OC, 4 DIMMs, 256 GB max
- Storage Slots2× M.2 (PCIe 5.0 x4, PCIe 4.0 x4), 4× SATA
- PCIe Slots1× PCIe 5.0 x16, 1× PCIe 3.0 x4
- Display Outputs1× HDMI 2.1, 2× DisplayPort 1.4

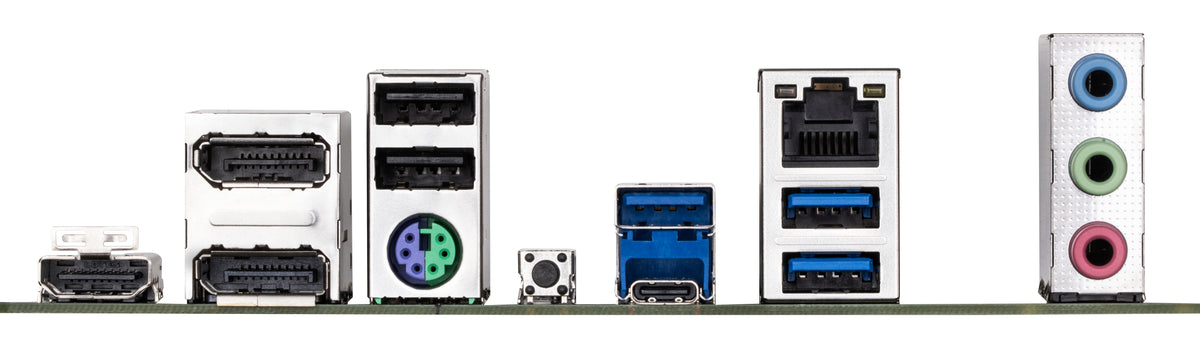

- USB Back Panel1× USB-C 3.2 Gen 1, 3× USB 3.2 Gen 1, 2× USB 2.0
- SKUGIG-2036
- EAN4719331867058
- Supports AMD Ryzen 9000, 8000, and 7000 series processors in Socket AM5.
- Accepts up to four DDR5 memory modules, including EXPO-certified fast kits.
- Runs PCIe 5.0 NVMe SSDs in the primary M.2 slot; PCIe 4.0 in the secondary slot.
- Supports integrated graphics output via HDMI and DisplayPort on Ryzen processors with built-in video; requires a dedicated GPU for non-APU chips.
- Intel processors and DDR4 memory are not compatible; this board is AMD Socket AM5 only.
- Large ATX or E-ATX graphics cards that exceed the case's PCIe slot clearance may not fit in the compact Micro-ATX frame.
Best for
- Compact or budget builds needing PCIe 5.0 and DDR5
- Gamers running Ryzen X3D or non-X3D chips who want one-click performance tuning via X3D Turbo Mode
- Content creators storing fast media on NVMe or RAID arrays
- Enthusiasts tuning DDR5 memory speed with EXPO profiles
Trade-offs
- Dual-GPU setups. Only one PCIe x16 slot (running at full speed); the second expansion slot is PCIe 3.0 x4, too slow for a second graphics card.
- Large tower coolers in tight cases. Micro-ATX boards leave less room around the CPU socket than full-size ATX, potentially causing clearance issues with tall air coolers.
- Four SATA storage devices. The board has four SATA ports, but space in many Micro-ATX cases may be limited; planning for NVMe is preferable.
- Extensive legacy I/O expansion. Minimal PCI or older interface slots; this is a modern DDR5/PCIe 5.0 design, not a multi-generational compatibility board.
AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors · Digital 5+2+2 phases VRM solution · Dual Channel DDR5 : 4*DIMMs with AMD EXPO™Memory Module Support · EZ-Latch : PCIe x16 Slot with Quick Release Design · Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW. Ultra-Fast Storage : 2*M.2 slots, including 1* PCIe 5.0 x4 · Fast Networking : GbE LAN · Extended Connectivity : 2*DP, HDMI
Unleash New Era Gaming Performance with One-Click Activation. X3D Turbo Mode's unique optimization parameters allow even Ryzen™ 9000 X3D gaming Performance enhance & Ryzen™ 9000 non-X3D processors to achieve similar gaming performance levels as their Ryzen™ X3D counterparts. Experience smoother gameplay, higher frame rates, and reduced latency with GIGABYTE's BIOS innovation- X3D Turbo Mode.
Featuring PCIe 5.0 x16 slot and PCIe 5.0 / 4.0 M.2 slot support, GIGABYTE Motherboards are ready to work with the PCIe 5.0 / 4.0 devices to provide the superior performance.
GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.
GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers. GIGABYTE motherboards feature an audio noise guard that essentially separates the board's sensitive analog audio components from potential noise pollution at the PCB level.
Advanced shielding inside the PCB keeps your memory signals clean and interference-free. Innovative design removes signal bottlenecks, allowing for blazing-fast memory speeds and a superior gaming setup.
General
| Brand | GIGABYTE |
|---|---|
| CPU Support | AMD Ryzen 9000, 8000, and 7000 series |
| Form Factor | Micro-ATX |
Memory & Storage
| Memory Slots | 4× DDR5 DIMM |
|---|---|
| Memory Speed Support | 4400 to 8200 MT/s (OC) |
| Maximum Memory | 256 GB (64 GB per DIMM) |
| EXPO Support | Yes |
| M.2 Slots | 2 (PCIe 5.0 x4 and PCIe 4.0 x4) |
| SATA Ports | 4 |
| RAID Modes | RAID 0, 1, 5, 10 (NVMe); RAID 0, 1, 10 (SATA) |
Expansion & Connectivity
| PCIe Slots | 1× PCIe 5.0 x16, 1× PCIe 3.0 x4 |
|---|---|
| USB Type-C (Back) | 1× USB 3.2 Gen 1 |
| USB 3.2 Gen 1 (Back) | 3 ports |
| USB 2.0 (Back) | 2 ports |
| USB Internals | 1× USB-C header, 1× USB 3.2 Gen 1 header, 2× USB 2.0 headers |
| LAN | 1× Gigabit Ethernet (Realtek) |
| Video Outputs | 1× HDMI 2.1, 2× DisplayPort 1.4 |
| Audio Jacks | 3 |
Power & Audio
| Main Power Connector | 24-pin ATX |
|---|---|
| CPU Power Connector | 8-pin 12V |
| VRM Phases | 5+2+2 digital |
| Fan Headers | 4× PWM/DC headers |
| Audio Channels | 8-channel HD Audio |
| Audio Capacitors | High-end audio capacitors with noise guard |
