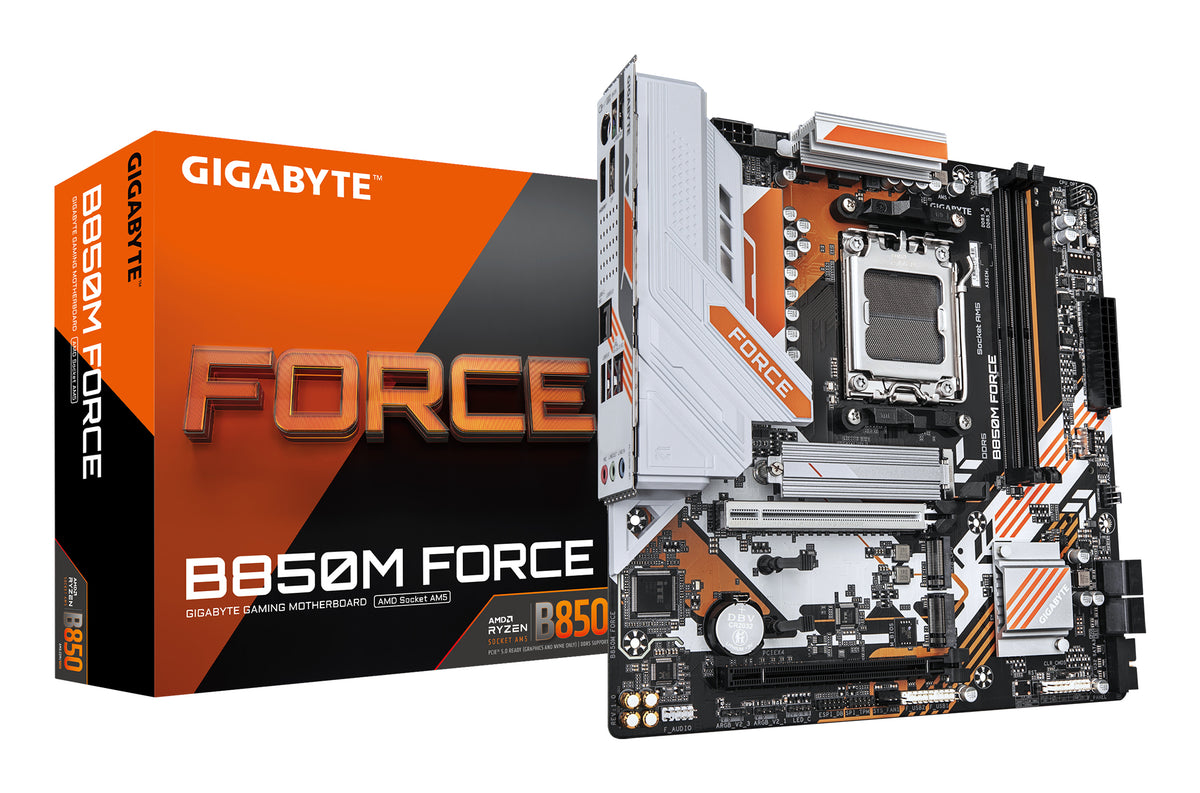

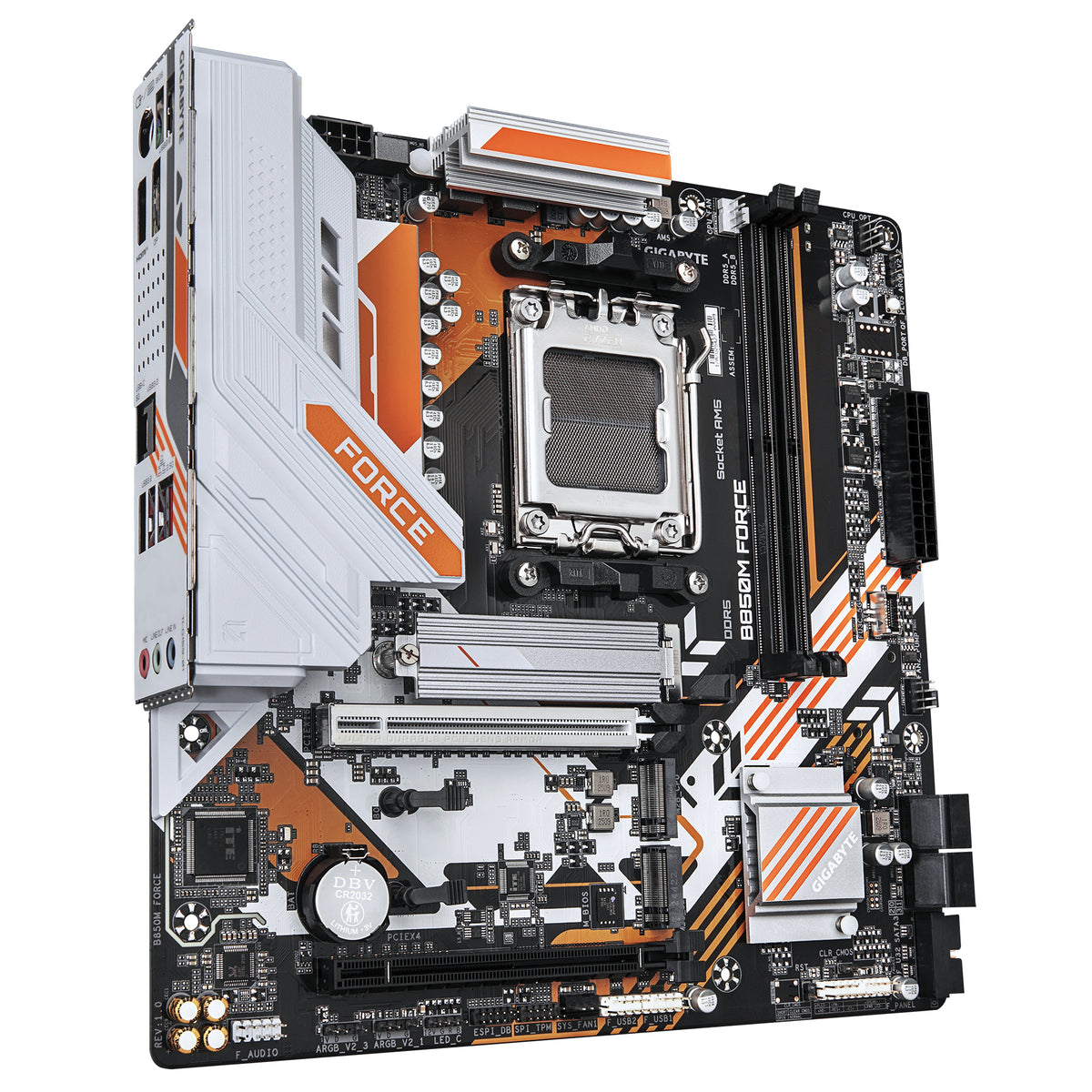

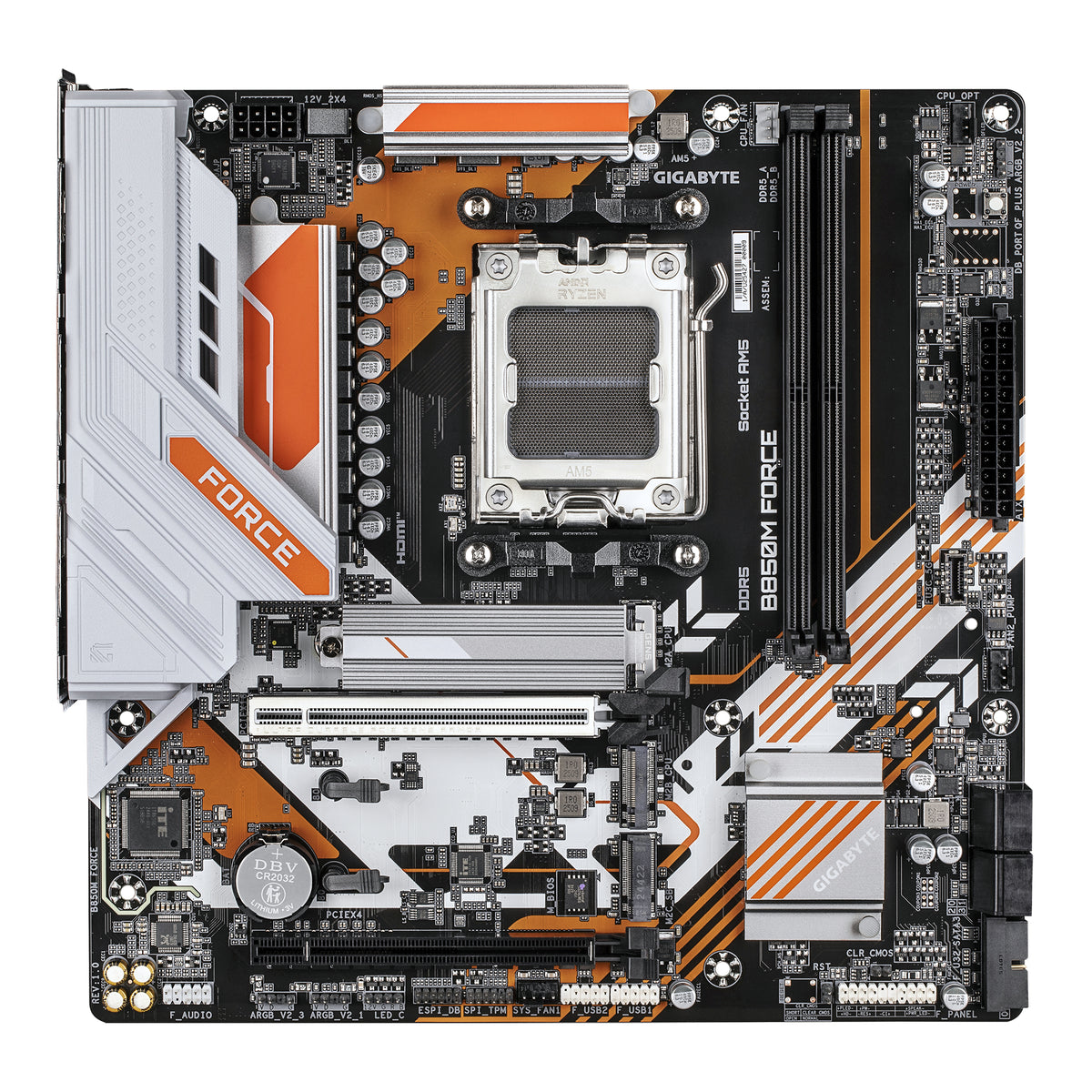

Gigabyte B850M FORCE AM5 Micro-ATX Motherboard - DDR5, PCIe 5.0
GIGABYTE
Gigabyte B850M FORCE AM5 Micro-ATX Motherboard - DDR5, PCIe 5.0
The Gigabyte B850M FORCE AM5 Micro-ATX Motherboard is built for AMD Ryzen 9000, 8000, and 7000 series processors on the AM5 socket. It combines PCIe 5.0 storage support, DDR5 memory compatibility, and a compact form factor suited to smaller builds that still demand current-generation performance.
Why this product
PCIe 5.0 storage slot for future-ready speed
One M.2 slot supports PCIe 5.0 x4, doubling the data transfer bandwidth of PCIe 4.0. This benefits high-speed NVMe drives and benefits builders who plan storage upgrades.
DDR5 with AMD EXPO overclocking support
Two DDR5 DIMM sockets support speeds up to 9600 MT/s and are rated for AMD EXPO memory modules, enabling optimized memory configurations without manual tweaking.
Micro-ATX size without cutting core features
This board fits into smaller enclosures while retaining three M.2 slots, four SATA ports, and dual PCIe x16 slots—features often found only on larger boards.
8+2+2 phase VRM for stable power delivery
The digital power stage supports sustained overclocking and handles high-end CPUs without voltage sag, important for stability during CPU-heavy workloads.
2.5GbE networking and video outputs
Fast Ethernet and dual video outputs—HDMI and DisplayPort—let you run dual displays or keep bandwidth headroom for network tasks.
- SocketAMD AM5
- ChipsetAMD B850
- Form FactorMicro-ATX
- Memory TypeDDR5
- Maximum Memory128 GB
- M.2 Slots3 (1 x PCIe 5.0 x4)
- PCIe x16 Slots2 (1 x CPU, 1 x Chipset)
- SATA Ports4
- SKUGIG-1954
- EAN4719331874322
- AMD Ryzen 9000, 8000, and 7000 series processors on AM5 socket
- DDR5 memory up to 128 GB total (2 DIMMs, 64 GB single DIMM max)
- Micro-ATX case size (not full-size or mini-ITX)
- AMD EXPO and XMP memory module support (see qualified vendor list for specifics)
- PCIe 5.0 x16 graphics performance depends on CPU: Ryzen 9000/7000 run at PCIe 5.0 x16; Ryzen 8000-Phoenix 1 at PCIe 4.0 x8; Ryzen 8000-Phoenix 2 at PCIe 4.0 x4
Best for
- Small-to-medium builds needing current AM5 core features
- Ryzen 9000 series builders wanting PCIe 5.0 graphics slot support
- Storage-heavy systems using fast NVMe and SATA drives together
- Enthusiasts planning DDR5 overclocking with EXPO profiles
- Dual-display or workstation setups on compact budget
Trade-offs
- Ryzen 8000 Phoenix series buyers seeking full PCIe 5.0 x16 graphics bandwidth—this board delivers only PCIe 4.0 x8 or x4 depending on exact CPU variant.
- Large ATX or E-ATX case owners requiring bigger boards with more expansion slots and heatsink real estate.
- Intel platform users—this board is AM5 only and does not support Intel processors.
- Builders prioritizing RAID 5 on SATA drives—RAID 5 is only available with Ryzen 9000 series processors; earlier generations get RAID 0, 1, and 10 only.
- Users needing many USB headers—one internal USB-C Gen 1 header and two internal USB 3.2 Gen 1 headers may not cover all front-panel connector needs.
AMD Socket AM5 : Supports AMD Ryzen™ 9000/8000/ 7000 Series Processors · Digital 8+2+2 phases VRM solution · Dual Channel DDR5 : 2*DIMMs with AMD EXPO™Memory Module Support · EZ-Latch : PCIe x16 Slot with Quick Release Design · Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW. Ultra-Fast Storage : 3*M.2 slots, including 1* PCIe 5.0 x4 · Fast Networking : 2.5GbE LAN · Extended Connectivity : DP, HDMI
The new GIGABYTE motherboards provides the most efficient solution to enjoy boosted performance of PCIe Gen5 on the existing platform. PCIe 5.0 doubles the data transfer rate of PCIe 4.0 from 16 GT/s to 32 GT/s per lane. This substantial increase in bandwidth particularly benefits high-performance graphics cards, storage devices, and AI accelerators that demand faster data movement.
GIGABYTE Ultra Durable™ motherboards built with optimal components inside out provide the prime performance and timeless platform.
GIGABYTE motherboard users can now access comprehensive BIOS details in real-time through HWiNFO. This includes toggle and tweaker statuses, as well as BIOS versions. No need for system reboots to check BIOS info.
Personalize the RGB illumination on connected peripherals. Programmable RGB LED connectors enable precise control over individual LEDs (for ARGB GEN2 devices), seamlessly managed through the GCC.
* Memory overclocking and XMP support may vary. Please refer to the qualified vendor list (QVL) for details and note that product features may vary by model.
* The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. * Product specifications and product appearance may differ from country to country.
General
| Brand | Gigabyte |
|---|
CPU & Memory
| CPU Socket | AMD AM5 |
|---|---|
| Supported CPUs | AMD Ryzen 9000, 8000, and 7000 series |
| Memory Type | DDR5 |
| Memory Speeds | 4400–9600 MT/s |
| Memory Slots | 2 x DDR5 DIMM |
| Maximum Memory | 128 GB |
| Memory Features | AMD EXPO, XMP support |
Storage & Expansion
| M.2 Slots | 3 (Socket 3) |
|---|---|
| PCIe 5.0 Storage | 1 x M.2 PCIe 5.0 x4 |
| PCIe x16 Slots | 2 total: 1 x CPU (PCIe 5.0 on Ryzen 9000/7000; PCIe 4.0 on Ryzen 8000), 1 x Chipset (PCIe 4.0 x4) |
| SATA Ports | 4 x 6 Gb/s |
| RAID Support | RAID 0, 1, 10 (RAID 5 with Ryzen 9000 only) |
Connectivity & Power
| LAN | 2.5 GbE |
|---|---|
| Video Outputs | 1 x HDMI (4096x2160@60 Hz), 1 x DisplayPort (3840x2160@144 Hz) |

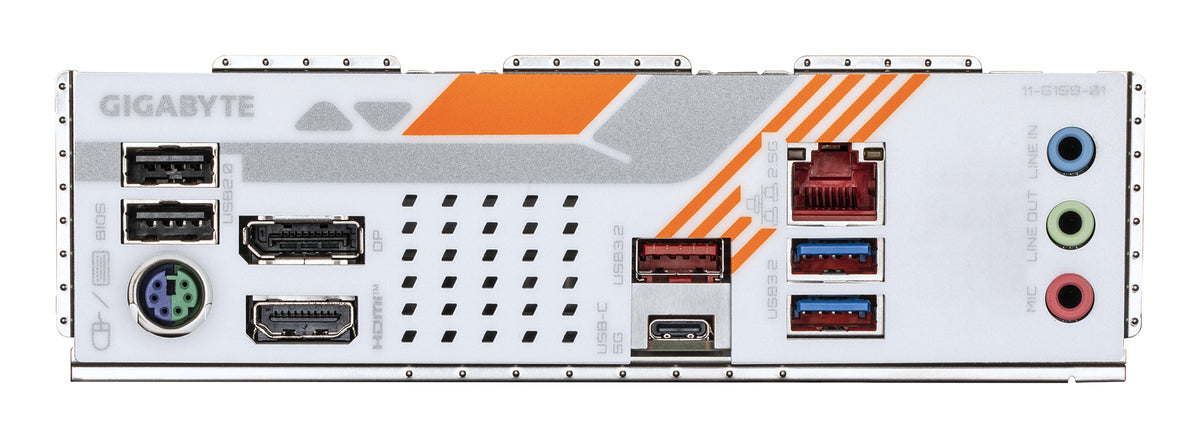

| USB (Back Panel) | 1 x USB Type-C Gen 1, 1 x USB Type-A Gen 2, 1 x USB 2.0, 2 x USB 3.2 Gen 1 |
| USB (Internal Headers) | 1 x USB Type-C Gen 1, 2 x USB 3.2 Gen 1, 4 x USB 2.0 |
| Audio | Realtek HD Audio, 7.1-channel support |
| Power Connectors | 1 x 24-pin ATX, 1 x 8-pin ATX 12V |
| Fan Headers | 4 (1 x CPU, 1 x CPU/water pump, 2 x system/pump) |
| RGB Headers | 3 x ARGB Gen2, 1 x RGB |
