Gigabyte B860 GAMING X WIFI6E ATX Intel LGA1851 Motherboard

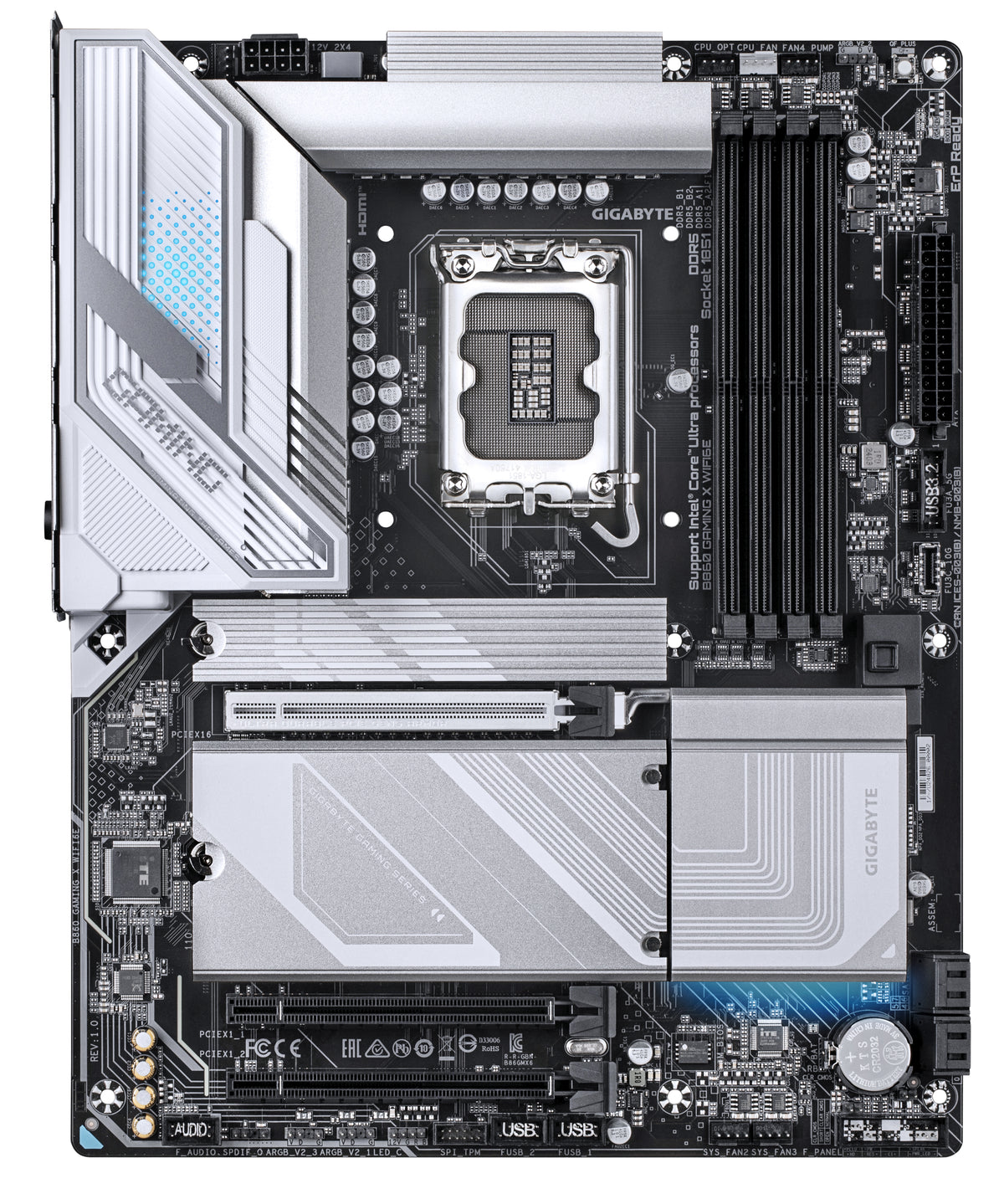

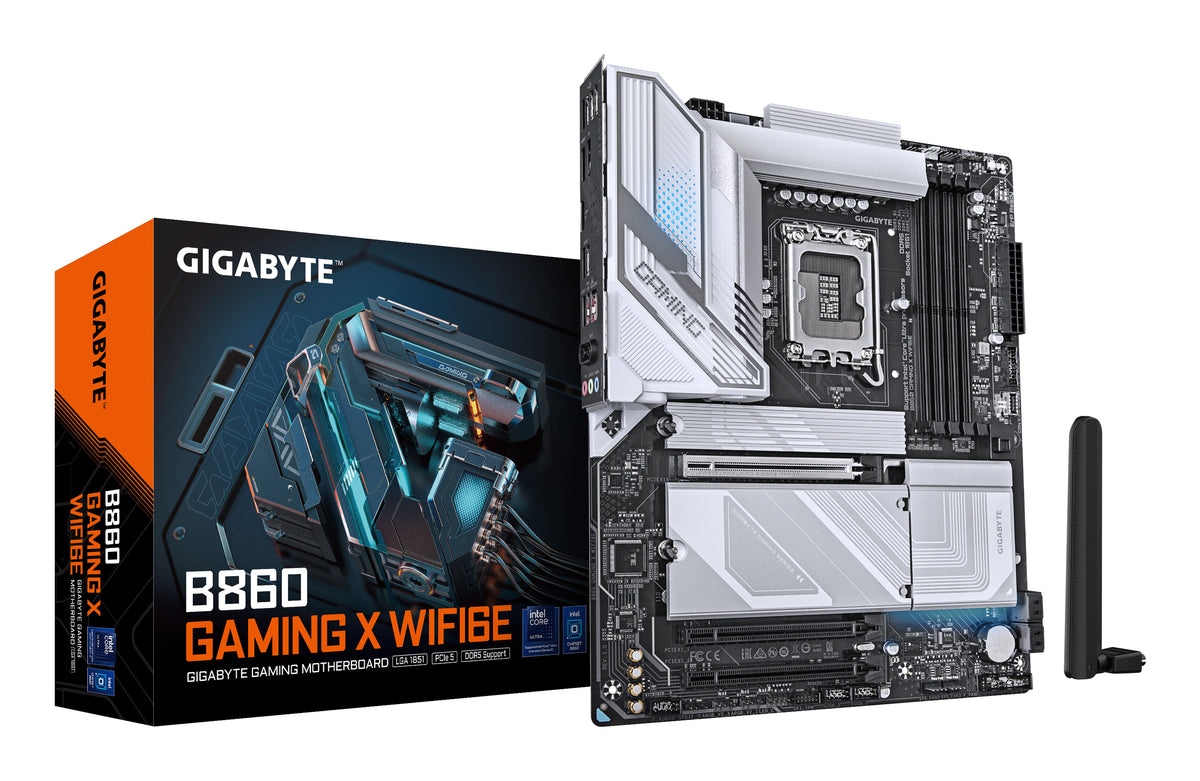

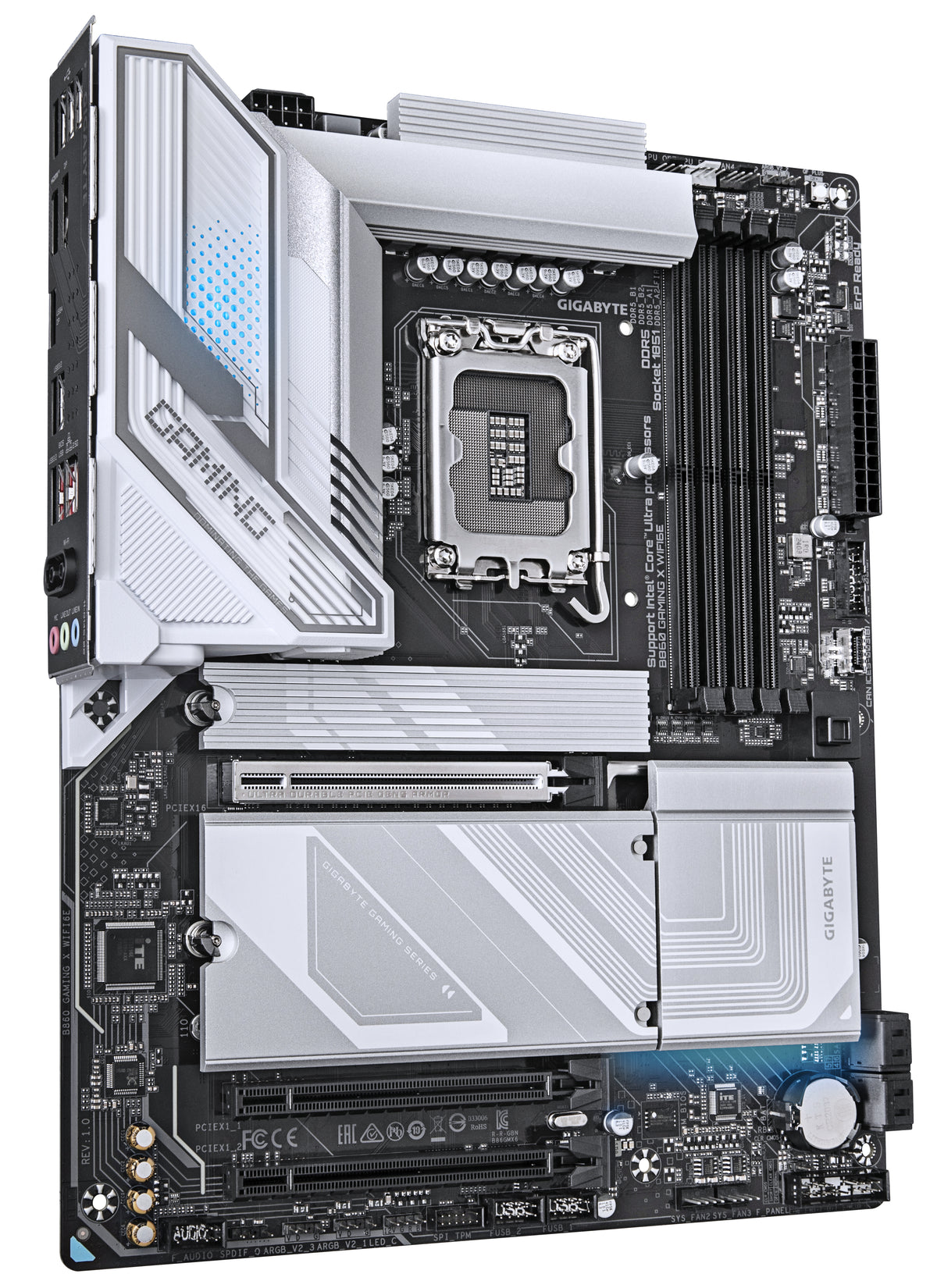

The Gigabyte B860 GAMING X WIFI6E is an ATX motherboard built for Intel Core Ultra processors on the LGA1851 socket. It combines DDR5 memory support with Wi-Fi 6E connectivity and PCIe 5.0 expansion, designed for gamers and builders who want modern I/O and overclocking capability without overspecifying for workstation or server use.
Why this product
Wi-Fi 6E wireless networking
Built-in Wi-Fi 6E with dual antennas (2T2R) offers the latest wireless standard for reduced latency and higher throughput than Wi-Fi 6.
PCIe 5.0 M.2 and x16 slots
One M.2 slot and one x16 expansion slot run at PCIe 5.0 speeds for future-ready NVMe drives and graphics cards.
DDR5 memory with XMP Booster
Supports up to 256 GB of DDR5 memory across four DIMM slots, with AI-enhanced DDR5 XMP Booster for automated overclocking without manual tuning.
Multiple display outputs
Three independent video outputs—HDMI, DisplayPort, and USB4 Type-C—allow simultaneous connection to up to three displays for work or gaming.
2.5 GbE wired networking
One Ethernet port delivers 2.5 Gigabit per second throughput, a step up from standard 1 GbE for file transfers and online play.
- SocketLGA1851
- ChipsetIntel B860 Express
- Memory supportDDR5, up to 256 GB
- Form factorATX (30.5 cm × 24.4 cm)
- M.2 slots1 × PCIe 5.0, 2 × PCIe 4.0
- WirelessWi-Fi 6E
- Video outputsHDMI, DisplayPort, USB4 Type-C
- SKUGIG-2038
- EAN4719331866532
- Fits Intel Core Ultra processors in LGA1851 socket only; not compatible with older Intel or AMD CPUs.
- Requires DDR5 memory modules; DDR4 memory will not work.
- ATX form factor requires a case with ATX or larger motherboard support and a standard ATX power supply with 24-pin and 8-pin connectors.
- Integrated graphics rely on CPU support; some Intel Core Ultra models include iGPU, others do not.
- DDR5 memory speeds above 6400 MT/s require overclocking; standard JEDEC support is DDR5-6400.
Best for
- DDR5 enthusiasts and overclockers
- Gamers and content creators
- Builders who value wireless convenience
- Systems needing high-speed storage
Trade-offs
- Budget builders on a tight timeline
- Server or workstation environments
- Users who need integrated storage or fanless operation
- Compact or portable builds
Infinite Memory Performance · D5 Bionic Corsa Technology. Steady Power · Keeps your computing smooth. D5 Bionic Corsa · Advanced AI-enhanced overclocking tech. for DDR5. Comprehensive Thermal · Keep your system cool and efficient. Hassle-free Assembly · Ultimate DIY-Friendly experience. Tailored Computing · More superb, user-friendly, customized BIOS & software. Born from Ultra Durable™ · Built for longevity and reliability.
Gaming motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods. DDR5 XMP Booster feature offers ready-to-use settings derived from analysis of memory IC and PMIC vendor. This allows users to maximize DDR5 memory performance without the hassle of manual tweaking for overclocked DDR5 memory kits. * DDR5 MEMORY UPGRADE involves DDR5 memory overclocking, overclocking capability depends on users' hardware configuration.
Eliminate manual entry of complex memory settings such as clock, voltage, and timings.
Integrated Graphics Processor-Intel® HD Graphics support: 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz · * Support for DisplayPort 2.1 version. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz · * Support for HDMI 2.1 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz · * Support for DisplayPort 2.1 version. (Graphics specifications may vary depending on CPU support.) Support for up to triple-display at the same time.
Networking
| Standard | Wi-Fi 6E (802.11ax) |
|---|---|
| Wireless antennas | 2 × external (2T2R) |
| Wired LAN | 2.5 GbE, 1 × RJ-45 |
Performance
| CPU socket | LGA1851 for Intel Core Ultra processors |
|---|---|
| Memory type | DDR5 |
| Memory capacity | Up to 256 GB (4 × DIMM) |
| Memory speeds supported | DDR5-6400 (JEDEC), DDR5-9066 (O.C.) |
| Memory features | XMP support, DDR5 XMP Booster, D5 Bionic Corsa AI overclocking |
| PCIe slots | 1 × PCIe 5.0 x16, 2 × PCIe 4.0 x1 |
| M.2 slots | 1 × PCIe 5.0 x4/x2 (CPU-attached), 2 × PCIe 4.0 x4/x2 (Chipset-attached) |
| SATA connectors | 4 × SATA 6 Gb/s with RAID 0, 1, 5, 10 support |
Ports & power

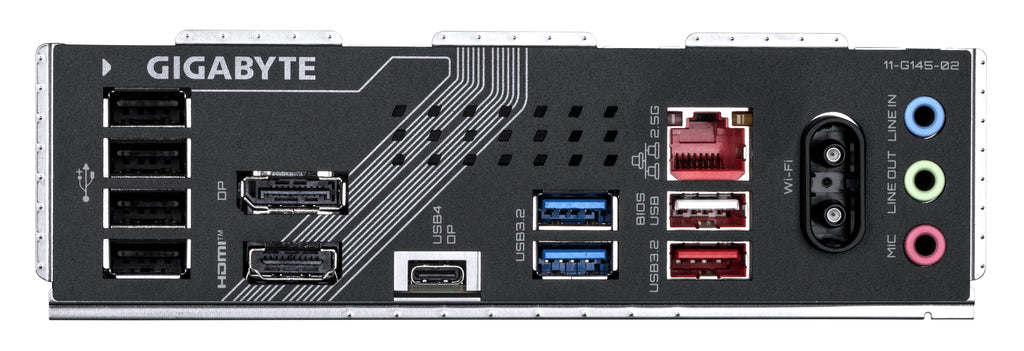

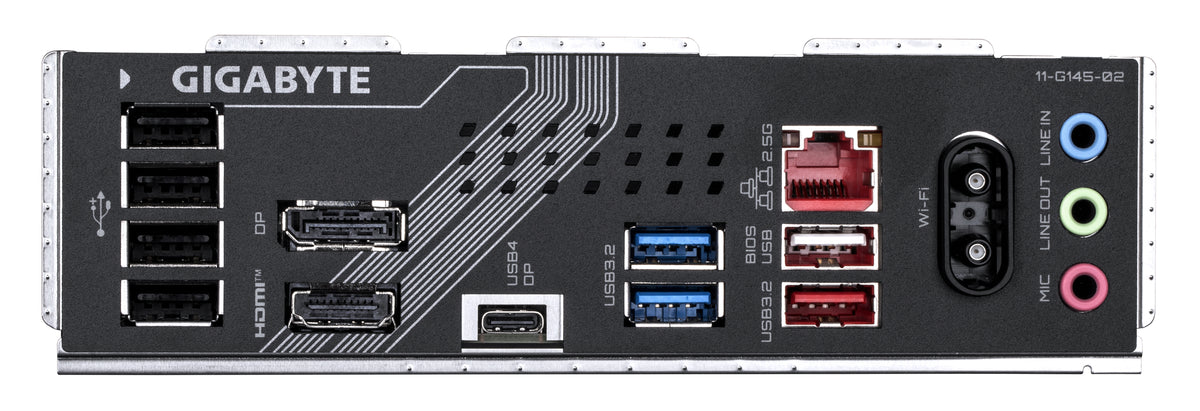

| Back panel USB | 1 × USB4 Type-C (DisplayPort), 1 × USB 3.2 Gen 2 Type-A, 2 × USB 3.2 Gen 1, 5 × USB 2.0/1.1 |
|---|---|
| Internal USB headers | 1 × USB Type-C header (Gen 2), 1 × USB 3.2 Gen 1 header, 2 × USB 2.0/1.1 headers |
| Video outputs | 1 × HDMI 2.1 (4096×2160@60 Hz), 1 × DisplayPort 2.1 (3840×2160@144 Hz), 1 × USB4 Type-C DisplayPort 2.1 (3840×2160@144 Hz) |
| Audio | 8-CH HD Audio, 3 × 3.5 mm jacks, high-end audio capacitors, S/PDIF Out header |
| Power connectors | 1 × 24-pin ATX, 1 × 8-pin ATX 12V |
| Fan headers | 1 × CPU fan, 1 × CPU pump/water cooling, 3 × system fans, 1 × system fan/pump |
| RGB headers | 3 × addressable RGB Gen2, 1 × RGB |
Physical
| Brand | Gigabyte |
|---|---|
| Form factor | ATX |
| Dimensions | 30.5 cm × 24.4 cm |
| PCB layers | 6-layer with mid-loss material |
| IO shield | Integrated |
| LED indicators | Debug LEDs, RGB/ARGB headers |
