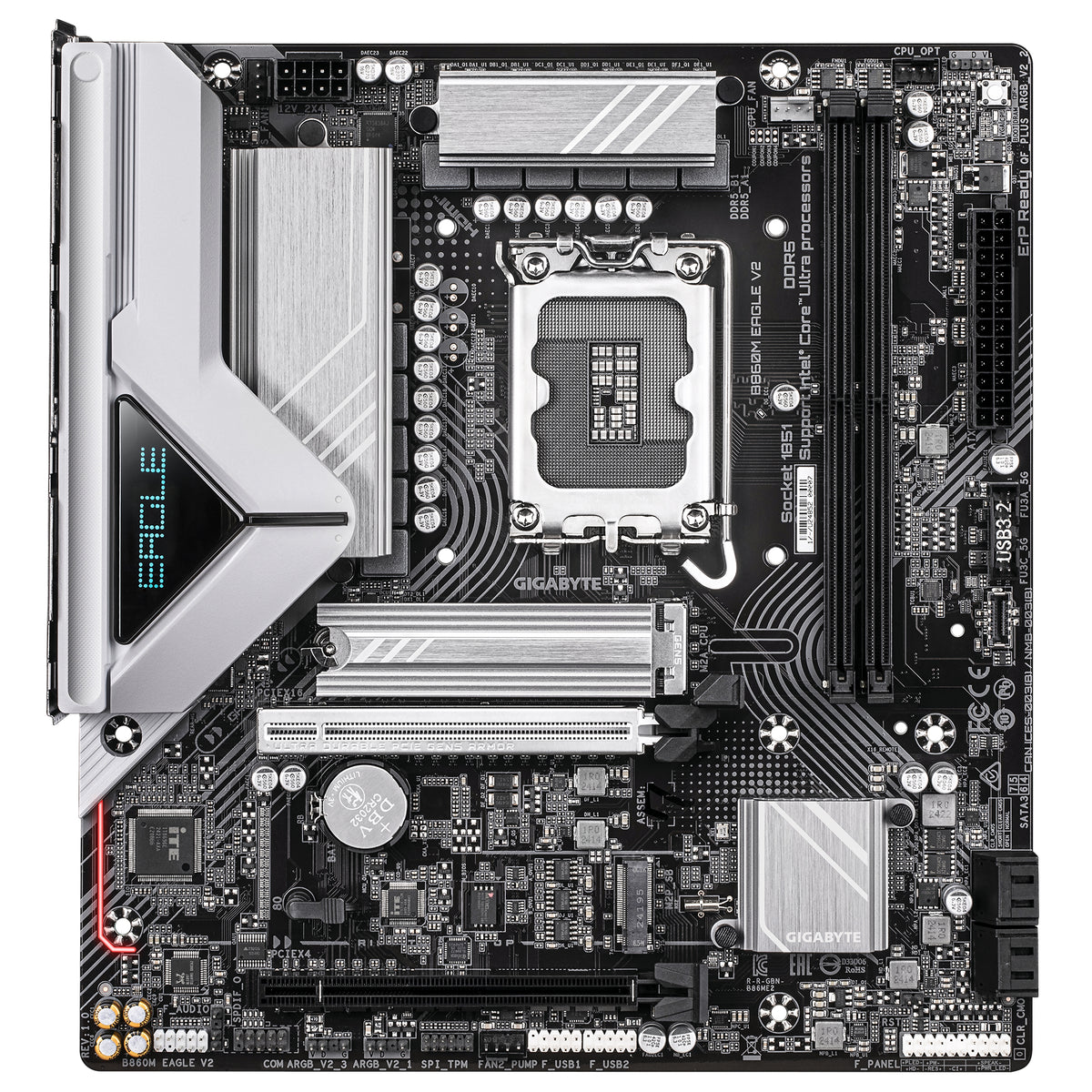

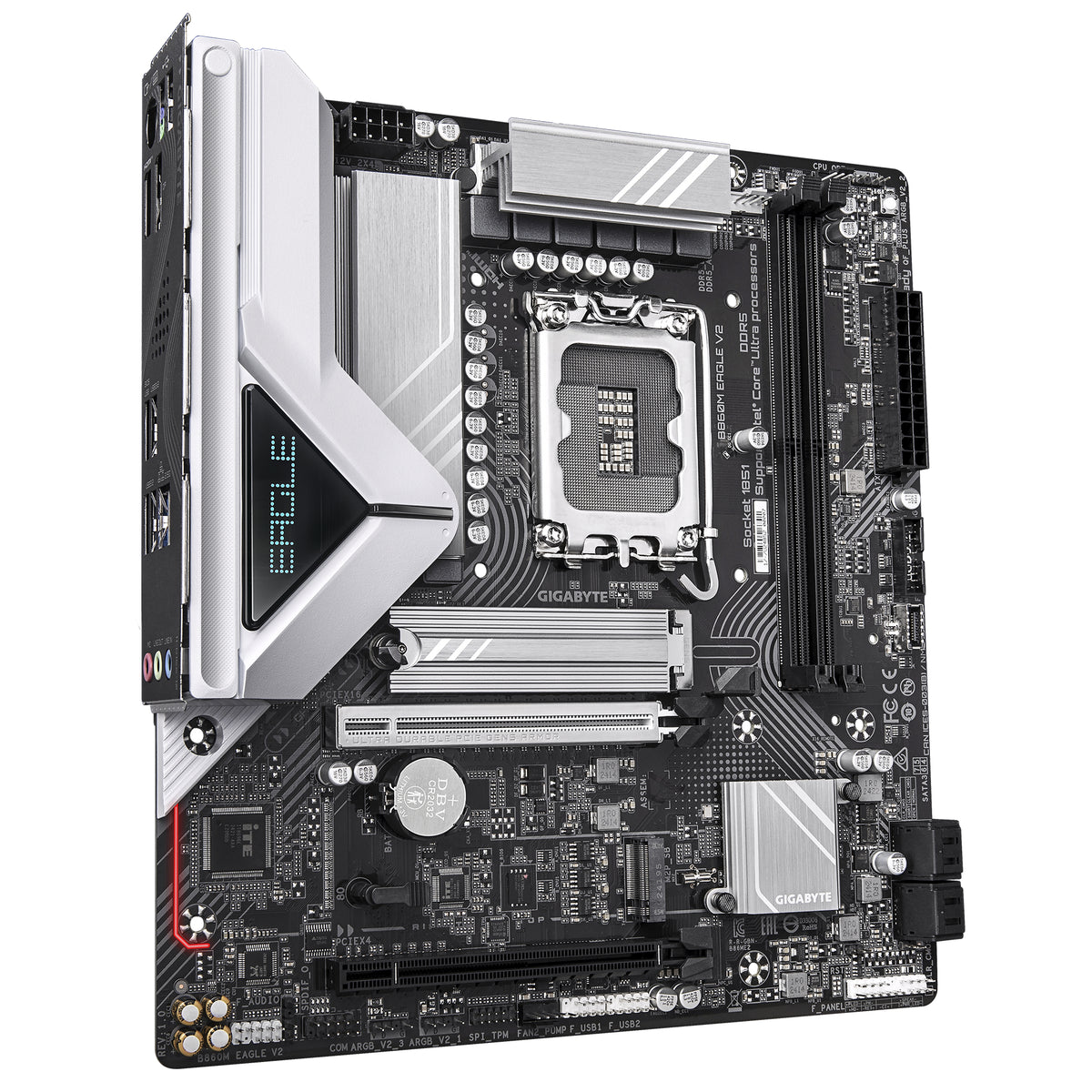

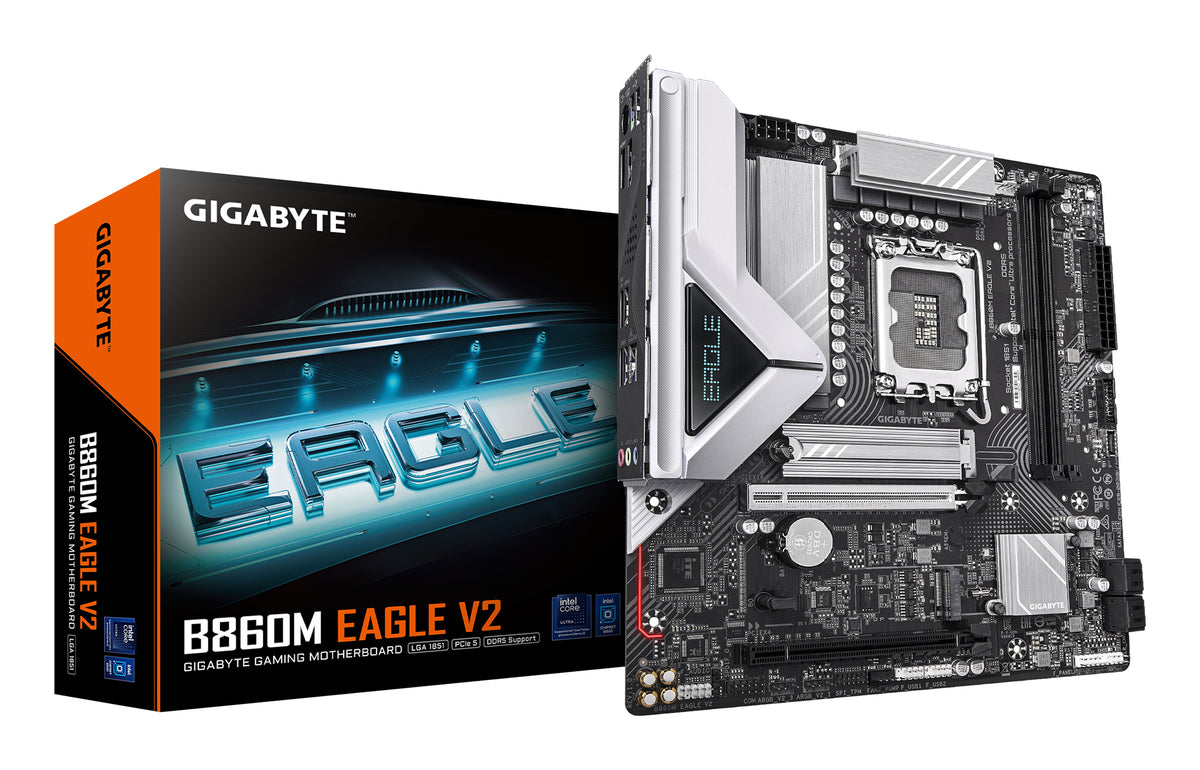

Gigabyte B860M Eagle V2 Intel LGA1851 Micro-ATX Motherboard
GIGABYTE
Gigabyte B860M Eagle V2 Intel LGA1851 Micro-ATX Motherboard
The Gigabyte B860M Eagle V2 is a micro-ATX motherboard built for Intel Core Ultra processors, balancing compact form factor with robust power delivery and thermal management. It suits builders who need DDR5 performance and PCIe 5.0 in a smaller footprint without compromising on cooling or connectivity. Steady power distribution and multi-layer thermal design keep systems stable during sustained workloads.
Why this product
PCIe 5.0 and DDR5 support
One PCIe 5.0 x16 slot and one PCIe 5.0 M.2 connector enable the fastest storage and graphics today. DDR5 memory up to 9066 MT/s (overclocked) maximizes bandwidth for CPU-intensive tasks.
Advanced thermal design
Full-metal heatsinks with up to 4× traditional cooler surface area, 5 W/mK thermal pads, and M.2 Thermal Guard prevent throttling under load.
Solid Pin connectors
UD Solid Pin design on the 8-pin CPU and 24-pin ATX connectors improves conductivity and reduces wear from repeated use.
Compact micro-ATX layout
24.4 × 22.5 cm form factor fits smaller cases while retaining dual M.2, dual fan headers, and full I/O without compromise.
8-channel HD audio with isolation
Analog audio components are isolated from PCB noise sources, and high-end capacitors reduce distortion for cleaner sound.
- Form FactorMicro-ATX (24.4 × 22.5 cm)
- CPU SocketLGA1851 (Intel Core Ultra)
- ChipsetIntel B860 Express
- Memory SupportDDR5 up to 9066 MT/s (O.C.), 128 GB max
- M.2 Slots2 (PCIe 5.0 + PCIe 4.0)
- PCIe Slots1 × PCIe 5.0 x16, 1 × PCIe 4.0 x4
- LAN2.5 GbE
- Audio8-channel HD with isolation
- SKUGIG-1958
- EAN4719331869656
- Works with Intel Core Ultra processors in LGA1851 socket. Check GIGABYTE's CPU support list for your specific chip model.
- Accepts DDR5 DIMM modules up to 128 GB total (two slots, 64 GB max per slot) with speeds from 5600 to 9066 MT/s.

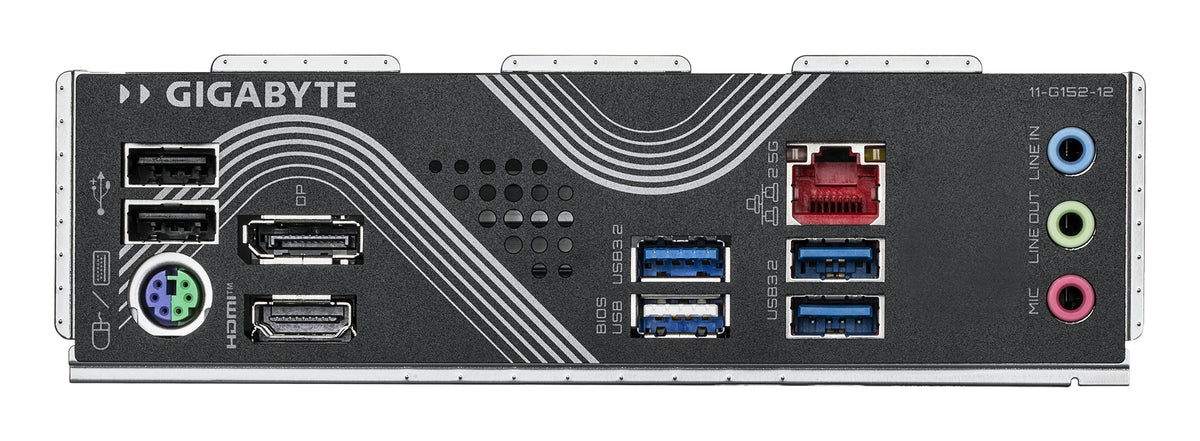

- Supports 2.5 GbE Ethernet and features HDMI and DisplayPort output; actual display support depends on CPU integrated graphics.
- Runs Windows 11 64-bit and Windows 10 64-bit. NPU driver and Intel 800 Platform Performance Package require Windows 11.
- Micro-ATX size means it fits most cases, but very compact builds may face tight clearance near the rear I/O or power connectors.
Best for
- Small-form-factor builds with high performance needs
- Builders prioritising DDR5 speed and PCIe 5.0 storage in a compact board
- Systems requiring robust cooling without bulky external radiators
- Enthusiasts using XMP 3.0 memory profiles or custom SPD tuning
Trade-offs
- Extreme multi-GPU setups — only one PCIe x16 slot limits SLI/Crossfire configurations.
- Builders needing many SATA drives — only 4 SATA connectors compared to ATX boards with 6 or more.
- Server or workstation ECC-only deployments — ECC support exists but the board is not certified for mission-critical error correction.
- Analog audio perfectionists — 8-channel HD audio is solid but not high-end audiophile grade despite the isolation and capacitor upgrades.
EAGLE motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.
Unlock the full power of your multi-core CPU for unmatched performance. Optimized for integrated GPU performance and memory management within the CPU. Deliver reliable power to your CPU-connected PCIe lanes for uninterrupted performance.
EAGLE motherboards come with advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient. With up to 4 times the surface area of traditional coolers, this advanced design significantly boosts MOSFET cooling performance. Multi-cut design with channels for improved airflow. 5 W/mK thermal pad for efficient thermal conductivity. The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.
Leverage XMP 3.0 User Profile to fine-tune memory settings for peak system performance. Customizable SPD Profiles or retrieve from database: Create and transfer two custom SPD profiles between systems. Rapidly assess potential memory performance by entering clock speeds and timing parameters.
Essentially separates the board's sensitive analog audio components from potential noise pollution at the PCB level.
Technology embodies our commitment to excellence, providing users with a platform that's not only powerful but also built for longevity and reliability. EAGLE series motherboards are engineered to endure and excel. GIGABYTE's one-piece stainless-steel shielding design reinforces the PCIe Slots, providing the extra strength required to support heavy graphics cards. Our innovative UD Power Connector design enhances power conductivity and thermal dissipation. Solid Pins Delivers superior conductivity and signal transmission and reduces metal wear from repeated connections.
General
| Brand | GIGABYTE |
|---|---|
| Form Factor | Micro-ATX |
| Dimensions | 24.4 cm × 22.5 cm |
| PCB Layers | 6-layer with mid-loss design |
Processor & Memory
| CPU Socket | LGA1851 |
|---|---|
| Supported CPUs | Intel Core Ultra processors (see GIGABYTE support list) |
| Chipset | Intel B860 Express |
| Memory Type | DDR5 |
| Memory Sockets | 2 × DIMM |
| Max Memory | 128 GB |
| Memory Speeds | 5600 to 9066 MT/s (JEDEC and O.C.) |
| ECC Support | Yes |
Storage & Expansion
| M.2 Connectors | 2 × Socket 3 |
|---|---|
| M.2 Slot 1 | PCIe 5.0 with Thermal Guard |
| M.2 Slot 2 | PCIe 4.0 |
| SATA Connectors | 4 × SATA 6Gb/s |
| PCIe Slots | 1 × PCIe 5.0 x16 (UD), 1 × PCIe 4.0 x4 |
Power, Cooling & Audio
| Main Power | 24-pin ATX connector |
|---|---|
| CPU Power | 8-pin ATX 12V with UD Solid Pins |
| Fan Headers | 3 × PWM/DC with dual fan curve mode |
| Thermal Features | Full-metal heatsinks, 5 W/mK thermal pad, M.2 Thermal Guard |
| Audio System | 8-channel HD with high-end capacitors |
| Audio Isolation | Analog components separated from PCB noise |
| S/PDIF | Yes (Out) |
Connectivity
| USB 3.2 Gen 1 | 3 × rear + 1 × header |
|---|---|
| USB 2.0/1.1 | 3 × rear + 2 × headers |
| USB Type-C Header | 1 × USB 3.2 Gen 1 |
| Ethernet | 1 × RJ-45 (2.5 GbE) |
| PS/2 | 1 × keyboard/mouse combo |
| Audio Jacks | 3 × 3.5 mm |
Display & RGB
| HDMI | 1 × port (CPU-dependent) |
|---|---|
| DisplayPort | 1 × 2.1 (CPU-dependent) |
| RGB Headers | 1 × standard, 3 × addressable Gen2 |
Software & Features
| XMP Support | Yes (XMP 3.0 with custom SPD profiles) |
|---|---|
| Q-Flash Plus | Yes (buttonless BIOS update) |
| Debug LEDs | Yes |
| Operating Systems | Windows 11 64-bit, Windows 10 64-bit |
