Gigabyte BRIX GB-BMPD-6005 Barebone Mini PC - N6005
The Gigabyte BRIX GB-BMPD-6005 is a barebone mini PC built around the Intel Pentium Silver N6005 processor, suited to home office users, digital signage operators, and anyone who needs a compact desktop without a large footprint. It ships without RAM, storage, or an operating system, letting buyers choose their own components up to the limits the board supports.
Why this product
Ultra-compact 0.67L chassis
At just 0.67 litres in volume, this system fits behind a monitor on its included VESA bracket or tucks onto a desk without occupying significant space.
Dual 4K display output
It supports up to two independent displays simultaneously via HDMI 2.0b and Mini DisplayPort 1.4, both capable of 4K at 60Hz with HDR10.
Dual storage paths
An M.2 2280 slot (PCIe x2 or SATA) and a 2.5-inch bay for a HDD or SSD can be populated at the same time, so a fast boot drive and a high-capacity data drive can coexist.
Wireless and wired networking included
Dual-band 802.11ac Wi-Fi with Bluetooth 4.2 and a Gigabit Ethernet port (Realtek 8111HS) are built in, covering both wireless and wired connections out of the box.
VESA bracket in the box
A mounting bracket supporting 75×75 mm and 100×100 mm VESA patterns is bundled, making it straightforward to attach the unit behind a compatible monitor or TV.
Low 10W processor TDP
The Intel N6005 has a 10W thermal design power, keeping power draw and heat output low enough for a passively cooled or lightly cooled enclosure.
- CPUIntel Pentium Silver N6005, 2.0–3.3 GHz Turbo, 4 cores, 10W TDP
- GraphicsIntel UHD Graphics 605
- Max RAM16 GB DDR4 SO-DIMM (1 slot, 2933 MHz)
- Display outputHDMI 2.0b + Mini DisplayPort 1.4, dual 4K@60Hz HDR10
- Storage slots1× M.2 2280 (PCIe x2/SATA) + 1× 2.5" SATA 6 Gbps bay
- Wireless802.11ac dual-band Wi-Fi + Bluetooth 4.2
- Volume0.67 L
- Dimensions56.22 × 103 × 116.52 mm
- SKUGIG-6412
- EAN4719331600846
- Works with standard SO-DIMM DDR4 modules running at up to 2933 MHz (one slot, maximum 16 GB).
- Accepts M.2 2280 SSDs using either PCIe x2 or SATA signalling.
- Fits 2.5-inch SATA drives up to 9.5 mm thick via the integrated SATA 6 Gbps port.
- Mounts to any VESA 75×75 mm or 100×100 mm compliant display using the included bracket.
- The vendor lists Microsoft Windows 10 64-bit as the supported OS; compatibility with other operating systems is not confirmed in the product record.
- Ships as a barebone unit — RAM, storage, and operating system must be purchased and installed separately before the system can be used.
Best for
- Digital signage or kiosk deployments where a compact, mountable PC with dual 4K output and low power draw is needed.
- Home office or light productivity use where a small desktop footprint matters and workloads do not require discrete graphics.
- Buyers who want to reuse existing DDR4 SO-DIMM RAM or choose their own SSD rather than paying for pre-installed components.
- Environments needing both wired and wireless connectivity, since Gigabit Ethernet, 802.11ac Wi-Fi, and Bluetooth 4.2 are all present without add-in cards.
Trade-offs
- Gaming or GPU-accelerated workloads — the system uses Intel UHD Graphics 605 integrated graphics with no discrete GPU option.
- Memory-intensive applications — a single SO-DIMM slot limits maximum RAM to 16 GB and prevents dual-channel operation.
- High-ambient-temperature environments — the operating temperature ceiling is 35°C, which may be restrictive in poorly ventilated or industrial settings.
- Users wanting a ready-to-use PC out of the box — as a barebone unit it requires separate purchase and installation of RAM, storage, and an OS.
GIGABYTE BRIX mini PC with latest Intel 10nm Pentium Silver/ Celeron Processor offering tons useful I/O connectors. It offer up to 4 USB 3.1 ports with 1 newest USB Type-C, HD audio headphone/MIC inputs, plus a convenience HDMI 2.0+ mDP video outputs.
Support HDMI 2.0b / DP 1.4b Dual Output
HDMI 2.0, which is backwards compatible with HDMI 1.4, offers 18 Gb/s of bandwidth – nearly twice that of the previous generation. GIGABYTE Intel 10nm Pentium Silver/ Celeron Processor Scenarios series support up to 2 independent displays, through its HDMI + mini Display ports, with 4K resolution and HDR 10 support. It gives users the flexibility to configure their any environment without any limitation.
Dual Storage Support
New generation of BRIX can not only support newest PCI-e /SATA based M.2 SSD (1x2280), but also can be loaded with a traditional 2.5" HDD/SSD as well. It allows user to mixed dual storages at same time. Use M.2 SSD for faster boot up / load applications, and use large capacity HDD for all kind of media contents, files, documents without space limitation.
- PCI-e SSD for FAST BOOT, snapping response
- 2.5" SSD/HDD for low cost large capacity storage.
DDR4 2933MHz Support
GIGABYTE BRIX provides a 128-bit memory controller that supports DDR4 at up to 2933MHz. DDR4 is a type of synchronous dynamic random-access memory with a double data rate and high bandwidth interface. The primary advantages of DDR4 over its predecessor, DDR3, include higher module density and lower voltage requirements, coupled with higher data rate transfer speeds.
VESA Support
Bundled with a VESA bracket, the GIGABYTE BRIX can easily be mounted behind a monitor or HDTV, offering a simple and effective way to turn any VESA-compliant display or TV into a full-featured PC or digital signage unit.
General
| Brand | GIGABYTE |
|---|---|
| Model | GB-BMPD-6005 |
| Form factor | Barebone Mini PC |
| Supported OS | Microsoft Windows 10 64-bit |
| VESA mounting | 75×75 mm and 100×100 mm (bracket included) |
Processor & memory
| CPU | Intel Pentium Silver N6005, 2.8 GHz base (2.0–3.3 GHz Turbo), 4 cores / 4 threads, 4 MB L3 cache, 10W TDP |
|---|---|
| CPU process node | Intel 10nm |
| Memory slots | 1× SO-DIMM DDR4 |
| Memory speed | 2933 MHz |
| Max memory | 16 GB |
| Graphics | Intel UHD Graphics 605 |
Storage & expansion
| M.2 slot | 1× M.2 2280, PCIe x2 or SATA |
|---|---|
| 2.5" bay | Supports HDD/SSD 7.0 mm or 9.5 mm thick, SATA 6 Gbps |
| WiFi/BT slot | 1× PCIe M.2 NGFF 2230 A-E key (occupied by Wi-Fi + BT card) |
Connectivity & physical

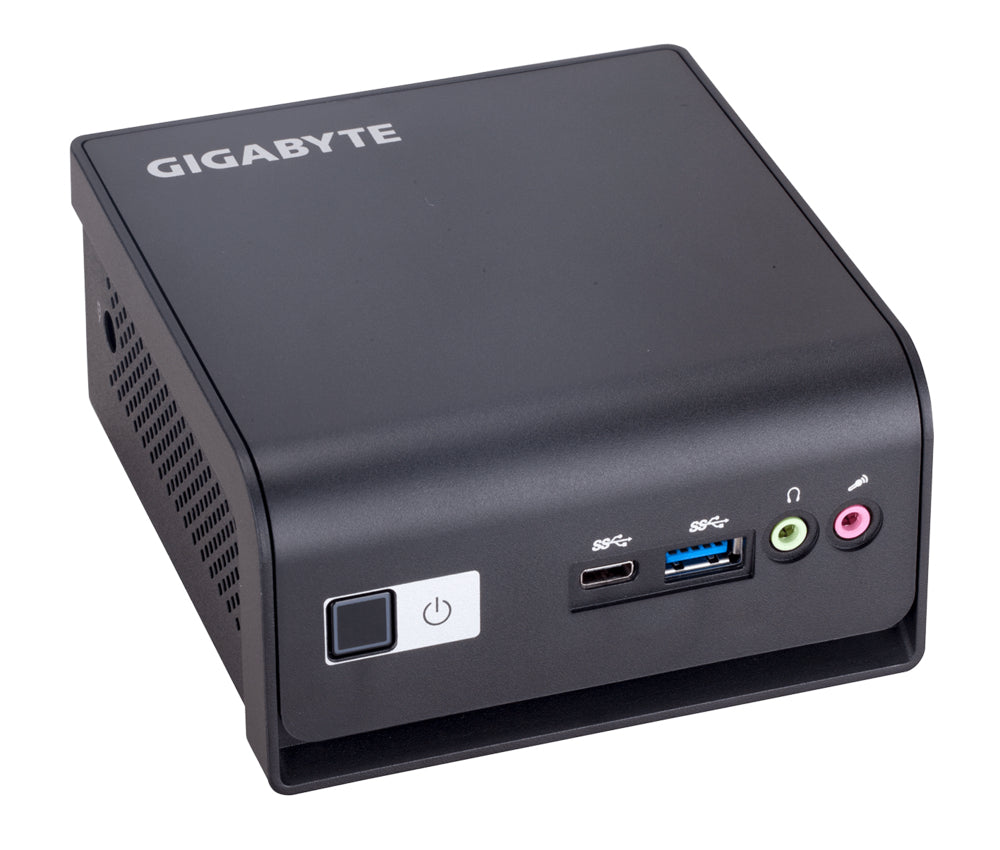

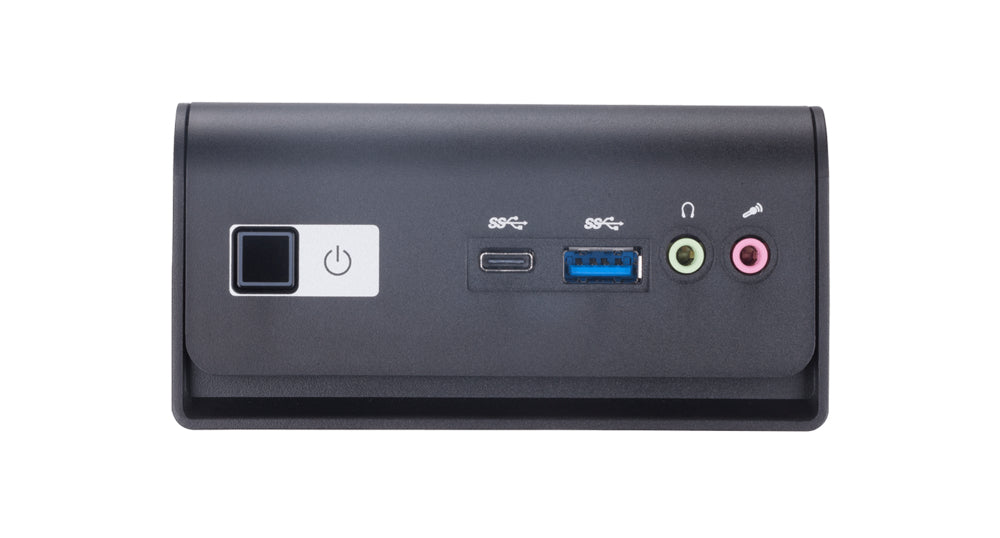

| Front I/O | 1× USB 3.0, 1× USB 3.0 Type-C, 1× headphone jack, 1× microphone jack |
|---|---|

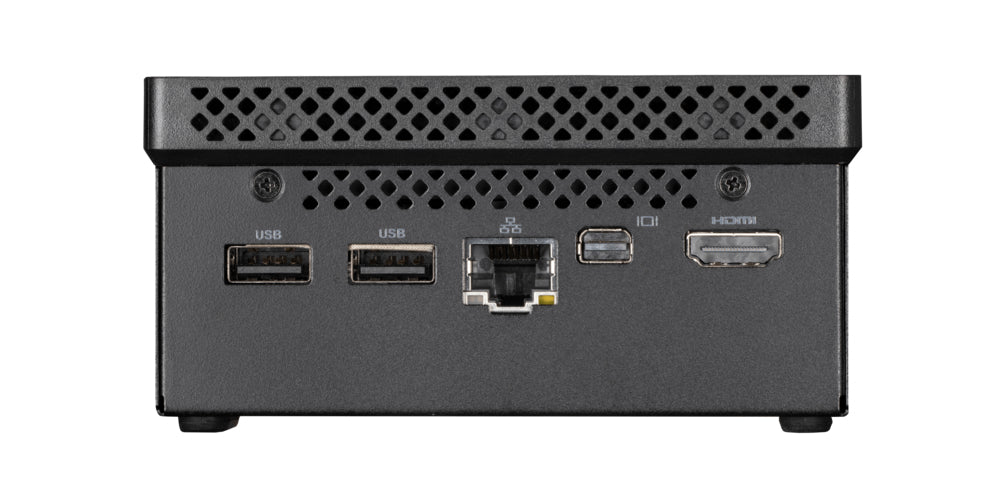

| Rear I/O | 2× USB 3.0, 1× HDMI 2.0a, 1× Mini DisplayPort 1.2a, 1× RJ45, 1× DC-in, 1× Kensington lock slot |
| LAN | Gigabit Ethernet (Realtek 8111HS) |
| Wi-Fi | Dual-band 802.11ac |
| Bluetooth | 4.2 |
| Audio | Realtek ALC255 codec |
| Power supply | AC 100–240V input; DC 19V / 3.42A, 65W output |
| Dimensions | 56.22 × 103 × 116.52 mm (2.21" × 4.06" × 4.59") |
| Operating temperature | 0°C to +35°C |
| Storage temperature | -20°C to +60°C |
