GIGABYTE GP-UD850GM PG5 V2 850W 80+ Gold Modular PSU ATX 3.1
Key Features
- 100% Japanese capacitors
- 120mm smart hydraulic bearing (HYB) fan
- Optimized thermal solution
- OVP/OPP/SCP/UVP/OCP/OTP/NLO/SIP protection
- Intel ATX 3.1 and PCIe Gen 5.1 ready
- 80 PLUS Gold certified
- Cybenetics Platinum efficiency
- Fully modular design
- Powerful single +12V rail
- Compact size
- 10-year product warranty (Subject to region)
Product Description
Ready for next-gen power demands, this ATX 3.1 compliant PSU handles up to 3× GPU and 2× system power excursions with 70% efficiency at low loads. The high-performance native 16-pin cable delivers up to 600W for PCIe Gen 5.1 graphics cards, such as the GeForce RTX™ 50 Series and beyond.
Carrying the Ultra Durable design DNA, this power supply packs high-quality components and smart design features for rock-solid stability and lasting performance. High-quality Japanese capacitors are used throughout, ensuring efficient performance and long-lasting reliability. Fan speed adjusts automatically based on power load, staying silent when the system is idle or under 20 percent load. The hydraulic bearing fan ensures a longer, more stable lifespan for sustained performance.
Multiple protection features are integrated to ensure stable operation under any condition.
80 Plus Gold certified ensures to deliver 90% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise. The single +12V rail delivers optimal power output, stability, and compatibility for hardware, offering the easiest installation of power cables and the ideal design for overclocking. Leveraging our expertise in heat dissipation and material selection, the power supply is slimmed down to just 140mm, maximizing performance while ensuring compatibility with even the most space-constrained chassis.
Product Specifications
| Model | GP-UD850GM PG5 V2 |
| Type | Intel Form Factor ATX 12V v3.1 |
| PFC | Active PFC (>0.9 typical) |
| Input Voltage | 100-240 Vac (full range) |
| Input Current | 15-6.5A |
| Input Frequency | 60-50 Hz |
| Output Capacity | 850W |
| Dimensions | 150 x 140 x 86 mm |
| Fan Type | 120mm Hydraulic Bearing(HYB) Fan |
| 80 PLUS | Gold |
| Efficiency | 90% at typical load |
| MTBF | >100,000 hours |
| Protections | OVP/OPP/SCP/UVP/OCP/OTP |
| Power Good Signal | 100-150ms |
| Hold Up Time | >16ms |
| Cable Type | Embossed, All black |

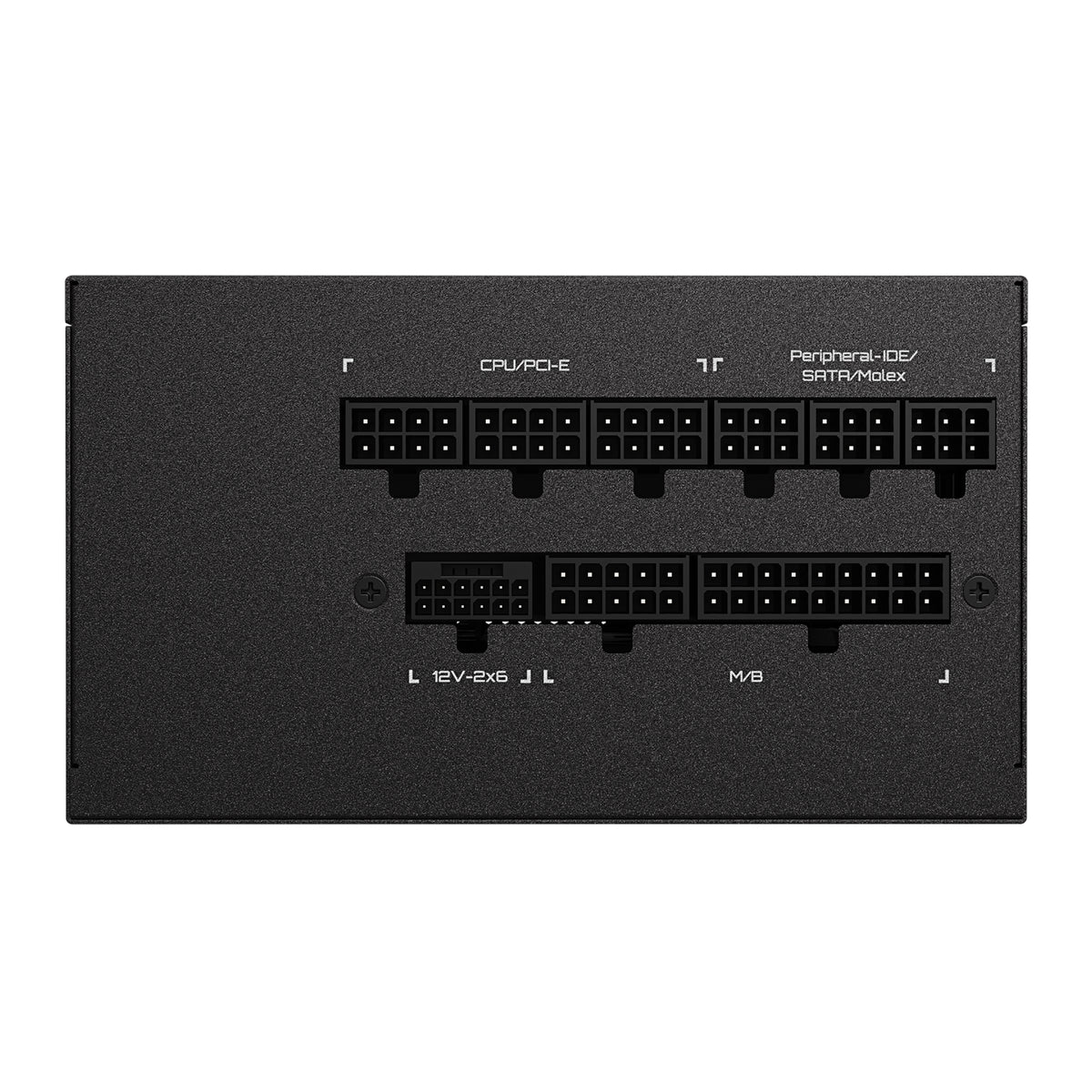

| Connectors | ATX/MB 20+4 Pin x 1 : 610mm*1 | CPU/EPS 4+4 Pin x 2 : 650mm+200mm*1 | PCI-e 6+2 Pin x 4 : 600mm+150mm*2 | PCI-e 12+4 Pin x 1 : 700mm*1 | SATA x 8 : 600mm+150mm+150mm+150mm*2 | 4 Pin Peripheral x 3+4-Pin Floppy x 1 : 500mm+150mm+150mm+150mm*1 |
