Gigabyte H610I LGA 1700 Mini-ITX DDR5 Motherboard - H610
The Gigabyte H610I LGA 1700 Mini-ITX DDR5 Motherboard - H610 is a compact Intel H610-based board built for system builders who need a space-efficient platform supporting 12th, 13th, and 14th Generation Intel Core processors. It pairs DDR5 memory support with onboard video outputs, Intel Gigabit LAN, and Smart Fan 6 control in a Mini-ITX footprint, making it a practical choice for small form factor builds where connectivity and manageability matter.
Why this product
Supports three generations of Intel Core CPUs
The LGA 1700 socket is compatible with Intel 12th, 13th, and 14th Generation Core, Pentium Gold, and Celeron processors, giving builders flexibility across a wide processor range.
DDR5 memory with XMP 3.0 support
Two DIMM slots support up to 128 GB of DDR5 memory in dual channel, with XMP memory module support and DDR5 speeds up to 5600 MT/s depending on CPU generation.
PCIe 4.0 x16 and M.2 NVMe storage
A reinforced PCIe 4.0 x16 slot handles discrete graphics, while an NVMe PCIe 3.0 x4 M.2 slot and four SATA 6 Gb/s ports cover fast storage needs.
Multiple display outputs built in

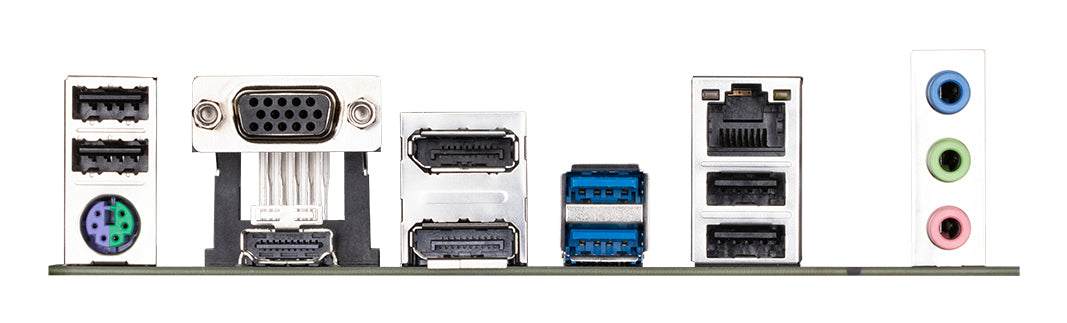

The rear panel includes one D-Sub port, two DisplayPorts, and one HDMI port, supporting integrated graphics across a range of monitor configurations without additional hardware.
Intel GbE LAN with cFosSpeed
The onboard Intel Gigabit Ethernet controller includes cFosSpeed network traffic management software, which aims to reduce latency and maintain stable ping in congested network conditions.
Smart Fan 6 with hybrid fan headers and FAN STOP
Smart Fan 6 monitors multiple temperature sensors and allows any mapped fan to stop completely when temperatures fall below a user-defined threshold, helping balance cooling and noise.
- Form FactorMini-ITX
- CPU SocketLGA 1700
- ChipsetIntel H610
- Memory2 x DDR5 DIMM, up to 128 GB
- PCIe Slot1 x PCIe 4.0 x16 (Reinforced)
- M.2 Slot1 x NVMe PCIe 3.0 x4
- LANIntel GbE with cFosSpeed
- Display Outputs1 x D-Sub, 2 x DisplayPort, 1 x HDMI
- SKUGIG-1868
- EAN4719331855222
- Compatible with Intel 12th, 13th, and 14th Generation Core, Pentium Gold, and Celeron processors using the LGA 1700 socket.
- Accepts standard DDR5 Un-buffered DIMMs (non-ECC) in 1Rx8, 2Rx8, and 1Rx16 configurations, as well as XMP memory modules.
- PCIe 4.0 support on the x16 slot may vary by CPU; actual support is subject to the installed processor's capabilities.
- DDR5 speed support varies by CPU generation: 13th Gen i9/i7 support up to 5600/5200/4800/4400 MT/s; 13th Gen i5/i3 and all 12th Gen support up to 4800/4400 MT/s.
- ECC Un-buffered DIMMs (1Rx8/2Rx8) are physically compatible but operate in non-ECC mode only.
- Does not support DDR4 memory — the board uses DDR5 slots exclusively and is not compatible with DDR4 modules.
Best for
- Compact PC builders who need a Mini-ITX board with broad Intel CPU compatibility and multiple onboard display outputs.
- Home and office users who want an all-in-one board with integrated graphics support, Gigabit LAN, and multi-channel audio without a discrete GPU.
- Budget-conscious builders stepping into DDR5 with an Intel H610 platform that supports up to 128 GB of DDR5 across two slots.
- Users who want flexible fan control, including the ability to stop fans entirely at low temperatures via Smart Fan 6 and FAN STOP.
- Network-sensitive users in crowded environments who benefit from Intel GbE LAN with cFosSpeed latency management software.
Trade-offs
- Enthusiast overclockers: the H610 chipset does not support CPU overclocking, unlike Z-series Intel boards.
- Builders needing multiple PCIe slots: the board provides only one PCIe x16 slot, with no additional PCIe expansion slots.
- Users requiring multiple M.2 slots: only one M.2 slot is available (NVMe PCIe 3.0 x4), which limits fast NVMe storage expansion.
- Wireless connectivity dependents: no onboard Wi-Fi or Bluetooth is listed; network connectivity is wired Gigabit Ethernet only.
- ECC memory users: ECC DIMMs are accepted physically but operate in non-ECC mode, so true error-correcting memory functionality is not available.
Intel® H610 Motherboard with 4+1+1 Hybrid Phases Digital VRM Design, PCIe 4.0* Design, Gen3 x4 M.2, Intel® GbE with cFosSpeed, Anti-Sulfur Resistor, Smart Fan 6
GIGABYTE H610 Motherboards feature the latest DDR5 architecture and XMP 3.0 capability. The new DDR5 memory technology brings 50% more bandwidth to the platform and increases the system performance drastically by implementing Unlocked Native DDR5 Voltage, Xtreme Memory Routing. In addition to the hardware upgrades, the user friendly UI provides full functionality to overclock higher with exclusive DDR5 tuning capability.
DDR5 delivers 50% improvement compared to last generation. DDR5 massively elevates the system level performance. DDR5 provides more bandwidth to keep up with the higher CPU core count bandwidth requirement. The new memory architecture also reduces the power consumption.
Intel® GbE LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.
Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. With Fan Stop, map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature—all of it can be customized to your liking.
General
| Brand | GIGABYTE |
|---|---|
| Form Factor | Mini-ITX |
| Chipset | Intel H610 |
| CPU Socket | LGA 1700 |
| CPU Compatibility | Intel 12th, 13th, and 14th Generation Core, Pentium Gold, and Celeron processors |
Memory & Storage
| Memory Slots | 2 x DDR5 DIMM |
|---|---|
| Max Memory | 128 GB (64 GB per DIMM) |
| Memory Speeds (13th Gen i9/i7) | DDR5 5600 / 5200 / 4800 / 4400 MT/s |
| Memory Speeds (13th Gen i5/i3 & 12th Gen) | DDR5 4800 / 4400 MT/s |
| XMP Support | XMP 3.0 |
| M.2 Slot | 1 x NVMe PCIe 3.0 x4 |
| SATA Ports | 4 x SATA 6 Gb/s |
| PCIe Slot | 1 x PCIe 4.0 x16 (Reinforced) |
Connectivity & I/O
| LAN | Intel GbE LAN with cFosSpeed Internet Accelerator Software |
|---|---|
| USB (Rear) | 2 x USB 3.2 Gen 1, 4 x USB 2.0/1.1 |
| Display Outputs | 1 x D-Sub, 2 x DisplayPort, 1 x HDMI |
| Audio | 2/4/5.1/7.1-channel; 3 x audio jacks; High Quality Audio Capacitors and Audio Noise Guard |
| Legacy Port | 1 x PS/2 keyboard/mouse |
Power & Cooling
| VRM Design | 4+1+1 Hybrid Digital VRM |
|---|---|
| CPU Power Connector | Solid Pin |
| Capacitors | Solid capacitors |
| Fan Control | Smart Fan 6 with multiple temperature sensors, hybrid fan headers, and FAN STOP |
| Anti-Sulfur Resistors | Yes |
| Software | @BIOS, EasyTune, Ambient LED, Smart Backup, System Information Viewer, Q-Flash, Xpress Install, GIGABYTE APP Center |
