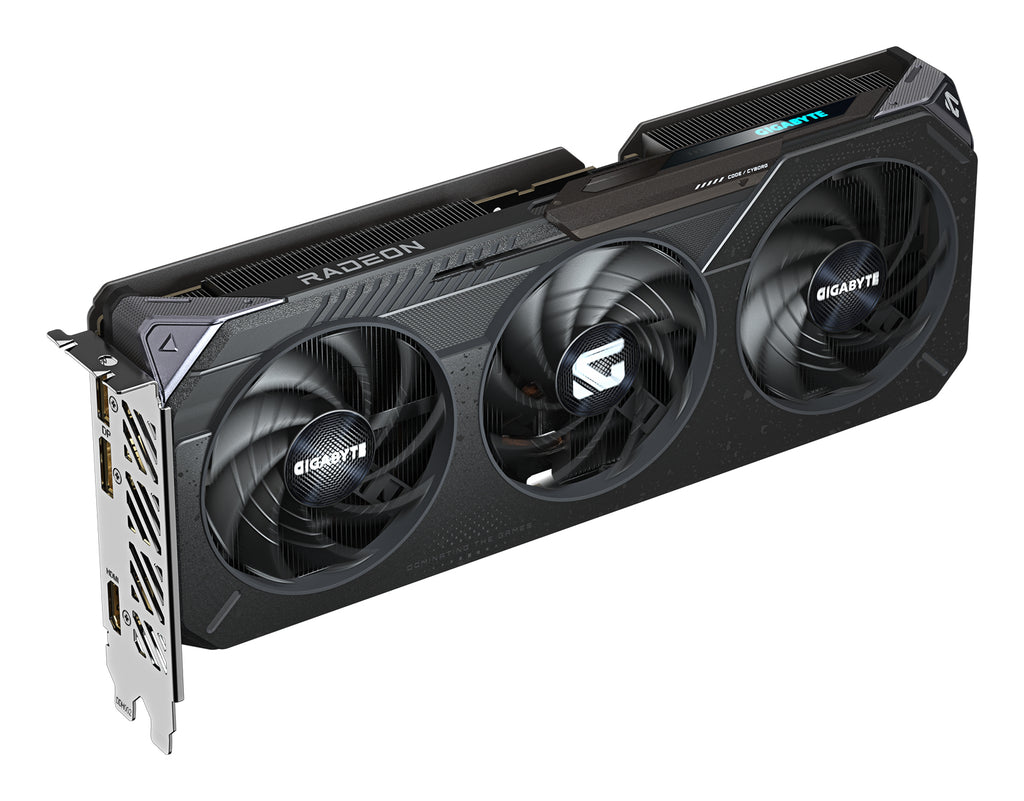

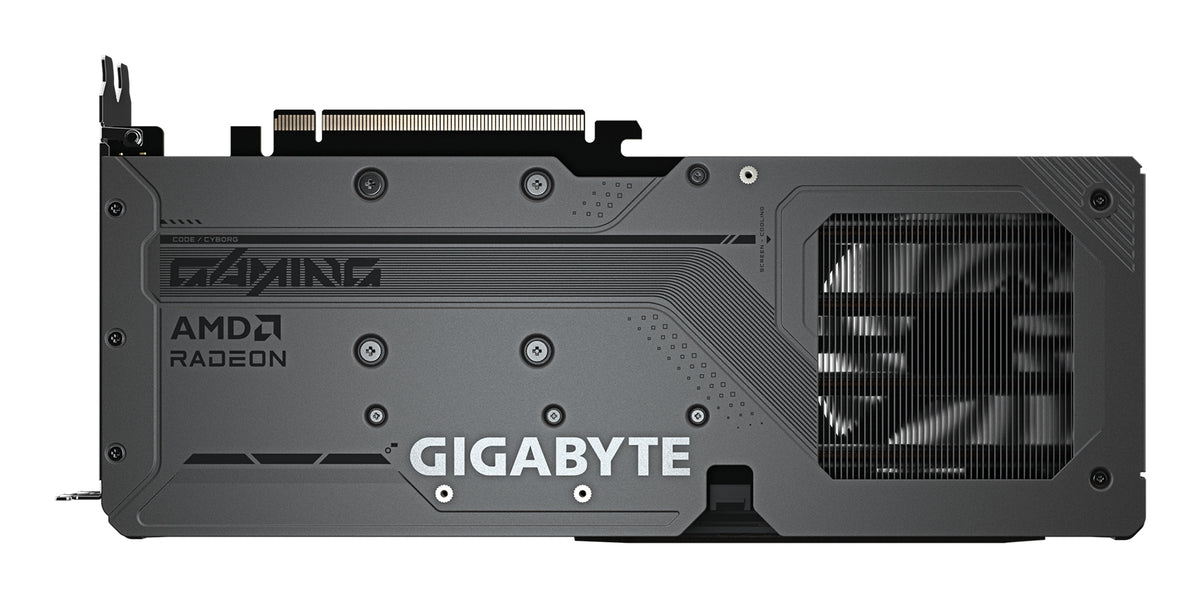

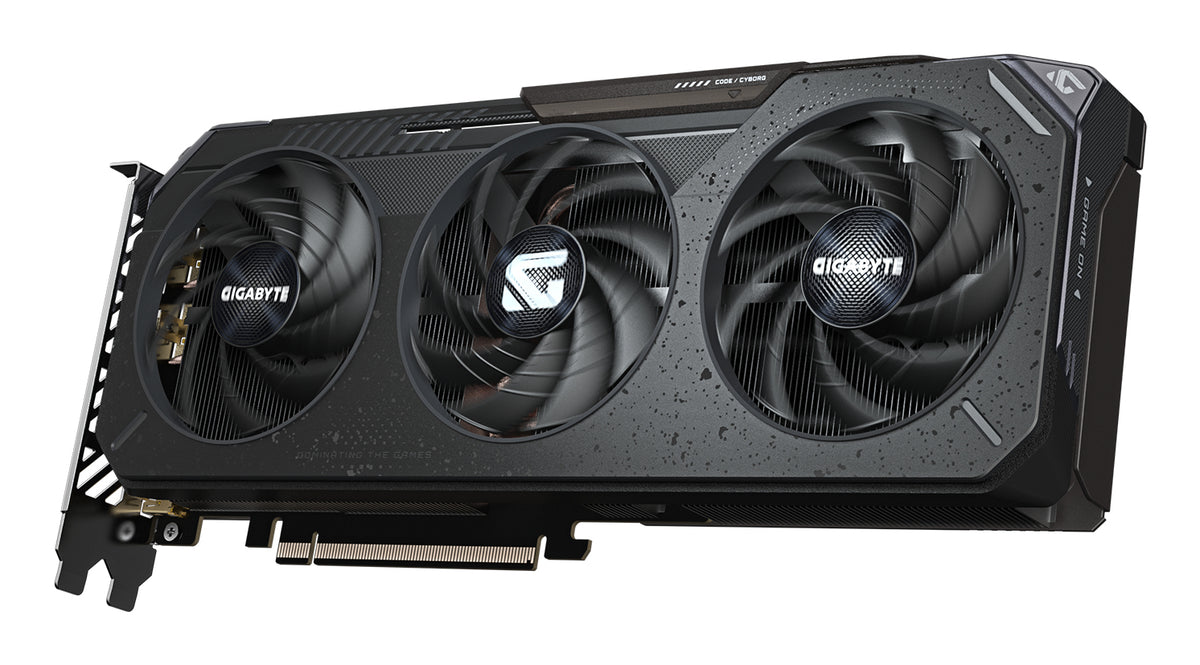

Gigabyte Radeon RX 9060 XT Gaming OC 16GB GDDR6 Graphics Card
GIGABYTE

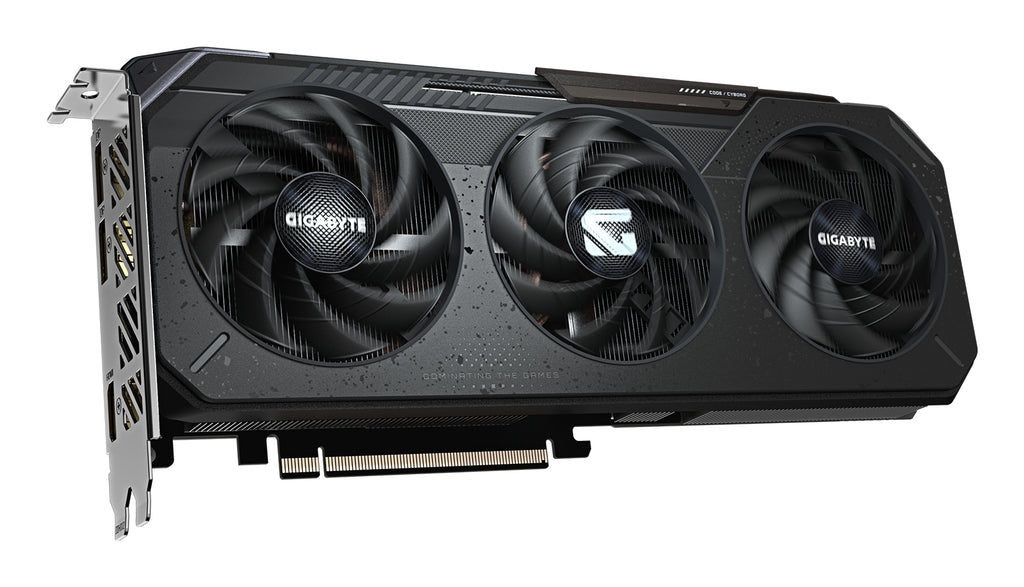

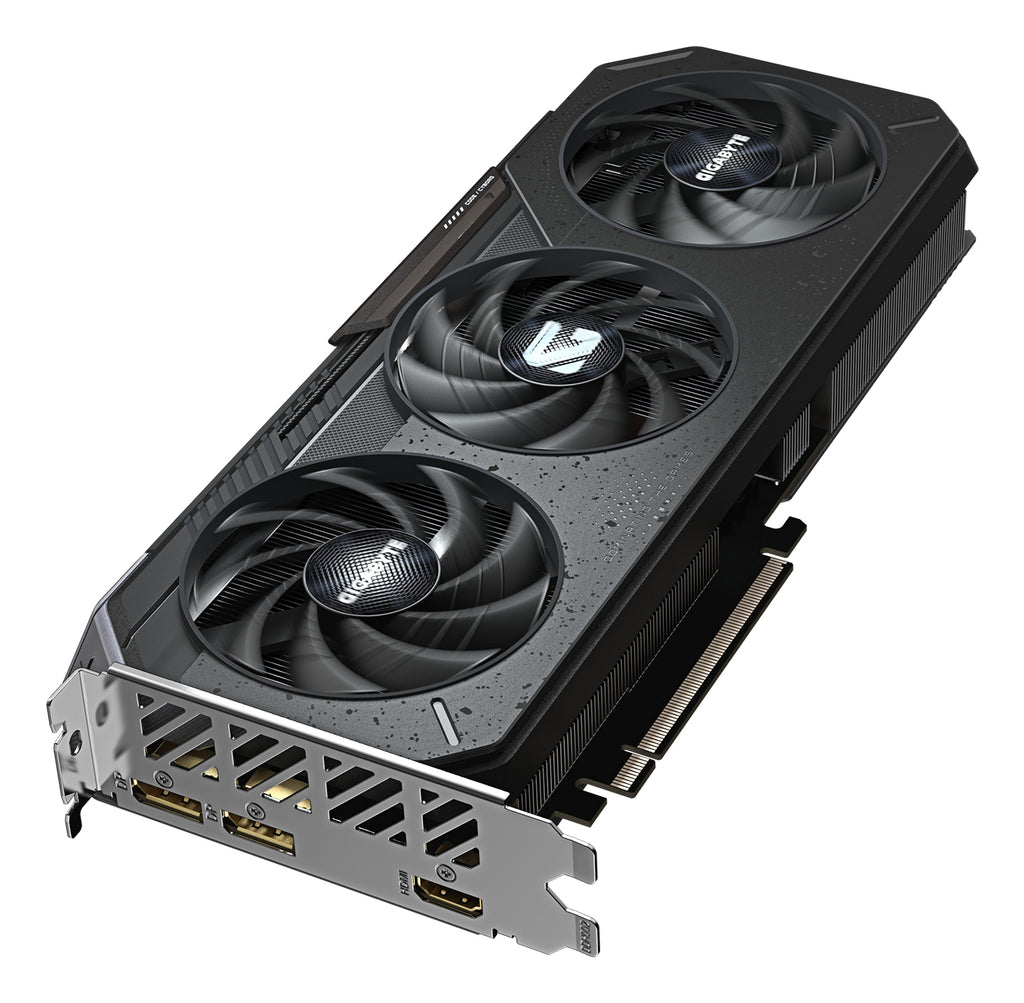

Gigabyte Radeon RX 9060 XT Gaming OC 16GB GDDR6 Graphics Card
The Gigabyte Radeon RX 9060 XT Gaming OC 16GB GDDR6 Graphics Card is a mid-range discrete GPU built on AMD's RDNA 4 architecture, aimed at gamers who want strong rasterisation, hardware ray tracing, and AI-assisted upscaling in a single slot upgrade. It pairs a factory-overclocked Radeon RX 9060 XT with GIGABYTE's WINDFORCE cooling system, making it a practical choice for desktop builders looking to get more out of their PCIe 5.0-capable platform.
Why this product
Factory overclocked above reference
Boost clock reaches up to 3320 MHz and Game Clock up to 2780 MHz, both above the reference card's 3130 MHz and 2530 MHz respectively, delivering out-of-box headroom without manual tuning.
16 GB GDDR6 memory
A full 16 GB of GDDR6 at 20 Gbps on a 128-bit bus gives this card headroom for high-resolution textures and future game releases that are increasingly memory-hungry.
RDNA 4 ray tracing and AI upscaling
The RDNA 4 architecture includes dedicated ray tracing and AI accelerators, with support for AMD FidelityFX Super Resolution 4 ML-powered upscaling and AMD HYPR-RX for smoother, more responsive frame delivery.

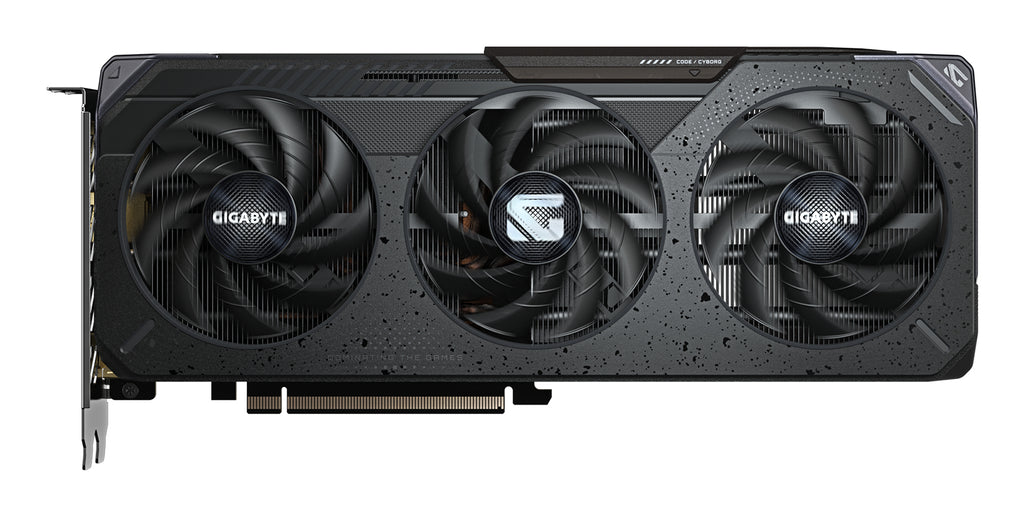

WINDFORCE cooling with Hawk fans
Alternate-spinning Hawk fans, composite copper heat pipes, a copper plate, server-grade thermal conductive gel, and 3D active fan logic work together to manage heat under sustained gaming loads.
Outputs up to 8K resolution

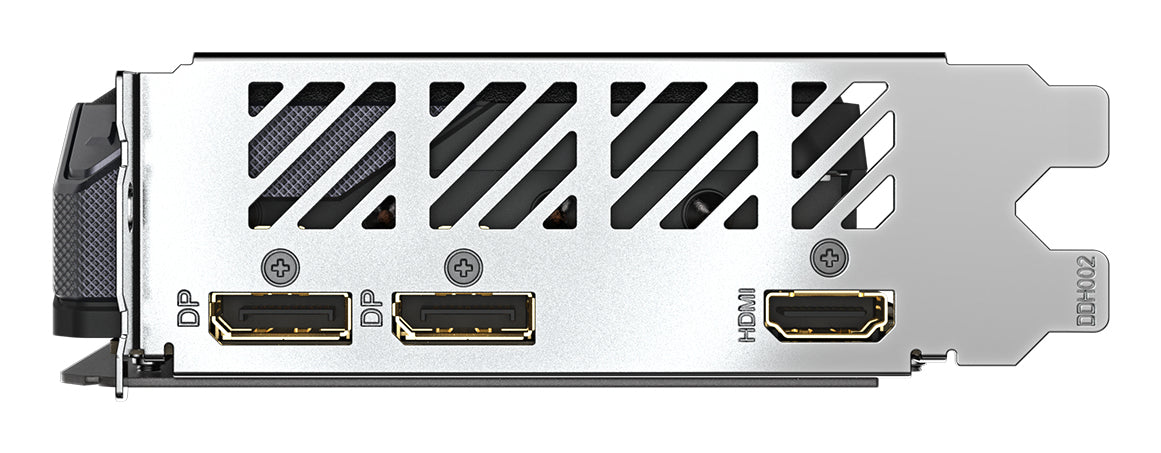

Two DisplayPort 2.1a and one HDMI 2.1b output support a digital maximum resolution of 7680 × 4320, covering high-refresh and high-resolution display setups across up to three monitors.

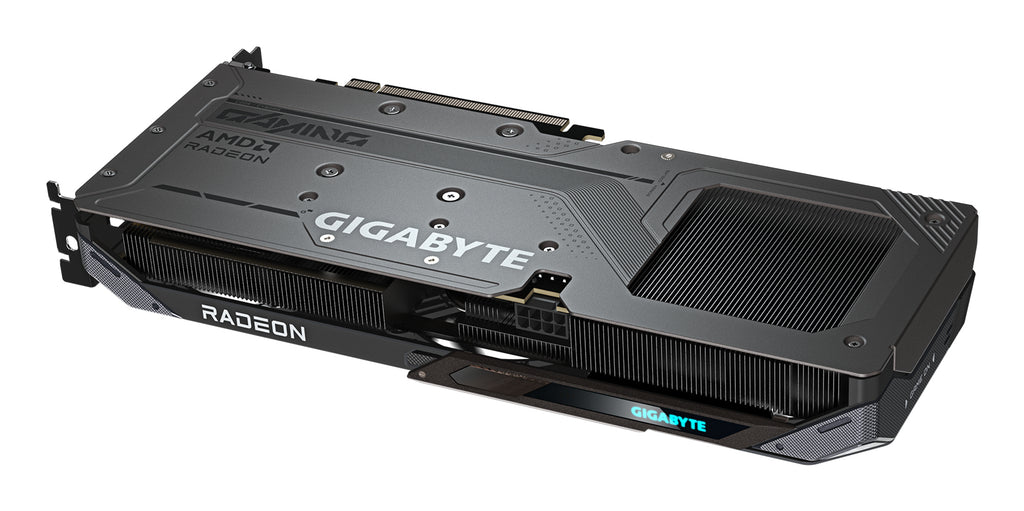

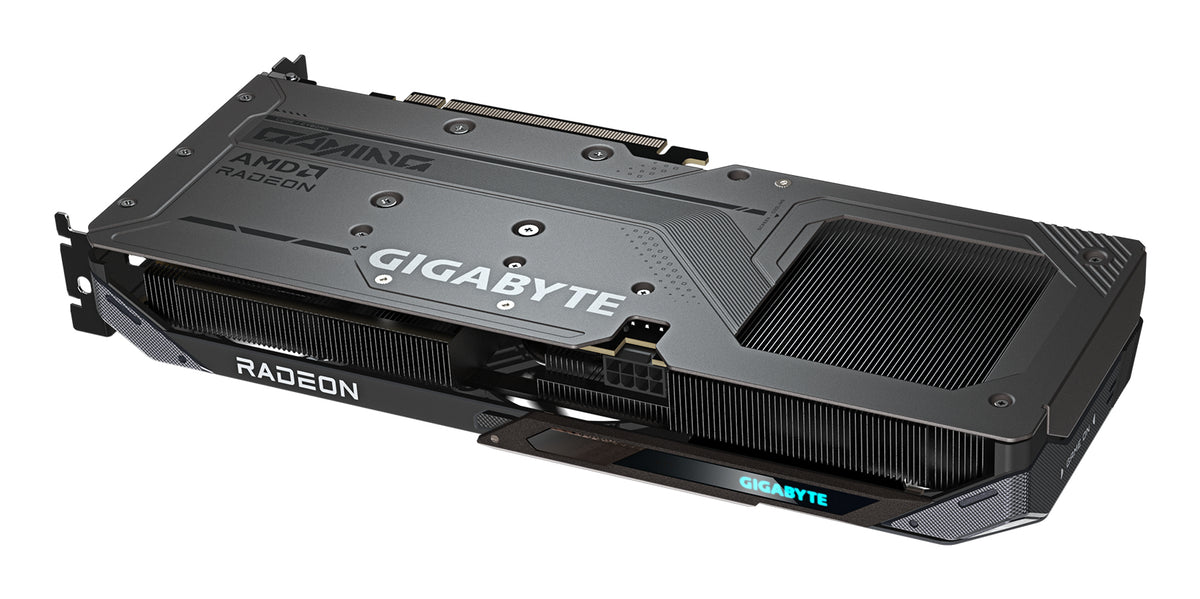

RGB lighting and reinforced structure
RGB lighting and a reinforced card structure are included, reducing visible sag and allowing the card to fit aesthetically into builds with windowed cases.
- GPURadeon RX 9060 XT
- Memory16 GB GDDR6
- Boost ClockUp to 3320 MHz
- Game ClockUp to 2780 MHz
- InterfacePCI-E 5.0
- OutputsDisplayPort 2.1a ×2, HDMI 2.1b ×1
- Card Length281 mm
- Recommended PSU450 W
- SKUGIG-6514
- EAN4719331356248
- Fits any ATX desktop motherboard with a PCI Express x16 slot; the card uses the PCIe 5.0 interface and is backward compatible with earlier PCIe generations.
- Connects to up to three displays simultaneously via two DisplayPort 2.1a and one HDMI 2.1b output.
- Supports AMD Smart Access Memory when paired with a compatible AMD Ryzen processor and motherboard, with AMD noting particular synergy with Ryzen 9000 Series on the AM5 platform.

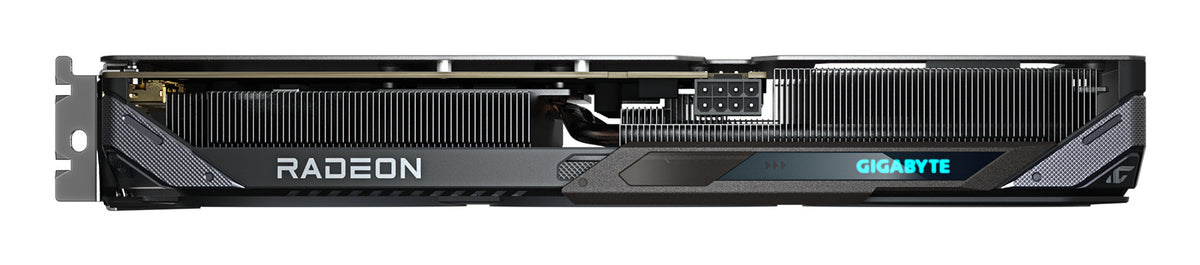

- Requires a single 8-pin power connector and a minimum recommended PSU of 450 W — verify your power supply meets this before purchasing.
- Card dimensions are 281 mm long × 118 mm wide × 40 mm tall; confirm your case has adequate clearance before ordering.
- Not compatible with laptops, small-form-factor systems that lack a full-length PCIe x16 slot, or systems without the required 8-pin PCIe power connector.
Best for
- Desktop gamers upgrading to PCIe 5.0 platforms who want a card that takes full advantage of Gen 5 bandwidth alongside a current-generation AMD Ryzen build.
- Builders who prioritise memory headroom — 16 GB of GDDR6 at 20 Gbps is generous for this segment and suits those running high-resolution textures or workloads that stress VRAM.
- Gamers using AMD FidelityFX Super Resolution 4 or HYPR-RX, where the RDNA 4 AI accelerators deliver ML-powered upscaling benefits that older GPU architectures cannot match.
- Multi-monitor users who need three simultaneous outputs up to 7680 × 4320, covered by the two DisplayPort 2.1a and one HDMI 2.1b ports.
- Builders with thermally constrained cases who will benefit from the WINDFORCE system's copper heat pipes, copper plate, and alternate-spinning Hawk fans keeping temperatures in check.
Trade-offs
- Workstation users needing professional API support — this card exposes DirectX 12 and OpenGL 4.6, which are gaming APIs; it is not a certified workstation GPU.
- Systems with a power supply below 450 W — the vendor's recommended PSU is 450 W; lower-rated units may not provide stable power delivery.
- Compact or mini-ITX cases with limited length — at 281 mm long and 40 mm tall, this card will not fit enclosures that cannot accommodate its physical dimensions.
- Users who need more than three simultaneous displays — the card's multi-view maximum is three outputs, so four-screen setups are not supported.
Powered by groundbreaking RDNA™ 4 architecture with unified compute units featuring advanced raytracing and AI accelerators, support for AMD FidelityFX™ Super Resolution 4 technology and AMD HYPR-RX for ultra-smooth, ultra-responsive gameplay that makes every play count.
Enjoy gaming like never before with immersive, lifelike visuals driven by next-gen raytracing, supercharged with AMD FidelityFX™ Super Resolution 4 ML-powered upscaling, and elevated streaming clarity by Enhanced Media Engine.
Built for longevity, AMD Radeon™ RX 9060 XT graphics cards feature up to 16GB VRAM, PCI Express® Gen 5 support, AMD Smart Access Memory™ technology, AI-enabled technologies, and seamless pairing with AMD Ryzen™ 9000 Series processors to unlock the full potential of your AM5 platform.
The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a copper plate, 3D active fans, and screen cooling.
General
| Brand | GIGABYTE |
|---|---|
| Graphics Processing | Radeon RX 9060 XT |
| PCB Form | ATX |
| DirectX | DirectX 12 API |
| OpenGL | OpenGL 4.6 |
Performance
| Boost Clock | Up to 3320 MHz (Reference: 3130 MHz) |
|---|---|
| Game Clock | Up to 2780 MHz (Reference: 2530 MHz) |
| Stream Processors | 2048 |
| Memory Size | 16 GB |
| Memory Type | GDDR6 |
| Memory Clock | 20 Gbps |
| Memory Bus | 128-bit |
Connectivity & Display
| Card Bus | PCI-E 5.0 |
|---|---|
| Outputs | DisplayPort 2.1a ×2, HDMI 2.1b ×1 |
| Max Digital Resolution | 7680 × 4320 |
| Multi-view (max displays) | 3 |
Power & Physical
| Recommended PSU | 450 W |
|---|---|
| Power Connectors | 8-pin ×1 |
| Card Size (L × W × H) | 281 × 118 × 40 mm |
| Accessories | VGA manual |
