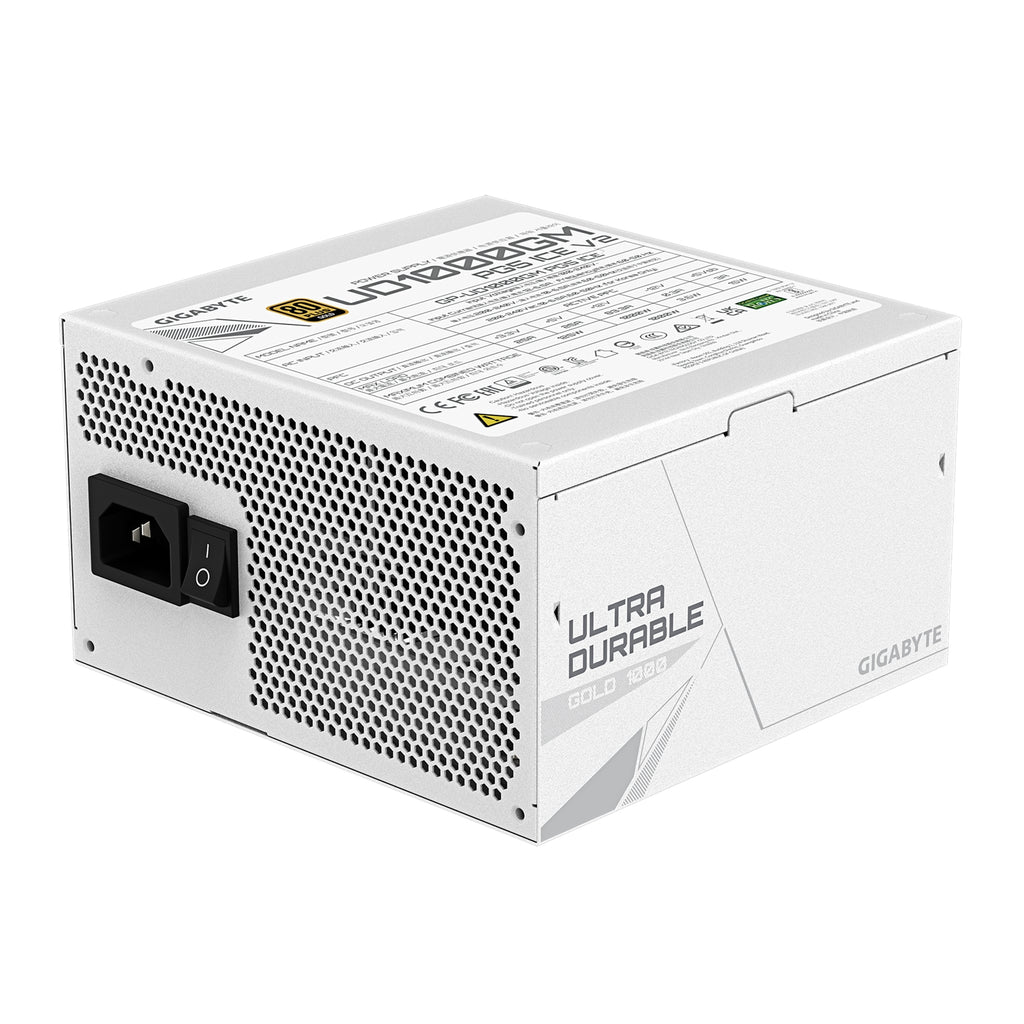

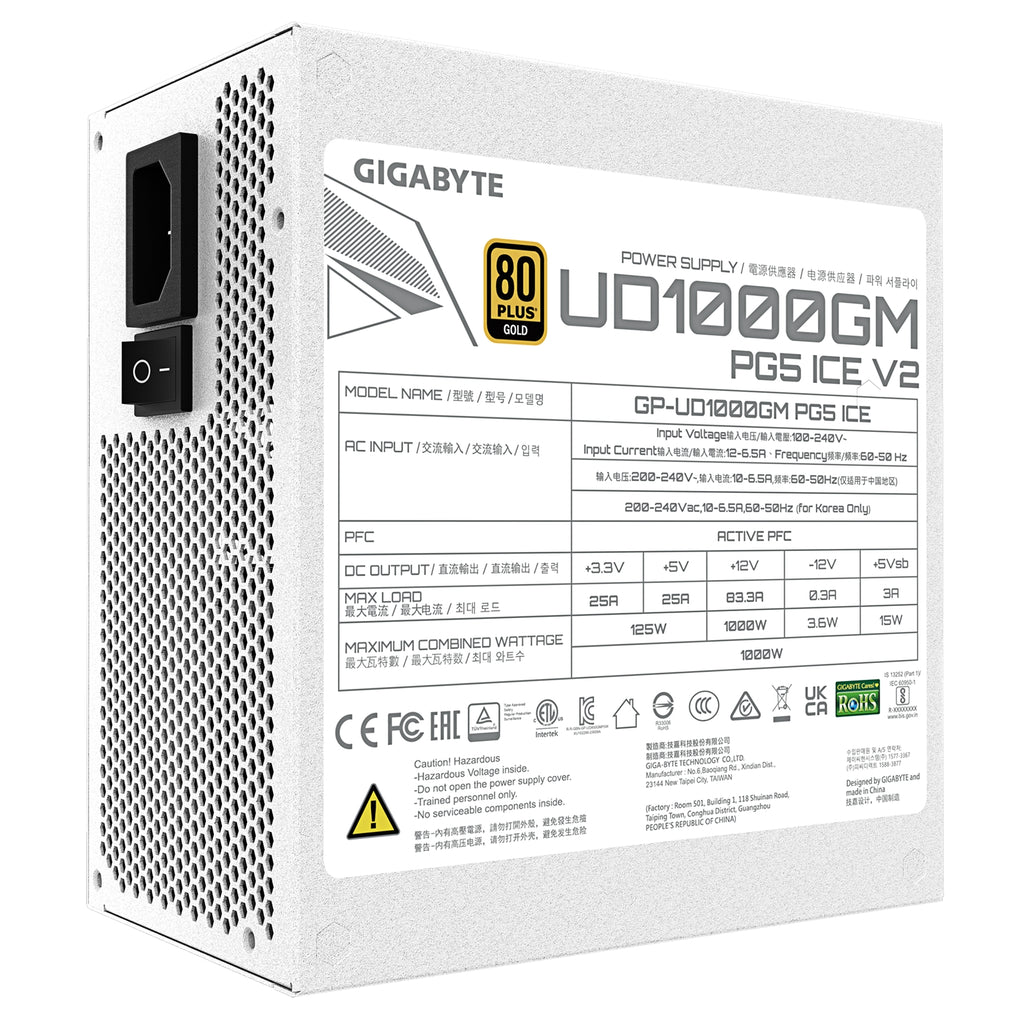

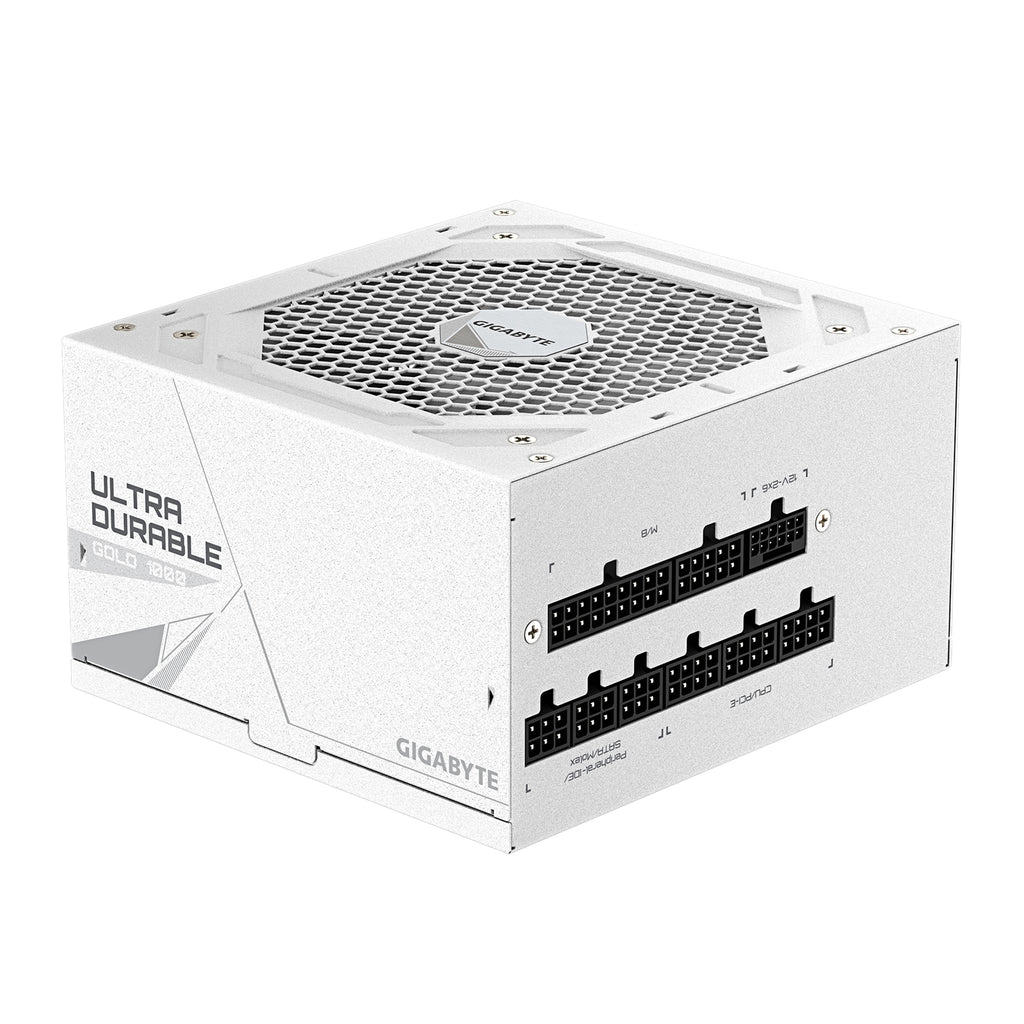

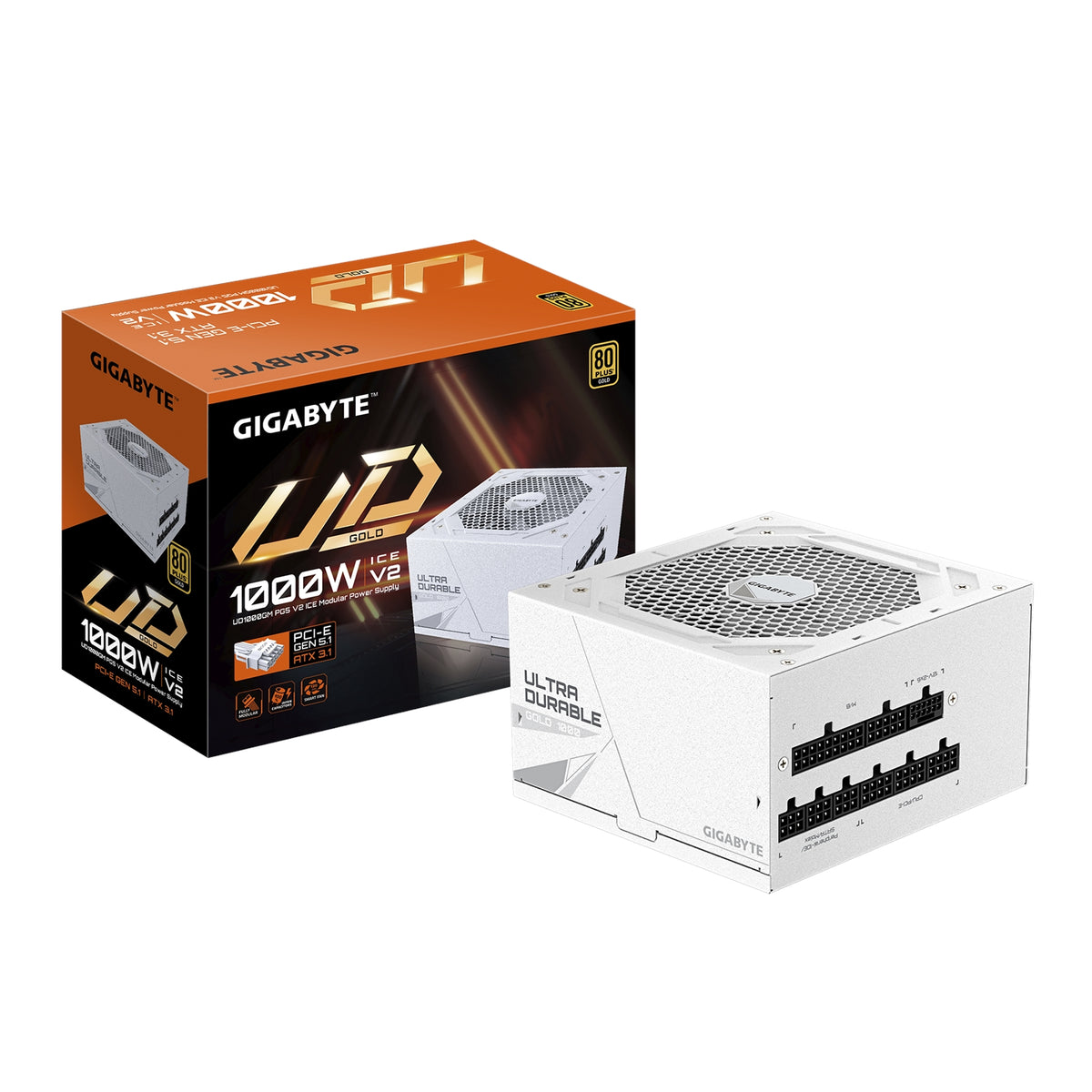

GIGABYTE UD1000GM PG5 V2 ICE 1000W PSU - ATX 3.1 PCIe 5.1
GIGABYTE
GIGABYTE UD1000GM PG5 V2 ICE 1000W PSU - ATX 3.1 PCIe 5.1
The GIGABYTE UD1000GM PG5 V2 ICE is a 1000W fully modular ATX 3.1 power supply built for builders who need a PSU that can meet the demanding power requirements of current and next-generation PCIe Gen 5.1 graphics cards, including the GeForce RTX 50 Series. It combines 80 PLUS Gold and Cybenetics Platinum efficiency ratings with a 10-year warranty and a comprehensive set of hardware protections, making it a strong anchor for a high-performance desktop build.
Why this product
Native 16-pin PCIe Gen 5.1 cable
A built-in 12+4 pin cable delivers up to 600W to a single GPU, meeting the full power budget of PCIe Gen 5.1 cards such as the GeForce RTX 50 Series without adapters.
ATX 3.1 compliant for multi-GPU excursions
Intel ATX 3.1 compliance means it can handle up to 3× GPU and 2× system power excursions, preventing shutdowns during sudden workload spikes common with modern discrete graphics.
80 PLUS Gold and Cybenetics Platinum rated
Achieves 90% efficiency at typical load and 70% efficiency at low loads, reducing waste heat and energy costs across the full usage range.
100% Japanese capacitors throughout
Every capacitor is sourced from Japanese manufacturers, which GIGABYTE specifies as the basis for stable voltage delivery and long-term reliability.
Silent at idle and light loads
The 120mm hydraulic bearing fan does not spin until the system exceeds 20% load, keeping the PSU completely silent during everyday desktop use.
10-year product warranty
GIGABYTE backs this unit with a 10-year warranty (subject to region), one of the longest coverage periods available on a consumer power supply.
- Output Capacity1000W
- Form FactorIntel ATX 12V v3.1
- Efficiency90% at typical load
- 80 PLUS RatingGold
- Cybenetics RatingPlatinum
- Native PCIe Gen 5.1 Cable12+4 Pin × 1 (700mm, up to 600W)
- Warranty10 years (subject to region)
- Dimensions150 × 140 × 86 mm
- SKUGIG-742
- EAN4719331556631
- Fits standard ATX cases that accept a 150 × 140 × 86 mm PSU.
- Compatible with Intel ATX 12V v3.1 motherboards and systems.
- Directly powers PCIe Gen 5.1 graphics cards such as the GeForce RTX 50 Series via the included native 12+4 pin connector.
- Accepts full-range input voltage (100–240 V AC), making it suitable for use in most countries worldwide.
- The 10-year warranty coverage is subject to regional availability; verify with your local GIGABYTE distributor before purchase.
- Not designed for SFX or TFX form-factor cases; the 140 mm depth exceeds SFX dimensions.
Best for
- High-end GPU builds: delivers up to 600W through a native PCIe Gen 5.1 connector and handles extreme power excursions, making it appropriate for RTX 50 Series and similarly demanding cards.
- Long-term ownership: the 10-year warranty and hydraulic bearing fan are both indicators of an extended service life, reducing replacement risk over a multi-year ownership period.
- Quiet workstations: the fan stays off below 20% load, so everyday desktop and office tasks run in complete silence.
- Energy-conscious builders: dual efficiency certifications (80 PLUS Gold and Cybenetics Platinum) confirm low power waste at both typical and light loads.
- Clean cable management builds: the fully modular design means unused cables are never installed, and all cables are all-black with an embossed finish.
Trade-offs
- Compact or small-form-factor systems: the 150 × 140 × 86 mm body will not fit SFX or TFX PSU bays.
- Very low power systems: at 1000W rated capacity, it is oversized and less cost-effective for builds drawing well under 500W continuously.
- Regions where the 10-year warranty is unavailable: warranty coverage is subject to region, so buyers should confirm local terms before purchasing.
Ready for next-gen power demands, this ATX 3.1 compliant PSU handles up to 3× GPU and 2× system power excursions with 70% efficiency at low loads. The high-performance native 16-pin cable delivers up to 600W for PCIe Gen 5.1 graphics cards, such as the GeForce RTX™ 50 Series and beyond.
Carrying the Ultra Durable design DNA, this power supply packs high-quality components and smart design features for rock-solid stability and lasting performance. High-quality Japanese capacitors are used throughout, ensuring efficient performance and long-lasting reliability. Fan speed adjusts automatically based on power load, staying silent when the system is idle or under 20 percent load. The hydraulic bearing fan ensures a longer, more stable lifespan for sustained performance.
Multiple protection features are integrated to ensure stable operation under any condition.
General
| Brand | GIGABYTE |
|---|---|
| Model | GP-UD1000GM PG5 ICE |
| Form Factor | Intel ATX 12V v3.1 |
| Output Capacity | 1000W |
| Modular | Fully modular |
| Dimensions | 150 × 140 × 86 mm |
| Warranty | 10 years (subject to region) |
Efficiency & Power
| 80 PLUS Certification | Gold |
|---|---|
| Cybenetics Certification | Platinum |
| Efficiency (typical load) | 90% |
| Efficiency (low load) | 70% |
| PFC | Active PFC (>0.9 typical) |
| Input Voltage | 100–240 V AC (full range) |
| Input Current | 15–6.5 A |
| Input Frequency | 50–60 Hz |
| MTBF | >100,000 hours |
| Hold Up Time | >16 ms |
| Power Good Signal | 100–150 ms |
Cooling & Protection

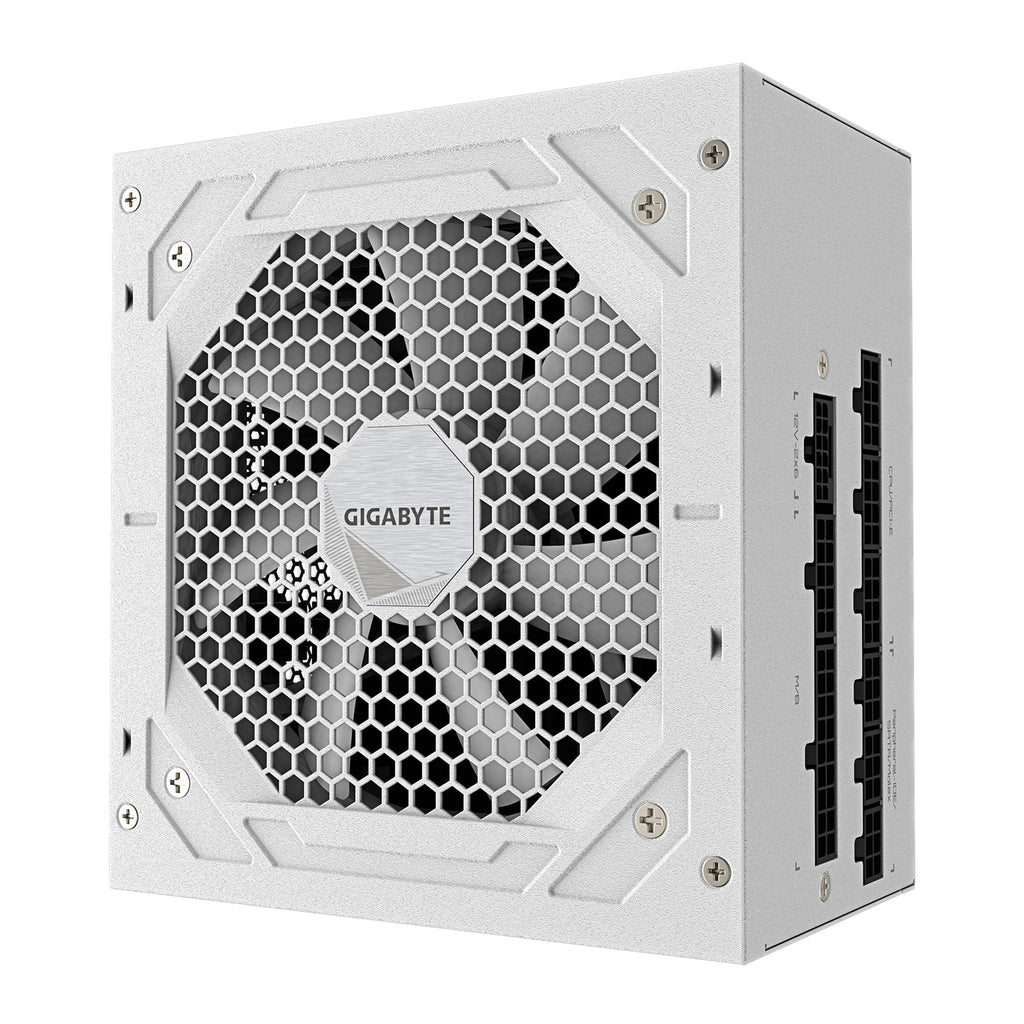

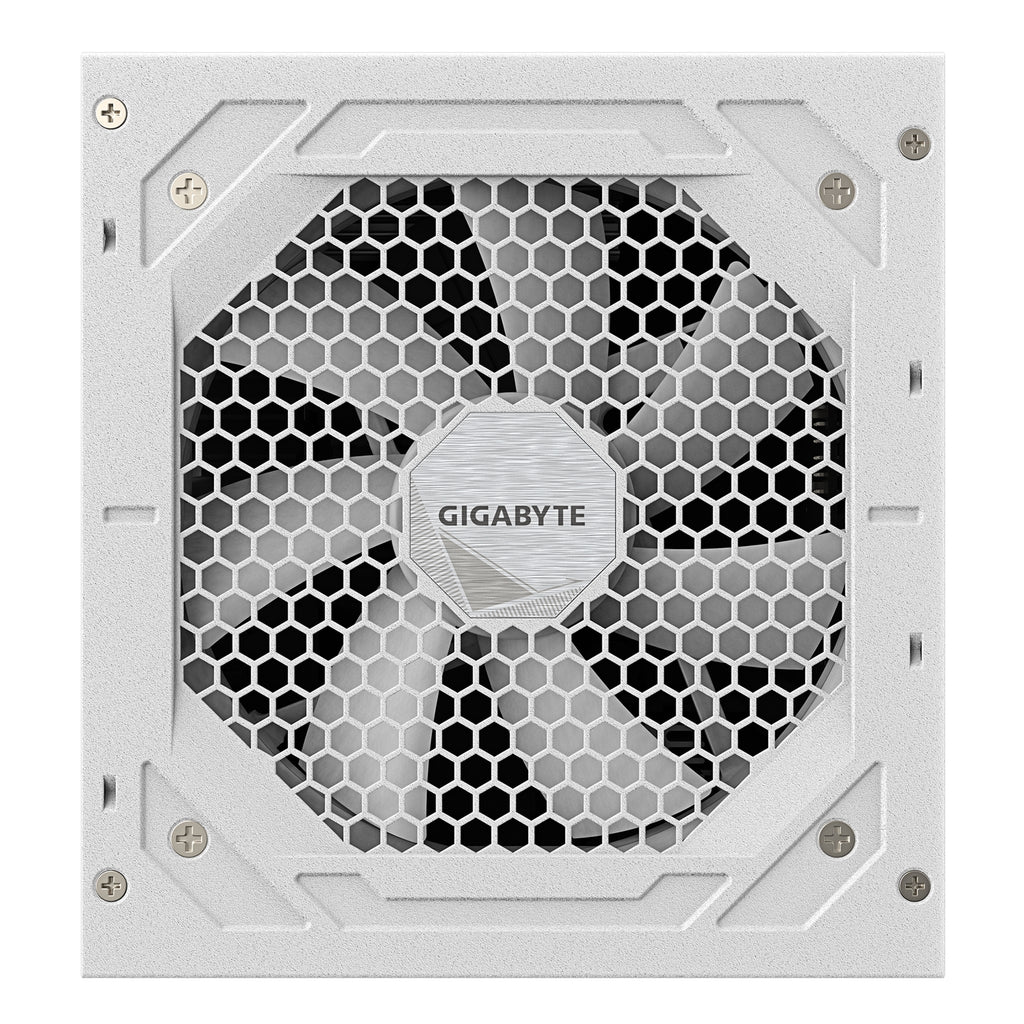

| Fan | 120mm Hydraulic Bearing (HYB) |
|---|---|
| Fan Control | Smart; silent below 20% load |
| Protection | OVP / OPP / SCP / UVP / OCP / OTP / NLO / SIP |

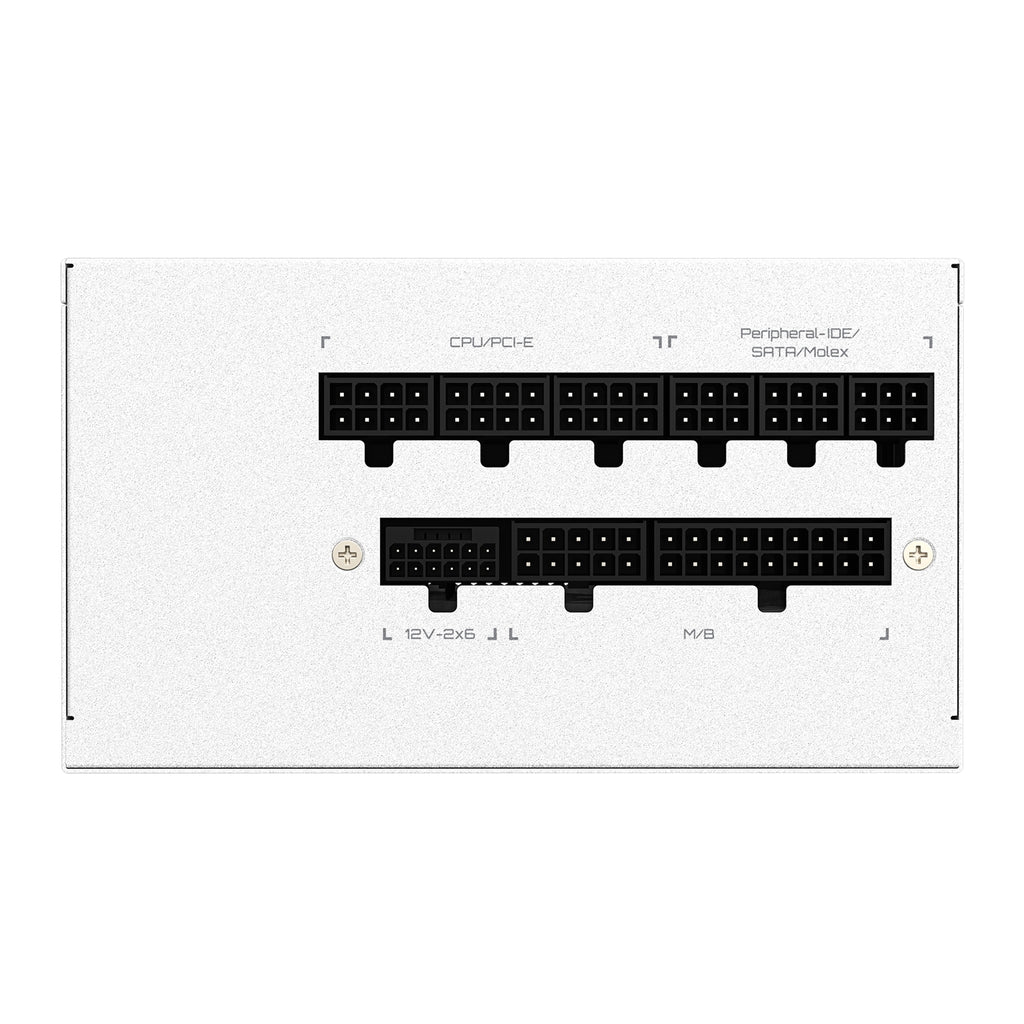

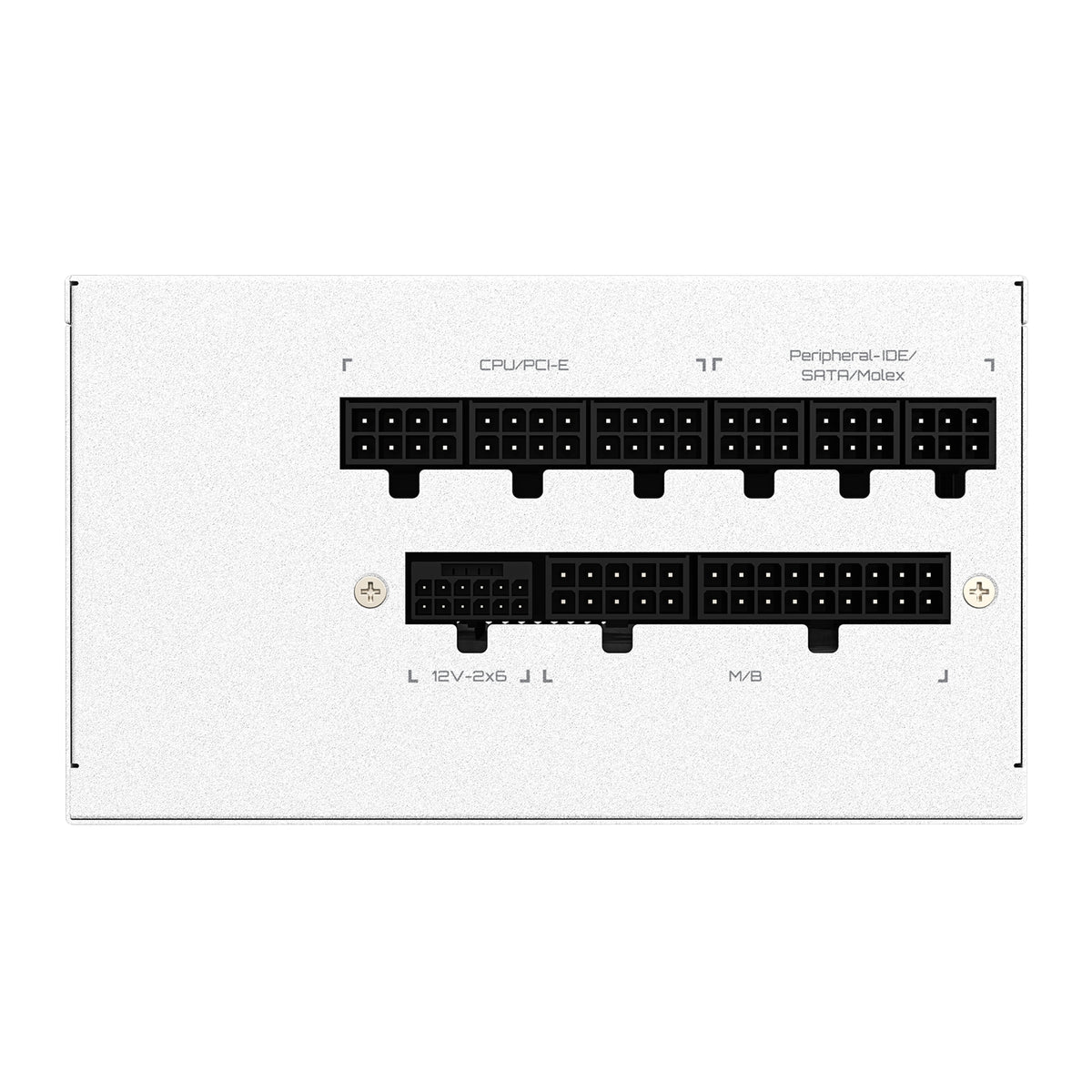

Connectors & Cables
| ATX / Motherboard | 20+4 Pin × 1 (610 mm) |
|---|---|
| CPU / EPS | 4+4 Pin × 2 (650 mm + 200 mm) |
| PCIe 6+2 Pin | × 4 (600 mm + 150 mm each, ×2 cables) |
| PCIe 12+4 Pin (Gen 5.1) | × 1 (700 mm) |
| SATA | × 8 (600 mm + 150 mm + 150 mm + 150 mm, ×2 cables) |
| 4-Pin Peripheral | × 3 + 4-Pin Floppy × 1 (500 mm + 150 mm + 150 mm + 150 mm) |
| Cable Style | Embossed, all black |
