Gigabyte X870 AORUS STEALTH AM5 ATX Motherboard - Wi-Fi 7
GIGABYTE
Gigabyte X870 AORUS STEALTH AM5 ATX Motherboard - Wi-Fi 7
The Gigabyte X870 AORUS STEALTH AM5 ATX Motherboard is built for PC builders and enthusiasts running AMD Ryzen 9000, 8000, or 7000 Series processors who want fast storage, high-speed networking, and tool-free assembly. Its reverse-connect STEALTH design eliminates visible cables while delivering DDR5 overclocking and PCIe 5.0 performance.
Why this product
PCIe 5.0 and DDR5 8200 MT/s ready
Four M.2 slots (two PCIe 5.0, two PCIe 4.0) and DDR5 support up to 8200 MT/s with AMD EXPO give you headroom for the latest storage and memory standards.
Tool-free, reverse-connect assembly
EZ-Latch Plus and EZ-Latch Click designs eliminate screws on M.2 heatsinks and PCIe slots, while the STEALTH series' reverse-connect layout hides cabling inside the case for a cleaner look.
5GbE and Wi-Fi 7 connectivity
Ultra-high-gain directional antenna and pre-installed Wi-Fi drivers (DriverBIOS) provide fast wired and wireless networking out of the box.
Dual USB4 with DisplayPort Alt Mode
Two USB4 Type-C ports deliver up to 40 Gb/s bandwidth each and support external displays via DisplayPort Alt Mode.
Comprehensive thermal management
VRM Thermal Armor, M.2 Thermal Guard with high-conductivity pads, and flexible M.2 EZ-Flex baseplate keep power delivery and storage cool under load.
- SocketAMD AM5
- ChipsetAMD X870
- Form FactorATX (305 mm × 244 mm)
- Memory SupportDDR5 4400–8200 MT/s (up to 256 GB)
- PCIe Slots1 × PCIe 5.0 x16 (UD Slot); 1 × PCIe 4.0 x4
- M.2 Slots4 (2 × PCIe 5.0; 2 × PCIe 4.0)
- WirelessWi-Fi 7 (802.11be); Bluetooth 5.4
- SKUGIG-1929
- EAN4719331878801
- Supports AMD Ryzen 9000, 8000, and 7000 Series processors in Socket AM5.
- Accepts DDR5 memory modules from 4400 to 8200 MT/s; supports up to 256 GB across four DIMM slots.
- Fits standard ATX cases (305 mm × 244 mm form factor).
- HDMI and dual USB4 Type-C with DisplayPort Alt Mode for display output.
- PCIe UD Slot (PCIe 5.0 x16) supports graphics cards; secondary slot is PCIe 4.0 x4, suitable for expansion cards but not high-bandwidth GPU scaling.
Best for
- AMD Ryzen CPU overclocking
- Storage-heavy builds with NVMe RAID
- Compact, cable-free case aesthetics
- High-speed networking (5GbE and Wi-Fi 7)
- Builders who value tool-free assembly
Trade-offs
- Users of older AMD sockets (AM4, FM2+, or older) — this board requires Socket AM5.
- Dual-GPU setups — the secondary PCIe slot is x4, limiting bandwidth for second graphics cards.
- Builders with tight budgets — X870 and Wi-Fi 7 add cost over older chipset alternatives.
- Intel platform users — Socket AM5 is AMD-only.
STEALTH series gaming motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.
X3D Turbo Mode: Unleash new era gaming performance. DDR5 OC up to 8200MT/s. DriverBIOS: Wi-Fi Driver Pre-install, Power-On & EZ to Launch the Network.
AMD Socket AM5: Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors. Digital Twin 16+2+2 phases VRM solution. Dual Channel DDR5: 4*DIMMs with AMD EXPO™.
- Ultra-Fast Storage: 4*M.2 slots, including PCIe 5.0 x4
- Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard L & M.2 Thermal Guard Ext.
- Fast Networking: 5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
- Extended Connectivity: HDMI, Dual USB4 Type-C with DP-Alt
- PCIe UD Slot: PCIe 5.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect
- M.2 EZ-Flex: high-efficiency heat dissipation & flexible baseplate for M.2 SSD (Exclusive Patented Design)
- WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
- EZ-Latch Plus: PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click: M.2 heatsinks with screwless design
- Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
Delivers consistent, high-powered performance to elevate your overclocking to the next level. Unlock the full power of your multi-core CPU for unmatched performance. Optimized for integrated GPU performance and memory management within the CPU. Deliver reliable power to your CPU-connected PCIe lanes for uninterrupted performance.
Engineered for maximum cooling performance — high-efficiency heat dissipation & a flexible baseplate for M.2 SSD. To prevent overheating, high thermal conductivity pads are typically added.
Protect your motherboard through multiple over-temperature and over-current safeguards.
General
| Brand | Gigabyte |
|---|---|
| Chipset | AMD X870 |
| Form Factor | ATX |
| Dimensions | 305 mm × 244 mm |
Memory & CPU
| CPU Socket | AMD Socket AM5 (Ryzen 9000, 8000, 7000 Series) |
|---|---|
| Memory Type | DDR5 |
| Memory Slots | 4 × DDR5 DIMM (Dual Channel) |
| Memory Speed | 4400–8200 MT/s (O.C.) |
| Max Memory | 256 GB |
| VRM Phases | Digital Twin 16+2+2 |
Storage & Expansion
| M.2 Slots | 4 × M.2 Socket 3 (2 × PCIe 5.0 x4; 2 × PCIe 4.0 x4) |
|---|---|
| PCIe Slots | 1 × PCIe 5.0 x16 (PCIe UD Slot); 1 × PCIe 4.0 x4 |
| SATA Connectors | 2 × SATA 6 Gb/s |
| NVMe RAID | RAID 0, 1, 5, 10 |
Networking & Connectivity
| LAN | 5GbE |
|---|---|
| Wireless | Wi-Fi 7 (802.11be); Bluetooth 5.4 |

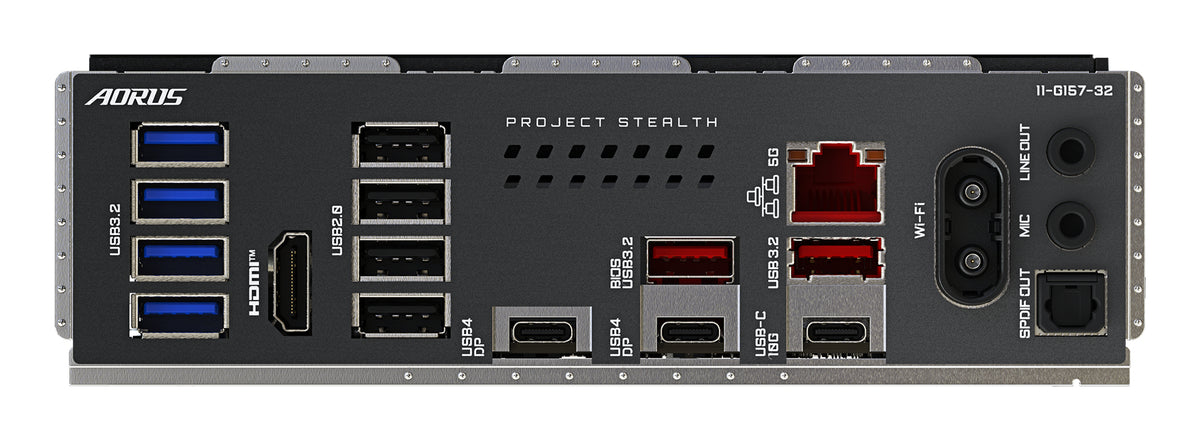

| Rear USB | 2 × USB4 (40 Gb/s); 1 × USB 3.2 Gen 2 Type-C; 2 × USB 3.2 Gen 2 Type-A; 4 × USB 3.2 Gen 1 Type-A; 4 × USB 2.0 |
| Video Output | 1 × HDMI; 2 × USB4 Type-C with DisplayPort Alt Mode (40 Gb/s) |
Power & Cooling
| CPU Power Connectors | 1 × 8-pin ATX 12V; 1 × 4-pin ATX 12V |
|---|---|
| Main Power Connector | 1 × 24-pin ATX |
| Fan Headers | 1 × CPU; 1 × CPU/pump; 4 × system; 2 × system/pump (8 PWM/DC total); Dual Fan Curve Mode |
| RGB Headers | 3 × ARGB Gen 2; 1 × RGB LED |
| Thermal Features | VRM Thermal Armor, M.2 Thermal Guard, 7 W/mK thermal pads, M.2 EZ-Flex flexible baseplate |
Audio & BIOS
| Audio Codec | Realtek ALC1220 |
|---|---|
| Audio Channels | 7.1 Channel; S/PDIF output |
| Audio Playback | up to 32-bit/384 kHz |
| BIOS | 512 Mb AMI UEFI; Q-Flash, Q-Flash Plus, Smart Backup |
