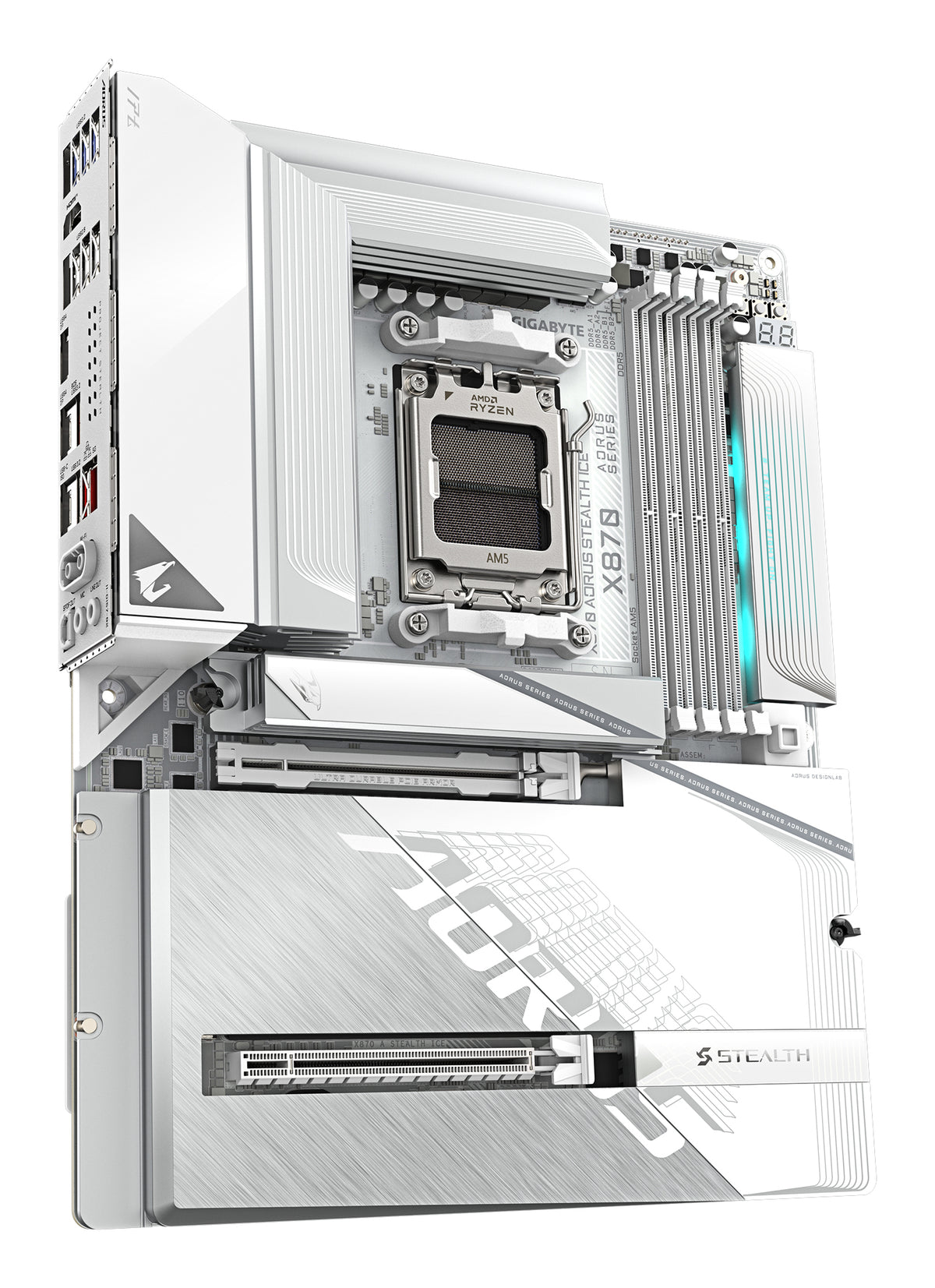

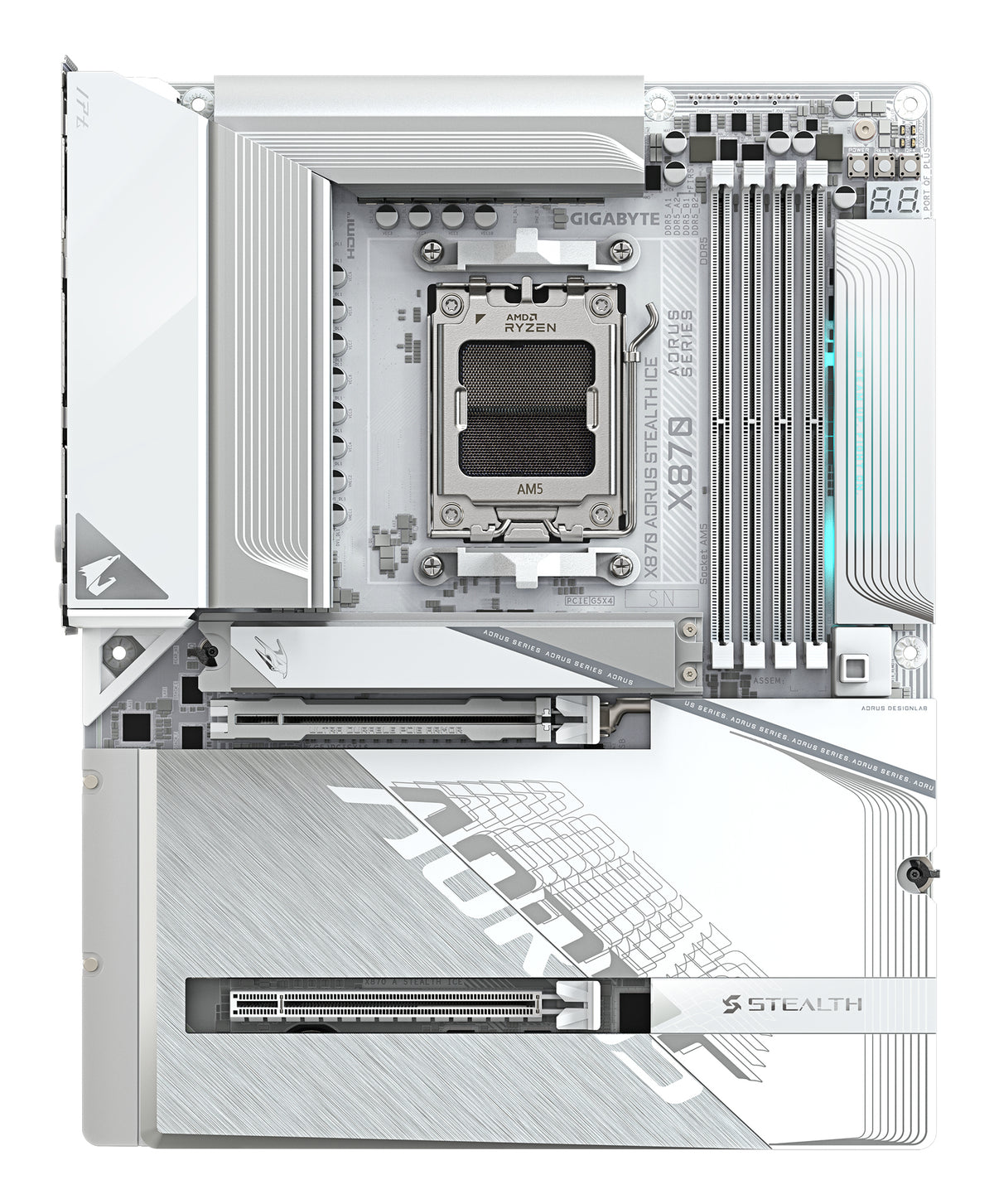

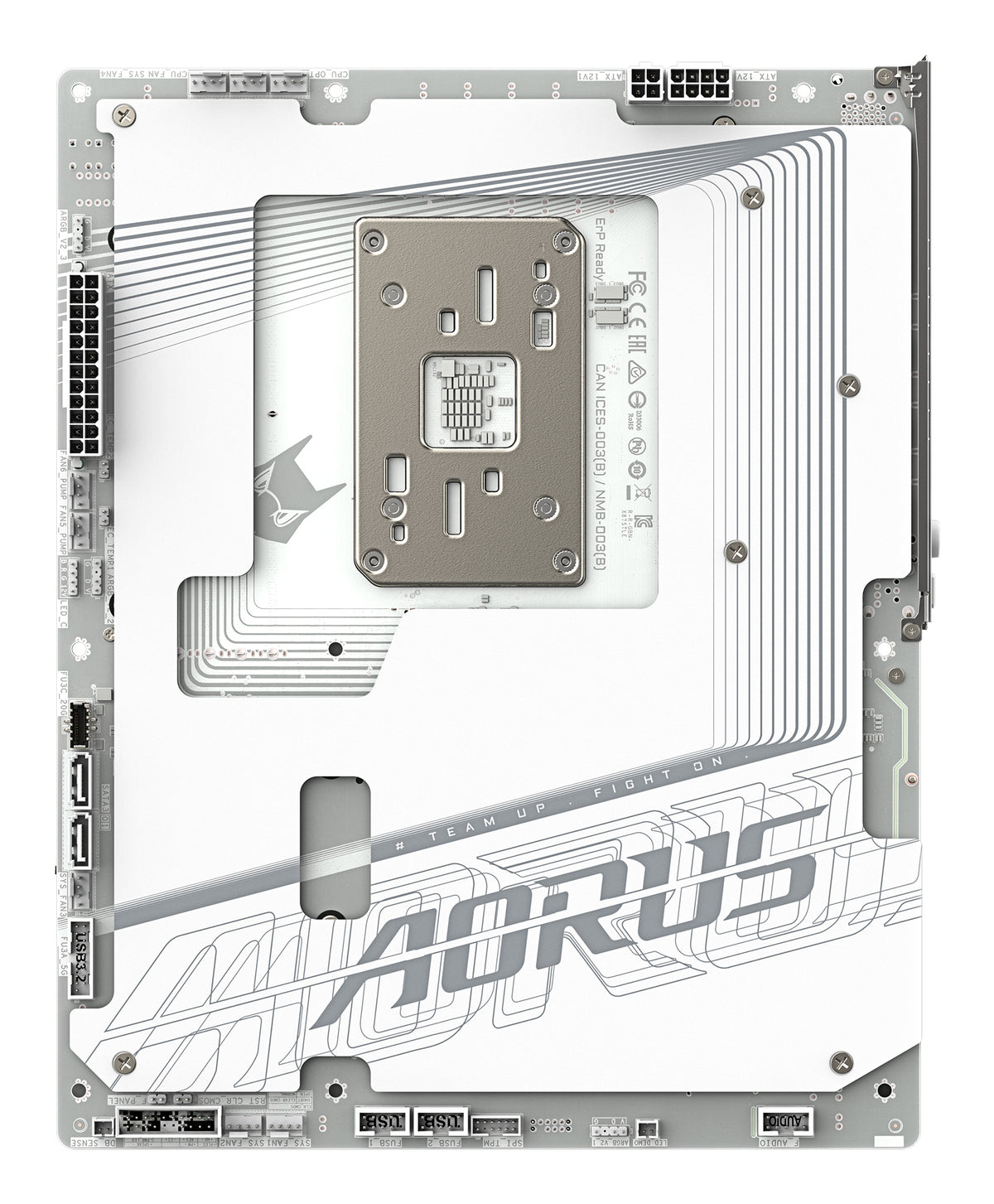

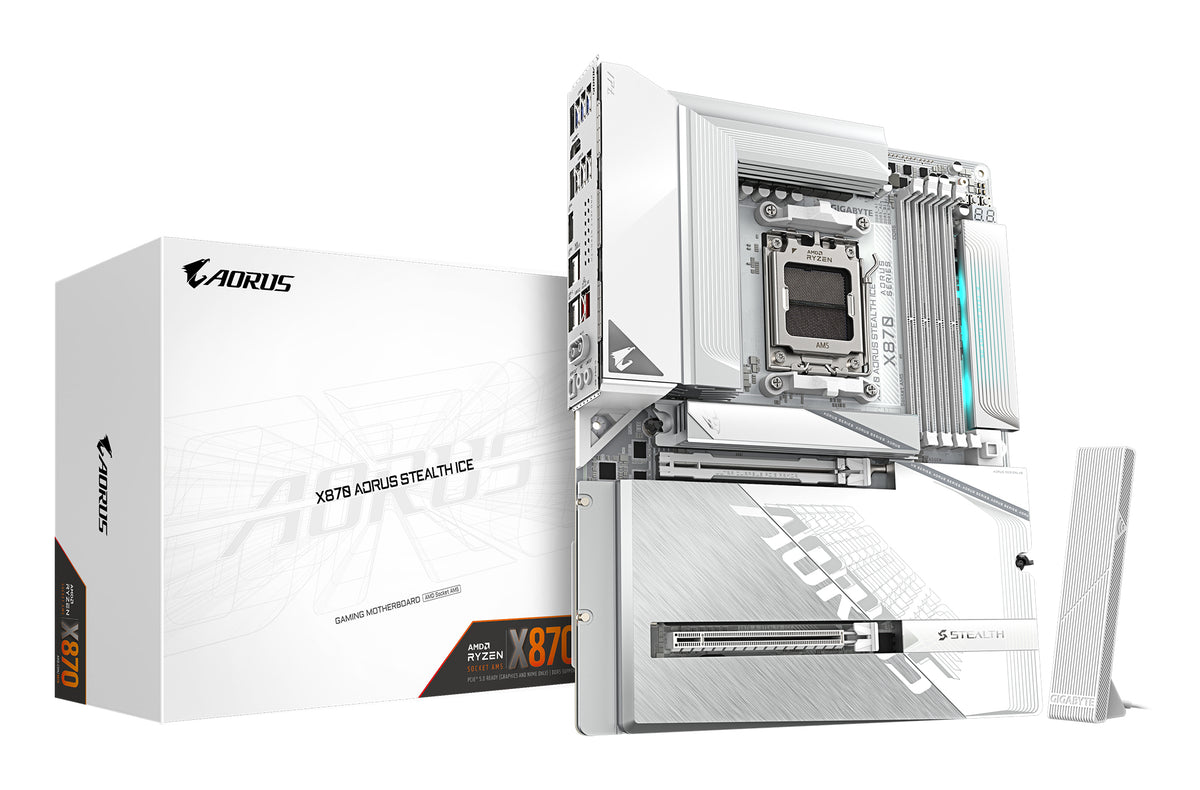

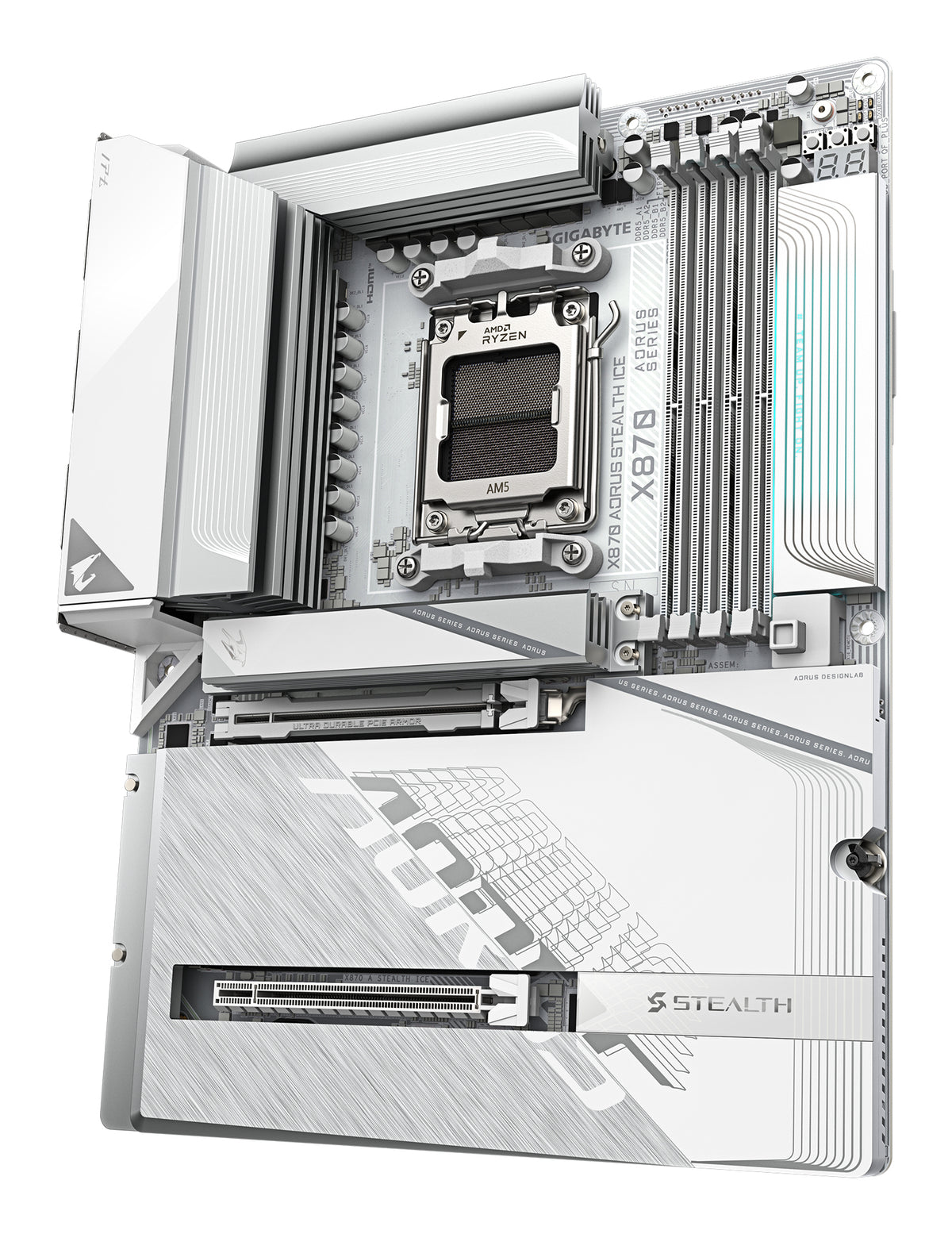

Gigabyte X870 AORUS STEALTH ICE AM5 Motherboard - Wi-Fi 7
GIGABYTE
Gigabyte X870 AORUS STEALTH ICE AM5 Motherboard - Wi-Fi 7
The Gigabyte X870 AORUS STEALTH ICE AM5 Motherboard is built for enthusiasts and gamers who want a stable foundation for high-end Ryzen builds with robust power delivery and fast storage connectivity. It combines DDR5 memory support with PCIe 5.0 expansion for processors that demand consistent, high-powered performance.
Why this product
DDR5 memory up to 8200 MT/s
Supports overclocked DDR5 speeds through EXPO and XMP profiles, with up to 256 GB total capacity across 4 slots.
PCIe 5.0 storage and GPU slots
Four M.2 slots include two PCIe 5.0 connections for next-gen SSDs, plus a PCIe 5.0 x16 slot with reinforced heatsinking for graphics cards.
16+2+2 phase VRM for power stability
Digital twin power delivery provides clean, stable voltage to the CPU and chipset under sustained loads or overclocking.

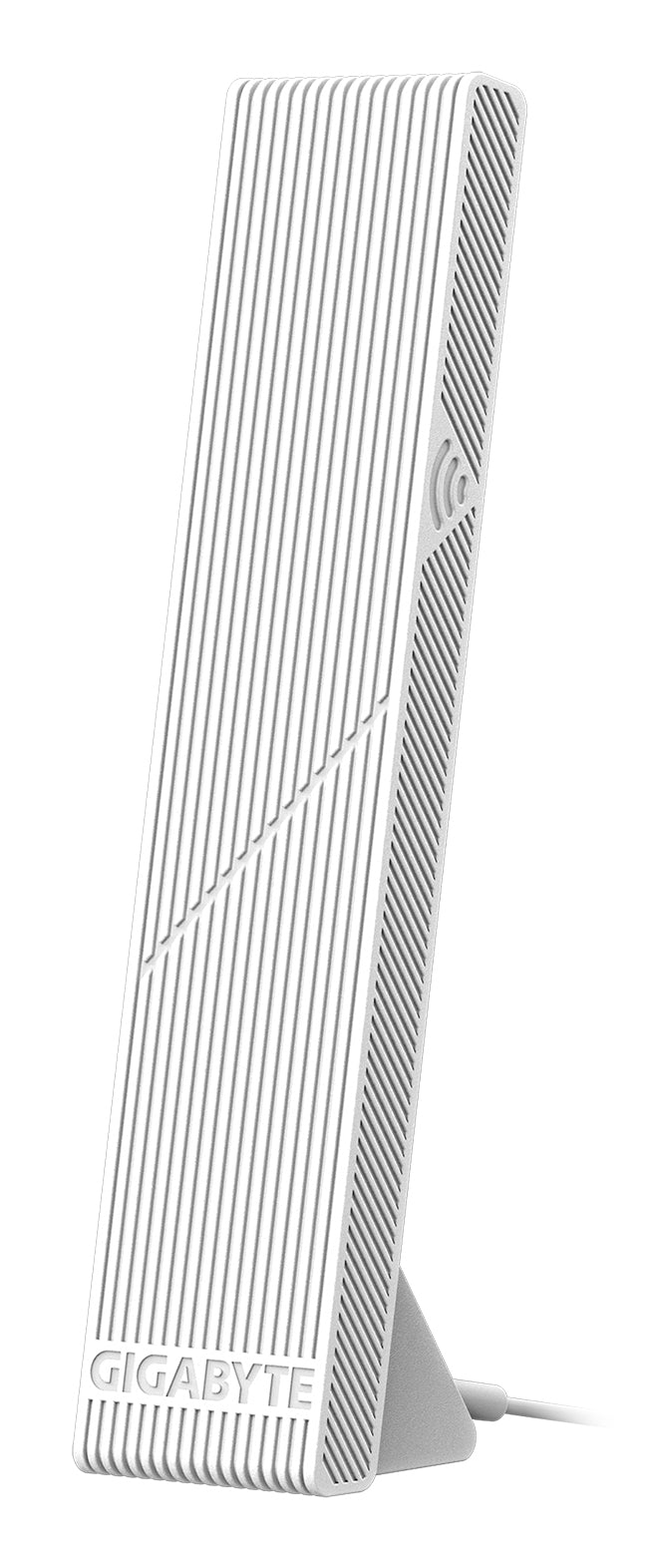

Wi-Fi 7 and dual USB4
Supports 5.8 Gbps wireless with Bluetooth 5.4; two Thunderbolt-compatible USB4 ports offer up to 40 Gb/s bandwidth and DisplayPort Alt Mode.
Thermal armor for VRM and storage
M.2 EZ-Flex baseplate and VRM Thermal Guard dissipate heat from high-speed components; 7 W/mK thermal pads aid cooling.
- SocketAMD AM5
- ChipsetAMD X870
- Form FactorATX (30.5 × 24.4 cm)
- Memory Slots4 × DDR5
- M.2 Slots4 (2× PCIe 5.0, 2× PCIe 4.0)
- Wi-FiWi-Fi 7 with Bluetooth 5.4
- USB Ports2× USB4, 1× USB 3.2 Gen 2 Type-C, 4× USB 3.2 Gen 1, 6× USB 2.0
- SKUGIG-1897
- EAN4719331873097
- Supports AMD Ryzen 9000, 8000, and 7000 Series processors in AM5 socket.
- Accepts DDR5 non-ECC memory up to 256 GB in 4 DIMM slots; compatible with AMD EXPO and Intel XMP.
- Provides 4 M.2 NVMe slots (2 PCIe 5.0, 2 PCIe 4.0) and 2 SATA ports for mixed storage configurations.
- Dual USB4 ports support DisplayPort Alt Mode for external displays; requires compatible USB4 cable and power supply.
Best for
- High-end gaming rigs
- Content creation and rendering
- Overclocking and performance tuning
- Multi-GPU and fast NVMe storage setups
Trade-offs
- Budget builds. X870 chipset and X3D Turbo features are priced above mainstream alternatives.
- Mini-ITX or micro-ATX form factors. This board is full-size ATX only.
- Intel processor compatibility. AM5 socket is AMD-exclusive; it does not support Intel CPUs.
- Simplicity over features. Extensive BIOS options and monitoring tools suit enthusiasts, not users seeking plug-and-play setup.
X870 AORUS STEALTH ICE Motherboards are built to unleash every ounce of performance within the latest AMD Ryzen 9000, 8000, and 7000 Series processors. Build your next rig with an AMD Ryzen processor and experience advanced overclocking performance with X870 motherboards.
STEALTH series gaming motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods. STEALTH Series with steady power keeps your AI operation smooth. Delivers consistent, high-powered performance to elevate your overclocking to the next level. Unlock the full power of your multi-core CPU for unmatched performance. Optimized for integrated GPU performance and memory management within the CPU. Deliver reliable power to your CPU-connected PCIe lanes for uninterrupted performance.
Engineered for maximum cooling performance — high-efficiency heat dissipation & a flexible baseplate for M.2 SSD. To prevent overheating, high thermal conductivity pads are typically added.
Protect your motherboard through multiple over-temperature and over-current safeguards. Restructured with user-centered and intuitive performance adjustment mechanisms. Multi-Theme Multiple BIOS skin with newly exclusive grayscale mode.
AORUS and HWiNFO co-branded OSD (On-Screen Display) can display values as text or graphs in an overlay or independent window, also in full-screen applications and games, with no need for additional software installation. When using HWiNFO on a GIGABYTE motherboard, a custom AORUS-themed interface automatically activates, offering light and dark options. This AORUS Skin can be manually applied to non-GIGABYTE boards as well. Thanks to the collaborative efforts of GIGABYTE and HWiNFO experts, this sophisticated monitoring tool now provides unprecedented detail in memory timing readouts. This empowers users to closely track memory performance and gather crucial insights.
General
| Brand | Gigabyte |
|---|---|
| CPU Socket | AMD Socket AM5 (Ryzen 9000 / 8000 / 7000 Series) |
| Chipset | AMD X870 |
| Form Factor | ATX |
Memory & Storage
| Memory Slots | 4 × DDR5 DIMM (up to 256 GB) |
|---|---|
| Memory Speed (O.C.) | DDR5-8200 MT/s |
| Memory Support | AMD EXPO, Intel XMP |
| PCIe Slots | 1× PCIe 5.0 x16 (UD Slot), 1× PCIe 4.0 x4 |
| M.2 Slots | 2× PCIe 5.0 x4 (CPU), 2× PCIe 4.0 x4/x2 (Chipset) |
| SATA Ports | 2× SATA 6Gb/s |
Power & Cooling
| VRM Phases | Digital twin 16+2+2 (16-phase VCORE) |
|---|---|
| VRM Design | 8+8 parallel power phases |
| CPU Power | 4+8 pin (UD Solid Pin) |
| ATX Power | 24 pin (UD Solid Pin) |
| Thermal Solution | VRM Thermal Armor, M.2 Thermal Guard L/Ext, 7 W/mK thermal pads |
Connectivity & Audio
| Network | 5GbE LAN (Realtek RTL8126) |
|---|---|
| Wireless | Wi-Fi 7 (Qualcomm QCNCM865) 2.4/5/6GHz up to 5.8 Gbps |
| Bluetooth | 5.4 |

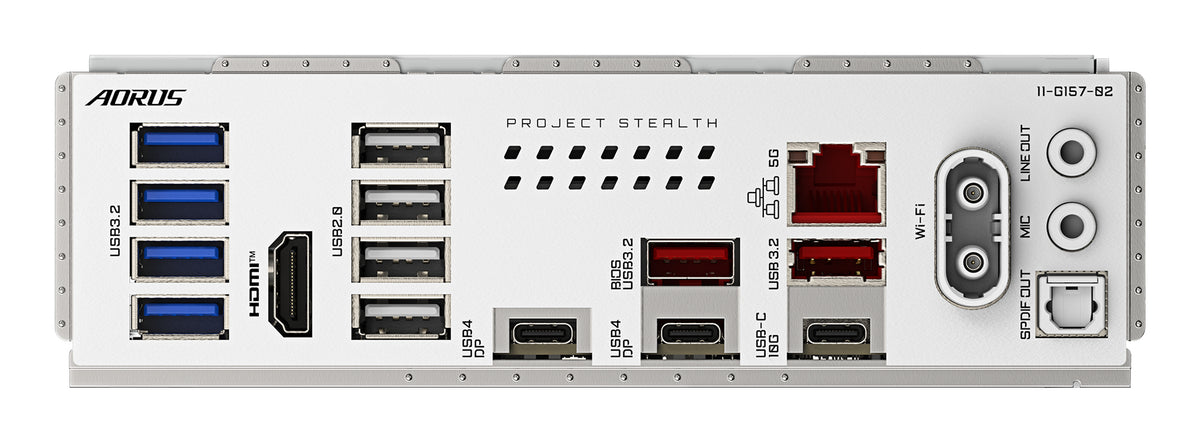

| Rear USB Ports | 2× USB4 Type-C (40 Gb/s), 1× USB 3.2 Gen 2 Type-C, 4× USB 3.2 Gen 1, 4× USB 2.0, 2× USB 3.2 Gen 2 Type-A |
| Video Output | 1× HDMI 2.1 (4096×2140@60Hz), DisplayPort via USB4 (4K@240Hz) |
| Audio | Realtek ALC1220, 7.1 Channel, S/PDIF output, up to 32-bit/384 kHz |
