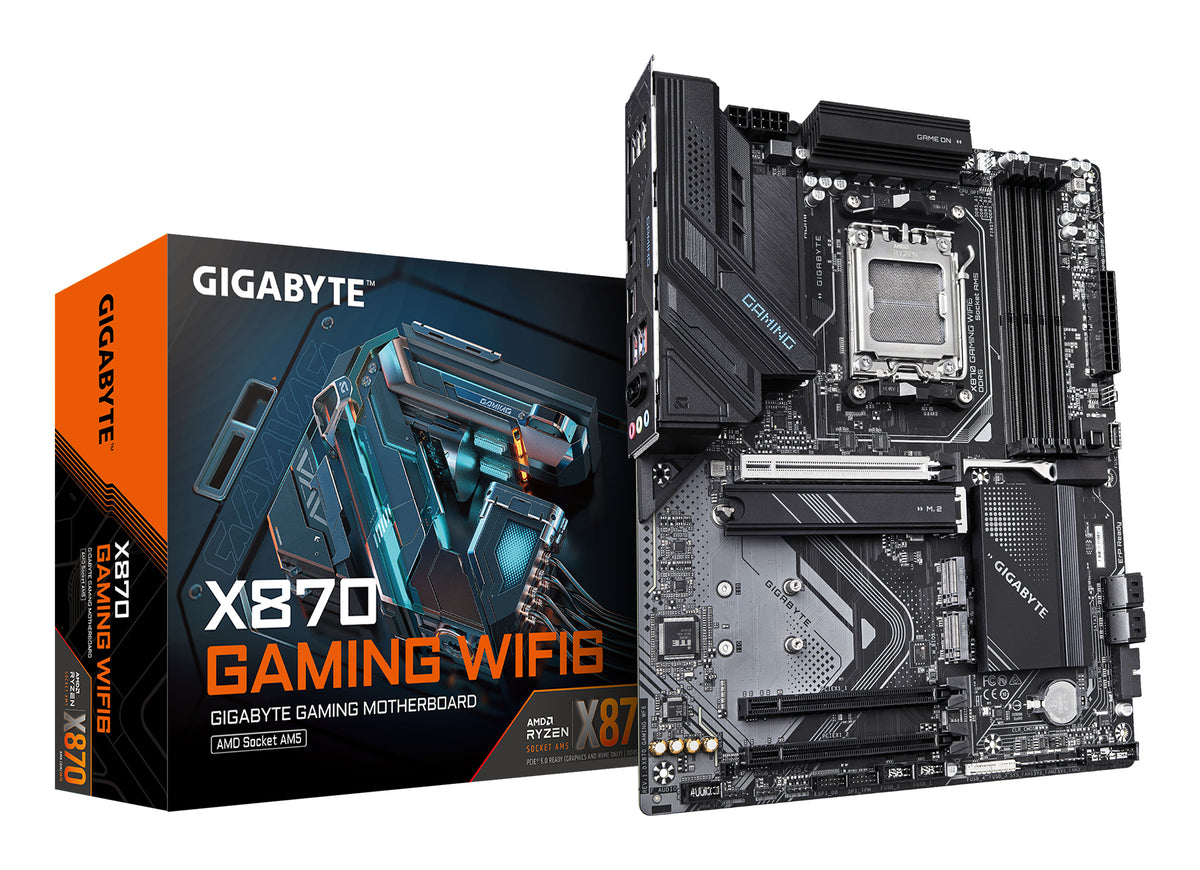

Gigabyte X870 Gaming WiFi6 AM5 ATX DDR5 Motherboard
GIGABYTE
Gigabyte X870 Gaming WiFi6 AM5 ATX DDR5 Motherboard

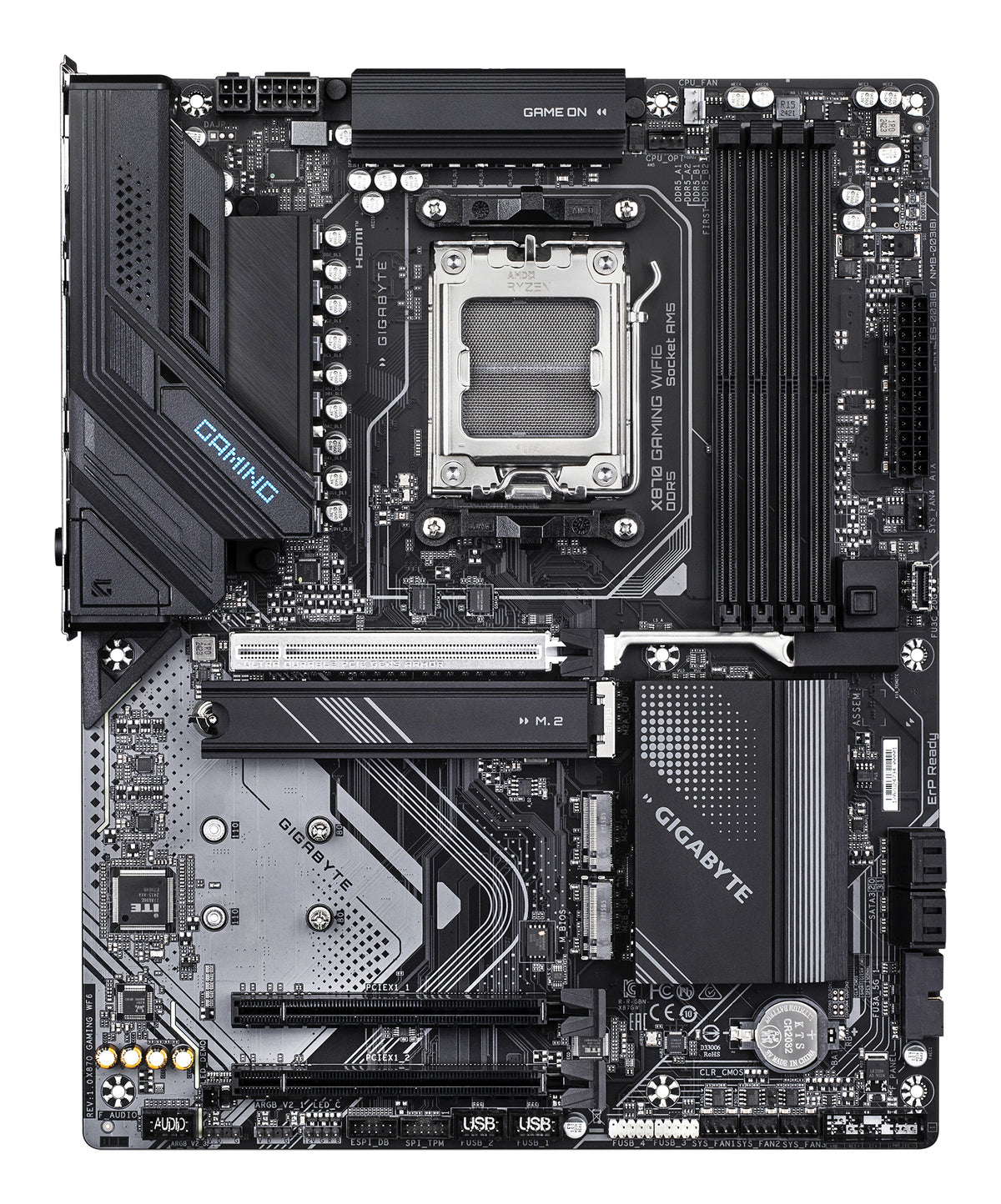

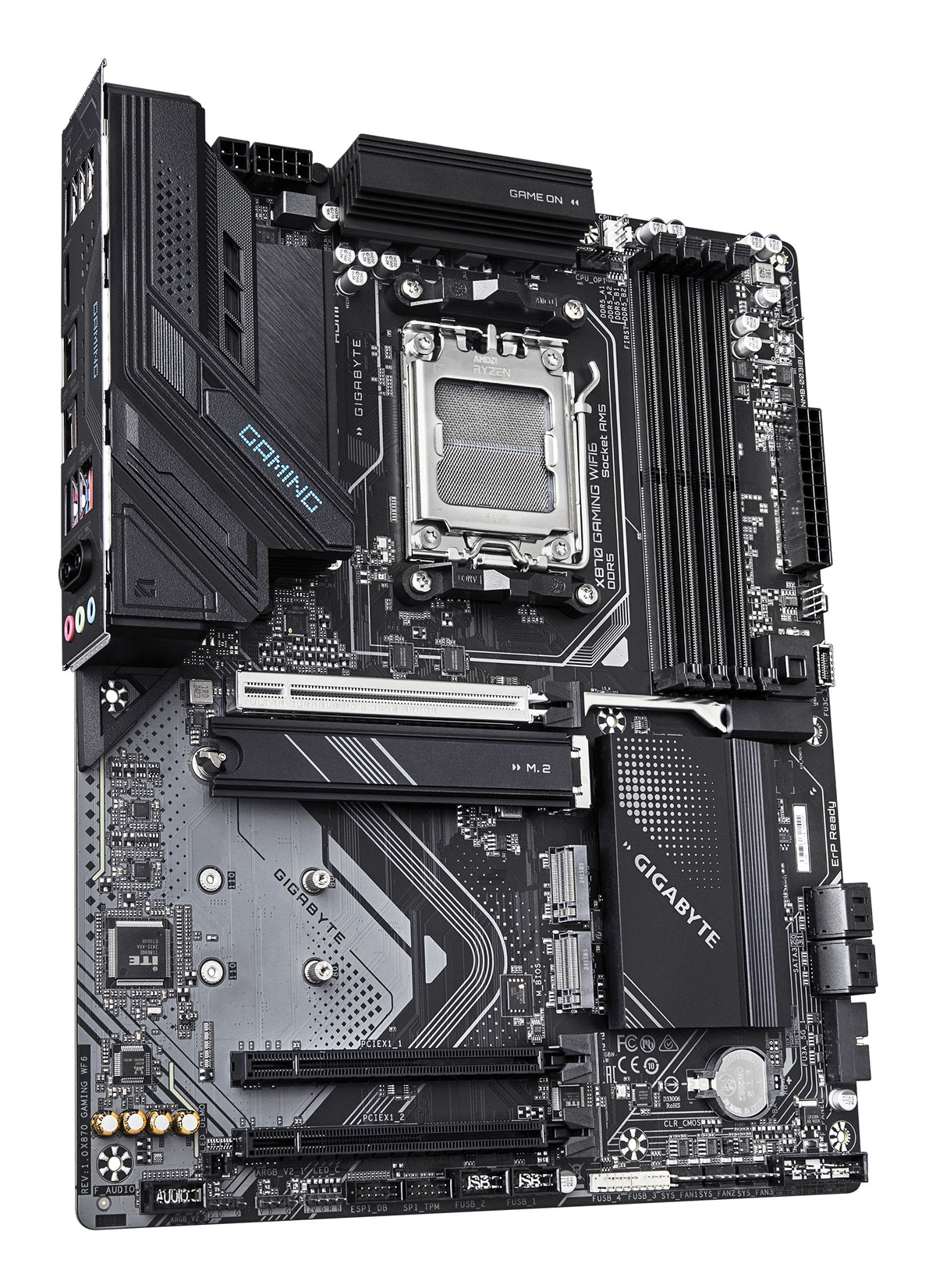

The Gigabyte X870 Gaming WiFi6 AM5 ATX DDR5 Motherboard is a high-end platform for AMD Ryzen 9000, 8000 and 7000 series processors, combining PCIe 5.0 storage support, dual USB4 connectivity and integrated Wi-Fi 6 for gaming and content creation workloads. It suits builders who need fast NVMe performance, high-bandwidth external device support, and wireless networking in a full-size form factor.
Why this product
PCIe 5.0 and dual M.2 slots
Three M.2 sockets with one running at PCIe 5.0 x4 speed deliver the fastest NVMe storage connectivity available, paired with PCIe 4.0 options for additional drives.
Dual USB4 ports with 40 Gbps each
USB4 Type-C connectors supporting DisplayPort Alt mode enable ultra-high-speed external device connections and multi-monitor setups at up to 3840×2160@240 Hz.
Wi-Fi 6 and 2.5GbE networking
802.11ax wireless and Gigabit LAN provide both wireless and wired connectivity for gaming and streaming without bottlenecks.
8+2+2 phase VRM with thermal armoring
Digital twin power delivery and dedicated heatsinks on the VRM and M.2 slots keep voltage rails stable under load and maintain cool operation during heavy gaming or overclocking.
Tool-free installation design
EZ-Latch Plus slots and EZ-Latch Click M.2 heatsinks eliminate screws for faster, easier component swaps and upgrades.
- SocketAMD AM5
- ChipsetAMD X870
- Form FactorATX
- Memory4x DDR5 DIMM (up to 256 GB)
- M.2 slots3 (1x PCIe 5.0 x4, 2x PCIe 4.0)
- USB42x 40 Gbps Type-C
- Warranty5 years
- SKUGIG-1831
- EAN4719331865399
- Supports AMD Ryzen 9000, 8000 and 7000 series processors in Socket AM5.
- Accepts up to four DDR5 DIMM modules with AMD EXPO and XMP overclocking support for memory speeds up to 8200 MT/s.
- Full-size ATX form factor fits standard PC cases with proper clearance for tall CPU coolers and RAM modules.
- M.2 slots support 2280, 22110, 2580 and 25110 form factors; verify your drives match one of these dimensions.
- Not compatible with Intel processors or older AMD platforms; requires Socket AM5 architecture.
Best for
- Gaming at high refresh rates with fast NVMe storage and wireless connectivity.
- Content creators working with large video and image files who benefit from PCIe 5.0 speeds and USB4 external storage.
- Builders seeking room to expand with four DIMM slots, three M.2 bays and extensive I/O.
- Overclockers and enthusiasts who need robust power delivery and multi-phase VRM for stable operation under load.
Trade-offs
- Budget-conscious builders; X870 chipset and dual USB4 add cost compared to entry-level AM5 boards.
- Users building in compact or mini-ITX cases; ATX form factor requires full-size enclosures with adequate cooling airflow.
- Those needing integrated graphics for display output; a dedicated GPU or supported APU is required, as this board has no native iGPU output.
AMD Socket AM5：Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
Digital twin 8+2+2 phases VRM solution
Dual Channel DDR5：4*DIMMs with AMD EXPO™Memory Module Support
WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
EZ-Latch Plus：PCIe and M.2 slots with Quick Release & Screwless Design
EZ-Latch Click：M.2 heatsinks with screwless design
Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
Ultra-Fast Storage：3*M.2 slots, including 1* PCIe 5.0 x4
Efficient Thermal：VRM Thermal Armor Advanced & M.2 Thermal Guard
Fast Networking：2.5GbE LAN & Wi-Fi 6 802.11ax
Extended Connectivity：Dual USB4 Type-C with DP-Alt, HDMI
When only the fastest will do, an AMD X800-series motherboard delivers. With USB 4.0 onboard along with robust overclocking capabilities, featuring faster dual-channel DDR5 memory support, AMD EXPO™ technology and PCIe® 5.0 support for both graphics and NVMe, you can play the most demanding games and deliver your biggest projects with the revolutionary performance of an AMD X800-series motherboard and AMD Ryzen™ 9000, 8000, and 7000 Series processors.
The dual latest USB4 Type-C ports provide blistering fast and reliable transfer speed up to 40 Gbps of each. Featuring extensive comparability, efficient charging, and ultra-HD displayport connectivity, USB4 is beneficial to video editing, large file transfers, and data-intensive tasks.
GAMING motherboards come with advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient. Superior cooling performance and whisper-quiet operation for your gaming rig. Supports both PWM and DC fans, plus water cooling pumps.
Networking
| Standard | Wi-Fi 6 802.11ax; 2.5GbE LAN |
|---|---|
| Wireless | Realtek RTL8851BE; Bluetooth 5.3; 2T2R antennas |
| LAN | Realtek 2.5GbE |
Performance
| CPU Socket | AMD Socket AM5; Ryzen 9000/8000/7000 series |
|---|---|
| Chipset | AMD X870 |
| VRM | 8+2+2 phase digital twin solution |
| Memory Support | DDR5 up to 8200 MT/s (OC); AMD EXPO and XMP |
| Storage Interface | PCIe 5.0 x4; PCIe 4.0 x4; PCIe 4.0 x2 |
Ports & Power

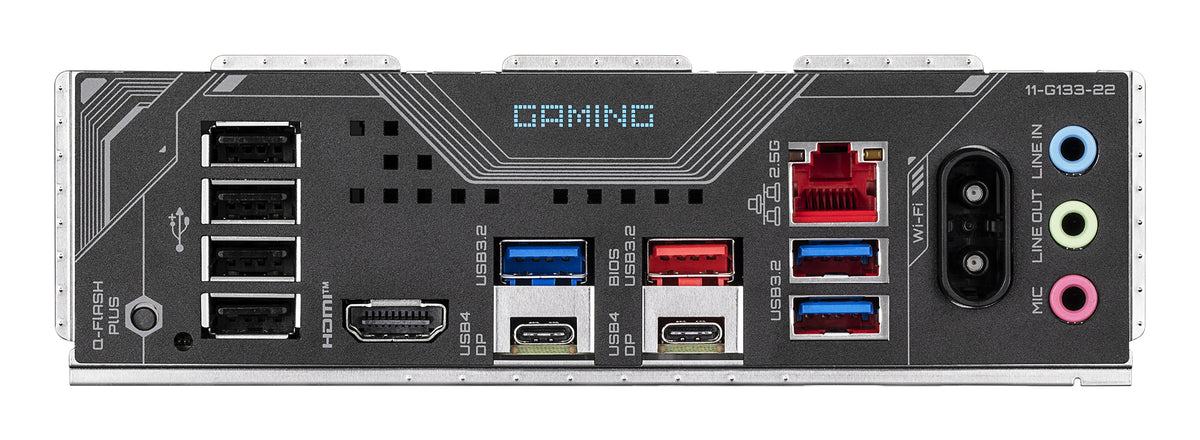

| USB (Rear) | 2x USB4 Type-C (40 Gbps, DisplayPort Alt mode); USB 3.2 Gen 2 Type-A |
|---|---|
| USB (Internal) | 4x USB 2.0 headers (8 ports); 1x USB 3.2 Gen 1 header (2 ports); 1x USB 3.2 Gen 2x2 Type-C header (1 port) |
| Video Output | 1x HDMI; 2x USB4 Type-C with DisplayPort Alt mode (3840×2160@240 Hz) |
| PCIe Slots | 1x PCIe 5.0 x16; 2x PCIe x1 |
| Audio | Realtek HD Audio; 8-channel (7.1); high-end capacitors |
Physical
| Brand | Gigabyte |
|---|---|
| Form Factor | ATX |
| M.2 Slots | 3 (2280/22110/2580/25110 form factors) |
| Memory Slots | 4x DDR5 DIMM (supports up to 64 GB per module, 256 GB total) |
| Cooling | VRM Thermal Armor Advanced; M.2 Thermal Guard; PWM and DC fan support; water cooling pump compatible |
| Features | WIFI EZ-Plug; EZ-Latch Plus (screwless PCIe/M.2); EZ-Latch Click (screwless M.2 heatsinks); RGB FUSION lighting; Q-Flash Plus; Smart Backup |
| Warranty | 5 years |
