Gigabyte X870E AORUS Elite WiFi7 AM5 ATX Motherboard DDR5

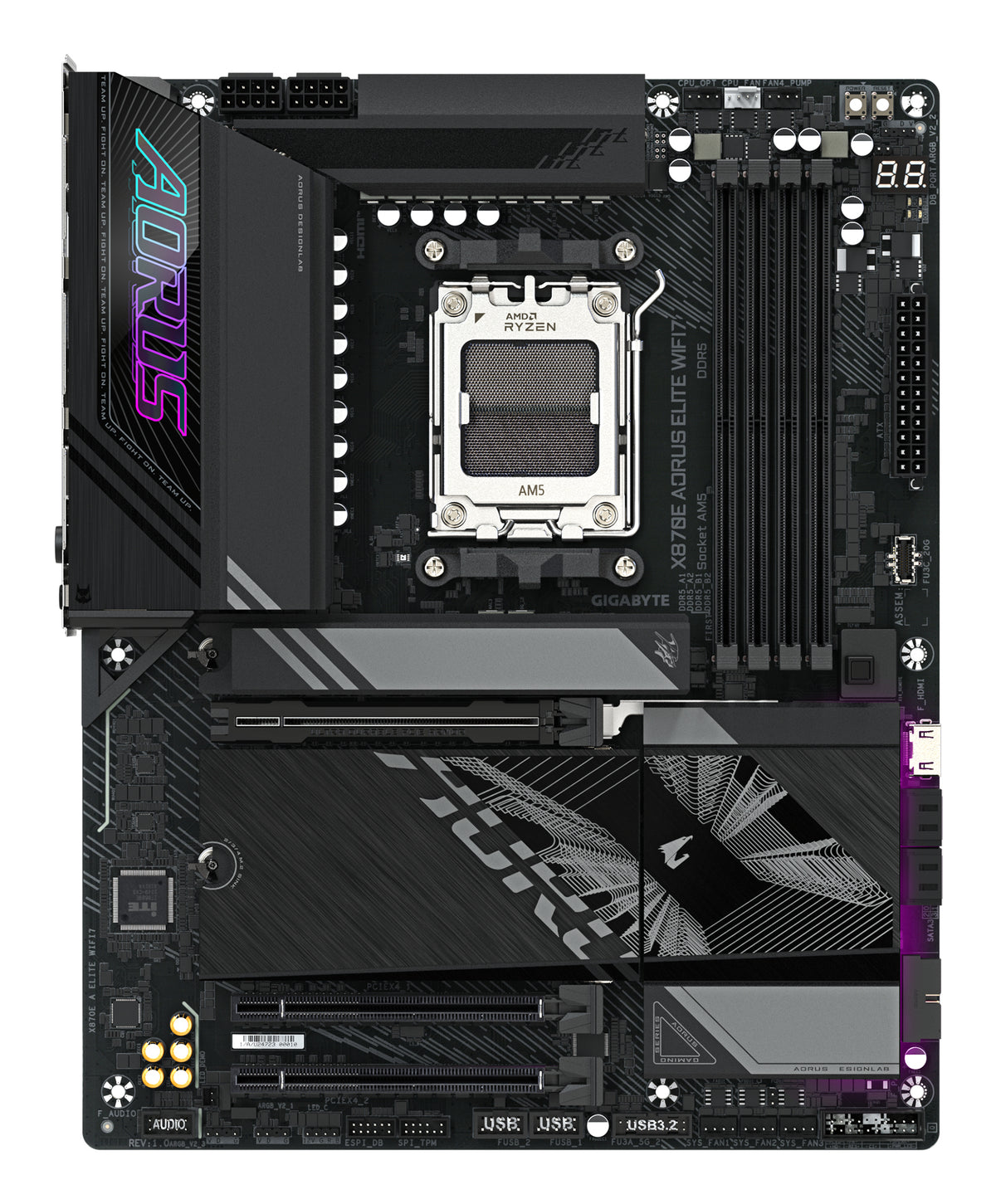

The Gigabyte X870E AORUS Elite WiFi7 is an ATX motherboard for AMD Ryzen 9000, 8000 and 7000 series processors, built around the X870E chipset. It combines high-power VRM delivery with Wi-Fi 7, PCIe 5.0 storage and dual USB4 ports for builders who need fast, reliable connectivity alongside CPU and GPU performance.
Why this product
Wi-Fi 7 and 2.5GbE for speed

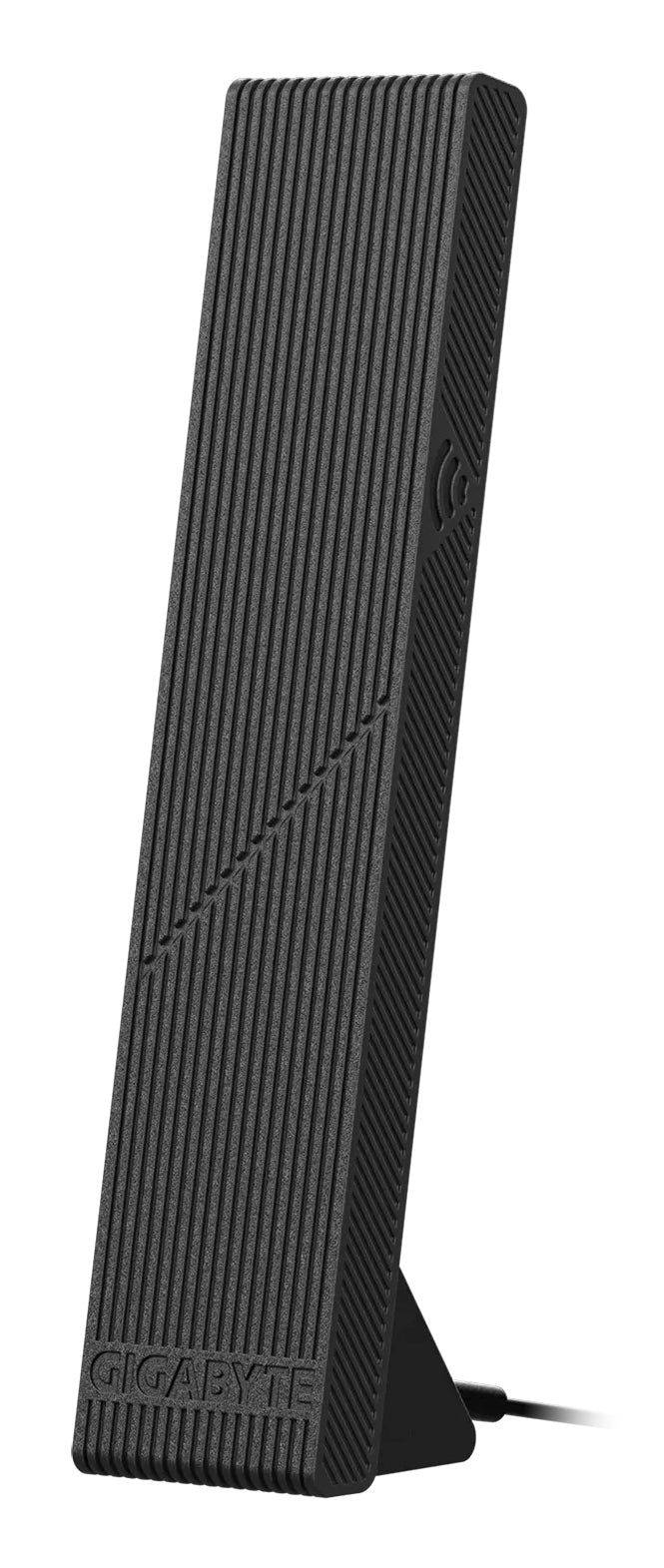

It includes both Wi-Fi 7 with directional antenna and a 2.5 gigabit ethernet port, giving you multiple paths to fast network connectivity.
Four M.2 slots with PCIe 5.0
Three of the four M.2 slots run PCIe 5.0 x4, enabling fast NVMe storage without bottlenecks.
Dual USB4 with DisplayPort
Two USB4 Type-C ports support DisplayPort alternate mode and high-speed data transfer, simplifying external displays and docks.
16+2+2 phase power delivery
The VRM architecture keeps voltage steady under load, supporting CPU overclocking and multi-core workloads.
Tool-free M.2 and PCIe installation
EZ-Latch Plus and EZ-Latch Click designs let you secure drives and cards without screwdrivers.
- SocketAMD AM5
- ChipsetAMD X870E
- Form FactorATX
- Memory Slots4 x DDR5 DIMM
- Max Memory256 GB
- M.2 Slots4 (3x PCIe 5.0, 1x PCIe 4.0)
- NetworkingWi-Fi 7 & 2.5GbE LAN
- SKUGIG-1998
- EAN4719331864613
- AMD Socket AM5 for Ryzen 9000, 8000 and 7000 series processors.
- DDR5 memory with support for AMD EXPO overclocking profiles, up to 256 GB across four DIMM slots.
- Four M.2 NVMe slots (three PCIe 5.0, one PCIe 4.0 via chipset) plus four SATA 6Gb/s ports for legacy drives.
- PCIe 5.0 x16 slot with metal reinforcement for graphics cards, plus two additional x4 slots (PCIe 4.0 and 3.0).
- RAID 5 for NVMe is available only on AMD Ryzen 9000 series processors; RAID 0, 1 and 10 work on all supported CPUs.
Best for
- Builders upgrading to Ryzen 9000 who want next-generation networking and storage speeds.
- Gamers and streamers who need Wi-Fi 7 and dual USB4 for low-latency peripherals and high-bandwidth external storage.
- CPU overclocking enthusiasts relying on the 16+2+2 VRM and thermal armor for stable high-voltage operation.
- Content creators running multiple fast NVMe drives in RAID for media capture and editing workflows.
Trade-offs
- Builders with Intel processors—this board is AM5 only and does not support Intel CPUs.
- Budget builders seeking entry-level pricing; X870E is a high-end platform tier.
- Users who require legacy DDR4 memory; this board supports DDR5 only.
Better Play AORUS Series, steady power keeps your gaming smooth. Delivers consistent, high-powered performance to elevate your overclocking to the next level.
AMD Socket AM5：Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors. Digital twin 16+2+2 phases VRM solution. Dual Channel DDR5：4*DIMMs with AMD EXPO™ Memory Module Support.
Innovative design removes signal bottlenecks, allowing for blazing-fast memory speeds and a superior gaming setup. Top-of-the-line server-grade PCB material minimizes signal loss, providing ultra-fast DDR5 data transmission.
Unlock the full power of your multi-core CPU for unmatched performance. Optimized for integrated GPU performance and memory management within the CPU. Deliver reliable power to your CPU-connected PCIe lanes for uninterrupted performance.
AORUS motherboards come with advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient. These solid heatsinks are forged to keep your system cool. With up to 4 times the surface area of traditional coolers, this advanced design significantly boosts MOSFET cooling performance.
WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation. EZ-Latch Plus：PCIe and M.2 slots with Quick Release & Screwless Design. EZ-Latch Click：M.2 heatsinks with screwless design. Sensor Panel Link：Onboard video port for hassle-free in-chassis panel setup. Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
Ultra-Fast Storage：4*M.2 slots, including 3* PCIe 5.0 x4. Efficient Thermal：VRM Thermal Armor Advanced & M.2 Thermal Guard L. Fast Networking：2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna. Extended Connectivity：Dual USB4 Type-C with DP-Alt, HDMI. Reliable Audio：Realtek ALC1220 HD Audio & Audiophile Grade Capacitors.
AORUS series motherboards are engineered to endure and excel. The latest PCIe UD Slot X offers unparalleled robustness, delivering superior protection for your graphics card. Employs a unibody, stainless-steel shield design, reinforcing M.2 slots and optimizing signal integrity. Our innovative UD Power Connector design enhances power conductivity and thermal dissipation. Delivers superior conductivity and signal transmission and reduces metal wear from repeated connections. Features a metal reinforcement plate for the PCIe x16 slot, enhancing stability and durability to support large graphics cards.
Ultra Durable PCIe Armor: The metal back plate of PCIe x16 slot for enhanced durability. PCIe UD Slot X：PCIe 5.0 x16 slot with 10X strength for graphics card.
GIGABYTE motherboards showcases our devotion to BIOS improvement. Through synergy with our user community, we democratize next-level computing power.
Networking
| Brand | Gigabyte |
|---|---|
| Standard | Wi-Fi 7 & 2.5GbE LAN with directional antenna |
| Throughput | 2.5 gigabit ethernet |
Performance
| CPU Support | AMD Ryzen 9000 / 8000 / 7000 Series |
|---|---|
| Power Design | 16+2+2 phase VRM with Thermal Armor Advanced |
| Memory | 4 x DDR5 DIMM, up to 256 GB; DDR5-8200(OC) / 5600(OC) / 5200 / 4800 MT/s; AMD EXPO support |
| Storage | 4 x M.2 (3x PCIe 5.0 x4, 1x PCIe 4.0 x4) + 4 x SATA 6Gb/s |
| PCIe Slots | 1x PCIe 5.0 x16 (UD Slot X), 1x PCIe 4.0 x4, 1x PCIe 3.0 x4 |
| RAID Support | NVMe: RAID 0/1/5/10 (RAID 5 requires Ryzen 9000); SATA: RAID 0/1/10 |
Ports & power

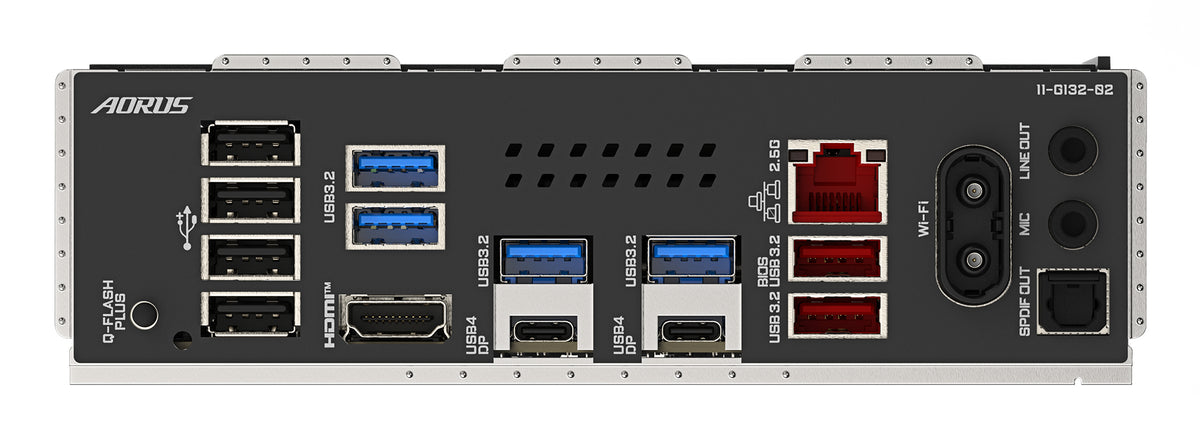

| USB Connectivity | Dual USB4 Type-C with DP-Alt; Multiple USB 3.2 Gen 2, USB 3.2 Gen 1, USB 2.0; Front and Rear USB-C |
|---|---|
| Video Output | 1 x HDMI, Dual USB4 Type-C with DP-Alt |
| Audio | Realtek ALC1220 HD with audiophile-grade capacitors |
Physical
| Form Factor | ATX |
|---|---|
| BIOS | 256 Mb Flash ROM, UEFI AMI |
| I/O Shield | Fitted, included |
