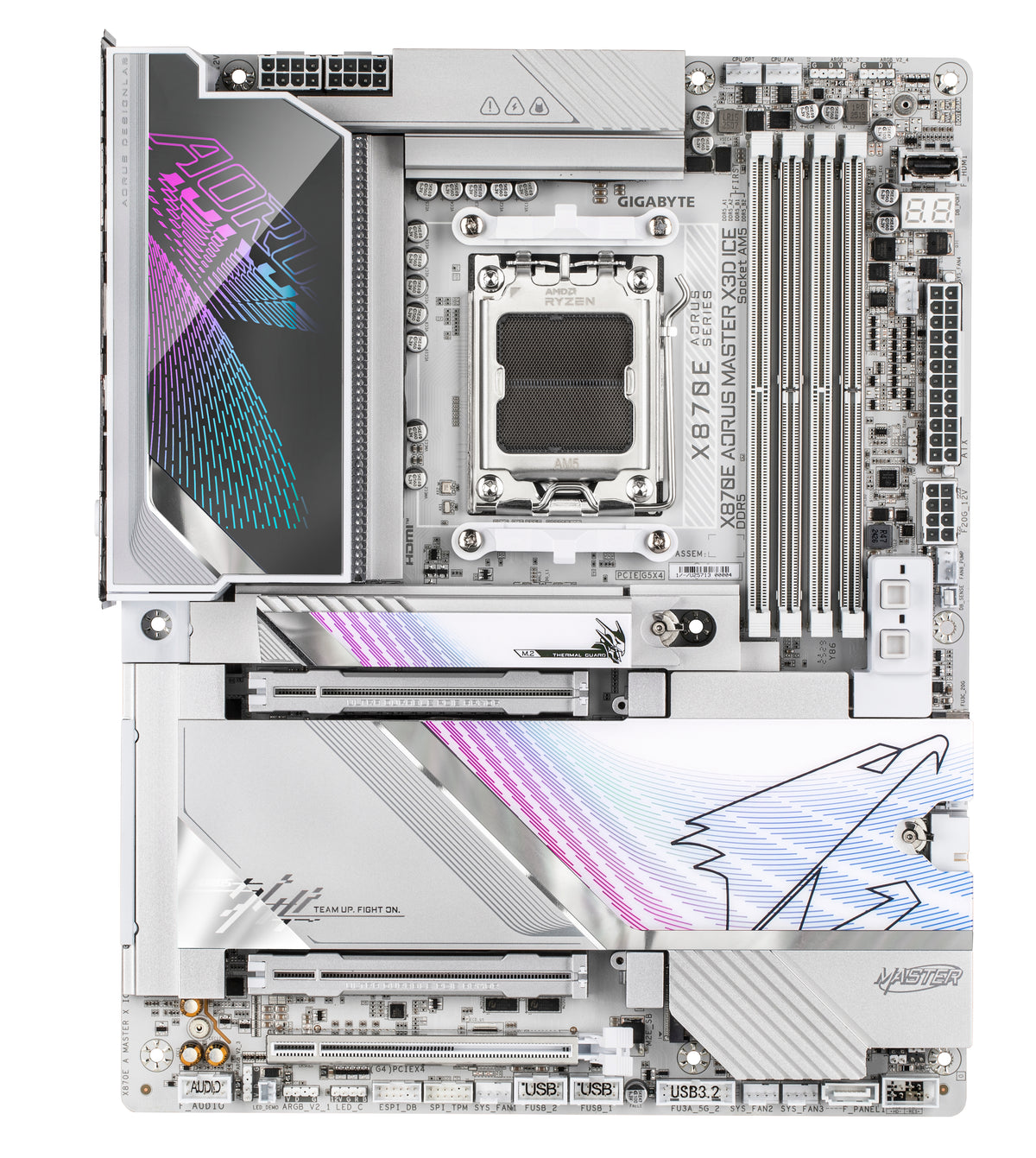

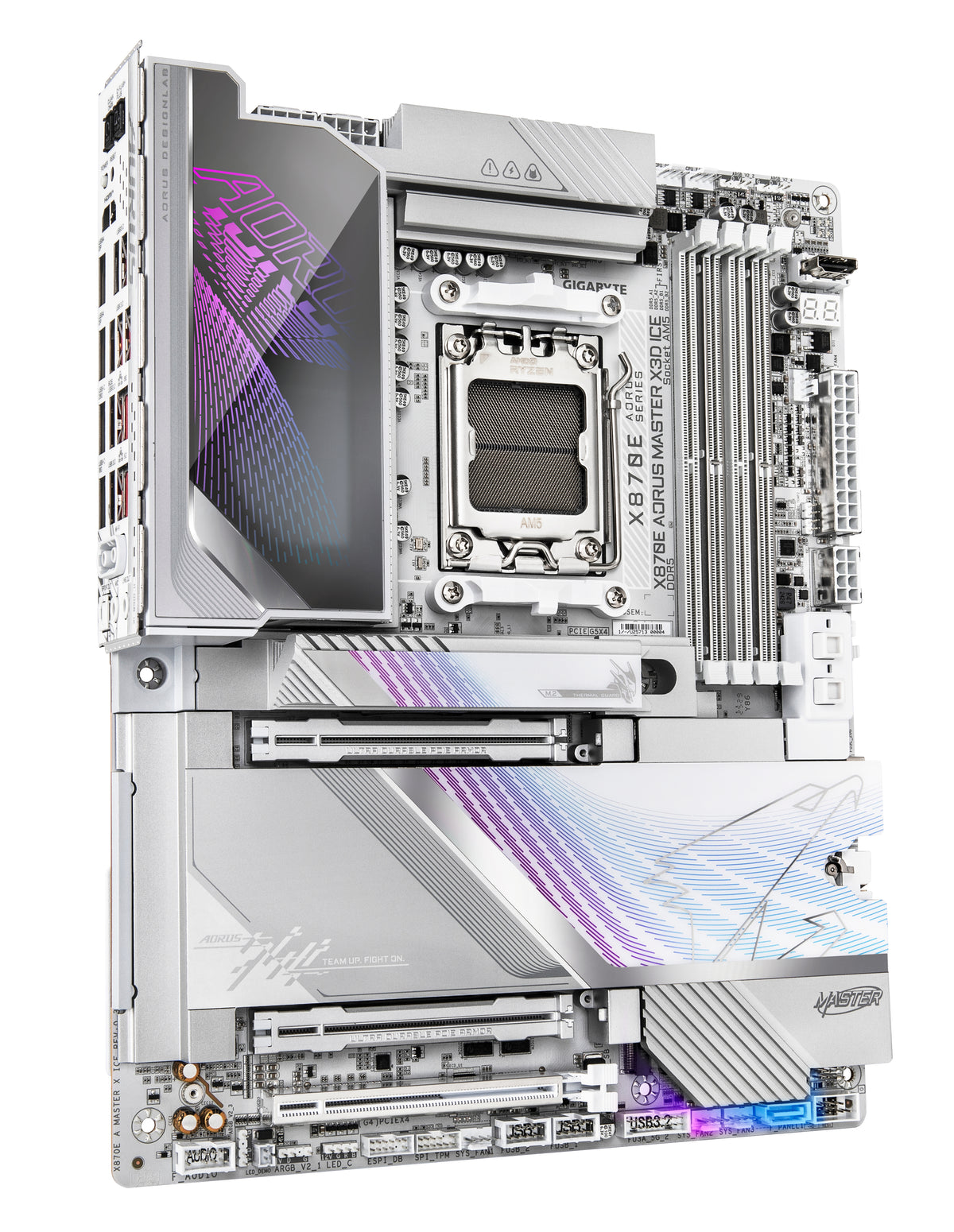

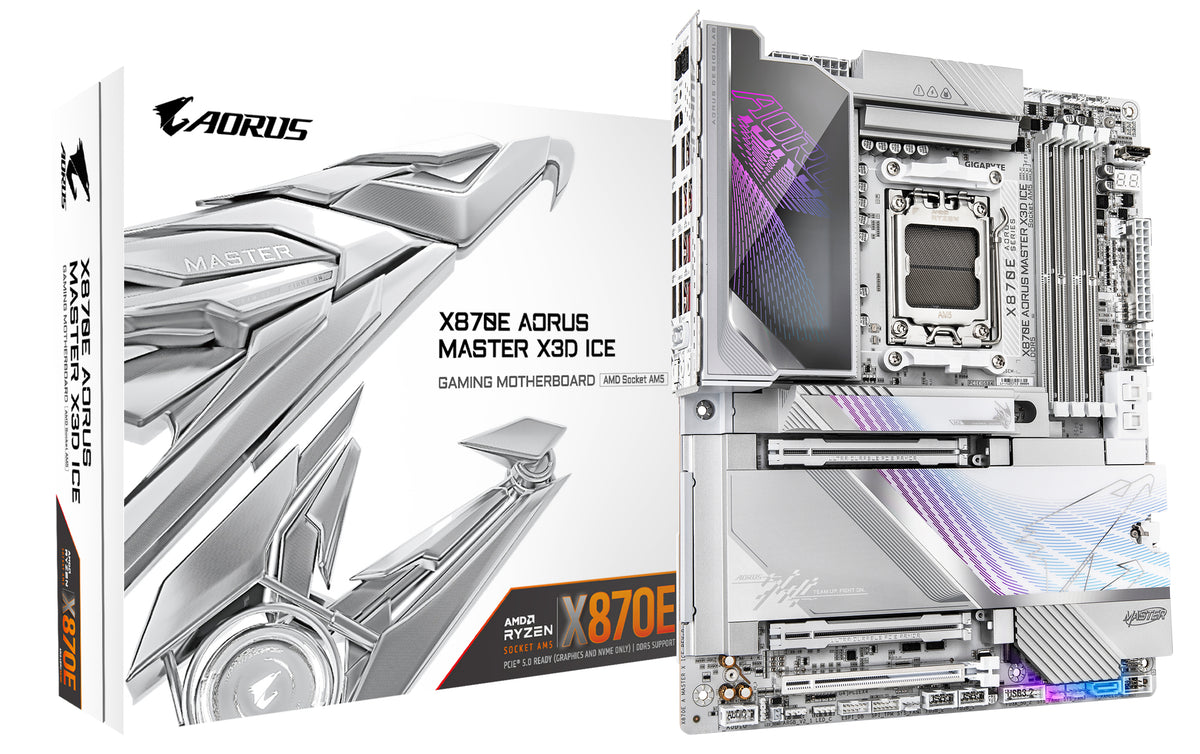

Gigabyte X870E AORUS MASTER X3D ICE AM5 ATX Motherboard
GIGABYTE
Gigabyte X870E AORUS MASTER X3D ICE AM5 ATX Motherboard
The Gigabyte X870E AORUS MASTER X3D ICE is a high-end AM5 motherboard designed for gaming and content creation, built specifically to maximize AMD Ryzen X3D processor performance through intelligent real-time optimization. It combines the X870E chipset with premium power delivery, extensive storage connectivity, and modern networking to support demanding workloads and high-speed components.
Why this product
X3D Turbo Mode 2.0 with AI optimization
Dynamically adjusts processor parameters in real-time to boost Ryzen X3D performance. Two modes — Extreme Gaming and Max Performance — let you switch between them based on your workload with a single click.
DDR5 memory support up to 9000 MT/s
Four DIMM slots with AMD EXPO support and advanced PCB shielding keep memory signals clean and minimize interference for fast, stable operation.
Five M.2 slots with PCIe 5.0
Two PCIe 5.0 x4 slots and three PCIe 4.0 slots deliver maximum storage bandwidth. M.2 EZ-Flex design provides efficient heat dissipation with a flexible baseplate.
Dual 10GbE and 5GbE LAN with Wi-Fi 7
10GbE and 5GbE ports plus Wi-Fi 7 (802.11be) with directional antenna provide multiple high-speed networking options for gaming and file transfers.
Digital twin 18+2+2 phase VRM
Premium power delivery with 9+9 phase parallel design, solid pin CPU connectors, and thermal armor keeps the system stable during overclocking and sustained performance.
Dual USB4 with DisplayPort Alt Mode
Two USB4 ports on the back panel support high-speed data transfer and display output. Front USB 3.2 Gen 2x2 Type-C port includes 65W Power Delivery for fast charging.
- ChipsetAMD X870E
- Memory Capacity4 x DDR5 DIMM slots; supports up to 9000 MT/s (O.C.)
- Storage Slots5 x M.2 (2 x PCIe 5.0 x4, 3 x PCIe 4.0), 2 x SATA
- PCIe Slots3 slots; 1 x PCIe 5.0 x16, 1 x PCIe 5.0 x16 (x8), 1 x PCIe 4.0 x16 (x4)
- Networking10GbE LAN + 5GbE LAN, Wi-Fi 7, Bluetooth 5.4
- USB Ports (Back Panel)2 x USB4 Type-C, 1 x USB 3.2 Gen 2x2 Type-C, 1 x USB 3.2 Gen 2 Type-C, 7 x USB 3.2 Gen 2 Type-A
- Form FactorATX
- SKUGIG-1817
- EAN4719331876517
- Supports AMD Ryzen 9000, 8000, and 7000 series processors in Socket AM5. Check Gigabyte's support list for your specific CPU model.
- Accepts DDR5 memory modules with native speeds from 4800 to 6400 MT/s, plus overclocked profiles up to 9000 MT/s with AMD EXPO support.
- Provides PCIe 5.0 slots for next-generation graphics cards and NVMe drives; backward compatible with PCIe 4.0 and earlier devices.
- Includes two USB4 ports for high-speed external storage and displays with DisplayPort Alt Mode support.
- SATA storage is supported via two SATA 6Gb/s connectors, but modern systems prioritize NVMe. RAID support is available for both NVMe and SATA configurations.
Best for
- AMD Ryzen X3D gaming builds seeking maximum frame rates through intelligent CPU optimization.
- Content creators using DDR5 and NVMe storage who need fast data throughput and multiple concurrent workflows.
- Enthusiasts and overclockers who want extensive power tuning options and premium component-grade construction.
- Users requiring high-speed networking for file transfers or remote work alongside gaming performance.
Trade-offs
- Budget-conscious builders — the X870E chipset and feature set position this at the high end of the AM5 market.
- Intel platform users — this motherboard is exclusively AMD Socket AM5 and does not support Intel processors.
- Compact PC builds — ATX form factor requires a full-size case with adequate space and cooling airflow.
Incredible X3D performance unleashed by AI.
X3D Turbo Mode 2.0 delivers enhanced gaming and multitasking performance over the first generation. Built-in AI model and hardware circuits dynamically optimize X3D processor parameters in real-time, significantly boosting Ryzen™ X3D performance. Through GIGABYTE's innovative X3D Turbo Mode 2.0 technology, users can enjoy a smoother gaming experience. Faster, fiercer, more precise with a single click.
X3D Turbo Mode 2.0 offers two distinct modes — Extreme Gaming Mode & Max Performance Mode — allowing users to freely switch between them based on their usage scenario to achieve optimal performance.
Unleash Ultimate Performance with One-Click Activation. With just a single click, unleash the full potential of CPU & DDR5 memory, instantly boosting your gaming and work efficiency.
Enhance CPU & DDR5 speeds with a single click.
X3D series gaming motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.
Advanced shielding inside the PCB keeps your memory signals clean and interference-free. Innovative design removes signal bottlenecks, allowing for blazing-fast memory speeds and a superior gaming setup. Top-of-the-line server-grade PCB material minimizes signal loss, providing ultra-fast DDR5 data transmission.
Serving as the cornerstone of the motherboard, the PCB holds a fundamental and vital influence on system performance. Enhances signal integrity in high-speed PCB designs and Reduces signal reflections. Facilitates condensed integration, ensuring signal fidelity, power consistency, and diminished EMI for premium performance systems.
X3D Series with steady power keeps your operation smooth. Delivers consistent, high-powered performance to elevate your overclocking to the next level.
Enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage, and Wi-Fi connectivity.
Featuring a front USB 3.2 Gen 2x2 Type-C® port with 65W Power Delivery (PD) capability, this design enables fast charging through the front USB-C connection when using a 10 or 20 Gbps-compatible chassis.
The power status of the front USB 3.2 Gen 2x2 Type-C® port with 65W Power Delivery (PD) port is displayed in the HWinfo, allowing users to easily monitor power delivery conditions.
RGB Fusion Personalize the RGB illumination on your motherboard and connected peripherals. Liberate your imagination using GCC's versatile illumination options for your motherboard. Tailor your setup with eye-catching displays that mirror your unique personality and preferences. Programmable RGB LED connectors enable precise control over individual LEDs (for ARGB GEN2 devices), seamlessly managed through the GCC.
General
| Brand | GIGABYTE |
|---|---|
| Model | X870E AORUS MASTER X3D ICE |
| Form Factor | ATX |
Processor & Power
| CPU Socket | AMD Socket AM5 |
|---|---|
| Supported Processors | AMD Ryzen 9000 / 8000 / 7000 Series |
| Power Connectors | 1 x 24-pin ATX, 2 x 8-pin ATX 12V, 1 x PCIe power |
| VRM Phases | Digital twin 18+2+2 phases; 9+9 parallel design |
| CPU Fan Headers | 2 (one standard, one for pump/AIO) |
Memory & Storage
| Memory Type | DDR5 |
|---|---|
| Memory Slots | 4 x DIMM |
| Memory Support | 4800 MT/s native; up to 9000 MT/s (O.C.); AMD EXPO compatible |
| M.2 Slots | 5 x M.2 Socket 3 |
| M.2 Connectivity | 2 x PCIe 5.0 x4, 2 x PCIe 4.0 x4/x2, 1 x PCIe 4.0 x2 |
| SATA Connectors | 2 x SATA 6Gb/s |
| RAID Support | NVMe: RAID 0, 1, 5, 10; SATA: RAID 0, 1 |
Expansion & Connectivity
| PCIe Slots | 1 x PCIe 5.0 x16 (UD Slot X), 1 x PCIe 5.0 x16 (x8), 1 x PCIe 4.0 x16 (x4) |
|---|---|

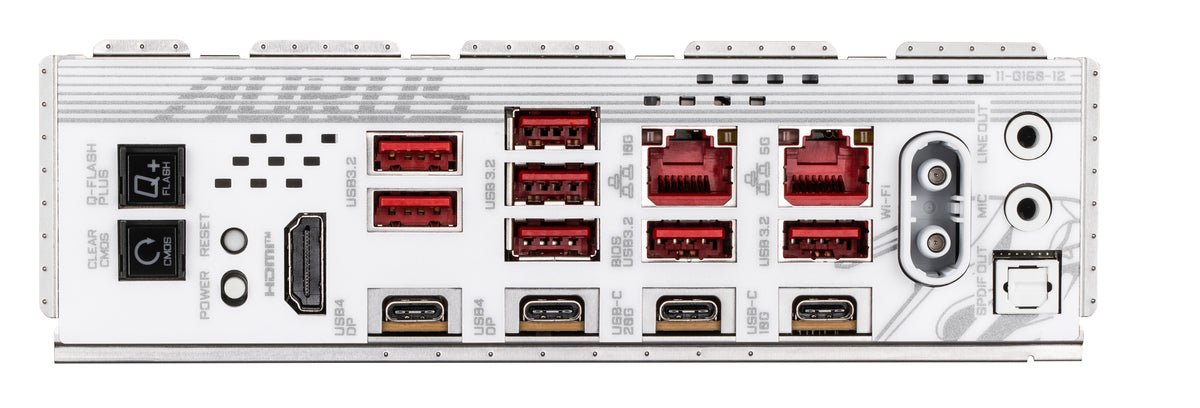

| Back Panel USB | 2 x USB4 Type-C (CPU+ASMedia), 1 x USB 3.2 Gen 2x2 Type-C, 1 x USB 3.2 Gen 2 Type-C, 1 x USB 3.2 Gen 2 Type-A, 6 x USB 3.2 Gen 2 Type-A |
| Internal USB Headers | 4 x USB 3.2 Gen 1, 1 x USB 3.2 Gen 2x2 Type-C (65W PD), 4 x USB 2.0/1.1 |
| LAN | Realtek 10GbE + Realtek 5GbE |
| Wireless | Wi-Fi 7 (802.11be), Bluetooth 5.4 |
| Display Outputs | 1 x HDMI (back), 2 x USB4 Type-C with DP Alt Mode, 1 x HDMI (internal header) |
Audio & RGB
| Audio Codec | Realtek ALC1220 8-CH HD Audio |
|---|---|
| RGB Headers | 4 x addressable RGB Gen2 LED strip, 1 x RGB LED strip |
Construction
| PCB Layers | 8-layer |
|---|---|
| PCB Material | Low-loss with 2x copper, server-grade construction |

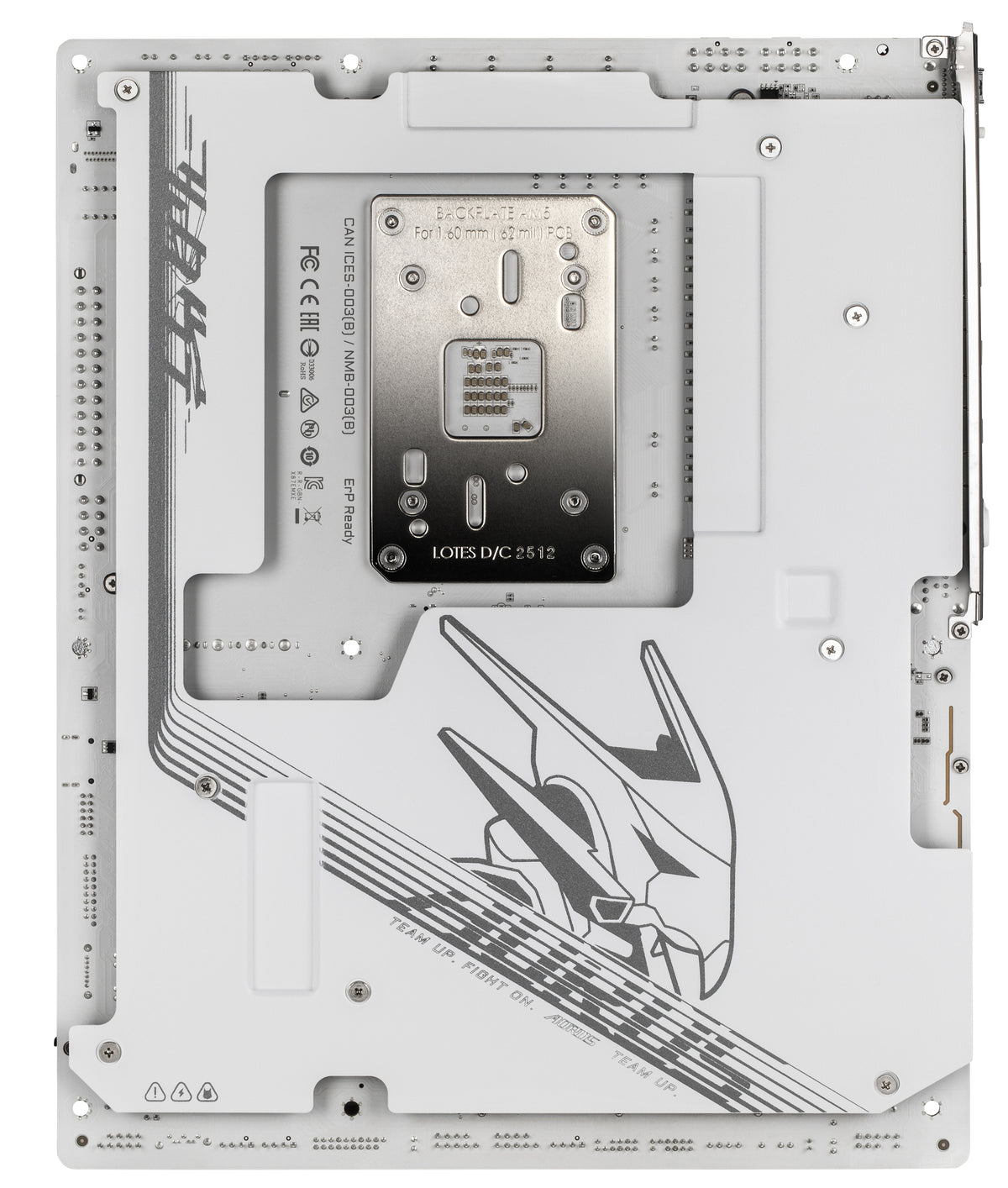

| Thermal Features | PCB thermal plate (14% improvement), VRM Thermal Armor Advanced, M.2 Thermal Guard L & Ext., direct-touch heatpipe |
| Capacitor Grade | Premium choke and capacitor |
