Gigabyte X870E AORUS PRO X3D ICE AM5 ATX Motherboard
GIGABYTE
Gigabyte X870E AORUS PRO X3D ICE AM5 ATX Motherboard
The Gigabyte X870E AORUS PRO X3D ICE is a premium ATX motherboard for AMD Ryzen 9000, 8000, and 7000 Series processors. It suits enthusiasts and gamers who want high-frequency DDR5 support, PCIe 5.0 connectivity, and advanced thermal management. The board includes X3D Turbo Mode 2.0, an AI-driven performance optimization system that dynamically adjusts X3D processor parameters in real time.
Why this product
X3D Turbo Mode 2.0 with AI optimization
Dynamically optimizes X3D processor parameters in real time across Extreme Gaming Mode and Max Performance Mode. Switch between modes based on your workload for gaming or multitasking gains.
DDR5 memory up to 9000 MT/s
Supports AMD EXPO memory profiles and XMP, with compatibility across a wide range of DDR5 speeds from 4800 to 9000 MT/s, up to 256 GB total capacity.
PCIe 5.0 for next-gen storage and graphics
One PCIe 5.0 x16 slot for graphics and two PCIe 5.0 M.2 slots for NVMe drives deliver maximum bandwidth for modern components.
Wi-Fi 7 and 5GbE networking
Dual USB4 Type-C ports with 40 Gb/s bandwidth and DisplayPort support provide future-ready connectivity alongside fast wired and wireless networking.
Advanced thermal architecture
VRM Thermal Armor, direct-touch heatpipes, M.2 heatsinks, and a PCB Thermal Plate deliver 14% thermal improvement and keep power delivery stable under load.
- ChipsetAMD X870E
- SocketAM5 (Ryzen 9000/8000/7000 Series)
- Form FactorATX (305 × 244 mm)
- Memory SupportDDR5 up to 9000 MT/s, 4 DIMMs, max 256 GB
- Storage Slots2× PCIe 5.0 M.2, 2× PCIe 4.0 M.2, 4× SATA 3
- PCIe Slots1× PCIe 5.0 x16, 1× PCIe 4.0 x4, 1× PCIe 3.0 x2
- Warranty3 Years
- SKUGIG-2004
- EAN4719331876487
- Supports AMD Ryzen 9000, 8000, and 7000 Series processors on Socket AM5.
- Four DDR5 DIMM slots accept standard non-ECC unbuffered modules with AMD EXPO and XMP profile support.
- Accommodates four M.2 NVMe drives across two PCIe 5.0 and two PCIe 4.0 slots, plus four SATA 3 ports for legacy drives and RAID arrays.
- Requires a CPU power supply with 8+8 pin connectors and a 24-pin ATX power connector; older PSUs may need upgrading.
- Not compatible with AMD Socket AM4 or Intel platforms.
Best for
- High-frequency DDR5 overclocking and performance tuning
- Gaming with X3D-enabled Ryzen processors using AI-driven optimization
- Multi-drive storage setups requiring PCIe 5.0 NVMe and SATA RAID
- Content creators and enthusiasts needing Dual USB4 and 5GbE connectivity
- Builders prioritizing thermal management and power delivery stability
Trade-offs
- Budget builds. Premium VRM, PCIe 5.0 slots, Wi-Fi 7, and advanced thermal design add significant cost over entry-level X870E boards.
- Intel system builders. Socket AM5 limits this board to AMD Ryzen processors only.
- Compact case builds. ATX form factor (305 × 244 mm) requires a standard or large case; not suited for Mini-ITX or Micro-ATX constraints.
- Legacy SATA-only storage. While SATA is supported, the board is optimized for modern NVMe M.2 drives and PCIe 5.0 throughput.
X870E AORUS PRO X3D ICE Motherboards are built to unleash every ounce of performance within the latest AMD Ryzen 9000, 8000, and 7000 Series processors. Build your next rig with an AMD Ryzen processor and experience advanced overclocking performance with X870E motherboards.
X3D Turbo Mode 2.0 delivers enhanced gaming and multitasking performance over the first generation. Built-in AI model and hardware circuits dynamically optimize X3D processor parameters in real-time, significantly boosting Ryzen™ X3D performance. X3D Turbo Mode 2.0 offers two distinct modes — Extreme Gaming Mode & Max Performance Mode — allowing users to freely switch between them based on their usage scenario to achieve optimal performance.
X3D Series gaming motherboards boost DDR5 memory performance up to 9000 MT/s and offer top-notch compatibility with AMD EXPO and D5 Bionic Corsa.
GIGABYTE Motherboards feature advanced full-metal thermal designs such as Premium VRM Thermal Armor, direct-touch heatpipes, and M.2 Thermal Guard heatsinks to keep your system cool and efficient.
Featuring 1x PCIe 5.0 x16 slots and 2x PCIe 5.0 M.2 slots, GIGABYTE Motherboards are ready to work with the PCIe 5.0 devices to provide superior performance.

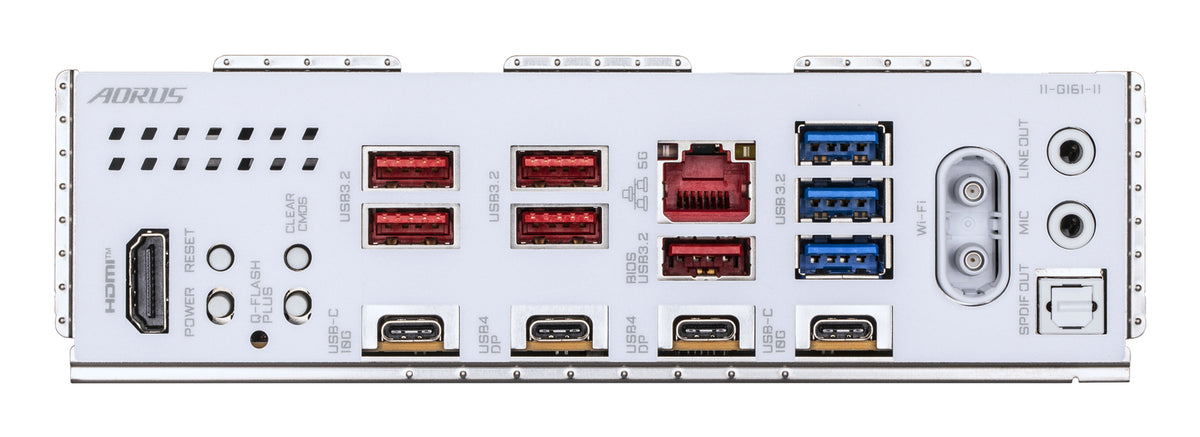

Fast Networking: 5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna. Extended Connectivity: HDMI, Dual USB4 Type-C with DP-Alt, Front QC-USB 65W.
M.2 EZ-Flex: high-efficiency heat dissipation & flexible patented baseplate for M.2 SSD. WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation. M.2 EZ-Latch Click & Plus: Quick Release & Screwless Design on M.2 slots and heatsinks.
PCB Thermal Plate: 14% thermal improvement and reinforced motherboard stability. Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard L & M.2 Thermal Guard Ext.
Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW. DriverBIOS: Wi-Fi Driver Pre-install, Power-On & EZ to Launch the Network.
General
| Brand | Gigabyte |
|---|---|
| Model | X870E AORUS PRO X3D ICE |
| Chipset | AMD X870E |
| Socket | AM5 |
| Form Factor | ATX |
| Dimensions | 305 mm × 244 mm |
Memory & Storage
| Memory Type | DDR5 |
|---|---|
| Memory Speed | 9000 MT/s (OC) down to 4800 MT/s |
| Memory Slots | 4 × DDR5 DIMM (up to 256 GB) |
| Memory Profiles | AMD EXPO, XMP |
| M.2 Slots | 4 total: 2× PCIe 5.0 x4, 2× PCIe 4.0 x4 |
| SATA Ports | 4 × SATA 3 (RAID 0, 1, 5, 10 support) |
Power & Thermal
| CPU Power Connectors | 8+8 pin with UD Solid Pin |
|---|---|
| ATX Power Connector | 24 pin |
| VRM Design | Digital twin 18+2+2 phases |
| Thermal Features | VRM Thermal Armor Advanced, Direct-touch Heatpipe, M.2 Thermal Guard L & Ext., PCB Thermal Plate (14% improvement) |
| Thermal Pad | 12 W/mk |
| PCB Layers | 8-Layer, Low-Loss, 2X Copper |
Connectivity & Audio
| PCIe Slots | 1× PCIe 5.0 x16, 1× PCIe 4.0 x4, 1× PCIe 3.0 x2 |
|---|---|
| Rear USB (Type-A) | 3× USB 3.2 Gen 1, 5× USB 3.2 Gen 2 |
| Rear USB (Type-C) | 2× USB 3.2 Gen 2, 2× USB4 (40 Gb/s) |
| USB Headers | 2× USB 2.0 (4 ports), 2× USB 3.2 Gen 1 (4 ports), 1× USB 3.2 Gen 2x2 Type-C (1 port) |
| Video Outputs | 1× HDMI (4096×2160@60Hz), 2× USB4 Type-C (3840×2160@240Hz via DP-Alt) |
| Network | 5GbE LAN, Wi-Fi 7 (802.11a/b/g/n/ac/ax/be), Bluetooth 5.4 |
| Audio | 8-CH HD Audio, High-End Audio Capacitor |
| Fan Headers | 8 × (Dual Fan Curve Mode) |
| RGB / ARGB Headers | 1× RGB LED, 3× ARGB LED |
