Gigabyte X870E Eagle X3D WiFi7 AMD AM5 ATX Motherboard
GIGABYTE
Gigabyte X870E Eagle X3D WiFi7 AMD AM5 ATX Motherboard
The Gigabyte X870E Eagle X3D WiFi7 is an AMD AM5 ATX motherboard built for high-performance gaming and workstation builds. It combines X3D Turbo Mode 2.0 with support for DDR5 memory up to 9000 MT/s, Wi-Fi 7 connectivity, and PCIe 5.0 storage to deliver gaming and multitasking performance.
Why this product
X3D Turbo Mode 2.0 with AI optimization
Built-in AI dynamically optimizes processor parameters in real-time, with Extreme Gaming Mode and Max Performance Mode selectable for different workloads.
DDR5 memory support up to 9000 MT/s
Four DIMM slots with AMD EXPO support enable high-speed memory overclocking and compatibility with enthusiast modules.
Wi-Fi 7 and 5GbE networking
Qualcomm QCNCM865 Wi-Fi 7 module with directional antenna and Realtek RTL8126 5 Gigabit Ethernet deliver fast wired and wireless connectivity without requiring driver downloads.
PCIe 5.0 storage with four M.2 slots
One PCIe 5.0 x4 slot and three PCIe 4.0 x4 slots provide ultra-fast NVMe support alongside four SATA III ports.
Advanced thermal design and VRM
16+2+2 phase digital VRM with Thermal Armor, full-metal heatsinks, and M.2 Thermal Guard keep power delivery and storage cool under load.
User-friendly assembly features
EZ-Latch Plus PCIe slots, screwless M.2 heatsinks, WIFI EZ-Plug antenna design, and centralized debug LEDs simplify building.
- SocketAMD AM5
- ChipsetAMD X870E
- Form FactorATX
- MemoryDDR5, 4 DIMM slots, up to 9000 MT/s (O.C.)
- Storage1× PCIe 5.0 M.2, 3× PCIe 4.0 M.2, 4× SATA III
- WirelessWi-Fi 7, Bluetooth 5.4
- Networking5GbE Ethernet
- PCB Layers8-Layer with Low-Loss and 2X Copper
- SKUGIG-2010
- EAN4719331879532
- Supports AMD Ryzen 9000, 8000, and 7000 Series processors in Socket AM5.
- Accepts DDR5 memory modules from 4400 MT/s up to 9000 MT/s (overclocked) with AMD EXPO support.
- Fits standard ATX cases and includes integrated IO shield.
- Provides DisplayPort Alt mode on both USB4 Type-C ports for high-resolution external displays.
- Supports Windows 10 64-bit and Windows 11 64-bit operating systems.
- Second PCIe 5.0 x16 slot runs at x4 mode; third slot runs at x2 mode when populated.
Best for
- High-end gaming builds seeking X3D CPU performance with AI-driven optimization and memory overclocking.
- Enthusiasts who want PCIe 5.0 NVMe storage and DDR5 speeds up to 9000 MT/s.
- Builders needing Wi-Fi 7 and 5GbE without post-installation driver setup.
- Users who value tool-free and screwless assembly with debug LEDs for troubleshooting.
Trade-offs
- Budget-conscious builders — X870E chipset and X3D Turbo features add cost compared to standard X870 boards.
- Builders using Intel processors or older AM4 socket chips — this board requires Socket AM5 and current-generation Ryzen.
- Systems requiring legacy PCIe 3.0 graphics cards in primary slot — the board routes them to x2 mode in the third slot, limiting bandwidth.
- Compact or Mini-ITX case builds — this is a full-size ATX board.
X870E EAGLE X3D WIFI7 with AI-powered X3D Turbo Mode 2.0, DDR5 OC 9000MT/s with Wi-Fi 7 delivers unmatched gaming performance, ultra-fast storage & seamless connectivity.
Incredible X3D performance unleashed by AI. X3D Turbo Mode 2.0 delivers enhanced gaming and multitasking performance over the first generation. Built-in AI model and hardware circuits dynamically optimize X3D processor parameters in real-time, significantly boosting Ryzen™ X3D performance. Through GIGABYTE's innovative X3D Turbo Mode 2.0 technology, users can enjoy a smoother gaming experience. Faster, fiercer, more precise with a single click.
X3D Turbo Mode 2.0 offers two distinct modes — Extreme Gaming Mode & Max Performance Mode — allowing users to freely switch between them based on their usage scenario to achieve optimal performance.
Unleash Ultimate Performance with One-Click Activation. With just a single click, unleash the full potential of CPU & DDR5 memory, instantly boosting your gaming and work efficiency. Enhance CPU & DDR5 speeds with a single click.
EAGLE motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.
EAGLE Series with steady power keeps your AI operation smooth. Delivers consistent, high-powered performance to elevate your overclocking to the next level. Unlock the full power of your multi-core CPU for unmatched performance. Optimized for integrated GPU performance and memory management within the CPU. Deliver reliable power to your CPU-connected PCIe lanes for uninterrupted performance.
Advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient. Engineered for maximum cooling performance — high-efficiency heat dissipation & a flexible baseplate for M.2 SSD.
Our cutting-edge motherboard is designed for the ultimate DIY experience. Creating your own PC becomes a delightful and smooth process. No need to download Wi-Fi Driver, Power-On & EZ to Launch the Network. There is no need to download or install additional drivers to enable wireless networking after Windows installation is complete. Moreover, the capacity is 2 times larger than 32MB BIOS. The WIFI EZ-Plug design integrates Wi-Fi antenna plugs into one adapter, EZ to install. User-friendly designs simplifying the assembly process.
Centralized debug LEDs and control buttons provide a handy and organized troubleshooting process when building a new computer. A flexible control key for reset with BIOS-level reconfiguration options for diverse usage scenarios.
General
| Brand | GIGABYTE |
|---|---|
| CPU Support | AMD Ryzen 9000, 8000, 7000 Series (Socket AM5) |
| X3D Feature | X3D Turbo Mode 2.0 with AI optimization, Extreme Gaming Mode and Max Performance Mode |
Networking
| Wi-Fi Standard | Wi-Fi 7 (Qualcomm QCNCM865) |
|---|---|
| Bluetooth | Bluetooth 5.4 |
| Ethernet | Realtek RTL8126 5 Gigabit |
Performance
| Memory Support | DDR5 4400 / 4800 / 5200 / 5600 / 6000 / 6200 / 6400 / 6600 / 6800 / 7000 / 7200 / 7600 / 7800 / 8000 / 8400 / 8600 / 8800 / 9000 MT/s |
|---|---|
| Memory Slots | 4× DDR5 DIMM, max 256GB |
| Memory Features | AMD EXPO support |
| VRM | 16+2+2 phase digital with Thermal Armor |
Ports & Power
| PCIe Slots | 1× PCIe 5.0 x16 (UD), 1× PCIe 4.0 x16 (x4 mode), 1× PCIe 3.0 x16 (x2 mode) |
|---|---|
| M.2 Storage | 1× PCIe 5.0 x4, 3× PCIe 4.0 x4 |
| SATA Ports | 4× SATA III |

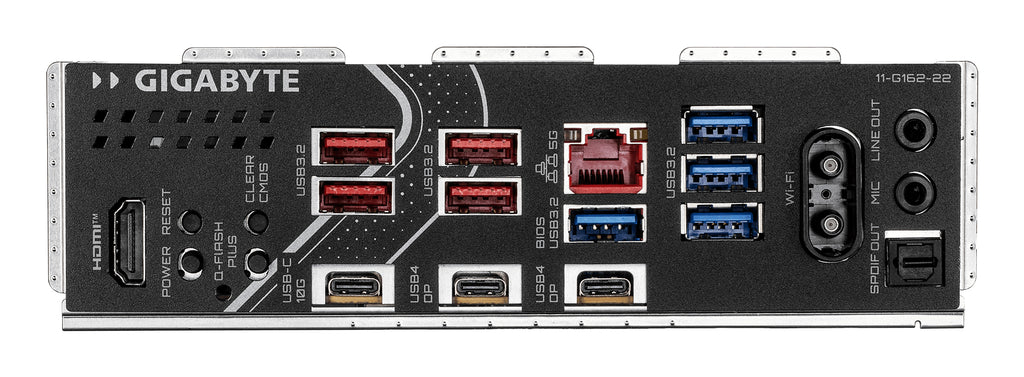

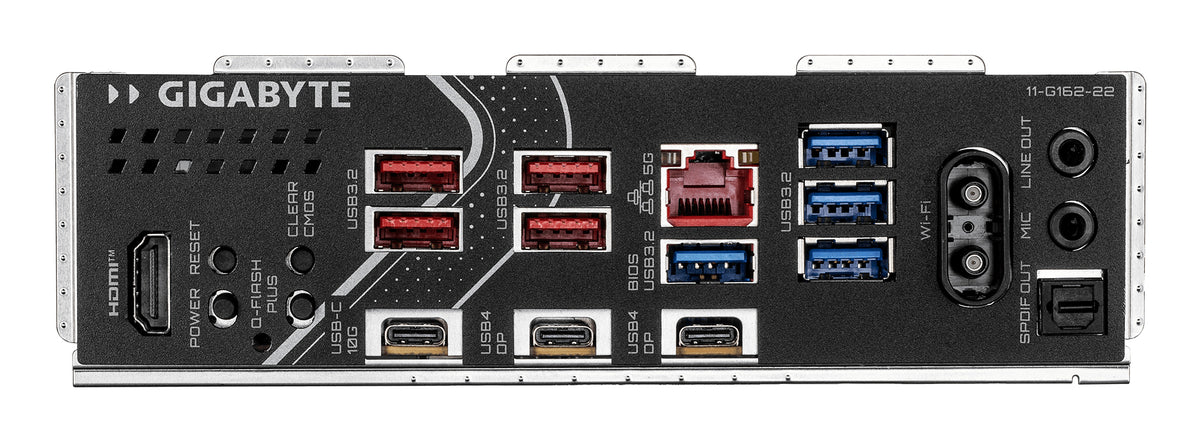

| USB Rear I/O | 2× USB4 Type-C (DisplayPort Alt mode, up to 3840×2160 @ 240Hz) |
| Video Output | 1× HDMI |
| Power Connectors | 24-pin ATX, 8+8-pin CPU (UD Solid Pin) |
| Fan Headers | 8× PWM/DC with Dual Fan Curve Mode |
| RGB Headers | 1× RGB LED, 3× ARGB LED |
Physical
| Form Factor | ATX |
|---|---|
| PCB Construction | 8-Layer PCB with Low-Loss and 2X Copper PCB, Premium Choke and Capacitor |
| Thermal Design | Full-metal thermal design, VRM Thermal Armor, M.2 Thermal Guard, flexible M.2 baseplate |
| Assembly Features | EZ-Latch Plus screwless PCIe slots, EZ-Latch Click screwless M.2 heatsinks, WIFI EZ-Plug antenna, Integrated IO Shield |
| Debug Tools | Centralized debug LEDs, multi-key power button with reset control |
Software & BIOS
| BIOS Features | Q-Flash, Q-Flash Plus, Smart Backup |
|---|---|
| BIOS Size | 64MB |
| Audio | Realtek ALC1220 8-channel with High-End Audio Capacitor |
| OS Support | Windows 10 64-bit, Windows 11 64-bit |
