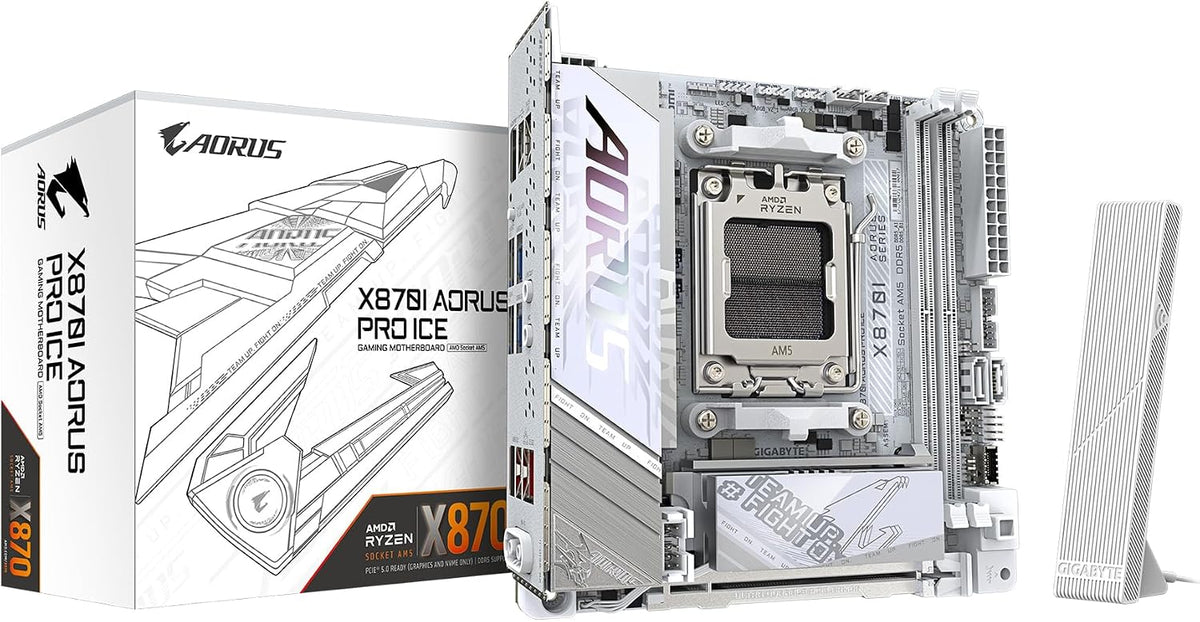

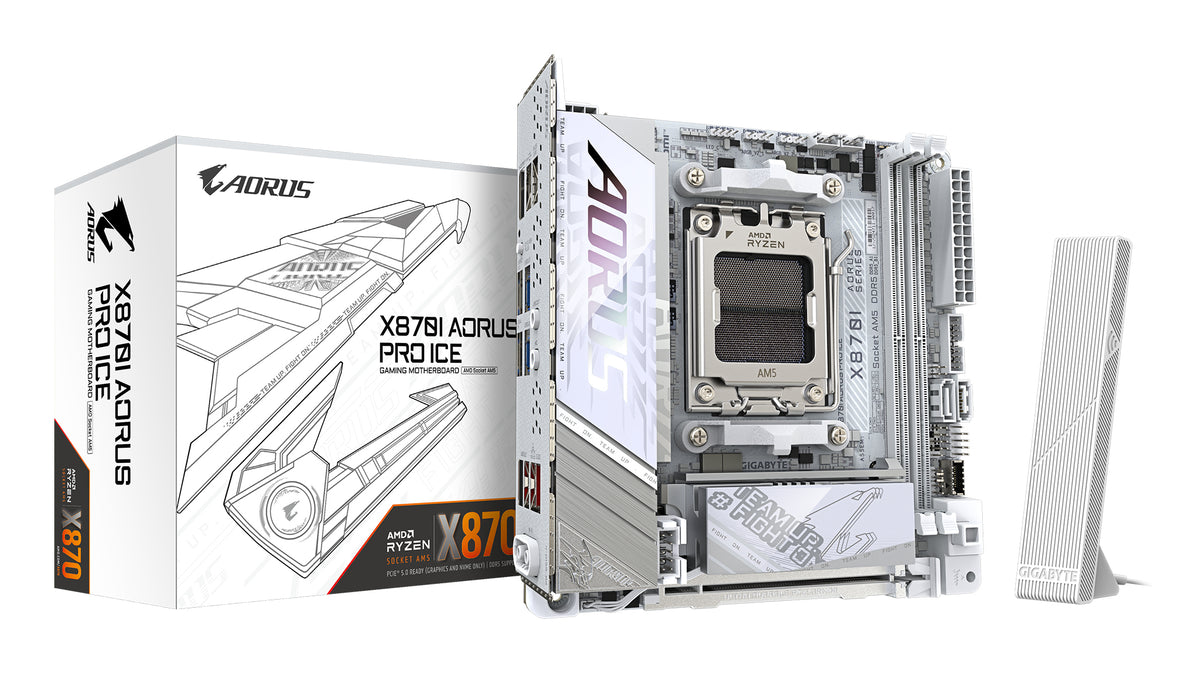

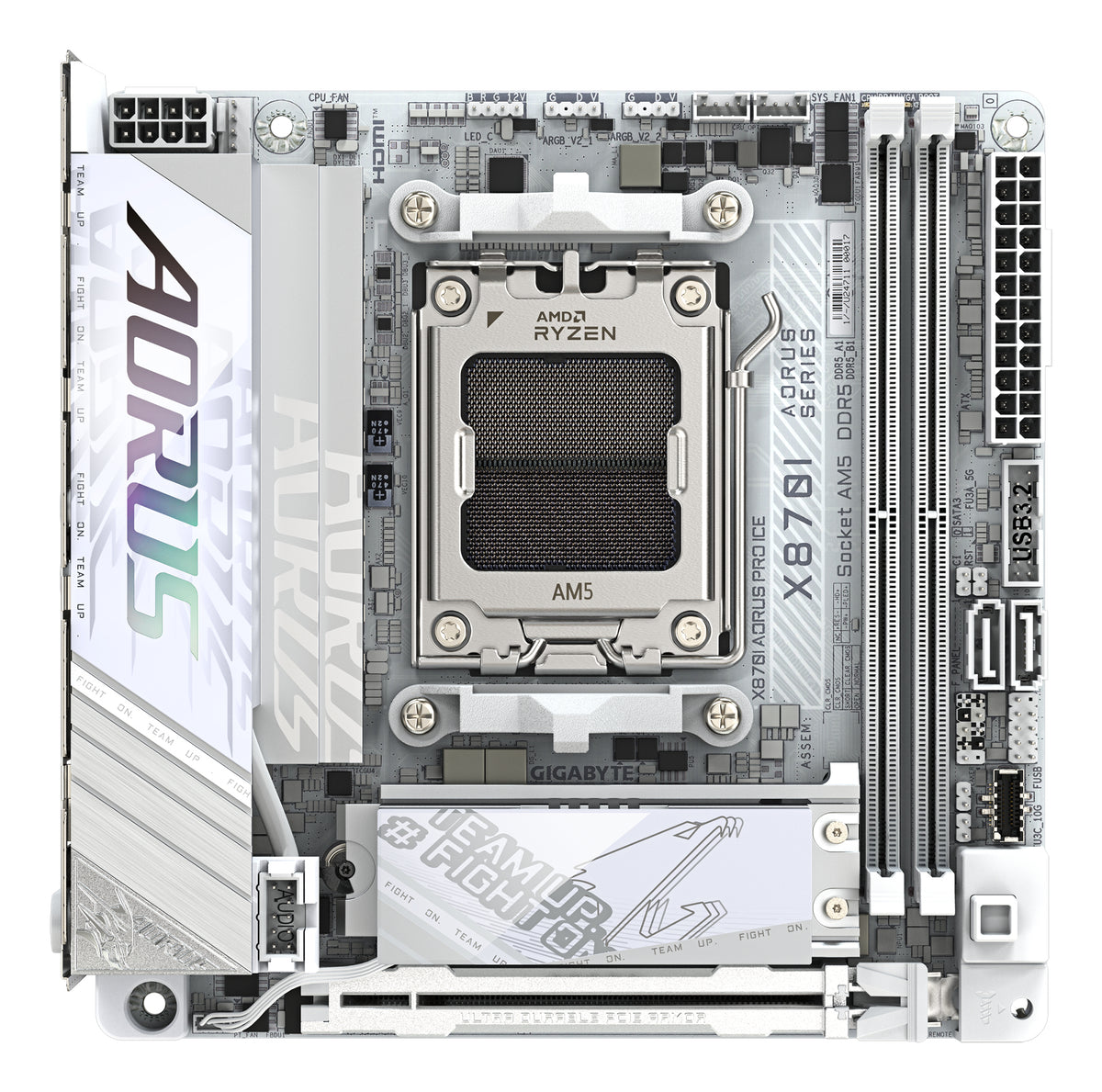

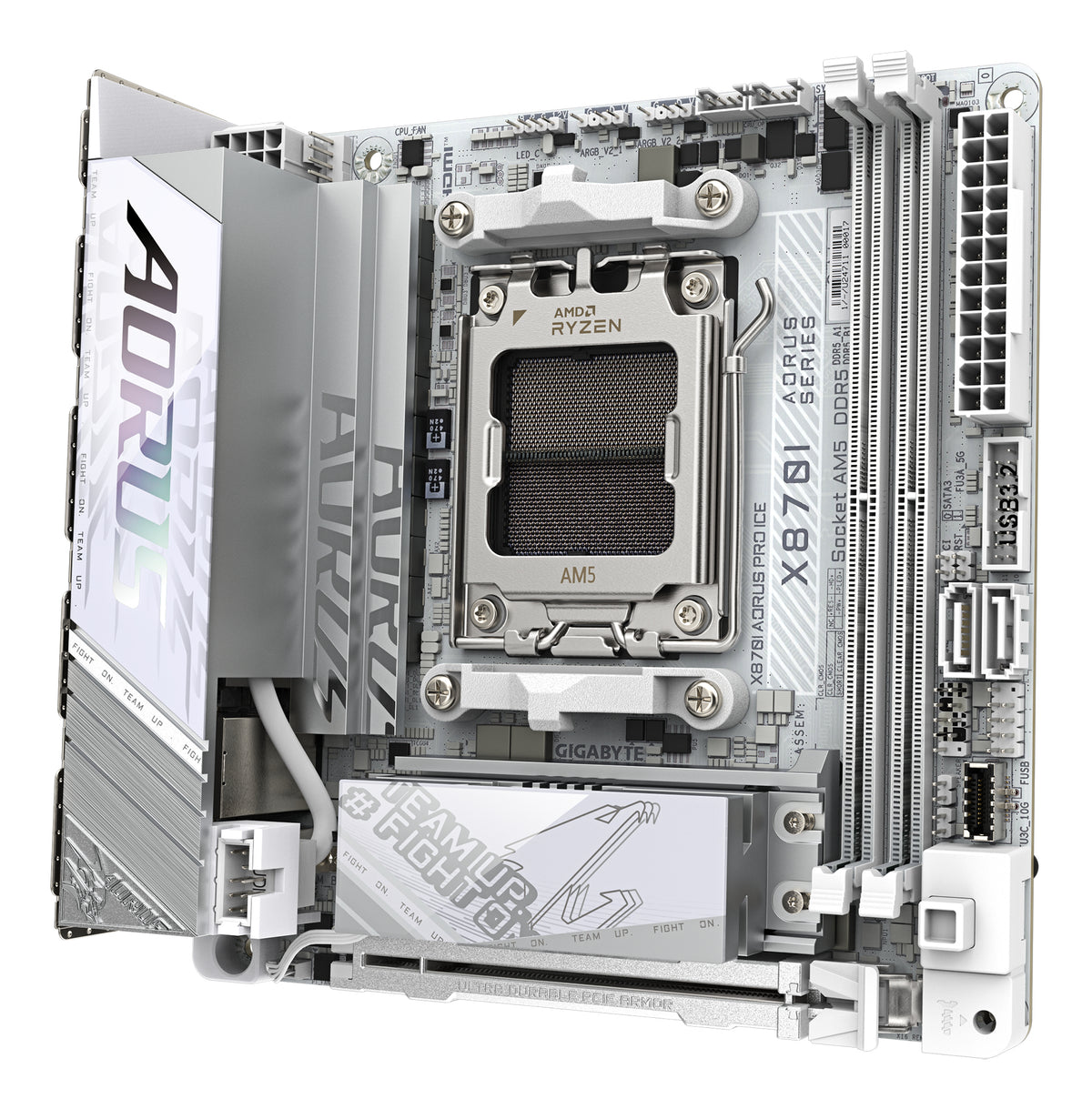

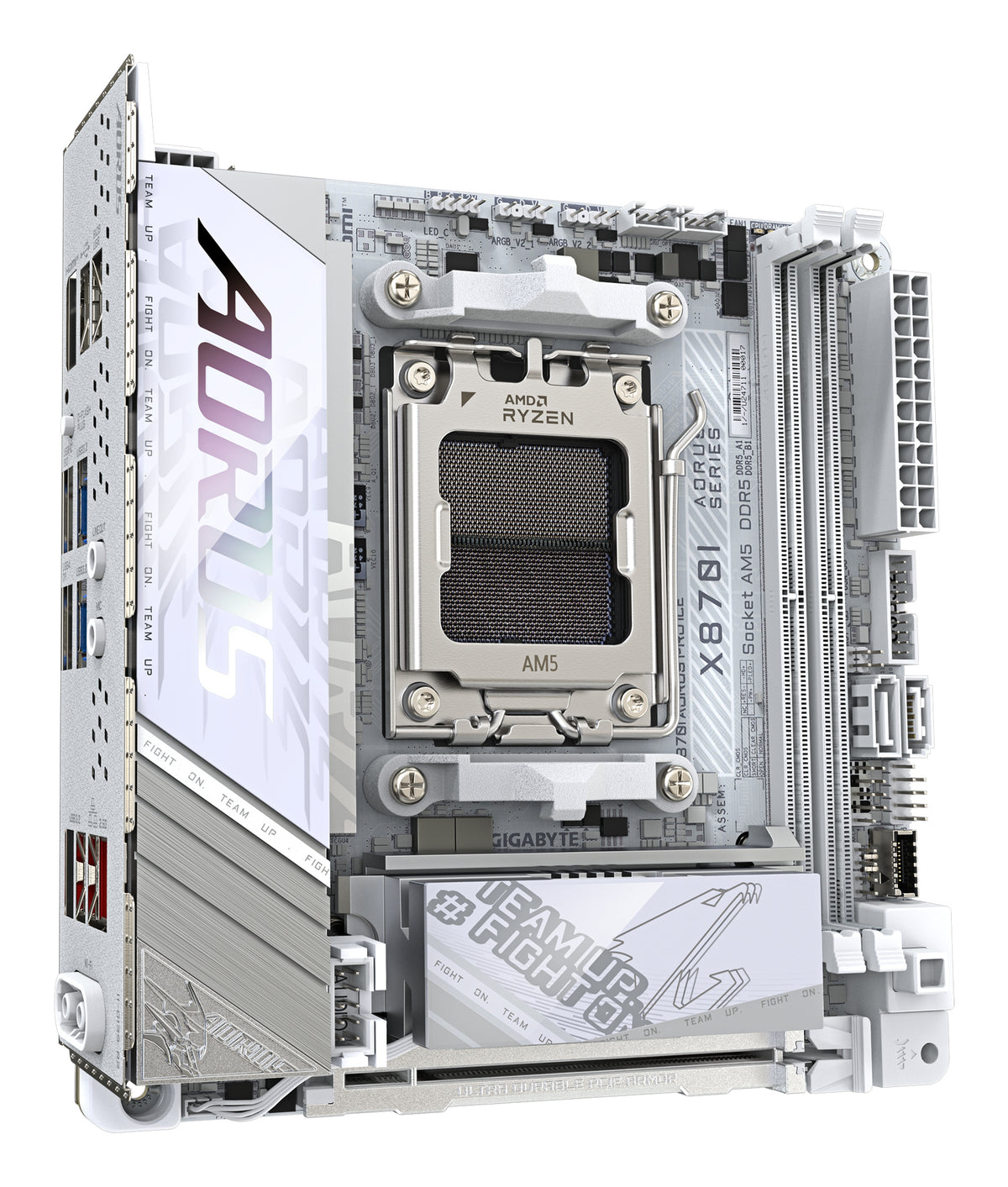

Gigabyte X870I AORUS PRO ICE AM5 Mini-ITX Motherboard Wi-Fi 7
GIGABYTE
Gigabyte X870I AORUS PRO ICE AM5 Mini-ITX Motherboard Wi-Fi 7
The Gigabyte X870I AORUS PRO ICE is a Mini-ITX AM5 motherboard built for compact high-performance builds with the latest AMD Ryzen processors. It combines PCIe 5.0 support, Wi-Fi 7 connectivity, and USB 4.0 for creators and enthusiasts who need full-featured power in a small chassis.
Why this product
PCIe 5.0 for GPU and storage
The PCIe UD Slot X supports graphics cards at full x16 bandwidth, while the primary M.2 slot runs at PCIe 5.0 x4 for the fastest NVMe drives.
USB 4.0 and Wi-Fi 7
USB 4 Type-C with DisplayPort Alt Mode and Wi-Fi 7 with 6 GHz support deliver the latest connectivity standards for external and wireless peripherals.
DDR5 with AMD EXPO
Two DIMM slots support up to 128 GB of DDR5 memory with AMD EXPO tuning profiles for optimized performance and stability.
8+2+1 phase VRM
Digital power delivery with thermal armor ensures stable power to the CPU even under overclocking.
Real-time power monitoring
HWinfo integration shows live CPU power phase data for detailed system diagnostics and tuning.
- SocketAM5
- Form FactorMini-ITX
- ChipsetAMD X870
- Memory SupportDDR5 up to 128 GB
- GPU InterfacePCIe 5.0 x16
- Storage2× M.2 (1× PCIe 5.0, 1× PCIe 4.0) + 2× SATA
- WirelessWi-Fi 7, Bluetooth 5.4
- SKUGIG-1986
- EAN4719331866112
- Supports AMD Ryzen 9000, 8000, and 7000 Series processors in Socket AM5.
- Accepts DDR5 memory modules up to 128 GB capacity with dual-channel architecture.
- Fits Mini-ITX cases; verify clearance for tall RAM modules and M.2 heatsinks.
- Ships with HDMI 2.1 and USB 4 Type-C video outputs; no legacy D-Sub or DisplayPort.
- PCIe GPU slot runs at x16 5.0 on Ryzen 9000/7000, but x8 4.0 on Ryzen 8000 Phoenix processors.
Best for
- Compact high-end gaming builds
- Content creators needing fast storage and dual-monitor setup
- Overclockers with access to premium DDR5 EXPO memory
- Builders prioritizing Wi-Fi 7 and USB 4 connectivity
Trade-offs
- Single-slot graphics cards are the only option — the one PCIe x16 slot leaves minimal space for multi-GPU setups.
- Budget builds — X870 Mini-ITX boards command a premium over larger form factors.
- Slow storage expansion — limited to 2 M.2 slots and 2 SATA ports; no additional expansion possible.
- Ryzen 8000 series users wanting PCIe 5.0 GPU bandwidth — these APUs cap out at PCIe 4.0 x8 on the primary slot.
AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
Digital 8+2+1 phases VRM solution
Dual Channel DDR5 : 2*DIMMs with AMD EXPO™ Memory Module Support
WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
EZ-Latch Click : M.2 heatsinks with screwless design
Sensor Panel Link : Onboard video port for hassle-free in-chassis panel setup
Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
New Power Monitor in HWinfo for real-time monitoring on CPU power phases
Ultra-Fast Storage : 2*M.2 slots, including 1* PCIe 5.0 x4
Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard Ext.

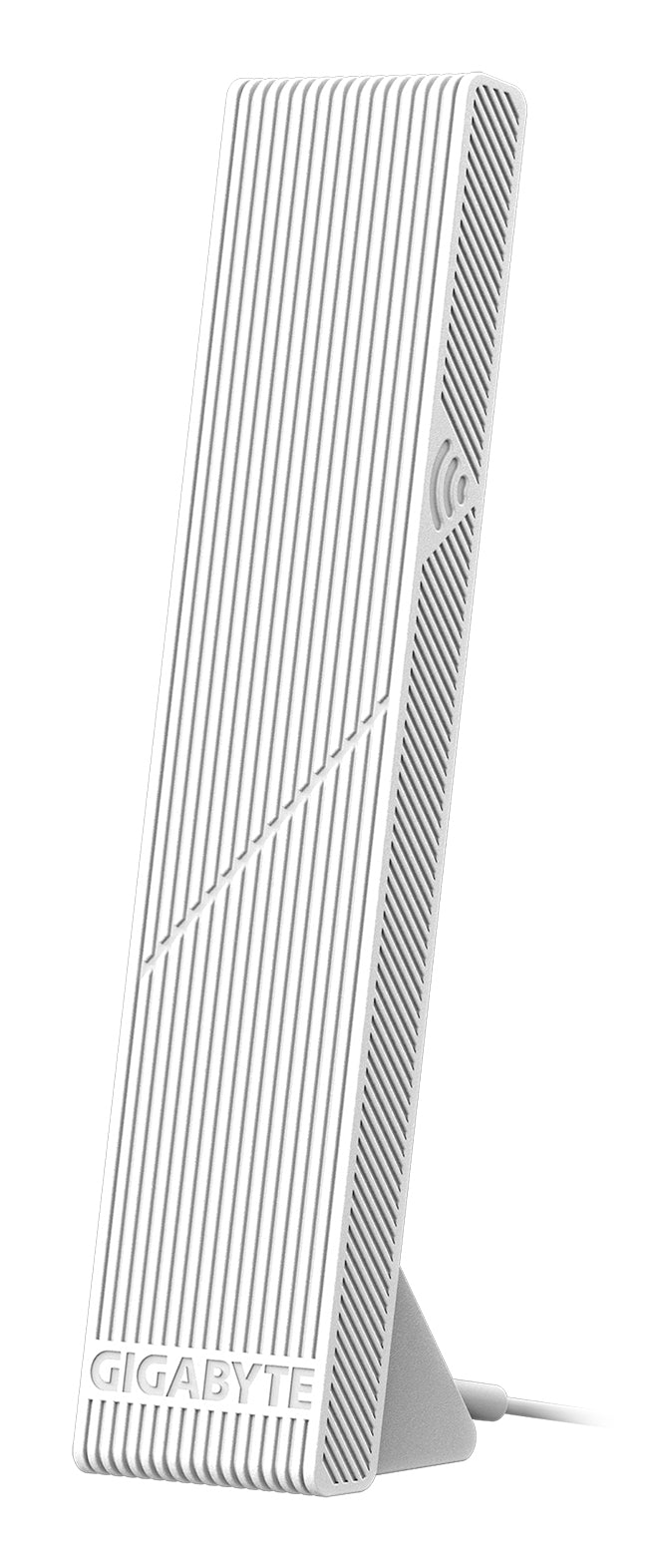

Fast Networking : 2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
Extended Connectivity : USB4 Type-C with DP-Alt, HDMI
Reliable Audio : Realtek ALC4080 HD Audio & Audiophile Grade Capacitors
PCIe UD Slot X : PCIe 5.0 x16 slot with 10X strength for graphics card
General
| Brand | Gigabyte |
|---|---|
| Chipset | AMD X870 |
| Form Factor | Mini-ITX |
CPU & Memory
| Socket | AM5 |
|---|---|
| CPU Support | AMD Ryzen 9000 / 8000 / 7000 Series |
| Memory Slots | 2× DDR5 DIMM |
| Max Memory | 128 GB |
| Memory Speed | DDR5-8400 (OC) / 5200 / 4800 / 4400 MT/s |
| Memory Features | Dual channel, AMD EXPO support |
| VRM | 8+2+1 phase digital |
Storage & Expansion
| PCIe Slot | 1× PCIe 5.0 x16 (GPU) |
|---|---|
| GPU Bandwidth | PCIe 5.0 x16 (Ryzen 9000/7000) or PCIe 4.0 x8 (Ryzen 8000) |
| M.2 Slots | 2× Socket 3 |
| M.2 Slot 1 | PCIe 5.0 x4 |
| M.2 Slot 2 | PCIe 4.0 x4 |
| SATA Connectors | 2× SATA 6Gb/s |

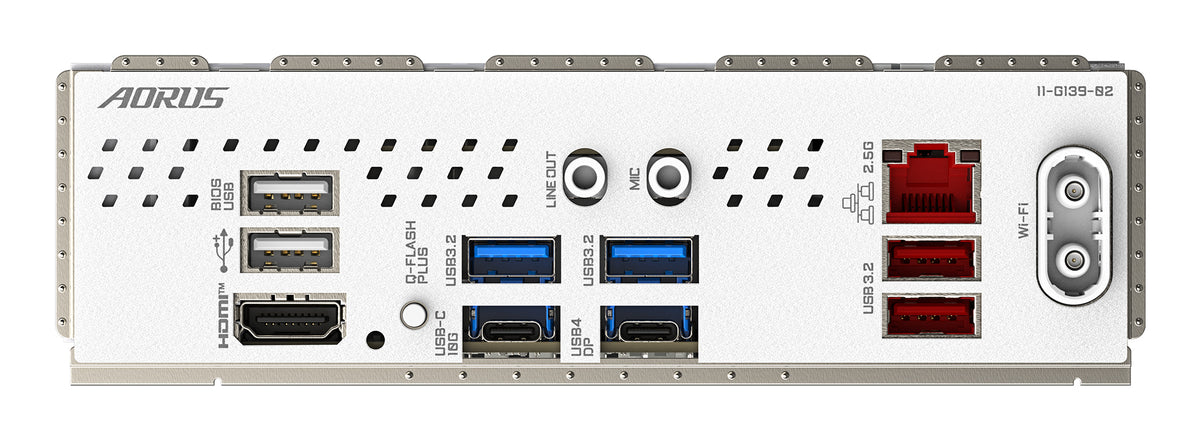

Connectivity & Audio
| USB 4.0 | 1× USB4 Type-C with DP Alt |
|---|---|
| USB 3.2 Gen 2 | 1× Type-C, 2× Type-A |
| USB 3.2 Gen 1 | 2× Type-A |
| USB 2.0 | 2× Type-A |
| Video Outputs | 1× HDMI 2.1, 1× USB4 Type-C (DP 1.4) |
| Max HDMI Resolution | 4096×2160@60 Hz |
| Max USB4 Resolution | 3840×2160@240 Hz |
| Ethernet | 2.5 GbE LAN |
| Wi-Fi | Wi-Fi 7 (802.11be), 2.4/5/6 GHz |
| Bluetooth | 5.4 |
| Audio Codec | Realtek ALC4080 HD Audio |
Power & Headers
| Power Connectors | 1× 24-pin ATX, 1× 8-pin ATX 12V |
|---|---|
| CPU Fan Headers | 1× CPU fan, 1× CPU fan/pump |
| System Fan Headers | 1× system fan |
| RGB Headers | 2× Addressable RGB Gen2, 1× RGB |
