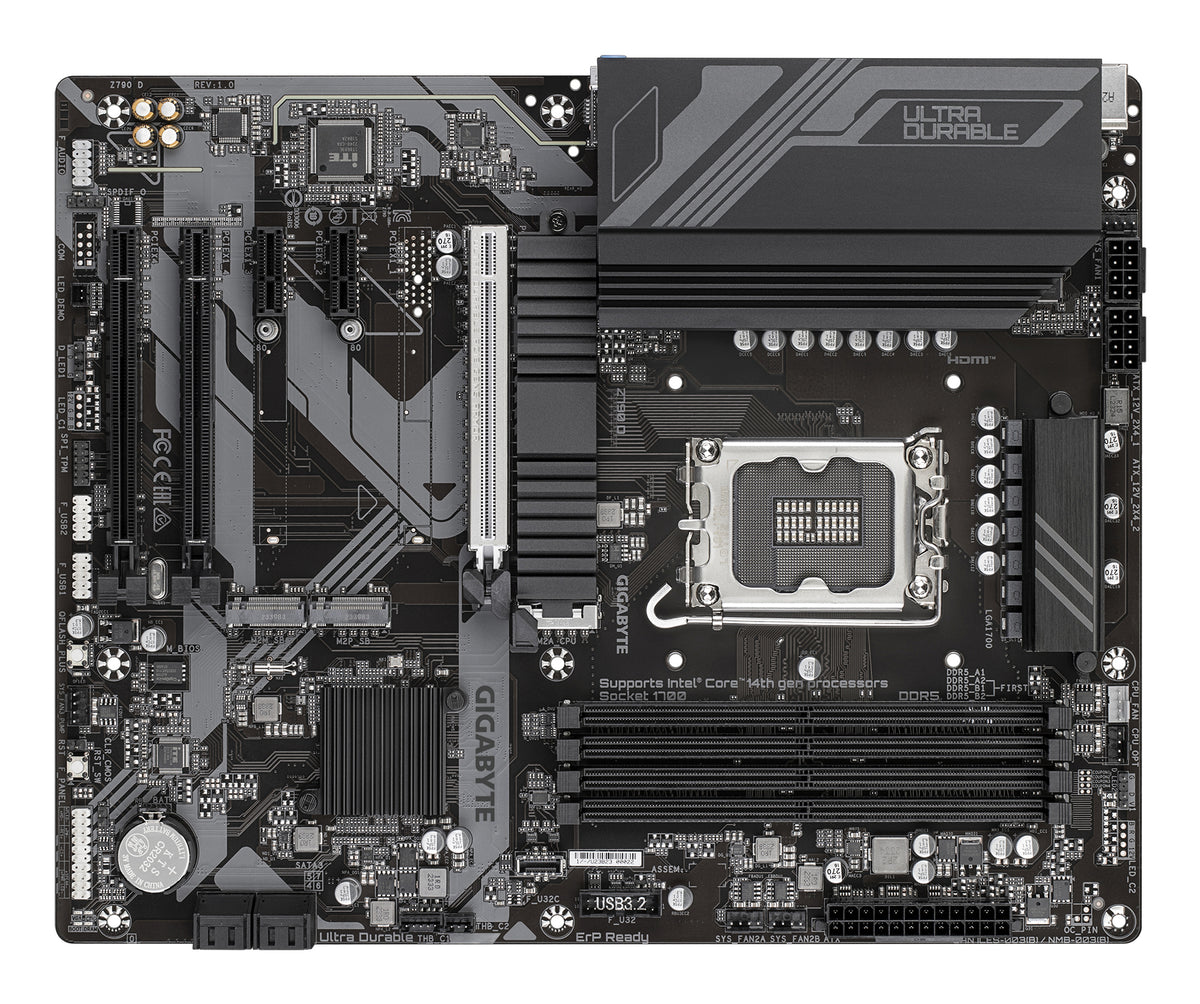

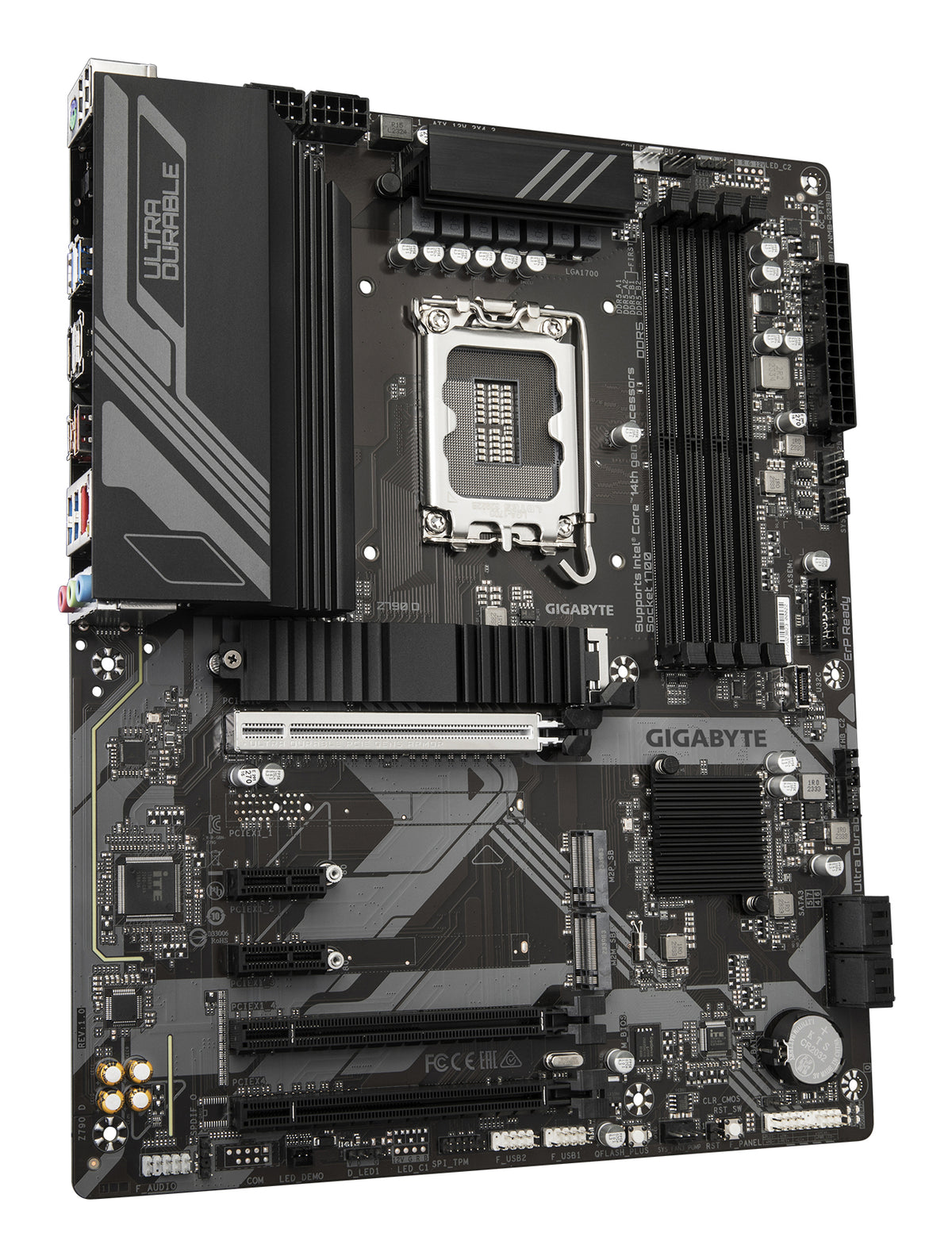

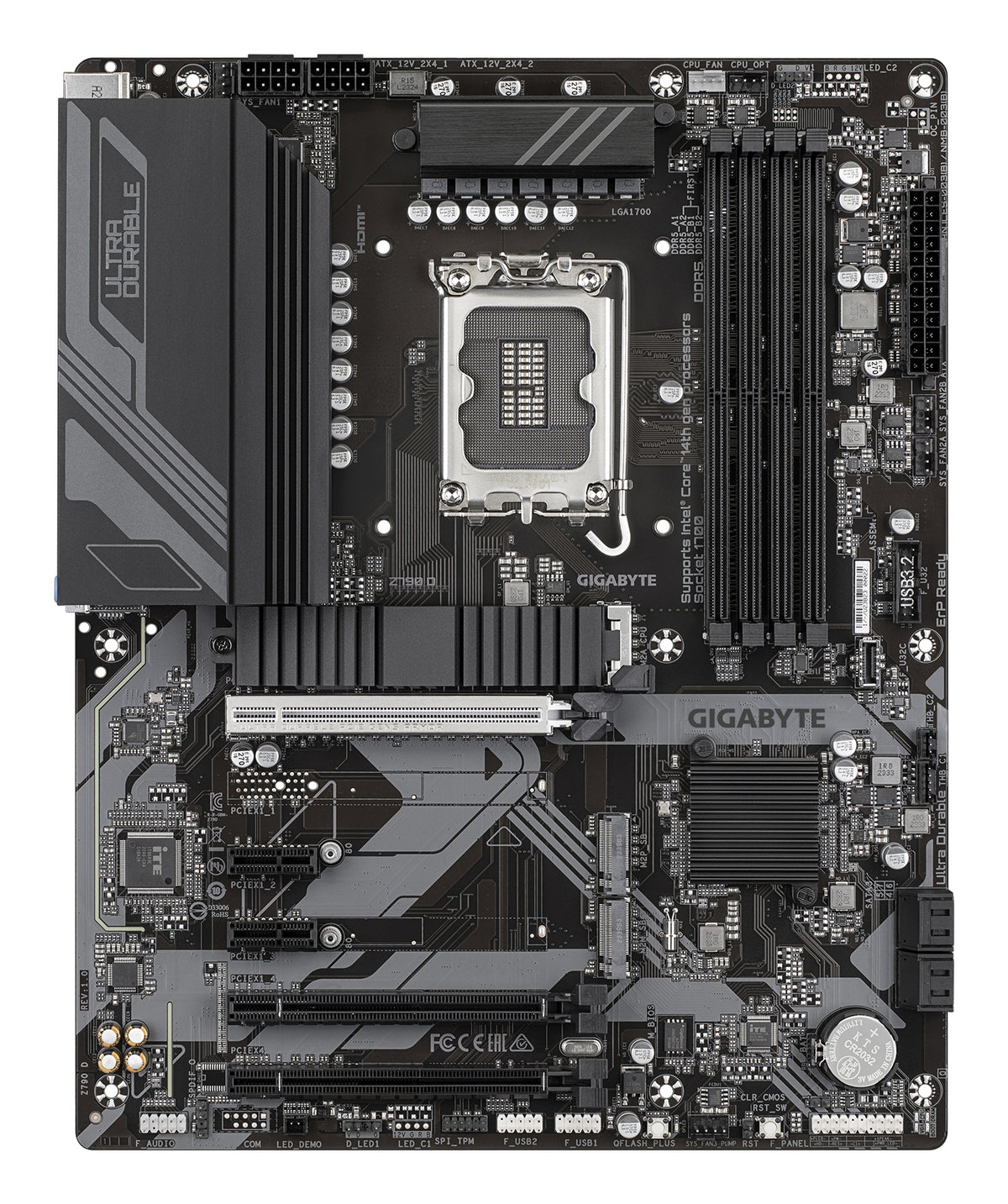

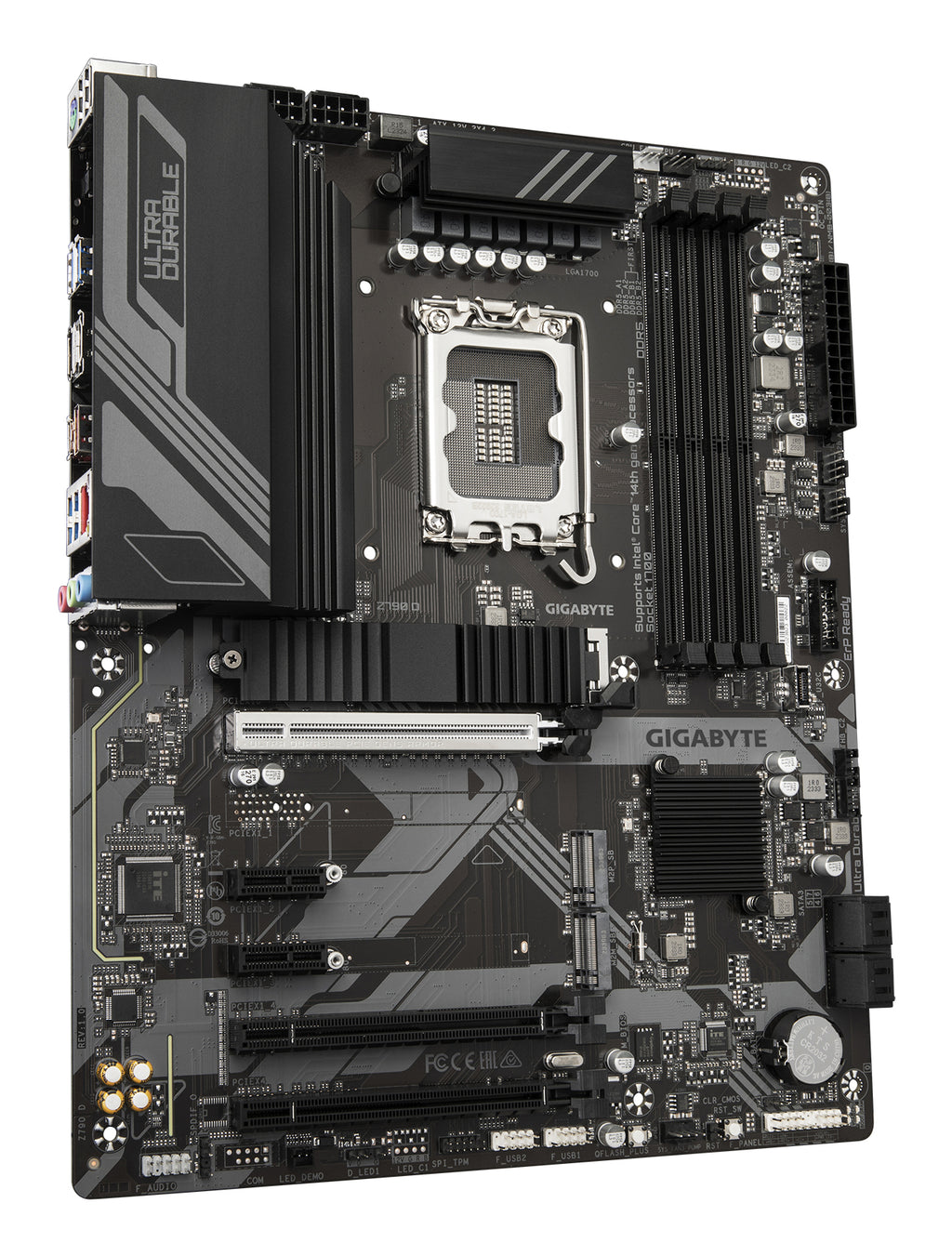

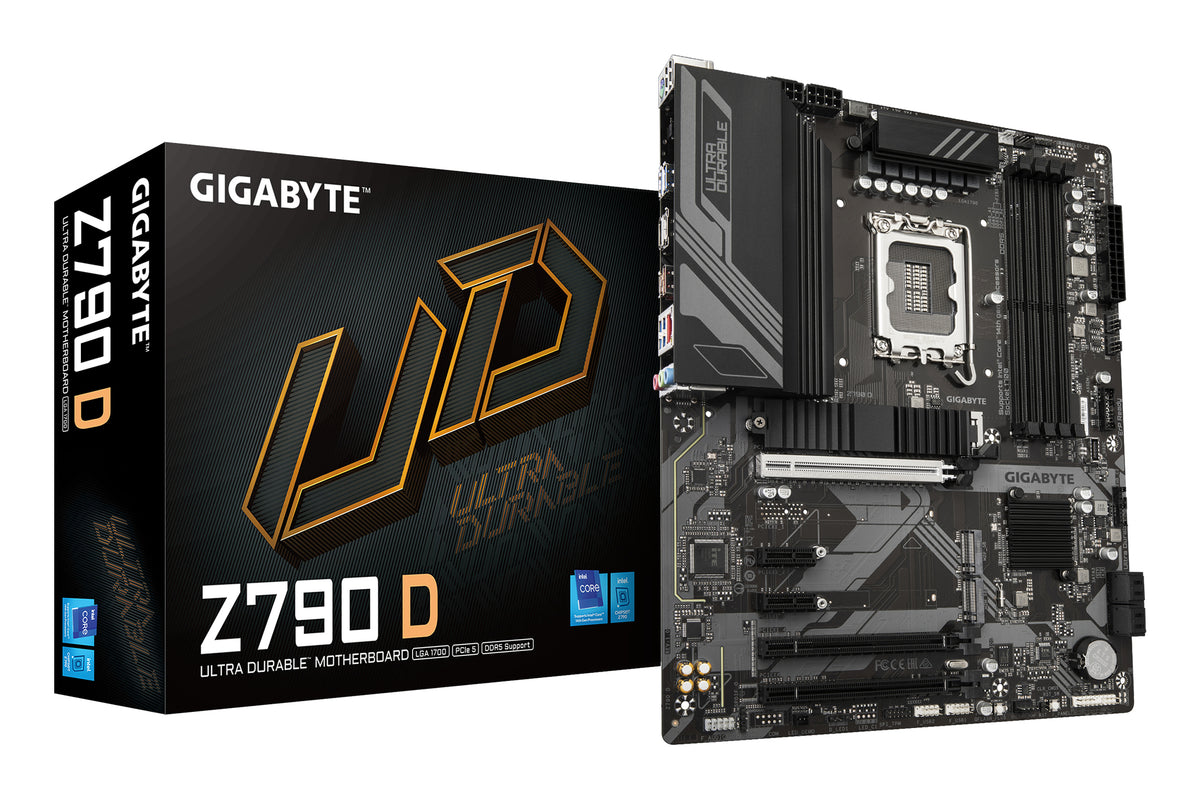

Gigabyte Z790 D DDR5 LGA1700 ATX Motherboard - 3x M.2, 2.5GbE

Supports Intel® Core™ 14th/ 13th /12th processors

Unparalleled Performance：Twin 12*+1+１ Phases Digital VRM Solution

Dual Channel DDR5：4*DIMMs with XMP 3.0 Memory Module Support

Next Generation Storage：3*PCIe 4.0 x4 M.2 Connectors

Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & M.2 SSD Performance

EZ-Latch：PCIe 4.0x16 Slot with Quick Release Design

Fast Networks：2.5GbE LAN

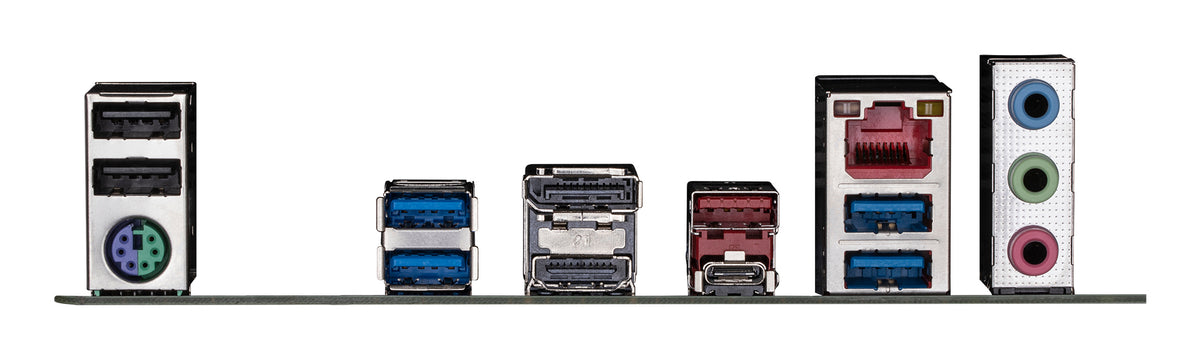

Extended Connectivity：DP, HDMI, Rear USB-C® 10Gb/s

Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP

Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

* 6+6 phases parallel power design

• Durable Performance — GIGABYTE Ultra Durable™ motherboards built with optimal components inside out provide the prime performance and timeless platform.
• Digital VRM Design — The best VRM design ever built with the highest quality components. 12+1+1 Phases digital PWM + Low RDS(on) MOSFETs. Support the latest CPUs, and deliver enhanced system performance and ultimate hardware scalability.
• Shielded Memory Routing — All memory routing is under the PCB inner layer shielded by a large ground layer to protect from external interference.
• Impedance Optimized Topology — By optimizing memory trace width, length and style from HPC simulation to actual implementation, overall impedance is lowered between CPU memory controller and memory modules to achieve higher DDR5 speed.
• Low Signal Loss PCB — Server grade mid-loss or low-loss PCB material is chosen to lower signal loss inside PCB and maintain DDR5 high speed signal transmission.
• Secure Mode — Motherboard provides fixed 5V to Native DDR5 memory and built-in PMIC outputs locked 1.1v to memory IC. Unlocks Native DDR5 PMIC secure mode into programmable mode and controls Native DDR5 voltage with wide range. Supports all PMIC vendors for maximum compatibility. * Memory overclocking capability will vary based on users' hardware configuration.
• Unlock DDR5 — DDR5 Overclocking Up to 7600 and Beyond*. GIGABYTE is offering a tested and proven platform with extreme memory performance boost. * Memory overlocking and XMP profile support may vary depending on hardware configuration.
• Accelerate instantly — Boost memory performance instantly.
• Automate input — No need to manually configure multiple memory parameters like clock, voltage, and timings.
• Streamline overclocking — Easily overclock Native and XMP 3.0 DDR5 memory to higher frequencies.
• Integrate database — Built-in database of pre-tuned profiles for different memory IC vendors.
• SPD Re-defined or retrieve from database — Users can define two empty SPD profiles and transfer them to another computer.
• Performance Simulation — Simulate memory performance quickly by inputting clock and timing parameters.
• Save/Load Profile — Save and load memory profiles for online sharing.
• Boost non-overclockable DDR5 memory frequency — Increase the frequency of non-overclockable DDR5 memory.
• 3X Large Surface — Increased surface area up to 3X larger compared to traditional heatsinks. It improves heat dissipation from the MOSFETs.
• Real One-piece Build — TMOS is a TRUE single piece heatsink. Its one-piece design and larger surface drastically improve the cooling performance against competitors' multi-piece design.
• The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.
• 2X copper PCBs design effectively lower the component temperature by its high thermal conductivity and low impedance.
• Q-Flash Plus — With GIGABYTE Q-Flash Plus, you don't need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you're good to go!
