Gigabyte Z890 AORUS ELITE WIFI7 LGA1851 ATX Motherboard
GIGABYTE
Gigabyte Z890 AORUS ELITE WIFI7 LGA1851 ATX Motherboard

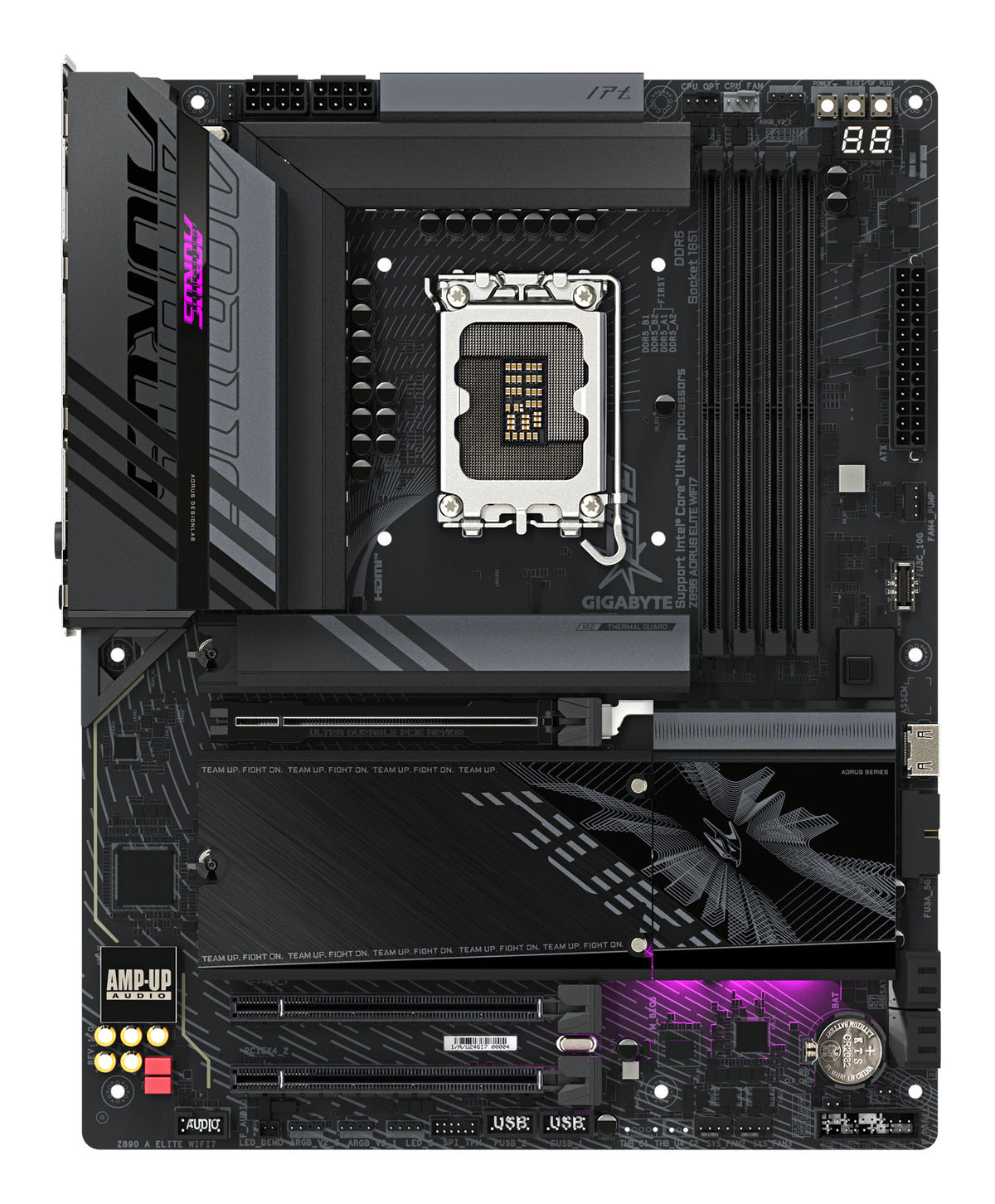

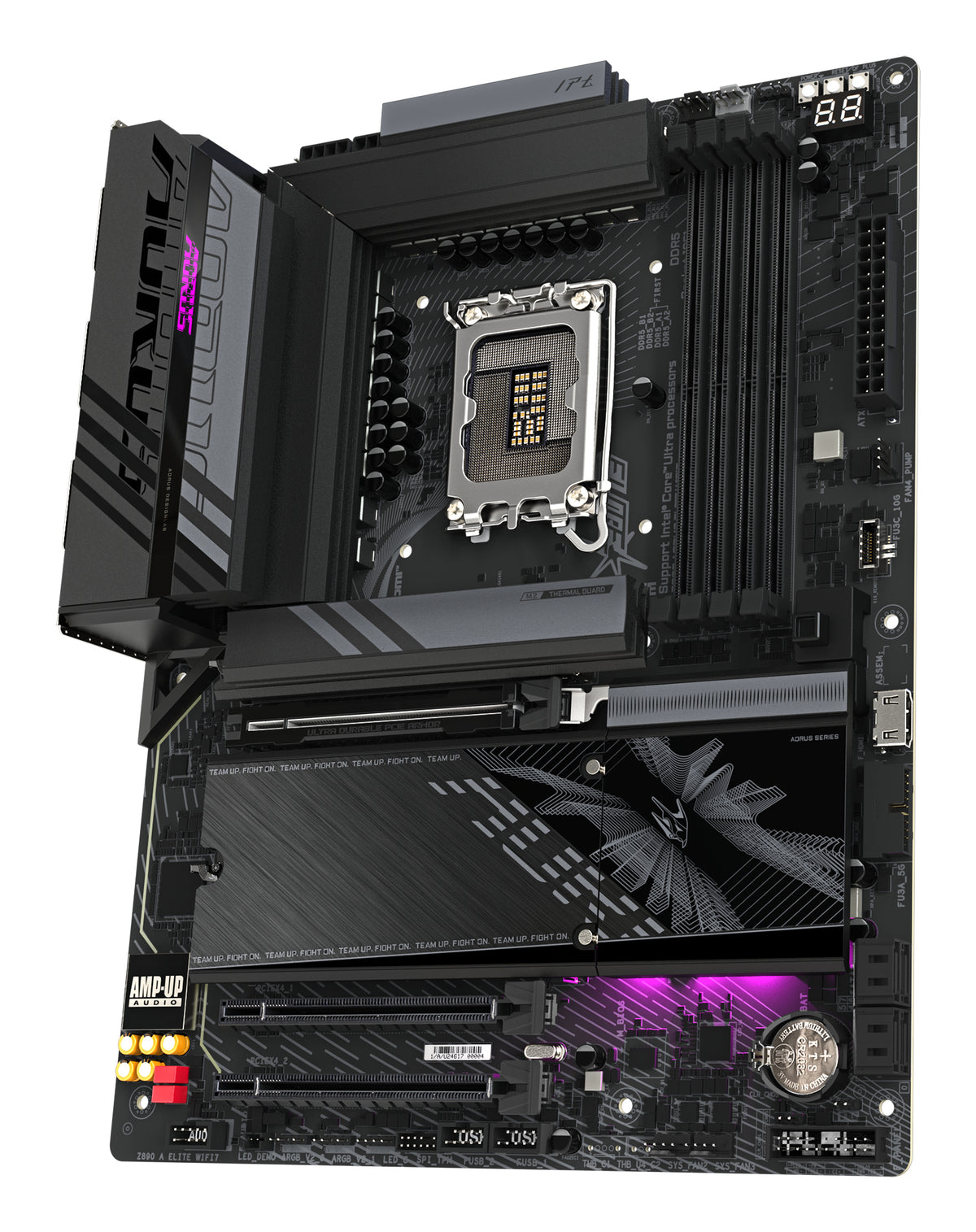

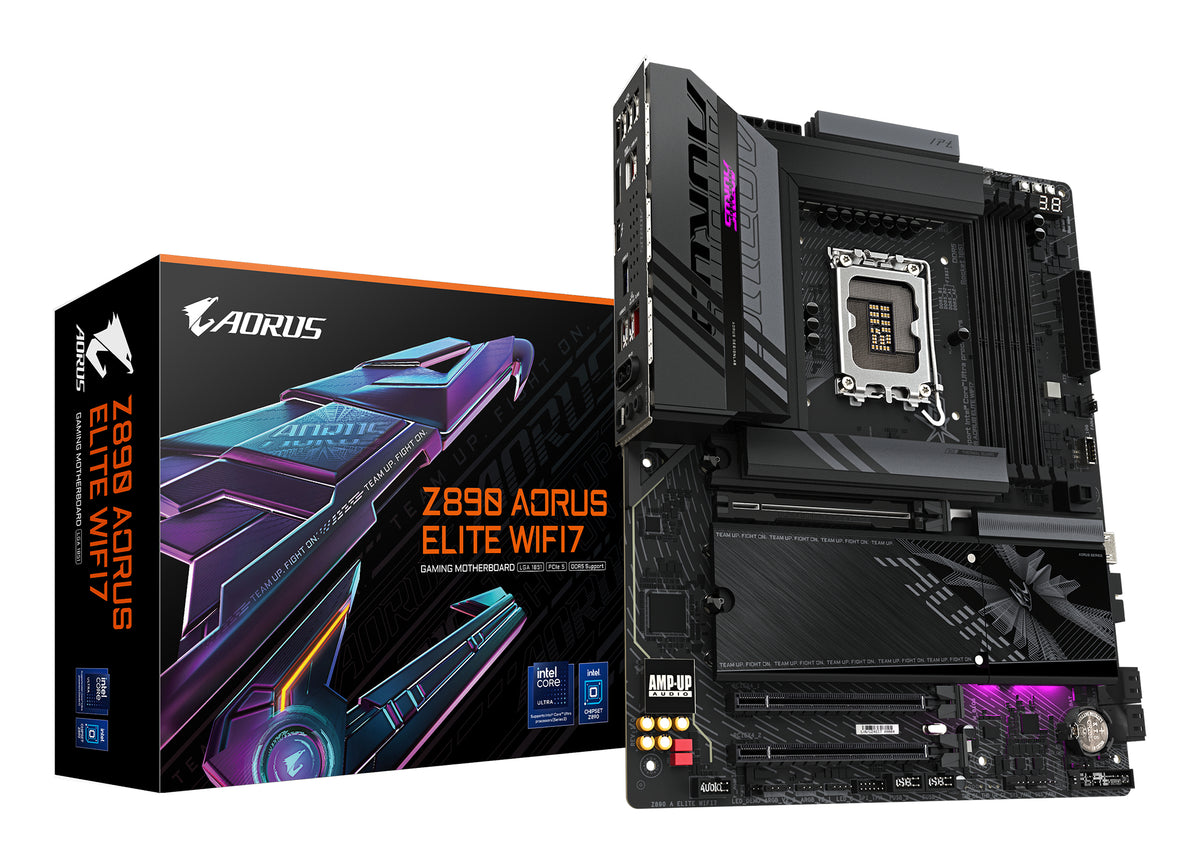

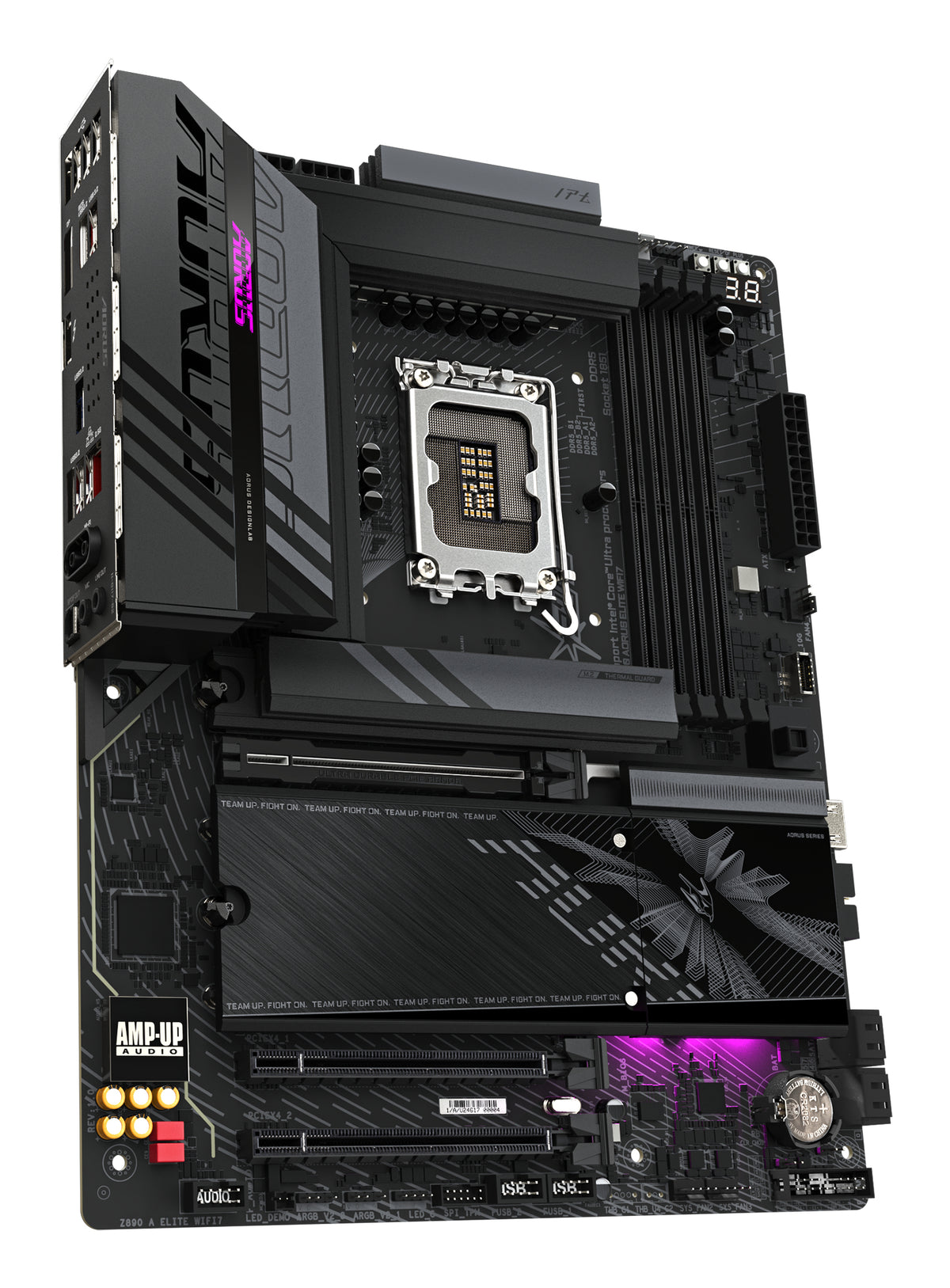

The Gigabyte Z890 AORUS ELITE WIFI7 is an ATX motherboard for builders upgrading to Intel Core Ultra processors (Series 2). It combines a 16+1+2 phase VRM, Wi-Fi 7 connectivity, and four M.2 slots—including one PCIe 5.0—to handle high-end gaming, content creation, and multithreaded workloads.
Why this product
Wi-Fi 7 and 2.5GbE for fast networking

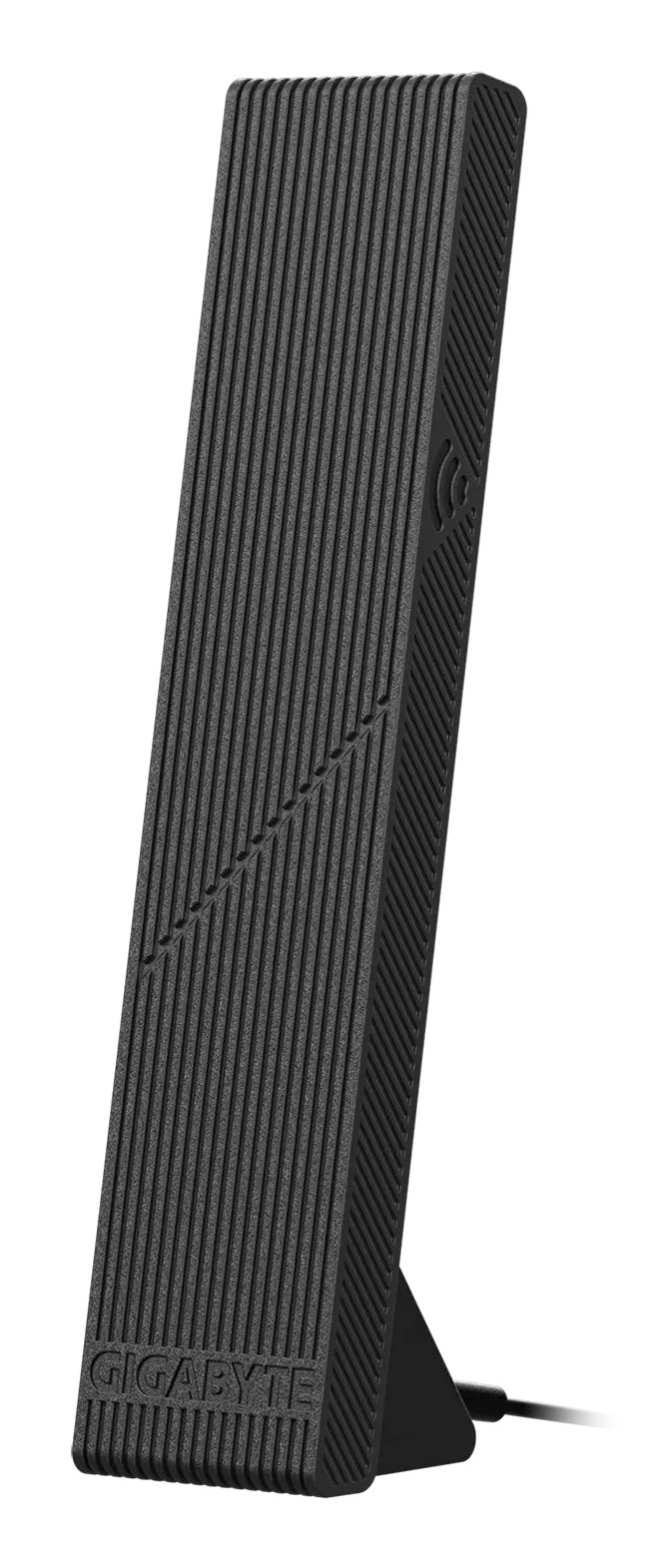

This motherboard includes Wi-Fi 7 (802.11be) with a directional ultra-high gain antenna and 2.5GbE wired LAN, covering both wireless and wired connectivity for low-latency gaming and fast file transfers.
PCIe 5.0 and four M.2 slots for storage
One M.2 slot runs at PCIe 5.0 x4 speed, with three additional slots at PCIe 4.0 or SATA. All slots feature screwless EZ-Latch Click heatsinks for easy installation and thermal management.
16+1+2 phase digital VRM for power stability
The dual-tower VRM design with Thermal Armor Advanced keeps voltage regulation cool and stable under sustained load, essential for overclocking and heavy workloads.
Thunderbolt 4 and DisplayPort outputs
The integrated Thunderbolt 4 Type-C port supports up to 40 Gbps with Thunderbolt devices and carries DisplayPort for video, while a second USB Type-C header provides additional USB 3.2 Gen 2 connectivity.
DDR5 memory support up to 256 GB
Four DDR5 DIMM slots accept modules up to DDR5-9200 (overclocked), with XMP profile support for plug-and-play speed configuration.
AI Perfdrive for automated BIOS tuning
The motherboard can generate customized BIOS presets tailored to your system components, simplifying overclocking and performance optimization.
- SocketLGA1851 for Intel Core Ultra (Series 2)
- ChipsetIntel Z890 Express
- Form factorATX
- Memory slots4 × DDR5 (up to 256 GB, DDR5-5600 to DDR5-9200)
- M.2 slots4 (1 × PCIe 5.0 x4, 3 × PCIe 4.0 or SATA)
- WirelessWi-Fi 7 (802.11be), Bluetooth 5.4
- Network2.5GbE LAN
- Thunderbolt 4Yes, with DisplayPort and USB4 support
- SKUGIG-2042
- EAN4719331864507
- Fits Intel Core Ultra processors (Series 2) in the LGA1851 socket only; not compatible with older Intel generations or AMD processors.
- Accepts DDR5 memory modules at speeds from DDR5-5600 to DDR5-9200 (overclocked), with XMP profile support for faster kits.
- Houses up to four NVMe M.2 SSDs and four SATA drives simultaneously; includes RAID 0, 1, 5, and 10 support for both drive types.
- Integrates Bluetooth 5.4 and Wi-Fi 7 (802.11be, a/b/g/n/ac/ax) for wireless connectivity without a separate adapter.
- Supports Thunderbolt 4 monitors at up to 5120×2880@60 Hz, or USB4 Type-C monitors at up to 3840×2160@240 Hz, depending on monitor type.
Best for
- High-end gaming builds that benefit from fast NVMe storage, low-latency Wi-Fi 7, and stable power delivery under sustained load.
- Content creators running demanding workloads like video editing or 3D rendering, thanks to the robust VRM and support for up to 256 GB of DDR5 RAM.
- Overclocking enthusiasts who want AI-assisted tuning via BIOS and real-time power monitoring through HWinfo.
- Users who need extensive storage: four M.2 slots (one at PCIe 5.0) plus four SATA ports cover both NVMe and traditional drives.
- Builders requiring Thunderbolt 4 connectivity for high-speed external storage or professional peripherals on the same connector as video output.
Trade-offs
- Budget-conscious builders: this motherboard targets enthusiasts and professionals willing to spend for features like Wi-Fi 7 and PCIe 5.0.
- Users with Intel 13th or 14th generation processors; it requires Series 2 Core Ultra CPUs on the newer LGA1851 socket.
- Compact build projects: ATX form factor requires a full-size case with standard mounting holes and space for large coolers.
- AMD platform builders; this board is Intel-only and will not accept Ryzen or other AMD processors.
Supports Intel® Core™ Ultra processors (Series 2) Digital twin 16+1+2 phases VRM solution · D5 Bionic Corsa for Infinite Memory Performance · AI Perfdrive : Provides optimal and customized BIOS preset profile for users · Premium Compatibility : 4*DDR5 with XMP Memory Module Support · WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation · EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design · EZ-Latch Click : M.2 heatsinks with screwless design · Sensor Panel Link : Onboard video port for hassle-free in-chassis panel setup · Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW · New Power Monitor in HWinfo for real-time monitoring on CPU power phases · Ultra-Fast Storage : 4*M.2 slots, including 1* PCIe 5.0 x4 · Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard L · Fast Networking : 2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna · Extended Connectivity : THUNDERBOLT™ 4 Type-C with DP-Alt, DisplayPort · High-Res Audio
General
| Brand | Gigabyte |
|---|
Networking
| Wireless standard | Wi-Fi 7 (802.11be), 802.11a/b/g/n/ac/ax |
|---|---|
| Wireless throughput | Wi-Fi 7 |
| Bluetooth | Bluetooth 5.4 |
| Wired LAN | 2.5GbE |
Performance
| CPU socket | LGA1851 (Intel Core Ultra Series 2) |
|---|---|
| Chipset | Intel Z890 Express |
| Memory type | DDR5 |
| Memory slots | 4 × DIMM |
| Max memory | 256 GB |
| Memory speed | DDR5-5600 to DDR5-9200 (with XMP support) |
| VRM phases | 16+1+2 (Digital Twin) |
| M.2 slots | 4 connectors (1 × PCIe 5.0 x4, 1 × PCIe 4.0 x4/x2, 2 × PCIe 4.0/SATA) |
| SATA ports | 4 × SATA 6Gb/s |
| NVMe RAID | RAID 0, 1, 5, 10 |
| SATA RAID | RAID 0, 1, 5, 10 |

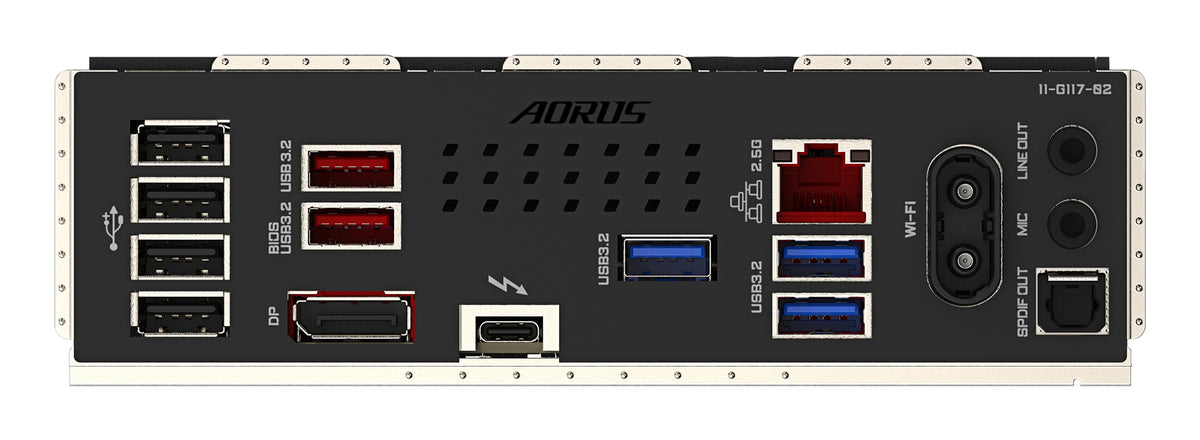

Ports & power
| PCIe expansion slots | 1 × PCIe 5.0 x16, 2 × PCIe 4.0 x4 |
|---|---|
| Thunderbolt 4 ports | 1 (Type-C, 40 Gbps with Thunderbolt, 20 Gbps USB4, 10 Gbps USB 3.2) |
| USB Type-C (rear) | 1 × Thunderbolt 4 (video + data) |
| USB 3.2 Gen 2 Type-A | 2 (rear) |
| USB 3.2 Gen 1 Type-A | 5 (3 rear, 2 via header) |
| USB 2.0 ports | 8 (4 rear, 4 via headers) |
| Audio codec | Realtek ALC1220 |
| Power connectors | 1 × 24-pin ATX, 2 × 8-pin 12V |
| Fan headers | 1 × CPU fan, 1 × CPU pump, 3 × system fan, 1 × system pump/fan |
| RGB headers | 3 × addressable Gen2, 1 × standard RGB |
Physical
| Form factor | ATX |
|---|---|
| I/O shield | Pre-fitted integrated I/O shield |
| BIOS | GIGABYTE UC BIOS with Q-Flash Plus, AI Perfdrive, HyperTune |
| Thermal features | VRM Thermal Armor Advanced, M.2 Thermal Guard L |
