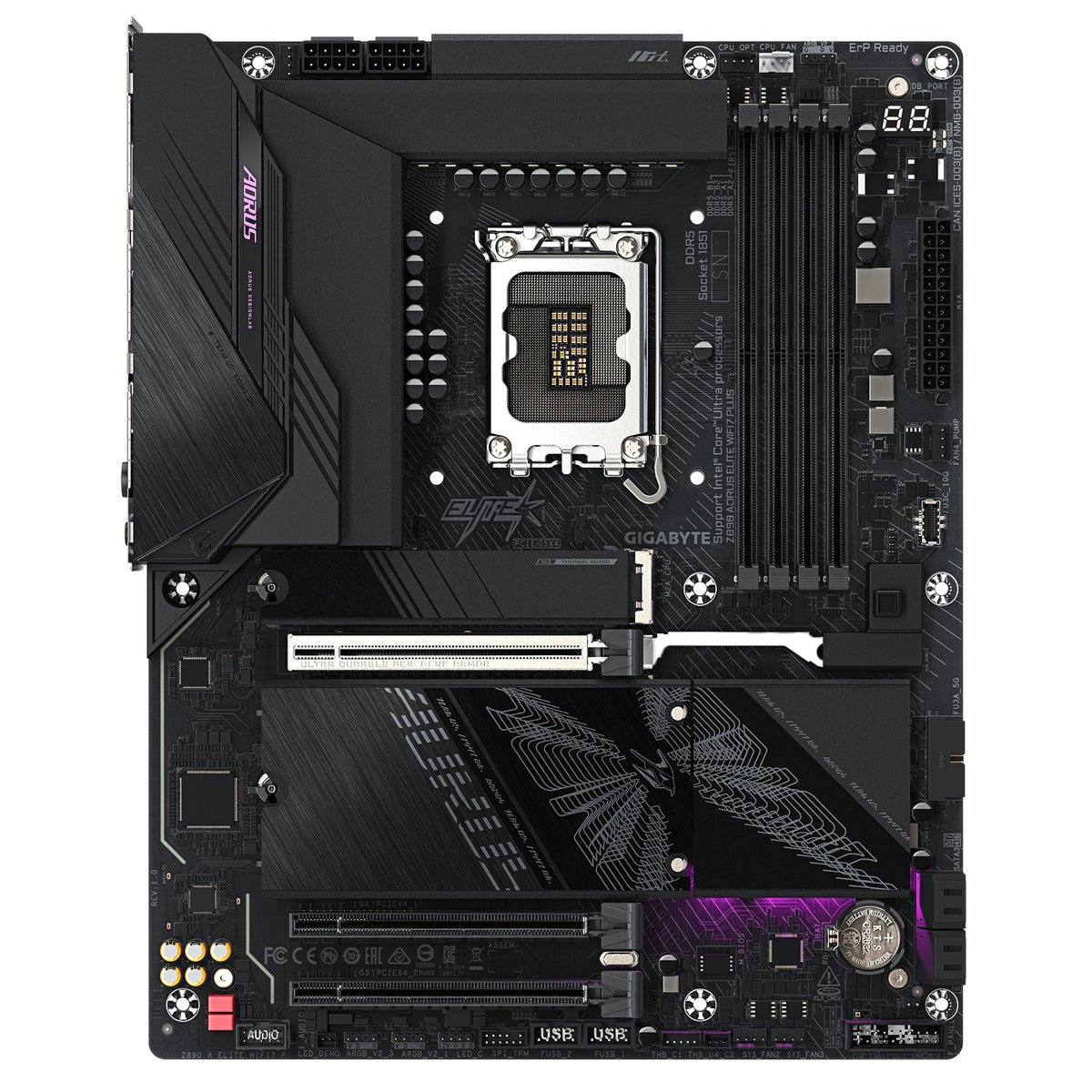

Gigabyte Z890 AORUS Elite WiFi7 Plus LGA1851 ATX Motherboard
GIGABYTE
Gigabyte Z890 AORUS Elite WiFi7 Plus LGA1851 ATX Motherboard
The Gigabyte Z890 AORUS Elite WiFi7 Plus is an LGA1851 ATX motherboard built for Intel Core Ultra processors (Series 2). It combines a 16+1+2 phase VRM, Wi-Fi 7 connectivity, and PCIe 5.0 storage support for builders seeking both performance and modern I/O standards.
Why this product
Wi-Fi 7 with directional antenna
This board includes Intel BE200NGW Wi-Fi 7 with ultra-high gain directional antenna for stronger signal reach and lower latency than Wi-Fi 6.
PCIe 5.0 and PCIe 4.0 storage options
One PCIe 5.0 M.2 slot for the fastest NVMe drives, plus three PCIe 4.0 M.2 slots and four SATA ports give you flexibility across storage generations.
16+1+2 phase VRM with 60A DrMOS
Digital twin power stages and premium chokes stabilise voltage delivery for overclocking and sustained CPU loads.
5GbE Ethernet and USB4
Realtek 5GbE LAN handles wired traffic; USB4 Type-C adds 40 Gbps connectivity and DisplayPort video support in a single port.
ALC1220 with audiophile capacitors
WIMA-grade capacitors and Realtek's premium codec deliver cleaner audio than standard implementations, backed by optical S/PDIF output.
- ChipsetIntel Z890 Express
- SocketLGA1851
- Form FactorATX
- Memory Slots4 × DDR5 DIMM
- M.2 Slots4 (1 PCIe 5.0, 3 PCIe 4.0)
- WirelessWi-Fi 7 (Intel BE200NGW)
- Ethernet5GbE Realtek
- USB4Yes, 40 Gbps
- SKUGIG-1966
- EAN4719331880798
- Supports Intel Core Ultra processors Series 2 in LGA1851 socket (consult GIGABYTE's CPU support list for your specific model).
- Accepts up to four DDR5 DIMMs (standard CUDIMM format) with XMP profile support for frequencies up to DDR5-9466 MT/s (overclocked).
- Fits standard ATX cases with one PCIe x16 slot and two PCIe x4 slots for expansion cards.
- Integrated DisplayPort and USB4 video output support displays up to 3840×2160@144 Hz via Intel integrated graphics.
- AORUS WATERFORCE X II series AIO liquid coolers benefit from dedicated 8+8-pin power connectors and dedicated AIO fan headers.
Best for
- Intel Core Ultra Series 2 PC builders wanting modern connectivity
- Users prioritising Wi-Fi 7 and 5GbE for low-latency gaming and streaming
- Content creators and enthusiasts using multiple NVMe drives across generations
- Builders wanting headroom for CPU overclocking via robust 16+1+2 phase VRM
- Audio-focused builds that benefit from premium codec and capacitor quality
Trade-offs
- AMD platform users: This board is Intel LGA1851 only and does not support AMD Ryzen CPUs.
- Older CPU compatibility: Requires Intel Core Ultra Series 2 processors; does not support older generations or non-Core Ultra chips.
- Budget builds on a tight constraint: The Z890 platform commands a premium for its feature set; entry-level B series boards cost less.
- Users needing PoE ports: This board has no Power-over-Ethernet capability on its 5GbE LAN port.
Z890 AORUS ELITE WIFI7 PLUS
Technology embodies our commitment to excellence, providing gamers with a platform that's not only powerful but also built for longevity and reliability. AORUS series motherboards are engineered to endure and excel.
- 60A DrMOS
- 2X Copper PCB
- Premium Choke and Capacitor
- * 8+8 phases parallel power design
- 24 pin ATX
- 8+8 pin CPU with UD Solid Pin
- 1 x PCIe 5.0 M.2 Slot
- 3 x PCIe 4.0 M.2 Slots
- 1 x PCIe 5.0 x16 with PCIe UD Slot
- 2 x PCIe 4.0 x4
- 5 W/mk Thermal Pad
- Integrated IO Shield
- ALC1220
- WIMA Audiophile Grade Capacitors
- 1 x RGB LED Header
- 3 x ARGB LED Headers
- Multi-key (Default Reset) Power Button
- Q-flash Plus button
- Clear CMOS button
- Ultra Turbo Mode
* Supports for AORUS WATERFORCE X II series AIO only
A unified software platform encompassing multiple GIGABYTE product.
RGB Fusion: Personalize the RGB illumination on your motherboard and connected peripherals. Liberate your imagination using GCC's versatile illumination options for your motherboard. Tailor your setup with eye-catching displays that mirror your unique personality and preferences. Programmable RGB LED connectors enable precise control over individual LEDs (for ARGB GEN2 devices), seamlessly managed through the GCC.
* The information provided is for reference; please prioritize your specific setup and specifications.
The new feature provides real-time monitoring on CPU Vcore power phases. * This feature will be activated only on GIGABYTE AMD and Intel 800 series motherboards with Intersil, Onsemi, and Infineon power controller.
General
| Brand | GIGABYTE |
|---|
Networking
| Ethernet Standard | 5GbE LAN (Realtek) |
|---|---|
| Wi-Fi Standard | Wi-Fi 7 (Intel BE200NGW) with directional ultra-high gain antenna |
| Wi-Fi Antennas | 2 × antenna connectors (2T2R) |
| USB4 Throughput | 40 Gbps |
Performance
| CPU Support | Intel Core Ultra Processors Series 2 (LGA1851) |
|---|---|
| Power Phases | 16+1+2 phases (digital twin VRM) |
| DrMOS | 60A |
| Memory Support | 4 × DDR5 DIMM, up to DDR5-9466+ MT/s (OC), max 256 GB |
| Memory Type | Non-ECC, unbuffered, CUDIMM with XMP support |
| PCIe Slots | 1 × PCIe 5.0 x16 (with PCIe UD), 2 × PCIe 4.0 x4 |
| M.2 Storage (CPU) | 1 × PCIe 5.0 x4/x2 (2280/22110/2580/25110), 1 × PCIe 4.0 x4/x2 (2280/22110) |
| M.2 Storage (Chipset) | 1 × PCIe 4.0 x4/x2 (2280/22110), 1 × PCIe 4.0 x4/x2 or SATA (2280/22110) |
| SATA Ports | 4 × SATA 6 Gb/s |
| Storage RAID | RAID 0, 1, 5, 10 for NVMe and SATA |
Ports & Power
| ATX Power Connectors | 1 × 24-pin main, 2 × 8-pin CPU (UD Solid Pin) |
|---|---|
| Fan Headers | 1 × CPU, 1 × CPU/pump, 3 × system, 1 × system/pump |
| RGB Headers | 3 × ARGB Gen2, 1 × RGB |

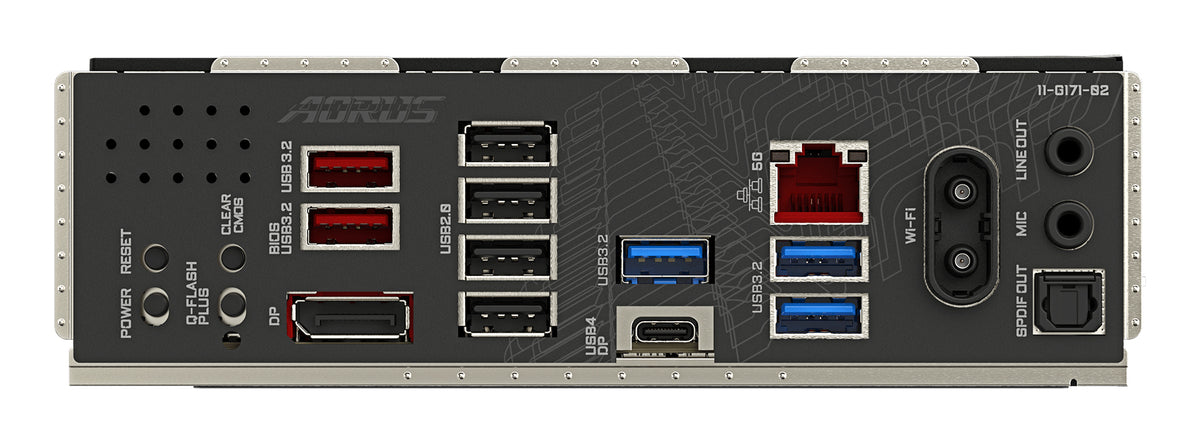

| Rear USB (Type-A) | 2 × USB 3.2 Gen 2, 3 × USB 3.2 Gen 1, 4 × USB 2.0/1.1 |
| Rear USB (Type-C) | 1 × USB4 (40 Gbps, DP-Alt support) |
| Video Output | 1 × DisplayPort, 1 × USB4 Type-C (DP support, max 3840×2160@144 Hz) |
| Audio Jacks | 2 × analog audio, 1 × optical S/PDIF out |
| Internal USB Headers | 1 × USB 3.2 Gen 2 Type-C, 1 × USB 3.2 Gen 1, 2 × USB 2.0/1.1 |
| Other Headers | Front panel, front audio, TPM 2.0, power button, reset button, Q-Flash Plus, Clear CMOS |
Audio
| Codec | Realtek ALC1220 |
|---|---|
| Capacitors | WIMA audiophile grade |
Physical
| Form Factor | ATX |
|---|---|
| I/O Shield | Integrated |
| PCB Layers | 2× copper |
| M.2 Heatsinks | Yes, with 5 W/mK thermal pad; EZ-Latch Click screwless design |
| VRM Thermal Protection | VRM Thermal Armor Advanced |
