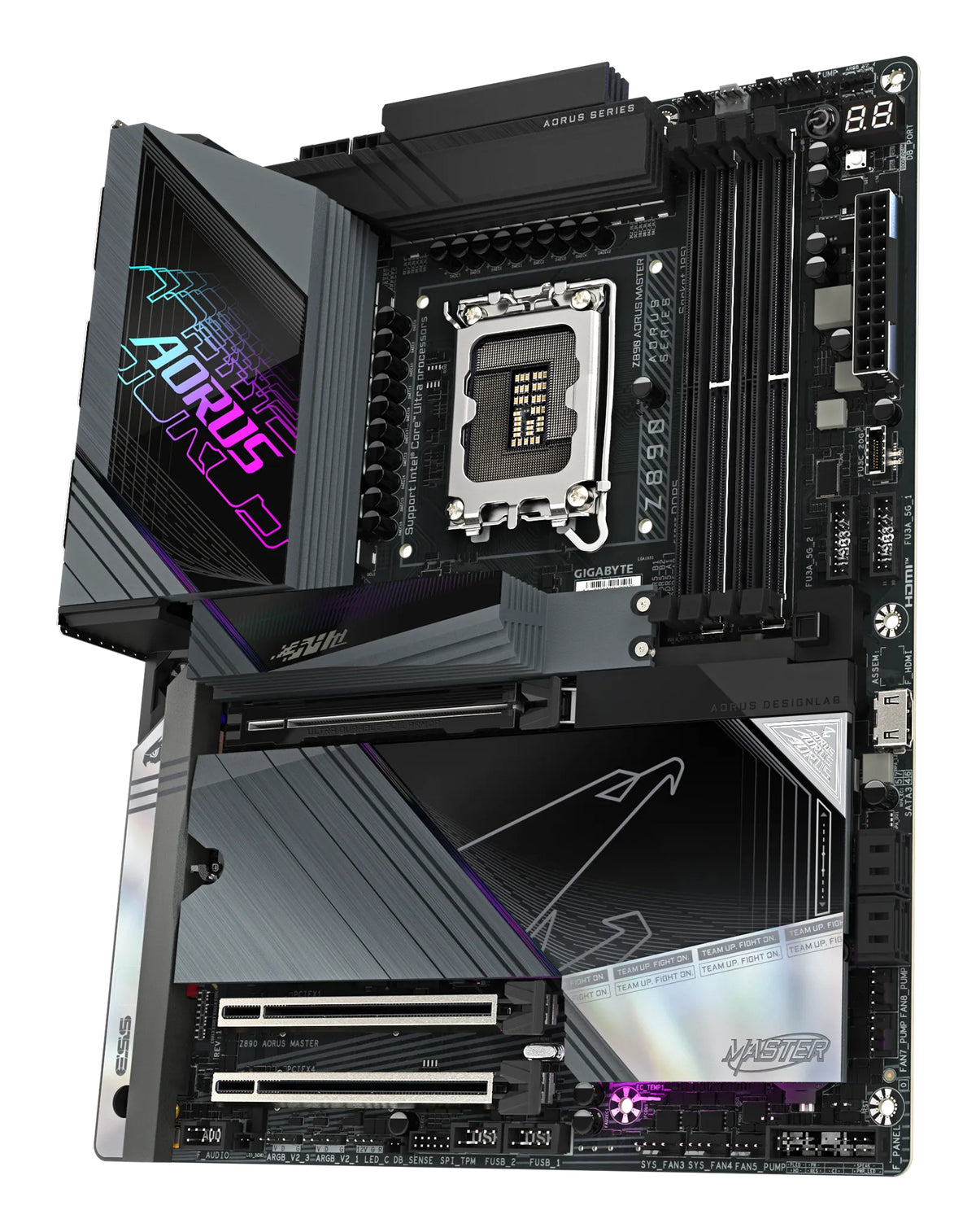

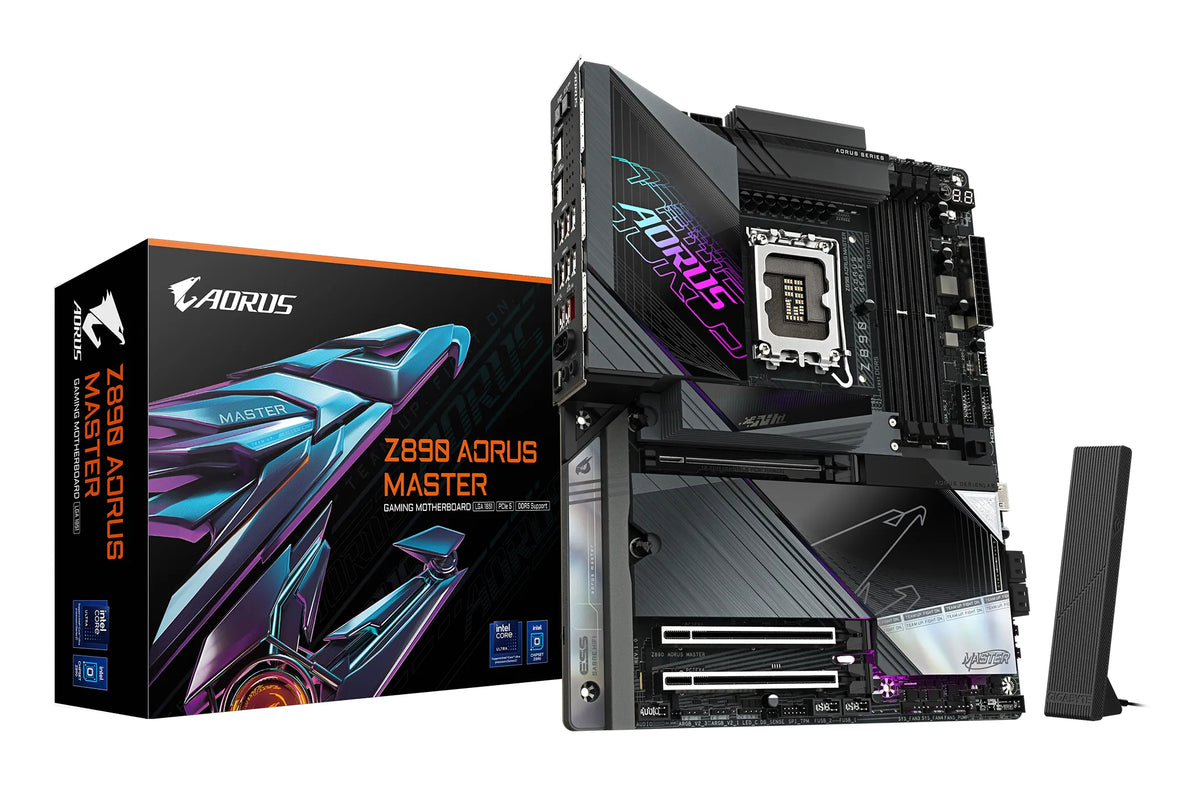

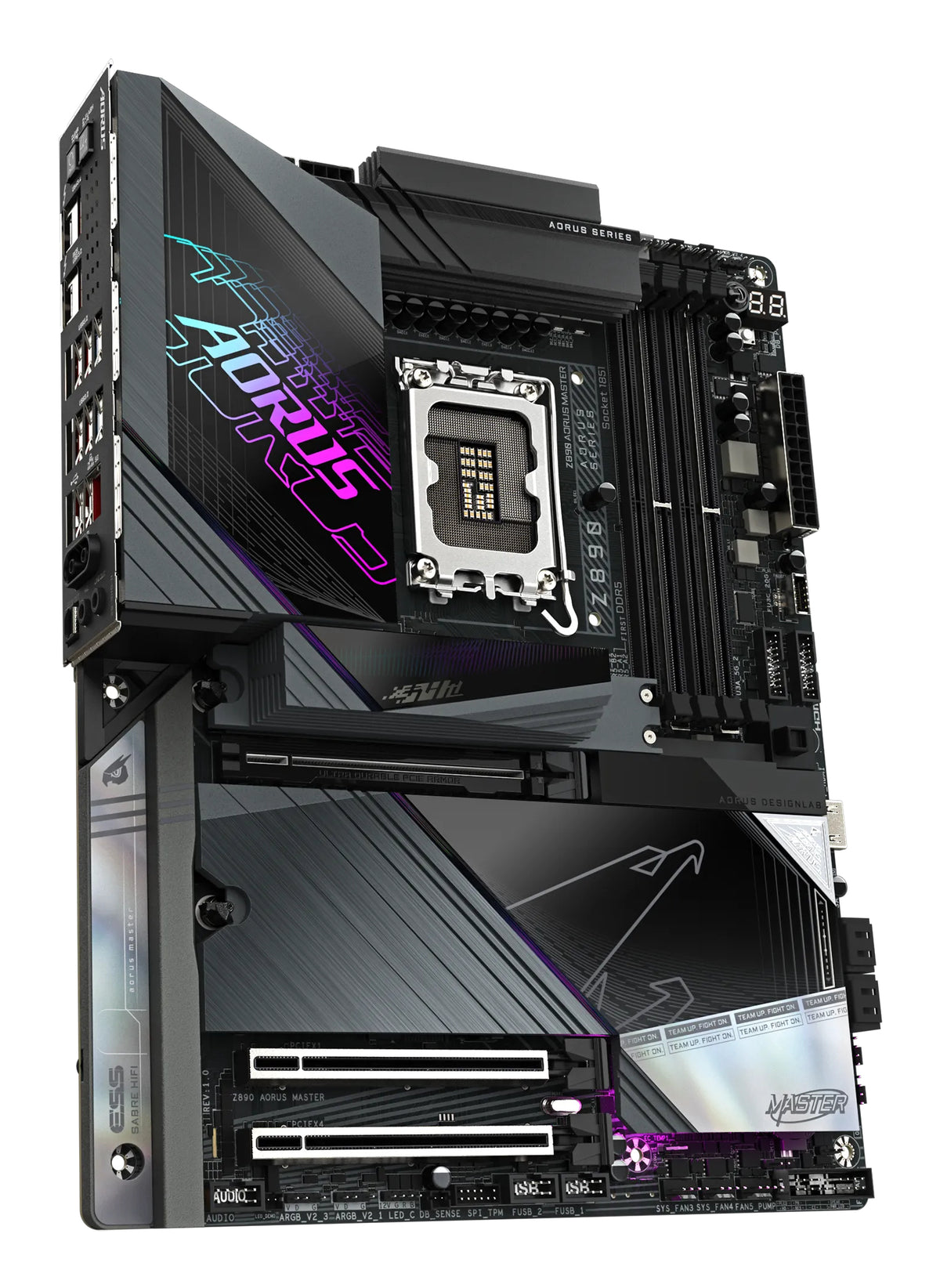

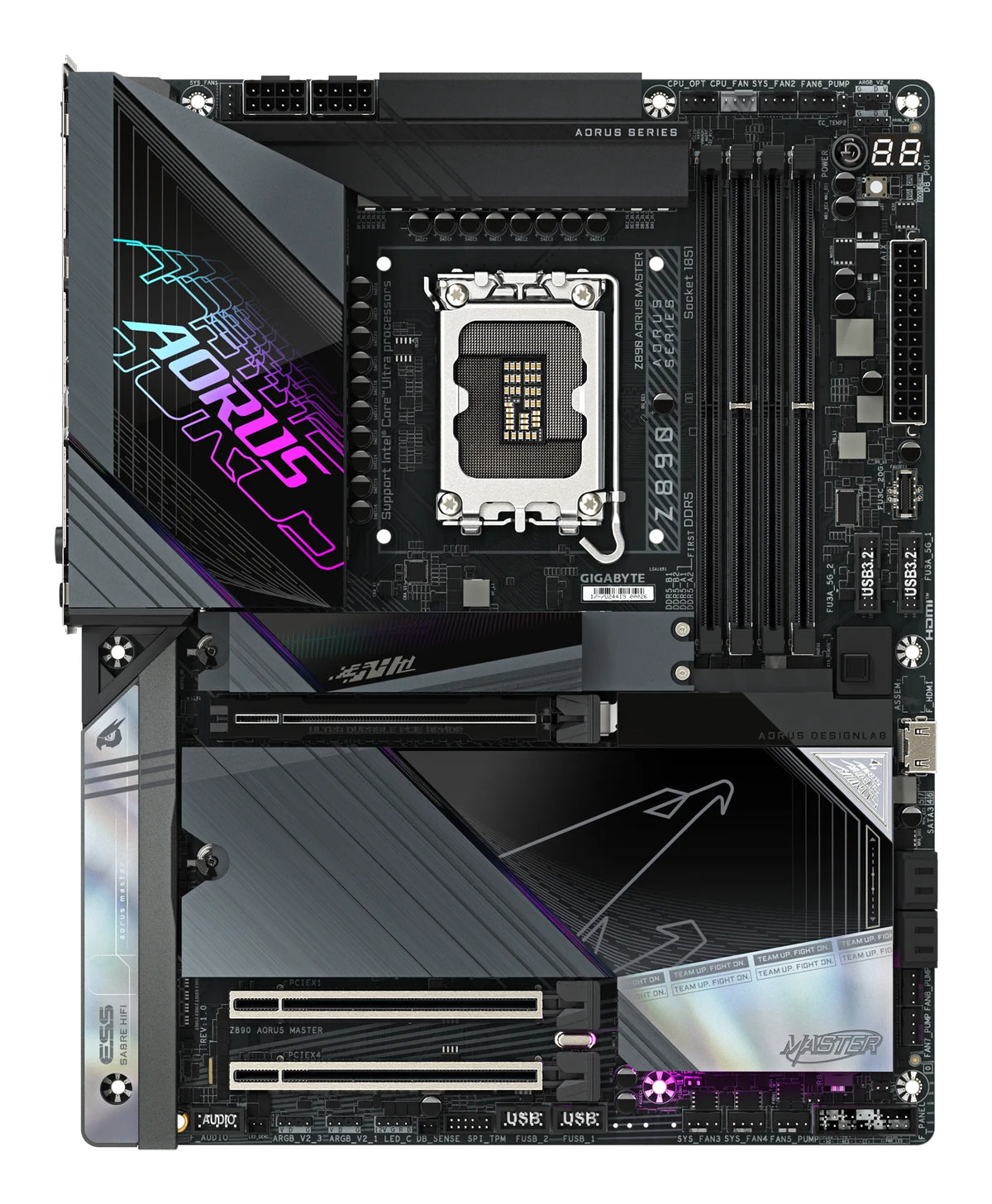

Gigabyte Z890 AORUS MASTER Intel LGA1851 ATX Motherboard
GIGABYTE
Gigabyte Z890 AORUS MASTER Intel LGA1851 ATX Motherboard
The Gigabyte Z890 AORUS MASTER is an Intel LGA1851 ATX motherboard built for enthusiasts and builders seeking high-end platform features, extensive connectivity, and AI-assisted overclocking. It supports Intel Core Ultra processors (Series 2) with a robust power delivery system and modern storage expansion.
Why this product
18+1+2 phase VRM with thermal protection
Digital twin power stages deliver stable voltage to the CPU across extreme loads. VRM Thermal Armor Advanced and multiple safeguards prevent over-temperature and over-current scenarios.
5 M.2 slots with PCIe 5.0 support
Two slots run PCIe 5.0 x4 for next-generation storage speeds. EZ-Latch Click heatsinks secure drives without screws.
Wi-Fi 7 and 10GbE networking
Intel Wi-Fi 7 BE200NGW with 2T2R antenna design delivers up to 320 MHz channel bandwidth. Wired 10GbE LAN provides ultra-fast network connectivity.
AI-powered auto-overclocking
AORUS AI SNATCH software uses machine learning to optimize CPU and DDR5 speeds with a single click. AI Perfdrive generates customized BIOS profiles for your hardware.
DDR5 support with up to 256 GB capacity
Four DIMM sockets accommodate DDR5 memory up to 9500 MT/s (overclocked). Full XMP 3.0 and CUDIMM support with DDR Wind Blade active cooling.
Thunderbolt 4 dual connectors
Two rear USB Type-C ports deliver up to 40 Gbps bandwidth, DisplayPort output, and charging. Supports up to 10 connected devices including 4K/8K displays.
- SocketIntel LGA1851
- ChipsetIntel Z890 Express
- Form FactorATX (30.5 cm × 24.4 cm)
- Memory Slots4 × DDR5 DIMM (up to 256 GB)
- M.2 Slots5 (2 × PCIe 5.0 x4, 2 × PCIe 4.0 x4, 1 × SATA/PCIe 4.0)
- Networking10GbE LAN, Wi-Fi 7, Bluetooth 5.4

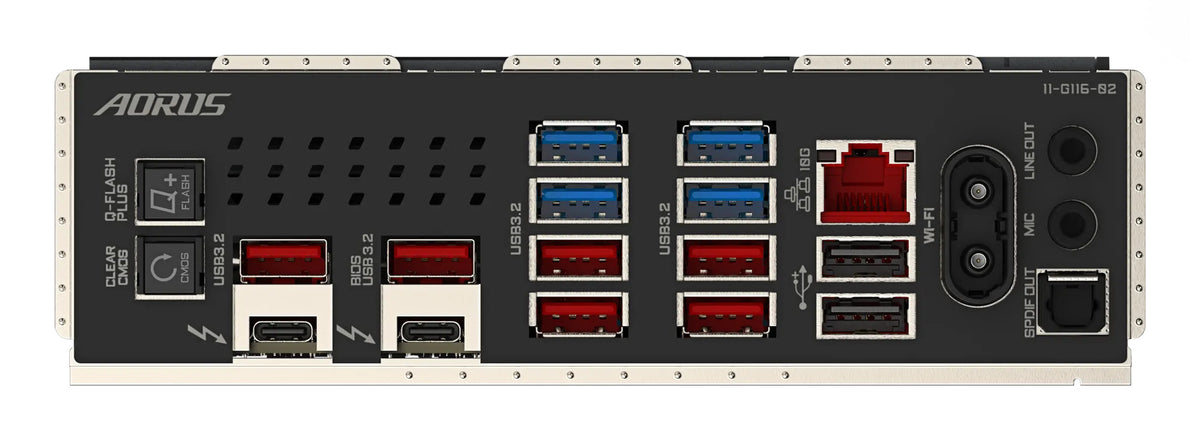

- Rear USB2 × Thunderbolt 4, 6 × USB 3.2 Gen 2, 4 × USB 3.2 Gen 1, 2 × USB 2.0
- SKUGIG-1825
- EAN4719331864903
- Supports Intel Core Ultra processors (Series 2) in LGA1851 socket only.
- Accepts DDR5 DIMM memory up to 256 GB (64 GB single modules), including XMP, ECC Un-buffered, and CUDIMM variants.
- Fits ATX form factor chassis at 30.5 cm × 24.4 cm.
- Supports Windows 11 64-bit as the operating system.
- Front panel HDMI (1.4) is limited to 1920×1080@30 Hz; use Thunderbolt 4 ports for higher resolutions (up to 5120×2880@60 Hz).
Best for
- High-end gaming and content creation builds needing maximal CPU power delivery and low-latency DDR5 overclocking.
- Enthusiasts wanting AI-assisted optimization without manual BIOS tweaking via AORUS AI SNATCH and AI Perfdrive.
- Builders who value modern connectivity: Thunderbolt 4, Wi-Fi 7, 10GbE LAN, and five M.2 slots for multi-drive setups.
- Users building compact high-performance systems with fast storage, thanks to PCIe 5.0 x4 M.2 support on two slots.
Trade-offs
- Intel 13th-gen or earlier CPUs: LGA1851 socket supports only Intel Core Ultra Series 2 processors.
- DDR4 memory: This board requires DDR5 DIMMs; DDR4 is not supported.
- Budget-conscious builders: The robust 18+1+2 VRM, Wi-Fi 7, and Thunderbolt 4 make this a premium platform unsuitable for entry-level systems.
- Micro-ATX or Mini-ITX case owners: The ATX form factor (30.5 cm × 24.4 cm) requires a full-size chassis.
Our cutting-edge motherboard is designed for the ultimate DIY experience. Creating your own PC becomes a delightful and smooth process.
Supports Intel® Core™ Ultra processors (Series 2). Digital twin 18+1+2 phases VRM solution. D5 Bionic Corsa for Infinite Memory Performance. AORUS AI SNATCH: Auto-Overclocking Software by AI models. AI Perfdrive: Provides optimal and customized BIOS preset profile for users. Premium Compatibility: 4*DDR5 with XMP Memory Module Support. DDR Wind Blade: Enhanced Active Cooling for Memory Modules. WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation. EZ-Latch Plus: PCIe and M.2 slots with Quick Release & Screwless Design. EZ-Latch Click: M.2 heatsinks with screwless design. Sensor Panel Link: Onboard video port for hassle-free in-chassis panel setup. Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW. New Power Monitor in HWinfo for real-time monitoring on CPU power phases. Ultra-Fast Storage: 5*M.2 slots, including 2* PCIe 5.0 x4. Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard XL. Fast Networking: 10GbE LAN & Wi-Fi 7.
The WIFI EZ-Plug design integrates Wi-Fi antenna plugs into one adapter, EZ to install. User-friendly designs simplifying the assembly process. The built-in video port streamlines Sensor Panel setup without management concerns. Official themes are ready for user to download.
Centralized debug LEDs and control buttons provide a handy and organized troubleshooting process when building a new computer. A flexible control key for reset with BIOS-level reconfiguration options for diverse usage scenarios. Disable all light displays on the motherboard. Access the BIOS settings directly without keyboard inputs.
Unleash Ultimate Performance with One-Click Activation. With just a single click, unleash the full potential of CPU & DDR5 memory, instantly boosting your gaming and work efficiency. Enhance CPU & DDR5 speeds with a single click. Raise system speed and performance. Enable users to easily become overclocking experts through a simple interface. Protect your motherboard through multiple over-temperature and over-current safeguards. With faster computations, it also means reduced power consumption, making it more environmentally friendly and energy-efficient, continuously contributing to the well-being of our planet.
DDR5 XMP Booster feature offers ready-to-use settings derived from analysis of memory IC and PMIC vendor. This allows users to maximize DDR5 memory performance without the hassle of manual tweaking for overclocked DDR5 memory kits. Eliminate manual entry of complex memory settings such as clock, voltage, and timings. Seamlessly overclock for both standard and XMP 3.0 DDR5 memory frequencies. Leverage XMP 3.0 User Profile to fine-tune memory settings for peak system performance. Rapidly assess potential memory performance by entering clock speeds and timing parameters. Store and retrieve memory configurations for online sharing. Enhance clock speeds of non-overclockable DDR5 modules. Revert memory settings with a single click.
Experience ultimate connectivity with next-generation network, storage, and Wi-Fi solutions, delivering lightning-fast data transfer speeds. Boasts 40Gb/s speed, supports DisplayPort 1.4a, and enables connection of up to 10 devices, including 4K/8K displays, all while providing charging capabilities. Wi-Fi 7 transforms the VR landscape with its exceptional bandwidth and minimal latency, delivering an unparalleled, seamless immersive VR experience. Wi-Fi 7 introduces support for expansive 320/160 MHz channels, dramatically increasing bandwidth for unprecedented data transfer speeds.
* Please refer to the qualified vendor list (QVL) for details and note that product features may vary by model. * The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice. * Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
Processor & Memory
| Brand | GIGABYTE |
|---|---|
| CPU Socket | LGA1851 |
| Supported CPUs | Intel Core Ultra processors (Series 2) |
| Memory Sockets | 4 × DDR5 DIMM |
| Maximum Memory | 256 GB (64 GB per DIMM) |
| Memory Speeds | DDR5 5600–9500 MT/s (JEDEC and overclocked) |
| Memory Features | XMP 3.0, CUDIMM, ECC Un-buffered (non-ECC mode) |
Power & Thermal
| VRM Phases | 18+1+2 digital twin |
|---|---|
| CPU Power Connectors | 2 × 8-pin ATX 12V |
| Main Power | 1 × 24-pin ATX |
| Thermal Management | VRM Thermal Armor Advanced, M.2 Thermal Guard XL, DDR Wind Blade active memory cooling |
| Fan Headers | 1 × CPU fan, 1 × CPU fan/pump, 4 × system fan, 4 × system fan/pump |
Storage & Connectivity
| M.2 Slots (CPU) | 1 × PCIe 5.0 x4/x2 (25110/22110/2580/2280), 1 × PCIe 4.0 x4/x2 (22110/2280), 1 × PCIe 5.0 x4/x2 (22110/2280) |
|---|---|
| M.2 Slots (Chipset) | 1 × PCIe 4.0 x4/x2 (2280), 1 × SATA/PCIe 4.0 x4/x2 (2280) |
| SATA Ports | 4 × SATA 6 Gb/s with RAID support |
| Thunderbolt 4 (Rear) | 2 × USB Type-C (40 Gbps, DisplayPort, charging) |
| USB 3.2 (Rear) | 6 × Gen 2 Type-A (red), 4 × Gen 1 |
| USB 2.0/1.1 (Rear) | 2 ports |
| USB Headers | 1 × USB Type-C header (Gen 2x2), 2 × USB 3.2 Gen 1 headers, 2 × USB 2.0/1.1 headers |
| Wired Networking | 1 × 10GbE LAN (RJ-45) |
| Wireless Networking | Intel Wi-Fi 7 BE200NGW (2T2R, 320/160 MHz channels), Bluetooth 5.4 |

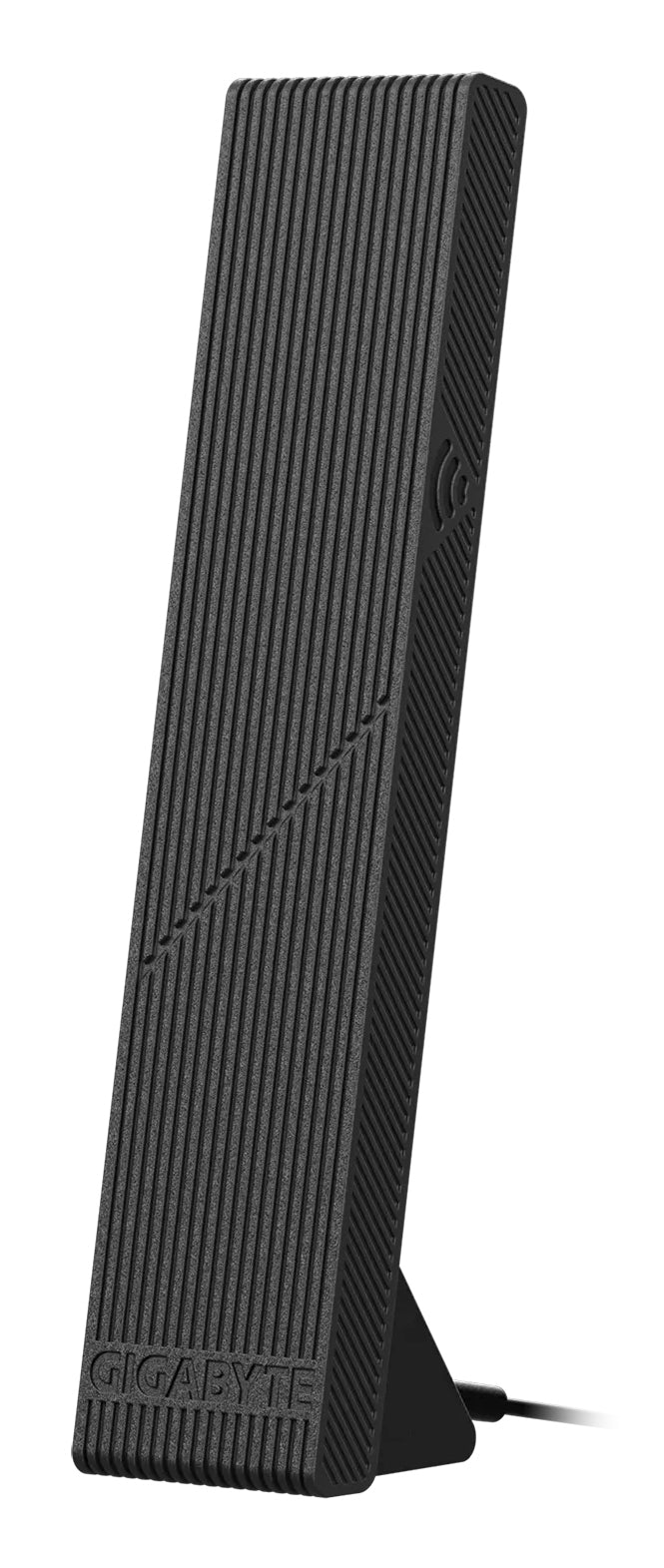

| Wi-Fi Antenna | 2 connectors with WIFI EZ-Plug design |
Audio & Video
| Audio Codec | Realtek ALC1220 |
|---|---|
| DAC | ESS SABRE9118EQ |
| Audio Jacks (Rear) | 2 |
| Front Panel Audio Header | 1 |
| Video Output | 2 × Thunderbolt 4 (DisplayPort, up to 5120×2880@60 Hz), 1 × Front HDMI 1.4 (1920×1080@30 Hz) |
| DisplayPort Support | DisplayPort 2.1, HDCP 2.3 |
| Multi-Display Support | Up to 3 displays simultaneously (4K/8K capable) |
Features & BIOS
| VRM Cooling | Enhanced VRM Thermal Armor Advanced |
|---|---|

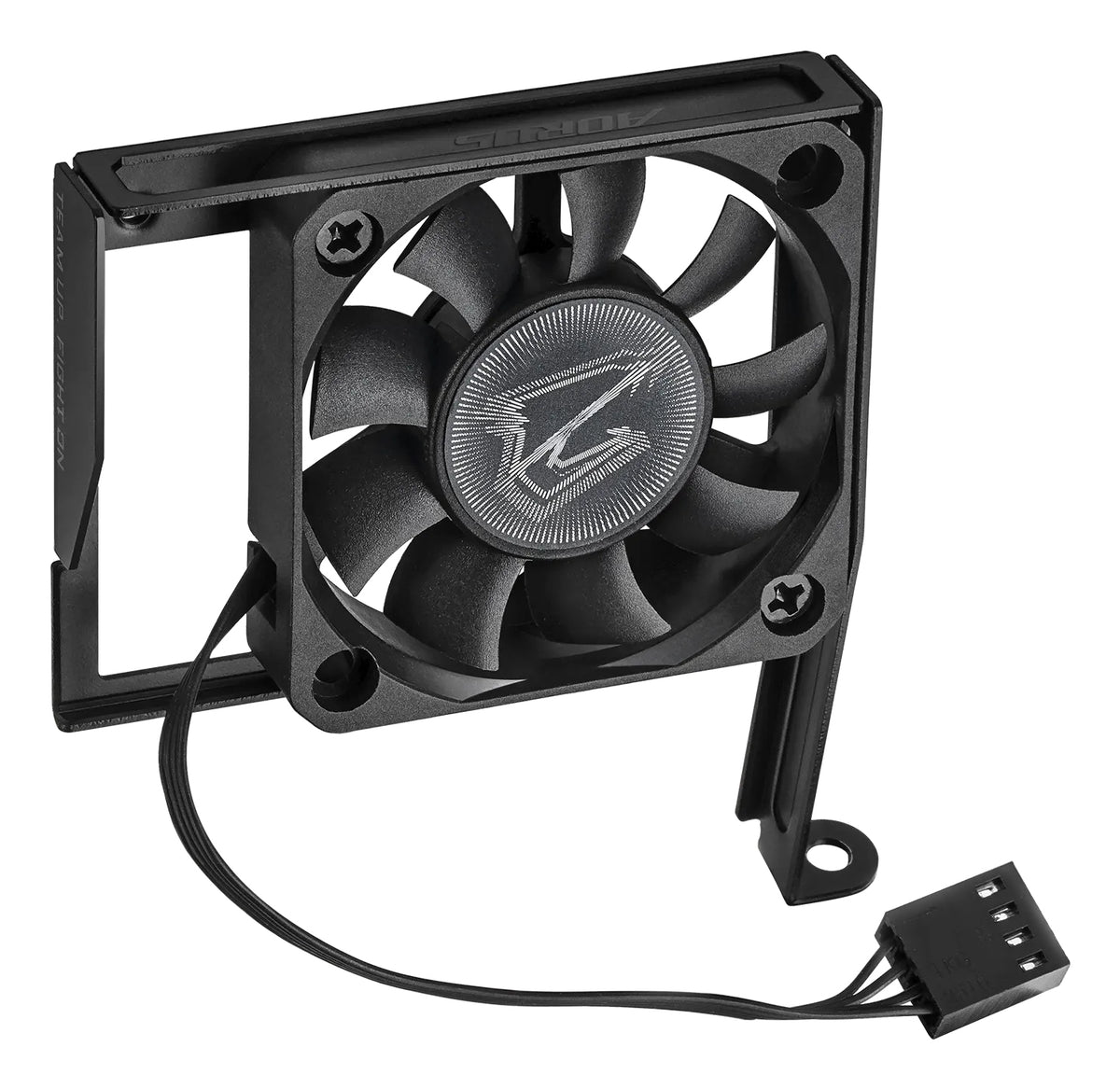

| Memory Cooling | DDR Wind Blade active cooling |
| M.2 Installation | EZ-Latch Plus (screwless M.2 slots), EZ-Latch Click (screwless heatsinks) |
| PCIe Installation | EZ-Latch Plus with quick release |
| AI Overclocking | AORUS AI SNATCH (auto-overclocking), AI Perfdrive (custom BIOS profiles) |
| Memory Optimization | DDR5 XMP Booster, XMP 3.0 User Profile support, D5 Bionic Corsa |
| BIOS Flash | 256 Mbit; Q-Flash, Q-Flash Plus, Smart Backup support |
| RGB Headers | 4 × addressable RGB Gen2 LED, 1 × standard RGB LED |
| Debug Features | Centralized debug LEDs and control buttons, flexible reset key |
| Sensor Panel | Sensor Panel Link (onboard video port) |
| BIOS Interface | Multi-theme UI, AIO fan control, Q-Flash Auto Scan |
| RAID Support | RAID 0, 1, 5, 10 for NVMe and SATA |
| Operating System | Windows 11 64-bit |
Physical & Included Items
| Form Factor | ATX |
|---|---|
| Dimensions | 30.5 cm × 24.4 cm |
| Box Contents | Motherboard, Manual, Antenna, DDR Wind Blade, 2 × SATA Cables, Noise Detection Cable, 2 × Thermistor Cables, One G Connector |
