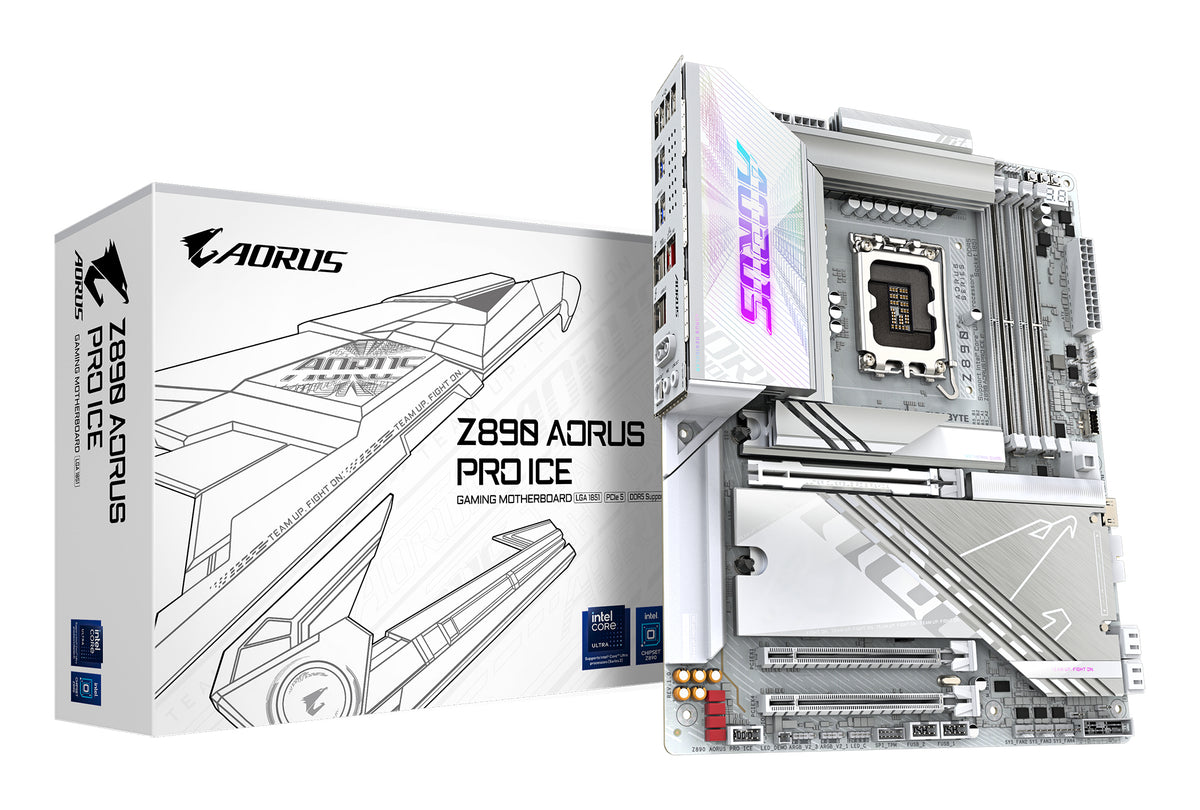

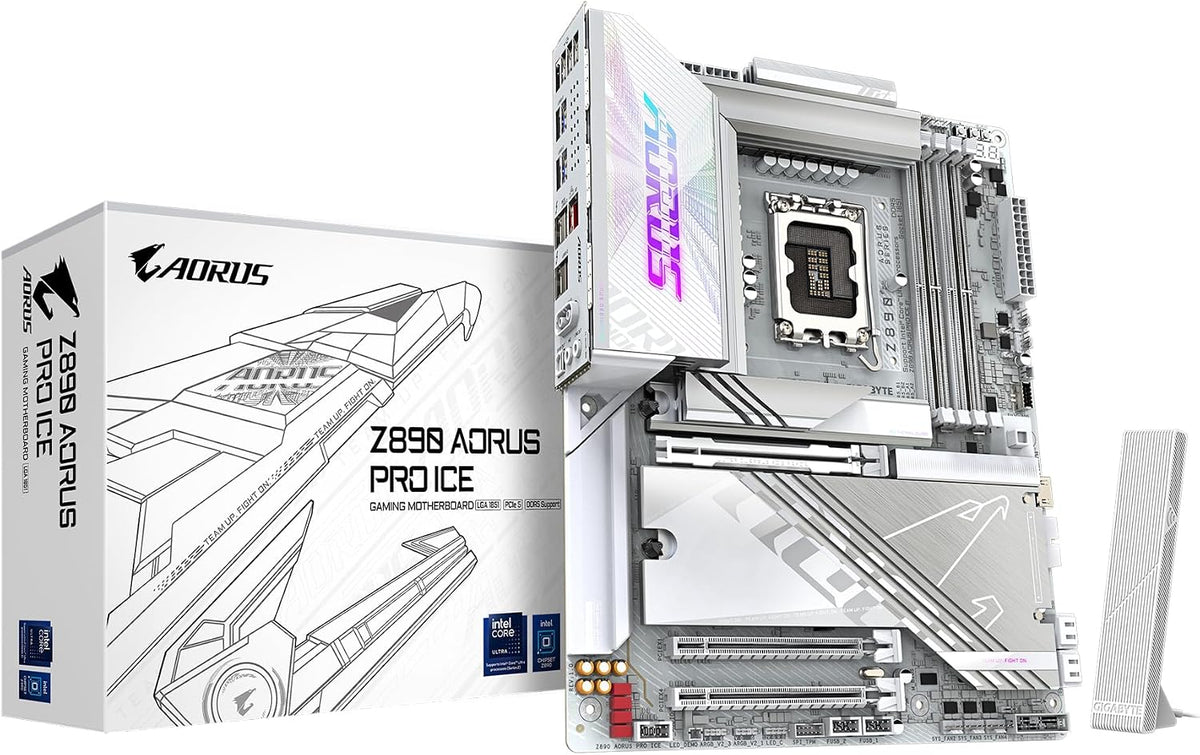

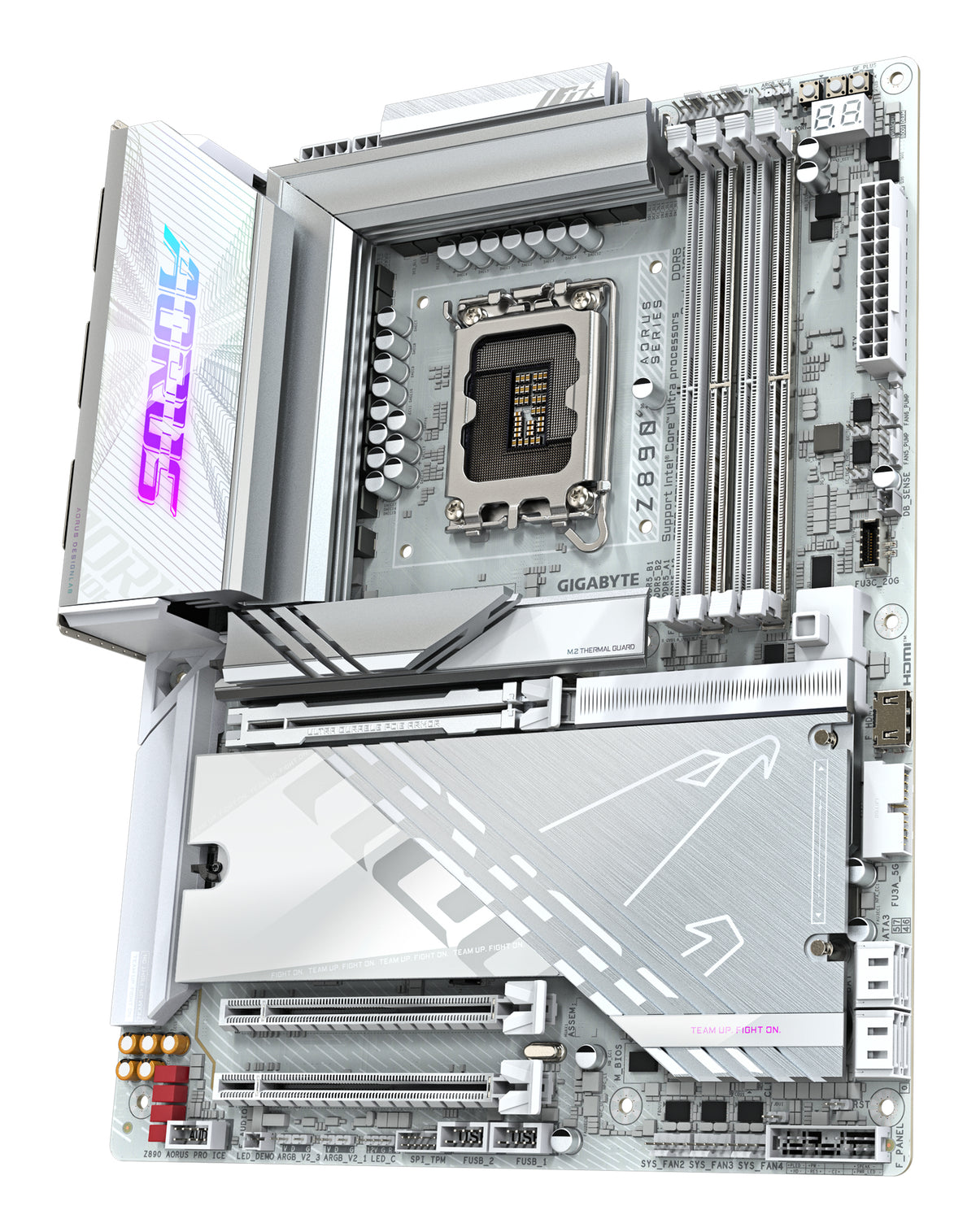

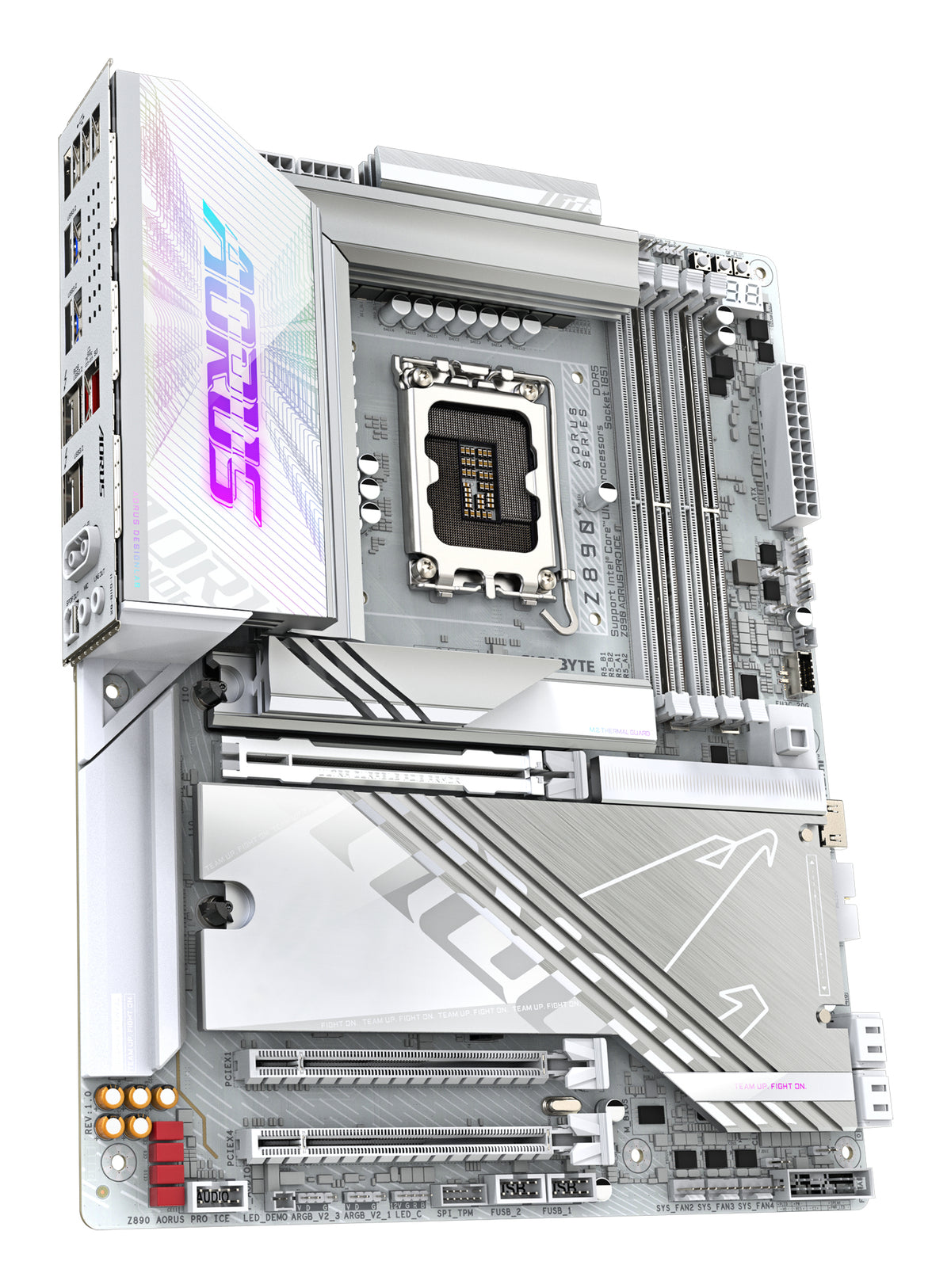

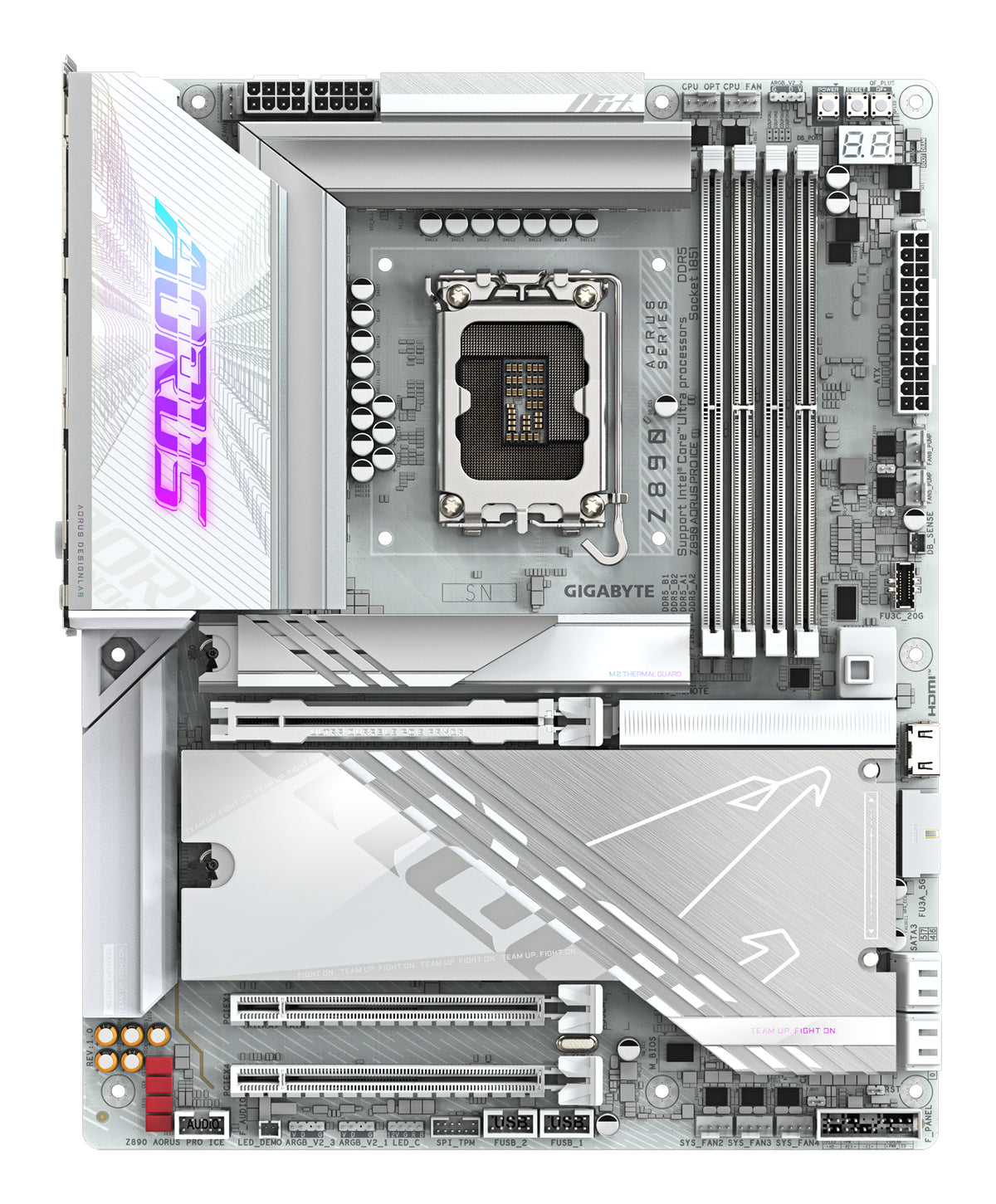

Gigabyte Z890 AORUS PRO ICE LGA1851 ATX Motherboard Wi-Fi 7
GIGABYTE
Gigabyte Z890 AORUS PRO ICE LGA1851 ATX Motherboard Wi-Fi 7
The Gigabyte Z890 AORUS PRO ICE is a high-end ATX motherboard built for enthusiasts and content creators running Intel Core Ultra processors (Series 2). It combines a robust 16+1+2-phase VRM with extensive storage connectivity, Wi-Fi 7, and active cooling solutions designed to support demanding workloads and overclocking.
Why this product
Five M.2 slots with PCIe 5.0 support
Includes one PCIe 5.0 x4 slot for maximum storage speed, plus four PCIe 4.0 slots covering both CPU and chipset connections. Supports SATA drives as well for mixed storage configurations.
Wi-Fi 7 and 5GbE networking
Dual connectivity with Intel Wi-Fi 7 BE200 supporting 320MHz channels across 2.4/5/6 GHz bands, plus Realtek 5GbE LAN for wired performance.
16+1+2 phase digital VRM
Premium power delivery architecture with thermal armor and real-time power monitoring in HWinfo for stable overclocking and heavy workloads.
DDR5 memory with active cooling
Supports up to 256 GB across four DDR5 slots with speeds from 5600 to 9500 MT/s, plus DDR Wind Blade active cooling for sustained performance.
Thunderbolt 4 and USB 3.2 connectivity
Two Thunderbolt 4 ports on the back panel deliver up to 40 Gbps with Thunderbolt devices, plus additional USB 3.2 Gen 2 ports for high-speed peripherals.
- ChipsetIntel Z890 Express
- SocketLGA1851
- Form FactorATX
- Memory Slots4 × DDR5
- Max Memory256 GB
- M.2 Slots5 (1× PCIe 5.0, 4× PCIe 4.0)
- WirelessWi-Fi 7, Bluetooth 5.4
- LAN5GbE
- SKUGIG-1846
- EAN4719331864712
- Supports Intel Core Ultra processors (Series 2) in LGA1851 socket only—not compatible with earlier Intel generations or AMD platforms.
- Accepts DDR5 memory modules from 5600 to 9500 MT/s with XMP support for easy overclocking configuration.
- Fits standard ATX cases with dimensions of 305 mm × 244 mm.
- Requires dual 8-pin ATX 12V power connectors plus standard 24-pin ATX main connector.
- Front HDMI output limited to 1920×1080@30 Hz; primary display output via Thunderbolt 4 ports for full resolution support.
Best for
- Enthusiasts and overclockers needing robust power delivery and real-time monitoring
- Content creators with multiple fast storage drives and high-speed networking requirements
- Builders planning high-capacity DDR5 setups up to 256 GB for workstation applications
- Users wanting next-generation wireless with Wi-Fi 7 and Thunderbolt 4 connectivity
Trade-offs
- Budget builds. Premium positioning with Z890 chipset and AORUS branding commands higher cost than mainstream alternatives.
- AMD system builders. LGA1851 socket exclusively supports Intel Core Ultra Series 2—no AMD compatibility.
- Compact case builds. Full ATX form factor (305 × 244 mm) requires spacious case; not suitable for Mini-ITX or Micro-ATX enclosures.
- Casual users. Extensive BIOS features, AI overclocking tools, and manual tuning options target advanced users; simpler boards suit everyday computing.
Supports Intel® Core™ Ultra processors (Series 2) Digital twin 16+1+2 phases VRM solution D5 Bionic Corsa for Infinite Memory Performance AORUS AI SNATCH : Auto-Overclocking Software by AI models AI Perfdrive : Provides optimal and customized BIOS preset profile for users Premium Compatibility : 4*DDR5 with XMP Memory Module Support DDR Wind Blade : Enhanced Active Cooling for Memory Modules WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design EZ-Latch Click : M.2 heatsinks with screwless design Sensor Panel Link : Onboard video port for hassle-free in-chassis panel setup Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW New Power Monitor in HWinfo for real-time monitoring on CPU power phases Ultra-Fast Storage : 5*M.2 slots, including 1* PCIe 5.0 x4 Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard L Fast Networking : 5GbE LAN & Wi-Fi 7
General
| Brand | GIGABYTE |
|---|---|
| Model | Z890 AORUS PRO ICE |
| Chipset | Intel Z890 Express |
| Form Factor | ATX |
| Dimensions | 305 mm × 244 mm |
Processor & Memory
| CPU Socket | LGA1851 (Intel Core Ultra Series 2) |
|---|---|
| Memory Type | DDR5 |
| Memory Slots | 4 × DDR5 |
| Max Memory Capacity | 256 GB |
| Supported Memory Speeds | 5600 to 9500 MT/s |
Storage & Expansion
| M.2 Slots | 5 (1× M.2 PCIe 5.0 x4, 1× M.2 PCIe 4.0 x4 CPU, 1× M.2 PCIe 4.0 x4 Chipset, 1× M.2 PCIe 4.0 x4 Chipset, 1× M.2 SATA/PCIe 4.0 x4 Chipset) |
|---|---|
| SATA Connectors | 4 × SATA 6Gb/s with RAID 0/1/5/10 support |
| PCIe Slots | 1× PCIe 5.0 x16 (UD), 1× PCIe 4.0 x16/x4, 1× PCIe 4.0 x16/x1 |
Connectivity & Audio
| Rear USB | 2× Thunderbolt 4 (40Gbps), 2× USB 3.2 Gen 2 Type-A |
|---|---|
| Display Outputs | 2× Thunderbolt 4, 1× HDMI (1920×1080@30 Hz) |
| Ethernet | Realtek 5GbE LAN |
| Wireless | Intel Wi-Fi 7 BE200 (2.4/5/6 GHz, 320MHz channels), Bluetooth 5.4 |
| Audio | Realtek HD Audio |
Power & Cooling
| VRM Design | 16+1+2 phase digital twin |
|---|---|
| Main Power | 1× 24-pin ATX, 2× 8-pin ATX 12V |
| Fan Headers | 1× CPU, 1× CPU/pump, 4× system, 2× system/pump |
| Thermal Features | VRM Thermal Armor Advanced, M.2 Thermal Guard L, DDR Wind Blade memory cooling |
