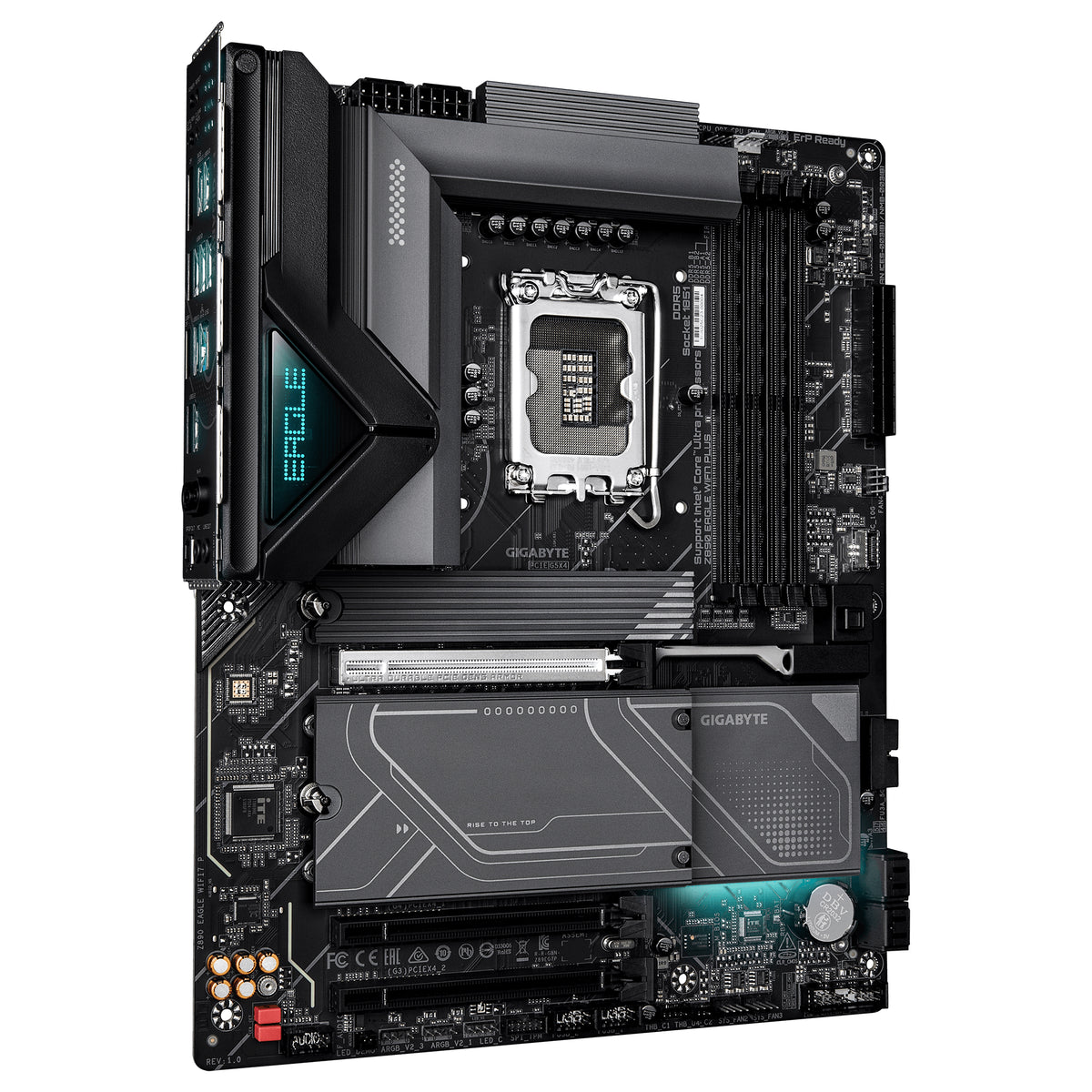

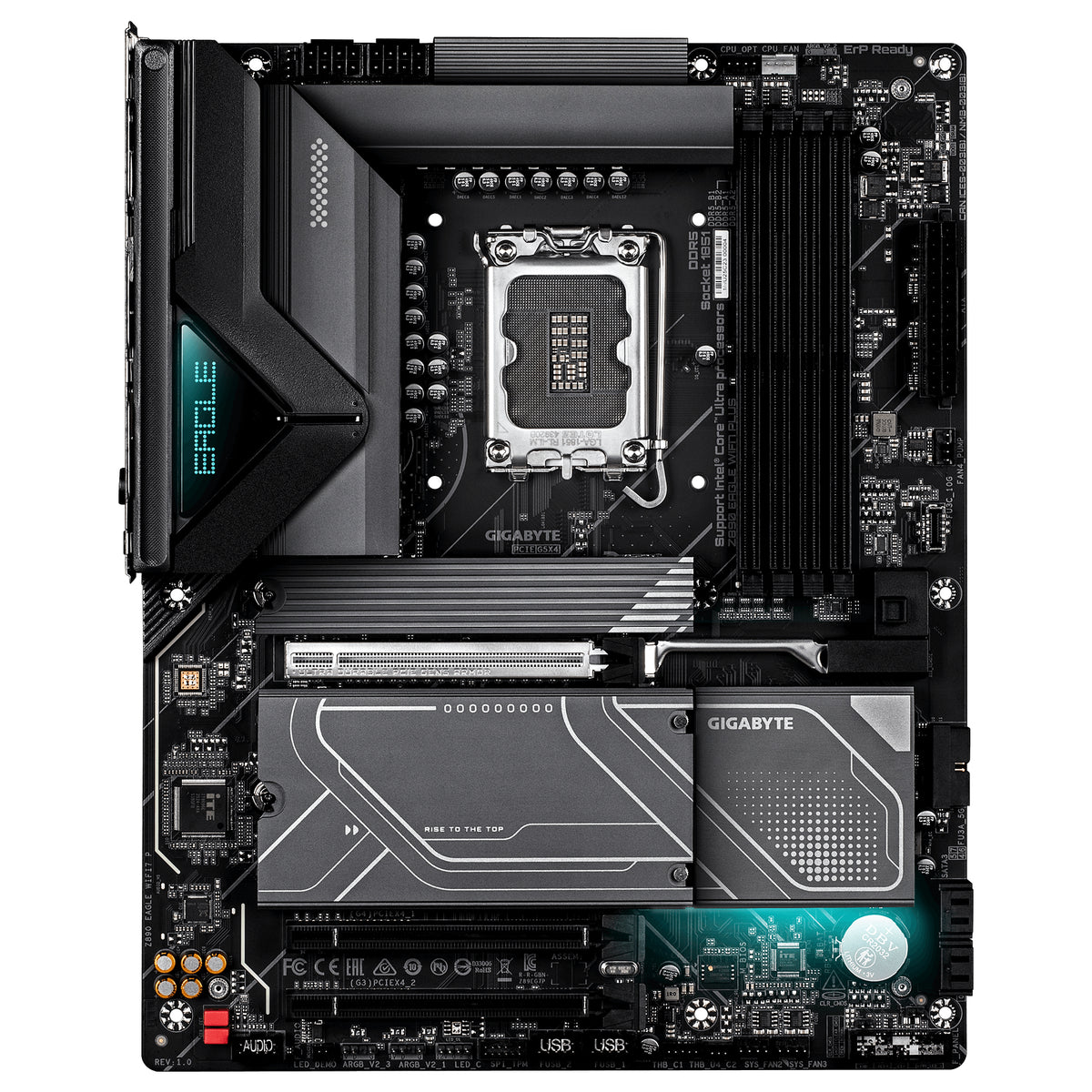

Gigabyte Z890 Eagle WiFi7 Plus LGA 1851 ATX Motherboard
GIGABYTE
Gigabyte Z890 Eagle WiFi7 Plus LGA 1851 ATX Motherboard
The Gigabyte Z890 Eagle WiFi7 Plus is an ATX motherboard for Intel Core Ultra processors (Series 2) that combines DDR5 memory support with modern connectivity including WiFi 7, USB4, and PCIe 5.0 storage. It suits builders who need reliable performance for workstations, content creation, or gaming without paying for premium-tier features.
Why this product
WiFi 7 and USB4 connectivity
It features Intel WiFi 7 BE202 with 2.5 GbE LAN and Bluetooth 5.4 for wireless data transfer, plus USB4 Type-C ports supporting 40 Gbps throughput and DisplayPort for video and external storage.
Four M.2 slots with mixed PCIe generations
One PCIe 5.0 x4 slot and three PCIe 4.0 x4 slots support fast NVMe storage, with screwless M.2 EZ-Latch Click heatsinks for easy installation.
14+1+2 phase power delivery
A digital VRM with 14 phases for CPU power and 1+2 for auxiliary rails handles power delivery for stable overclocking and sustained load.
DDR5 memory with XMP Booster
Four DDR5 DIMM slots support up to 256 GB and speeds over DDR5 9466+ MT/s when overclocked. The XMP Booster feature automates memory tuning for faster setup.
Tool-free build design
PCIe EZ-Latch Plus for single-click GPU removal, M.2 EZ-Latch Click for screwless SSD heatsinks, and WIFI EZ-Plug for antenna installation reduce assembly friction.
- SocketLGA1851
- Form factorATX
- Memory slots4x DDR5
- M.2 slots4 (1x PCIe 5.0, 3x PCIe 4.0)
- Rear USB ports1x USB4, 2x USB 3.2 Gen 2 Type-A, 3x USB 3.2 Gen 1 Type-A, 4x USB 2.0
- WirelessWiFi 7 BE202, Bluetooth 5.4
- SKUGIG-1850
- EAN4719331880842
- Supports Intel Core Ultra processors (Series 2) only; consult Gigabyte's CPU support list for exact models.
- Accepts DDR5 Non-ECC unbuffered DIMMs and CUDIMMs with Intel XMP and XMP 3.0 profiles.
- Requires two 8-pin ATX 12V power connectors and one 24-pin main power connector from a PSU with adequate capacity for your CPU and GPU.
- Supports Windows 10 and Windows 11 64-bit operating systems.
- The single PCIe 5.0 x16 slot will run at full speed only if no other x16 slot is populated; the two PCIe 4.0 x4 slots may share bandwidth with M.2 slots depending on configuration.
Best for
- Content creators building DDR5 workstations
- Gamers who want PCIe 5.0 GPU support without paying for premium boards
- Builders valuing wireless connectivity and USB4 video output
- Users who prefer tool-free assembly and quick BIOS updates
Trade-offs
- Anyone building with Intel 12th or 13th gen processors; this board requires Series 2 only.
- Compact or SFF builders; this is a full-size ATX board at 305 × 244 mm.
- Systems needing multiple high-speed M.2 drives at once; only one slot runs PCIe 5.0.
- Budget builders; this board targets mid-range systems and comes with no CPU or memory.
The Z890 EAGLE WIFI7 PLUS supports Intel Ultra Core Processors (Series 2) and features unmatched performance. GIGABYTE Z890 motherboards come with upgraded power design, high grade storage standards, and outstanding connectivity that enables you to optimize your performance.
EAGLE motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods. DDR5 XMP Booster feature offers ready-to-use settings derived from analysis of memory IC and PMIC vendor. This allows users to maximize DDR5 memory performance without the hassle of manual tweaking for overclocked DDR5 memory kits. Eliminate manual entry of complex memory settings such as clock, voltage, and timings. Seamlessly overclock for both standard and XMP 3.0 DDR5 memory frequencies. Leverage XMP 3.0 User Profile to fine-tune memory settings for peak system performance. Customizable SPD Profiles or retrieve from database: Create and transfer two custom SPD profiles between systems. Rapidly assess potential memory performance by entering clock speeds and timing parameters.
Experience ultimate connectivity with next-generation network, storage, and Wi-Fi solutions, delivering lightning-fast data transfer speeds. The latest USB4 Type-C ports provide blistering fast and reliable transfer speed up to 40 Gbps. Featuring extensive comparability, efficient charging, and ultra-HD displayport connectivity, USB4 is beneficial to video editing, large file transfers, and data-intensive tasks.
Smooth Online Experience: WIFI7 for dramatically increased bandwidth for unprecedented data transfer speeds, Directional Ultra-high gain antenna for optimized signal transmission, 2.5 GbE LAN, and Bluetooth 5.4.
DIY Friendly Design: Smooth building experience with suite of easy building features, such as PCIe EZ-Latch Plus for single-click release design for GPU, M.2 EZ-Latch Click & Plus for screwless installation for M.2 heatsink and SSD, WIFI EZ-Plug for quick installation for the WIFI antenna, DriverBIOS for pre-installed WiFi driver, and Rear EZ Buttons for organised troubleshooting.
Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW. Q-Flash Plus: Effortlessly upgrade your BIOS without installing CPU, RAM, or GPU.
General
| Brand | GIGABYTE |
|---|---|
| Model | Z890 Eagle WiFi7 Plus |
| Chipset | Intel Z890 Express |
Performance
| CPU socket | LGA1851 for Intel Core Ultra processors (Series 2) |
|---|---|
| Memory support | 4x DDR5 DIMM, up to 256 GB, up to DDR5 9466+ MT/s (OC), XMP and XMP 3.0 |
| Power delivery | 14+1+2 phase VRM with digital twin design |
Networking
| Ethernet | 2.5 GbE LAN |
|---|---|
| WiFi | Intel WiFi 7 BE202, 802.11a/b/g/n/ac/ax/be, 2.4/5/6 GHz, 160 MHz |
| Bluetooth | 5.4 |
Ports & power

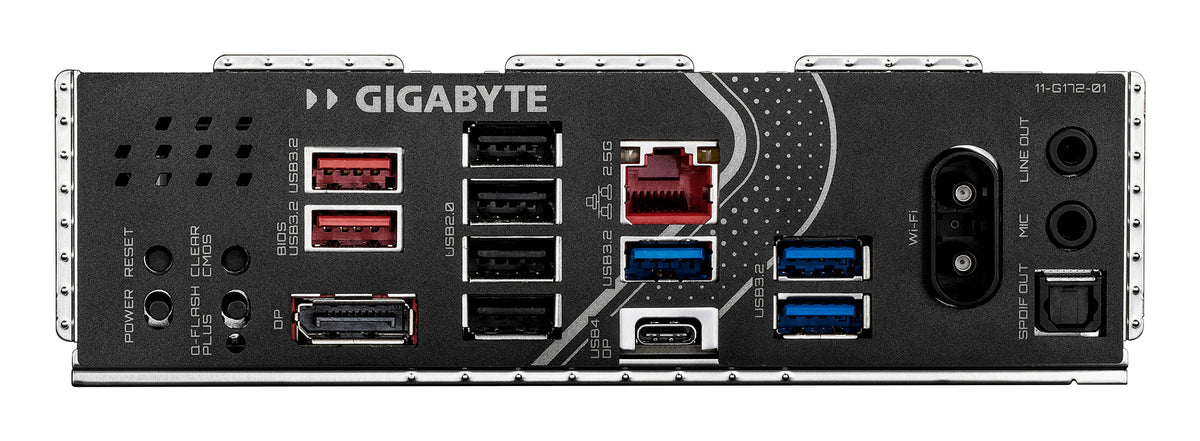

| Rear USB | 1x USB4 Type-C (40 Gbps, DisplayPort), 2x USB 3.2 Gen 2 Type-A, 3x USB 3.2 Gen 1 Type-A, 4x USB 2.0 |
|---|---|
| Internal USB headers | 1x USB Type-C header (USB 3.2 Gen 2), 1x USB 3.2 Gen 1 header, 2x USB 2.0 headers |
| Display outputs | 1x USB4 Type-C (DisplayPort, max 3840×2160@144 Hz), 1x DisplayPort (max 3840×2160@144 Hz) |
| M.2 slots | M2A_CPU: PCIe 5.0 x4/x2 (2280/25110/22110/2580); M2B_CPU: PCIe 4.0 x4/x2 (2280/22110); M2Q_SB: PCIe 4.0 x4/x2 (2280/22110); M2M_SB: SATA/PCIe 4.0 x4/x2 (2280/22110) |
| Storage slots | 4x SATA 6 Gb/s with RAID 0, 1, 5, 10 support |
| PCIe slots | 1x PCIe 5.0 x16 (PCIe UD Slot), 2x PCIe 4.0 x4 |
| Power connectors | 1x 24-pin ATX, 2x 8-pin ATX 12V |
| Fan headers | 1x CPU fan, 1x CPU fan/pump, 3x system fan, 1x system fan/pump |
Physical
| Form factor | ATX |
|---|---|
| Dimensions | 305 × 244 mm |
| Audio codec | ALC1220 with WIMA Audiophile Grade Capacitors |
| RGB headers | 3x Addressable RGB Gen2, 1x RGB LED |
| Integrated I/O shield | Yes |

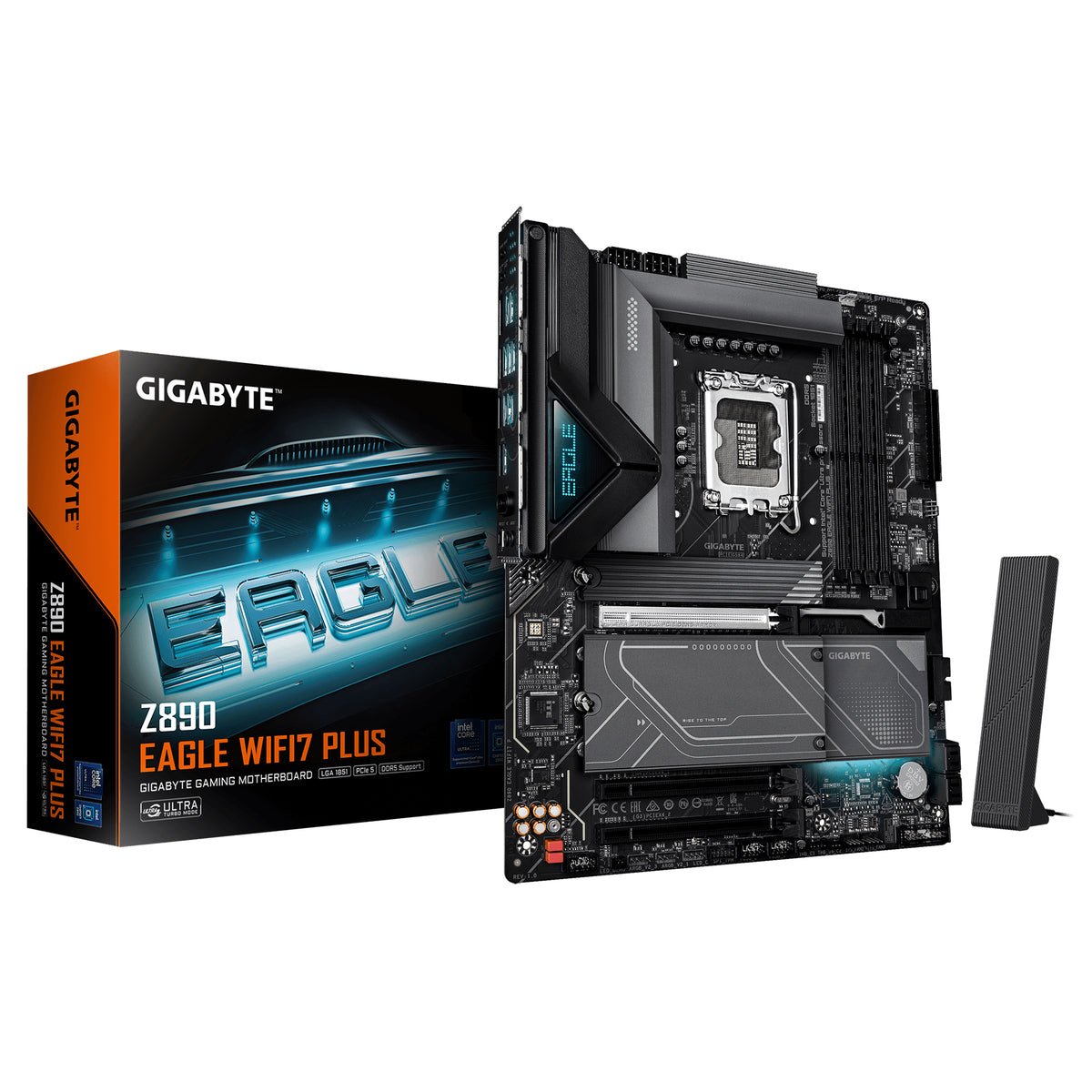

| In the box | Motherboard, antenna, 2x SATA cables, G connector, 4x M.2 rubber pads |
