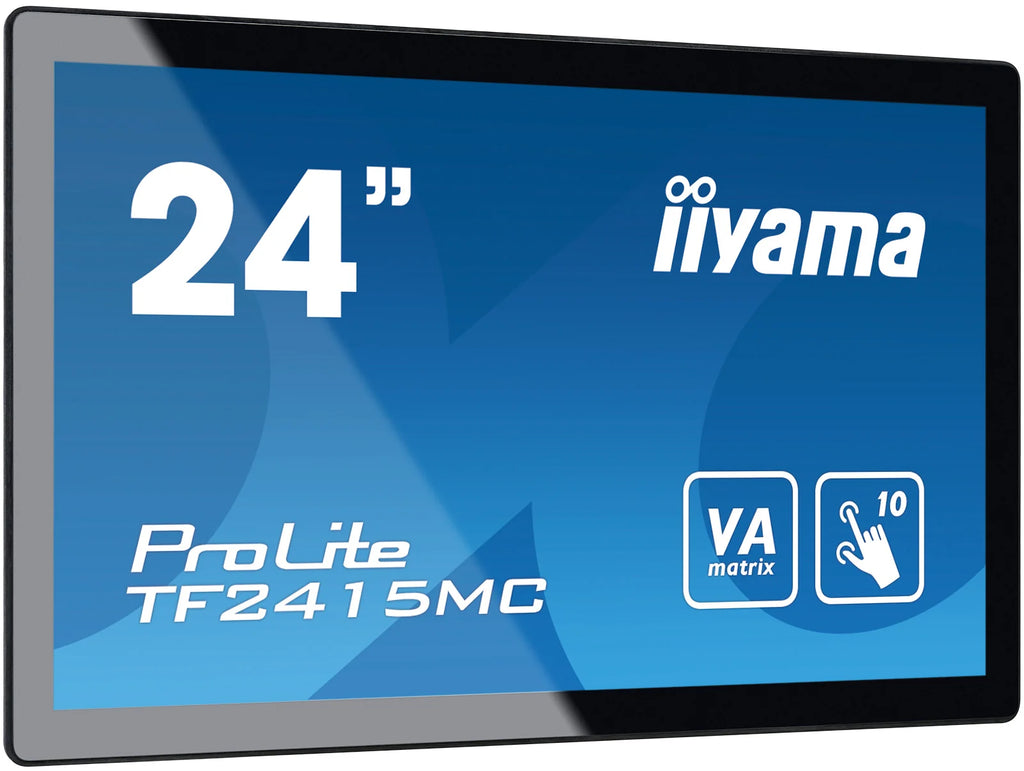

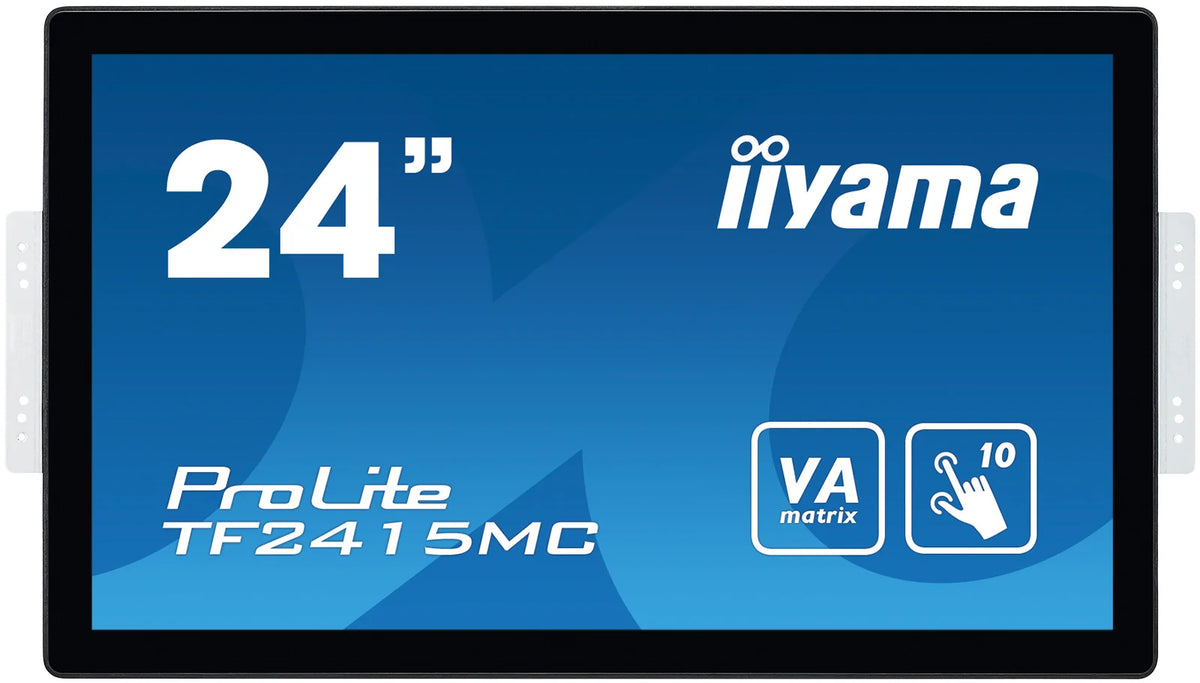

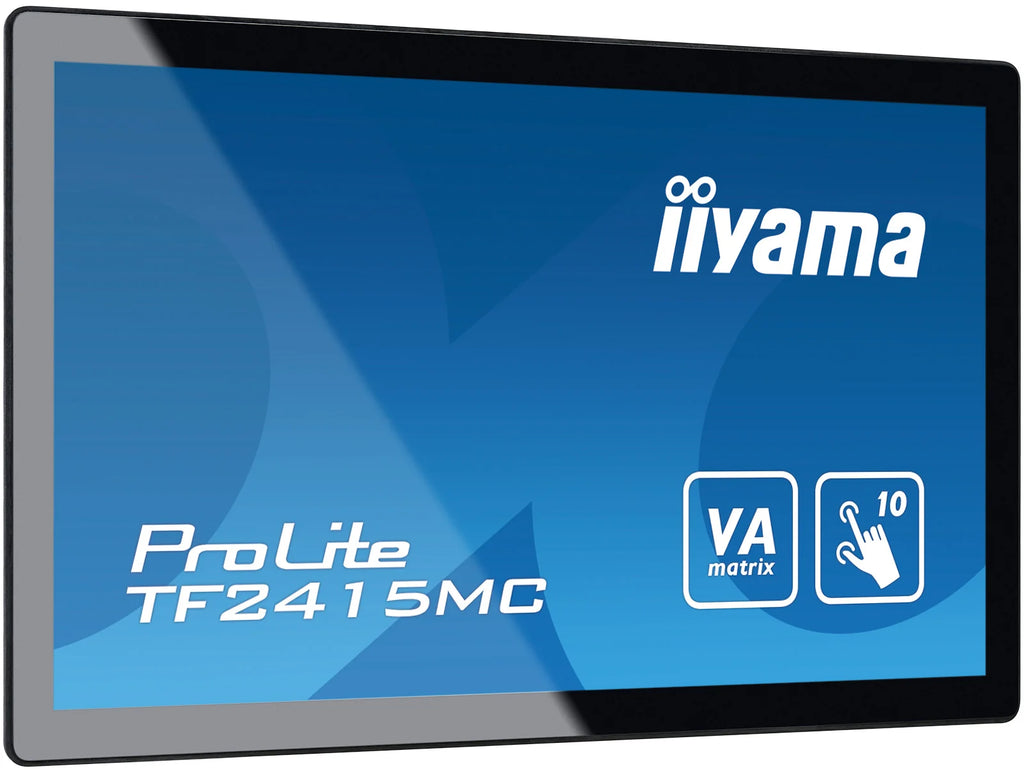

iiyama ProLite TF2415MC-B2 23.8" Open Frame Touch Monitor
iiyama
iiyama ProLite TF2415MC-B2 23.8" Open Frame Touch Monitor

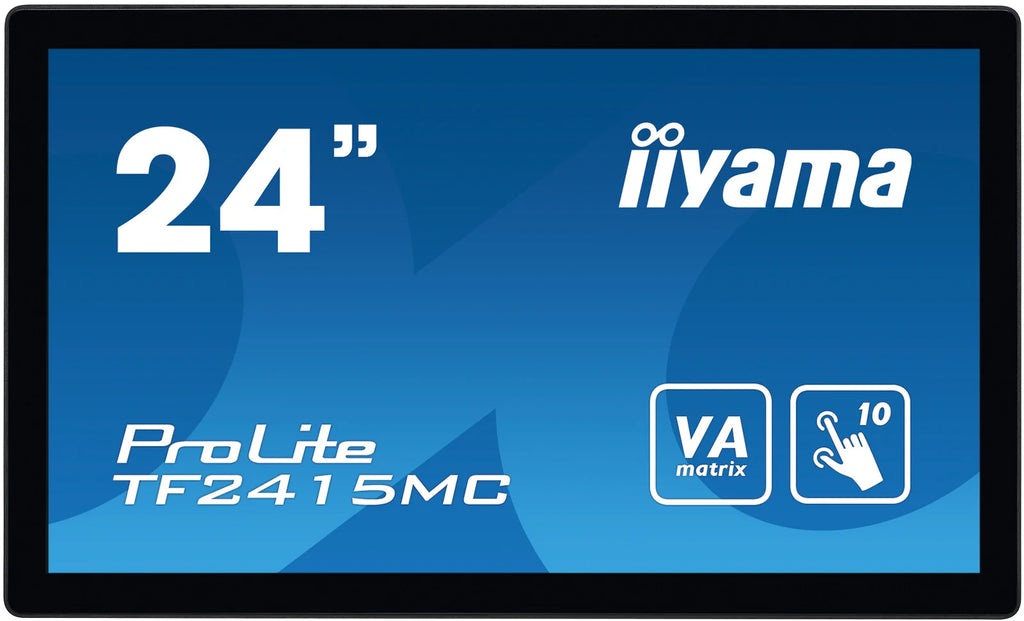

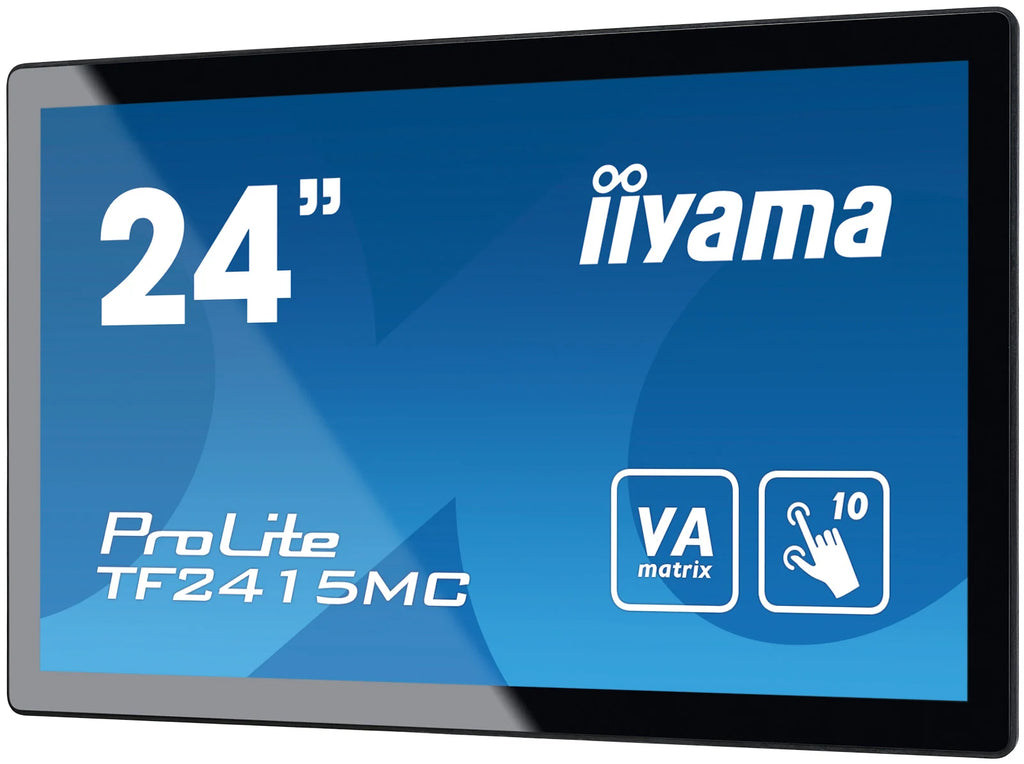

The iiyama ProLite TF2415MC-B2 is a 23.8-inch open frame touch monitor built for kiosks, public installations and industrial control rooms. It combines PCAP multi-touch technology with an IP65-rated, durably glass-coated screen that resists dust, water and scratches, and supports landscape, portrait and face-up mounting for flexible integration.
Why this product

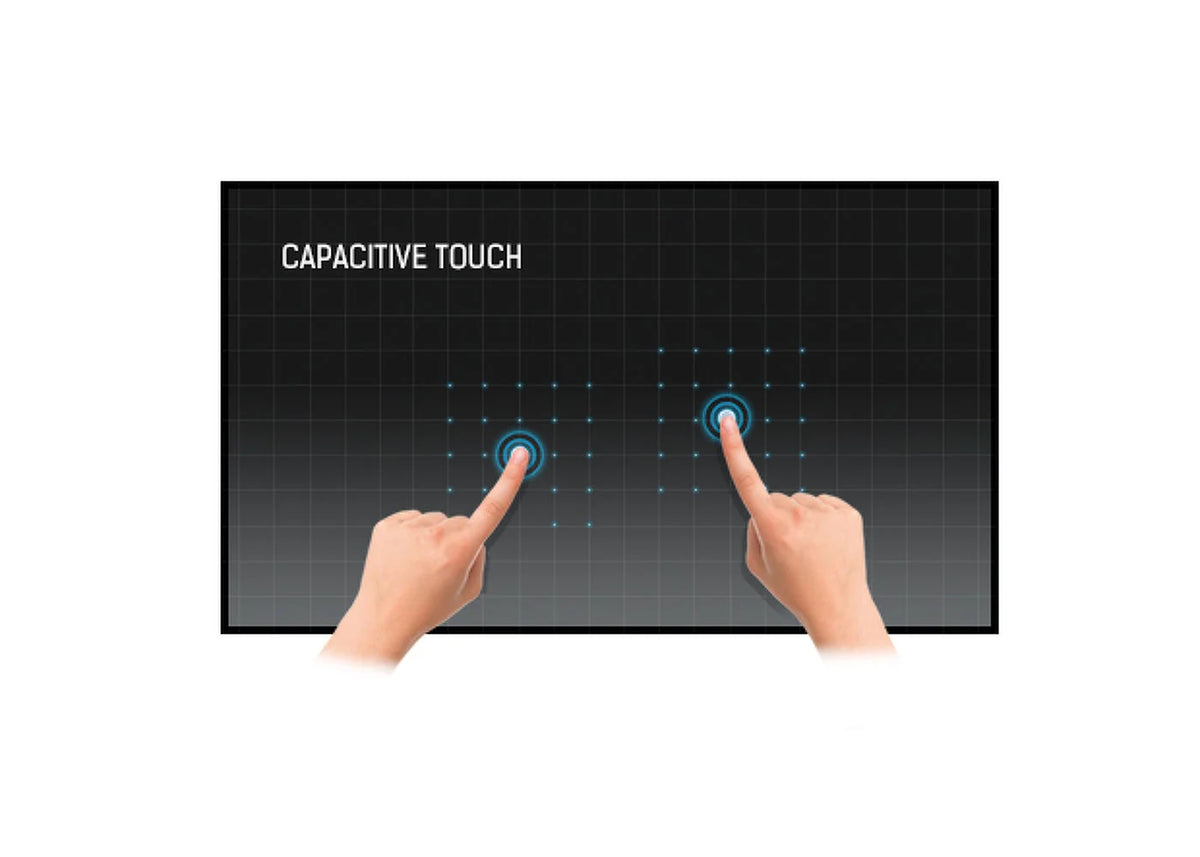

PCAP 10-point multi-touch through glass
Projected capacitive touch works right through the 7H hard-coated glass overlay, supporting simultaneous inputs for interactive applications.
IP65 dust and water resistance
Front-facing IP65 rating and foam seal finish protect against splashes, dust and debris in demanding public and outdoor environments.
Flexible mounting: three orientations
Landscape, portrait and face-up modes allow installation in almost any kiosk, display stand or control room layout. VESA 100×100 mm and optional external brackets support custom builds.
VA panel with high contrast and wide angles
VA technology delivers 3000:1 contrast, darker blacks and 178° viewing angles in both planes, ensuring readability from any position in busy environments.
Low power, multiple connectors
21.7 W in operation, 1.2 W idle. HDMI, VGA, DisplayPort video inputs and USB touch interface simplify integration with existing systems.
- Display Size23.8 inches (60.5 cm)
- Resolution1920 × 1080 (Full HD)
- Touch TechnologyPCAP 10-point multi-touch
- Durability RatingIP65 (front), 7H hard-coated glass
- Power Consumption21.7 W (on), 1.2 W (idle)
- Warranty3 years
- SKUIIY-1551
- EAN4948570116775
- Works with HDMI, VGA and DisplayPort video sources via standard cables included.
- USB touch interface connects to Windows, Linux and other operating systems supporting standard HID touch input.

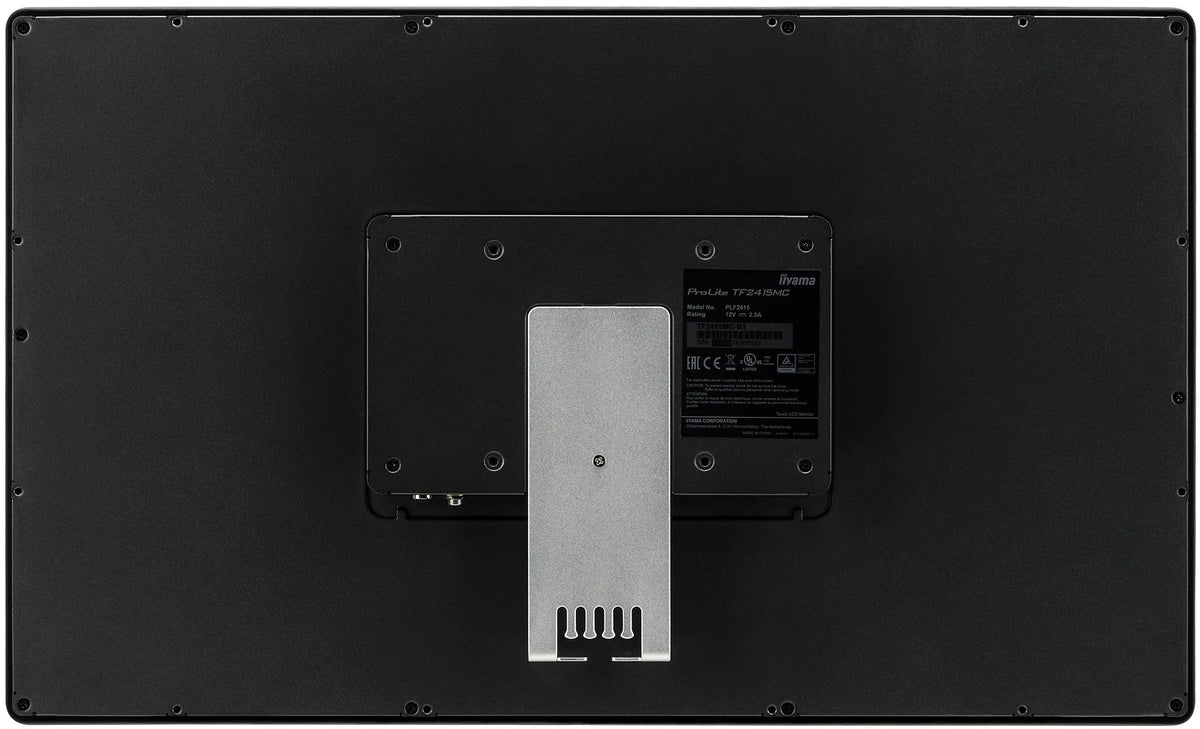

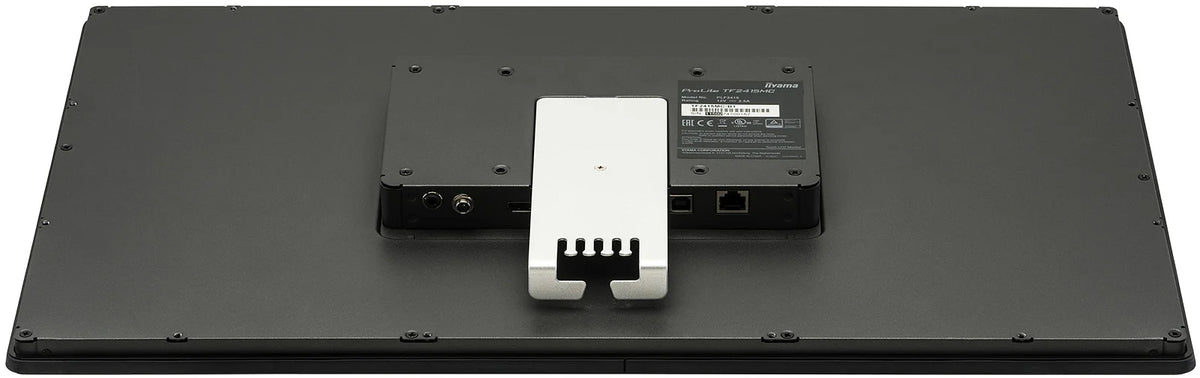

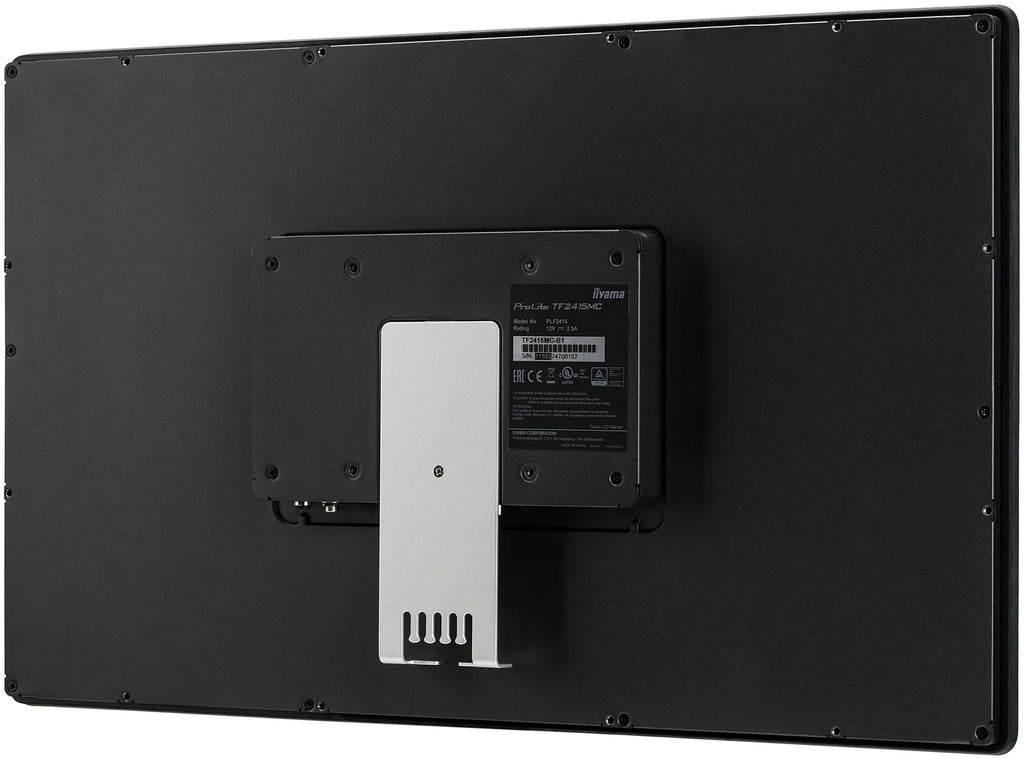

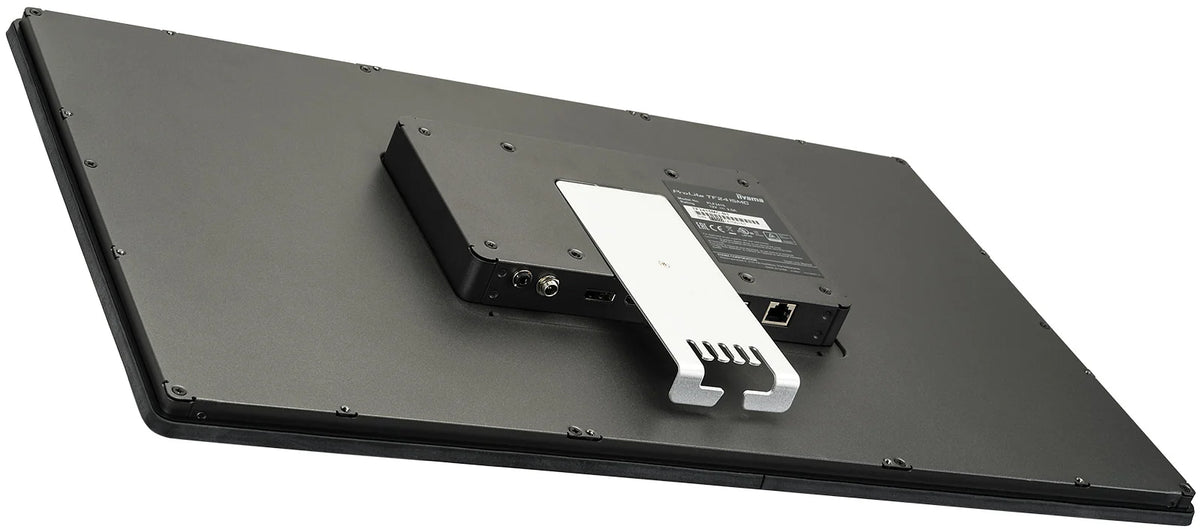

- VESA 100×100 mm mount accepts standard brackets and arms. Optional iiyama OMK2-1 external mounting brackets are available for kiosk integration.
- Operating temperature range 0–40 °C and humidity 20–80 % RH suit indoor public spaces and climate-controlled kiosks.
- IP65 rating applies to the front face only; the rear panel and connectors require protection from direct spray or submersion.
Best for
- Kiosk builders and integrators needing a durable, touch-enabled open frame panel with flexible mounting.
- Public-facing applications—ticket machines, payment terminals, wayfinding—where durability and water resistance matter.
- Control rooms and monitoring stations where landscape or portrait layouts and wide viewing angles are required.
- Low-power installations; 21.7 W operation and 1.2 W idle mode reduce energy and cooling demands.
Trade-offs
- Consumer retail or home use: An open frame panel requires custom housing, mounting hardware and integration; it is not a standalone monitor.
- Outdoor direct sunlight: 350 cd/m² brightness is mid-range for indoor and semi-shaded environments, not high enough for bright outdoor daylight.
- Immersive splash or submersion: IP65 protection covers the front face only; rear connectors and internal components are not sealed for wet environments.
- High-speed gaming or video work: 16 ms response time and 60 Hz refresh are adequate for business and kiosk use, not for latency-sensitive applications.

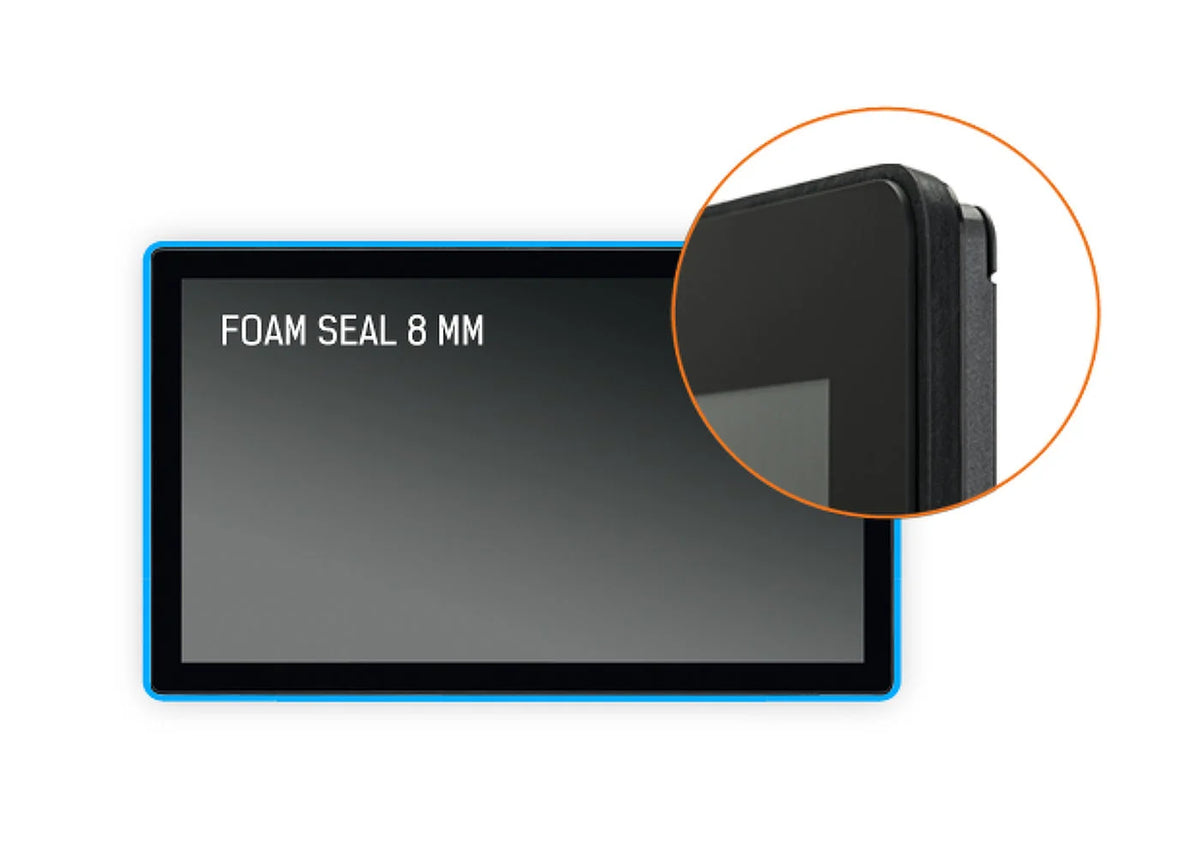

The ProLite TF2415MC-B2 (23.8 inch) uses PCAP touch technology and is built into an eye-catching bezel with edge-to-edge glass. Thanks to a glass overlay covering the screen and a rugged bezel, it guarantees high durability and scratch-resistance, making it perfect for kiosk and high use public facing applications. Equipped with a foam seal finish it supports seamless integration into kiosks and provides IP65 rating resulting in dust and water resistance from the front. Landscape, portrait and face-up orientation ensures flexible mounting possibilities in almost any installation.

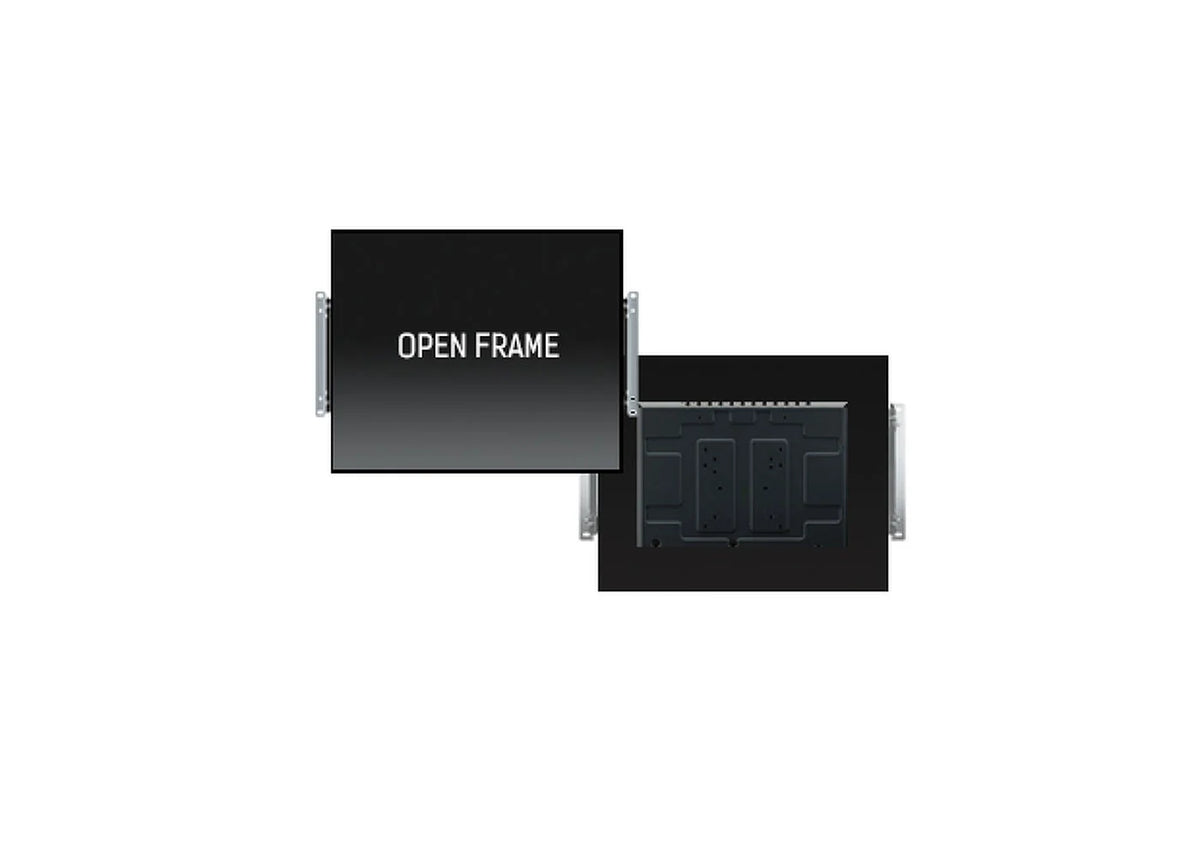

For ease of integration, the TF2415MC-B2 can be equipped with optional external mounting brackets (OMK2-1) making it an ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.
General
| Brand | iiyama |
|---|---|
| Model | ProLite TF2415MC-B2 |
| Panel Type | VA |
| Colour | Black |
Performance
| Native Resolution | 1920 × 1080 at 60 Hz |
|---|---|
| Aspect Ratio | 16:9 |
| Pixel Pitch | 0.2745 mm |
| Brightness | 350 cd/m² |
| Contrast Ratio | 3000:1 |
| Response Time | 16 ms |
| Viewing Angle (H/V) | 178° / 178° |
| Colour Support | 16.7 million colours |
Durability
| Touch Technology | Projected Capacitive (PCAP), 10-point multi-touch |
|---|---|
| Screen Coating | 7H Hard Coating |
| IP Rating | IP65 (front) |
| Operating Temperature | 0 – 40 °C |
| Storage Temperature | -20 – 60 °C |
| Operating Humidity | 20 – 80 % |
| Warranty | 3-year warranty |
Connectivity & Mounting

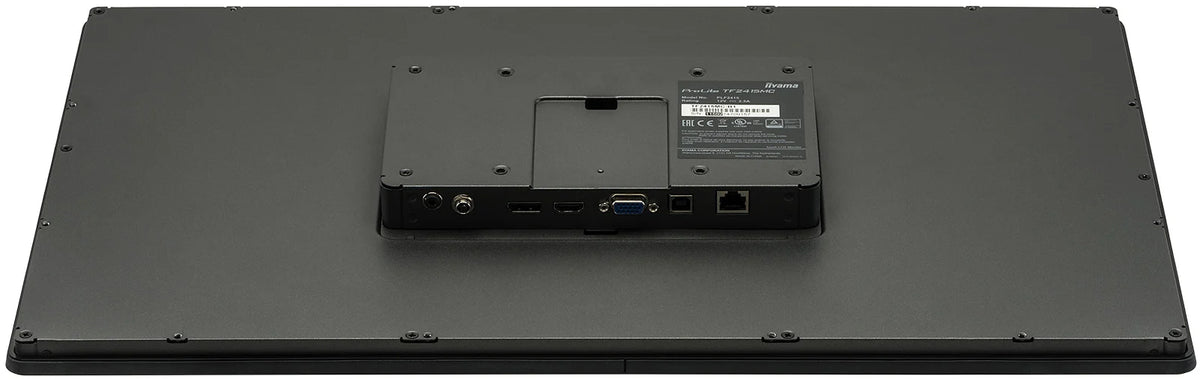

| Video Inputs | HDMI, VGA, DisplayPort |
|---|---|
| Touch Interface | USB |
| Audio Output | Yes (1 × audio output) |
| VESA Mount | 100 × 100 mm |
| Orientation Support | Landscape, Portrait, Face-up |
| Dimensions (W × D × H) | 575 mm × 42.5 mm × 347 mm |
| Weight | 5.8 kg |
| Power Consumption (On) | 21.7 W |
| Power Consumption (Idle) | 1.2 W |

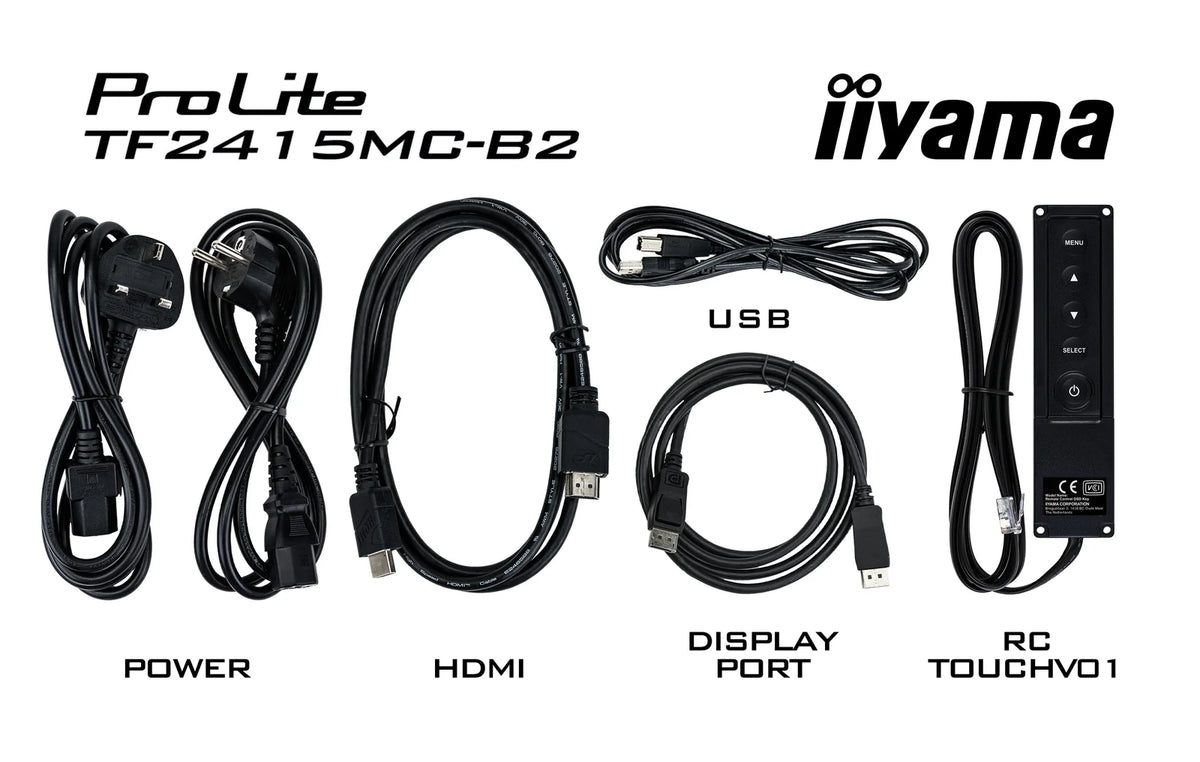

| Cables Included | USB, HDMI, DisplayPort, Power Cable, Power Supply Unit, QSG |
